Vpon VP-504 User manual

Network DVR System
Hardware User Manual
VP-504 / 508
VP-504H / 508H

Notice
The information in this manual was current when published. The manufacturer reserves the
right to revise and improve its products. All specifications are therefore subject to change
without notice.
Note: Formosa21 will not be obligated to the responsibility outside the scope of VPON
DVR.
Trademarks
VPON ® is a registered trademark of Formosa 21 Inc.
Microsoft, Windows, Internet Explorer ® are registered trademarks of Microsoft
Corporation. Netscape, Navigator, Communicator ® are registered trademarks of Netscape
Corporation. Other brand and product names referred to in this manual are trademarks or
registered trademarks of their respective holders.
Trademarked names are used throughout this manual. Rather than place a symbol at each
occurrence, trademarked names are designated with initial capitalization. Inclusion or
exclusion is not a judgment on the validity or legal status of the term.
Warning
To reduce risk of electric shock, do not remove cover. No user service-able parts inside.
Refer servicing to qualified service personnel.
Do not expose this appliance to rain or moisture.
Do not install this product in hazardous areas where highly combustible or explosive
products are stored or used.
Severe impact or vibration may cause malfunction.
Do not move this product when VPON is working.
Position it in an open space with flat surface, and also maintain at least 15 cm between
the left and right sides of the body and the wall.
The lightning flash/arrowhead symbol, within and equilateral triangle, alerts the user to the
presence of a shock hazard within the product’s enclosure.
GUARANTEE
Every care has been taken in the preparation of this manual; if you detect any inaccuracies
or omissions, please inform FORMOSA21, INC, in Taiwan or your local distributor.
FORMOSA21 cannot hold responsible for any technical or typographical errors and
reserves the right to make changes to the products and manuals without your prior notice.
FORMOSA21 makes no warranty of any kind with regard to the material contained within
this document, including, but not limited, the implied warranties of
merchantability and fitness for a particular purpose. FORMOSA21 shall not be liable or
responsible for incidental or consequential damages in connection with the furnishing,
performance or use of this material.
Warranty does not cover
Damage caused by willful or accidental mishandling, removal of VPON warranty labels,
environmental conditions, including, electrical surges. Warranty will be voided if any of
these conditions occur.
Preface

Important information
Before proceeding, please read and observe all instructions and warnings contained in this
manual. Retain this manual with the original bill of sale for future reference and, if
necessary, warranty service.
When unpacking your VPON unit, check for missing or damaged items. If any item is
missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT.
Contact your dealer or us for assistance.
About this manual
This manual provides you with instructions for setting up and operating your VP-504(H)/
508(H) hardware, and consists of the following sections:
Chapter 1:
Provides a summary of features and explains how to set up the VP-504(H)/508(H).
Chapter 2:
Explains how to connect and configure the VP-504(H)/508(H) for Network mode.
Appendix:
Provides notification and troubleshooting guide.
Copyright
This publication, including all photographs, illustrations, and software, is protected under
international copyright laws, with all rights reserved. Neither this manual nor any material
contained herein may be reproduced without written consent of manufacturer.
Copyright ○
c2005

Chapter1. Getting Started ………………………………………………………………………..1
1.1 Unpacking the VP-504(H)/508(H) ……………………………………………………1
1.2 Introducing the VP-504(H)/508(H) …………………………………………………2
1.3 Overview ……………………………………………………………………………..2
1.4 Connecting peripheral devices to VP-504(H)/508(H) ……………………………5
1.5 Turning on the VP-504(H)/508(H) ……………………………………………….5
1.6 About running modes ………………………………………………………………6
1.7 Graphic User Interface ……………………………………………………………….7
“PLAY” function………………………………………………………………….7
“Surveillance screen” panel……………………………………………………….8
“LIVE” function…………………………………………………………………..9
“IO” function……………………………………………………………………...9
“GOTO” function………………………………………………………………..10
Chapter2. Network Mode ………………………………………………………………11
2.1 Connecting to the network ………………………………………………………11
2.2 Configuring the VP-504(H)/508(H) …………………………………………………11
2.3 Using xDSL or cable Internet ………………………………………………………12
2.4 Using dial-up Internet ……………………………………………………………..13
2.5 Remote access using dial-up ……………………………………………………13
Appendix
A: Notification
B: Troubleshooting
Contents

1
The Chapter introduces the VP-504(H)/508(H), explains how to set the unit up for the first
time, and covers basic operation. More detailed explanations of the functions of the VP-504
(H)/508(H) are covered in later chapters.

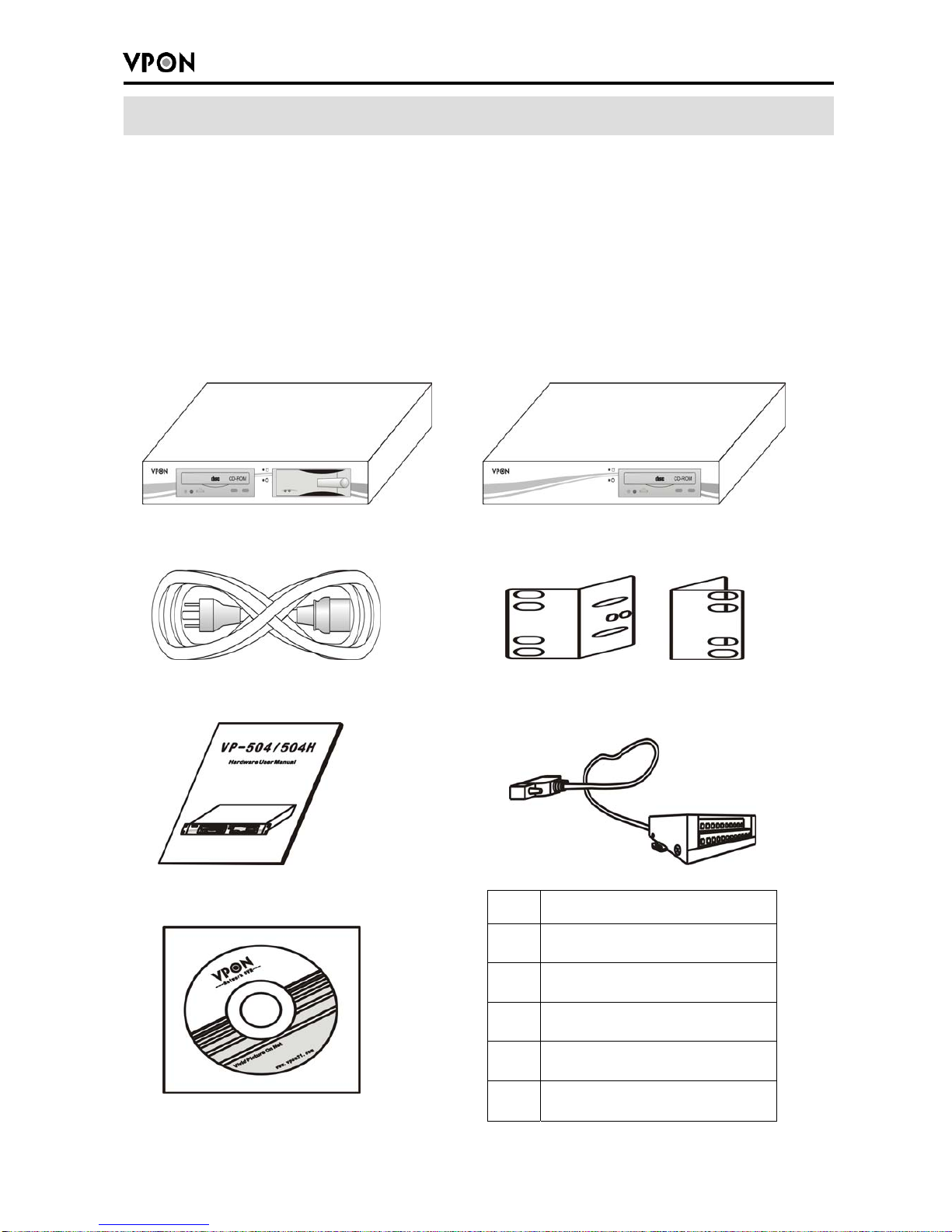

1.1Unpacking the VP-504(H)/508(H)
If any of the following items are missing or appear damaged, contact your vendor
immediately.
1) VP-504/508 OR VP-504H/508H
2) (3)
(4) (5)
(6)
1 VPON Server
2 AC power cable
3 Rack mount brackets
4 Hardware User manual
5 I/O BOX
6 E-book on CD
Chapter1. Getting Started

2
1.2 Introducing the VP-504(H)/508(H)
VP-504(H)/508(H) is a stand-alone Network DVR System. With 4 or 8 video input, one audio
input. It has Removable Hard Driver, CD-RW Driver for backup. VP-504(H)/508(H) provides
Graphic User Interface for operation. Watch Dog function for system automatic failure recovery.
The video also can display through VGA output in local. Besides, VP-504(H)/508(H) support
digital recording function. It can record/playback/browse video simultaneously and save video data
by cycle recording to removable hard disk.
VP-504(H)/508(H) supports full motion live video footage with its corresponding audio
through the Internet, Intranet connection. Up to 4 or 8 cameras allow to be connected,
VPON deliver real-time full-motion audio/video transmission to anywhere anytime. All that
is needed is an Internet browser and our proprietary plug-ins software. Attached video
cameras can be remotely controlled to swivel and zoom in and out, and the unit can be
triggered to initiate certain events. VPON is a completely plug and play device getting up
and running as soon as possible without the need for ongoing maintenance or custom
hardware /software configurations.
The installation is easy:
All you have to do is to plug the power and assign VPON an IP address for Internet
connection. Then, you can view the video through your browser, Internet Explorer at any
time, anywhere. It is perfect for factory/office monitoring, ATM surveillance, children care,
security system, tourism, sales presentation and more...VPON is the new era of the network
video transmission. It makes you see whatever you want easily!
1.3 Overview
This section lists the features and system requirements of the VP-504(H)/508(H) and
includes diagrams of the front panel and rear panel.
1.3.1 Features
 Video & audio recording
 Up to 4 or 8 camera inputs (color or B/W)
 Up to 30 fps on each camera for local monitoring
 Record / display / playback simultaneously
 Built-in QUAD / MUX functions for local monitoring
 Local playback of recorded video on VGA or TV monitor
 Remote playback from PC browser
 Query recorded data by date, time & events
 Control well known brand PTZ Cameras
 High video quality and low data rate
 Up to 200:1 video compression
 Multiple video compression engines: H.263, JPEG, M-JPEG, MPEG4

 Network
 Dynamic IP support for Internet access
 Direct Dial-up available

3
 Backup
 Removable Hard Drives
 CD Writer
 Easy to use
 Embedded Linux OS and firmware in flash memory
 Easy configuration via mouse, keyboard or HTTP
 Standard web browser as the client application
 Alarm function
 Motion detection / Event trigger / Schedule / Pre-alarm recording
 Voice Call, E-Mail & FTP alarm notification
 Optional GPI/O for alarm control
 Customization
 Supports HTML file upload for home page customization
 Supports FTP Server upload for customization
 Features
 Point of sales DVR Integration
 Low-bandwidth support
1.3.2 System Requirements
 Composite CCD camera, V8 or camcorder… (NTSC or PAL standard)
 The equipment for connecting to network:
1. Network mode: RJ-45 Ethernet network port connected to Internet and a public IP
address
2. Others: RS-232 Port and a serial cable for connecting to host PC.
3. A VGA monitor for display.
PC for the configuration / browsing
1. Pentium 4 CPU or better, desktop PC or notebook
2. 256 MB RAM or above
3. AGP VGA Card
4. Microsoft Windows 98/2000/ME/XP or above
5.Internet Browser (Microsoft Internet Explorer 6.0 or above)

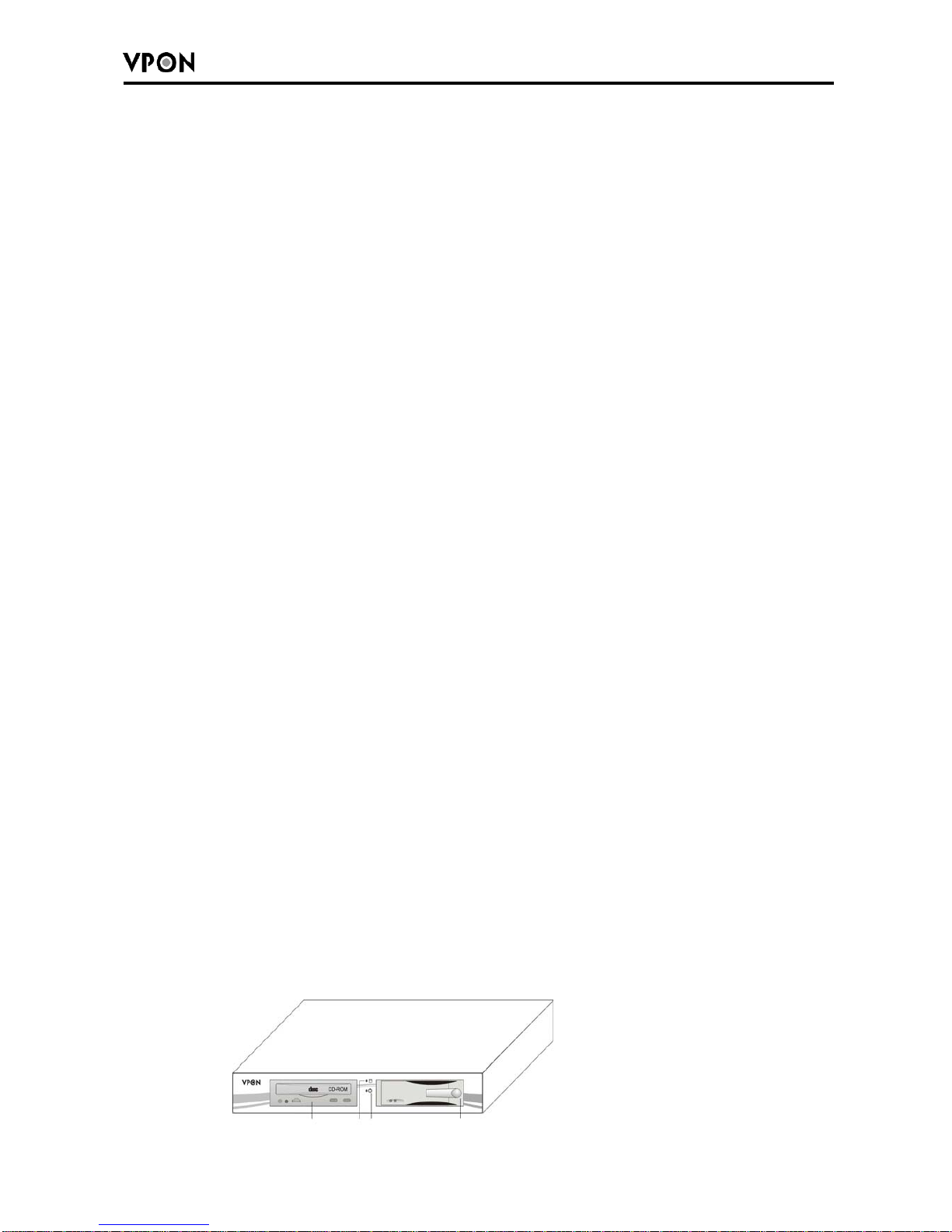

1.3.3 Front panel
A) VP-504/508
1 2 3 4

4
B) VP-504H/508H

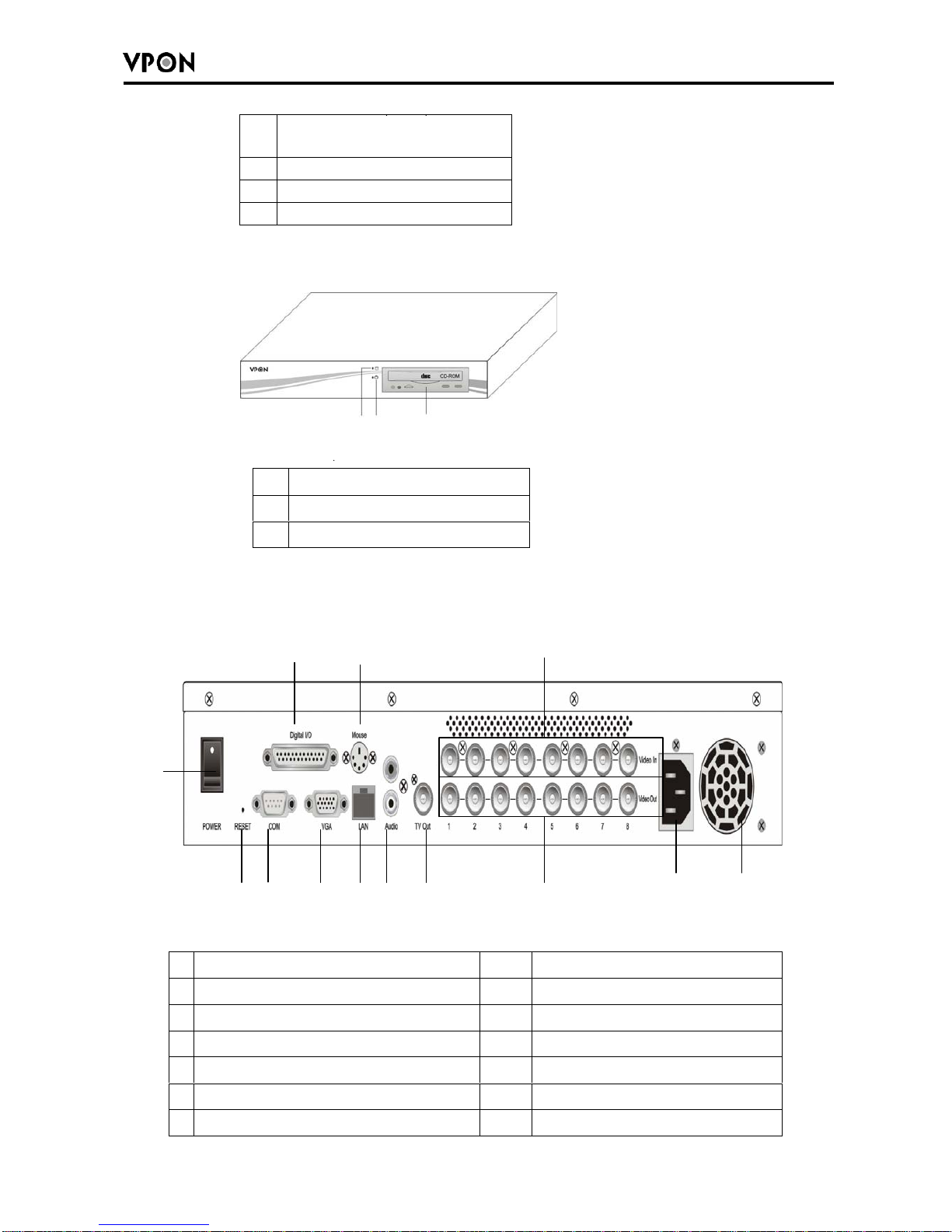

1.3.4 Back panel
1 CD-ROM
2 HDD light
3 Power light
4 Removable hard disks
1 HDD light
2 Power light
3 CD-ROM
1 Power switch 8 LAN ports
2 Digital I/O 9 Audio ports
3 Keyboard and Mouse ports (PS/2) 10 TV out ports
4 Video in ports 11 Video out ports
5 Reset 12 Power input
6 Com ports 13 Case exhaust fan
7 VGA ports
1
2
4
3
12 3
5 6 7 8 9 10 11 12 13

5

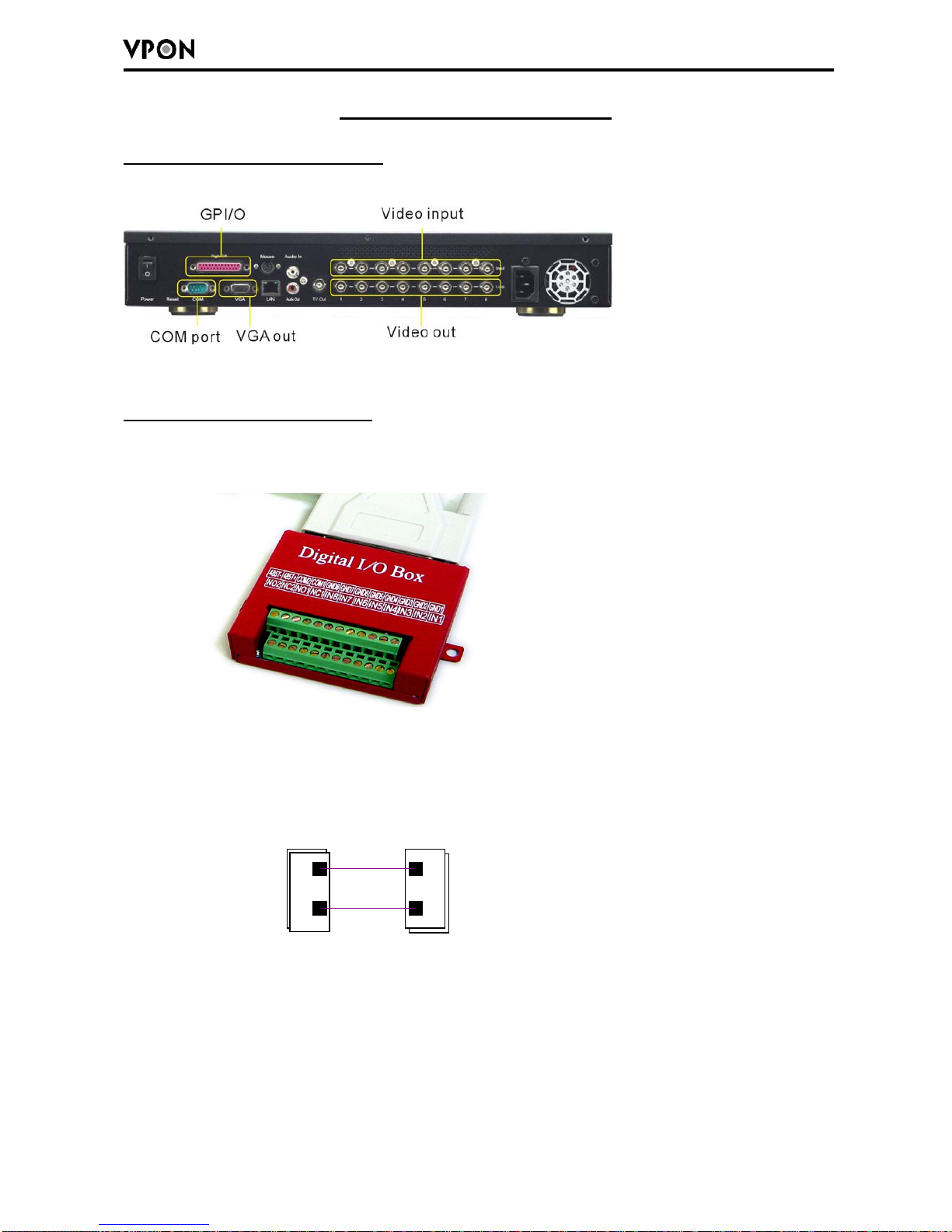

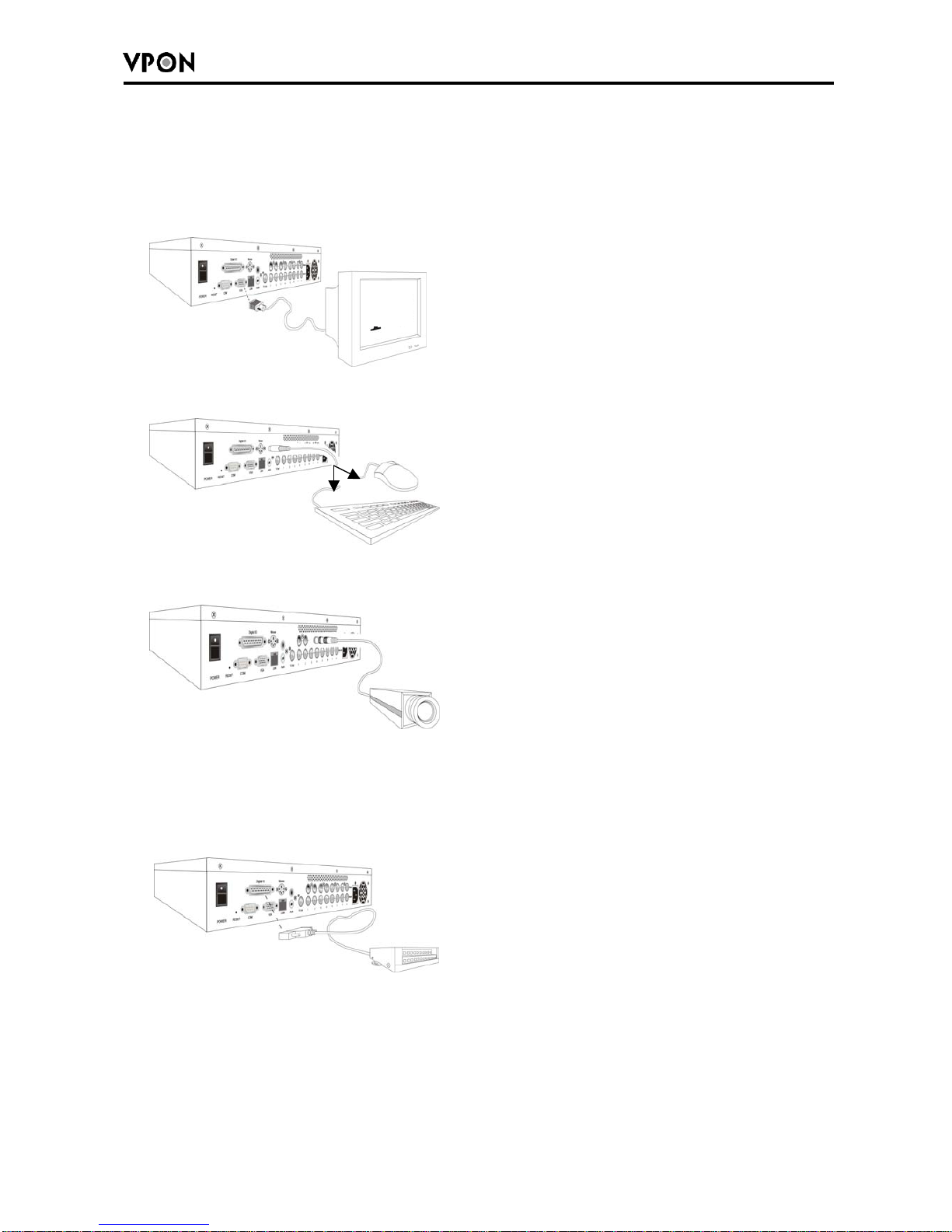

1.4 Connecting peripheral devices to the VP-504(H)/508(H)
Follow these instructions to connect PC, keyboard, cameras and I/O box.
1) Connecting a Monitor
2) Connecting a keyboard and mouse:
3) Connecting cameras:
Note: Ensure that all connected cameras are turned on before attempting to start the VP-504
(H)/508(H) for the first time.
4) Connecting I/O box:
1.5Turning on the VP-504(H)/508(H)
When the VP-504(H)/508(H) is fully connected up as described in Connecting peripheral
devices to the VP-504(H)/508(H) on the page 5, turn on the machine via using the power
switch on the back side of the machine. (Back panel on page 4 for the locations.)

6
1.6 About running modes
The VP-504(H)/508(H) can be configured and maintained locally using a keyboard and
mouse. It can also be connected to a network and maintenance can be carried out remotely
from any network terminal with a standard Internet browser. The default running mode is
the GUI mode.
1.6.1 GUI mode
The VP-504(H)/508(H) is controlled using a mouse and keyboard. Connect a screen and
power as illustrated in Connecting peripheral devices to the VP-504(H)/508(H) on page 5.
Connect a keyboard and mouse as illustrated in Connecting a keyboard and mouse on page
5. You can now use the mouse and keyboard to access the local GUI and configure the VP-
504(H)/508(H). If you want to use only the mouse not a keyboard, you can use on-screen
keypad to enter information in the various fields of the GUI. Refer to the software manual in
the CD for more information.
1.6.2 Network mode
Before you connect the VP-504(H)/508(H) to a network, you will need to decide whether
users and administrators access only from the local intranet or access over the public
Internet. If full Internet access is required, public IP address must be assigned. If access is
only required over the local intranet, a private IP address must be assigned. See your
network administrators about the allocation of an IP address.
The VP-504(H)/508(H) is factor configured with a default IP address of 192.168.10.10. You
will probably have to change this address for the VP-504(H)/508(H) to work on your
network. When you have been allocated a new address by your network administrator, use
the remote control to enter it into the VP-504(H)/508(H). See the software manual in the CD
for detailed instructions.
