VU Telepresence User manual

USER MANUAL

Table of Contents
Network Configuration 3
Preparing Your Room for Telepresence 5
Components 9
Component Installation 10
Component Installation Diagram 11
Software Configuration 12
Network Settings 16
User Settings 18
Diagnostics 20
Time Settings 22
Archives 22
Software Versions 23
Background Images 23
Adding Contacts 24
Placing Calls 26
Tech Support 28

Network Configuration
Before you begin setup and installation of your Vu Telepresence unit, please ensure that the following ports
are open on your network.
If these ports are open, your Vu Telepresence system will operate right out of the box with a working
internet connection.
For the best performance of the Vu system and for interoperability capability, the system must be setup on
a public IP. Special port forwarding rules can be applied when necessary for the Vu system to operate
properly.
Port Access
The following port access is required for both inbound and outbound call flow:
• TCP 5222 XMPP: For XMPP registration and authentication. XMPP is the primary signaling protocol for
Vu Telepresence to establish a call.
• TCP 2202 SSH: Required by Vu support teams. For security purposes, the SSH connection may only
be initialized by Vu support teams. SSH is used as a reverse SSH for support when initiated by the
client.
• TCP 1720 - For H.323-Based Signaling Mode.
• TCP 8080 HTTP - Used for Standalone Mode.
• TCP 7011 - For H.323-Based Signaling Mode.
• TCP 9091 - Used for registering.
• TCP/UDP 5060 SIP - UDP and TCP are required when using the Vu unit for point-to-point
interoperability between manufacturers using SIP.
• TCP/UDP 7009 - For relay server.
• UDP 7000 to 7010 - UDP is required for the upload and download of audio and video.
For further assistance, contact our support team at [email protected], or call 1-855-393-9782.
Trusted Sites
If your organization is conducting web content filtering, the following websites must be added to your
network’s list of trusted sites. Please also add the following sites to the trusted site list of your web browser
or personal firewall on your PC in order to utilize the PC video client:
• vuusa172.opencloudapi.com - Required for patch servers and remote support capability
• vuusa26.opencloudapi.com - Required for patch servers and remote support capability
• talk.vutelepresence.com - Required for web conferencing
• screenshare.vutelepresencego.com - Required to enable screen sharing
3

Before you begin setup and installation of your Vu Telepresence unit, please ensure that the following ports
are open on your network.
If these ports are open, your Vu Telepresence system will operate right out of the box with a working
internet connection.
For the best performance of the Vu system and for interoperability capability, the system must be setup on
a public IP. Special port forwarding rules can be applied when necessary for the Vu system to operate
properly.
Port Access
The following port access is required for both inbound and outbound call flow:
• TCP 5222 XMPP: For XMPP registration and authentication. XMPP is the primary signaling protocol for
Vu Telepresence to establish a call.
• TCP 2202 SSH: Required by Vu support teams. For security purposes, the SSH connection may only
be initialized by Vu support teams. SSH is used as a reverse SSH for support when initiated by the
client.
• TCP 1720 - For H.323-Based Signaling Mode.
• TCP 8080 HTTP - Used for Standalone Mode.
• TCP 7011 - For H.323-Based Signaling Mode.
• TCP 9091 - Used for registering.
• TCP/UDP 5060 SIP - UDP and TCP are required when using the Vu unit for point-to-point
interoperability between manufacturers using SIP.
• TCP/UDP 7009 - For relay server.
• UDP 7000 to 7010 - UDP is required for the upload and download of audio and video.
For further assistance, contact our support team at [email protected], or call 1-855-393-9782.
Trusted Sites
If your organization is conducting web content filtering, the following websites must be added to your
network’s list of trusted sites. Please also add the following sites to the trusted site list of your web browser
or personal firewall on your PC in order to utilize the PC video client:
• vuusa172.opencloudapi.com - Required for patch servers and remote support capability
• vuusa26.opencloudapi.com - Required for patch servers and remote support capability
• talk.vutelepresence.com - Required for web conferencing
• screenshare.vutelepresencego.com - Required to enable screen sharing
4

Preparing Your Room for Telepresence
A great video meeting is more than a camera, microphone, and agenda. On this page we provide our
recommendations for setting up your meeting room.
Camera/Display Placement
For the most natural communication experience, place the base of your TV display and the center of your Vu
Telepresence camera at 4 to 4.5 feet above ground level. When seated, this eye-level setup enhances the
face-to-face experience.
Proper Telepresence Lighting
Lighting can make or break your video
conferencing session. Follow this list of do’s and
don’ts for the best image possible.
Do: Position soft and bright lights in front of the
user on camera. For best results, elevate these
lights to a 45 degree angle above the line of sight.
Don’t: Position lights directly above the presenter.
Ceiling lights create harsh shadows in the eyes.
Don’t position the user between Vu Telepresence
and windows. This strong lighting from behind will
cause the user on camera to appear as a
silhouette.
Flourecent lights may cause an unwanted green tint and
flicker to your video. For best results, use tungsten or LED lights.
5

Do: Use constant burning bulbs such as tungsten or LED lighting.
Don’t: Use alternating current bulbs such as flourescent lighting (for best results).
Optimizing Telepresence Audio
Empty rooms with hard/flat walls and surfaces can create
unwanted reverb or echo during your video call. To
reduce these audio disturbances modify your room with
any of the following choices:
• Furniture (especially upholstered)
• Curtains
• Venetian blinds
• Plants in the corner spaces
• Baffles for rooms with high ceilings
• Sound dampening panels
These tools help to break up the sound waves that
contribute to echo and reverb. The more disturbances
that you can reduce organically, the better Vu
Telepresence will process and reproduce your natural
voice.

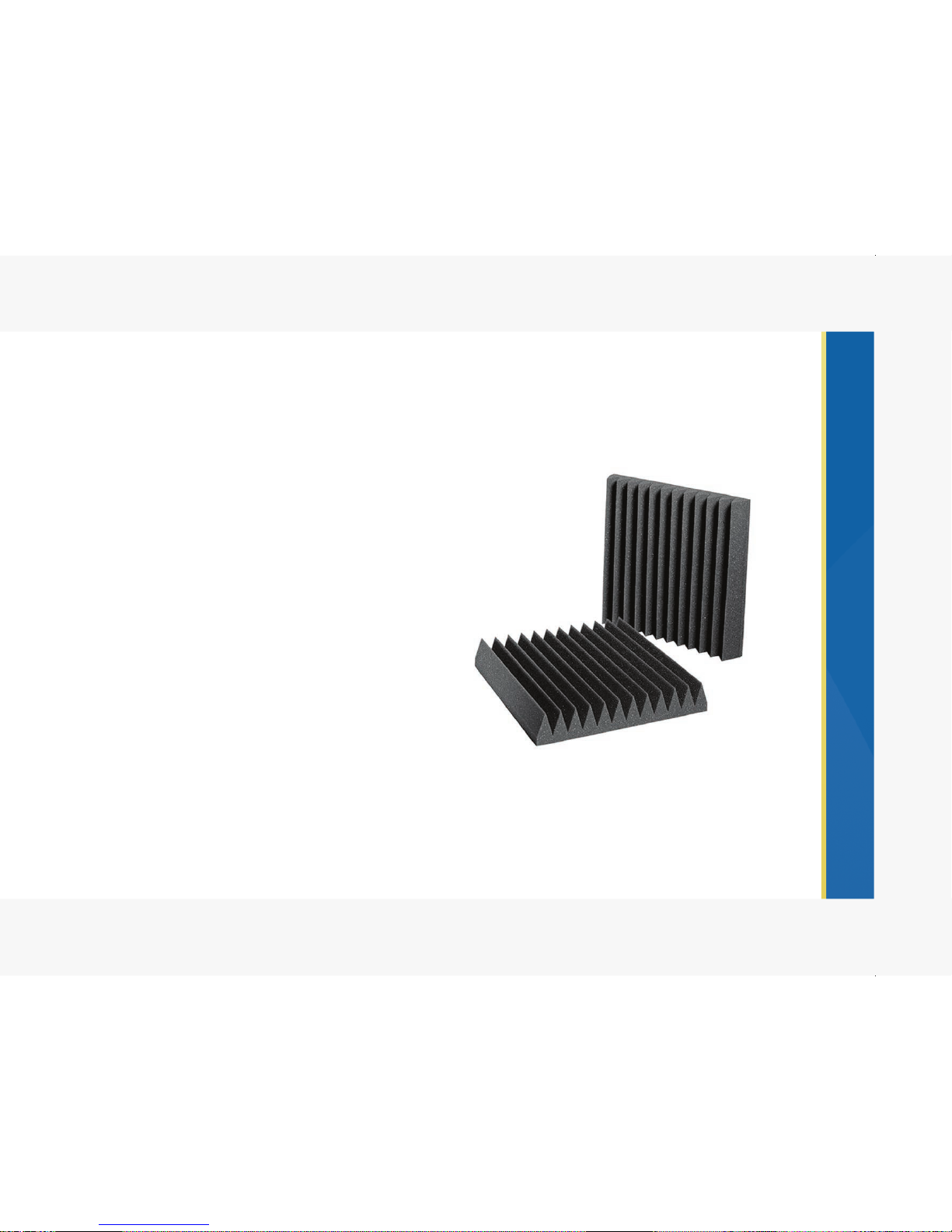

Sound dampening panels like these help to reduce echo
and reverb in your room.
6

Colors and Patterns
Vu Telepresence is designed to
automatically focus on the user and
calibrate the image to produce the
best image results in any
environment. However, there are
some steps you can take to ensure
the best color reproduction. See
this list of dos and don’ts.
Do: Position a light blue
background behind the user. Light
blues and light greens enhance the
natural skin tones of the user which
draws in the attention of other
meeting attendees.
Don’t: Include too much bright red in the frame. Bright reds will take away from the presentation of the
user, and may affect the natural representation of skin tones.
Do: Include a range of colorful objects in view. Dynamic colors contribute to an impressive image for your
meeting attendees to see.
Don’t: Position patterned objects or clothing directly in the center of the camera frame. These patterns can
confuse the camera’s auto-adjustment sensors and make the video fluxuate in and out of focus.
Avoid red backgrounds. Blue/green tones will enhance the skin tones of the user.
7

8

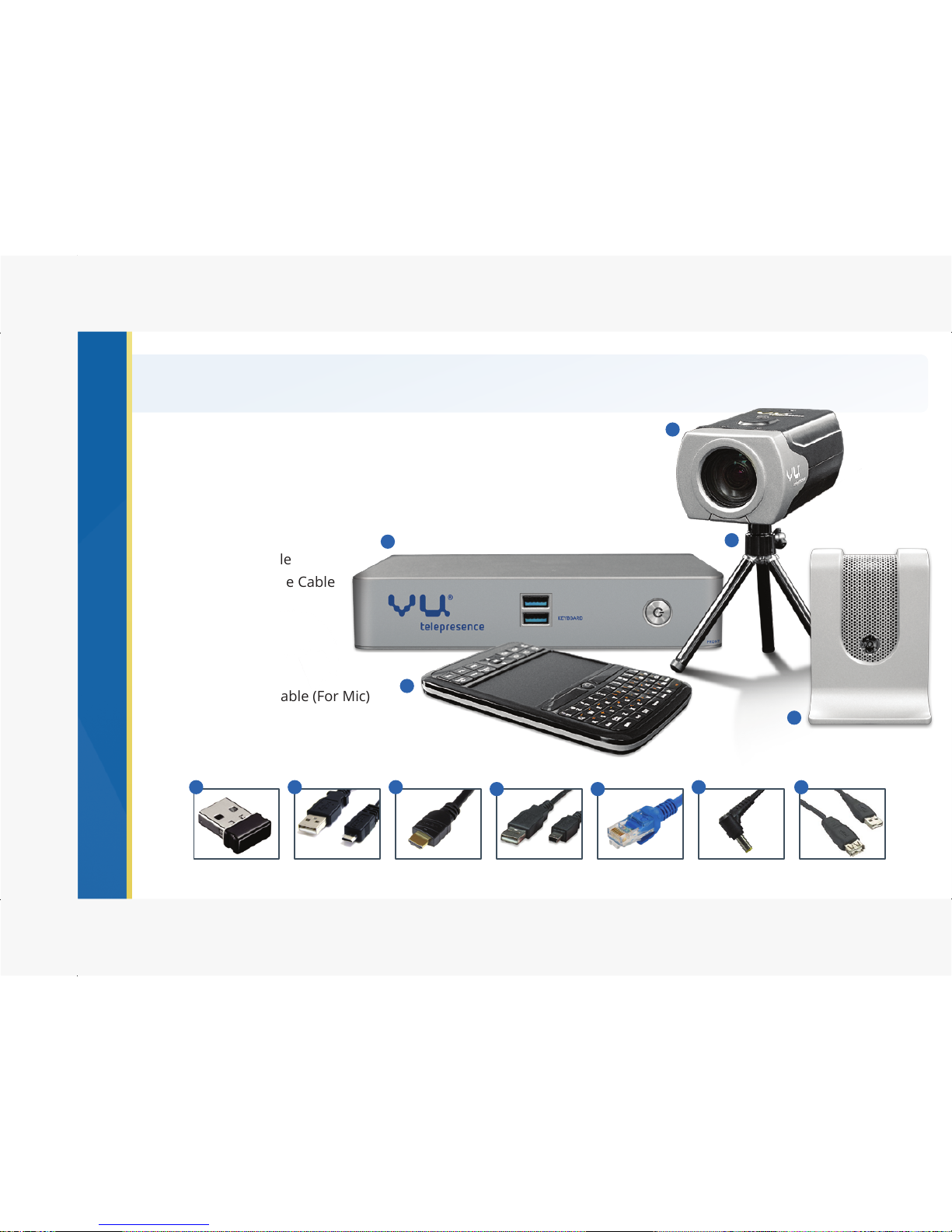

Vu Telepresence Components
A. Codec
B. Camera
C. Tripod
D. Micropone
E. Keyboard
F. Keyboard Dongle
G. Keyboard Charge Cable
H. HDMI Cable
I. Camera Cable
J. Network Cable
K. Power Adapter
L. USB Extender Cable (For Mic)
A
D
E
F G H IJK L
B
C
9

Component Installation
[Do not power on Vu Telepresence until all components are connected and all necessary ports are open.]
Step 1 - Plug camera [B] into back USB port on codec [A] using camera cable [I].
Step 2 - Affix camera [B] onto tripod [C].
Step 3 - Plug microphone [D] into back USB port on codec [A]. You may use the optional
USB extender [L] between the microphone and codec for extra length.
Step 4 - Plug keyboard dongle [F] into bottom front USB port on codec [A].
Step 5 - Turn on the keyboard using the switch on the side. You may need to charge the
keyboard using camera charge cable [G].
Step 6 - Plug network cable [J] into codec [A] and the desired network port.
Step 7 - Plug HDMI cable [H] into codec [A] and your desired display monitor (not
included).
Step 8 - Plug power adapter [K] into codec [A].
Step 9 - Press the power button on the front of codec [A] to begin software setup.
10

Component Installation Diagram
Camera
to USB
B
Tripod to
Camera
C
Keyboard Dongle
to USB
F
Power Adapter
to Outlet
K
I
A: FRONT
A: BACK
HDMI to
Display H
Network Cable
to Network
J
Microphone
to USB
D
11

Software Configuration
Before powering on your Vu Telepresence unit ensure all ports have been opened as explained on page 2.
For instructional setup videos visit www.vutelepresence.com/support.
Step 1 - Power up:
• Turn on the display first.
• Ensure that the proper HDMI source is selected on the display.
• Press the power button on the front of the Vu Telepresence unit.
• After the booting process you will enter configuration screen.

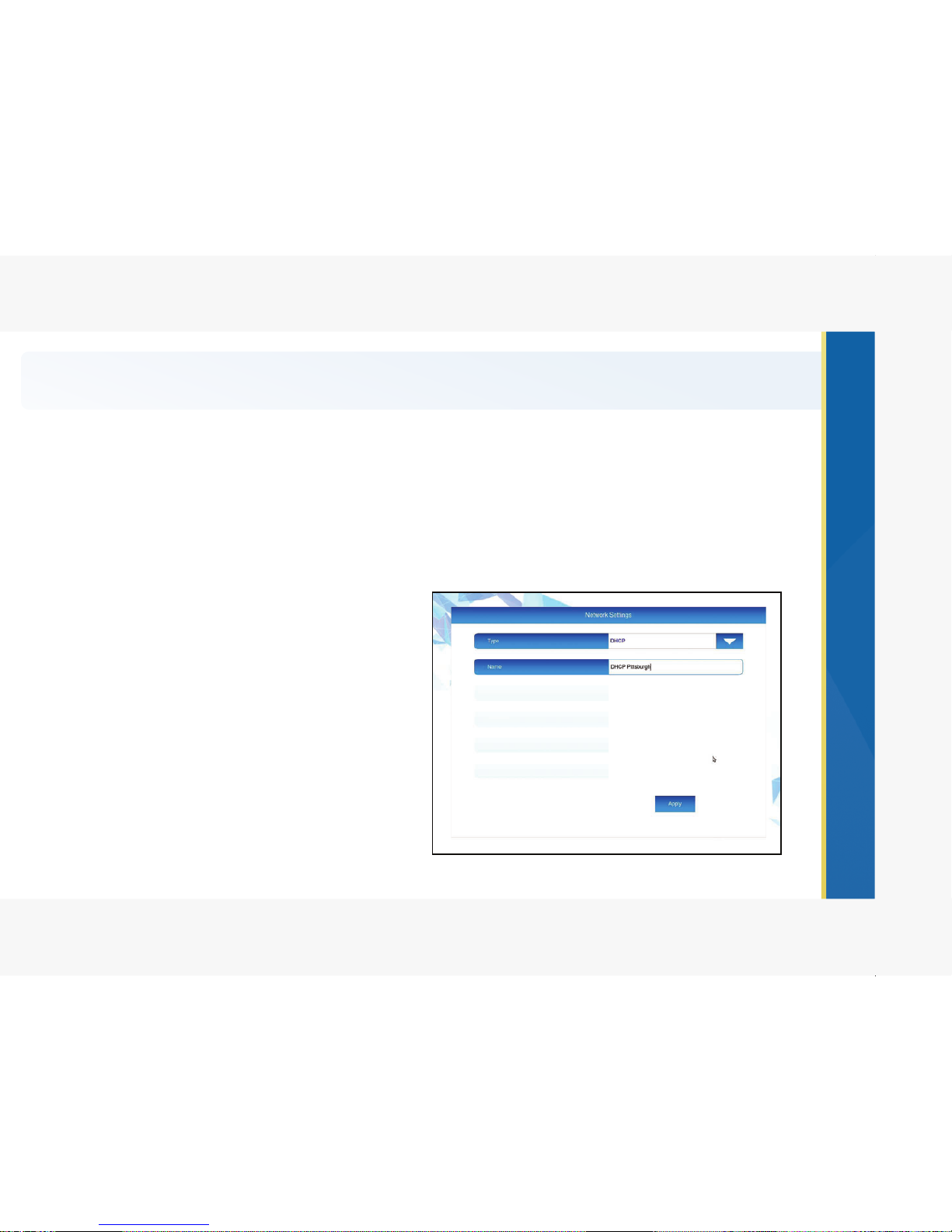

Step 2 - Network Settings:
• If you have a DHCP service enabled on your private
network select DHCP:
- Name this network and click next.
- Vu will automatically configure IP settings.
• If you want to configure a Static IP in case a public or
private network select Static:
- Name this network.
- Enter IP, Netmask, Default Gateway, and DNS
details manually.
12

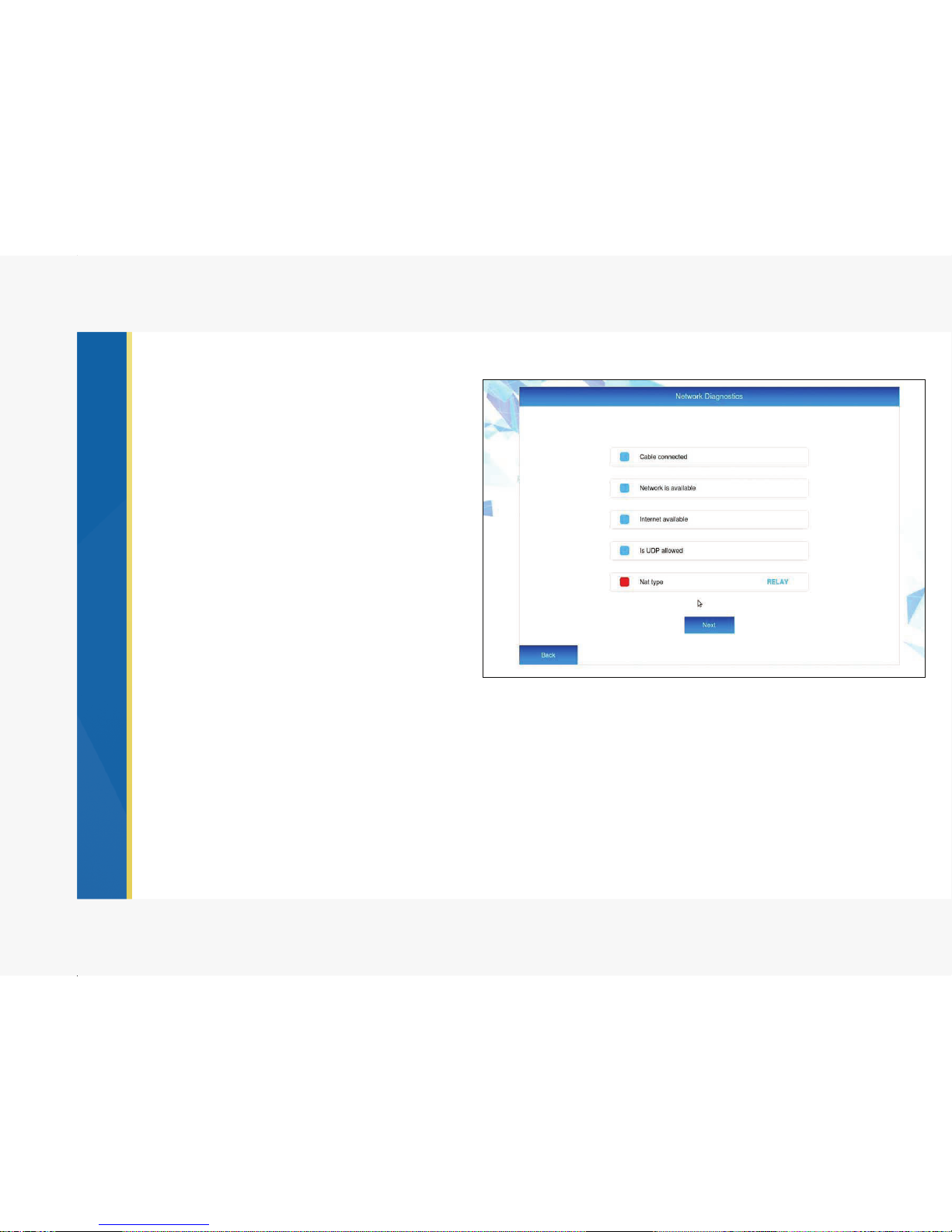

Step 3 - Network Diagnostics:
• Confirm that the network cable is
connected - Blue
If red, the network cable is not successfully
inserted into the network port on the codec.
Check to make sure the cable is fully
inserted.
• Confirm network is available - Blue
If red, the codec is not connected to a live
network. Check with your IT
administrator/ISP to ensure that your
network is active.
• Confirm Internet is Available - Blue
If red, the network you are connected to
cannot access the internet. If you choose to
operate Vu in StandAlone mode within a
closed network, this box should be red.
• Confirm Is UDP Allowed - Blue
If red and “UDP Not Allowed,” the Vu Telepresence is inhibited by a firewall. Check with your IT
administrator to allow access.
• Confirm NAT Type
NAT Type will be red “Relay” if operating on a private IP.
NAT Type will be blue “Public” if operating on a public IP.
13

Step 4 - User Settings:
• Create your Vu Telepresence identity.
Ensure that port 9091 is open before
completing this step. Otherwise Vu
Telepresence will not register your chosen
credentials.
Vu Name: Choose a name for your Vu
Telepresence unit. This name will be
public and searchable in the Vu directory.
It is how you will appear in a contact list.
Create a name with 15 characters or less.
If your desired name is already taken you
will be notified and prompted to choose
another.
Vu Number: Choose a 10 digit number for
your Vu Telepresence unit. This unique
number will be public and searchable in
the Vu directory. Others will use this
number to search for your contact. If your desired number is already taken you will be notified and
prompted to choose another.
14

Step 5 - Time Settings:
Choose your date and
time settings.
You will be taken to the
home screen
after this step is complete.

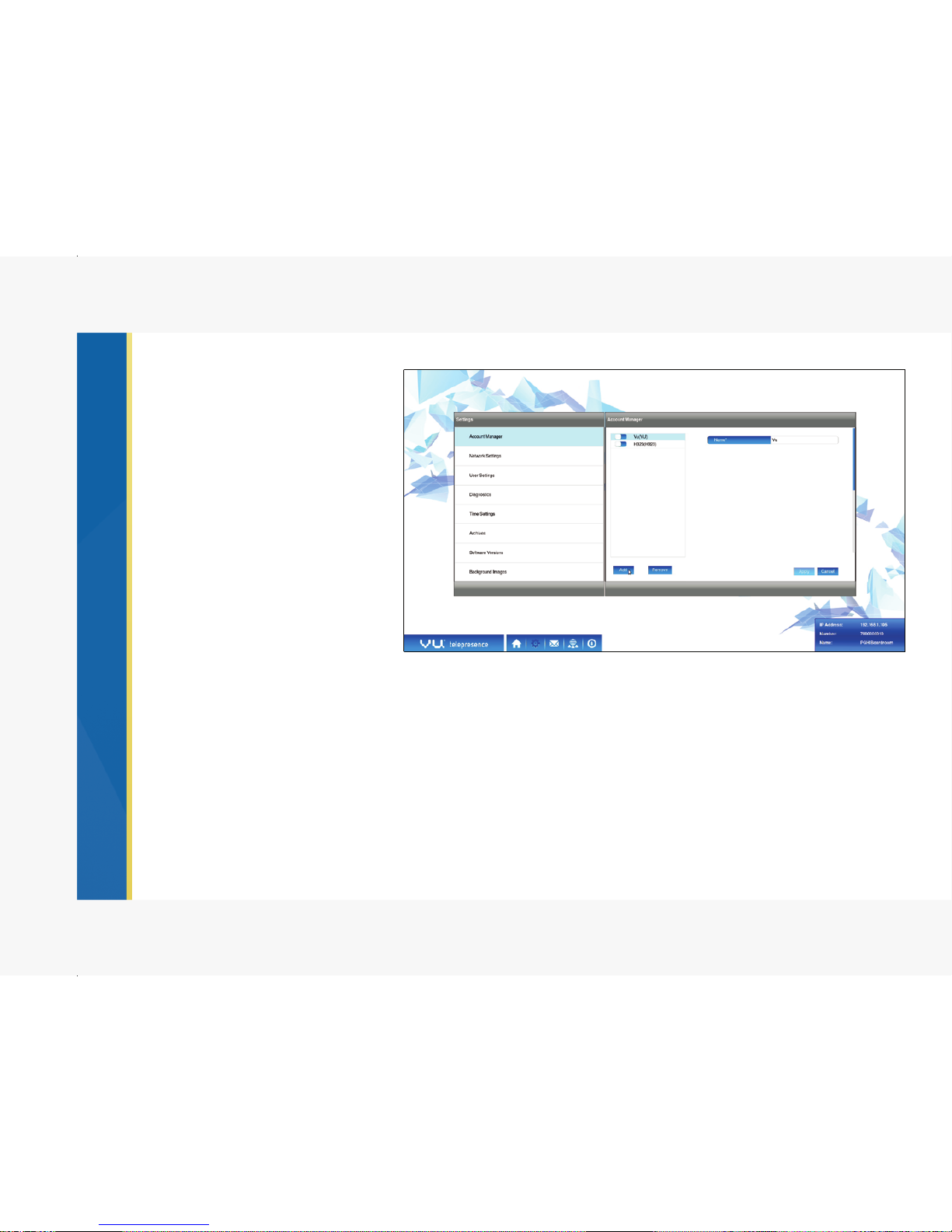

Step 6 - Connection Manager:
Out of the box Vu is configured
to execute Vu-to-Vu, H.323, and
SIP calls. These must be
activated with this simple step.
Click the gear icon at the
bottom of the home screen to
enter settings. No password is
required during setup. Click “Connection Manager” at the upper left. In the center ofthe screen you will see
a window with blue switches labeled “Vu,” “H.323,” and “SIP.” Press the switch next to each account to turn
them red. Then press the switch again to reactivate them to blue.
Congratulations! You are now ready to add contacts and start Vuing!
15

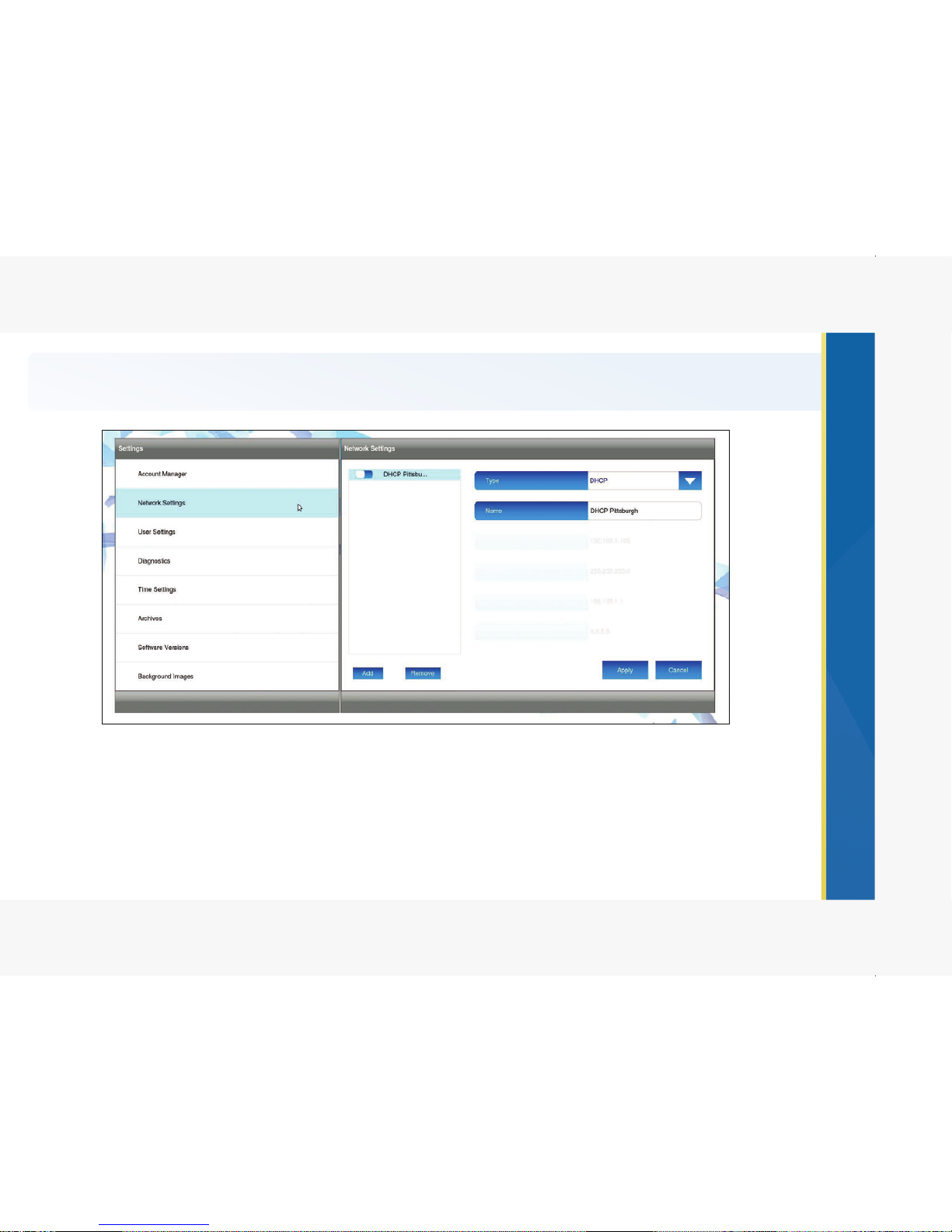

Network Settings
Some users may be interested in transporting their Vu unit from location to location or IP to IP. In this case,
Vu has made it easy to save these network settings for quick access later. Under Network Settings you may
create any number of network profiles and switch them off and on depending on which profile you wish to
use at the current time and location.
16

To set up a new network:
• Click Add.
• Select the network Type: DHCP or Static.
- If you are operating on a DHCP service enabled private network, DHCP will automatically configure
your settings. Name this network and click Apply.
- If you desire to provide a fixed Public or Private IP choose Static, you will need to fill in the proper IP
address, Subnet Mask and Default gateways for your static IP. (For these details please contact you
network admin or ISP.) Name this network and click Apply.
Saving additional network configurations
• To set up a new network profile first click Add.
• Confirm that the Vu unit has access to the new network.
• Select the network Type: DHCP or Static.
- If you are operating on a DHCP service enabled private network, DHCP will automatically configure
your settings. Name this network and click Apply.
- If you desire to provide a fixed Public or Private IP choose Static, you will need to fill in the proper IP
address, Subnet Mask and Default gateways for your static IP. Name this network and click Apply.
When you move your Vu system to a new network you may switch back and forth between your
configured network profiles by pressing the switches on the left side of this screen.
17

Vu Name: Choose any alpha-numeric name. This name is public facing and searchable. Name should be 15
characters or less. (If your desired name is already chosen by another Vu user you will be prompted to
choose another name.)
Vu Number: Choose any 10 digit number. This number is public facing and searchable. (If your desired
number is already chosen by another Vu user you will be prompted to choose another number.)
User Settings 18
