Vulcan-Hart VRB-36F Operating and safety instructions

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-32527 (10-03)
SPECIFICATIONS:
Heavy duty top fired gas broiler, Vulcan-Hart Model VRB-36F.
Stainless steel front and front top ledge. Sides and top finished in
black epoxy powder coat paint. 6" adjustable legs. 11/4" diameter
front gas manifold. Four 25,000 BTU/hr. heavy duty stainless
steel radiant burners, 100,000 BTU/hr. total input. Pilot ignition
system. Two infinite heat control valves. Floating grid rack
assembly with positive positioning control handle. Two section
cooking grid measures 251/2" x 251/2". Full width floating drip pan
drainsintoalargecapacitygreasecollector.Finishingovenabove
broiler with manual heat control measuring 28"w x 20"d x 13"h.
Exterior dimensions: 36"w x 381/4"d x 781/2"h on 6" adjustable legs.
CSA design certified. NSF listed.
SPECIFY TYPE OF GAS AND FINISH WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.

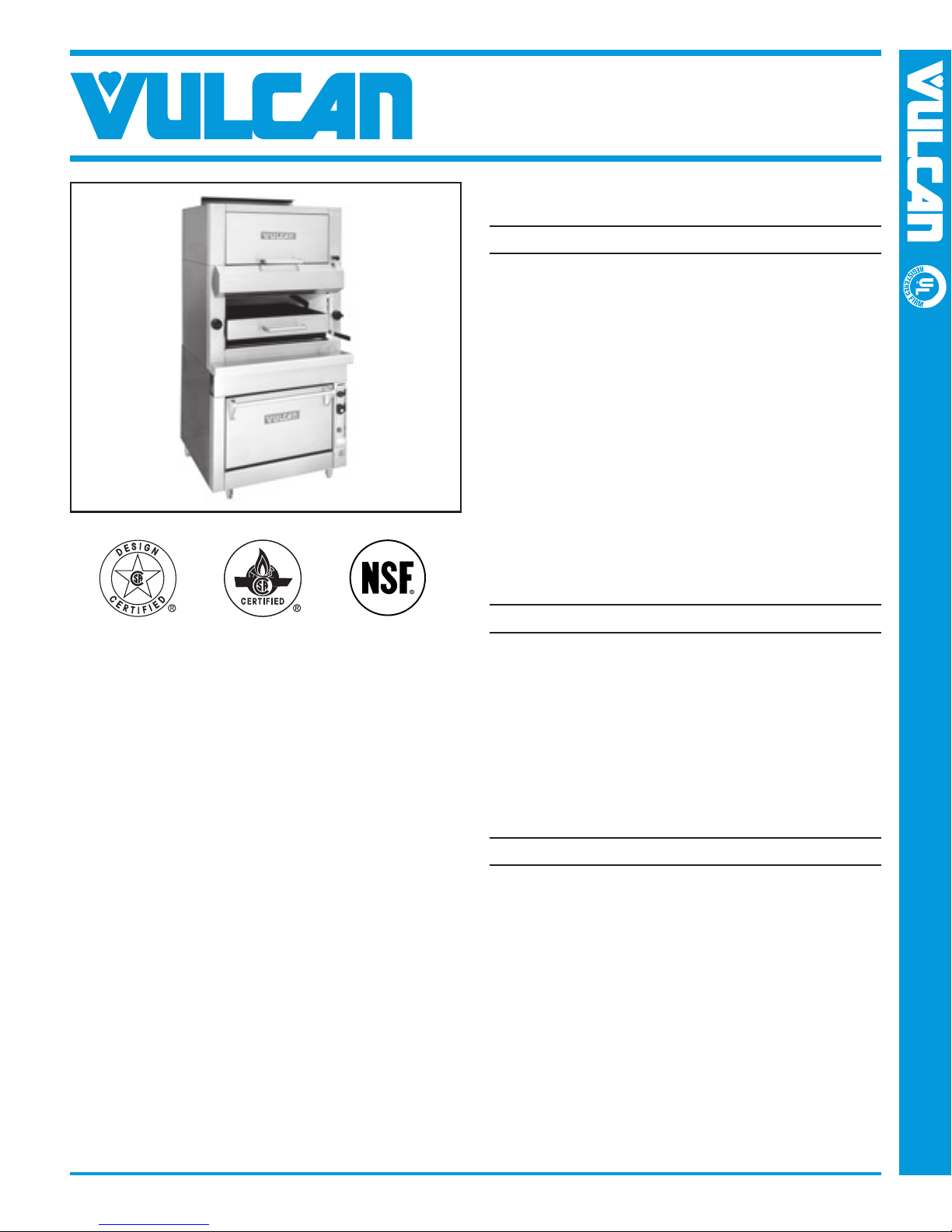

VRB-36F
HEAVY DUTY GAS RADIANT BROILER
WITH FINISHING OVEN
MODEL: VRB-36F Heavy Duty Gas Infrared Broiler w/Finishing Oven
■■VRB-36F Top fired radiant gas broiler with
standard oven
STANDARD FEATURES
■Stainless steel front and front top ledge. Sides and top finished
in black epoxy powder coat paint. 6" adjustable legs.
■11/4" diameter front gas manifold.
■Four 25,000 BTU/hr. heavy duty stainless steel radiant burn-
ers, 100,000 BTU/hr. total input.
■Pilot ignition system.
■Two infinite heat control valves.
■Floating grid rack assembly with positive positioning control
handle. Two section cooking grid measures 251/2" x 251/2".
■Full width floating drip pan drains into a large capacity grease
collector.
■Finishing oven above broiler with manual heat control
measuring 28"w x 20"d x 13"h.
■Standard oven: 40,000 BTU/hr. burner with pilot ignition.
Porcelain enamel on steel oven hearth, rear panel and door
liner. One oven rack with four positions. Thermostat adjusts
from 250° to 500°F. Oven controls located in the cool zone.
Counterbalanced oven door. Oven interior measures 271/2"w x
281/2"d x 141/2"h.
■One year limited parts and labor warranty.
OPTIONS
■■Stainless steel side(s). ■■Left ■■Right
■■Stainless steel finishing back.
■■Electronic ignition.
■■Common stainless steel front top ledge up to 96" wide.
(Drawing required showing the position of each piece of
equipment.)
■■Cap and cover manifold end(s). ■■Left ■■Right
■■Leveling bolts in place of legs for curb mounting.
■■Stainless steel dolly frame with casters, up to 72" wide.
■■Rear gas connection. ■■3/4" (includes gas pressure regu-
lator) or ■■11/4"
ACCESSORIES
■■Set of four 5" diameter casters, two locking.
■■11/4" gas pressure regulator.
■■Flexible gas hose with quick disconnect and restraining
device. Consult price book for available sizes.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32527 (10-03)
IMPORTANT
1. A properly sized gas pressure regulator suitable for battery or
single unit application must be furnished and installed.
Natural gas 5.0" W.C., propane gas 10.0" W.C.
2. An adequate ventilation system is required for commercial
cooking equipment. Information may be obtained by writing to
the National Fire Protection Association, Batterymarch Park,
Quincy, MA 02269. When writing refer to NFPA No. 96.
3. These units are manufactured for installation in accordance
with ANSZ223.1a (latest edition), National Fuel Gas Code.
Copies may be obtained from the American Gas Association,
1515 Wilson Blvd., Arlington, VA 22209.
VRB-36F
HEAVY DUTY GAS RADIANT BROILER
WITH FINISHING OVEN
4. Clearances: Combustible Non-Combustible
Rear 2" 0"
Sides 20" 2"
5. For proper combustion, install equipment on adjustable legs
or casters. On curb or platform, allow 31/2" front overhang.
Leveling bolts are required for curb installation. Specify when
ordering.
6. Cannot be batteried with GH series equipment.
7. This appliance is manufactured for commercial installation
only and is not intended for home use.
APPROX.
MODEL GAS RATED INPUT BTU/HR. SHP. WT.
NO. BROILER BASE TOTAL WIDTH DEPTH HEIGHT (lbs./kg)
VRB-36F 100,000 40,000 140,000 36" 381/4"78
1/2" 875/394
