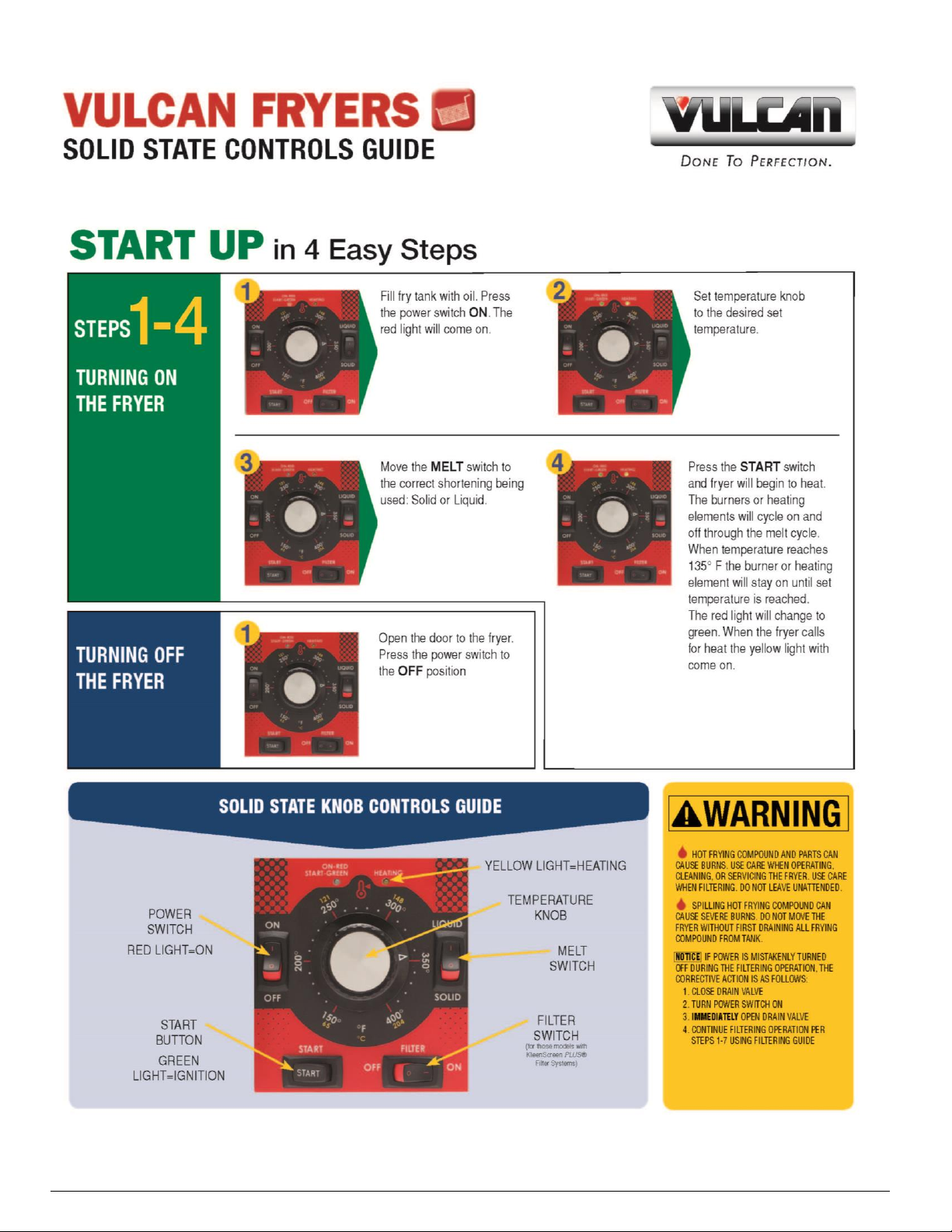

Vulcan-Hart VFRY Series Quick start guide

INSTALLATION & OPERATIONAL MANUAL
VK / TR / VFRY SERIES GAS FRYERS
With KleenScreen PLUS® Filtration Systems
MODELS:
1VK45 1TR45
1VK65 1TR65
1VK85 1TR85
2VK45 2TR45
2VK65 2TR65
2VK85 2TR85
3VK45 3TR45
3VK65 3TR65
3VK85 3TR85
4VK45 4TR45
4VK65 4TR65
4VK85 4TR85
5VK45 5TR45
5VK65 5TR65
5VK85 5TR85
6VK45 6TR45
6VK65 6TR65
6VK85 6TR85
2MB VFRY18
3MB
4MB
5MB
6MB
1VK45C Shown
For additional information on Vulcan or to locate an authorized parts and
service provider in your area, visit our website at www.vulcanequipment.com
©VULCAN 3600 NORTH POINT BLVD.
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC BALTIMORE, MD 21222
WWW.VULCANEQUIPMENT.COM F-32971 REV. U (12-17)

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
IMPORTANT FOR YOUR SAFETY
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL
GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND
ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.
POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE
EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE
OBTAINED FROM THE LOCAL GAS SUPPLIER.
IMPORTANT
IN THE EVENT A GAS ODOR IS DETECTED, SHUT DOWN UNITS AT THE MAIN
SHUTOFF VALVE AND CONTACT THE LOCAL GAS COMPANY OR GAS SUPPLIER
FOR SERVICE.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
TABLE OF CONTENTS
IMPORTANT FOR YOUR SAFETY…………………………………………. 2
INTRODUCTION…………………………………………………………….…4
GENERAL…………………………………………………………….. 4
ORDERING PARTS…………….…………………………………… 4
UNPACKING…………………….…………………………………… 4
INSTALLATION……………………………….………………………………. 5
Clearances…………………….………………………….... 5
Location ………………..……….……………………….…. 5
CODES AND STANDARDS…………….………………………….. 6
ASSEMBLY …………..……………………………………………… 6
FLUE CONNECTION……………………….…….…………………. 7
ELECTRICAL CONNECTION………………..….…………………. 7
GAS CONNECTION…………………………………………………. 8
Quick-Disconnect for Units on Casters…………………… 8
GAS PRESSURE......................................................................... 8
TEST GAS SUPPLY……………………………….………………… 8
FRYERS WITH CASTERS………………………………………….. 8
LEVELING THE FRYER…………………………………………….. 9
OPERATION…………………………………………………………………… 10
OVER-TEMPERATURE SHUTDOWN…………………………….. 10
BEFORE FIRST USE………………………………………………... 10
Cleaning……………………………………………………... 10
FILLING TANK WITH SHORTENING……………………………….11
BASIC FRYING INSTRUCTIONS………………………………….. 11
Fry Basket Guidelines……………………………………… 12
Fry Basket Capacity………………………………………... 12
EXTENDED SHORTENING LIFE………………………………….. 12
TURNING ON THE FRYER ……………………………………….. 13

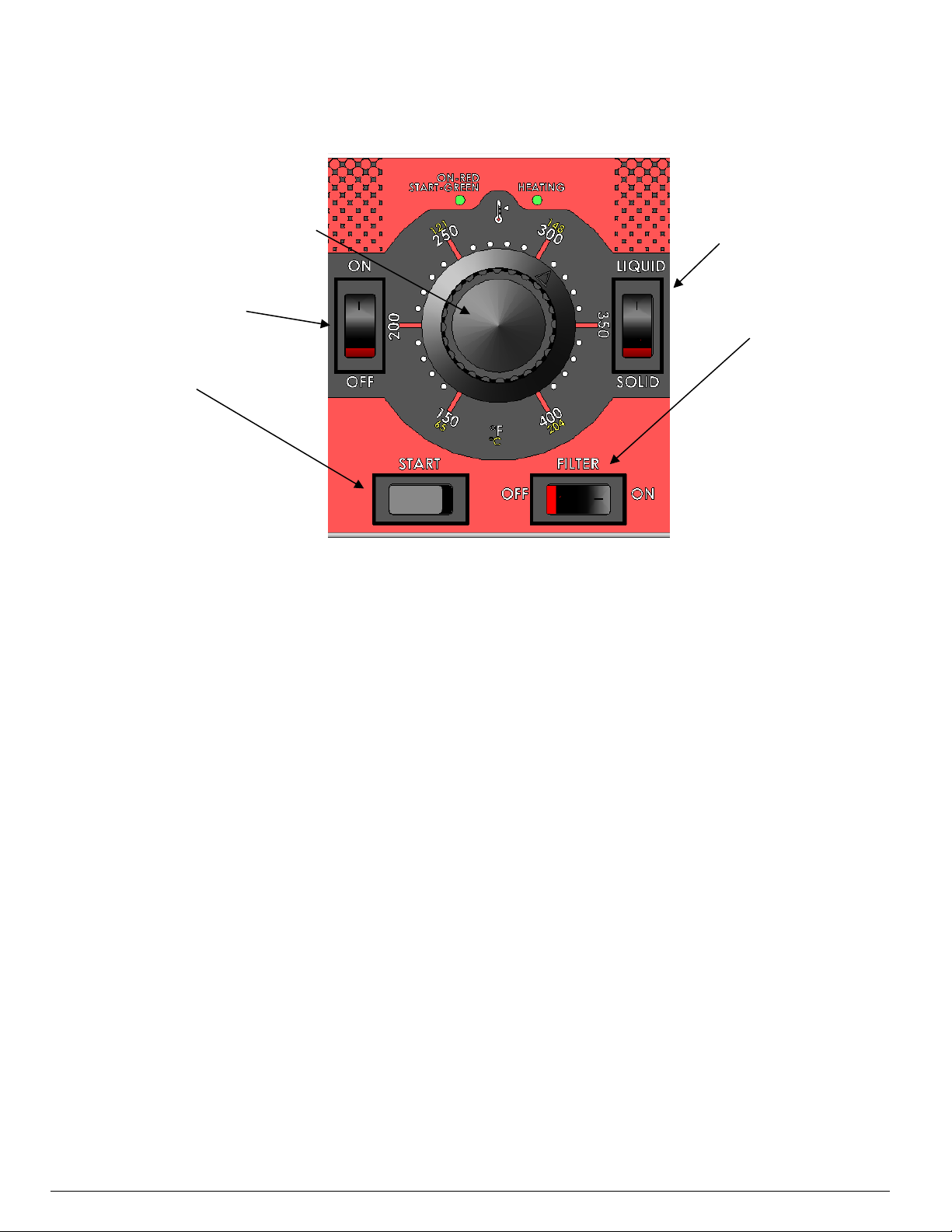

PROGRAMMING THE SOLID STATE KNOB (A) CONTROL………….… 14
PROGRAMMING THE SOLID STATE (D) CONTROL………………….…15
PROGRAMMING THE COMPUTER (C) CONTROL……………………… 16
TURNING OFF THE FRYER ………………………………………. 16
DRAINING THE TANK –FREE STANDING FRYERS…………… 17
BOIL OUT PROCEDURE –FREE STANDING FRYERS ……………...... 17
CLEANING……………………………………………………………. 18
Daily………………………………………………………….. 18
EXTENDED SHUTDOWN……………………………………………………. 18
KLEENSCREEN PLUS® INSTALLATION & OPERATION MANUAL....... 19
GENERAL ……………………………………………………………. 19
ASSEMBLY…………………………………………………………… 19
REMOVE & REPLACE KLEENSCREEN PLUS® FILTER ENVELOPE… 21
OPERATION…………………………………………………………………… 22
FILTERING PROCEDURE…………………………….................. 22
FILTERING SOLID STATE KNOB (A) CONTROLS………………………. 24
FILTERING SOLID STATE (D) CONTROLS………………………………. 25
FILTERING COMPUTER (C) CONTROLS………………………………… 26
FILTERING TIP……………………………………………………… 27
REMOVING EXCESS DEBRIS FROM THE FILTER…………… 27
FLUSH AND DISCARD…………………………………………….. 27
BOIL OUT PROCEDURE……………………………………………. 28
THERMAL OVERLOAD PROTECTION RESET BUTTON…….. 29
MAINTENANCE……………………………………………………………….. 29
FLUE VENT INSPECTION…………………………………………. 29
Service in the US and Canada…………………………………...... 29
Alarms and Error Messages………………………………………... 29
TROUBLESHOOTING………………………………………………………… 30
Troubleshooting Chart……………………………………………….. 30

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
INTRODUCTION
GENERAL
Vulcan Fryers are produced with quality workmanship and material. Proper installation,
usage and maintenance will result in years of satisfactory performance.
Before installing the fryer, thoroughly read this manual and carefully follow all instruction.
This manual is applicable to models listed on the cover page. Procedures in this manual
will apply to all models unless specified. Pictures and illustrations can be of any model
unless the picture or illustration needs to be model specific.
ORDERING PARTS
Customers may order parts directly from their local authorized service center. If not
known, call Vulcan Customer Service at 800-814-2028.
To speed up your order, provide the model number, serial number, gas type, part needed,
item part number (if known) and quantity needed.
UNPACKING
This fryer was carefully inspected before leaving the factory. The carrier assumes full
responsibility for the safe delivery upon acceptance of the shipment. Check for possible
shipping damage immediately after receipt.
If the fryer is found to be damaged, complete the following steps:
1. Carrier must be notified within 5 business days of receipt.
2. Carrier’s local terminal must be notified immediately upon discovery (note time,
date, and who was spoken to), and follow up and confirm with written or electronic
communication.
3. All original packing materials must be kept for inspection purposes.
4. The fryer cannot have been moved, installed, or modified.
5. Notify Vulcan Customer Service immediately at 800-814-2028.
Check that the following have been included:
Crumb Rack(s)
Basket Hanger(s)
Tank Brush for Boil Out Procedure Only
Adjustable Casters (4) two locking, two non-locking for freestanding fryers. Fryer
Batteries with the KleenScreen PLUS®Filtration System have casters installed
from
the factory.
Drain Pipe Extension for freestanding fryers only.
Twin Fry Baskets (2) per fry tank
Cleanout Rod
Fryer Batteries with the KleenScreen PLUS® Filtration System

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
•Filter Pan
•Suction Tube
•Screen Assembly
•High temperature discard hose
•Manual, Quick Start Guide(s), and Warranty-Keep in safe place for reference
INSTALLATION
Do not use the door or its handle to lift the fryer.
Before installing the fryer, verify that the type of gas (natural or propane) agrees with the
specifications on the fryer data plate, which is located on the inside of the door panel.
Make sure the fryer is configured for the proper elevation.
Record your fryer model, device, and serial numbers for future reference in the space
provided below. This information can be found on the fryer data plate.
Fryer Model No: ___________________________
Device: ___________________________________
Serial No: ________________________________
Clearances
Minimum clearance from combustible construction:
6” (15 cm) from the sides of the fryer
6” (15 cm) from the back of the fryer
The fryer may be installed on combustible floors
Minimum clearance from noncombustible construction:
0” from the sides of the fryer
0” from the back of the fryer
Between the fryer and any open-top flame units:
16” (41 cm)
Allow space for servicing and operation.
Location
Install fryer in an area with sufficient air supply for gas combustion.
Do not obstruct the flow of combustion and ventilation air.
Provide adequate clearance for air openings into the combustion chamber.
Do not permit fans to blow directly onto fryer.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
Keep the fryer area free and clear from combustibles.
Avoid wall-type fans, which create cross-currents within a room. Avoid
open windows next to sides or back.
CODES AND STANDARDS
The fryer must be installed in accordance with:
In the United States:
State and local codes, or in the absence of local codes, with:
National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest edition). Copies may be
obtained from The American Gas Association Accredited Standards Committee
Z223, @ 400 N. Capital St. NW, Washington, DC 20001 or the Secretary Standards
Council, NFPA, 1 Batterymarch Park Quincy, MA 02169-7471.
NFPA Standard #96 Vapor Removal from Cooking Equipment, latest edition,
available from the National Fire Protection Association, Batterymarch Park, Quincy,
MA. 02169-7471.
National Electrical Code, ANSI/NFPA-70 (latest edition). Copies may be obtained
from The National Fire Protection Association, Batterymarch Park, Quincy, MA.
02169-7471.
In the commonwealth of Massachusetts all gas appliances vented through a
ventilation hood or exhaust system with a damper or with a power means of
exhaust shall comply with 248 CMR.
In Canada:
Local codes
CAN/CSA-B149.1 Natural Gas and Propane Installation Code (latest
edition),available from the Canadian Standards Association, 155 Queen Street,
Suite 1300, Ottawa, Ontario Canada K1P 6L1.
CSA C22.1 Canadian Electric Code (latest edition), available from the Canadian
Standards Association, 155 Queen Street, Suite 1300, Ottawa, Ontario Canada
K1P 6L1.
ASSEMBLY
The fryer must be restrained to prevent tipping and the splashing of hot liquid. The means
of restraint may be the manner of installation, such as connection to a battery of
appliances, installing the fryer in an alcove, or by separate means such as adequate ties.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
FLUE CONNECTION
Make the flue connection as follows:
Comply with Vapor Removal from Cooking Equipment, ANSI-NFPA
Standard #96 (latest edition), available from the National Fire Protection
Association, Batterymarch Park, Quincy, MA 02269.
Locate the fryer under a hood with adequate connection to an exhaust
duct. The hood must extend 6” (15 cm) beyond fryer on both sides.
Clearance above the fryer should be adequate for combustion byproducts
to be removed efficiently.
An 18” (46 cm) minimum clearance should be maintained between the flue
vent and the filters of the hood venting system.
Never make flue connections directly to the fryer.
Do not obstruct the flow of the gases from the appliance. Proper air
balance should be maintained in the room.
Ensure that your ventilation system does not cause a down draft at the fryer’s flue
opening. Down drafts will not allow the fryer to exhaust properly and will cause
overheating which may cause permanent damage. Damage caused by down drafts
will not be covered under equipment warranty. NEVER allow anything to obstruct
the flue of combustibles or ventilation exiting from the fryer flue. DO NOT put
anything on top of flue area.
ELECTRICAL CONNECTION
Electrical Grounding Instructions:
This appliance is equipped with a three prong (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the grounding prong from this plug.
Fryer must be electrically grounded in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.2, as applicable.
Electrical diagram located on inside of door.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
GAS CONNECTION
All gas supply connections and any pipe joint compound must be
resistant to the action of propane gases.
The gas inlet is located on the lower rear of the fryer. Codes require that a gas shutoff
valve be installed in the gas line ahead of the fryer.
The gas supply line must be at least the equivalent of ½” (12.7 mm) iron pipe for single
units and 1-1/4” (31.75 mm) for batteries. If using the optional quick-disconnect flex hose,
¾” (19 mm) iron pipe for single units and 1-1/4” (31.75 cm) iron pipe for batteries.
Make sure the pipes are clean and free of obstructions, dirt, and piping compound. A
battery requires one or two connections of appropriate size for the gas requirement.
Prior to lighting, check all joints in the gas supply line for leaks.
Use soap and water solution. Do not use an open flame.
After piping has been checked for leaks, fully purge gas pipes to remove air.
GAS PRESSURES (ALL MODELS):
The gas measured exiting the gas valve should be set at .08” W.C. (Water Column) (0.02
kPa) for natural gas and .08”W.C. (0.02 kPa) for propane gas. This fryer has been gas
calibrated at the factory to achieve maximum performance. Do not make any adjustments
to the gas valve assembly. The supply pressure should be 7-9” W.C. for natural gas and
11-12” W.C. for propane gas. If incoming pressure exceeds 14” WC (½ psig -3.45 kPa), a
step-down pressure regulator must be installed.
TESTING THE GAS SUPPLY PIPING SYSTEM:
When test pressures exceed ½ psig (3.45 kPa), the fryer and its individual shutoff valve
must be disconnected from the gas supply piping system.
When test pressures are ½ psig (3.45 kPa) or less, the fryer must be isolated from the gas
supply piping system by closing its individual shutoff valve.
Fryers with Casters:
Separate instructions for installing casters are included with the casters:
The installation shall be made with a connector that complies with the
Standard for Connectors for Movable Gas Appliances, ANSI Z21.69, CAN/CGA-
6.16, and a quick-disconnect device that complies with the Standard for Quick-

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
Disconnect Devices for Use with Gas Fuel, ANSI z21.41.CSA 6.9 or Quick-
Disconnect Devices for Use with Gas Fuel.

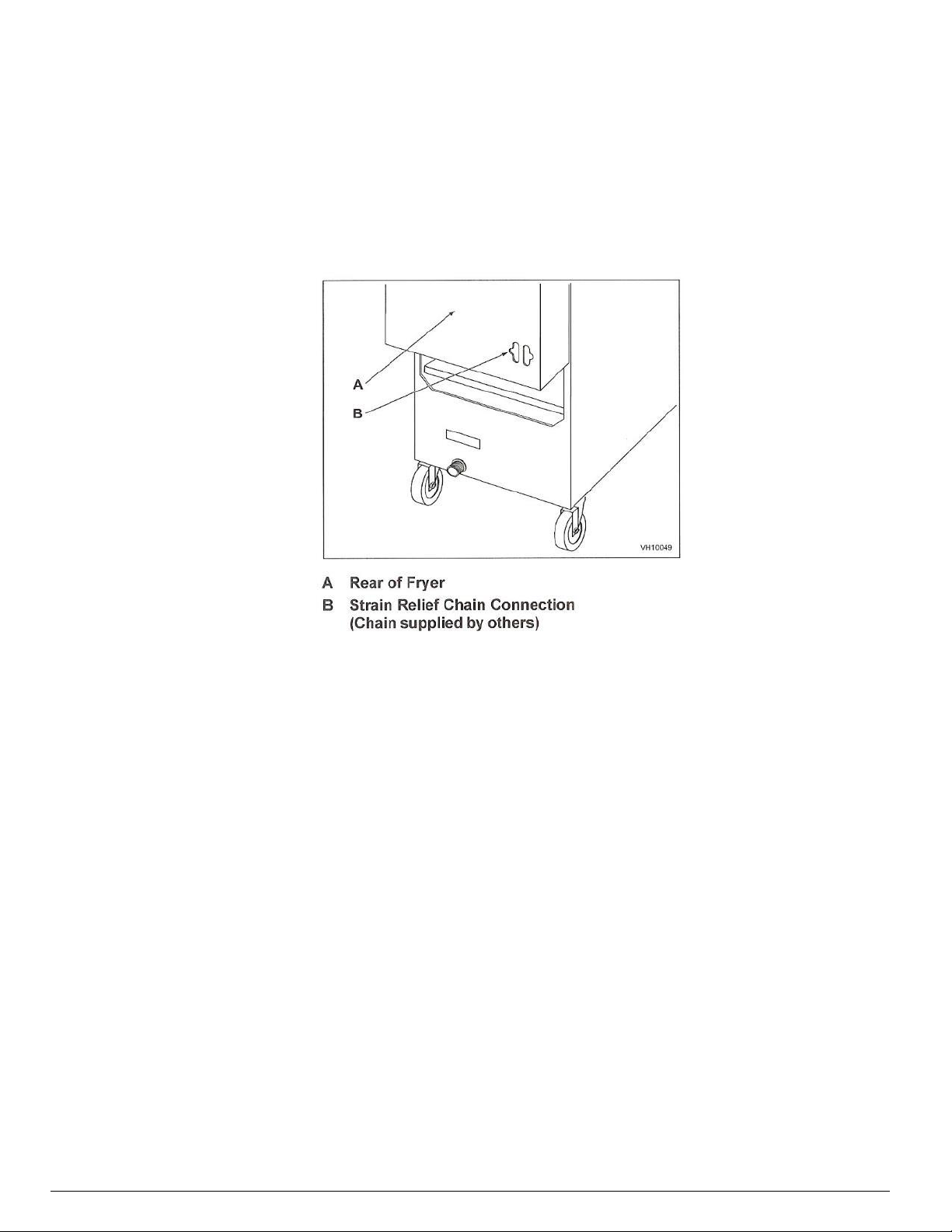

When installing a quick disconnect you must also install a means for limiting the
movement of the fryer. This device will prevent the gas line or quick disconnect
from being strained. The restraining device should be attached to the cutout on the
back panel. See illustration for location.
The fryer must be installed with a connector (not supplied by Vulcan) complying
with the above codes.
The fryer must be installed with restraining means to guard against
transmission of strain to the connector. See illustration.
The fryer must be installed with the casters provided.
If the restraint is ever to be disconnected, first turn the gas supply off. If
disconnection of the restraint is necessary, reconnect this restraint after the fryer
has been returned to its originally installed position.
LEVELING THE FRYER
Check the level of the fryer by placing a level on top of the fryer after gas connections
have been made.
Ensure that the fryer is level front-to-back and side-to-side in the final installed position.
If using casters, lock the wheels after unit is level.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
OPERATION
Hot oil and parts can cause burns. Use care when operating,
cleaning and servicing the fryer.
Spilling hot frying compound can cause severe burns. Do not move
fryer without draining all frying compound from the tank.
Fryer is not to be used during a power outage.
OVER-TEMPERATURE SHUTDOWN
If the shortening becomes overheated, a high-temperature shutoff device will turn the gas
valve off.
If the fryer shuts down due to overheating, DO NOT power up the fryer until the shortening
temperature is below 300°F (149°C).
If an overheating situation persists, contact your local Vulcan authorized service office.
BEFORE FIRST USE
Cleaning
New units are wiped down at the factory to remove any visible signs of dirt, oil, grease,
etc. remaining from the manufacturing process.
Before any food preparation, thoroughly wash the protective oil from all surface parts and
the tank interior with hot soapy water to remove any film residue and dust or debris.
Do not use chlorine or sulfate/sulfide cleaners.
Wash any accessories shipped with unit.
•Rinse fryer and accessories thoroughly and drain the fryer.
Wipe tank completely dry with a soft, clean cloth.
Close the drain valve.
Fill the fryer tank with liquid shortening.
Shortening level should be between the min and max lines in the fryer tank.
Shortening will expand when heated. Do not fill the fryer tank past the
MAX line.
Add fresh shortening as needed to maintain oil level.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
FILLING TANK WITH SHORTENING
The fry tank must be filled with shortening or water before turning the burners
on. The fry tank can be damaged if the burners are turned on while empty and will void
your warranty.
•Close the drain valve.
•Fill the fryer tank with liquid shortening.
•Shortening level should be between the MIN and MAX lines in the fryer tank.
•Add Shortening will expand when heated. Do not fill the fryer tank past the
MAX line.
•Add fresh shortening as needed to maintain oil level.
BASIC FRYING INSTRUCTION
Set the desired temperature and allow shortening to heat up to that temperature.
•Fry items that are the same size to ensure equal doneness.
•Drain or wipe dry raw or wet foods to minimize splatter when lowering into
hot shortening.
•Add fresh shortening as needed.
MIN and MAX Fill Level Lines

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
Fry Basket Guidelines
•Do not overfill baskets. (See table for recommended basket capacities
below) Carefully lower basket into oil.
•When frying doughnuts and fritters, turn product only once during frying.
•When cooking French fries or onion rings, shake the basket several times.
•Batter covered foods should be dropped carefully, one by one, into shortening or
basket. If you use the basket, first dip the basket into the shortening to
reduce batter-build up on basket surfaces.
•When frying is completed, remove basket or product. Hang basket on rear hanger.
Fry Basket Capacity:
1VK / TR45 & VFRY18: Recommended pounds per basket are 2.5 lbs. (1.1 kg).
1VK / TR65: Recommended pounds per basket are 3.0 lbs. (1.4 kg).
1VK / TR85: Recommended pounds per basket are 3.5 lbs. (1.6 kg).
EXTENDING SHORTENING LIFE
Shortening life can be extended by the following guidelines:
Do not salt foods over the fryer.
Use good-quality shortening.
Filter shortening daily (at a minimum).
Replace shortening if it becomes poorly flavored.
Keep equipment and surrounding clean. Use tank covers when not in use.
(accessory).
Set thermostat correctly.
Remove excess moisture and particles from food products before placing on fryer.
TURNING ON THE FRYER

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
(VK / TR / VFRY)A solid state knob control:
Indicator Lights
(On/Start/Heating)
Temperature Knob Control Melt Switch
Power Switch Filter Switch
(For those models with KleenScreen
PLUS® Filter Systems)
Start Button
▪Open the door to the fryer. Select Liquid or Solid Shortening by pressing the
switch to the desired selection.
▪Set temperature by turning the knob to the desired temperature.
▪Press the power switch to the ON position. The burners will not light until the
next step is completed.
▪Press the START switch once for the burners to light. The START switch is a
momentary switch and will reset after being pressed. The indicator light will
change from Red to Green. Heating light will glow Yellow.
▪The power burner will cycle on and off throughout the melt cycle. When the fry
tank oil reaches 135° F the burners will stop cycling and remain on until the set
temperature is reached. Once set temperature is reached the burners will cycle
on and off to maintaining the set temperature.
(VK / TR)D solid state digital and (VK / TR)C programmable controls:
For solid state digital and programmable computer controls the power burner will light
automatically. The power burner will cycle on and off throughout the melt cycle and continue
afterwards maintaining the set temperature.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
TURNING OFF THE FRYER
1. Press the power switch to the off position.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
DRAINING THE TANK
Freestanding Models ONLY:
1. Turn off fryer.
2. Insert the drain extension into the drain valve. Tighten only hand tight.
3. Direct the drain spout into the container that you want to drain the shortening into.
4. Open the drain valve. The oil will drain into the container. When the container is
full or the fryer tank is empty, close the drain valve. Repeat this step until the fryer
is empty. Remove the drain extension and place it back into the provided holder.
5. It is recommended to now boil out your fry tank. Follow the Boil Out procedure.
Then perform the weekly clean-out as described under CLEANING.
6. Once tank is completely empty, boiled out and cleaned, add new shortening. Turn
on the power switch to begin heating the oil to desired temperature.
BOIL OUT PROCEDURE
Weekly or when oil is replaced:
Freestanding Models ONLY:
1. Drain the tank as described under DRAINING THE OIL.
2. Close the drain valve and fill tank with water. Use a boil out solid degreaser which can
be ordered from your local dealer. Follow the instructions on the side of the package.
Do not use chlorine or sulfate/sulfide cleaners.
3. Solution level must be between the MIN and MAX levels on the fryer tank.
4. Turn the power switch to the on position. With solid state knob controls (A), set the
temperature knob to 200°F. Press the start button. Water boils at 212°F. For solid
state digital models (D) and computer models (C) models, the temperature will
automatically set for 195-200°F. Do not bring water temperature to an overly active
boil.
5. Use the tank brush; clean the sides, bottom and heat exchanger tubes.
6. Screw the drain extension in the drain valve and hand tighten only. Drain the cleaning
solution from the tank into a container.
7. Close the drain valve and refill the tank with water. Add 1 cup (1/4 L) of vinegar to
neutralize alkaline left by the cleaner. Solution level must be between the MIN and
MAX level on the fryer tank. Press the start button for (A) and Temp Button for (D)
and C) models, to allow the solution to heat up. Allow solution to stand for a few
minutes.
8. Drain the tank according to DRAINING THE TANK. Rinse thoroughly with clear, hot
water. All traces of cleaner must be removed. Dry the tank thoroughly.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
9. Close the drain valve and add shortening. Follow the FILLING TANK WITH
SHORTENING procedure in this manual. The fryer is now ready for use. Press the
start button for (A) and Temp Button for (D) and C) models, to allow the solution to
heat up. CLEANING
Hot oil and hot parts can cause burns. Use care when operating,
cleaning, and servicing the fryer.
Daily
Clean your fryer regularly with the tank brush along with a damp cloth, and polish with a
soft dry cloth. If regular cleaning is neglected, grease will be burned on and discolorations
may form.
Fingerprints are sometimes a problem on highly polished surfaces of stainless steel. They
can be minimized by applying a cleaner that will leave a thin oily or waxy film.
Clean all exterior surfaces of your fryer at least once daily.
Use a damp cloth with warm water and a mild soap or detergent.
Do not use chlorine or sulfate/sulfide cleaners.
Rinse thoroughly, and then dry with a soft dry cloth.
Keep the fryer exterior clean and free of accumulated grease to prevent
stubborn stains from forming. If regular cleaning is neglected, grease will be
burned on and discolorations may form.
Remove discolorations by washing with any detergent or soap and water.
Use a self-soaping, non-metallic scouring pad for particularly stubborn
discolorations.
Always rub with the grain of the stainless steel.
Do not use a metallic scoring pad or harsh cleaners.
Air Filter Cleaning (VK fryers only):
The air filter needs to be cleaned at least once every three months. Pull the air filter off
and clean in a dishwasher or by hand. Dry thoroughly before replacing it into position.
There is no need to tighten the band clamp with tools.
EXTENDED SHUTDOWN
1. Thoroughly drain the fryer. Refer to DRAINING THE FRYER.
2. Clean the fryer according to CLEANING.
3. Push Power switch to the off position
4. Turn off the main gas shutoff valve.

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
KleenScreen Plus® Filtration System
General
The KleenScreen PLUS® filtration system filters the oil as it is pumped back into its’ respective
tank(s). Only one tank can be drained and filtered at a time. Under no circumstances should both
tanks be drained at the same time.
Assembly
•After unpacking, wash the filter pan, crumb basket and filter screen assembly. Make sure
you remove the insert located inside the filter screen. Use dishwashing detergent and warm
water, (parts are dishwasher safe). Rinse the filter pan, crumb basket and filter screen
components completely and wipe all parts dry with a clean cloth.
•Pull out the filter drawer all the way leaving the filter pan opening exposed.
•Place the filter tank into the filter drawer making sure that the pins on the bottom of the filter
pan line up with the holes in the filter drawer. Position the filter screen assembly into the
suction tube clip in the filter pan positioning the filter screen assembly flat on the bottom of
the filter pan.
•Carefully line up the suction tube nozzle so that it mates with the oil receptacle block
mounted on the frame of the fryer battery. Close the drawer. See Figures 1, 2 3 and 4
Suction Tube
Filter Screen
Filter Insert
Knurled Bottom
Fitting
Fig. 1

VK / TR / VFRY SERIES GAS FRYERS
VULCAN F-32971 Rev.U (12-17)
Fully assembled filter screen assembly:
Fig. 2
Secure Tube with
Suction Tube Clip
Filter Screen Lays
Flat On Bottom of
Filter Pan
Fig. 3
Micro-Filtration Fabric Envelope Accessory Assembly:
Same Suction Tube
Fabric Envelope Insert
(Different from Screen Assembly)
Fabric Envelope
Closing Clip
Same Knurled Knob
Fig. 4
