Vulcan-Hart C24EA10 User manual

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-35471 (02-07)

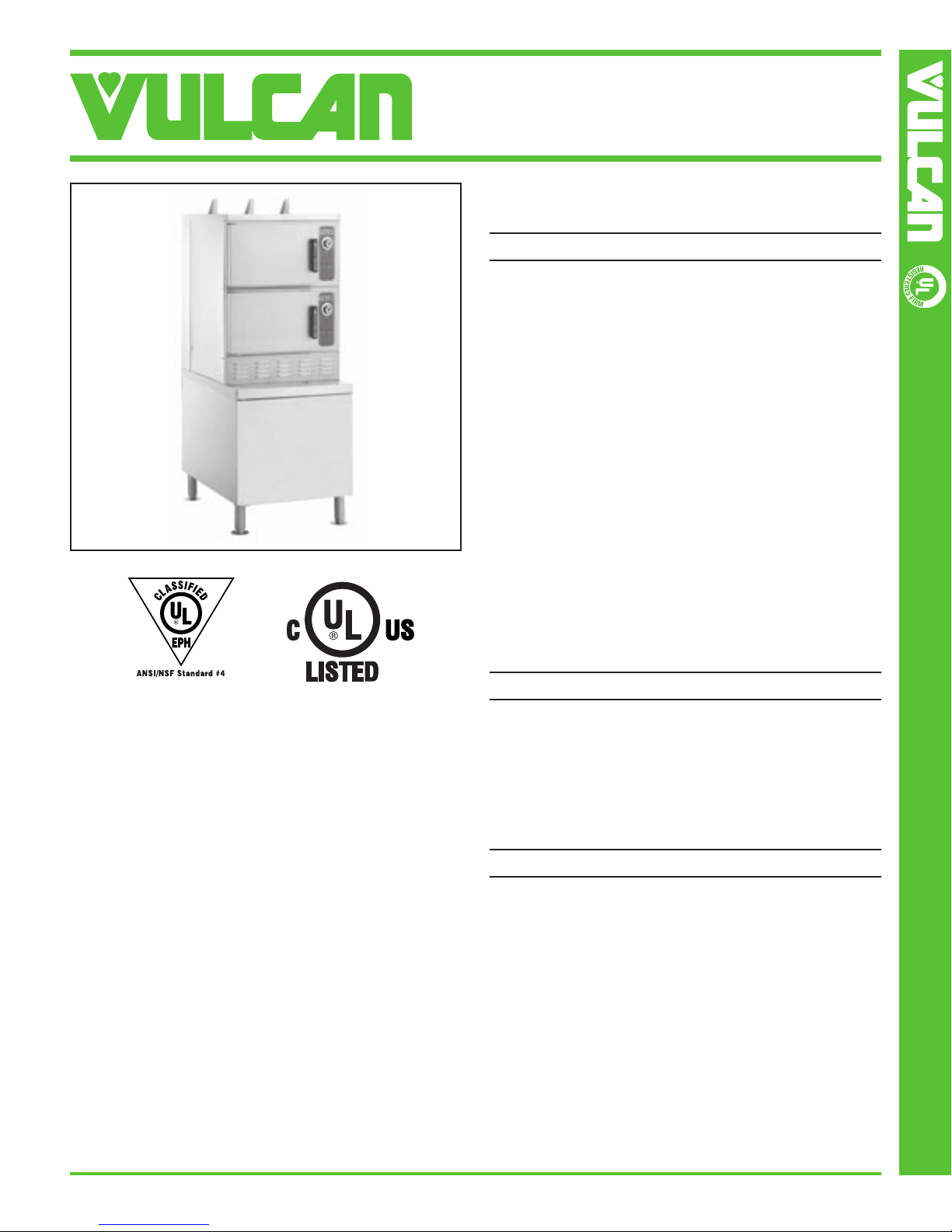

SPECIFICATIONS:
Two compartment electric convection steamer on cabinet base,
Vulcan-Hart Model No. (C24EA6) (C24EA10). 304 series stain-
less steel exterior. Two stainless steel cooking compartments
with coved interior corners. SuperHeated steam delivered from
the 5 psi stainless steel steam generator with staged water fill, 2
inch clean out port and Smart Drain System (timed drain) with
PowerFlush. Separate 60 minute timer with constant steam
feature for each compartment. Heavy duty doors and door latch
mechanisms. Stainless steel water resistant cabinet base with
stainless steel enclosed bottom. 6" adjustable stainless steel
legs with flanged feet. Power connection requires 208-240 volt,
50/60 Hz, 1-3 phase. Split water line connection. Treated and
untreated water connections. 11/2" NPT drain connection.
Exterior dimensions:
6 pan: 24"w x 35.4"d x 63.7"h on 6" legs.
10 pan: 24"w x 35.4"d x 73.4"h on 6" legs.
U L listed. Classified by U L to NSF Std. #4.
■■C24EA6 6 pan capacity
■■C24EA10 10 pan capacity
STANDARD FEATURES
■304 series stainless steel exterior.
■Two stainless steel cooking compartments with coved interior
corners.
■Stainless steel steam generator with staged water fill, 2 inch
clean out port and Smart Drain System (timed drain) with
PowerFlush.
■Separate 60 minute timer with constant steam feature for
each compartment.
■Semi-automatic deliming cycle control.
■Heavy duty doors and door latch mechanisms.
■Stainless steel water resistant cabinet base with enclosed
bottom.
■6" adjustable stainless steel legs with flanged feet.
■Smart cycle power management heater system.
■Power connection requires 208-240 volt, 50/60 Hz, 1-3 phase.
■Split water line connection. Treated and untreated water
connections. 11/2" NPT drain connection.
■One year limited parts and labor warranty.
OPTIONS
■■480 volt, 50/60 Hz, 3 phase.
■■Second year extended limited parts and labor warranty
contract.
■■Steamer Security Package, includes controls protected by
lockable cover, perforated flue cover, security fasteners &
tack-welds.
ACCESSORIES
■■12" x 20" stainless steel pans:
- 1" deep (solid)(perforated) Qty.___.
- 21/2" deep (solid)(perforated) Qty.___.
- 4" deep (solid)(perforated) Qty.___.
■■Stainless steel pan cover. Qty.___.
■■Removable sliding self. Qty.___.
■■Water treatment system.
MODEL C24EA FLOOR SERIES
ELECTRIC CONVECTION STEAMER ON CABINET BASE
MODEL: C24EA
Electric Convection Steamer on Cabinet Base

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart reserves the right to change materials and specifications
without notice.
F-35471 (02-07)
SERVICE CONNECTIONS:
ELECTRICAL CONNECTION: Single point supply 11/8" (29 mm) dia.
(3/4" conduit).
DRAIN: Condenser box, compartment and generator, 11/2" NPT. (Provide
an open air gap type drain within 12" of condenser box and for best results
at a distance so steam vapors will not enter the steamer from underneath
the control area. Do not connect solidly to any drain connection.)
GENERATOR WATER SUPPLY: 3/4" (19 mm) male hose thread to
generator, cold water flow rate .5 gpm @ minimum 25 to maximum
50 psi. (170-345 kPa).
CONDENSING WATER SUPPLY: 3/4" (19 mm) male hose thread to
condenser, cold water flow rate .5 gpm @ minimum 25 to maximum
50 psi. (170-345 kPa).
WATER QUALITY STATEMENT:
The fact that a water supply is potable is no guarantee that it is suitable
for steam generation. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE 20 - 60 psig
HARDNESS* less than 3 grains
SILICA less than 13 ppm
TOTAL CHLORIDE less than 4.0 ppm
pH RANGE 7-8
UN-DISSOLVED SOLIDS less than 5 microns
*17.1 ppm = 1 grain of hardness
Other factors affecting steam generation are iron content, amount of
chloridation and dissolved gases. Water supplies vary from state to state
MODEL C24EA FLOOR SERIES
ELECTRIC CONVECTION STEAMER ON CABINET BASE
208 V 240 V 480 V
MODEL Phase kW Amps kW Amps kW Amps
C24EA6 1ø 17.2 81.25 17.2 79.1 17.2 N/A
3ø 17.2 48.2 17.2 51.3 17.2 21.4
C24EA10 1ø 25.6 121.2 25.6 110.4 25.6 N/A
3ø 25.6 71.2 25.6 67 25.6 31.8
COMPARTMENT PAN CAPACITY
MODEL 1" 21/2"4" 6"
C24EA6 6321
C24EA10 10 5 3 2
and from locations within a state. Therefore it is necessary that the
local water treatment specialist be consulted before the installation of
any steam generating equipment.
NOTE:
•Dimensions which locate the above connections have a tolerance of
+ or -3" (+ or -75 mm). Normal dimensions are in inches. Dimensions
in ( ) are in millimeters.
•Installation of backflow preventers, vacuum breakers and other spe-
cific code requirements is the responsibility of the owner and installer.
It is the responsibility of the owner and installer to comply with local
codes.
•Plastic drains are not recommended due to inherent limited tempera-
tures of the plastic. Generator purge temperatures may exceed 180°F.
The installer may be required to provide means to reduce generator
purge water temperature to be that of the condensate temperature
of 140°F or below.
•This appliance is manufactured for commercial installation only and
is not intended for home use.
NOTE: 3ø is an unbalanced load, and amps listed is the max on any leg. Refer to the Installation and Operation Manual for further details.
