Vulcan-Hart VHX24E User manual

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-32572 (2-06)
SPECIFICATIONS:
Electric convection steamer, Vulcan-Hart Model No.
(VHX24E)(VHX24E5). Convection steamer mounted on 28"
high base cabinet with stainless steel frame, front full height
doors, slip-off stainless steel side and aluminized rear panel with
6" adjustable legs with flanged feet for anchoring. Two stainless
steel cooking compartments with coved interior corners.
11/4" drain in each compartment. Heavy duty stainless steel doors
can be opened and closed at anytime during the cooking cycle.
Steam shuts off when door(s) are opened. Electric steam boiler
builds 2.3 BHP. Includes CSD-1 compliant high pressure limit
switch (15 psi), low water cut-off, automatic water fill, automatic
generator blowdown, 15 psi pressure relief valve and 15 psi kettle
connection. Compartment controls include 60 minute dial timer
with buzzer, green "ready" and red "cooking" indicator lights.
Stainless steel cover flue. Service connections include 1/2 " cold
water connection for boiler feed and 1/8" cold water condenser
and 11/4" drain connection.
Exterior dimensions: 24"w x 35.4"d x (60.37)(73")"h.
UL listed. UL listed to Canadian safety standards. Meets ASME
code. Classified by U L to NSF Std. #4.

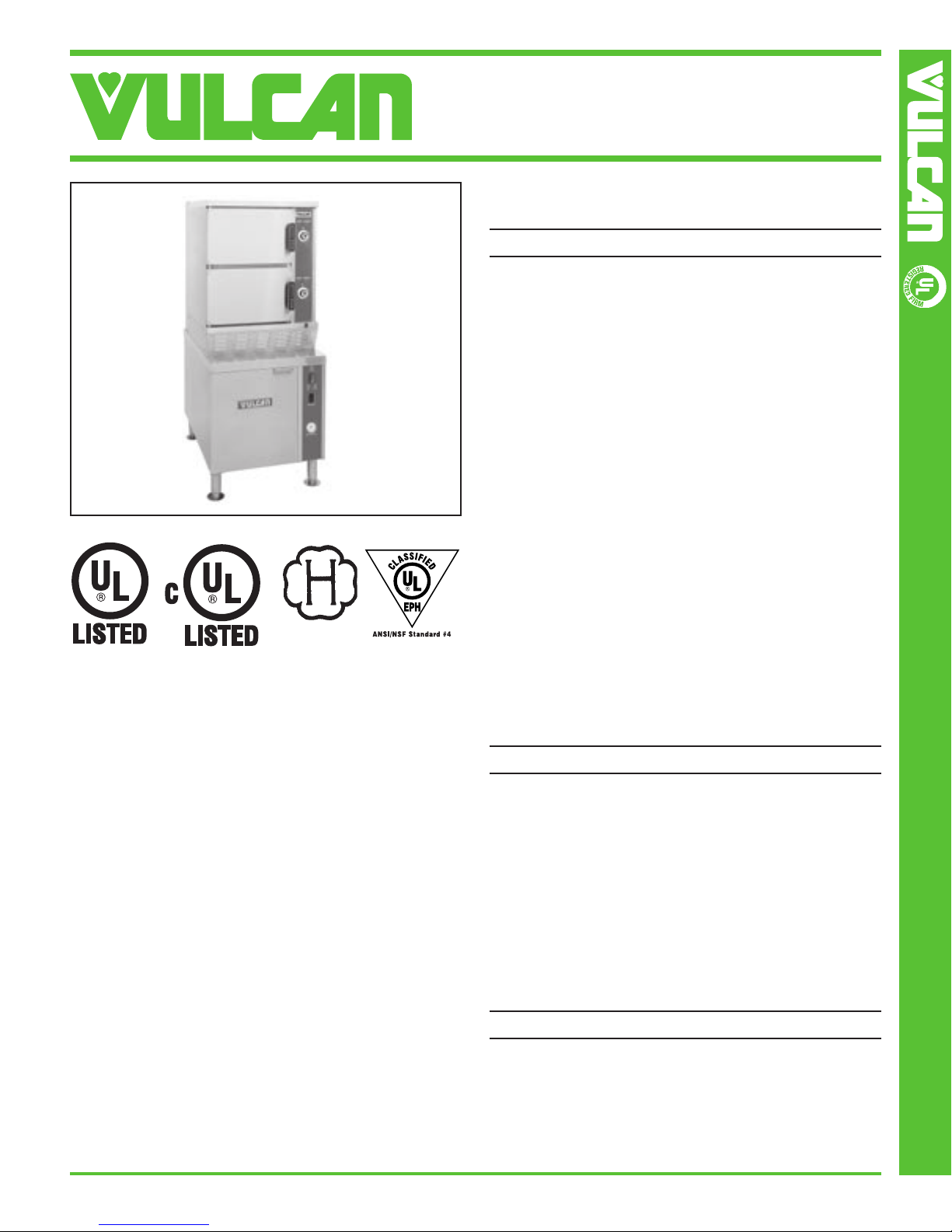

VHXE SERIES
ELECTRIC CONVECTION STEAMERS
ON CABINET BASE
MODEL: VHXE SERIES Electric Convection Steamers on Cabinet Base
■■VHX24E 6 pan capacity
■■VHX24E5 10 pan capacity
STANDARD FEATURES
■Convection steamer mounted on 28" high base cabinet with
stainless steel frame, front full height doors, slip-off stainless
steel side and aluminized rear panel with 6" adjustable legs
with flanged feet for anchoring.
■Two stainless steel cooking compartments with coved interior
corners. Each compartment accepts:
-1" deep pans (6 - VHX24E)(10 - VHX24E5)
-2
1/2" deep pans (3 - VHX24E)(5 - VHX24E5)
-4" deep pans (2 - VHX24E)(3 - VHX24E5)
■11/4" compartment drain.
■Heavy duty stainless steel doors can be opened and closed
at anytime during the cooking cycle. Steam shuts off when
door(s) are opened.
■Electric steam boiler builds 2.3 BHP. Includes CSD-1 compli-
ant high pressure limit switch (15 psi), low water cut-off,
automatic water fill, automatic generator blowdown, 15 psi
pressure relief valve and 15 psi kettle connection.
■Compartment controls include 60 minute dial timer with
buzzer, green "ready" and red "cooking" indicator lights.
■Stainless steel flue cover.
■Service connections include 1/2" cold water connection for
boiler feed and 1/8" cold water condenser and 11/4" drain
connection. (See detail on back page.)
■Requires 208 or 240, 60 Hz, 3 phase.
■One year limited parts and labor warranty.
OPTIONS
■■Correction facility package:
a. Cabinet door with hasp (lock by others).
b. Control cover (lock by others).
c. Tamper resistant fasteners.
d. Flue riser cover.
■■36 KW, 208 or 240 volt, 60 Hz, 3 phase.
■■42 KW, 208 volt, 60 Hz, 3 phase.
■■48 KW, 240 volt, 60 Hz, 3 phase.
■■Mount and interconnect boiler base with kettle at factory.
Includes steam supply piping. Shipped on one skid.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■Stainless steel back panel.
■■Interconnecting steam supply plumbing kit.
■■Removable sliding shelf. Qty.___.
■■Water treatment system.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32572 (2-06)
VHXE SERIES
ELECTRIC CONVECTION STEAMERS
ON CABINET BASE
SERVICE CONNECTIONS
ELECTRICAL CONNECTION: Junction box for electrical con-
nection for boiler heat and controls.
DRAIN: Condenser box, compartment and boiler, 11/4" NPT.
Provide an open air gap type drain within 12" of condenser box
and for best results at a distance so that steam vapors will not
enter the steamer from underneath the control area. Do not
connect solidly to any drain connection.
COLD WATER CONNECTION: 1/2" NPT for boiler feed. Inlet
water pressure between 20 and 80 psi.
COLD WATER CONNECTION: 1/8" NPT for condensate box.
Inlet water pressure between 20 and 80 psi.
WATER: For swing faucet, (single) (dual) temperature 1/4" IPS
tailpiece.
STEAM TAKE-OFF CONNECTION: 3/4" NPT.
NOTE:
•Dimensions which locate the above connections have a tolerance of
+ or -3" (+ or -75 mm).
•Installation of backflow preventers, vacuum breakers and other
specific code requirements is the responsibility of the owner and
installer. It is the responsibility of the owner and installer to comply
with local codes.
•Plastic drains are not recommended due to inherent limited tem-
peratures of the plastic. Boiler purge temperatures may exceed
180°F. The installer may be required to provide means to reduce
boiler purge water temperature to be that of the condensate tem-
perature of 140°F or less.
•This appliance is manufactured for commercial installation only and
is not intended for home use.
WATER QUALITY STATEMENT:
The fact that a water supply is potable is no guarantee that it is suitable
for steam generation. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE 20 - 60 psig
HARDNESS* less than 3 grains
SILICA less than 13 ppm
TOTAL CHLORIDE less than 4.0 ppm
pH RANGE 7-8
UN-DISSOLVED SOLIDS less than 5 microns
*17.1 ppm = 1 grain of hardness
Other factors affecting steam generation are iron content, amount of
chloridation and dissolved gases. Water supplies vary from state to state
and from locations within a state. Therefore it is necessary that the local
water treatment specialist be consulted before the installation of any
steam generating equipment.
Total NOMINAL AMPS PER LINE
Conn. Three Phase Single Phase
KW 208 240 480 380/50/60, 4 wire 208 240
24 66.0 58 29 31 116 100
36 99.9 86.6 43.3 46 N/A N/A
42 118 N/A N/A N/A N/A N/A
48 N/A 116 58 62 N/A N/A
PAN CAPACITIES (Per compartment)
MODEL 1" deep 21/2" deep 4" deep
VHXE 63 2
VHXE5 10 5 3
