Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-31675 (10-03)
SPECIFICATIONS:

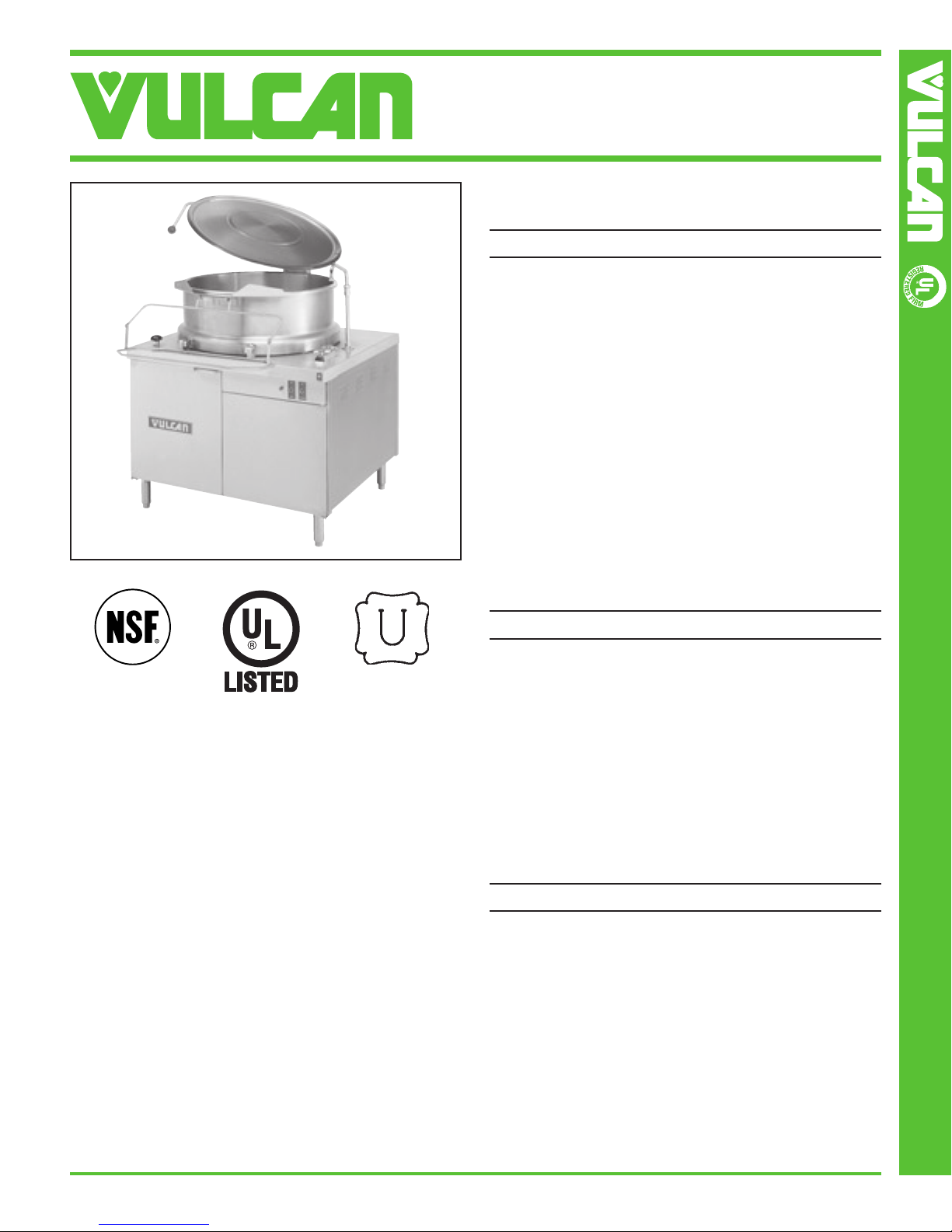

Direct steam tilting kettle mounted in a module cabinet base,
Vulcan-Hart Model No. (VDMT40) (VDMT60). Stainless steel
front, doors, sides and legs with rear feet flanged. One-piece
stainless steel spring assist cover. Steam control and dual
temperature faucet mounted on cabinet table top. Direct con-
nected steam kettle. All welded, type 304 stainless steel kettle.
Kettle is 2/3jacketed and the bottom is hemispheric design.
(Type 316 stainless steel liner - 40 gallons only.) Operates 35
psi (2.4 kg/cm2), includes safety pop-off valve and steam
control. 2" tangent draw-off valve, perforated strainer. Swing
drain and removable strainer under draw-off valve. Hydraulic
power tilt locks into any position set by operator. Kettle tilts 90°
to empty into the stainless steel food receiving pan support.
Requires 120 volt, 60 Hz, 1 phase power supply, _______
amps and direct steam.
Exterior dimensions: (36") (42")w x 33"d x ____ overall height
with cover closed, ____ with cover open.
NSF listed. U L listed. Meets ASME code.
VDMT SERIES
TILTING DIRECT STEAM 2/3JACKETED
KETTLE MODULE IN CABINET BASE
MODELS: VDMT SERIES Tilting Direct Steam 2/3Jacketed Kettle Module in Cabinet Base
■■VDMT40 36" wide, 40 gallons (152 liters) capacity.
■■VDMT60 42" wide, 60 gallons (228 liters) capacity.
STANDARD FEATURES
■Stainless steel front, doors, sides and legs with rear feet
flanged.
■One-piece stainless steel spring assist cover.
■Steam control and dual temperature faucet and 6" swing
faucet mounted on cabinet table top.
■Direct connected steam kettle. All welded, type 304 stainless
steel kettle. Kettle is 2/3jacketed and the bottom is hemi-
spheric design. (Type 316 stainless steel liner - 40 gallons
only.) Operates at 35 psi (2.4 kg/cm2), includes safety pop-off
valve and steam control. 2" tangent draw-off valve, perforated
strainer.
■Swing drain and removable strainer under draw-off valve.
■Hydraulic power tilt locks into any position set by operator.
Kettle tilts 90° to empty into the stainless steel food receiving
pan support.
■One year limited parts and labor warranty.
OPTIONS
■■Type 316 stainless steel liner - 60 gallon.
■■50 psi (3.4 kg/cm2) operating pressure.
■■Correction facility package.
- Cabinet door with hasp (lock by others).
- Security type tamper resistant fasteners with tack welds.
- Front flanged feet.
■■Stainless steel finishing back.
■■Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■Solid strainer (2").
■■Pressure reducing valve.
■■Triple perforated stainless steel basket assembly.
■■Contour measuring strip.
■■Clean-up kit - includes draw-off brush, clean-up brush with
36" handle and paddle scraper with 40" handle.
■■Stainless steel 48" whip.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
SERVICE CONNECTIONS:
Electrical Connection: 1/2" conduit connection to controls.
Unless otherwise specified, Field Wire Connection to be 120 volts,
60 Hz, 1 phase with grounding wire.
Drain: 15/8" O.D. tubing to open floor drain. No solid connection.
Steam Supply: 3/4" IPS for incoming steam at 5-50 PSI
(35-345 kPa).
Cold Water: 3/8" O.D. tubing to faucet (optional).
Hot Water: 3/8" O.D. tubing to faucet (optional).
NOTE:
• Dimensions which locate the above connections have a tolerance
of + or - 3" (+ or - 75 mm).
• Installation of backflow preventers, vacuum breakers and other
specific code requirements is the responsibility of the owner and
installer. It is the responsibility of the owner and installer to comply
with local codes.
F-31675 (10-03)
VDMT SERIES
TILTING DIRECT STEAM 2/3JACKETED
KETTLE MODULE IN CABINET BASE
DIRECT STEAM DATA:
Steam supply to the kettle must:
1. Maintain a steady 13 psi flow under operating conditions.
2. Have a minimum flow rate of dry steam per hour (see chart).
3. Be adequately trapped to provide dry steam (see ball float trap).
EQUIPMENT CLEARANCE:
Rear: 0" Right: 0" Left: 0"
1. Recessareaforkettledraw-
off must be kept free of all
piping connections.
BRIMFUL CAPACITIES:
Model Gallons Quarts Liters 4 oz. svgs.
VDMT40 40 160 152 1280
VDMT60 60 240 227 1920
DIMENSIONS:
Model A B C D E F G
VDMT 26 36 7 48 38.38 42.5 68.25
40 660 914 178 1219 975 1080 1733
VDMT 29.5 42 7 51 41.12 47.62 74.25
60 749 1067 178 1295 1045 1210 1886
STEAM FLOW AT 10 PSIG AT THE KETTLE
Fast Boil Medium Boil Stock Boil
30 minutes 45 minutes 60 minutes
Time to boil lbs/hr kg/hr lbs/hr kg/hr lbs/hr kg/hr
40 Gallons 96 44 64 29 48 22
60 Gallons 143 65 96 44 72 33
