SPECIFICATIONS:

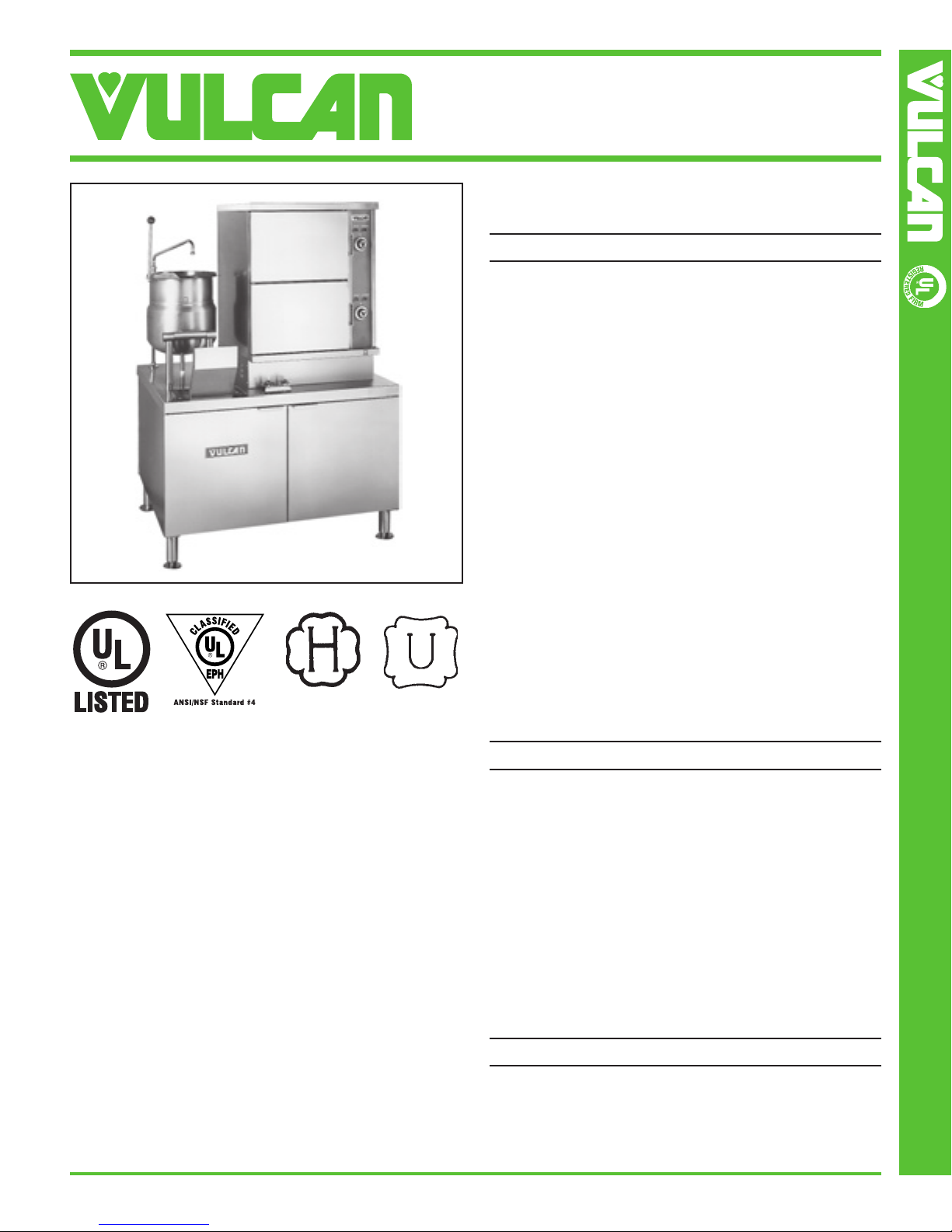

Electric heated convection steamer, Vulcan-Hart Model No.
(VSX42ET) (VSX42E5). Two stainless steel cooking compart-
ments with coved interior corners. Heavy duty stainless steel
"slammable" door can be opened and closed at anytime during
the cooking cycle. Steam shuts off when door(s) are opened.
Tilting kettle mounted to left of cooking compartments and inter-
connected to steam generator. Deck mount dual temperature
faucet with 12" swing spout. Convection steamer mounted on 28"
high base cabinet with stainless steel front full height doors, slip-
off stainless steel side and aluminized rear panel with 6" adjust-
able legs with flanged feet for anchoring. 24 KW steam boiler
builds 2.3 BHP with a steam flow of 79 lbs. of steam/hr. Includes
a CSD-1 compliant high pressure limit switch (15 psi), low water
cut-off, automatic water fill, automatic generator blow down, 15
psi pressure relief valve and 15 psi kettle connection. Com-
partment controls include 60 minute dial timer with buzzer, green
"ready" and red "cooking" indicator lights. Requires 208 or 240
volt, 60 Hz, 3 phase.
Exterior dimensions:
VSX42ET 42"w x 33"d x 603/8"h.
VSX42E5 42"w x 33"d x 73"h.
U L listed. Classified by U L to NSF Std. #4. Meets ASME code.
VSX42E SERIES
ELECTRIC HEATED CONVECTION STEAMER
ON CABINET BASE WITH 24 QT. TILTING KETTLE
MODELS: VSX42E SERIES E
lectric Heated Convection Steamer on Cabinet Base with 24 qt. Tilting Kettle
■■VSX42ET 6 pan capacity
■■VSX42E5 10 pan capacity
STANDARD FEATURES
■Two stainless steel cooking compartments with coved interior
corners. Each compartment accepts:
-1" deep pans (6 - VSX42ET) (10 - VSX42E5)
-2
1/2" deep pans (3 - VSX42ET) (5 - VSX42E5)
-4" deep pans (2 - VSX42ET) (3 - VSX42E5)
■11/4" drain in each compartment.
■Heavy duty stainless steel "slammable" doors can be opened
and closed at anytime during the cooking cycle. Steam shuts
off when door(s) are opened.
■Tilting kettle mounted to the left of cooking compartments
and interconnected to steam generator.
■Deck mount dual temperature faucet with 12" swing spout.
■24 KW steam boiler builds 2.3 BHP with a steam flow of 79 lbs.
of steam/hr. Includes a CSD-1 compliant high pressure limit
switch (15 psi), low water cut-off, automatic water fill, auto-
matic generator blow down, 15 psi pressure relief valve and
15 psi kettle connection.
■Compartmentcontrolsinclude60minutedialtimerwithbuzzer,
green "ready" and red "cooking" indicator lights.
■Convection steamer mounted on 28" high base cabinet with
stainless steel front full height doors, slip-off stainless steel
side and aluminized rear panel with 6" adjustable legs with
flanged feet for anchoring.
■Requires 208 or 240 volt, 60 Hz, 3 phase.
■One year limited parts and labor warranty.
OPTIONS
■■24 KW, 1 phase.
■■36 KW steam boiler.
■■42 KW steam boiler. (208 volts)
■■48 KW steam boiler. (240 volts)
■■Stainless steel frame.
■■Correction facility package:
a. Security type tamper resistant fasteners with tack welds.
b. Control cover with hasp (lock by others).
c. Cabinet door with hasp (lock by others).
■■Step down transformer for control circuit eliminates 120 volts
connection.
■■480 volts, 60 Hz, 3 phase.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■Stainless steel back panel.
■■Water treatment system.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32029 (8-04)
VSX42E SERIES
ELECTRIC HEATED CONVECTION STEAMER
ON CABINET BASE WITH 24 QT. TILTING KETTLE
WATER QUALITY STATEMENT:
The fact that a water supply is potable is no guarantee that it is suitable
for steam generation. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE 20 - 60 psig
HARDNESS* less than 3 grains
SILICA less than 13 ppm
TOTAL CHLORIDE less than 4.0 ppm
pH RANGE 7-8
UN-DISSOLVED SOLIDS less than 5 microns
*17.1 ppm = 1 grain of hardness
Other factors affecting steam generation are iron content, amount of
chloridation and dissolved gases. Water supplies vary from state to state
and from locations within a state. Therefore it is necessary that the local
water treatment specialist be consulted before the installation of any
steam generating equipment.
SERVICE CONNECTIONS:
Electric Connection: Junction box for electrical connection
for boiler heat.
Electric Connection for Controls: 120/60/1, 300 watt maxi-
mum, power supply with grounding wire required. (For other
than 120 volt supply, consult factory for location of this
connection.
Drain: Condenser box, compartment and boiler 11/4" NPT
(Provide an open air gap type drain within 12" of condenser box
and for best results at a distance so that steam vapors will not
enter the steamer from underneath the control area. Do not
connect solidly to any drain connection.)
Cold Water Connection: 3/8" NPT for boiler feed. Inlet water
pressure between 20 and 80 psi.
Cold Water Connection: 3/8" NPT for condensate box. Inlet
water pressure between 20 and 80 psi.
Water: For swing faucet, (single) (dual) temperature 1/4" IPS
tailpiece.
Steam Take-Off Connection: 3/4" NPT.
NOTE:
•Dimensions which locate the above connections have a tolerance of
+ or -3" (+ or -75 mm).
•Installation of backflow preventers, vacuum breakers and other spe-
cific code requirements is the responsibility of the owner and installer.
It is the responsibility of the owner and installer to comply with local
codes.
•Plastic drains are not recommended due to inherent limited tempera-
tures of the plastic. Boiler purge temperatures may exceed 180°F. The
installer may be required to provide means to reduce boiler purge
water temperature to be that of the condensate temperature of 140°F
or less.
•This appliance is manufactured for commercial installation only and is
not intended for home use.
BRIMFUL CAPACITIES (In 4 oz servings):
Working capacity 70 to 80% of brimful depending on model.
24 quarts/6 gallons/23 liters/192 servings
STEAM FLOW RATE AT 10 PSIG AT THE KETTLE
Fast Boil Medium Boil Slow Boil
12 minutes 20 minutes 30 minutes
lbs/hr kg/hr lbs/hr kg/hr lbs/hr kg/hr
6 gallons 39 18 21 10 14 6
NOTE:
1. The energy required to bring 70°F water to 212°F.
2. 1 boiler horsepower (BHP) = 34.5 lbs. of steam per hour.
Total NOMINAL AMPS PER LINE
Conn. Three Phase Single Phase
KW 208 240 480 208 240
24 66 57.8 28.9 115.4 100
36 99.9 86.6 43.3
42 116.6
48 N/A 115 58
PAN CAPACITIES (Per compartment)
MODEL 1" deep 21/2" deep 4" deep
VSX42ET 632
VSX42E5 10 5 3
