Vulcan-Hart GH User manual

INSTALLATION &
OPERATION MANUAL
GH SERIES
HEAVY DUTY GAS RANGES
MODELS
GH30 ML-52141
GH30C ML-53146
GH30S ML-52156
GH45 ML-52142
GH45C ML-52147
GH45S ML-52157
GH6 ML-126402
GH6C ML-126403
GH6S ML-126405
GH60 ML-52144
GH60C ML-52149
GH60S ML-52159
GH60T ML-52171
GH60TC ML-52190
GH60TS ML-52168
GH72 ML-52145
GH72C ML-52150
GH72S ML-52160
GH72/45 ML-52176
GH72/45C ML-52185
GH72/45S ML-52167
MODEL GH6C
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. [phone]
FORM 35634 (2-05)
GH60/45 ML-52174
GH60/45C ML-52184
GH60/45S ML-52165
GH60T45 ML-52186
GH60T45C ML-52191
GH60T45S ML-52169
GHX45 ML-52217
GHX60 ML-52218
GHX60T ML-52223
GHX72 ML-52219

– 2 –
IMPORTANT FOR YOUR SAFETY
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL GAS
EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND
ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.
POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE
EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED
FROM THE LOCAL GAS SUPPLIER.
IMPORTANT
IN THE EVENT A GAS ODOR IS DETECTED, SHUT DOWN
UNITS AT MAIN SHUTOFF VALVE AND CONTACT THE LOCAL
GAS COMPANY OR GAS SUPPLIER FOR SERVICE.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.
IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO
OPERATE THIS DEVICE.

– 3 –
CONFIGURATIONS OF GH SERIES HEAVY-DUTY RANGES WITH
STANDARD OVENS, CONVECTION OVENS AND STORAGE BASES
CONFIGURATIONS OF GH SERIES HEAVY-DUTY EXPANDO RANGES
WITH STORAGE BASE
FULL BODY
34" (864) WIDE
STORAGE BASE
FULL BODY
34" (864) WIDE
OVEN BASE
FULL BODY
18" (457) WIDE
STORAGE BASE

– 4 –
Installation, Operation and Care Of
MODEL GH SERIES HEAVY-DUTY GAS RANGES
SAVE THESE INSTRUCTIONS
GENERAL
Vulcan ranges and ovens are produced with quality workmanship and material. Proper installation,
usage and maintenance of your range will result in many years of satisfactory performance.
The manufacturer suggests that you thoroughly read this entire manual and carefully follow all of the
instructions provided.
INSTALLATION
UNPACKING
This range was inspected before leaving the factory. The transportation company assumes full
responsibility for safe delivery upon acceptance of the shipment. Immediately after unpacking, check
for possible shipping damage. If the range is found to be damaged, save the packaging material and
contact the carrier within 15 days of delivery.
Carefully unpack range(s) and place in the approximate installation position, whether as a battery or
single stand-alone range. Remove all shipping wire and wood blocking. Remove parts (packed in a
cardboard box) from oven cavity, or cabinet body or on top of modular range(s).
Before installing, check the electrical service (Convection Oven Models only) and type of gas supply
(natural or propane) to make sure they agree with the specifications on the rating plate located on the
lower left-hand corner of the front frame behind the bellcrank. If the supply and equipment
requirements do not agree, do not proceed with the installation. Contact your dealer or Vulcan-Hart
immediately.
LOCATION
CAUTION: The equipment area must be kept free and clear of combustible substances.
The following ranges, when installed, must have a minimum clearance from combustible construction
of 6" (152 mm) at the sides and 6" (152 mm) at the rear. Clearance from noncombustible construction
can be 0" (0 mm) at the sides and rear:
GH30
GH30C
GH30S
GH45
GH45C
GH45S
GH6
GH6C
GH6S
GH60
GH60C
GH60S
GH60T
GH60TC
GH60TS
GH72
GH72C
GH72S
GH72/45
GH72/45C
GH72/45S
GH60/45
GH60/45C
GH60/45S
GH60T45
GH60T45C
GH60T45S
GHX45
GHX60
GHX60T
GHX72

– 5 –
Snorkel®Ranges must not be included in back-to-back setups.
The installation location must allow adequate clearances for servicing and proper operation. A minimum
front clearance of 35" (889 mm) is required.
The range(s) must be installed so that the flow of combustion and ventilation air will not be obstructed.
Adequate clearance for air openings into the combustion chamber(s) must be provided. Make sure
there is an adequate supply of air in the room to allow for combustion of the gas at the burners.
INSTALLATION CODES AND STANDARDS
Your Vulcan range(s) must be installed in accordance with:
In the United States:
1. State and local codes.
2. National Fuel Gas Code, ANSI-Z223.1 (latest edition), Copies may be obtained from the American
Gas Association, Inc., 1515 Wilson Blvd., Arlington, VA 22209.
3. National Electrical Code ANSI/NFPA-70 (latest edition). Copies available from the National Fire
Protection Association, Batterymarch Park, Quincy, MA 02269.
In Canada:
1. Local codes.
2. CSA B149.1 Natural Gas and Propane Installation Code.
3. CSA C22.1 Canadian Electrical Code.
The above are available from the Canadian Standard Association, 5060 Spectrum Way, Suite 100,
Mississauga, Ontario, Canada L4W 5N6.
ASSEMBLY
Ranges Mounted on Casters
Ranges mounted on casters must use a flexible connector (not supplied
by Vulcan) that complies with the Standard for Connectors for Movable
Gas Appliances, ANSI Z21.69 • CSA 6.16 and a quick-disconnect
device that complies with the Standard for Quick-Disconnect Devices
for Use With Gas Fuel, ANSI-Z21.41 • CSA 6.9. In addition, adequate
means must be provided to limit movement of the appliance without
depending on the connector and the quick-disconnect device or its
associated piping to limit appliance movement. Attach the restraining

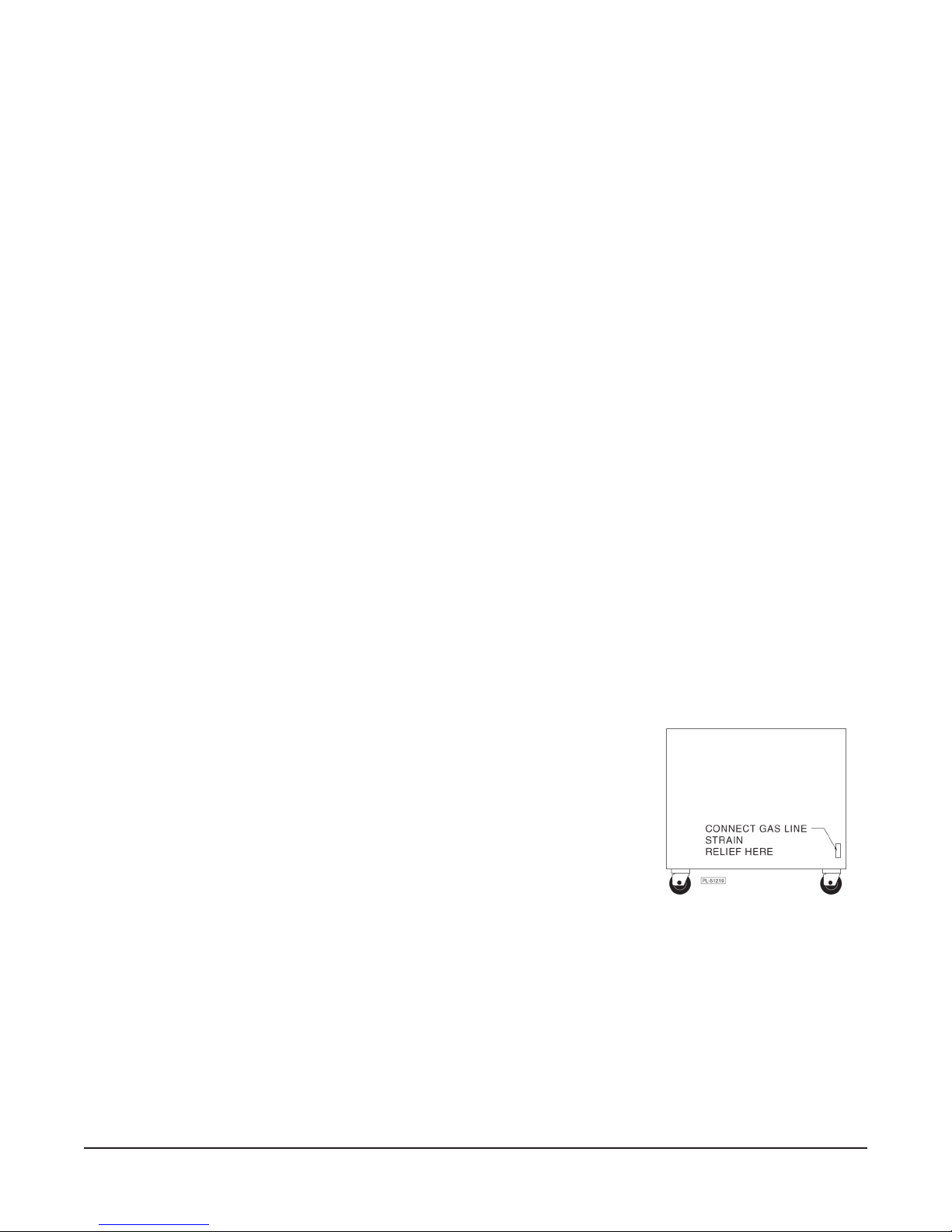

device at the rear of the range as shown in Fig. 1.
If disconnection of the restraint is necessary, turn off the gas supply before disconnection. Reconnect
this restraint prior to turning the gas supply on and returning the range to its installation position.
Separate instructions for installing casters to the range are included with the casters.
Fig. 1

– 6 –
Bumper Bars
CAUTION: Failure to install bumper bars may cause
motor damage and will void the warranty.
Remove existing #10 screws. Position bumper bars as
shown in Fig. 2. Replace #10 screws and secure
bumper bars.
Battery Installation
If you are installing a new battery range to an existing field appliance manufactured before January
1998, the union on the existing field appliance must be checked against the union being used on the
new range. The union manufacturer's name around the face surface of the union nut must match. If the
new range has been shipped using a Ward union and the old appliance has something different — i.e.,
Stockham — it must be replaced with a Ward union (Fig. 3). Failure to replace this union could result
in a gas leak.
If a Ward union is needed for installation, it must be ordered through the Vulcan-Hart Parts Depot (Part
No. FP-088-89).
Fig. 3
Questions or concerns regarding the above installation procedures may be addressed by calling a
Vulcan-Hart Service Agency. (refer to our website, www.vulcanhart.com for a complete listing of
Authorized Service and Parts depots).
Proceed with the battery installation as follows:
1. Move next range into position and level as explained in LEVELING. Engage union nut on
manifold pipe with male fitting on next range and draw up union nut hand-tight. Be sure
ranges butt both front and rear. If manifolds do not line up, then ranges are not level. Do not
adjust manifold brackets to make manifolds line up, except in extreme cases, because this
will cause gas valves not to line up perfectly with manifold cover holes. Bolt top frames
together, using 10-24 x 1/2" (12.7 mm) bolts (packed in plastic bag in range oven).
Fig. 2

– 7 –
2. Continue leveling, connecting manifold pipe and
bolting top frames of ranges together until all ranges
in the battery are connected, and then tighten
manifold unions gas-tight. Use wrench to keep
section of union assembled to pipe from rotating.
Failure to do this may result in misalignment of valve
stems.
3. Unpack high shelves or backguards and remove
backsplashes.
4. Place high shelf or backguard in position (see
ASSEMBLY — RISER, BACKGUARD AND HIGH
SHELF in this manual).
5. Replace back tops and backsplashes.
6. If front plates do not line up perfectly, adjust by
means of bolts under front plate. Similar front
adjustment is provided for the one-piece cast-iron
griddle (Model GH60) (Fig. 4).
Fig. 4
Fig. 5
Riser, Backguard and High Shelf
Remove the shipping brackets on the corner of the range where a high shelf support casting is to be
bolted. It is not necessary to remove either shipping bracket on ranges equipped with a backguard as
the brackets will be used for support when remounting the rear top plate and backguard backsplash.
1. Carefully unpack riser, backguard or high shelf with the back down, on floor in front of range.
Remove backsplash panel from riser, backguard or high shelf.
2. Remove top castings, back top and shipping brackets from the range. Identify top casting(s) so
they are replaced in the same positions on the same range as when received from the factory.
When assembling a riser, backguard or high shelf to batteried equipment, remove only the extreme right
and left shipping brackets of setup section requiring mounting (Fig. 5).

– 8 –
While lowering support channels into openings, be sure that the lower angle flange of the riser,
backguard or high shelf is positioned outside the flue back (Fig. 8).

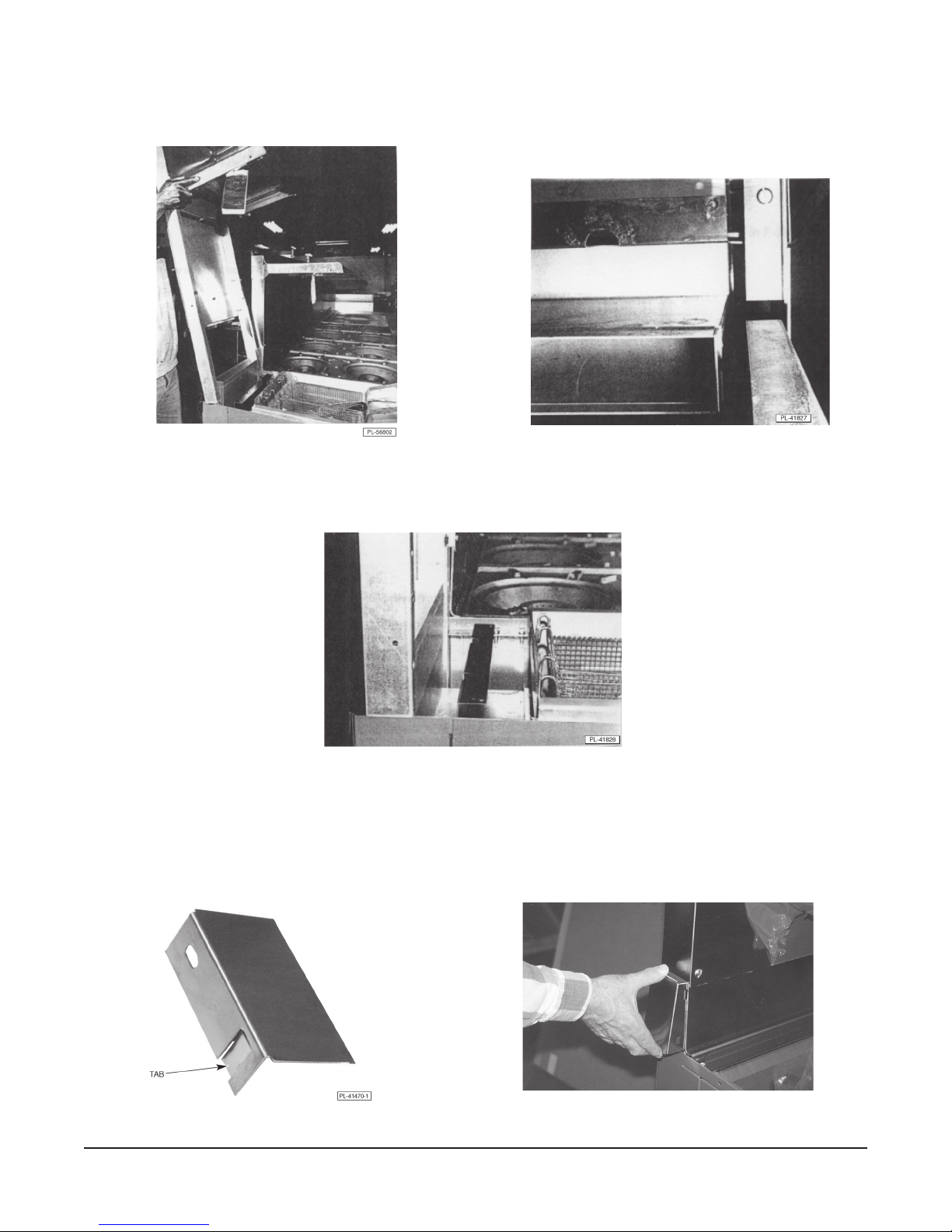

Fig. 9 Fig. 10
Fig. 8
Once the backguard is setting in place on the range, install the left and right end caps. End caps simply
slide on, in between the splasher and the backguard. There is a tab on the cap that can be pulled out
or pushed in (with a screwdriver) to adjust cap for tightness. Two caps are packaged with each
backguard in a separate plastic bag. Be sure to look for caps in the backguard box. See Figs. 9, 10,
11 and 12.
3. Carefully lift riser, backguard or high shelf over range (Fig. 6).
4. Carefully guide support channels into the two openings provided at the rear of the range (Fig. 7).
Fig. 6 Fig. 7

– 9 –
Fig. 11
Fig. 12

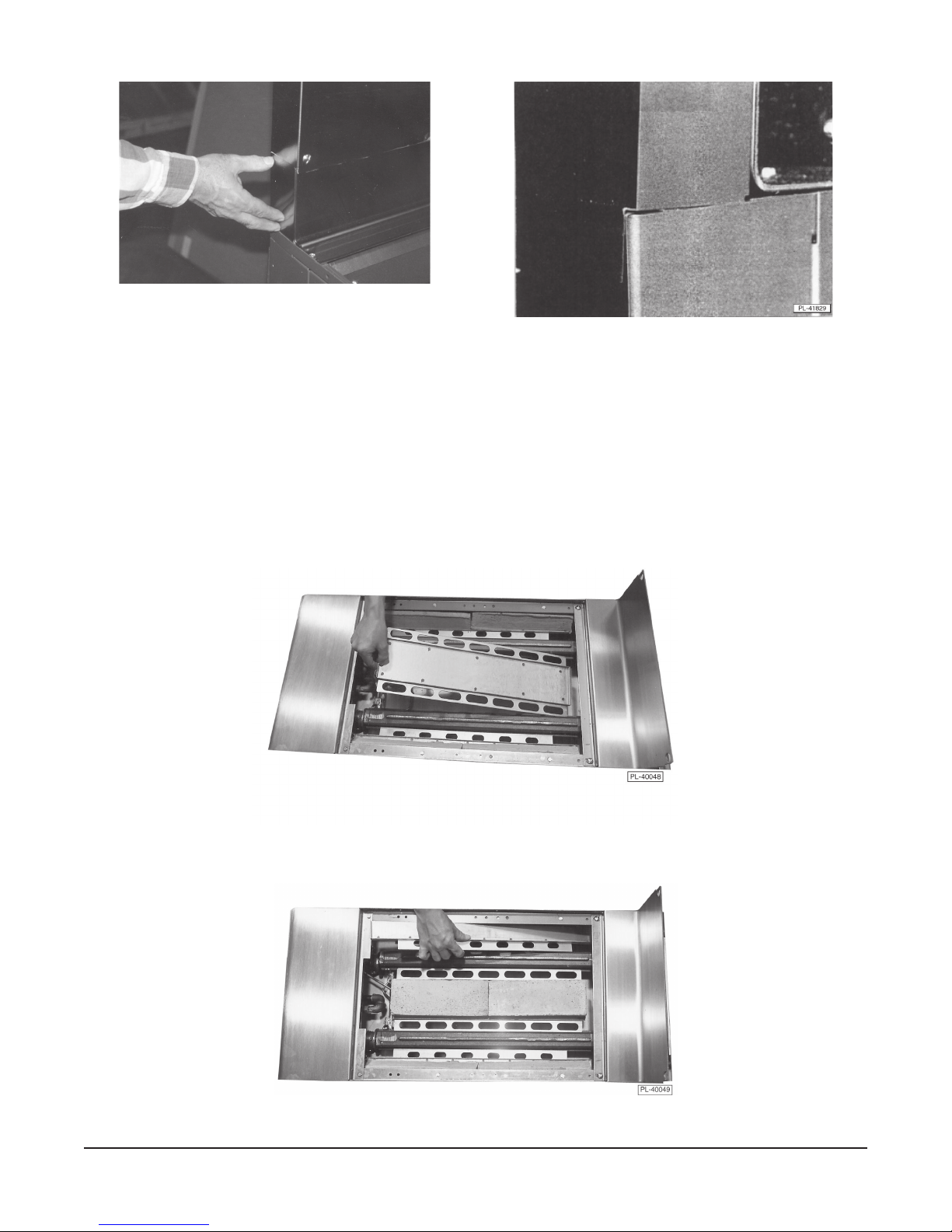

5. Replace back tops and top castings onto range (Fig. 12). Shipping brackets removed in Step 2
are no longer required and may be discarded.
6. Replace riser, backguard or high shelf backsplash panel. Mounting is now complete.
Thermostatically Controlled Griddle Installation
Set metal brick supports and bricks in place.
1. Center Support (1) — Place in center with smooth surface down (Fig. 13).
Fig. 13
2. Narrow Supports (2) — Place one on each side with smooth surface down and oval holes to
outside (Fig. 14).
Fig. 14

– 10 –
5. The griddle plate is packaged separately from the range. On the top burner box front area of the
range, locate the coiled thermostat bulb and capillary assembly. Gently uncoil the capillary line.
Lift the griddle plate onto the range top, being careful not to crush the thermostat bulb or capillary.
Wedge a 2 x 4 under the front part of the griddle to hold up the plate. This will be necessary to install
the thermostat bulb into the V-slot bracket, located on the under side of the griddle plate.
6. Feed the thermostat bulb and capillary up over the heat shield and through the notched area
supplied in the shield (Fig. 16).
3. Triangle-shaped Bricks (4) — Place two each side (Fig. 15).
Fig. 15
4. Large Bricks (2) — Set in center support as shown in Figs. 14 and 15.

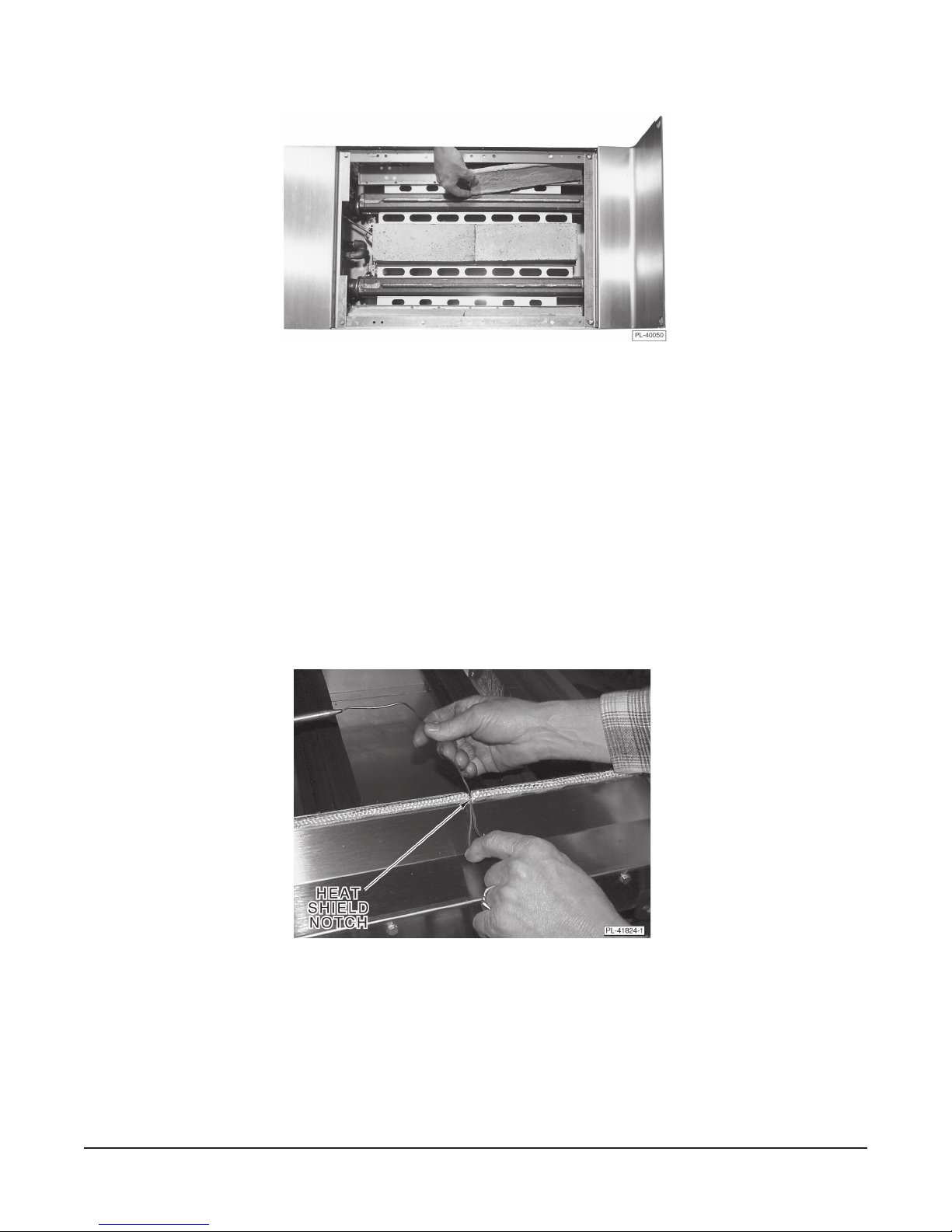

Fig. 16

– 11 –
7. Slide the thermostat bulb through the V-slot bracket (Fig. 17). Neatly coil the excess capillary line
without kinking and lay resting in front of the heat shield. Do not pinch the line when reinstalling
the control cover.
NOTE: The bulb should not be exposed and should be completely encased inside the V-slot
bracket. Also take care to insure that the capillary line is not exposed in any way to the burner
flame.
Fig. 17
LEVELING
Unlevel range(s) will create battery installation problems in lining up the manifolding system, and result
in uneven cooked product. Using a carpenter's level, level the range(s) from front to rear and side to
side. With range in its exact location or battery position, adjust leg heights. If installing a battery of
equipment, begin with first unit in battery lineup. Adjust legs by turning feet until all legs are resting on
the floor. If "less legs base" or "toe base" is used, screw the leveling bolt until floor contact is made (Fig. 18).
The casters provided for the ranges are the nonleveling type; therefore, the floor must be reasonably
level or baked products will be uneven and performance will be inconsistent.
Fig. 18

– 12 –
GAS CONNECTIONS
CAUTION: All gas supply connections and any pipe joint compound used must be resistant to
the action of propane gases.
Remove oven bottom(s) and baffles.
Remove upper manifold panel(s).
Connect gas supply to the range(s). Make sure the pipes are clean and free of obstructions, dirt and
piping compound.
Codes require that a gas shutoff valve be installed in the gas line ahead of the range(s).
Ranges manufactured for use with propane gas are equipped with fixed orifices.
WARNING: PRIOR TO LIGHTING, CHECK ALL JOINTS IN THE GAS SUPPLY LINE FOR
LEAKS. USE SOAP AND WATER SOLUTION. DO NOT USE AN OPEN FLAME.
After piping has been checked for leaks, all piping receiving gas should be fully purged to remove air.
Single Range Installations
All single stand-alone ranges require installation using a regulator (design-certified by a nationally
recognized testing lab to the applicable ANSI standard) for an outlet (manifold) pressure of 6" (1.49 kPa)
Water Column for natural gas supply, and outlet (manifold) pressure of 10" (2.49 kPa) Water Column
for propane gas supply (available from Vulcan-Hart). The regulator must be adjusted to agree with the
pressures indicated on the rating plate. When installing the regulator, follow instructions supplied by the
regulator manufacturer.
Manifold pressure for the incoming store line must be at least 7" (1.74 kPa) Water Column for natural
gas and 11" (2.74 kPa) Water Column for propane gas.
If a pressure regulator is not installed, the warranty on related parts, as well as performance-related
problems, will not be covered.
Battery Installations
The gas manifold of this range, or the battery of which it is a part, must be installed using a regulator
design-certified by a nationally recognized testing lab to the applicable ANSI standard (regulators
available from Vulcan-Hart). The pressure regulator must have a maximum regulation capacity to
handle the total connected load and must have an adjustment range for manifold pressure marked on
the range rating plate. If the manifold pressure of the connected ranges is not the same, a separate
regulator must be supplied for all ranges operating under different manifold pressure ratings.
If a pressure regulator is not installed, the warranty on related parts, as well as performance-related
problems, will not be covered.
TESTING THE GAS SUPPLY SYSTEM
When test pressures exceed 1/2psig (3.45 kPa), the range and its individual shutoff valve must be
disconnected from the gas supply piping system.
When test pressures are 1/2 psig (3.45 kPa) or less, the range must be isolated from the gas supply
system by closing its individual manual shutoff valve.

– 13 –
FLUE CONNECTIONS
DO NOT obstruct the flow of flue gases from the flue duct located on the rear of the range. It is
recommended that the flue gases be ventilated to the outside of the building through a ventilation
system installed by qualified personnel.
A minimum of 18" (45 cm) must be maintained between the grease removal device and the cooking
surface.
Information on the construction and installation of ventilating hoods may be obtained from the standard
for "Vapor Removal from Cooking Equipment," NFPA No. 96 (latest edition), available from the National
Fire Protection Association, Batterymarch Park, Quincy, MA 02269.
ELECTRICAL CONNECTIONS
WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE
APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL
ELECTRICAL CODES.
WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW
LOCKOUT / TAGOUT PROCEDURES.
WARNING: APPLIANCES EQUIPPED WITH A FLEXIBLE ELECTRIC SUPPLY CORD ARE
PROVIDED WITH A THREE-PRONG GROUNDING PLUG. IT IS IMPERATIVE THAT THIS
PLUG BE CONNECTED INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE. IF
THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN.
DO NOT REMOVE THE GROUNDING PRONG FROM THIS PLUG.
If your range is not equipped with a grounding plug and electric supply is needed, ground the range by
using the ground lug provided (refer to the wiring diagram which is packaged in a clear plastic ziplock
bag located within the oven cavity on the oven rack).
Do not connect the range to electrical supply until after gas connections have been made.

– 14 –
OPERATION
WARNING: THE RANGE AND ITS PARTS ARE HOT. BE CAREFUL WHEN OPERATING,
CLEANING OR SERVICING THE RANGE.
BEFORE FIRST USE
Seasoning of Cast-Iron Hot Tops and Even-Heat Tops
These tops are made of cast iron and should be seasoned prior to use. To season, pour a small amount
of cooking oil (about 1 ounce [28 grams] per square foot [.09 square meters] of surface) over the top.
With a cloth, spread the oil over the entire surface to create a thin film. Wipe off any excess oil with a
cloth. Turn burners on very low and allow to heat up gradually for about 2 hours. Repeat this procedure
a second time before regular use. This will resist cracking of the cast iron and ensure longer life.
Cleaning Griddle Plate at Start-Up
The griddle plate is shipped covered with a protective coating of grease. Remove this film only when
the griddle plate is being cleaned prior to its first cooking use. Remove film by scraping the griddle
surface with the straight edge of a large piece of stiff cardboard. For cleaning procedures, see
CLEANING - GRIDDLE TOP in this manual.
Seasoning of Griddle Plate
CAUTION: This griddle plate is steel, but the surface is relatively soft and can be scored or
dented by carelessly using a spatula. Be careful not to dent, scratch or gouge the plate surface.
Do not try to knock off loose food that may be on the spatula by tapping the corner edge of the
spatula on the griddle surface.
A new griddle surface must be seasoned to do a good cooking job. The metal surface of the griddle is
porous. Food tends to get trapped in these pores and stick; therefore, it is important to "season" or "fill
up" these pores with cooking oil before cooking. Seasoning gives the surface a slick, hard finish from
which the food will release easily.
To season, heat the griddle to a low temperature 300 to 350°F (148 to 176°C) (use a surface
temperature gauge) and pour on a small amount of cooking oil (about 1 ounce [28 grams] per square
foot [.09 square meters] of surface). With a cloth, spread the oil over the entire griddle surface to create
a thin film. Wipe off any excess oil with a cloth.
Repeat this procedure two to three times until the griddle has a slick, mirrorlike surface.

– 15 –

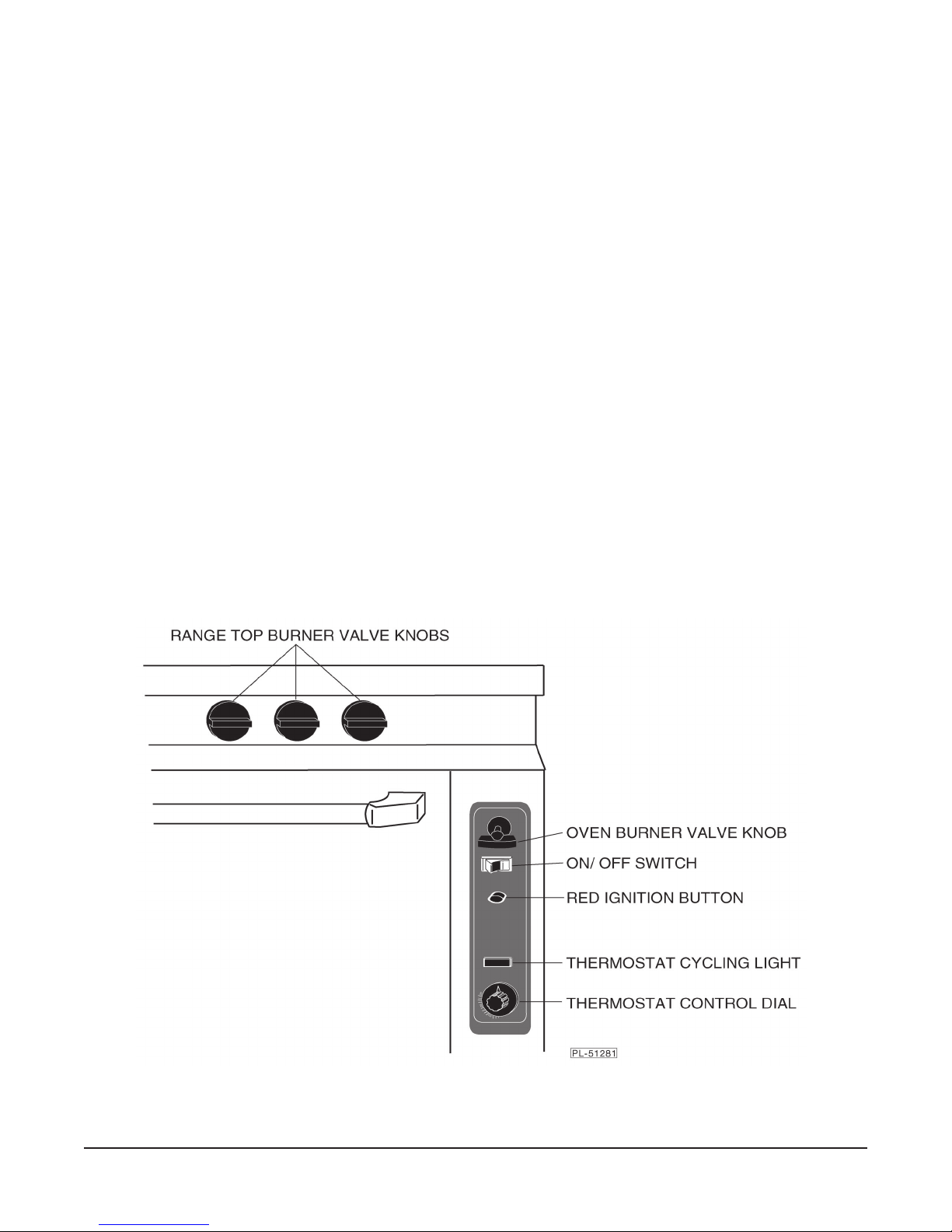

CONTROLS (Fig. 19)
RANGE TOP BURNER When opened, allows gas to flow to the range section. To
VALVE KNOB open valve, turn knob counterclockwise. To close valve, turn
knob clockwise.
OVEN BURNER VALVE KNOB When opened, allows gas to flow to the oven burner. To open
valve, turn knob counterclockwise. To close valve, turn knob
clockwise.
RED IGNITION BUTTON Used to ignite the oven pilot. To operate, push button in and
follow pilot lighting instructions.
THERMOSTAT CONTROL DIAL Used to regulate the amount of heat needed to cook a
product. The thermostat dial’s temperature range is from
150°F to 500°F (65°C to 260°C). Turn dial counterclockwise
to increase temperature and clockwise to decrease
temperature.
ON-OFF SWITCH To turn power on, push switch to the ON position. When switch
(CONVECTION OVENS ONLY) light illuminates, power is being transmitted to the unit.
THERMOSTAT CYCLING LIGHT When lit, indicates that the thermostat is calling for
(CONVECTION OVENS ONLY) heat. When thermostat reaches the dial set
temperature, the light will automatically shut off.
Fig. 19

– 16 –
Standard Oven Pilot
Before lighting oven, be sure that range top sections have been lit.
1. Open oven door and locate square pilot lighter cutout.
2. Using a taper, light oven pilot by depressing red ignition button (Fig. 20) located on the side control
panel above the thermostat knob. Light the pilot and continue to hold the ignition button in for 30
seconds. If pilot fails to light, turn main gas valve OFF and wait 5 minutes before repeating Steps
1 and 2.
3. Set oven thermostat to desired temperature.
Fig. 20
Nightly Shutdown: Turn oven burner valve OFF.
Complete Shutdown: Turn oven burner valve OFF. Turn main gas supply OFF.
LIGHTING AND SHUTTING DOWN PILOTS
Open Top, Griddle Top and Hot Top Burner Pilots
1. Turn main gas supply ON.
2. Turn all top burner valve knobs ON to purge gas line of air.
3. Turn top burner valve knobs OFF.
4. Wait 30 seconds.
5. Using a taper, light the pilot(s).
6. If pilot fails to light, wait 5 minutes and repeat Steps 1 through 5.
7. Turn one top burner valve ON to make sure that all gas lines are completely purged of air. Turn
burner OFF when gas begins to flow.
Nightly Shutdown: Turn burner valve OFF; pilot will remain lit.
Complete Shutdown: Turn burner valve OFF; pilot will remain lit. Turn main gas valve OFF.

– 17 –
Convection Oven Pilot
Before lighting oven, be sure that range top sections have been lit.
1. Connect range to the main electrical supply line. Open oven door panel and locate square pilot
lighter cutout.
2. Turn red gas valve (located behind the control panel) ON, purging the gas line of all air. Turn gas
valve and power switch OFF. Close oven door.
3. Light oven pilot by depressing the red ignition button (Fig. 20), and using a taper, ignite the pilot.
Hold ignition button in for 30 seconds, or until pilot remains lit. Turn gas valve back ON.
4. If pilot fails to light, turn main gas valve OFF. Wait 5 minutes and repeat Steps 2 and 3.
5. After pilot is lit, push the power switch ON and turn the temperature dial to the desired setting.
Nightly Shutdown: Turn power switch OFF and the temperature dial to 0 degrees.
Complete Shutdown:
1. Push power switch OFF.
2. Turn red gas valve (located behind the control panel) OFF.
3. Turn main gas supply OFF.
4. Disconnect electrical supply cord.
ADJUSTMENTS
All adjustment procedures associated with pilot lighting should be performed by an authorized Vulcan-
Hart installation or service person. The bypass (minimum burner) flame adjustment must be made
at the time the range is installed.
After adjustments are complete, replace oven control panel(s). Check identification so that each panel
is returned to its respective range. Replace oven baffles and oven bottom(s).
Replace upper manifold panel(s). Position brick in ranges where necessary (Fig. 21). Replace top
casting(s). Check identification so that each may be returned to its respective original range as
received from the factory.
Fig. 21

– 18 –
INSERTING AND REMOVING STANDARD CONVECTION OVEN RACKS
Convection oven sections use different-style racks and rack guides.
On ovens provided with oven rack stops, it is necessary to place the rack, including the support hook,
along the top of the side liner runners and slide the rack completely to the rear of the oven compartment
until the rack drops into place (Fig. 22).
Fig. 22
To remove the racks, reverse this procedure by raising the rear of the oven rack support hooks above
the runner and pulling the racks forward (Fig. 23).
Fig. 23
USING THE RANGE
Open Burners
Since both burners are lit from constantly burning pilots, turn the control knobs to HI to put each burner
into operation. Then adjust to a lower flame for better cooking results and to minimize gas usage.
The left-hand control knob is for the rear burner; the right-hand control knob is for the front burner.
Oven Burners
Turn red burner valve handle to the vertical position, then turn thermostat dial to desired temperature.
On Convection Oven Models, also turn the power switch to ON.

– 19 –
LOADING AND UNLOADING THE OVEN
Open the door and load as quickly as practical to conserve heat. Take care to avoid spilling liquids while
loading. Close the door and refer to recipe for cooking time.
Provide adequate space for product unloading. Rapid unloading will conserve heat and ensure proper
preheating conditions for the next load, if applicable.
OPERATING SUGGESTIONS
Center-Fired Hot Top Range
Turn all burners fully on to heat top quickly. When operating temperature is reached, turn some of the
rings down or off and you will save as much as 80% of the gas. Keeping all rings turned fully on not only
wastes gas but also increases wear on the equipment. During an idling period, the pilot burners in the
center will keep the top warm.
Heat is concentrated in the center, use this area to bring food to a boil, then move pots away from the
center to maintain a rolling boil or simmer.
Open-Top Ranges
Open-top ranges are quickly lighted and require no preheating time. Light only as many burners as
needed.
Griddle Top and Even-Heat Top Ranges
Heat top thoroughly before using. The top can be kept hot with burners turned partially down. During
off periods, turn the burners down or heat only half the top.
Range Ovens
Allow time to preheat ovens before using (25 min. to 400°F [204°C]). If properly used, the automatic
temperature control will cut gas and food costs. Do not turn on maximum heat all the time. Turn
thermostat down to 250°F (121°C) when oven is idling, or turn oven off when not in use.
This oven gives you double capacity because you can do pan work on both shelves. If you are cooking
high roasts, the entire height of the oven can be utilized by removing a shelf or racks and placing roast
pan directly on the insulated oven bottom.
Moderate oven temperatures will produce better food, reduce shrinkage and keep maintenance costs
down. Using a low temperature for roasting (about 325°F [162°C] or even lower) will reduce meat costs
by reducing shrinkage.
A pan of water (approximately 12" x 20" x 1" [305 mm x 508 mm x 25.4 mm]) may be placed in the oven
bottom. This water supplies humidity to reduce shrinkage. If necessary, add water during roasting.
Standard Oven Cooking
If you have a standard oven, use your normal recipe times and temperatures.

– 20 –
Convection Oven Cooking
If you have a convection oven, reduce your normal recipe temperature by 25°F (-3°C). Cooking time
in a convection oven will vary slightly from your normal recipe time.
Cooking starts immediately in the convection oven. Yeast breads do not usually rise as much in the
convection oven. It is, therefore, usually necessary to allow fuller proof, two-and-a-half to three times
increase in volume for the best results.
When baking pies in your convection oven, put three or four pies on an 18" x 26" (457 mm x 660 mm)
sheet or bun pan. This procedure helps the bottom crust to bake, makes handling easier and reduces
the possibility of boilover, which would spoil the appearance of the pies on the lower racks.
Pies and cobblers, fruit, custard and pumpkin pies in tins should be placed on 18" x 26" x 1"
(457 mm x 660 mm x 25.4 mm) pans for baking.
CLEANING
WARNING: (CONVECTION OVEN MODELS ONLY) DISCONNECT ELECTRICAL POWER
SUPPLY BEFORE CLEANING.
Suggestions for Care and Cleaning
Vulcan equipment is strongly constructed and is designed to give you long, satisfactory service at low
cost, provided you give it proper care. Frequent cleaning and occasional adjusting should reward you
with low operating and maintenance costs and faster, better service.
After cleaning cast-iron tops, any even-heat tops and griddle plates, reseason following the seasoning
procedures described in BEFORE FIRST USE. If your range(s) will be shut down for an extended
period, put a heavy coat of grease on the surface(s).
Open-Top Burners
Daily
Remove grates and clean under and around open burners.
Weekly
1. Clean each burner thoroughly. Clean stainless steel or chromed surfaces with a damp cloth and
polish with a soft dry cloth. A detergent may be used for cleaning. To remove discolorations, use
a nonabrasive cleaner, always rubbing with the grain of the metal.
2. Clean bottom drip pan. To remove drip pan, reach under and lift rear of pan about 1" (25.4 mm),
slide pan to the rear about 1/2" (12.7 mm) and drop front end of pan free. Slide pan forward between
the front legs. To replace pan, reverse this procedure.
3. Burner air shutter openings must be kept clean.
4. Main burner ports must be kept clean. To clean burners, boil them in a strong solution of lye water
for 15-20 minutes, then brush with a wire brush. A coat hanger may be used to clean out particles
in burner ports.
5. Open burner pilot flash tubes and burner ignition port must be clear for burners to ignite properly
from the pilot.
