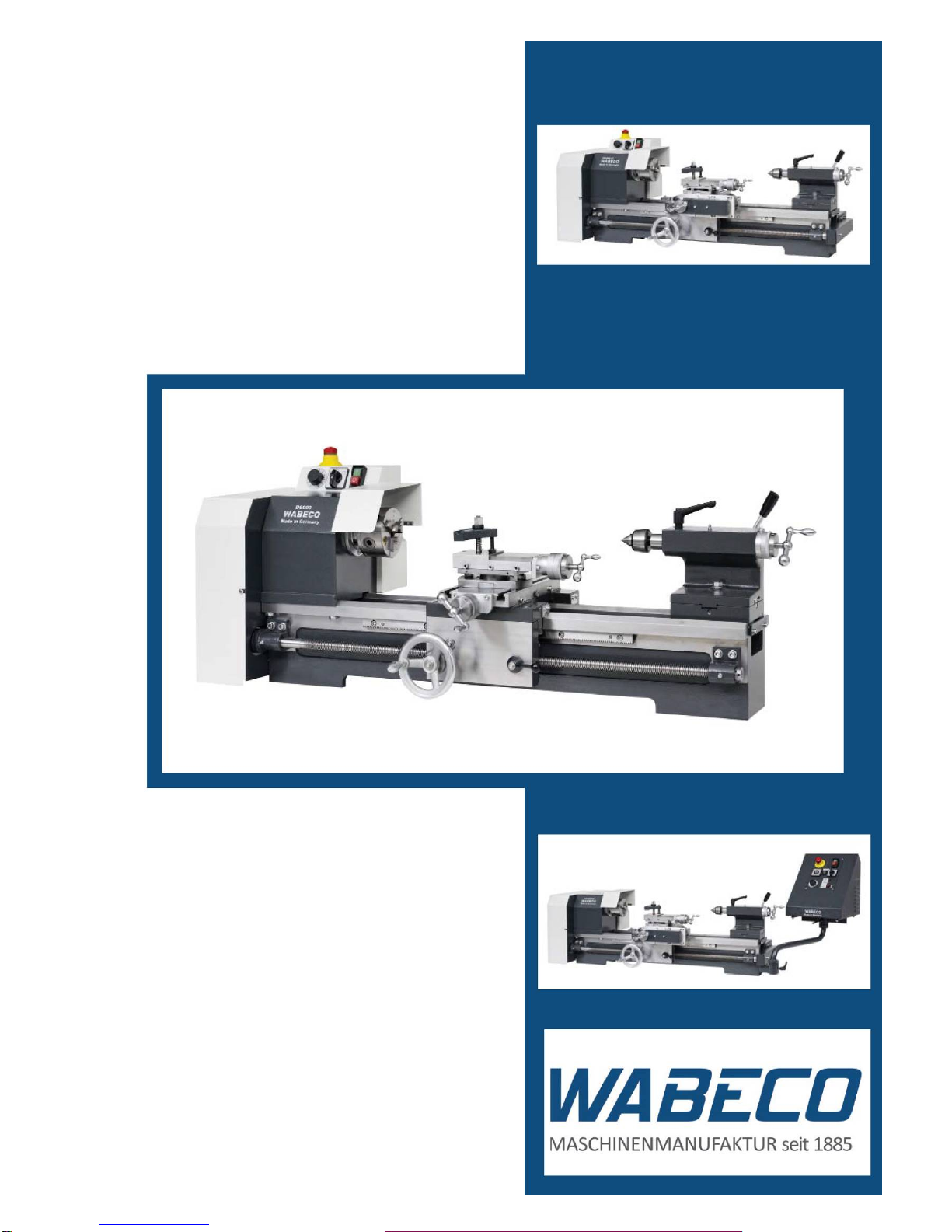

WABECO D6000 User manual

Operating Instructions
Lathes
CNC lathes
With prismatic cast iron bed
D6000 D6000-C CC-D6000
D6000 hs D6000-C hs CC-D6000 hs

2
Please read before putting into operation for the first time!
Every person that operates the machine, maintains or repairs it, must have read the operating
instructions, and in particular, the safety notes prior to putting the machine into operation.
Please store these documents for subsequent use
Original version in German/translation in English
Status at 10/2014
Dear Customer!
With the purchase of the WABECO machine you have decided in favour of a quality tool. This
machine has been manufactured with the greatest of care and subject to precise quality controls.
These operating instructions are designed to help you to use your new machine safely and correctly.
For this reason, we ask you to read the appropriate notes through attentively and to take care to
observe them.
After unpacking the tool, check whether any transportation damages have occurred. Complaints,
whatever their nature, should be communicated immediately. Subsequent claims cannot be
recognised.
For all queries and replacement part orders, please always specify the machine number (see type
plate).
Reprinting and reproductions of any kind, even extracts, require the written permission of
WABECO
Disposing of the machine
The transportation and protective packaging is made of the following materials:
■Corrugated card
■Polystyrene without Freon
■Polyethylene foil
■Timber as single-use pallet (untreated)
■Euro pallet (multiple use packaging)
If you no longer need the items, or you do not want to reuse them, dispose of these items at the
officially recognised recycling points.
The machine is manufactured in such a way that 98% of the used materials that can be recycled, for
example, steel, cast iron, aluminium and only 2% are chemical materials, e.g. cable sleeves of
electrical cables, PCBs.
If you have any difficulties in disposing of these parts properly, we would be happy to help: with prior
agreement we will take back the machine in full and dispose of it. You must, however, cover the costs
of sending it to us.
wabeco-rs.de
Walter Blombach GmbH
42899 Remscheid
Am Blaffertsberg 13
Germany
Tel. [phone]
Fax [phone]
E-Mail [e-mail]

3
Contents
Declaration of conformity for D6000 – D6000 hs 8
Declaration of conformity for D6000-C – D6000-C hs 9
Declaration of conformity for CC-D6000 – CC-D6000 hs 10
1. Important safety notes 11
1.1 Intended use 11
1.2 Improper and incorrect use 11
1.3 Modifications to the machine 11
1.4 Safety regulations for proper use 11
1.5 Safety features 14
1.5.1 For all lathes 14
1.5.2 For lathes to be mounted to a CNC control 14
and CNC lathes
1.5.3 For CNC lathes 14
1.6 Explanations of the symbols 15
2. Delivery and set up 15
2.1 Transporting the machine 16
3. Putting into operation 17
3.1 For all lathes 17
3.2 For all CNC lathes 17
3.2.1 Setting up and connecting the control computer 17
4. Specifications regarding the machine 18
4.1 Identification of the model 18
4.2 Noise emission declaration for D6000 – D6000 hs 18
4.2.1 Technical data for D6000 – D6000 hs 19
4.2.2 Dimensions of D6000 with 1.4 kW motor with trapezoidal-threaded spindle 20
Front view
4.2.3 Dimensions of D6000 with 1.4 kW motor with trapezoidal-threaded spindle 20
Side view
4.2.4 Dimensions of D6000 hs with 2.0 kW motor with trapezoidal-threaded spindle 21
Front view
4.2.5 Dimensions of D6000 hs with 2.0 kW motor with trapezoidal-threaded spindle 21
Side view
4.2.6 Dimensions of D6000 with 1.4 kW motor with ball screw spindle, front view 22
4.2.7 Dimensions of D6000 with 1.4 kW motor with ball screw spindle, side view 22
4.2.8 Dimensions of D6000 hs with 2.0 kW motor with ball screw spindle, front view 23
4.2.9 Dimensions of D6000 hs with 2.0 kW motor with ball screw spindle, side view 23
4.3 Noise emission declaration for D6000-C – D6000-C hs 24
4.3.1 Technical data for D6000-C – D6000-C hs 25
4.3.2 Dimensions of D6000-C with 1.4 kW motor with trapezoidal-threaded spindle 26
Front view
4.3.3 Dimensions of D6000-C with 1.4 kW motor with trapezoidal-threaded spindle 26
Side view
4.3.4 Dimensions of D6000-C hs with 2.0 kW motor with trapezoidal-threaded spindle 27
Front view

4
Contents
4.3.5 Dimensions of D6000-C hs with 2.0 kW motor with trapezoidal-threaded spindle 27
Side view
4.3.6 Dimensions of D6000-C with 1.4 kW motor with ball screw spindle 28
Front view
4.3.7 Dimensions of D6000-C with 1.4 kW motor with ball screw spindle 28
Side view
4.3.8 Dimensions of D6000-C hs with 2.0 kW motor with ball screw spindle 29
Front view
4.3.9 Dimensions of D6000-C hs with 2.0 kW motor with ball screw spindle 29
Side view
4.4 Noise emission declaration for CC-D6000 – CC-D6000 hs 30
4.4.1 Technical data for CC-D6000 – CC-D6000 hs 31
4.4.2 Dimensions of CC-D6000 with 1.4 kW motor with trapezoidal-threaded spindle 32
Front view
4.4.3 Dimensions of CC-D6000 with 1.4 kW motor with trapezoidal-threaded spindle 32
Side view
4.4.4 Dimensions of CC-D6000 hs with 2.0 kW motor with 33
trapezoidal-threaded spindle Front view
4.4.5 Dimensions of CC-D6000 hs with 2.0 kW motor with 33
trapezoidal-threaded spindle Side view
4.4.6 Dimensions of CC-D6000 with 1.4 kW motor with ball screw spindle 34
Front view
4.4.7 Dimensions of CC-D6000 with 1.4 kW motor with ball screw spindle 34
Side view
4.4.8 Dimensions of CC-D6000 hs with 2.0 kW motor with ball screw spindle 35
Front view
4.4.9 Dimensions of CC-D6000 hs with 2.0 kW motor with ball screw spindle 35
Side view
4.5 Revolution selection 36
4.6 Diagram for reading off the revolutions 36
4.7 Revolution changer for 1.4 kW motor 37
4.8 Revolution changer for 2.0 kW motor 38
4.9 Electrical equipment 1.4 kW motor 39
4.10 Electrical equipment 2.0 kW motor 39
5. Achieving optimum results 40
and avoiding incorrect usage
6. Thread cutting and automatic feed 42
6.1 Thread cutting 42
6.2 Tumbler gear drive 43
6.3 Use of change gears 44
7. Maintenance 46
8. Lubrication of the machine 47
9. Readjusting the main spindle 48
10. Overload coupling 48

5
Contents
11. Readjustment of the bearing clearance of the lead screw 49
12. Tool skid – Transverse skid 50
13. Tool skid – Longitudinal skid 52
14. Tailstock 53
15. 3 and 4 jaw lathe chuck 54
16. Operational faults and the elimination of such 55
17. Operating elements 58
17.1 D6000 lathes with 1.4 kW motor with trapezoidal-threaded spindle 58
17.2 D6000 lathes with 2.0 kW motor with trapezoidal-threaded spindle 59
17.3 D6000 lathes with 1.4 kW motor with ball screw spindle 60
17.4 D6000 lathes with 2.0 kW motor with ball screw spindle 61
17.5 D6000-C lathes with 1.4 kW motor with trapezoidal-threaded spindle 62
17.6 D6000-C lathes with 2.0 kW motor with trapezoidal-threaded spindle 63
17.7 D6000-C lathes with 1.4 kW motor with ball screw spindle 64
17.8 D6000-C lathes with 2.0 kW motor with ball screw spindle 65
17.9 Switch cover on CNC operating console 66
for CC-D6000 lathes with 1.4 kW motor
17.10 Switch cover on CNC operating console 67
for CC-D6000 lathes with 2.0 kW motor
17.11 CC-D6000 lathes with 1.4 kW motor with trapezoidal-threaded spindle 68
17.12 CC-D6000 lathes with 2.0 kW motor with trapezoidal-threaded spindle 69
17.13 CC-D6000 lathes with 1.4 kW motor with ball screw spindle 70
17.14 CC-D6000 lathes with 2.0 kW motor with ball screw spindle 71
18. Drawings and legends 72
18.1 Electronic console, 1.4 kW motor 72
18.2 Protective hood, drive 1.4 kW motor 75
18.3 Protective hood, drive 2.0 kW motor 76
18.4 Electronic console, 2.0 kW motor 78
18.5 Headstock 81
18.6. Headstock – Transmission with trapezoidal-threaded spindle 82
18.7. Headstock – Tumbler gear with trapezoidal-threaded spindle 83
18.8. Headstock – Transmission with ball screw spindle 84
18.9. Headstock – Tumbler gear with ball screw spindle 85
18.10 Bed with lead screw with trapezoidal-threaded spindle 86
18.11 Bed with lead screw with ball screw spindle 88
18.12 Change gear quadrant for trapezoidal-threaded spindle and ball screw spindle 92
18.13 Tool skid – Transverse skid 94
18.14 Tool skid – Lock plate 96
18.15 Tool skid – Longitudinal skid 98
18.16 Transverse skid with lock plate with ball screw spindle 100
18.17 Tailstock 102

6
Contents
18.18 Motor for control of the x-axis 104
18.19 Motor for control of the z-axis 106
18.20 Operating console for 1.4 kW motor 108
18.21 Operating console for 2.0 kW motor 112
18.22 Bracket arm for operating console 116
18.23 Industrial screen and membrane keyboard 118
18.24 Industrial screen and membrane keyboard specifically for 1.4 kW motor 120
18.25 Industrial screen and membrane keyboard specifically for 2.0 kW motor 122
18.26 Bracket arm for industrial screen and membrane keyboard 124
18.27 Lead screw cover 125
18.28 CNC 8-fold tool changer 126
18.29 Speed sensor (optional) for 2.0 kW motor with safety cabin 128
for 1.4 kW motor with and without safety cabin
19. Circuit diagram 130
19.1 For 1.4 kW motor 130
19.2 For 1.4 kW motor and safety cabin with nccad basic 131
19.3 For 1.4 kW motor and safety cabin with nccad professional 132
19.4 For 2.0 kW motor 133
19.5 For 2.0 kW motor and safety cabin with nccad basic 134
19.6 For 2.0 kW motor and safety cabin with nccad professional 135
19.7 Industrial screen and membrane keyboard specifically for 1.4 kW motor 136
19.8 Industrial screen and membrane keyboard specifically for 2.0 kW motor 137
19.9 Multiphase motor with end stop 138
19.10 Key for Circuit diagram 139
20. Camlock main spindle (optional) 141
20.1 Undoing a chuck or holding flange from the camlock 141
Main spindle lug
20.2 Blocking a chuck or holding flange on the camlock 141
Main spindle lug
21. Shavings tank with spray protection wall (optional) 142
21.1 Setting up the shavings tank with spray protection wall 142
21.2 Mounting the shavings tank with spray protection wall on the 143
tool machine cabinet (optional)
21.3 Drawing and legend 144
22. Coolant system (optional) 145
22.1 Setting up the coolant system 145
22.2 Mounting of the coolant system to the 145
tool machine cabinet (optional)
22.3 Safety regulations for the handling of cooling lubricant 146
22.4 Filling the coolant system 147
22.5 Operating the coolant system without CNC control 147
22.6 Operating the coolant system with CNC control 148
22.7 Positioning the segmented coolant hose 149

7
Contents
22.8 Controlling the flow of coolant using the coolant shut-off valve 149
22.9 Drawing and legend 150
23. Safety cabin (optional) 152
23.1 Setting up the safety cabin 152
23.2 Mounting of the safety cabin to the tool cabinet (optional) 152
23.3 Safety regulations for the handling of cooling lubricant 153
23.4 Filling the coolant system integrated in the safety cabin 153
23.5 Operating the coolant system with CNC control 153
23.6 Positioning the segmented coolant hose 153
23.7 Controlling the flow of coolant using the coolant shut-off valve 153
23.8 Drawing and legend 154
24. Fixed bezel (optional) 156
24.1 Operating the fixed bezel 156
24.2 Drawing and legend 157
25. Moving bezel (optional) 158
25.1 Operating the moving bezel 158
25.2 Drawing and legend 159
26. Tensioning bracket with milling machine table (optional) 160
26.1 Mounting the tensioning bracket with milling machine table to the lathe 160
26.2. Operating elements 161
26.3 Feed motion of the milling machine table 161
26.4 Adjustment of the dovetail guide 162
26.5 Alignment of the milling machine table 162
26.6 Lubrication of the tensioning bracket with milling machine table 162
26.7 Drawing and legend 163
27. Adjustable longitudinal stopper (optional) 165
27.1 Mounting of the adjustable longitudinal stopper 165
27.2 Drawing and legend 166
28. Collet chuck (optional) 167
28.1 Mounting the collect chuck 167
28.2 Drawing and legend 167
28.3. Installation and removal of collets 168

8
Declaration of conformity
We hereby declare, in the name of the manufacturer
Walter Blombach GmbH
Werkzeug- und Maschinenfabrik
mit Sitz in Remscheid und Neuerburg
D-42871 Remscheid Postfach 12 01 61 Telefon: [phone] Fax: [phone]
D-54673 Neuerburg WABECO Str. 1-10 Telefon: [phone] Fax: [phone]
that the following named
Universal lathe
Type:
D6000 – D6000 hs
in the serial version, meets the following relevant regulations
- EU Machine Directive 2006/42/EC
- EMC Directive 2004/108/EC
- EU Low Voltage Directive 2006/95/EC
In order to fulfil/implement the requirements of the directives named above, the already
published and applicable standards were drawn upon:
EN ISO 12100:2010
DIN EN 60204-1:2006
EN ISO 23125:2010
Proxy for the compilation of the technical documentation is the operational head of the
above named manufacturer, Mr Christoph Schneider.
D-54673 Neuerburg 2014
________________________________
Place and date of issue
Operational head Christoph Schneider

9
Declaration of conformity
We hereby declare, in the name of the manufacturer
Walter Blombach GmbH
Werkzeug- und Maschinenfabrik
mit Sitz in Remscheid und Neuerburg
D-42871 Remscheid Postfach 12 01 61 Telefon: [phone] Fax: [phone]
D-54673 Neuerburg WABECO Str. 1-10 Telefon: [phone] Fax: [phone]
that the following named
Universal lathe
Type:
D6000-C – D6000-C hs
in the serial version, meets the following relevant regulations
- EU Machine Directive 2006/42/EC
- EMC Directive 2004/108/EC
- EU Low Voltage Directive 2006/95/EC
In order to fulfil/implement the requirements of the directives named above, the already
published and applicable standards were drawn upon:
EN ISO 12100:2010
DIN EN 60204-1:2006
EN ISO 23125:2010
Proxy for the compilation of the technical documentation is the operational head of the
above named manufacturer, Mr Christoph Schneider.
D-54673 Neuerburg 2014
________________________________
Place and date of issue
Operational head Christoph Schneider

10
Declaration of conformity
We hereby declare, in the name of the manufacturer
Walter Blombach GmbH
Werkzeug- und Maschinenfabrik
mit Sitz in Remscheid und Neuerburg
D-42871 Remscheid Postfach 12 01 61 Telefon: [phone] Fax: [phone]
D-54673 Neuerburg WABECO Str. 1-10 Telefon: [phone] Fax: [phone]
that the following named
Universal lathe
Type:
CC-D6000 – CC-D6000 hs
in the serial version, meets the following relevant regulations
- EU Machine Directive 2006/42/EC
- EMC Directive 2004/108/EC
- EU Low Voltage Directive 2006/95/EC
In order to fulfil/implement the requirements of the directives named above, the already
published and applicable standards were drawn upon:
EN ISO 12100:2010
DIN EN 60204-1:2006
EN ISO 23125:2010
Proxy for the compilation of the technical documentation is the operational head of the
above named manufacturer, Mr Christoph Schneider.
D-54673 Neuerburg 2014
________________________________
Place and date of issue
Operational head Christoph Schneider

11
1. Important safety notes
1.1 Intended use
The lathes described in these operating instructions are designed for the processing of metal, plastic
and timber only.
To ensure safe operation of the lathes, the regulations set out in the chapter: "Safety regulations" must
be observed.
1.2 Improper and incorrect use
The lathes described in these operating instructions have been developed and manufactured for the
purpose named above. Walter Blombach GmbH accepts no responsibility for property damage and
personal injury caused as a result of not intended and incorrect use of the lathes.
1.3 Modifications to the machine
For reasons of safety, it is forbidden for the user to make modifications of any type to the lathe.
Walter Blombach GmbH accepts no responsibility for property damage and personal injury caused as
a result of any modifications to the lathe by the user that have not expressly been authorised by the
company.
1.4 Safety regulations for proper use
The machine may represent a source of danger if it is not used correctly. For this reason, it is
important that the following safety regulations are read attentively and observed carefully.
Every person that operates the machine, maintains or repairs it, must have read the operating
instructions, and in particular, the safety notes prior to putting the machine into operation.
In order to fulfil these requirements, these operating instructions must accompany the machine
throughout its entire lifetime and be available for research.
In the event that the machine changes owners, the operating instructions must thus be passed on to
the new owner along with the machine.

12
1. Important safety notes
1.4 Safety regulations for proper use
1. Only specially trained persons may operate the machine. The guarantee and warranty are
voided if damages are caused by improper operation.
2. We remind you that no liability will be accepted for damages caused by not observing these
operating instructions.
3. The operator of the machine is to ensure that at least one copy of the operating
instructions is stored in the immediate vicinity of the machine and available to the people
who work with the machine.
4. The operator is to ensure that the safety and danger notifications on the machine are
observed and that the signs are kept in a legible state.
5. Do not work without goggles.
6. Wear close fitting clothing and, if you have long hair, wear a hair net. Do not wear loose
fitting or loose items (ties, shirt sleeves, jewellery etc.).
7. Gloves may not be worn.
8. In the event of an emission noise level as of 80 dB (A) at the workplace, ear defenders must
be worn.
9. The machine may not operate without supervision.
10. Secure your machine in such a way that it cannot be switched on by children. Persons who
have not been trained may not operate the machine.
11. Before using the machine, make sure it is in good working condition. Pay special attention
to any damage to the grounded plug or the electrical connections. Never operate the
machine with a defective, crushed or exposed cable.
12. Plug the grounded plug into a suitable socket for the machine. The cable for the machine
may only be connected to a safety socket or a connection box. Have the safety socket or
connection box checked by an electrical specialist before hand.
13. The safety socket or connection box must be close enough to the machine that the power
cable is not under strain.
14. When carrying out maintenance and cleaning work, the machine must be switched off and
the grounded plug pulled out.
15. Set-up work is only to be carried out with the machine switched off.
16. Do not reach into the operating machine.
17. Always switch the machine off when you are not using it.
18. Remain with the machine until it has come to a standstill.

13
1. Important safety notes
1.4 Safety regulations for proper use
19. Only have repairs carried out by a qualified specialist! Repair work may only be carried out
by persons who are qualified for the relevant repairs and who are familiar with the
appropriate health and safety requirements.
20. Protect the machine from damp.
21. Constantly check the machine for damages. Replace damaged parts only with original parts
and have these replaced by a specialist. The guarantee and warranty is voided if
accessories and replacement parts are use that are not designed for the machine.
22. To avoid insufficient lighting, we recommend setting up a light source that provides a value
of at least 500 Lux at the tool's cutting edge.
23. Do not remove the generated shavings with your hand. Use the appropriate tools (hand-
held sweeper, hook, brush).
24. Tools and work pieces may never be changed when the machine is running.
25. Do not brake work pieces and bush using your hand or another object.
26. Never leave the chuck key fitted (even when not in operation).
27. Pay attention to the spread of the lathe chuck.
28. The maximum revolution range specified on the lathe chuck may not be exceeded.
29. The machine only operates when the chuck protection hood is folded over the lathe chuck.
For safety reasons, it is not possible to switch the machine on when the chuck protection
hood is up.
30. The generated shavings must be caught by the user with the help of a shaving protection
device.
31. Always keep the gear cover hood closed.
32. The gear cover hood may only be opened by a trained person with a special key and when
the grounded plug has been pulled out of the socket.
33. Turning steels must be firmly tensioned, at the correct height and as short as possible.
34. Do not measure at the rotating work piece (risk of accident, measuring tools will be
damaged).
35. When working between the tips, check the locking lever of the tailstock for firm seating.
36. Despite the existing safety clutch, you should avoid reaching into the rotating hand wheel
when the automatic feed is switched on.
37. When working with the automatic feed, always pay attention to ensure that the tool skid
does not come up against the lathe chuck or the tailstock.
38. When wood turning use a lathe centre point instead of the lathe chuck to carry the work
piece.

14
1. Important safety notes
1.5 Safety features
1.5.1 For all lathes
In order to enable you to work safely with our machines, we have incorporated the following safety
mechanisms. These meet the relevant European safety requirements.
■Chuck protection hood
The main spindle of the machine operates only with the chuck protection hood closed. For safety
reasons, if the chuck protection hood is open, the machine cannot be switched on.
■Gear cover hood
Always keep the gear cover hood closed. The gear cover hood may only be opened by a trained
person with a special key and when the grounded plug has been pulled out of the socket.
■ON/OFF switch with under-voltage trigger
The ON/OFF switch is fitted with an under-voltage trigger, thus, in the event of a power failure, the
machine does not switch itself back on automatically. This prevents risks caused by the
unexpected motion of the spindle.
■Emergency off switch
The emergency off switch acts to quickly stop the machine.
■Overload protection
The machine is fitted with an overload protection feature. This overload protection feature switches
the main drive motor off automatically when the machine is overloaded. The machine can only
then be switched on after a waiting period.
1.5.2 For lathes to be mounted to a CNC control and CNC lathes
■Safety cabin (optional)
In order for the machine to operate in CNC mode, the door to the safety cabin must be closed.
You can only work in CNC mode with the doors closed.
Work carried out in conventional mode is carried out with the door open. The mode switch must be
switched to manual mode.
The main spindle can be switched on when the doors are closed or open.
Working in CNC mode without safety cabin may pose a serious risk to the machine
operator and cause serious accidents.
1.5.3 For CNC lathes
■Switch for operating modes (only for CNC machines)
The mode switch has 3 settings (CNC mode – Idle position – Manual mode) that can only be
selected with a key. After selecting the mode, the key can be removed in order to prevent a
switching of the mode type by unauthorised persons.

15
1. Important safety notes
1.6 Explanations of the symbols
With an emission noise level as of 80 dB (A) at the workplace
ear defenders must be worn
Caution:
Always pull the power plug prior to any maintenance work!
Read the operating instructions prior to initial operation or
maintenance work!
Caution:
Dangerous electric voltage!
2. Delivery and set up
The machine is packed with care at the factory.
The following should be checked after delivery:
1. Whether the packaging shows damages to be reported or
2. Whether the machine shows transportation damages to be reported If this is the case, we ask you
to communicate this information immediately. Subsequent claims cannot be recognised.
The machine must be set up on a suitable, even and firm surface.
Suitable surfaces are, for example:
■A tool cabinet (available optionally)
■A separate workbench with a level surface (spirit level) that is strong enough to carry the weight of
the lathe without bending.
■A steel plate with a level surface (spirit level)
The machine must be screwed securely to the surface it is set up on. There are holes in the base of
the machine that are designed for this purpose. Good working results and low-vibration operation
can only be ensured when the prerequisites for fixture as set out above are maintained.

16
2. Delivery and set up
The place of set up should be selected in such a way that
■There is sufficient lighting
■The electrical power supply with safety socket and earth are installed close enough to the machine
that the power cable is not subject to any strain.
■The power cable should also be dimensioned in such a way that a multiple socket can be used, for
example, to power a coolant system.
2.1 Transporting the machine
We recommend two people to lift the machine, using the positions shown (1).
To do this, a sufficiently dimensioned, at least Ø 20 mm steel rod is pushed through the main spindle.
The machine should be carried and balanced by one person at the steel rod and by the other person,
at the shown position on the opposite underside of the bed.
Due to the weight of the machine it is advisable to lift the machine by crane, if this is possible. To lift,
wrap suitable lashing (2) as shown around the two outer struts of the ribbing of the machine bed.
When lifting, pay attention to an ergonomic stance and sufficient safety!
In the delivered state, the machine feet have two transport straps attached. These secure the
machine to the transportation pallet. They must be removed before setting the machine up.

17
3. Putting into operation
3.1 For all lathes
■Use a dry cloth to remove the corrosion protection that was applied to all exposed parts for
transport
■In the event of marine impregnation of exposed parts, it is recommended you spray them with oil,
allow it to work, and then remove the impregnation with a dry cloth
■Once set up properly (see the section on delivery and set up) connect the grounded plug directly
to a safety socket and the 230 V 50/60 Hz (optional 110 V 60 Hz) mains power supply
■Provision of sufficient coolant for the operation of a coolant system (optional)
■Release the axis clamps and check the individual feed spindles for easy operation
■Check all electronic operating elements, for example, ON/OFF switch, emergency off switch,
potentiometer, bush protection hood, etc. for functionality
3.2 For CNC lathes
■When putting CNC machines into operation for the first time, always read the start-up manual
3.2.1 Setting up and connecting the control computer
When selecting a suitable control computer, pay attention to the system prerequisites of the
control software. These are listed on the rear of the CD case sent with the machine.
Follow the instructions in the start manual of the software to install the control software on the
computer. The start manual can be found in the CD case of the control software included with the
machine.
In the next step, the software must be adapted to your machine. To do this, follow the instructions sent
with the machine which detail the editing of the parameters.
When the software has been successfully installed on the control computer and all parameters have
been adapted successfully, the control computer must be connected with the machine controller.
The machine controller communicates with the computer via the serial interface (COM port). In order
to establish a connection between the machine controller and the computer, connect the end of the
interface cable that is on the machine console to the COM port of the computer.
CAUTION:
The axis cable of the multiphase motors and the serial interface cable may only be plugged or
unplugged with the control switched off. Otherwise damages to the control, the machine or the
control computer may occur!

18
4. Specifications regarding the machine
4.1 Identification of the model
The precise model designation of your machine can be found on the type plate attached to the
machine.
4.2 Noise emission declaration
D6000 – D6000 hs
Noise emission declaration in accordance with DIN EN ISO 3744
Emission values in idle
D6000
D6000 hs
Emission noise level at the workplace
at 50 % = 73.1 dB (A = 78.5 dB (A)
at 100 % = 74.3 dB (A) = 84.0 dB (A)
Sound power level
at 50 % = 82.5 dB (A) = 88.1 dB (A)
at 100 % = 84.8 dB (A) = 92.9 dB (A)
With an emission noise level as of 80 dB (A) at the workplace
ear defenders must be worn

19
4. Specifications regarding the machine
4.2.1 Technical data for D6000 – D6000 hs
D6000
D6000 hs
Working areas
Distance between centres
600 mm
Centre height
135 mm
Swing diameter via guide
270 mm
Bed width
185 mm
Main drive motor
Nominal voltage
230 V
Nominal frequency
50/60 Hz
Nominal performance of the spindle
motor
1.4 kW 2.0 kW
Spindle revolutions, infinite
30 - 2300 rpm
50 – 5000 rpm
Machine accuracy
Concentricity of the spindle lug
0.005 mm
Cylindrical rotation on 100 mm
overhung
0.01 mm
Cylindrical rotation with simple turning on
300 mm between the centres
0.015 mm
Headstock
Main spindle aperture Ø 20 mm
Taper in main spindle MK3
Main spindle lug According to DIN 6350
Tool skid
Adjustability of the transverse skid 140 mm
Adjustability of the longitudinal skid 60 mm
Longitudinal skid can be swivelled by 360°
Max. turning steel height 20 mm
Tailstock with quick adjustment
Lateral adjustability of the tailstock
upper
± 10 mm
Tailstock sleeve With inner Morse taper MK2
Sleeve adjustability 65 mm
Scale ring read accuracy 0.1 mm
Thread cutting
Tumbler gear drive For left-right thread
2 automatic longitudinal feeds 0.085 and 0.16 mm/revolution
Change gear set for thread cutting Metric 0.25 - 7.0 mm - imperial 10 - 40 G/"

20
4. Specifications regarding the machine
4.2.2 Dimensions of D6000 with 1.4 kW motor with trapezoidal-threaded
spindle
Front view
A 4 fixing holes M8 (20 mm deep)
4.2.3 Dimensions of D6000 with 1.4 kW motor with trapezoidal-threaded
spindle
Side view
A 4 fixing holes M8 (20 mm deep)
