Wacker Neuson BS 50-4 User manual

www.wackergroup.com
Rammer
BS 50-4
BS 50-4s
OPERATOR’S MANUAL
0158431en 006
1106
0158431EN

BS 50-4 Table of Contents
wc_bo0158431en_006TOC.fm 1
1. Foreword 3
2. Emission Control System Information 4
3. Safety Information 11
3.1 Operating Safety ................................................................................ 12
3.2 Operator Safety while using Internal Combustion Engines ................ 14
3.3 Service Safety .................................................................................... 15

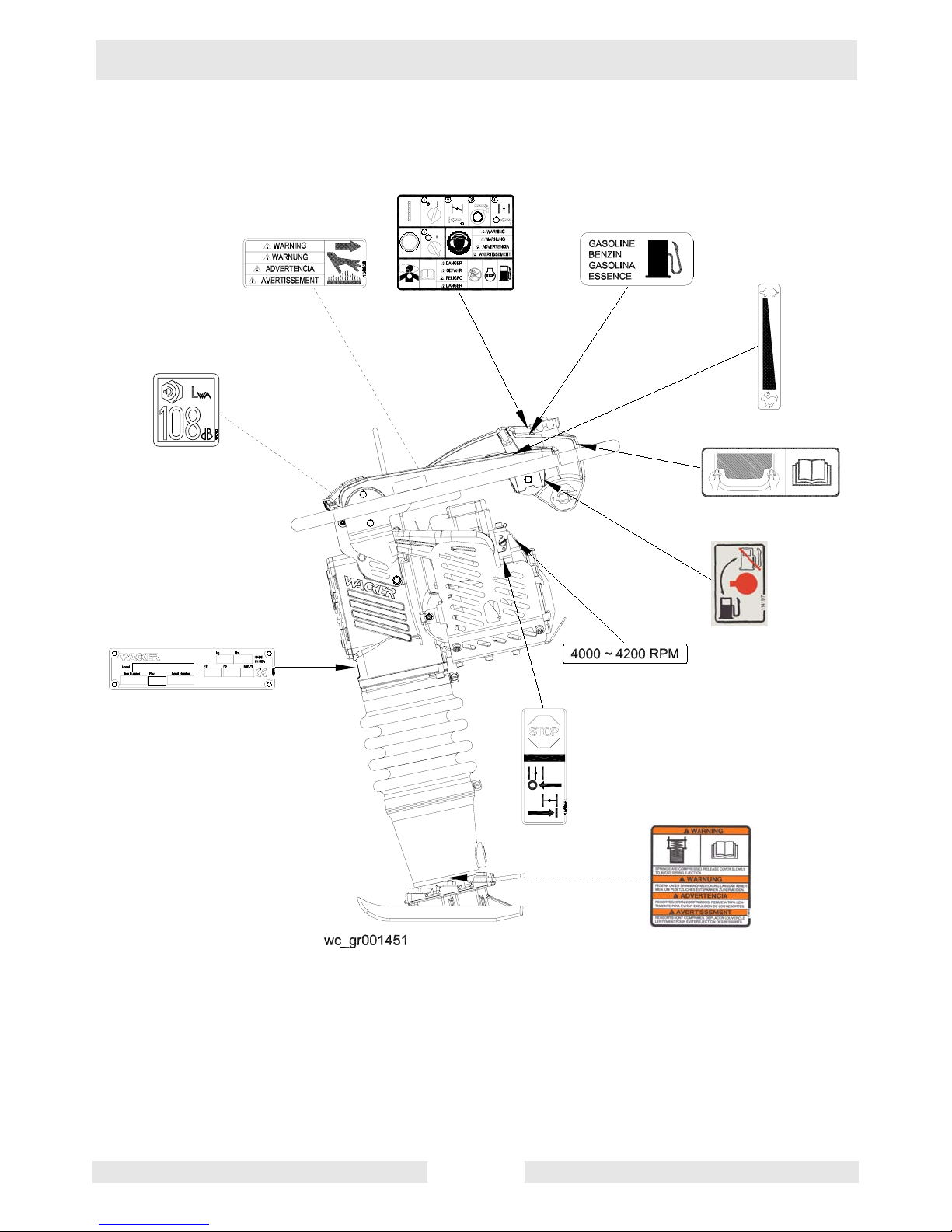

3.4 Label Locations .................................................................................. 16
3.5 Safety Labels ...................................................................................... 17
3.6 Operating Labels ................................................................................ 20
4. Technical Data 22
4.1 Rammer .............................................................................................. 22
4.2 Sound Measurements ........................................................................ 23
4.3 Vibration Measurements .................................................................... 23
4.4 Dimensions ......................................................................................... 23
5. Operation 24
5.1 Application .......................................................................................... 24
5.2 Recommended Fuel ........................................................................... 24
5.3 Before Starting ................................................................................... 24
5.4 To Start ............................................................................................... 24
5.5 To Stop ............................................................................................... 25
5.6 Low Oil Shutoff Switch (if equipped) .................................................. 26
5.7 Proper Operation ................................................................................ 27
5.8 Proper Compaction ............................................................................ 28

Table of Contents BS 50-4
wc_bo0158431en_006TOC.fm 2
6. Maintenance 29
6.1 Periodic Maintenance Schedule ..........................................................29
6.2 Servicing Air Cleaner ...........................................................................30
6.3 Engine Oil ............................................................................................31
6.4 Lubrication ...........................................................................................32
6.5 Shoe Hardware ...................................................................................33
6.6 Long-Term Storage .............................................................................33
6.7 Transportation .....................................................................................34
6.8 Troubleshooting ...................................................................................35

wc_tx000001gb.fm 3
CALIFORNIA
Proposition 65 Warning:
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
1. Foreword
This manual provides information and procedures to safely operate
and maintain this Wacker model. For your own safety and protection
from injury, carefully read, understand and observe the safety
instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Corporation reserves the
right to change any portion of this information without notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2006 by Wacker Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Corporation.
Any type of reproduction or distribution not authorized by Wacker
Corporation represents an infringement of valid copyrights and will be
prosecuted. We expressly reserve the right to make technical
modifications, even without due notice, which aim at improving our
machines or their safety standards.
WARNING

Emission Control System Information WM 90
wc_tx000369gb.fm 4
2. Emission Control System Information
Source of Emissions
The combustion process produces carbon monoxide, oxides of
nitrogen, and hydrocarbons. Control of hydrocarbons and oxides of
nitrogen is very important because, under certain conditions, they
react to form photochemical smog when subjected to sunlight. Carbon
monoxide does not react in the same way, but it is toxic.
Wacker utilizes lean carburetor settings and other systems to reduce
the emissions of carbon monoxide, oxides of nitrogen, and
hydrocarbons.
The U.S. and California Clean Air Acts
EPA and California regulations require all manufacturers to furnish
written instructions describing the operation and maintenance of
emission control systems.
The following instructions and procedures must be followed in order to
keep the emissions from your Wacker engine within the emissions
standards.
Tampering and Altering
Tampering with or altering the emission control system may increase
emissions beyond the legal limit. Among those acts that constitute
tampering are:
•Removal or alteration of any part of the intake, fuel, or exhaust
systems.
•Altering or defeating the speed-adjusting mechanism to cause the
engine to operate outside its design parameters.
Problems That May Affect Emissions
If you are aware of any of the following symptoms, have your engine
inspected and repaired by your servicing dealer.
•Hard starting or stalling after starting.
•Rough idle.
•Misfiring or backfiring under load.
•Afterburning (backfiring).
•Black exhaust smoke or high fuel consumption.

WM 90 Emission Control System Information
wc_tx000369gb.fm 5
Replacement Parts
The emission control systems on your Wacker engine were designed,
built, and certified to conform with EPA and California emissions
regulations. We recommend the use of genuine Wacker parts
whenever you have maintenance done. These original-design
replacement parts are manufactured to the same standards as the
original parts, so you can be confident of their performance. The use
of replacement parts that are not of the original design and quality may
impair the effectiveness of your emission control system.
A manufacturer of an aftermarket part assumes the responsibility that
the part will not adversely affect emission performance. The
manufacturer or rebuilder of the part must certify that use of the part
will not result in a failure of the engine to comply with emission
regulations.
Maintenance
Follow the maintenance schedule. Remember that this schedule is
based on the assumption that your machine will be used for its
designed purpose. Sustained high-load or high-temperature operation,
or use in unusually wet or dusty conditions, will require more frequent
service.
OXYGENATED FUELS
Some conventional gasolines are being blended with alcohol or an
ether compound. These gasolines are collectively referred to as
oxygenated fuels. To meet clean air standards, some areas of the
United States and Canada use oxygenated fuels to help reduce
emissions.
If you use an oxygenated fuel, be sure it is unleaded and meets the
minimum octane rating requirement.
Before using an oxygenated fuel, try to confirm the fuel’s contents.
Some States / Provinces require this information to be posted on the
pump.
The following are EPA-approved percentages of oxygenates:
ETHANOL - (ethyl or grain alcohol) 10% by volume. You may use
gasoline containing up to 10% ethanol by volume. Gasoline containing
ethanol may be marketed under the name “Gasohol”.
MTBE - (methyl tertiary butyl ether) 15% by volume. You may use
gasoline containing up to 15% MTBE by volume.

Emission Control System Information WM 90
wc_tx000369gb.fm 6
METHANOL - (methyl or wood alcohol) 5% by volume. You may use
gasoline containing up to 5% methanol by volume, as long as it
contains cosolvents and corrosion inhibitors to protect the fuel system.
Gasoline containing more than 5% methanol by volume may cause
starting and/or performance problems. It may also damage metal,
rubber, and plastic parts of your fuel system.
If you notice any undesirable operating symptoms, try another service
station, or switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use
of an oxygenated fuel containing more than the percentages of
oxygenates mentioned above are not covered under warranty.

WM 90 Emission Control System Information
wc_tx000369gb.fm 7
EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE
This emission warranty is applicable in all States.
Wacker Corporation, N92 W15000 Anthony Avenue, Menomonee
Falls, WI 53051-1504, (herein "Wacker") warrant(“s”) to the initial retail
purchaser and each subsequent owner, that this non-road engine
(herein "engine") has been designed, built, and equipped to conform
at the time of initial sale to all applicable regulations of the U.S.
Environmental Protection Agency (EPA), and that the engine is free of
defects in materials and workmanship which would cause this engine
to fail to conform with EPA regulations during its warranty period.
For the components listed under PARTS COVERED, the service
dealer authorized by Wacker will, at no cost to you, make the
necessary diagnosis, repair, or replacement necessary to ensure that
the engine complies with applicable U.S. EPA regulations.
EMISSISON COMPONENT DEFECT WARRANTY PERIOD
The warranty period for this engine begins on the date of sale to the
initial purchaser and continues for a period of 2 years.

Emission Control System Information WM 90
wc_tx000369gb.fm 8
PARTS COVERED
Listed below are the parts covered by the Emission Components
Defect Warranty. Some of the parts listed below may require
scheduled maintenance and are warranted up to the first scheduled
replacement point for that part.
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or pressure regulator or fuel
injection system).
(ii) Air/fuel ratio feedback and control system, if applicable.
(iii) Cold start enrichment system, if applicable.
(iv) Regulator assembly (gaseous fuel, if applicable) .
(2) Air Induction System
(i) Intake manifold, if applicable.
(ii) Air filter.
(3) Ignition System
(i) Spark plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system, if applicable.
(4) Exhaust manifold, if applicable
(5) Miscellaneous Items Used in Above Systems
(i) Electronic controls, if applicable.
(ii) Hoses, belts, connectors, and assemblies.
(iii) Filter lock assembly (gaseous fuel, if applicable).

WM 90 Emission Control System Information
wc_tx000369gb.fm 9
OBTAINING WARRANTY SERVICE
To obtain warranty service, take your engine to the nearest authorized
Wacker service dealer. Bring your sales receipts indicating date of
purchase for this engine. The service dealer authorized by Wacker will
perform the necessary repairs or adjustments within a reasonable
amount of time and furnish you with a copy of the repair order. All parts
and accessories replaced under this warranty become the property of
Wacker.
WHAT IS NOT COVERED
• Conditions resulting from tampering, misuse, improper adjust-
ment (unless they were made by the service dealer authorized by
Wacker during a warranty repair), alteration, accident, failure to
use the recommended fuel and oil, or not performing required
maintenance services.
• The replacement parts used for required maintenance services.
• Consequential damages such as loss of time, inconvenience,
loss of use of the engine or equipment, etc.
• Diagnosis and inspection charges that do not result in warranty-
eligible service being performed.
• Any non-authorized replacement part, or malfunction of autho-
rized parts due to use of non-authorized parts.
OWNER'S WARRANTY RESPONSIBILITIES
As the engine owner, you are responsible for the performance of the
required maintenance listed in your owner's manual. Wacker
recommends that you retain all receipts covering maintenance on your
engine, but Wacker cannot deny warranty solely for the lack of receipts
or for your failure to ensure the performance of all scheduled
maintenance. As the engine owner, you should however be aware that
Wacker may deny warranty coverage if your engine or a part has failed
due to abuse, neglect, improper maintenance or unapproved
modifications.
You are responsible for presenting your engine to the nearest service
dealer authorized by Wacker when a problem exists.
If you have any questions regarding your warranty rights and
responsibilities, you should contact the WACKER CORPORATION
Product Support Department (U.S.A. 1-800-770-0957, Canada 1-877-
977-0775) for the information.

Emission Control System Information WM 90
wc_tx000369gb.fm 10
THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL
SYSTEM WARRANTY:
MAINTENANCE AND REPAIRS
You are responsible for the proper maintenance of the engine. You
should keep all receipts and maintenance records covering the
performance of regular maintenance in the event questions arise.
These receipts and maintenance records should be transferred to
each subsequent owner of the engine. Wacker reserves the right to
deny warranty coverage if the engine has not been properly
maintained. Warranty claims will not be denied, however, solely
because of the lack of required maintenance or failure to keep
maintenance records.
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION
CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY
ANY REPAIR ESTABLISHMENT OR INDIVIDUAL; HOWEVER,
WARRANTY REPAIRS MUST BE PERFORMED BY A SERVICE
DEALER AUTHORIZED BY WACKER. THE USE OF PARTS THAT
ARE NOT EQUIVALENT IN PERFORMANCE AND DURABILITY TO
AUTHORIZED PARTS MAY IMPAIR THE EFFECTIVENESS OF THE
EMISSION CONTROL SYSTEM AND MAY HAVE A BEARING ON
THE OUTCOME OF A WARRANTY CLAIM.
If other than the parts authorized by Wacker are used for maintenance
replacements or for the repair of components affecting emission
control, you should assure yourself that such parts are warranted by
their manufacturer to be equivalent to the parts authorized by Wacker
in their performance and durability.
HOW TO MAKE A CLAIM
All repair qualifying under this limited warranty must be performed by
a service dealer authorized by Wacker. In the event that any emission-
related part is found to be defective during the warranty period, you
shall notify WACKER CORPORATION Product Support Department
(U.S.A. 1-800-770-0957, Canada 1-877-977-0775) and you will be
advised of the appropriate warranty service dealer or service providers
where the warranty repair can be performed.

BS 50-4 Safety Information
wc_si000117gb.fm 11
3. Safety Information
This manual contains DANGER, WARNING, CAUTION, and NOTE
callouts which must be followed to reduce the possibility of personal
injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION: Used without the safety alert symbol, CAUTION indicates
a potentially hazardous situation which, if not avoided, may result in
property damage.
Note: Contains additional information important to a procedure.
DANGER
WARNING
CAUTION

Safety Information BS 50-4
wc_si000117gb.fm 12
3.1 Operating Safety
Familiarity and proper training are required for the safe operation of
equipment. Equipment operated improperly or by untrained personnel
can be dangerous. Read the operating instructions contained in both
this manual and the engine manual and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the equipment before
being allowed to operate the machine.
3.1.1 NEVER operate this machine in applications for which it is not
intended.
3.1.2 NEVER allow anyone to operate this equipment without proper
training. People operating this equipment must be familiar with the
risks and hazards associated with it.
3.1.3 NEVER touch the engine or muffler while the engine is on or
immediately after it has been turned off. These areas get hot and may
cause burns.
3.1.4 NEVER use accessories or attachments that are not recommended by
Wacker. Damage to equipment and injury to the user may result.
3.1.5 NEVER leave machine running unattended.
3.1.6 NEVER tamper with or disable the function of operating controls.
3.1.7 NEVER use choke to stop engine.
3.1.8 NEVER operate the machine in areas where explosions may occur.
3.1.9 ALWAYS read, understand, and follow procedures in the Operator’s
Manual before attempting to operate the equipment.
3.1.10 ALWAYS be sure that all other persons are at a safe distance from the
machine. Stop the machine if people step into the working area of the
machine.
3.1.11 ALWAYS be sure operator is familiar with proper safety precautions
and operation techniques before using machine.
3.1.12 ALWAYS wear protective clothing appropriate to the job site when
operating equipment.
3.1.13 ALWAYS wear hearing protection when operating equipment.
3.1.14 ALWAYS keep hands, feet, and loose clothing away from moving parts
of the machine.
3.1.15 ALWAYS use common sense and caution when operating the
machine.
3.1.16 ALWAYS be sure the rammer will not tip over, roll, slide, or fall when
not being operated.
3.1.17 ALWAYS turn the engine OFF when the rammer is not being operated.
WARNING

BS 50-4 Safety Information
wc_si000117gb.fm 13
3.1.18 ALWAYS guide the rammer in such a way that the operator is not
squeezed between the rammer and solid objects. Special care is
required when working on uneven ground or when compacting coarse
material. Make sure to stand firmly when operating the machine under
such conditions.
3.1.19 ALWAYS operate the rammer in such a way that there is no danger of
it turning over or falling in, when working near the edges of breaks, pits,
slopes, trenches and platforms.
3.1.20 ALWAYS store the equipment properly when it is not being used.
Equipment should be stored in a clean, dry location out of the reach of
children.
3.1.21 ALWAYS close fuel valve on engines equipped with one when
machine is not being operated.
3.1.22 ALWAYS operate machine with all safety devices and guards in place
and in working order. DO NOT modify or defeat safety devices. DO
NOT operate machine if any safety devices or guards are missing or
inoperative.

Safety Information BS 50-4
wc_si000117gb.fm 14
3.2 Operator Safety while using Internal Combustion Engines
Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
owner’s manual and the safety guidelines below. Failure to follow the
warnings and safety guidelines could result in severe injury or death.
3.2.1 DO NOT smoke while operating the machine.
3.2.2 DO NOT smoke when refueling the engine.
3.2.3 DO NOT refuel a hot or running engine.
3.2.4 DO NOT refuel the engine near an open flame.
3.2.5 DO NOT spill fuel when refueling the engine.
3.2.6 DO NOT run the engine near open flames.
3.2.7 DO NOT run the machine indoors or in an enclosed area such as a
deep trench unless adequate ventilation, through such items as
exhaust fans or hoses, is provided. Exhaust gas from the engine
contains poisonous carbon monoxide gas; exposure to carbon
monoxide can cause loss of consciousness and may lead to death.
3.2.8 ALWAYS refill the fuel tank in a well-ventilated area.
3.2.9 ALWAYS replace the fuel tank cap after refueling.
3.2.10 ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.
DANGER

BS 50-4 Safety Information
wc_si000117gb.fm 15
3.3 Service Safety
Poorly maintained equipment can become a safety hazard! In order
for the equipment to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.
3.3.1 DO NOT attempt to clean or service the machine while it is running.
Rotating parts can cause severe injury.
3.3.2 DO NOT operate the machine without an air cleaner.
3.3.3 DO NOT remove air cleaner cover, paper element, or precleaner while
engine is running.
3.3.4 DO NOT alter engine speeds. Run the engine only at speeds specified
in the Technical Data Section.
3.3.5 DO NOT crank a flooded engine with the spark plug removed on
gasoline-powered engines. Fuel trapped in the cylinder will squirt out
the spark plug opening.
3.3.6 DO NOT test for spark on gasoline-powered engines if the engine is
flooded or the smell of gasoline is present. A stray spark could ignite
the fumes.
3.3.7 DO NOT use gasoline or other types of fuels or flammable solvents to
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.
3.3.8 ALWAYS replace the safety devices and guards after repairs and
maintenance.
3.3.9 ALWAYS keep the area around the muffler free of debris such as
leaves, paper, cartons, etc. A hot muffler could ignite the debris and
start a fire.
3.3.10 ALWAYS do Periodic Maintenance as recommended in the Operator’s
Manual.
3.3.11 ALWAYS clean debris from engine cooling fins.
3.3.12 ALWAYS replace worn or damaged components with spare parts
designed and recommended by Wacker Corporation.
3.3.13 ALWAYS disconnect the spark plug on machines equipped with
gasoline engines, before servicing, to avoid accidental start-up.
3.3.14 ALWAYS keep the machine clean and labels legible. Replace all
missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.
WARNING

Safety Information BS 50-4
wc_si000117gb.fm 16
3.4 Label Locations

BS 50-4 Safety Information
wc_si000117gb.fm 17
3.5 Safety Labels
Wacker machines use international pictorial labels where needed.
These labels are described below:
Label Meaning
This molded-in label contains important safety
and operating information. If it becomes
illegible, the cover must be replaced. Refer to
the Parts Book for ordering information.
DANGER!
Engines emit carbon monoxide; operate only in
well-ventilated area.
Read the operator's manual for machine
information.
DANGER!
No sparks, flames or burning objects near
machine.
Shut off the engine before refueling.

Safety Information BS 50-4
wc_si000117gb.fm 18
CAUTION!
Use only clean, filtered gasoline fuel.
WARNING!
Hot surface!
WARNING!
Serious injury if struck by compressed spring
or cover. If the spring system cover is removed
improperly, the springs can eject.
For optimal control, performance, and minimal
hand/arm vibration, grasp handle as shown.
Refer to Section Proper Operation for further
details.
Guaranteed sound power level in dB(A)
CAUTION!
Use only clean, filtered gasoline fuel.
Label Meaning
