Wacker Neuson DPU 6055 User manual

www.wackergroup.com
Operator´s Manual
Vibratory plate
DPU 6055
0109986en 005
04.2008

T00940GB.fm 1
Important information
This machine has been provided with an EPA-certified engine.
Additional information can be found in the engine
manufacturer‘s notes.
Engine exhaust, some of its constitvents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproduc-
tive harm.
WARNING
Caution
This engine is an EPA engine.
Adjusting the engine speed will interfere with EPA certification and
the emissions.
Only authorized personnel can make adjustments to this engine.
Please contact you nearest engine dealer or your Wacker Dealer for more
information.

T00940GB.fm 2

Vorwort.fm 7
Foreword
2. Foreword
For your own safety and protection from bodily injuries, carefully read,
understand and follow the safety instructions in this manual.
Please operate and maintain your Wacker machine in accordance with
the instructions in this manual. Your Wacker machine will reward your
attention by giving trouble-free operation and a high degree of
availability.
Replace faulty or defective components Immediately.
All rights, especially the right for copying and distribution are reserved
Copyright 2008by Wacker Construction Equipment AG
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express permission in writing from Wacker Construction Equipment AG.
Any type or manner of reproduction, distribution or storage on data
carriers or storage mediums not authorized by Wacker represents an
infringement of valid copyrights and will be prosecuted. We expressly
reserve the right to make technical modifications - even without due
notice - which aim at improving our machines or increasing their safety
standards.

Table Of Contents
4
1. Foreword 3
2. Safety instruction 6
2.1 General instructions ..............................................................................6
2.2 Operation ...............................................................................................6
2.3 Safety checks ........................................................................................8
2.4 Maintenance ..........................................................................................8
2.5 Transport ...............................................................................................9
2.6 Maintenance checks ..............................................................................9
3. Technical Data 10
4. Description 12
4.1 Applications .........................................................................................12

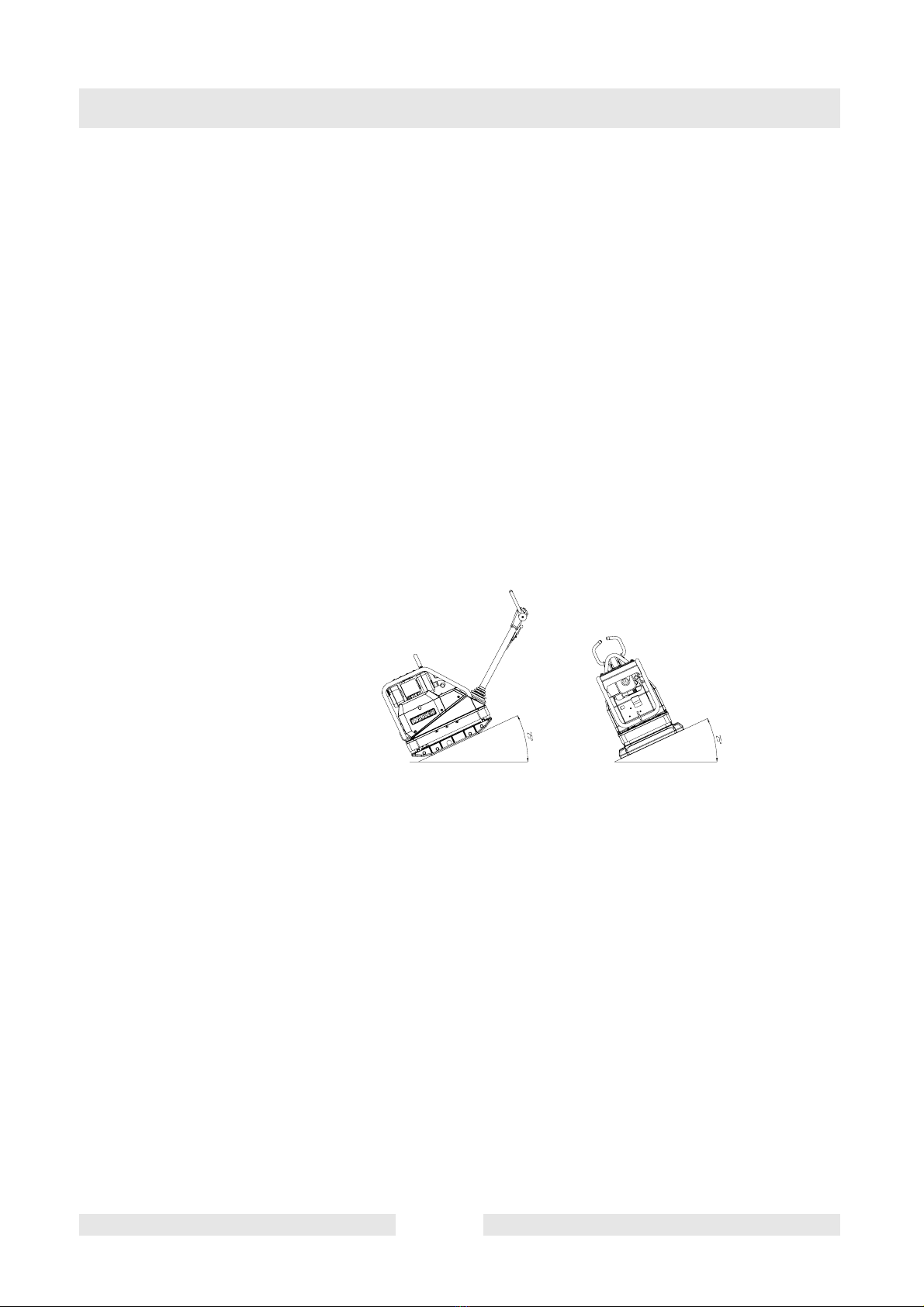

4.2 Max. admissible inclination ..................................................................12

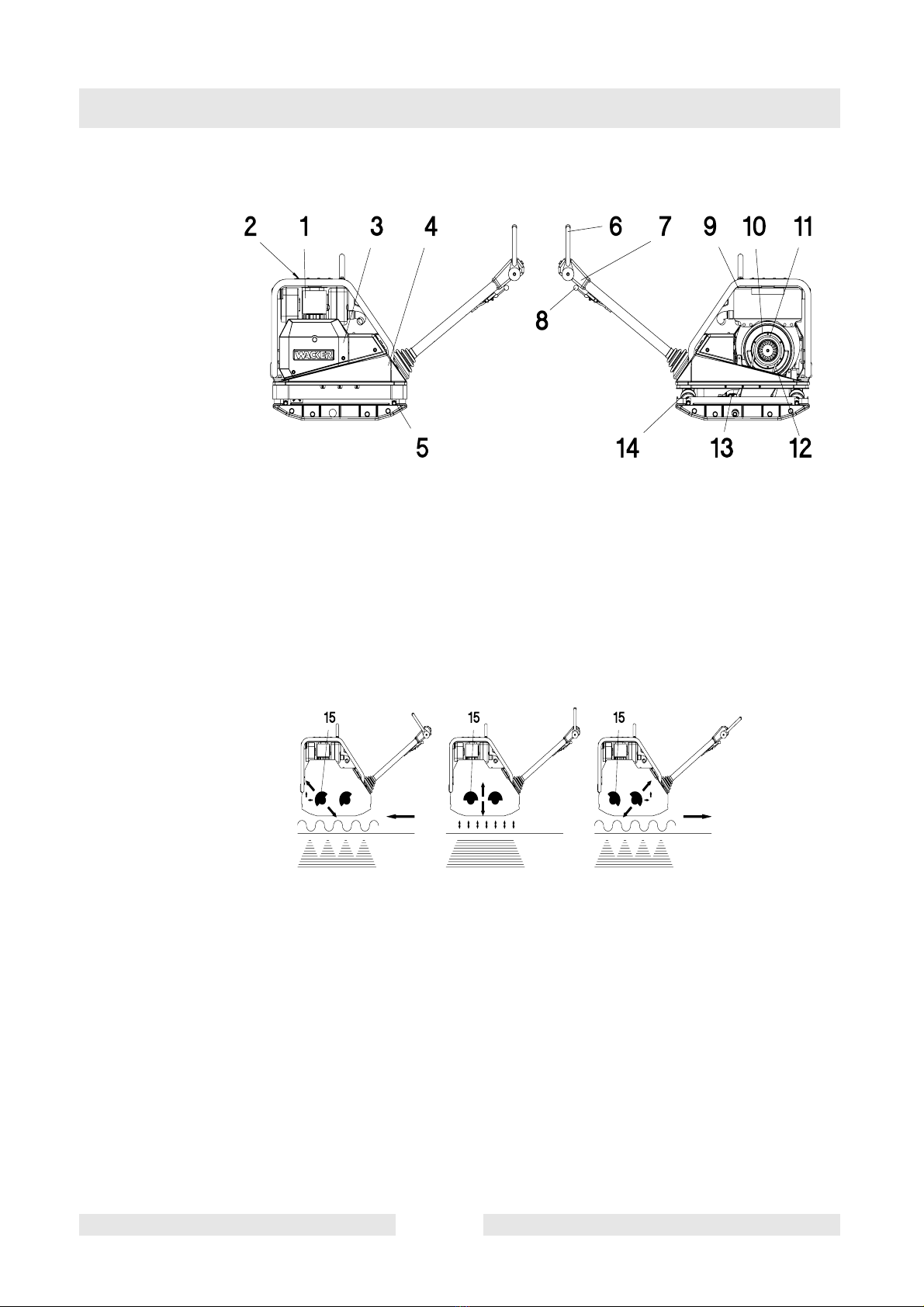

4.3 Description of function .........................................................................13
5. Transport to work site /Recommendations on compaction 15
5.1 Transport to work site ..........................................................................15
5.2 Recommendations on compaction ......................................................17
6. Operation 18
6.1 Starting ................................................................................................18
6.2 Mechanical oil pressure control ...........................................................19
6.3 Electric start .........................................................................................21
6.4 Starting the engine with the safety starting crank ................................23
6.5 Starting in cold weather .......................................................................26
6.6 Starting with external battery etc. ........................................................28
6.7 Forward and reverse motion ...............................................................29
6.8 Compaction without extension plates ..................................................29
6.9 Stopping the engine ............................................................................30
7. Maintenance 31
7.1 Maintenance schedule ........................................................................31
7.2 Engine oil and oil filter .........................................................................32
7.3 Air filter ................................................................................................34
7.4 Fuel system .........................................................................................36
7.5 Battery .................................................................................................38
7.6 Hydraulic control ..................................................................................39

Table Of Contents
5
7.7 Exciter .................................................................................................40
7.8 Exciter V-belt .......................................................................................42
8. Faults 43
8.1 Forward speed too low ........................................................................43
8.2 Reverse speed too low ........................................................................43
8.3 No reverse motion ...............................................................................43
8.4 Loss of hydraulic oil .............................................................................43
8.5 The charge control lamp will not extinguish ........................................44
8.6 Engine does not start ..........................................................................44
9. Electricwirning-Diagramm 45
10. Lables 46
EC - Conformity Certificate 47
DIN EN ISO 9001 Certificate 49

Safety instruction
SV00071GB.fm 6
2. Safety instruction
for the use of vibratory plates with combustion engines
2.1 General instructions
2.1.1 Vibratory plates may only be operated by persons who
∗are at least 18 years of age
∗are physically and mentally fit for this job
∗have been instructed in guiding vibratory plates and proved their ability
for the job to the employer
∗may be expected to carry out the job they are charged with carefully.
The persons must be assigned the job of guiding vibratory plates by
the employer.
2.1.2 Vibratory plates may only be used for compaction jobs. Both the
manufacturer’s operating instructions and these safety instructions
have to be observed.
2.1.3 The persons charged with the operation of vibratory plates have to be
made familiar with the necessary safety measures relating to the
machine. In case of extraordinary uses the employer shall give the
necessary additional instructions.
2.1.4 This machine generates noise that exceeds the country-specific
permissible noise levels (individual rating level). It may therefore be
necessary to wear ear protection
2.2 Operation
2.2.1 The engine is started by way of an electric starter.
2.2.2 When starting the diesel engine with a starter crank make sure you
have assumed a proper position with respect to the engine and that
your hands are placed properly on the crank.
Only use the original engine manufacturer’s safety starting crank.
To avoid a possible return kick, turn safety starting crank through with
full force until the engine starts running.

Safety instruction
SV00071GB.fm 7
2.2.3 The function of operation levers or elements is not to be influenced or
rendered ineffective.
2.2.4 During operation the operator may not leave the control elements.
2.2.5 The operator has to stop the engine of the vibratory plate before going
on breaks. The machine has to be placed such that it cannot turn over.
2.2.6 Stop engine before filling fuel tank. When refilling fuel tank, do not
allow fuel to come into contact with the hot part of the engine or spill
onto the ground.
2.2.7 Do not smoke or handle open fire near this machine.
2.2.8 The tank lid must fit tightly. Shut fuel cock if available when stopping
the engine. For long distance transports of machines operated by fuel
or fuel - mixtures, the fuel tank has to be drained completely.
Leaky fuel tanks may cause explosions and must therefore be
replaced immediatelly.
2.2.9 Do not operate this machine in areas where explosions may occur.
2.2.10 Make sure that sufficient fresh air is available when operating vibratory
plates equipped with combustion engines in enclosed areas, tunnels,
galleries and deep trenches.
2.2.11 During operation keep your hands, feet and clothes away from the
moving parts of the vibraton plate. Wear safety shoes, and eye
protection glasses in case of trench operation where falling sand
stones maybe ejected.
2.2.12 When working near the edges of breaks, pits, slopes, trenches and
platforms, vibratory plates are to be operated such that there is no
danger of their turning over or dropping in.
2.2.13 Make sure the soil or subsoil to be compacted has a high enough load
carrying capacity.
2.2.14 Use appropriate protective clothing while working or while carrying out
maintenance work.
2.2.15 When traveling backwards the operator has to guide the vibration plate
laterally by its guide handle so that he will not be squeezed between
the handle and a possible obstacle. Special care is required when work
ing on uneven ground or when compacting coarse material. Make sure
of a firm stand when operating the machine under such conditons.

Safety instruction
SV00071GB.fm 8
2.2.16 Vibratory plates are to be guided such that hand injuries caused by
solid objects are avoided.
2.2.17 Vibratory plates have to be guided such that their stability is
guaranteed.
2.2.18 Machines with integrated transport trolley may not be parked or stored
on the trolley. This device has only been designed to transport the
machine.
2.3 Safety checks
2.3.1 Vibratory plates may only be operated with all safety devices installed.
2.3.2 Before starting operation, the operator has to check that all control and
safety devices function properly.
2.3.3 If defects in the safety equipment or other defects are detected which
impair the safe operation of the internal vibrator, the supervisor is to be
notified without delay.
2.3.4 The machine must to be switched off immediately in case of defects
jeopardizing the operational safety of the equipment.
2.3.5 Process materials and operating fuels must be stowed away in
receptacles or containers marked according to the respective
manufacturers specifications.
2.4 Maintenance
2.4.1 Only use original spare parts. Modifications to this machine including
the adjustment of the maximum speed set by the manufacturer are
subject to the express approval of WACKER. In case of
nonobservance all liabilities shall be refused.
2.4.2 All drive units have to be switched off before carrying out maintenance
jobs. Deviations from this are only allowed if the maintenance or jobs
require a running engine.
2.4.3 When working on vibratory plates equipped with electric starter,
disconnect battery before carrying out maintenance or repair jobs on
the electric parts of the machine.

Safety instruction
SV00071GB.fm 9
2.4.4 Remove pressure from hydraulic lines before working on them.
Caution: take care when removing hydraulic lines, for the oil may be
very hot (up. over 80oC). Precautions are to be taken to prevent oil
from splashing into the operator’s eyes.
2.4.5 All safety devices must be reinstalled properly immediately after
maintenance and repair jobs have been completed.
2.4.6 Do not hose down the machine with water after each use to avoid
possible malfunctions. Do not use high pressure washers nor chemical
products.
2.5 Transport
2.5.1 During transport, loading and unloading of vibration plates by means
of lifting devices, appropriate slinging means or hooks have to be used
on the lifting points provided for this purpose on the vibratory plate.
2.5.2 The load-carrying capacity of the loading ramps has to be sufficient
and the ramps have to be secure such that they cannot turn over. Make
sure that no one be endangered by machines turning over by slipping
or by moving machine parts.
2.5.3 When being transported on vehicles, precautions have to be taken that
vibration plates do not slip or turn over.
2.6 Maintenance checks
2.6.1 According to the conditions and frequency of use, vibratory plates have
to be checked for safe operation at least once a year by skilled
technicians, such as those found at WACKER-service depots and
have to be repaired if necessary.
Please also observe the corresponding rules and regulations valid in your
country.

Technical Data
TD00693GB.fm 10
3. Technical Data
DPU 6055
Item no. 0610053 0610049 0610175
Length x width x height
mm: 1700 x 710 x
1190
1700 x 860 x
1190
1700 x 710 x
1190
Operating weight
without extension plates (550 mm) kg:
(610 mm) kg:
(710 mm) kg:
(860 mm) kg:
454
469
476
499
455
470
477
500
Power transmission From drive engine directly to exciter unit via
automatic centrifugal and V-belts
Exciter
Vibrations
min-1 (Hz): ca. 4150 (69)
Centrifugal force
kN: 60
Oil Fuchs Titan Unic 10W40 MC (SAE 10W40)
Oil quantity l: 0,75
Drive motor Air-colled single-cylinder 4 stroke diesel engine with
electric starter
Piston displacement
cm3:667
Rated power (*)
kW: 9,3
at rpm
min-1:2650
Operating rpm’s
min-1:2880
No-load rpm’s
min-1:2950
Oil Fuchs Titan Unic 10W40 MC (SAE 10W40)
Oil quantity l: 1,6

Technical Data
TD00693GB.fm 11
(*) In accordance with the installed useful outlet power according to Directive 2000/14/
EG.
Fuel Diesel
Fuel consumption
l/h: 1,9
Tank capacity l: 7,0
Electrical system
Battery Special Wacker-battery for vibro plates -
12 V - 55 Ah
Alternator Rotary current generator with electronic regulator and
rectifier
Charging rate max.
A: 26
Charging voltage
V: 14
Starter Starter motor
D.C.
V: 12
Hydraulic control
Oil Fuchs Renolin MR 520
Oil quantity l: 0,4
Special lubricating grase LPA:97 dB(A)
The weighted effec-tive
acceleration value, determined
according to EN ISO 5349 m/s2:4,9
DPU 6055

Description
T01005GB.fm 12
4. Description
4.1 Applications
The vibratory plate has been designed for the compaction of almost
every type of soil, both in trenches as well as surface compaction. In
addition, it is possible to vibrate paving stones an concrete blocks by
using extension plates up to 86 cm (accessories).
Extremely cohesive as well as frozen soils are not suitable for
compaction. An authorised specialist must give permission for the
ground in question to be compacted.
4.2 Max. admissible inclination

Description
T01005GB.fm 13
4.3 Description of function
4.3.1 The vibration required for compaction is produced by the exciter (13)
which is firmly joined to the lower mass (5). This exciter (13) is
designed as a central vibrator with aligned vibrations. Such a principle
permits the direction of vibration to be changed by turning the eccentric
weights (15). In this way an infinitely variable transition between
vibration in forward motion , at standstill and in reverse motion is
possible. This process is hydraulically controlled with the operating
control handle (6) on the centre pole head (7).
4.3.2 The drive engine (1) anchored to the upper mass (4) drives the exciter
(13). The torque is transmitted by means of a friction connection
through the centrifugal clutch (11) and the exciter V-belt (12).
4.3.3 The centrifugal clutch (11) interrupts flow of power to the exciter (13)
at low engine speed and thus permits perfect idling of the drive engine
(1).
ReverseForwards Standstill

Description
T01005GB.fm 14
4.3.4 The automatic V-belt pulley (10) combined with the centrifugal clutch
(11) ensures optimum tension of the exciter V-belt (12) during
operation and relief of the tension of the exciter V-belt (12) when the
machine is being relocated or transported.
4.3.5 Moreover, the automatic V-belt pulley (10) automatically adapts to the
V-belt flanks in line with the wear and thus makes the entire drive from
the engine (1) to the exciter (13) maintenance-free (see chapter
Exciter V-belt).
4.3.6 The speed of the drive engine (1) can be infinitely varied by remote
control on the throttle control lever (8). The upper (4) and lower (5)
masses are connected to each other by 4 vibration-damping rubber
metal shock mounts (14). This damping system prevents the very high
frequencies from being transmitted to the upper mass (4). As a result
the functionability of the drive engine (1) is retained in spite of the high
compaction performance. The drive engine (1) works on the diesel
principle; it is started electrically by a pinion starter (3), draws in the
combustion air through an air filter, dry (9) and is air-colled.
4.3.7 To facilitate the starting procedure (at very low temperatures, with
hand start) the drive engine (1) has an automatic decompression
mechanism (2). It ensures that compression is very low during the
cranking operation but steadily increases after a few revolutions when
it then switches over to full compression.

Transport to work site /Recommendations on compaction
T01002GB.fm 15
5. Transport to work site /Recommendations on compaction
Warning
Improper use can result in injury or serious material damage.
∗Read and follow all the safety instructions at the beginning of this
operator's manual, see chapter Safety information.
5.1 Transport to work site
Danger
Danger of fire and explosions by fuel!
Any fuel that escapes can ignite and cause severe burns.
∗Lift and move the machine in the upright position.
Requirements:
∗When transporting the vibrating plate compactor, use only suitable
hoisting gear with a minimum load-bearing capacity, see Technical
data.
∗Always turn off the motor during transportation!
Note
We recommend that the fuel tank be emptied and the carburetor run
dry prior to transporting it. Fuel could run out, e.g. if the machine is
tilted.
∗Vertically set guide handle head and lock into place.
Warning
Danger due to the machine falling!
If the machine falls, it can cause severe injury such as crushing.
∗Only use suitable and tested hoisting gear and lifting tackle
(safety load hooks) of sufficient lifting capacity.
∗Attach the machine firmly to the hoisting gear.

Transport to work site /Recommendations on compaction
T01002GB.fm 16
∗Only attach suitable tackle at the central lifting point (16) provided. The
central lifting point is located exactly above the centre of gravity of the
machine. The central lifting point can be displaced rearwards (18),
given an application in which the height of the machine is of
importance (torque wrench setting = 85 Nm).
∗During transport on the loading area of a vehicle, tie down the vibration
plate using the lugs (17).

Transport to work site /Recommendations on compaction
T01002GB.fm 17
5.2 Recommendations on compaction
5.2.1 Ground conditions
The max. compaction depth depends on several factors relating to the
ground condition, such as moisture, grain distribution etc,
it is therefore not possible to specify exact values.
Recommendation: In each case determine the max. compaction
depth with compaction tests and soil samples.
5.2.2 Compaction on slopes
The following points are to be observed when compacting on sloped
surfaces (slopes, embankments):
∗Only approach gradients from the bottom (a gradient which can be
easily overcome upwards, can also be compacted downwards without
any risk).
∗The operator must never stand in the direction of descent.
∗The max. gradient of 25omust not be exceeded.
A tilt in excess of this angle could lead to a stopping of the engine due
to the automatic low oil shut-off system. A restarting of the engine can
only take place after the valve lever at the oil filter housing has been
actuated once.
Right ! Wrong!

Operation
T01006GB.fm 18
6. Operation
Warning
Improper use can result in injury or serious material damage.
∗Read and follow all the safety instructions at the beginning of this
operator's manual, see chapter Safety information.
6.1 Starting
6.1.1 Starting requirements:
Engine oil:
Check the oil level with the dipstick (19). Add oil (see Technical data)
through the filler neck (21) as needed.
The machine must be level and the engine stopped before proceeding
with the oil level check.
Fuel:
When pouring diesel fuel into the fuel nozzle (20), maintain absolute
cleanliness. Impurities in the fuel can cause breakdowns in the
injection system and premature clogging of the fuel filter.
Only refuel the machine when it’s engine is stopped.
Never refuel the machine close to open flames or ignitable sparks and
do not smoke.
Only use pure, clean fuel and clean filling vessels.
Do not spill any fuel.
