Thank you for purchasing the Power Dome™NX 2 by Wagan Tech®. With normal care and
proper treatment it will provide years of reliable service.
IMPORTANT INFORMATION
• Please read and understand all warnings, cautions, and notes included in this manual
before using the Power Dome™NX 2. Follow instructions provided by your vehicle
manufacturer and other devices intended to be used with this unit. Keep these instructions
for future reference.
• Make sure the Power Dome is fully charged before first use. We recommend 48 hours for
initial charge.
GENERAL WARNINGS
HIGH VOLTAGE: The inverter output can be lethal� Improper use may result in
property damage, personal injury, or loss of life�
• This appliance is NOT intended for use by persons with reduced physical, sensory, or
mental capabilities.
• Children or persons lacking in experience and knowledge also should NOT operate this
appliance unless he/she has been given supervision or instruction concerning the proper
usage and warnings of the appliance by a person responsible for their safety.
• For proper and safe operation of any accessory outlet, do not place anything in it except
the plug of the accessory to be used.
• Use only the chargers, cables, and clamps provided. Unauthorized parts may damage
the unit.
• This product has no consumer serviceable parts other than the external fuse. Do not
attempt to open the unit’s enclosure, doing so will void the warranty.
STORAGE
This unit may be stored in any position. Make sure the clamps and air hose are securely tucked
away in their original positions. Store in a cool, dry area. If the unit is not used for a prolonged
period of time, recharge every 3 months.
PROPER DISPOSAL
• Appliance, accessories, and packaging should be recycled in an environmentally friendly
manner. Plastic parts are coded for purposes of separation when recycling.
• Battery-powered electrical appliances contain materials which are harmful to the
environment. Do not dispose of batteries and/or electric/electronic appliances in normal
household refuse. When the battery has reached the end of its lifetime, please take the
entire unit to a battery recycling facility.

©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
7
www.wagan.com
PRODUCT FEATURES
• Powerful jumpstarter with heavy-duty cables and clamps.
• Voltmeter for checking battery status.
• High pressure air flow compressor for inflating tires and sports equipment with easy-read
analog pressure gauge.
• Built-in power inverter providing t wo 115 -volt AC outlets.
• Additional DC accessory socket for powering DC appliances.
• One USB power port for charging mobile devices.
• Bright, long-lasting LED area light.
• Hazard-flashing light mode with red lens cap for emergency warning.
• Built-in Bluetooth®enabled AM/FM radio.
• AM/FM radio to stay tuned during disasters and emergencies.Audio input jack for external
music players.AC/DC recharging adapter & DC recharging cable (fused) included.
SPECIFICATIONS
Battery AGM Sealed lead acid, 12V, 15Ah
Peak Amps 600A
Jumper Cables 6 AWG, 24-inch
Air Compressor 260 PSI, analog gauge
Inverter Continuous Output Power 200W (modified sine wave)
Inverter Peak Surge 500W (for a max of 0.3 seconds)
Inverter Low Voltage Alarm 10.5V ±0.5V
Low Voltage Shut-off 10.0V ±0.5V
Fuse 25A
AC Outlets (2x) 115V, 60 Hz
DC Socket 12V, 11A max, 132W
USB Power Port 5V, 2.1 A
Work Light 9-LED
Digital-tune Radio AM 520−1710 kHz / FM 88−108 MHz
Auxiliary Input Jack 3.5 mm diameter (1
/
8
inch)
Charging Time (AC) 48 hours
Charging Time (DC—with engine running) 12 hours
Dimensions WxLxH (inches) 11.0 x 12.0 x 8.3
Weight (lb) 17. 0 0
AC Charging Adapter Output 12V, 500mA DC

Power Dome™NX 2 by Wagan Tech®
8www.wagan.com

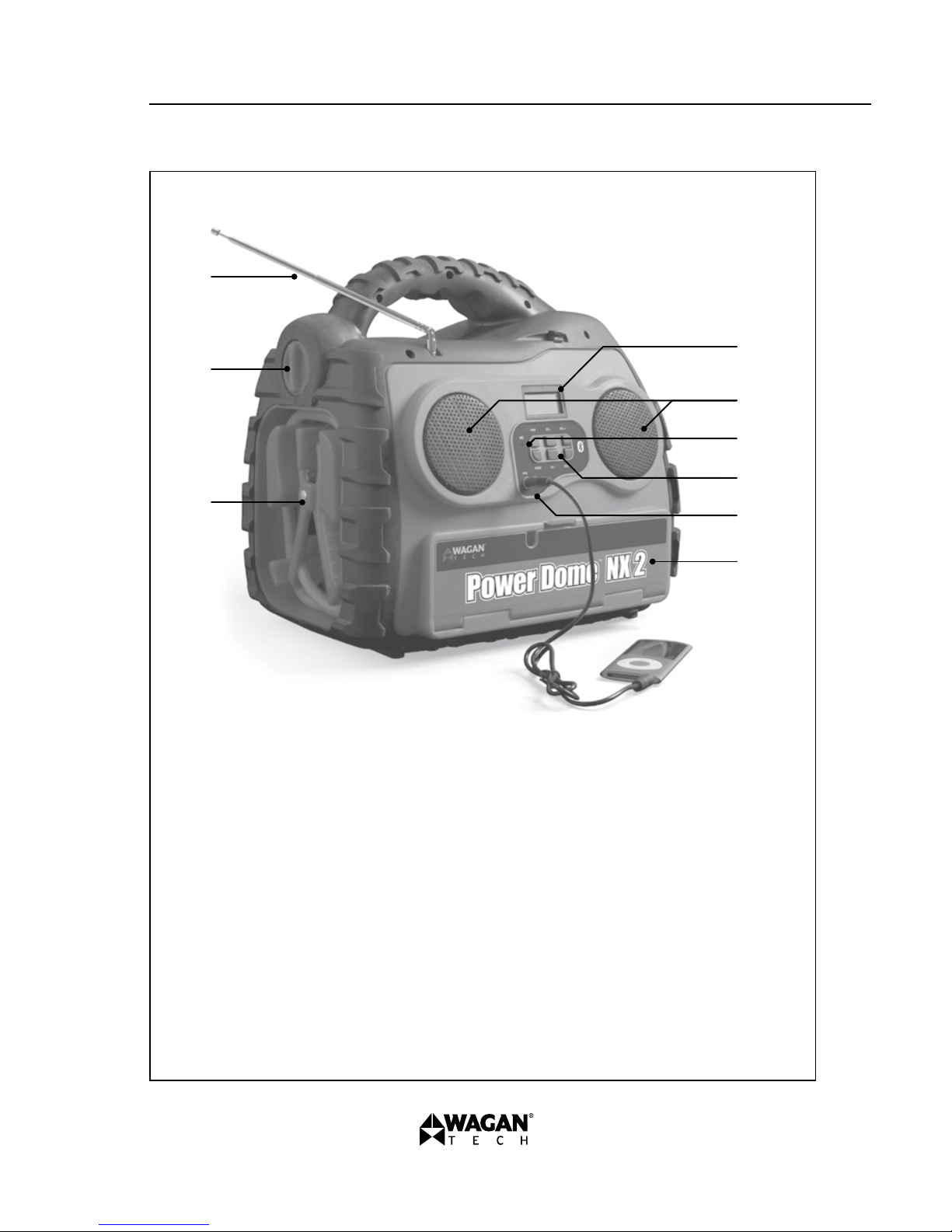

FRONT VIEW
1. Extendable Antenna
2. Jumper Safety Switch
3. Red Positive (+) Jumper Cable
4. Radio LCD Screen
5. Speakers
6. Bluetooth Microphone
7. Radio Control Panel
8. Auxiliary Input Jack
9. Storage Compartment
*Audio device and audio input cable not provided.
1
4
5
6
7
8
9
2
3
*

©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
9
www.wagan.com
REAR VIEW
10. AC Outlets
11. Inverter Switch
12. Work Light / Hazard Flasher
13. Black Negative (−) Jumper Cable
14. Inverter Power Indicator
15. Fuse
16. DC/USB Power Indicator
17. DC/USB Switch
18. USB Power Port
19. DC Output Socket
20. Hazard Flasher Lens
21. Pressure Gauge
22. Voltmeter
23. Charging Indicator
24. Charging Jack
25. Battery Status Button
26. Air Compressor Switch
2 7. Light Switch
28. Air Compressor Hose
29. Red Positive (+) Jumper Cable
12
11
10
13
14
16
21
17
18
19
20
22
24
25
26
28
27
29
23
15

Power Dome™NX 2 by Wagan Tech®
10 www.wagan.com
BATTERY STATUS
The voltmeter provides the current state of charge on the internal battery. It is the user’s
responsibility to periodically monitor the battery’s status and recharge every 3 months in addition
to recharging after each use.
1. Disconnect any input or output power cords and turn off all switches.
2. Press the Battery Status button.
3. Read the voltmeter to determine battery status.
• < 12V: Battery is discharged, charge immediately
• ~ 12V: Battery should be charged before jumpstarting a vehicle
• > 12.5V: Battery is fully charged
CHARGING THE POWER DOME
ELECTRICAL SHOCK! Exposure to water may cause electrical shock� Exposure to
water and excessive moisture will also damage the unit and void the warranty�
Charge your Power Dome in an upright position for a full 48 hours before initial use� The
Power Dome can be charged continuously via AC adapter without damaging the internal battery.
In order to prolong the life of the Power Dome (as with all lead-acid batteries), be sure to fully
recharge the unit every 3 months even if the Power Dome has not been used.
AC Charging
Only use the AC charging adapter supplied with this unit� Make sure the supplied AC/DC
charging adapter is powered by the correct voltage (110V AC or 220V AC depending on your
country/region).
1. Make sure all Power Dome switches are off.
2. Open the dust cover on the charging jack.
3. Plug the DC end of the AC/DC charging adapter into the Power Dome’s charging jack.
4. Connect the AC end of the AC/DC charging adapter to the wall outlet.
5. The charging indicator will light up during the charging process.
6. When charge is complete, disconnect the adapter from the AC outlet first, then from the
charging jack.
7. Replace the dust cover on the charging jack.
DC Charging in Your Vehicle or Boat
Only use the DC charging adapter supplied with this unit� Your vehicle engine must be
running while charging the Power Dome. Do NOT exceed 12 hours of continuous charging time.
1. Make sure all Power Dome switches are off.
2. Open the dust cover on the charging jack.
3. Plug the small end of the DC power cord into the Power Dome’s charging jack.
4. Plug the large end of the DC power cord into an accessory (cigarette lighter) socket.

©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
11
www.wagan.com
5. The charging indicator will light up during the charging process. Do NOT charge for more
than 12 hours at one time.
6. When charge is complete, disconnect the power cord from the accessory socket first, then
from the unit’s charging jack.
7. Replace the dust cover on the charging jack.
JUMPSTARTER
Warnings
• Lead-acid batteries can release explosive gases. Failure to follow instructions
may cause property damage, explosion hazard, and/or personal injury.
• Do not smoke while jumpstarting.
• Jumpstart a vehicle or boat in a well ventilated area.
• Do not attempt to jumpstart a frozen battery.
• This product is not intended for use in the rain or temperatures above 130°F.
• Do not let the jumper cables or other attached appliances get wet.
• Do not wear vinyl clothing when jumpstarting—friction can cause static
electricity sparks.
• Remove all metal jewelry to avoid short circuits.
• Always use safety glasses when jumpstarting battery. Keep battery terminals clean and be
careful to keep corrosion from coming in contact with eyes—acid can cause blindness and/
or severe burns.
• Never allow red and black clamps to touch or connect to the same piece of metal—this can
cause short-circuits, power arcing, and/or explosion.
• Make sure someone is available to give assistance if needed.
• Keep out of reach of children.
• This unit is for use with 12 volt systems only.
Operation
CAUTION: If the engine fails to start after three attempts, discontinue jumpstart procedure�
Excessive engine cranking can damage the vehicle’s starter motor� Look for other problems
that may need to be corrected or call for professional service�
1. Review the Jumpstarter warnings.
2. Put the vehicle’s gear in “park” position and make sure the brake is set.
3. Turn off the vehicle ignition and accessories (e.g. radios, lights, air conditioners), and
disconnect all devices such as GPS and mobile phones or tablets.
4. Turn off all Power Dome switches and disconnect all accessories.
5. Determine the polarity of the vehicle’s battery terminals. The positive (POS, P, +) battery
terminal is usually larger in diameter than the negative (NEG, N, −) terminal. If you are
unsure, you should refer to the vehicle owner’s manual.

Power Dome™NX 2 by Wagan Tech®
12 www.wagan.com
6. Determine the ground system of your vehicle.
• If vehicle to be started has the positive battery terminal connected to chassis (this is rare
and usually found in older car models from the 1950s or earlier):
a. Connect the black (−) clamp first to vehicle battery’s negative (black) terminal.
b. Connect red (+) clamp to vehicle chassis or a solid, non-moving, metal vehicle
component or body part. DO NOT clamp directly to positive battery terminal or a
moving part.
• If vehicle to be started has a negative ground system:
a. Connect the red (+) cable clamp first to the vehicle’s positive (red) battery terminal.
b. Next, connect the black (−) clamp to the vehicle chassis or non-moving, metal
vehicle component.
7. Turn on the Jumper Safety Switch.
8. Inside the vehicle, turn on the ignition switch and attempt to start the engine.
9. Crank a maximum of 3 seconds. If the engine does not start, wait 3 minutes before the
next attempt.
10.After the engine starts, turn off the Jumper Safety Switch.
11. Disconnect the clamps in the reverse order of connection prior to jumpstarting.Be sure that
the cables and clamps are securely stored.
12. Recharge the Power Dome as soon as convenient.
AIR COMPRESSOR
This Power Dome is equipped with an air compressor that can provide up to 260 PSI (pounds per
square inch) of pressure for a variety of uses such as vehicle tires and sports equipment.
CAUTION: Be careful not to over inflate, monitor the compressor gauge while inflating. Never
connect or disconnect the nozzle with the compressor operating. To avoid overheating, do
not operate the air compressor for more than 10 minutes at a time. After 10 minutes, allow the
compressor to cool for 15 minutes before using again.
Operation
In the event that the vehicle tire is completely flat, raise the vehicle using a recommended jack
before inflating the tire.
1. Before any tire inflation, look for manufacturer’s recommended inflation pressure.
2. Open the compartment door at the rear of the Power Dome and extend the air hose.
3. Position the Power Dome so that you can see the pressure gauge.
4. Make sure the chuck lever is positioned up (away from the chuck opening).
5. Determine if you will need an air hose adapter for your object.
• To inflate a vehicle tire:
a. Remove the valve cap from the valve stem of the tire.

©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
13
www.wagan.com
b. Attach the chuck of the air hose to the tire’s valve stem.
c. Push the chuck lever down to secure the chuck to the valve stem.
• To inflate a sports equipment, air mattress, rafts, or other plastic inflatables:
a. Insert the proper valve stem adapter into stem connector as far as possible.
b. Push the chuck lever down to secure the adapter.
c. Remove the valve cap from your inflatable object if there is one.
d. Insert the other end of the valve stem adapter into inflatable’s air valve opening
as far as possible.
6. Set the Air Compressor Switch on to the “I” position to start inflation.
7. Monitor the pressure gauge while inflating the tire.
8. When recommended tire pressure has been reached, turn off the air compressor.
9. Disconnect the hose and replace valve cap.
10.Return the hose back to its compartment for storage.
11. Recharge the Power Dome as soon as it is convenient.
POWER INVERTER
The Power Dome™NX 2 can run most AC appliances or a combination of appliances up to 200
watts. Operating time is dependant on the AC load (required wattage) and the current charge/
condition of the Power Dome’s internal battery. Reduced AC loads and/or having a full charge on
the internal battery will result in longer operating time. Ordinary overloads will cause the inverter
to automatically shut down. Reduce the load and restart the inverter.
There is a user-replaceable automotive-type fuse protecting the inverter from an unlikely excessive
power draw or short circuit. REPLACE ONLY WITH THE SAME TYPE AND RATING FUSE. To
replace the fuse, simply pull it out with a pair of needle nose pliers and insert the new fuse.
Caution
Some rechargeable devices are equipped with a separate AC charger. These devices are
likely to operate properly with the inverter in this unit. Rechargeable devices that have built-in
chargers (see your device’s user manual) may not operate properly with this unit because the
inverter is modified sine wave.
Some motorized devices may operate at excessively elevated temperature when used with this
inverter. During first use with this inverter, check for excessive motor temperature. Abnormally
elevated temperature of the device is an indication that they should not be used together.
Operation
1. Check the required current draw of the appliance/device to be powered and make sure it
does not exceed the Power Dome’s maximum wattage.
2. Prior to plugging in your device, turn your power tool or appliance off. Mobile devices are
fine to keep on, but operating them during the charging process will prolong charging time.
3. Open the AC outlet dust cover.

Power Dome™NX 2 by Wagan Tech®
14 www.wagan.com
4. Connect the electrical plug of your device/appliance to either of the two AC outlets.
5. Set the Inverter Switch to the “|” position.
6. Observe the Inverter Power Indicator. If the LED remains green, proceed to plugging in and
turning on the second device/appliance.
• If the power indicator remains green, then both devices/appliances are operating
properly.
• If the power indicator is no longer lit, reduce the AC load. If the inverter still does not
operate after load is reduced, refer to the troubleshooting table at the end of this User’s
Manual.After use, remove the device/appliance plug(s), close the dust cover(s), and turn
the Inverter Switch off.
7. Recharge the Power Dome as soon as it is convenient.
DC OUTPUT SOCKET
The DC accessory socket can power a DC load up to 11 Amps. Overloading the socket will result
in tripping the self-resetting circuit breaker. Removing the overload automatically restores power
to the DC socket. For proper and safe operation of the 12 Volt DC power accessory socket, do
not place anything in them except the 12V DC plug of the accessory to be used.
1. Check the required current draw of the appliance/device to be powered and make sure it
does not exceed the Power Dome’s maximum wattage.
2. Remove the dust cover from the DC socket.
3. Insert the 12V DC plug of your device/appliance into the Power Dome’s DC socket.
4. Set the DC/USB Switch to the “I” position.
5. Check for the indicator to be lit.
6. Operate your device/appliance as usual.
7. After use, remove the device/appliance’s plug, close the dust cover, and turn the DC/USB
Switch off.
8. Recharge the Power Dome as soon as convenient.
USB POWER PORT
1. Remove the dust cover.
2. Connect a user-supplied USB cable to the USB power port on the Power Dome.
3. Set the DC/USB Switch to “I” position.
4. Check for the indicator to be lit.
5. Operate your mobile device as usual.
6. After use, disconnect the USB cable and turn the DC/USB Switch off.
7. Replace the dust cover.
8. Recharge the Power Dome as soon as convenient.

©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
15
www.wagan.com
WORK LIGHT
The Work Light is a cluster of bright LEDs located at the side of the Power Dome. The location of the
Work Light allows the light to be used while the Power Dome is being carried.
1. Set the Light Switch to the “|” position.
2. The light will illuminate.
3. Turn off the light when it is not in use.
USING THE HAZARD FLASHER
The hazard lens turns the Power Dome’s light into a caution signal during roadside vehicle repair or as
a distress signal when seeking help.
1. Attach the red Hazard Flasher Lens over the light snugly.
2. Set the Light Switch to “||” for blinking mode.
Switch to Blinker Mode
Attach Hazard Flasher Lens to Light
3. Place the Power Dome in a very visible position or area.
4. Turn the light off when it is not in use.
AM/FM RADIO
The Power Dome’s radio can receive frequencies in the standard AM and FM broadcast bands (AM
520–1710 kHz, FM 88–108 MHz). An extendable antenna provides adequate signal to receive all
local radio stations. When not in use, the antenna should be stored in the retracted position. This will
prevent damage to the antenna while Power Dome is being transported.
NOTE: All AM band radios are subject to receiving noise interference from electronic devices, static
lightning strikes, and some motorized equipment. If you are operating the Power Dome’s inverter and
noise is being received on the AM band, turn off the inverter or change the radio to receive an FM
frequency.

Power Dome™NX 2 by Wagan Tech®
16 www.wagan.com

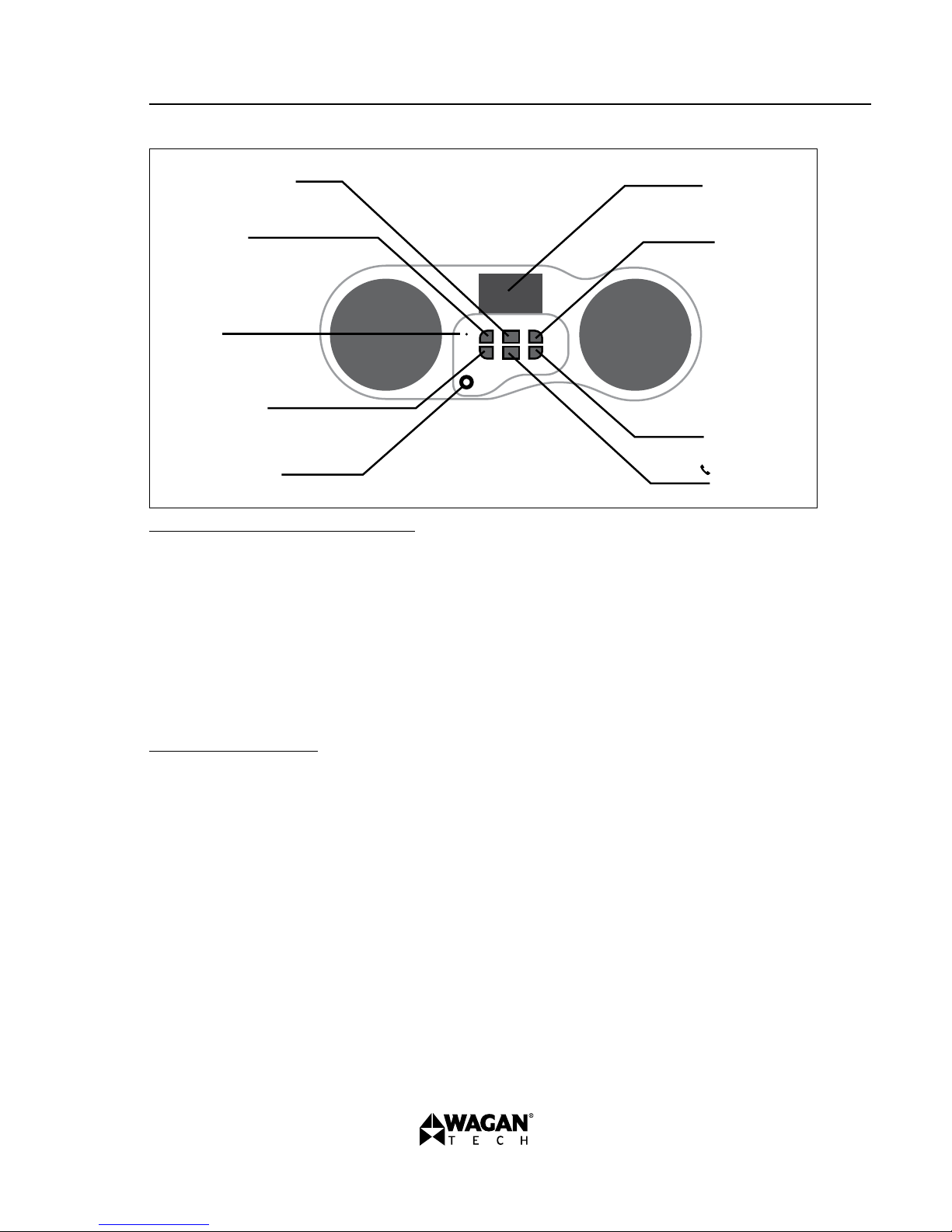

Power
CH +
CH −/
Auxiliary Input
Mode
Microphone
VOL +
VOL −
LCD screen
Turning On and Tuning the Radio
1. Carefully raise and extend the antenna.
2. Press the PWR (power) button to turn the radio on. The current frequency is displayed in the
center and the “AM” or “FM” band is shown in the corner of the LCD screen.
3. Tap the MODE button to switch between AM and FM bands.
4. Tap the “CH+” and “CH−” buttons to adjust the station. Press and hold the buttons to
automatically scan stations.
5. When finished, press and hold the PWR (power) button to turn off the radio. Carefully retract
the antenna and return it to the lowered position.
Adjusting the Volume
1. With the radio turned on, tap the “VOL+” or “VOL−” buttons to adjust the volume. Press and
hold the buttons to adjust the volume quickly. The radio can be adjusted up to 16 levels.
2. When using an external audio device in the Audio Input Jack, the volume will be controlled by
the external device.
3�5MM AUDIO INPUT
1. Turn the radio on.
2. Push the MODE button until you see “AU” on the LCD screen.
3. Insert a user-supplied 3.5mm audio cable into the auxiliary input jack.
4. Insert the opposite end of the cable into a compatible audio device.
5. Turn on the audio device and set it to output sound. The sound should be audible from the
Power Dome speakers.

©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
17
www.wagan.com
Note: The Power Dome’s USB Power Port can conveniently charge your audio or mobile device
while music is playing.
BLUETOOTH PAIRING
Pair your Bluetooth enabled phone or tablet to the Power Dome™NX 2.
1. Press the PWR (power) button to turn on the Power Dome radio.
2. Press the MODE button to change the input mode until you see “BT” on the LCD screen.
3. You will hear an elevating tone initiating the Bluetooth receiver and the “BT” text will flash
while in pairing mode.
4. Set your device (phone or tablet) to search for Bluetooth devices. Please refer to your
device’s user manual for specific instructions.
5. After searching is complete, you should see “DN018BT” in the device list. Select this and
the Power Dome will automatically connect.
6. The Power Dome speakers will emit a chime indicating that a successful connection has
been made. The “BT” text on the display will change from flashing to solid once connected
to a device.
7. The Power Dome is ready to be used as a Bluetooth speaker.
8. The Power Dome Bluetooth setting is able to play music and receive phone calls. When a
phone call is received, press the “CH—/ ” for two seconds to pick up the call. To hang up
the call, press the “CH—/ ” again for two seconds. Restart the music on your device if it
does not restart automatically when the call has ended.
9. There is a small hole for the microphone that is visible near the radio on the Power Dome.
TROUBLESHOOTING
Problem Cause Solution
Air compressor shut-off. High temperature
protection. Allow the Power Dome cool for about 10 minutes.
Lack of power output. Power Dome battery
voltage is below 10 volts. Recharge the Power Dome immediately.
Excessive current drawn
by appliance being
operated.
Reduce load to maximum wattage.
1. Turn off the device and inverter.
2. Disconnect device.
3. Turn the inverter on and let it run for a
minimum of 2 minutes.
4. Turn inverter off.
5. Quickly plug device into inverter.
6. Turn on both the inverter and the device.
Inverter fuse blown. Check and replace if necessary. Be sure
replacement fuse is the same type and rating.

Power Dome™NX 2 by Wagan Tech®
18 www.wagan.com
Problem Cause Solution
Loud buzzing sound. Battery charge level is
too low. 1. Disconnect all appliances.
2. Turn inverter off.
3. Charge Power Dome fully. (See charging
section for more details.)
Inverter Power Indicator
is not lit. Excessive voltage drop. Check internal battery status and recharge if
voltage drops below 10 volts.
Inverter is overloaded. Reduce load to maximum wattage.
Inverter automatically
shuts down. AC overload. Unplug and power off to restart then reduce AC
load to maximum wattage.
Television/power
tool will not start. Required wattage
exceeds Power Dome
peak surge for start-up.
Toggle the Inverter Switch on and off in quick
succession for 5 times. If the device does not
start, the device is not compatible with this type
of inverter.
Television Interference. Picture breaking up
(static). Place the Power Dome as far as possible from
the TV, antenna, and coaxial cable.
TV station may be out of range.
Static/noise interference
in audio system. Sound system has weak
alternating current
shielding.
Do not use the Power Dome’s inverter with low-
quality audio AC filtering system.
Replace audio system with high quality noise
filtering.

www.wagan.com
WAGAN Corp. Limited Warranty
The WAGAN Corporation warranty is limited to products sold only in the
United States.
Warranty Duration:
Product is warranted to the original purchaser for a period of one (1) year from the
original purchase date, to be free of defects in material and workmanship. WAGAN
Corporation disclaims any liability for consequential damages. In no event will WAGAN
Corporation be responsible for any amount of damages beyond the amount paid for
the product at retail.
Warranty Performance:
During the warranty period, a product with a defect will be replaced with a comparable
model when the product is returned to WAGAN Corporation with an original store
receipt. WAGAN Corporation will, at its discretion, replace or repair the defective part.
The replacement product will be warranted for the balance of the original warranty
period. This warranty does not extend to any units which have been used in violation
of written instructions furnished.
Warranty Disclaimers:
This warranty is in lieu of all warranties expressed or implied and no representative
or person is authorized to assume any other liability in connection with the sale of our
products. There shall be no claims for defects or failure of performance or product
failure under any theory of tort, contract or commercial law including,but not limited to
negligence, gross negligence, strict liability, breach of warranty, and breach of contract.
Returns:
WAGAN Corporation is not responsible for any item(s) returned without an official
Return Authorization number (RA#). Please contact our customer service team by phone
or email to obtain an RA#. You can also visit our website and chat with our team
during our normal business hours. For more details and instructions on how to process
a warranty claim, please read the “Returns” section under the “Contact” page on our
website. WAGAN Corporation is not responsible for any shipping charges incurred in
returning the item(s) back to the company for repair or replacement.
Register your product online at http://tinyurl.com/wagan-registration to be added to our
email list. You will receive previews on our upcoming products, promotions, and events.
©2015

Power Dome™NX 2 de Wagan Tech®
20 www.wagan.com
Gracias por su compra del Power Dome™NX 2 fabricado por Wagan Tech®. Con el cuidado
normal y el tratamiento adecuado, le ofrecerá años de servicio confiable.
INFORMACIÓN IMPORTANTE
• Lea y entienda todas las advertencias, precauciones y notas incluidas en este manual antes
de usar el Power Dome™NX 2. Siga las instrucciones que le proporcionó el fabricante
de su vehículo y otros dispositivos concebidos para usar con esta unidad. Conserve estas
instrucciones para referencia futura.
• Asegúrese de que el Power Dome esté completamente cargado antes de usarlo por primera
vez. Recomendamos 48 horas para la carga inicial.
ADVERTENCIAS GENERALES�
ALTO VOLTAJE: La salida del inversor puede ser letal� El uso indebido puede
ocasionar daños a la propiedad, lesiones personales, o pérdida de la vida�
• Ese aparato NO está concebido para que lo usen personas con capacidad física, sensorial
o mental reducida.
• Los niños o personas carentes de experiencia y conocimientos TAMPOCO deben operar
este aparato, a menos que una persona responsable de su seguridad los supervise o se les
haya dado instrucciones y advertencias respecto del uso adecuado del aparato.
• Para una operación adecuada y segura de una toma de corriente auxiliar, no coloque nada
en ella, excepto el enchufe del accesorio que se va a usar.
• Use únicamente los cargadores, cables y abrazaderas que se proveen. Las partes no
autorizadas pueden dañar la unidad.
• Este producto no tiene partes que el consumidor pueda reparar adicionalmente al fusible
externo. No trate de abrir la cápsula de la unidad, ya que ello podría invalidar la garantía.
ALMACENAMIENTO
Esta unidad puede guardarse en cualquier posición. Asegúrese de que las abrazaderas y la
manguera de aire estén escondidas en sus posiciones originales. Guarde en un lugar fresco y
seco. Si la unidad no se usa en un período de tiempo prolongado, recárguela cada 3 meses.
MANERA CORRECTA DE DESECHAR LA UNIDAD
• El aparato, los accesorios y el empaque deben reciclarse de manera que no perjudique al
medio ambiente. Las partes de plástico están codificadas para separarlas para el reciclaje.
• Los aparatos eléctricos que funcionan con baterías contienen materiales que son dañinos
para el medio ambiente. No deseche las baterías y/o los aparatos eléctricos o electrónicos
junto con desechos domésticos normales. Cuando la batería haya llegado al fin de su vida
útil, lleve la unidad completa a un lugar donde reciclen baterías.
Table of contents
Languages:
Popular Batteries Pack manuals by other brands

Olympus
Olympus E-1 - Digital Camera SLR product manual

inventiv
inventiv INV BAT2 Translation from Original Instruction Manual

Power Practical
Power Practical PRONTO 12 Quick reference manual

MasterCraft
MasterCraft 054-1254-2 owner's manual

Milwaukee
Milwaukee M12-18 C Original instructions

GreenWorks
GreenWorks 29842 owner's manual
