WAGNER HT4500 User manual

Thank you for purchasing the Wagner Heat Gun.
This is a highly versatile tool that can be used for a
variety of applications.
BEFORE USE - PLEASE READ THE SAFETY &
OPERATING INSTRUCTIONS
Please save for future reference
Please register your product at www.wagner-group.com

Merci d’avoir acheté ce décapeur Wagner . C’est un outil polyvalent qui peut être utilisé
pour une grande variété d’utilisations.
AVANT LA PREMIÈRE UTILISATION -VEUILLEZ LIRE LE MODE D’EMPLOI ET LES
CONSIGNES DE SÉCURITÉ.
Veuillez les conserver pour une consultation ultérieure
Vielen Dank, dass Sie sich für die Wagner Heißluftpistole entschieden haben. Dies
ist ein sehr vielseitiges Werkzeug, das für eine Vielzahl von Anwendungen eingesetzt
werden.
VOR DER VERWENDUNG - BITTE LESEN SIE DIE SICHERHEITSHINWEISE UND
BEDIENUNGSANLEITUNG.
Bitte bewahren sie diese anleitung auf.
Dank u voor de aanschaffen van de Wagner Hittepistool. Dit is een zeer veelzijdige
hulpmiddel dat voor een verscheidenheid van toepassingen kan worden gebruikt.
VOOR GEBRUIK - LEES DE GEBRUIKSAANWIJZING EN
VEILIGHEIDSVOORSCHRIFTEN.
Gelieve sparen voor toekomstig verwijzing.
Le felicitamos por la compra de la pistola de aire caliente Wagner. Se trata de una
herramienta muy versátil que se puede utilizar para una gran variedad de aplicaciones.
ANTES DEL USO, SÍRVASE LEER LAS INSTRUCCIONES DE USO Y DE SEGURIDAD.
Conserve las instrucciones para consultas futuras.
Obrigado por ter escolhido a pistola de ar quente Wagner. Trata-se de uma ferramenta
muito versátil, que é utilizada para uma grande variedade de aplicações.
ANTES DA UTILIZAÇÃO, LEIA OS CONSELHOS DE SEGURANÇA E AS
INSTRUÇÕES DE UTILIZAÇÃO.
Guarde estas instruções.
Tak, fordi du har besluttet dig for at købe en varmepistol fra Wagner.
Det er et meget alsidigt værktøj, der kan anvendes til mange forskellige opgaver.
INDEN ANVENDELSE - LÆS SIKKERHEDSANVISNINGERNE OG
BETJENINGSVEJLEDNINGEN.
Gem denne vejledning.
Tack för ditt köp av Wagner varmluftspistol. Detta kan vara ett mycket mångsidigt
verktyg som kan användas för många olika tillämpningar.
FÖRE ANVÄNDNING – LÄS SÄKERHETSINSTRUKTIONERNA OCH
BRUKSANVISNINGEN
Spara för framtida referens
2
FR
PT
ES
DK
SE
NL
DE

3

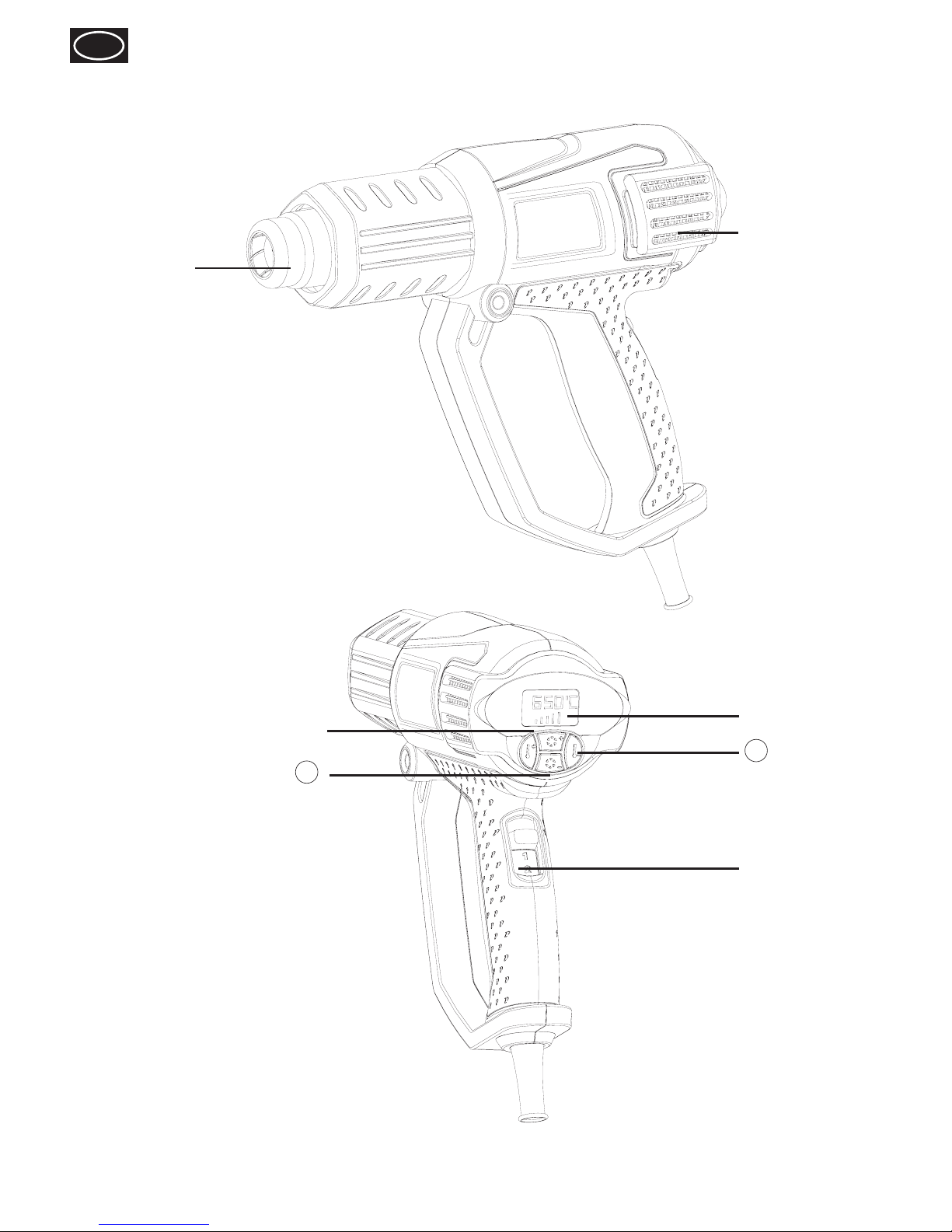

HEAT GUN FEATURES
①
②
⑤
③
⑥4b
4a
EN

4
1. APPLICATION
Your heat gun has been designed for stripping paint, soldering pipes,
shrinking PVC, welding and bending plastic as well as general drying and
thawing purposes.
WARNING! For your own safety read this instruction manual
and general safety instructions carefully before using the
appliance. Your power tool should only be passed on together
with these instructions.
2. DESCRIPTION
①Nozzle
②Ventilation slots
③On/off & control switch (0/1/2 settings)
④Temperature & Air Flow adjusting buttons
⑤LCD Digital Display: Temperature
⑥LCD Digital Display: Air Flow
3. PACKAGE CONTENT LIST
Remove all packing materials.
Remove remaining packaging and transit supports if any.
Check all contents are included in the packaging.
Check the appliance, the power cord, the power plug and all
accessories for transportation damage.
It is recommended to keep the packaging materials until the end of the
specied guarantee period. Dispose relevant materials into your local
waste disposal system afterwards.
WARNING! Packing materials are not toys! Children must
not play with plastic bags! Danger of suffocation!
Heat gun
Set of accessories (see page 9 for a list of accessories)
Instruction manual
When parts are missing or damaged, please contact your dealer.
4. GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow such may result
in electric shock, re and/or serious injury. Save all safety warnings and
instructions for future reference.
EN

4.1 WORK AREA
Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
DO NOT operate power tools in explosive atmospheres, such as in the
presence of ammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
4.2 ELECTRICAL SAFETY
Power tool plugs must match the socket-outlet. Never modify the plug in
any way.
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
DO NOT use on materials of or containing asbestos.
DO NOT expose power tools to rain or wet conditions.
DO NOT abuse the power cord. Never use the power cord for carrying,
pulling or unplugging the power tool. Keep power cord away from heat,
oil, sharp edges or moving parts.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use.
It is recommended a RCD (Residual Current Device) rated at 30mA trip
current is tted into the mains socket-outlet rst for added protection
against electric shock.
4.3 PERSONAL SAFETY
Stay alert, follow directions stated in the instruction manual and use
common sense when operating a power tool.
DO NOT use a power tool while you are tired or under the inuence of
drugs, alcohol or medication.
 Use safety equipment. It is recommended to wear eye protection.
Danger of burns - we recommend wearing a pair of heavy grade non-
pvc type work gloves.
Avoid accidental starting by ensuring the switch is in the off “0” position
before plugging in.
DO NOT overreach. Keep proper footing and balance at all times.
DO NOT wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts.
5
EN

If heat gun is damaged upon receipt, DO NOT USE. Return to point of
purchase.
4.4 HEAT GUN USE AND CARE
DO NOT use the heat gun if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous AND
SHOULD NOT BE USED.
Maintain power tools. Check for misalignment or sticking of moving
parts, breakage of parts and other conditions that may affect operation
of the power tool. If damaged, DO NOT USE.
Use the heat gun and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed.
4.5 SERVICE
Have your heat gun serviced only by Wagner or its appointed agents to
ensure the safety of such is maintained to avoid a safety hazard.
5. ADDITIONAL SAFETY INSTRUCTIONS FOR HEAT GUNS
DO NOT place your hand over the air vents or block the vents in any way.
The nozzle and accessories of this tool become extremely hot during
use. Let these parts cool down for 30 minutes before touching.
Always switch the tool off before putting it down.
DO NOT leave the tool unattended while it is switched on.
 A re may arise if the appliance is not used with care.
 Heat may be conducted to combustible or readily-ammable materials
that are out of sight. DO NOT use in a damp atmosphere where ammable
gases may be present or near combustible materials such as paper,
cardboard or fabric (ignite easily when exposed to high temperatures).
Allow the tool to cool fully before storing.
 Ensure adequate ventilation as toxic fumes may be produced.
DO NOT use as a hairdryer.
DO NOT obstruct either the air intake or nozzle outlet as this may cause
excessive heat build-up resulting in damage to the tool.
DO NOT direct the hot air blast at other people or animals.
6
EN

DO NOT place the nozzle against anything whilst using or immediately
after use.
DO NOT poke anything down the nozzle as it could give you an electric
shock.
DO NOT look down the nozzle while the unit is working because of
the high temperature being produced.
DO NOT allow paint to adhere to the nozzle or scraper as it could ignite
after some time.
DO NOT change/rotate the nozzle while the unit is turned on.
DO NOT allow children to operate or play with the heat gun.
DO NOT allow heat to be directed onto the power cord.
DO NOT apply to the same place for a long time.
6. REMOVING PAINT
DO NOT use this tool to remove paint containing lead. The peelings,
residue and vapours of paint may contain lead, which is poisonous. Any
pre-1960 building may have been painted with paint containing lead and
covered with additional layers of paint.
If paint containing lead is removed, hand-to-mouth contact can result in
ingestion of lead.
Exposure even to low levels of lead can cause irreversible damage to
the brain and nervous system. Young and unborn children are
particularly vulnerable.
When removing paint wear a dust mask.
DO NOT burn the paint. Use the scraper and keep the nozzle at least 25
mm away from the painted surface. When working in a vertical direction
work downwards to prevent paint from falling into the tool and burning.
Dispose of all paint debris safely and ensure that the work area is
thoroughly cleaned after completing the work.
7
EN

7. ASSEMBLY AND ADJUSTMENT
Prior to assembly and adjustment always unplug the tool and allow to cool
fully.
The air temperature can be adjusted to suit a wide range of applications. The table below
suggests settings for different applications.
Setting Applications
1
0-50ºc
 Drying paint, varnish colour shade samples, ller, adhesives, construction
joints and stucco forms
 Drying wet timber prior to lling
 Removing stickers
 Joining adhesives-large-surface gluing with contact adhesives, activation of
pressure-sensitive adhesives, acceleration of bonding processes, releasing
of bonding points as well as releasing or bonding of edge band or veneer
 Waxing and de-waxing
 Shrinking PVC wrapping and insulation tubes
 Thawing icy stairs and steps, door locks, car boot lids, car doors or
>>>>water pipes
2
50-650ºc
 Welding of thermoplastic polymer, ooring materials of PVC and linoleum,
PVC-coated fabric, tarpaulins and foils
 Bending plastic pipes and sheets
 Soldering joints, tin, special silver solder, SMD elements, cable lugs
 Loosening rusted or tightly-fastened nuts and bolts
 Removing old and even thick coatings of oil paint , lacquer, varnish and
synthetic plaster
If you are not sure about the correct setting, start with a low temperature
setting and gradually increase the temperature until you achieve optimum
results.
ATTENTION: RISK OF FIRE! Do not excessively heat the wood surface.
8
EN

7.1 MOUNTING THE CORRECT ACCESSORY (where applicable）
Icon Description Purpose
Glass protection nozzle Deects the heat away from
glass or other fragile areas.
Ideal for window sills, ledges,
frames and skirting boards.
Hook nozzle Disperses the heat ow evenly
around the whole work surface.
Ideal for thawing frozen pipes,
soldering pipe work, bending
.plastics or heat-shrinking electrical
.insulating tubing.
Concentrator nozzle Directs a concentrated heat ow to
the work surface. Ideal for removing
paint in awkward corners, crevices,
mouldings, beading or architraves.
Deector nozzle Directs a long, narrow heat pattern
to the work surface. Ideal for
removing paint or varnish from
large, at surfaces such as skirting
boards, doors, stairs, etc.
It should be used in conjunction
with a at scraper. Vinyl tiles can be
removed by softening the tile and
adhesive.
Scraper Stripping paint, varnish and
removing vinyl tiles.
Detailed scraper Stripping paint and varnish from
window sills.
9
EN

8. INSTRUCTIONS FOR USE
Always observe the safety instructions and Health and Safety Regulations.
Use only one hand to hold the tool, do not place your other hand over the air vents.
 Prior to operation, t the correct accessory to the heat gun nozzle ①for the application.
8.1 SWITCHING ON AND OFF
To switch the heat gun on, set control switch ③to position 2. Some smoke may be emitted
after switching on; this does not indicate a problem.
To switch the heat gun off, adjust control switch ③to position 1 - “cool down mode”. Let
the heat gun cool down for 30 minutes, then set control switch ③to position 0 before
moving or storing it.
8.2 TEMPERATURE SETTING
Turn control switch ③to position 2. The heat gun will start to blow
warm air.
 Temperature can be adjusted in increments of 50˚C to
650˚C by pressing the temperature adjusting buttons 4b . The
LCD digital display ⑤will display the temperature in °C.
 Air speed can be adjusted by pressing the air ow adjusting
buttons 4a . The LCD digital display will display the air speed with
bar icons.
8.3 STRIPPING PAINT
Fit the appropriate accessory to the nozzle ①for area to be
worked.
Switch the tool on to position 2 using the control switch ③.
 Set temperature to appropriate heat setting using the temperature and air ow adjusting
buttons 4b and 4a respectively.
Direct the hot air onto the paint to be removed.
When the paint softens, scrape the paint away using the appropriate scraper in section 7.1.
Do not strip metal window frames, as the heat may be conducted onto the
glass and crack it. When stripping other window frames, use the glass
protection nozzle.
To prevent igniting the surface do not keep the tool directed at one spot
too long.
Avoid collecting paint on the scraper accessory as it may ignite. If
necessary, carefully remove paint debris from the scraper accessory
using a knife.
10
Make sure that the tool is switched off and the nozzle has cooled down.
 Dropped nozzles can set objects on re. Nozzles must be rmly tted and
secure on the unit.
Touching a hot nozzle can lead to serious burns. Before attaching or
replacing a nozzle allow the unit to cool down completely.
 A hot nozzle can set a surface on re. Place down hot nozzles only on
re-proof surfaces.
An incorrect or defective nozzle can lead to heat accumulation and
damage the unit. Use only original nozzles as shown in the table.
EN
