Introduction
Thank you for selecting the Wahlberg Motion Design Manipulator. A DMX controlled linear rail for
moving objects: Lamps, loud speaker, smoke machines or any other prop, in any direction.
Up and down, left and right, back and forth. The manipulator will make your stage or
installation more dynamic and create unique and noticeable effects for your audience.
Your moving object can also be powered and DMX controlled making the Manipulator a natural
extension of your existent inventory.
It is simple to install and use, and for most purposes, only use four DMX channels to control the
manipulator. Channel 1 and 2 set the 16-bit position high and low, respectively, with 0% position
being near the motor box. Channel 3 sets the maximum speed and channel 4 is a security
channel which must be between 50-55% for the manipulator to run. The available range of
motion can be easily adjusted to fit all venues.
Package content
1× Manipulator
4x Mounting brackets with M12 hex bolts, washers, and nuts
1x Motor house mounting bracket with M6 hex socket bolts and washers
3x Slim couplers
2× PowerCON NAC3FX-W female plug for power input
1× PowerCON NAC3MX-W male plug for wagon power output
1× User manual
1× Cheat sheet
Safety Information
This product is for professional use only. Please, follow the guidelines of this manual and keep
out of range of any non-professional. For further questions regarding installation or usage feel
free to contact [email protected].

JENS JUULS VEJ 1, 8260, VIBY, DENMARK WWW.WAHLBERG.DK TELEPHONE: [phone]
380.805.002 3 DATE: 2021-03-25

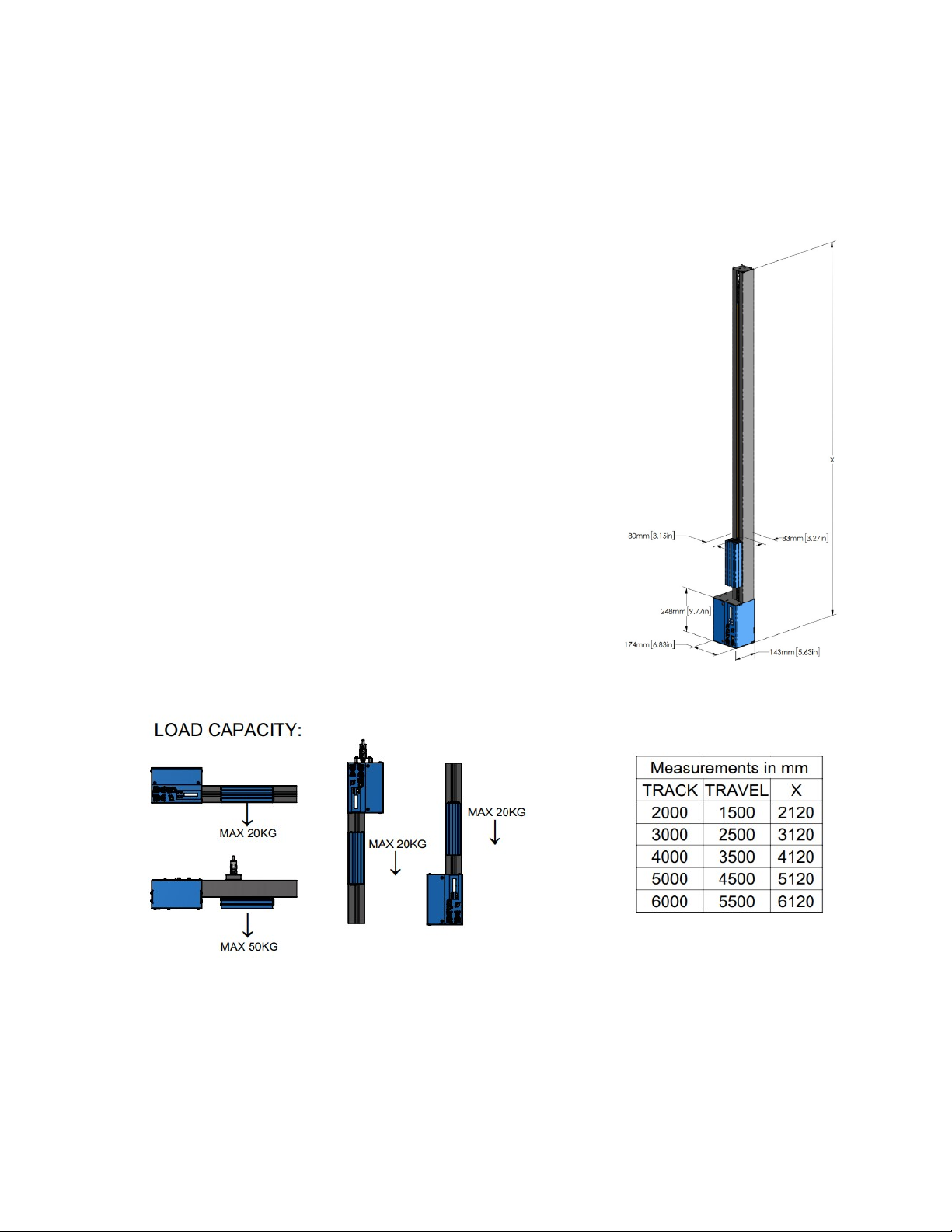

Technical data
MODEL:
Manipula
tor
ITEM No.:
380
DIMENSIONS:
X
x 143 x 174 mm (
X
x 5,6 x
6,9 in)
TRACK:
80 x 83 x 2000
-
6000mm (3.1 x. 3.3 x 78.7
-
236.2) customized
length
POWER SUPPLY:
100
-
240 VAC 50/60Hz
POWER CONSUMPTION:
3
0
0 W (3,
0
-
1,
2
5A)
POWER IN
/OUT
:
Neutrik powerCON TRUE1 NA
C3PX (F/M)
DMX CONTROL SIGNAL:
DMX 512 1990+DMX512A /
6
channels used
DMX CONTROL
CONNECTION:
5 pole XLR (F/M)
THROUGH CONNECTIONS:
INPUT:
Neutrik powerCON
TRUE1 NAC3PX (M) &
5 pole XLR (M)
OUTPUT:
Neutrik powerCON TRUE1 NAC3PX (F) &
5 pole XLR (F)
POWER:
10A/240VAC or DC (class II) 3x2.5mm2 (AWG1
4
)
SIGNAL:
1A/48V 3x0.25mm2 (AWG24)
LOAD CAPACITY:
VERTICAL
:
20 kg (44.1 lb)
HORIZONTAL
-
DOWN
:
5
0 kg (
110
.
2
lb)
HORIZONTAL
-
SIDEWAYS:
2
0 kg (
44
.1 lb)
SPEED:
3
-
17 cm/s (
1.2
-
6.7 in/s)
NOISE EMISSION:
50
dB
@1m (3.3 ft)
AMBIENT TEMPERATURE:
5
-
40
°C (41
-
104°F)
WEIGHT:
15,1
kg (
33,3
lb)
@1m Track
MOTOR UNIT:
11,3 kg (24.9 lb)
TRACK:
3,8 kg/m (2,56 lb/ft)
MOUNTING CLAMP:
2
x Slim eye couplers 42
-
52mm (2 in)
DUTY CYCLE:
50% after 30 min. continually opera
tion
FEATURES:
T
-
Slots for M12 and M6 nut or bolt

JENS JUULS VEJ 1, 8260, VIBY, DENMARK WWW.WAHLBERG.DK TELEPHONE: [phone]
380.805.002 4 DATE: 2021-03-25
Installation guide
The manipulator can be installed in many ways. We have supplied slim couplers for standard
truss and tube mounting. For other rigging options please contact [email protected].
Mounting the manipulator horizontally

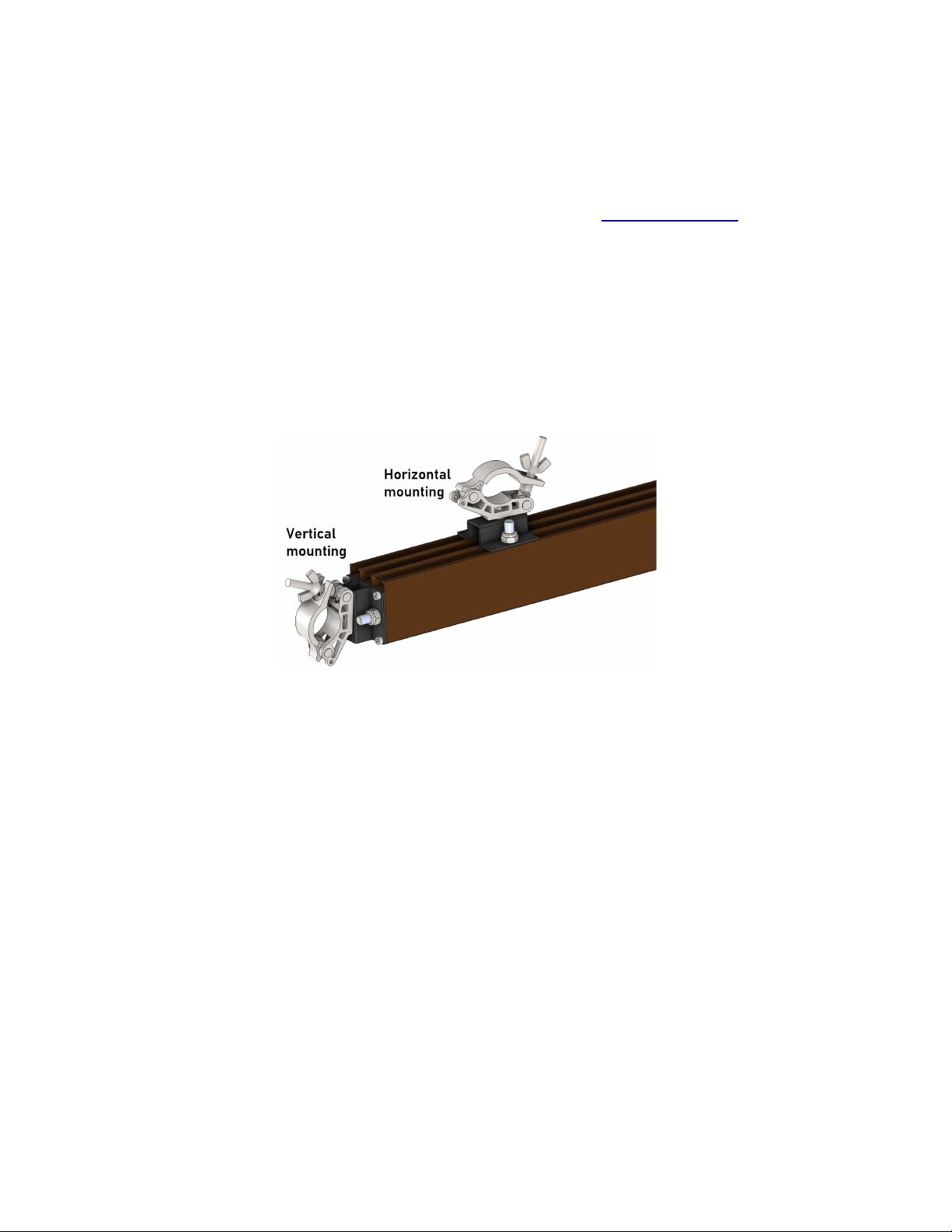

The manipulator can be mounted horizontally by attaching the included brackets and
slim couplers to the T-slots of the aluminium profile. Please see picture below.
For under 3 meters use a minimum of two brackets. For longer manipulators use a
minimum of three brackets.
Mounting the manipulator vertically
The manipulator can be mounted in the vertical position by attaching a single included
bracket to either end of the manipulator. Please see picture below.
Mounting the load
The load can be mounted on the sliding wagon. Be aware of the load capacities and
avoid stick out that will cause either of the limit switches to be unreachable.
Connecting power
The manipulator takes input power through Neutrik powerCON TRUE1 NAC3PX (F/M).
Input voltage range is 100VAC to 240VAC drawing up to 300W of power.
The through connection also takes input power through Neutrik powerCON TRUE1
NAC3PX (F/M). Input voltage range is up to 10A/240VAC.
Connecting DMX
The manipulator uses DMX as a control signal. It uses the standard DMX 512
1990+DMX512A through the 5 pole XLR plug where the pin 1 = shield, pin 2 = (-), and
pin 3 = (+). Pin 4 and 5 are not connected.
The through connection control signal is tested for the same DMX standard with same
pin configuration. Note that due to the standard the signal must be daisy-chained from
the wagon. It cannot be daisy-chained from the motor box hence the signal should be
terminated at the wagon.
For controlling multiple manipulators a DMX splitter is advised.
The maximum rating for other signals are 1A/48V.

JENS JUULS VEJ 1, 8260, VIBY, DENMARK WWW.WAHLBERG.DK TELEPHONE: [phone]
380.805.002 5 DATE: 2021-03-25
Usage
The manipulator, although advanced, is simple to use. Before first use please demount any load
and secure the area.
Start up guide
1. Connect power and DMX to the manipulator. Wait for the intro screen to pass.
2. Set channel 4 between 50% and 55%. This enables the manipulator to run.
3. Set channel 1 and 2 to the desired position. 0% is closest to the motor box and 100%
is furthest away from the motor box. Set channel 3 to the desired speed and the
wagon will go there.
4. To limit the range available use channel 5 and 6. Channel 5 shifts the 100% position
away from the top and channel 6 shifts the 0% position away from the bottom. Note
that the two channels must add up to less than 100%.
For smooth synchronous movement fading of 16-bit position should be used.
DMX Channel overview
Ch
Function
Description
1 Position HI Rough position. MSB of the 16-bit position.
2 Position LO Fine position. LSB of the 16-bit position.
3 Speed Maximum speed of the manipulator.
4 Motor enable Security channel.
50-55% enables the manipulator.
Any other value will disable the motor.
5 Shift TOP
limit
Shift the top limit down (100% position, furthest away from the motor
box). Setting this to 20% will mean only 0%-80% of the range is available.
6 Shift BOTTOM
limit
Shit the bottom limit up (0% position, closest to the motor box). Setting
this to 30% while channel 5 is at 20% means only 30%-80% range is
available.
LED indicators
DMX LED: ON means DMX is received.
BLINKING means DMX I missing. Check your connection.
ERROR LED: ON means the manipulator is disabled or an error has occurred.
OFF means the manipulator is enabled
Info screen information
By holding the down or up arrow different information screens are available. The
initial info screen only displays the current DMX start channel. Subsequent displays
have more information.
Display 1: DMX start channel
Display 2: (P)osition, (D)istance to wanted position, (W)anted position, (S)peed
Display 3: DMX channel input 1-4 and 5-8

JENS JUULS VEJ 1, 8260, VIBY, DENMARK WWW.WAHLBERG.DK TELEPHONE: [phone]
380.805.002 6 DATE: 2021-03-25
Menu navigation
By holding both up and down you will enter and exit the menu. Change any menu value
by pressing ENT and adjust the value accordingly. Save the value by holding ENT or
cancel by pressing ESC.
Adjustable menu parameters
M
enu
Description
Range
Default
MAN SPEED
Speed for manual
ly
driving
the device from menu
.
0%
-
100%
100%
MAN UP/DWN
Run the motor manual
ly
from the menu
.
MOTOR
UP / MOTOR DOWN
DMX ADDR
ESS
DMX start address
.
1
-
506
1
RANGE
Tacho range
.
Length of the entire track.
1
-
50,000
TRACK
RAMP TIME
Accelerat
ion
time
from
stop
to max speed in sec
onds
.
Inc
r
e
ase this for slower more fluid motion.
0.1s
-
10.0s
1
.0
s
M
AX
SPEED
Maximum
movement
speed
. Maximum speed is also set by
channel 3.
1
0
%
-
100%
100%
MIN
SPEED
M
ini
mum
movement
speed
.
Increase this
if under heavy
load.
0
%
-
100%
0%
AUTO RESET
Reset procedure after power up.
NONE: it will remember its position when shut down.
UP/DOWN
:
I
t will reset towards the desired limit sw
i
tch.
NONE/UP/
DOWN
NONE
LED STATUS
Turn off LED
s duri
ng the show
.
ON/
OFF
ON
ADV MENU
Advanced
menu
.
(
S
hows menu below
)
ON/OFF
OFF
ORINTATION
C
hoose orientation of manipulat
or
.
HORIZ: Horizontal movement
V.BOT: Vertical movement with motor box in the bottom.
V.TOP
: Vertical movement with motor box in the top
HORI
Z
/V
.BOT
/V.TOP
HORIZ
OVERLOAD
Set limit for electrical overload
.
100
900
MEASURE DIS
Calibrates
track length (done by factor
y)
Set to ON and reboot device to recalibrate track length.
ON/OFF
O
FF
CH4 REENAB
L
If set OFF
ch
annel 4 does not
have to be reenabled on start
-
up
ON / OFF
ON
FACTORY RES
Reset all variables to factory
default
.
ON/OFF
O
FF
MAN SPEED and MAN UP/DWN are used
to manually control the motor without DMX.
