Waring WCV300 User manual

WCV300
Chamber Vacuum Sealing System
Envasadora al vacío de campana
Emballeuse sous vide à cloche
For your safety and continued enjoyment of this product,
always read the instruction book carefully before using.
Para su seguridad y para disfrutar plenamente de este producto,
siempre lea cuidadosamente las instrucciones antes de usarlo.
An que votre appareil vous procure en toute sécurité beaucoup
de satisfaction, lire attentivement le mode d’emploi avant de l’utiliser.

2
INTRODUCTION
Thank you for purchasing the Waring®Commercial WCV300
Chamber Vacuum. With this unit you will be able to keep food fresher
longer in the refrigerator, freezer or pantry. The WCV300 effectively
removes air and extends freshness up to ve times longer than
normal preservation methods.
The WCV300 is a chamber vacuum sealing system, which offers two
distinct advantages over non-chamber, external suction units. First, a
much higher level of vacuum can be achieved, which means a longer
shelf life for foods that you package. Second, liquids and liquid-rich
foods can be effectively vacuum packaged. Foods like fresh meats,
sh, soups, stews, and marinated vegetables are packaged quickly,
with ease and no mess.

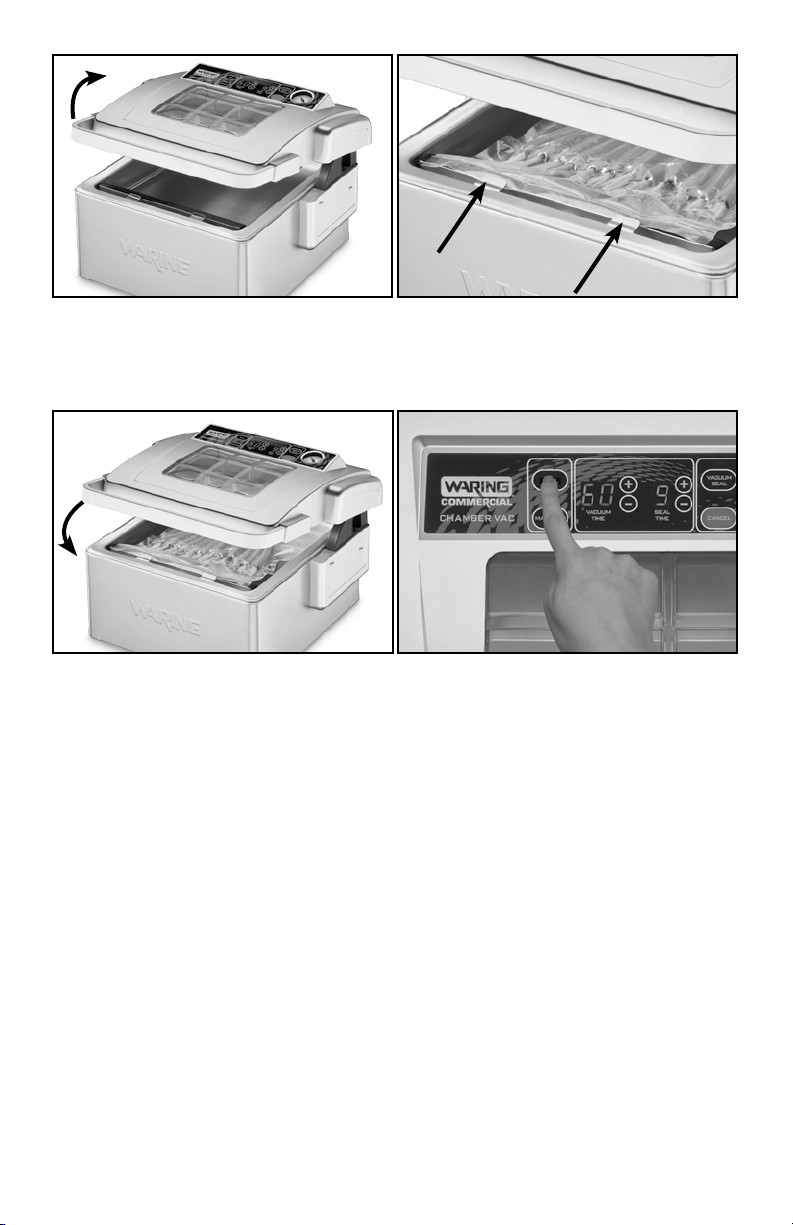

The WCV300 uses proven technology. To use, simply place the
pouch to be sealed inside the chamber, align with pouch clamps and
close the lid. Push Vacuum/Seal to begin the sealing process, which
rst removes the air from the entire chamber and the vacuum pouch.
Once the preset vacuum/seal time has elapsed, the pouch is fully
sealed. Upon completion of the sealing cycle, air ows back into the
chamber. Wait for the lid to release, and the process is complete.
To get started, please read and follow all instructions for use
and maintenance carefully before operating the WCV300
Chamber Vacuum.
VACUUM PACKAGING OVERVIEW
Vacuum packaging has been used with success for many years
as a safe and cost-effective method for extending shelf life and
maintaining the quality of food products. Whether you are familiar or
not with this packaging method, there are certain basic guidelines
that should always be followed in order to package foods safely for
consumption. Neglecting these basic guidelines can result in food
spoilage, and in some cases, illness or death.
Here are a few tips to get you started:
• Package only fresh foods. Do not package old or rancid foods. An
already bad product does not improve with vacuum packaging.
• Fresh foods (meats, vegetables, cheeses, etc.) should be
refrigerated at 40˚F or below, or frozen after vacuum packaging.
• Vacuum packaging removes a high percentage of air. This slows
the growth of living microorganisms, such as aerobic bacteria, and
molds, which degrade food. However, some forms of bacteria,

3
such as clostridium botulinum (responsible for botulism), are
anaerobic and grow in the absence of oxygen.
• The foods susceptible to botulinum should be refrigerated for
the short term and frozen for long-term storage, and consumed
immediately after heating.
• Vegetables such as cauliower, broccoli and cabbage will emit
gases when vacuum sealed. To prepare these foods for vacuum
packaging, you must blanch them rst, prior to sealing and then
freeze.
• All perishable foods must be refrigerated or frozen to prevent
spoilage.
• Vacuum packaging is not a substitute for canning.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be taken to reduce the risk of re, electric shock and/or injury
to persons, including the following:
1. READ ALL INSTRUCTIONS.
2. UNPLUG FROM OUTLET WHEN NOT IN USE, BEFORE
PUTTING ON OR TAKING OFF PARTS, AND BEFORE
CLEANING. Allow to cool before cleaning or handling.
3. To protect against risk of electrical shock, do not put appliance
in water or other liquids.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
5. Do not operate any appliance with a damaged cord or plug, or
after the appliance has malfunctioned or has been dropped or
damaged in any way, or is not operating properly. Return the
Waring®Commercial WCV300 Chamber Vacuum to the nearest
authorized service facility for examination, repair, or mechanical
or electrical adjustment.
6. Do not let the cord hang over the edge of the table or
countertop or touch hot surfaces, as this could damage the
cord.
7. Keep hands away from the hot sealing element located on the
edge of the machine’s cover, which can become hot and may
burn skin on contact.

4
8. The use of attachments not recommended or sold by Waring
may cause re, electric shock, or injury.
9. Do not use outdoors.
10. Do not use this Chamber Vacuum for anything other than its
intended purpose.
11. To disconnect, turn unit OFF, then remove plug from wall outlet.
12. Do not store any items on top of the appliance when in
operation. The unit is designed for countertop use only.
13. Do not operate your appliance in an appliance garage or under
a wall cabinet. When storing in an appliance garage, always
unplug the unit from the electrical outlet. Not doing so could
create a risk of re, especially if the appliance touches the walls
of the garage or the door touches the unit as it closes.
14. Keep away from hot ovens, electric burners or any other hot
surface. Do not use this appliance on a wet or hot surface or
near a heat source.
15. It is recommended to not use an extension cord with this unit.
However, if one must be used, it must have a rating equal to or
exceeding the rating of this appliance.
16. When disconnecting, to avoid any injury, unplug by grasping the
plug, not the cord.
17. Before plugging the cord into wall outlet or disconnecting it,
make sure the cover of the machine is in the unlocked and
upright position and your hands are thoroughly dry.
18. When ON, unit must always be on a stable surface, such as
a table or counter.
19. There is no need to use any lubricant, such as oil or water,
on this appliance.
20. Do not immerse any part of this appliance, power cord or plug
in water or any other liquids.
21. Children should always be supervised to ensure that they do not
play with the appliance.
22. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
23. Cleaning and user maintenance should be done only by adults
or authorized service agents.
SAVE THESE INSTRUCTIONS
APPROVED FOR COMMERCIAL USE

5
CONTENTS
Introduction ........................................................................................2
Important Safeguards ........................................................................3
Grounding Instructions.......................................................................5
Extension Cords ................................................................................5
Parts and Functions ...........................................................................6
Operating Instructions........................................................................8
Hints ................................................................................................. 11
Cleaning and Maintenance...............................................................12
Troubleshooting................................................................................13
Disposal of the Device......................................................................14
GROUNDING INSTRUCTIONS
This appliance must be grounded while in use to protect the operator
from electrical shock. The appliance is equipped with a 3-conductor
cord and 3-prong grounding-type plug to t the proper grounding-
type receptacle. The appliance has a plug that looks like the plug
in drawing (1). An adapter, as in drawing (2), should be used for
connecting the appliance plug to two-prong receptacles.
The grounding lug which extends from the adapter must be
connected to a permanent ground such as a properly grounded
outlet box, as shown in drawing (3) using a metal screw.
NOTE: The use of an adapter is not authorized in Canada
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong grounding-type
plugs and 3-pole cord connectors that accept the plug from the
appliance. Use only extension cords that are intended for indoor use.
Use only extension cords having an electrical rating not less than
the rating of the appliance. Do not use damaged extension cords.
Examine extension cord before using and replace it if damaged.
Do not abuse extension cord and do not yank on any cord to
disconnect. Keep cord away from heat and sharp edges.
NOTE: This appliance is for 120 volts only and should not be used
with a converter.

6
48210
6
3
975
13
13
14
11
1
PARTS AND FUNCTIONS

7
1. Main Power ON/OFF Switch (not shown)
2. Vacuum/Seal
• Press to start default/programmed vacuum operation of the pouch.
Pouch is automatically sealed when vacuum cycle is completed.
3. Cancel
• Press to stop the vacuum or sealing cycle.
4. Seal
• Use to seal open end of a pouch when making pouch from roll.
• To avoid crushing delicate items: During automatic Vacuum/Seal
function, press Seal to immediately stop the vacuum process and
start the bag-sealing process.
5. Vacuum Time
• Shows the working time and progress of vacuuming.
6. Vacuum Time Adjust Buttons (Vac Time “+” or “–”)
• Press to increase (+) or decrease (-) vacuum time.
7. Seal Time
• Shows the working time and progress of sealing.
8. Seal Time Adjust Buttons (Seal Time “+” or “–”)
• Press to increase (+) or decrease (-) seal time
9. Marinate (99 seconds per cycle)
• Use this function to ensure wet marinades or dry rubs penetrate
the product through drawing and releasing a vacuum.
• This helps to open the pores of the food and create maximum
infusion.
10. Vacuum Gauge
• Indicates the vacuum level inside the chamber.
11. Cover Handle
• Heavy-duty handle used to open/close lid.
12. Gasket (not shown)
• Ensures all air is drawn out between the chamber and lid.
13. Sealing Bar
• Provides wide, effective seals on pouches up to 11" wide.
14. Pouch Clamps
• Hold pouch securely in place during the vacuum packaging process.
15. Pouches Included (not shown)
• (50) 1-quart and (50) 2-quart-sized pouches are included.

8
ADJUSTING/SETTING THE WCV300
TIMING CONTROLS
NOTE: All timing adjustments must be made with the lid in the
open position.
To adjust/set the timing controls, press either the + or – next to
Seal Time or Vacuum Time on the control panel. The default set
times are 45 seconds for Vacuum and 5 seconds for Seal.
To change the default times, please read the following instructions
for each control:
Vacuum Time: To increase or decrease the vacuum time, press the
+ or – button until desired time is reached (max allowable time is
99 seconds). The new time setting will display on the LED screen.
Seal Time: To increase or decrease the seal time, press the
+ or – button until desired time is reached (max allowable time is
9 seconds). The new time setting will display on the LED screen.
NOTE: For thicker pouches, you should increase the seal time in
1-second increments until the pouch seals completely. For thinner
pouches, decrease the seal time in 1-second increments to avoid
over-sealing the pouch.
OPERATING INSTRUCTIONS
Plug the machine into a grounded electrical outlet
• Properly insert the electrical cord into the wall outlet.
Turn the power switch on
• Turn the main power switch located on the rear of the unit,
switching it from “OFF” to the “ON” position. The LED screens on
the control panel will illuminate showing the default Vacuum and
Seal times.
Select a vacuum chamber pouch
• Select the proper size vacuum chamber pouch for the product that
you are packaging. Make sure that the mouth of the pouch does
not exceed the length of the seal bar, and make sure the entire
pouch ts inside the chamber. Allow at least 1" of extra headspace
at the top of the pouch to ensure a quality, airtight seal. The
WCV300 accepts vacuum chamber pouches up to 11"W x 13"L.

9
Fill the pouch and place inside the chamber
• Fill the pouch with the product to be vacuum packaged and place
the pouch inside the chamber. Keep pouches that contain liquids
or wet products below the height of the seal bar. Lay the pouch at
inside the chamber with the opening of the pouch across the seal
bar. Make sure that the pouch lies at across the seal bar and is
free of wrinkles and/or debris.
Close the machine lid to vacuum and seal
• Close the lid and press Vacuum/Seal button to begin cycle.
CAUTION: Be sure lid is closed properly. An open lid will prevent
the vacuum seal from operating correctly.
Inspect the pouch
• When the lid is released and able to be opened, remove the
pouch and inspect the vacuum-packaged product.
• Check the quality of the vacuum by looking and feeling the
tightness of the pouch and the product. Look for air pockets
or leaks. If you notice that the product is not vacuum sealed
tightly, then increase the vacuum time by 5 seconds and
vacuum seal again.
• Inspect the pouch seal for a positive seal that appears clear upon
inspection. If the seal is spotty or incomplete, increase the seal
time by 1 second. If the seal appears white or milky, decrease the
seal time by 1 second. Once the settings are determined for your
application, vacuum and seal again.
MAKING A POUCH FROM A ROLL
The pouches included with the WCV300 are sized (sealed at one end)
and only require a seal to be made on one end during the vacuum/
seal process. Another alternative to purchasing pre-sized vacuum
pouches is a roll that comes in many different lengths (typically
50 feet) and can be custom cut to the desired size pouch needed for
the specic product. To order, contact the customer service phone
number. Below are the simple steps for sizing/sealing a pouch from
a roll.
1. Plug the WCV300 into a wall outlet. Switch unit ON.
2. Pull pouch from roll until the desired length is reached
(no longer than 13").
3. Cut the pouch as straight as possible with a scissors or pouch
cutter (not included).

10
4. Open lid using the handle (Fig. 1) and place one end of the
pouch on top of the seal bar, making sure that the entire end
is securely positioned under the pouch clips. (Fig. 2)
5. Pull down lid and press the Seal button. The Vacuum screen will
ash and display “0” and pump will operate for a few seconds.
The Seal screen display will count down to “0,” then the Sealing
LED indicator will ash for a few seconds. LED indicator will turn
off when process is nished. (Fig. 3 and 4)
6. Lift the handle to open the lid. Remove the nished vacuum
pouch. The vacuum pouch is now ready to be used for vacuum
packing.
TO QUICKLY MARINATE
Marination not only tenderizes the surface of the meat and
vegetables to be cooked, but also infuses more avor into them.
The latter is especially true when marinating thin cuts of meat or
small pieces of vegetables. But this can be a time-consuming
process, requiring anywhere from 12–18 hours of refrigeration.
Here, vacuum packing comes through as an alternative method that
immediately opens up the surface pores of the food to accept the
marinade mixture, thereby fast-tracking the process.
Fig. 1 Fig. 2
Fig. 4Fig. 3

11
To quickly marinate your product, follow the simple steps below.
Start by preparing the marinade mixture.
Cut the meat or vegetables to appropriate size and put them into
a vacuum pouch.
Pour the desired amount of marinade into the bag and mix the
ingredients well by manipulating the pouch from the outside.
Holding the bag in an inclined position, ensure the level of the
marinade is not too close to the mouth of the bag, as this may yield
a weak seal. If needed, drain out excess marinade so as to leave a
gap of 1 inch or more between the marinade and the bag’s mouth.
1. Lift the handle to open the lid and place the vacuum pouch or
container into the chamber.
2. Pull down the lid and press Marinate button to start the
process. The Vacuum Time screen will display “99” and count
down to “0.” Once the cycle is completed, the Marinate LED
indicators will turn off and the vacuum will be released.
3. Repeat step 2 at least two more times before vacuum sealing.
4. Lift the handle to open the cover and remove the item.
HINTS FOR BEST VACUUMING PERFORMANCE
1. Ensure the mouth of the pouch is completely dry and free of
debris prior to initiating any of the WCV300’s functions.
2. Do not vacuum pack objects with sharp points like sh bones
or hard shells! Sharp points may penetrate and tear the pouch!
3. Make sure the vacuum chamber gaskets are free of cracks,
deformations and debris before operating. If any of these are
evident, remove the gasket to clean and dry thoroughly or
replace with a new one.
4. Vacuum pouches are safe for
microwave (pouch must be
pierced prior to microwaving)
and boil-in-bag cooking.
5. There are many non-food
uses for vacuum packing.
Keep camping supplies such
as matches, rst-aid kits and
clothing clean and dry. Keep ares for auto emergencies ready.
Keep silver and collectibles untarnished. Store and protect
other items: valuables such as photos, important documents,

12
stamp collections, book collections, jewelry, cards, comics,
etc. Hardware items such as screws, nails, studs and bolts, and
medicines, Band-Aids®and other rst-aid items, etc.
CLEANING AND MAINTENANCE
1. Always unplug the unit before cleaning.
2. Do not immerse in water or any other liquids.
3. Avoid using abrasive products or materials; they will scratch the
surface.
4. Lift lid.

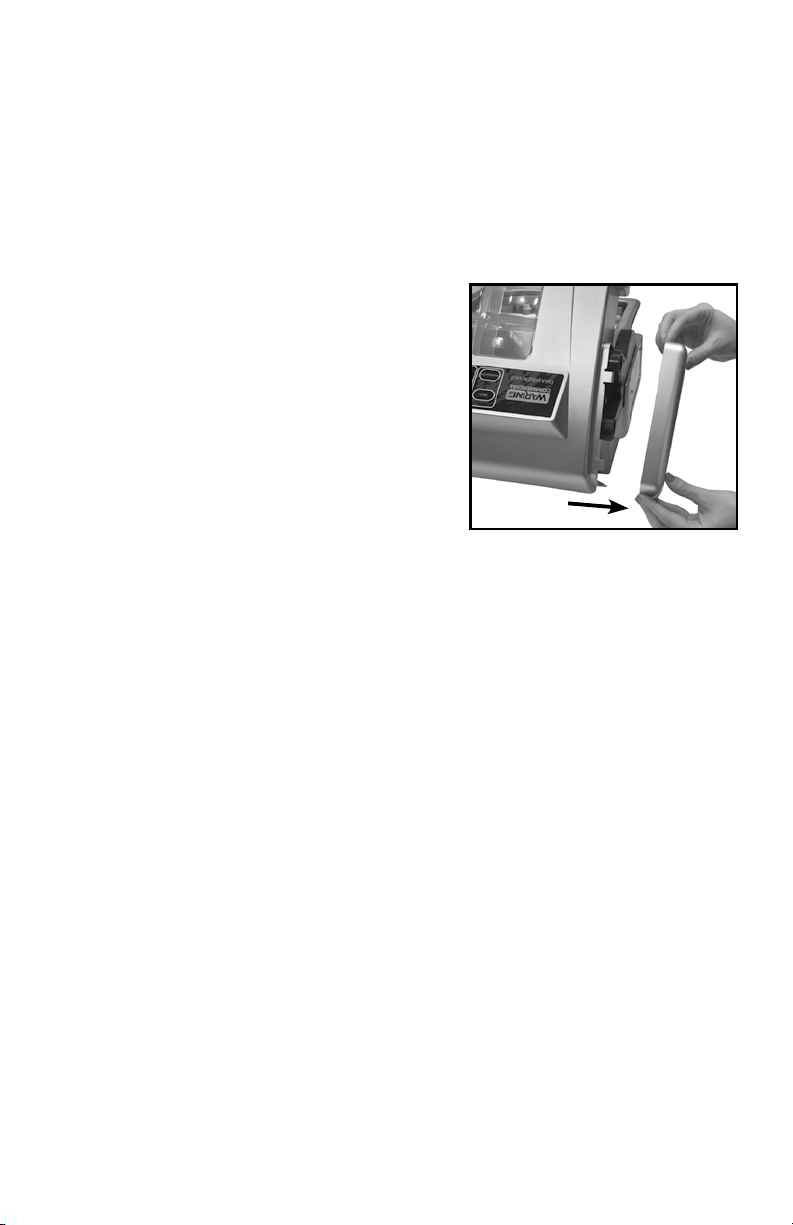

5. Remove upper hinge covers
from both sides of unit by pulling
upward from the corner.
6. Wash hinge covers with mild
dish-washing soap, rinse and
thoroughly dry.
7. Wipe hinges, around components,
and chamber vacuum surfaces with
a warm, damp cloth to clean off any
food residue.
8. Dry thoroughly before reassembling chamber vacuum.
Any other servicing should be performed by an authorized service
representative.
NOTE: The foam gaskets around the vacuum chamber should
be dried thoroughly before re-assembling. Be careful when
re-assembling to prevent any damage, and assemble in original
position to ensure no vacuum leaking.

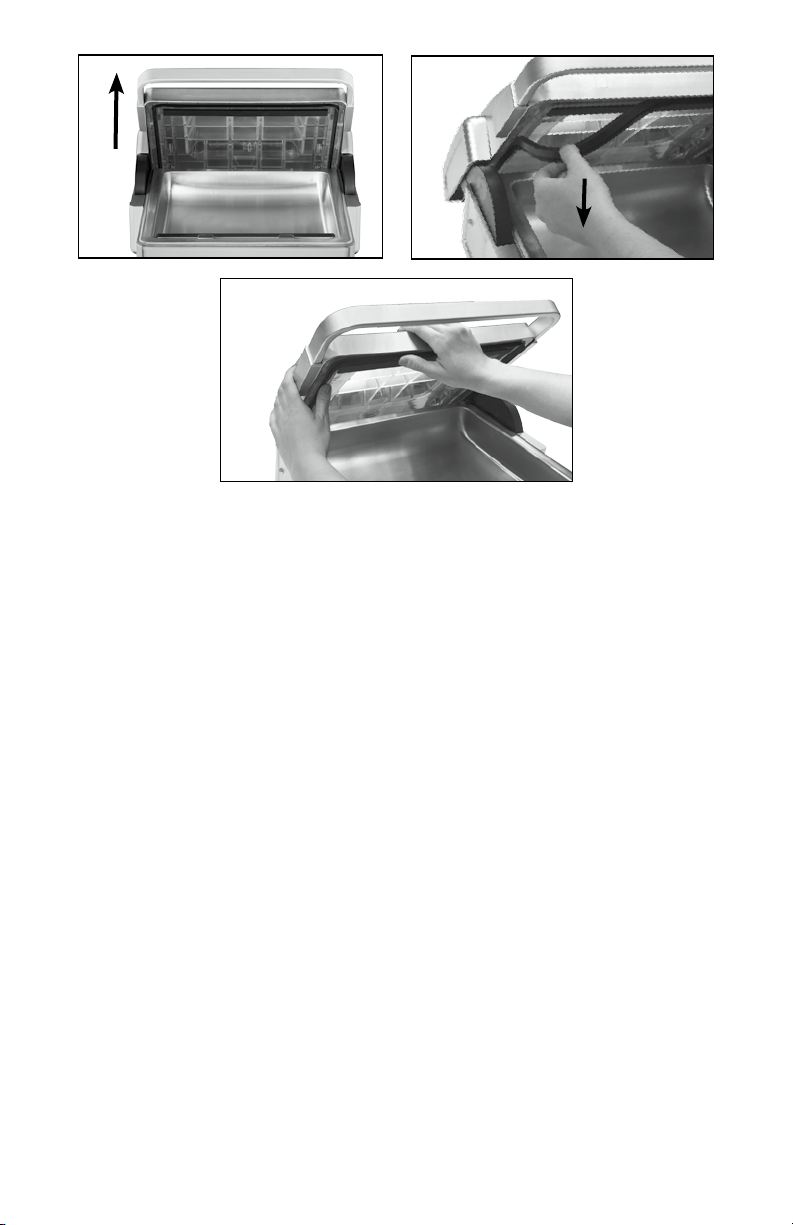

MAINTENANCE KIT INSTRUCTIONS
• Replacing the gasket:
1. Turn the main power ON/OFF switch to OFF. Remove the power
cord from the electrical outlet.
2. Make sure the unit is completely cool.
3. Open the cover. (Fig. 1)
4. Remove the gasket from the groove by gently pulling down in
the Plastic Vacuum Chamber. (Fig. 2)
5. Set a new gasket on the groove in the Plastic Vacuum Chamber.
Work the seal into the groove with your ngers until rmly in
place. (Fig. 3)
6. If the gasket does not t properly, the machine’s performance
will be affected.

13
TROUBLESHOOTING
WCV300 will not turn on –
• Make sure that the machine is properly plugged into a grounded
outlet.
• Check the power cord for tears and frays. Do not use machine
if power cord is damaged.
• Make sure the power switch is turned on. LED screen will be
illuminated when on.
• If you see nothing displayed on the LED screen and the machine
will not function, make sure the lid is open and turn the power off.
Turning the machine back on should return it to working order.
WCV300 does not pull a complete vacuum with pouch –
• Vacuum Time may not be set high enough. Set Vacuum Time
higher and vacuum again.
• To vacuum and seal properly, the opening of pouch must be within
the vacuum chamber. For detailed instructions, refer to “Operating
Instructions.” See page 8.
• WCV300 seal bar, lid gasket and vacuum pouch need to be clean,
dry and free of debris for the vacuum process to be successful.
Wipe surface of seal bar, lid gasket and inside of pouch and
try again.
Fig. 1 Fig. 2
Fig. 3

14
Vacuum pouch loses vacuum after being sealed –
• Sharp items can puncture small holes in pouches. To prevent this,
cover sharp edges with paper towel and vacuum in a new pouch.
• Some fruits and vegetables can release gases (out-gassing) if not
properly blanched or frozen before packaging. Open pouch. If you
think food spoilage has begun, discard food. If food spoilage has
not yet begun, consume immediately. If in doubt, discard food.
WCV300 is not sealing pouch properly –
• Seal time may not be long enough. Increase Seal Time and try
again. For detailed instructions, refer to “Operating Instructions.”
See page 8.
• Pouches will not seal if any moisture, food particles or debris are
present in the seal area. Wipe the inside of the pouch clean and
try again.
• Pouch must be properly placed along the seal bar. Make sure
the entire pouch is over the seal bar and there are no wrinkles in
pouch material.
If problems persist, contact customer support at 1-800-492-7464
for further assistance.
Thank you for purchasing the Waring®Commercial WCV300
Chamber Vacuum.
DISPOSAL OF THE DEVICE
PROTECTION OF THE ENVIRONMENT
At the end of the life of your product, it should go to a specially
adapted waste-recycling center.
ENVIRONMENT PROTECTION FIRST
1. The symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead,
it should be handed over to the applicable collection point for
the recycling of electrical and electronic equipment.
2. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about the recycling of this product, please contact
your local council ofce or your household waste disposal
service.

15

16
INTRODUCCIÓN
Gracias por haber elegido la envasadora al vacío de campana
Waring®Commercial. Gracias a ella, podrá conservar sus alimentos
por más tiempo en el refrigerador, el congelador o la despensa.
La envasadora al vacío WCV300 extrae eficazmente el aire de los
envases, para que los alimentos permanezcan frescos por hasta
5 veces más tiempo que con un método de conservación normal.
Su sistema de campana ofrece dos ventajas grandes sobre los
demás sistemas de envasado al vacío. En primer lugar, extrae mucho
más aire, lo que resulta en un tiempo de conservación más largo.
En segundo lugar, permite envasar al vacío líquidos y alimentos ricos
en agua. Envasará al vacío los alimentos tales como la carne, el
pescado, las sopas, los guisos/estofados y los vegetales marinados
de manera rápida, fácil y limpia.
La envasadora al vacío WCV300 utiliza una tecnología comprobada
fácil de usar. Para usar la envasadora, simplemente ponga la bolsa
que desea sellar en la cámara de vacío, introduzca la abertura de la
bolsa bajo las pinzas y cierre la tapa. Presione el botón VACUUM/
SEAL para empezar el proceso. La máquina extraerá todo el aire de
la bolsa, y luego sellará/soldará la abertura. Al final del ciclo, el aire
regresará adentro de la cámara de vacío. ¡Entonces, simplemente
espere hasta que la tapa se desbloquee y ábrala!
Antes de empezar, lea atentamente las instrucciones de uso
y de mantenimiento.
INTRODUCCIÓN AL ENVASADO AL VACÍO
El envasado al vacío se usa con éxito desde hace muchos años para
prolongar el tiempo de conservación y preservar la calidad de los
alimentos de manera económica y segura. Ya sea que usted sea un
principiante o un experto, siempre debe seguir reglas de seguridad
básicas para garantizar que los alimentos envasados al vacío no
presenten ningún riesgo para la salud. El no respeto de estas reglas
de seguridad puede hacer que los alimentos se estropeen/pudren
y, en algunos casos, causar enfermedades e inclusive la muerte.
Para empezar, sigan estos consejos básicos:
• Envase solamente alimentos frescos. No envase alimentos
viejos, estropeados o rancios. El envasado al vacío no evita la
deterioración de los alimentos una vez que haya empezado.
• Refrigere (en 40°F/-4°C o menos) o congele los alimentos frescos
(carnes, vegetales, quesos, etc.) inmediatamente después del
envasado al vacío.

17
• El envasado al vacío extrae un alto porcentaje de aire, lo que
ralentiza el desarrollo de los microorganismos vivos tales como
las bacterias aerobias y el moho que deterioran los alimentos. Sin
embargo, no ralentiza el desarrollo de las bacterias anaerobias,
tales como el clostridium botulinum (la bacteria responsable
del botulismo), las cuales pueden sobrevivir y desarrollarse en
ambientes pobres en oxígeno.
• Los alimentos asociados con el botulismo deben ser refrigerados
o congelados inmediatamente después del envasado al vacío
y ser consumidos inmediatamente después de cocinarlos.
• Algunos alimentos tales como la coliflor, el brécol/brócoli y la col
despiden gases cuando se envasan al vacío. Para evitarlo, estos
alimentos deben ser blanqueados antes de ser envasados, y luego
deben ser congelados.
• Todos los alimentos perecederos deben ser refrigerados o
congelados inmediatamente después del envasado al vacío.
• Los alimentos envasados al vacío no se conservan de la misma
manera que los alimentos en conserva/enlatados.
MEDIDAS DE SEGURIDAD
IMPORTANTES
Al usar aparatos eléctricos, siempre debe tomar precauciones
básicas de seguridad para reducir el riesgo de incendio,
electrocución o heridas, incluso las siguientes:
1. LEA TODAS LAS INSTRUCCIONES.
2. DESCONECTE EL APARATO CUANDO NO ESTÁ EN
USO, ANTES DE INSTALAR/SACAR PIEZAS Y ANTES DE
LIMPIARLO. Permita que el aparato se enfríe antes de
limpiarlo o manipularlo.
3. Para reducir el riesgo de electrocución, no coloque el aparato
en agua u otro líquido.
4. Los niños o las personas que carezcan de la experiencia o
de los conocimientos necesarios para manipular el aparato,
o aquellas cuyas capacidades físicas, sensoriales o mentales
estén limitadas, no deben utilizar el aparato sin la supervisión
o la dirección de una persona responsable por su seguridad.
5. No utilice este aparato si el cable o la clavija estuviesen
dañados, después de que hubiese funcionado mal o que
se hubiese caído o si estuviese dañado; regréselo a un centro
de servicio autorizado para su revisión, reparación o ajuste.
6. No permita que el cable cuelgue del borde de la encimera
o de la mesa, ni que haga contacto con superficies calientes;
esto podría dañar el cable.

18
7. Mantenga las manos alejadas de la barra selladora ubicada en
la entrada de la cámara de vacío. La barra se pone muy caliente
y puede causar quemaduras.
8. El uso de accesorios no recomendados o proveídos por Waring
presenta un riesgo de incendio, electrocución o heridas.
9. No lo utilice en exteriores.
10. No utilice el aparato para ningún otro fin que no sea el indicado.
11. Siempre apague (“OFF”) el aparato antes de desconectarlo.
12. No guarde ningún artículo sobre el aparato mientras está
encendido o caliente. Este aparato ha sido diseñado para ser
usado sobre una encimera.
13. No haga funcionar el aparato debajo o dentro de un armario/
gabinete. Siempre desconecte el aparato antes de guardarlo
en un armario/gabinete. Dejar el aparato conectado presenta
un riesgo de incendio, especialmente si este toca las paredes
o la puerta del armario/gabinete cuando cierra.
14. Mantenga el aparato alejado de los hornos, de las hornillas y
otras superficies calientes. No coloque el aparato sobre una
superficie mojada o caliente, ni cerca de una fuente de calor.
15. No se aconseja usar una extensión con este aparato. Sin
embargo, si debe hacerlo, asegúrese de que la clasificación
nominal de la extensión sea por lo menos igual a la del aparato.
16. Para evitar los riesgos de electrocución, nunca jale el cable
para desconectar el aparato; agárrelo por la clavija.
17. Nunca enchufe/desenchufe el aparato con las manos mojadas.
Cerciórese de que la tapa esté abierta antes de enchufar/
desenchufar el aparato.
18. Coloque el aparato sobre una superficie llana y estable, como
una mesa o una encimera.
19. No es necesario usar ningún tipo de lubricante, tal como aceite
o agua.
20. No sumerja ninguna parte del aparato, el cable ni la clavija en
agua u otro líquido.
21. No permita que los niños jueguen con este aparato.
22. Para su seguridad, el cable debe ser reemplazado por el
fabricante, un técnico autorizado u otra persona calificada.
23. La limpieza y el mantenimiento deben ser llevados a cabo
solamente por adultos o técnicos autorizados.
GUARDE ESTAS INSTRUCCIONES
APROBADO PARA USO COMERCIAL

19
ÍNDICE
Introducción .....................................................................................16
Medidas de seguridad importantes .................................................17
Instrucciones de puesta a tierra.......................................................19
Uso de extensiones..........................................................................19
Piezas y características....................................................................20
Instrucciones de operación..............................................................22
Consejos ..........................................................................................25
Limpieza y mantenimiento............................................................... 26
Resolución de problemas ................................................................27
Reciclaje...........................................................................................28
INSTRUCCIONES DE PUESTA A TIERRA
Para su protección, este aparato está equipado con un cable/
enchufe con puesta a tierra, el cual debe ser conectado a una
toma de corriente debidamente puesta a tierra (Fig. 1). Si una
toma de corriente puesta a tierra no está disponible, se podrá usar
un adaptador para conectar el aparato a una toma de corriente
polarizada (Fig. 2).
El adaptador debe ser puesto a tierra mediante un tornillo de metal
que conecte la lengüeta del mismo a la caja eléctrica (Fig. 3).
NOTA: está prohibido usar un adaptador en el Canadá.
USO DE EXTENSIONES
Solamente use extensiones con puesta a tierra. Solamente utilice
extensiones para uso en interiores La clasificación nominal de la
extensión debe ser por lo menos igual a la del aparato. No utilice
extensiones dañadas. Examine la extensión antes de usarla y
reemplácela si está dañada.
No jale el cable para desconectar la extensión; agárrela por la clavija.
Mantenga el cable alejado de las fuentes de calor y de los objetos
cortantes.
NOTA: conecte el cable a una toma de corriente de 120 V solamente;
no utilice el aparato con un convertidor de voltaje.

20
48210
6
3
975
13
13
14
11
1
PIEZAS Y CARACTERÍSTICAS
