WarmlyYours Infinity TW-F10PS-HP User manual

TW-F10BS-HP
TW-F10PS-HP
TW-F10KS-HP
Installation & Operation Manual for
WarmlyYours Infinity Dual Connection
Towel Warmers

1
Thank you for choosing your nely crafted WarmlyYours Towel Warmer.
Now you can add luxury and comfort to your bathroom with the soothing
embrace of a warm towel or bathrobe upon stepping from the shower.
The radiant heat from the Towel Warmer warms your towel.
Included in this document are all necessary installation and
operation instructions. If you encounter any diculties while
installing your system, installation support is available by phone at
[phone].
SAFETY INFORMATION
This towel warmer has a temperature limiting device. When internal
temperatures reach 167℉ , the device will stop warming and will then
cool down. When temperatures decrease to approximately 149℉ , the
heating circuit will reactivate.
• Towel Warmers are designed to warm towels and bathrobes only and
should not be used for any other purpose.
• Never stand, sit on or hang on the Towel Warmer unit.
• Never allow children to play on or with the Towel Warmer.
• Make sure that the electrical circuit breaker is shut o at the main panel
before wiring or servicing your Towel Warmer.
• The Towel Warmer must be properly grounded.
• All wiring must be in accordance with the National Electrical Code and
should be performed by a licensed professional who is certied to do
electrical wiring.
• Never place your Towel Warmer inside a shower, sauna or steam room.
• Never attempt to warm more than 2 towels on the Towel Warmer at
a time. Overloading the Towel Warmer will cause the unit to become
extremely hot and may result in a burn if touched.
CLEANING INFORMATION
• Clean the Towel Warmer with a soft, non-abrasive, damp cloth while
warm. Once the Towel Warmer has cooled, lightly polish with a soft dry
cloth. Do not use abrasive cleaning powders, metal polish or chlorine-
based cleaners on any part of the Towel Warmer.
INSTALLATION
This appliance must be installed in accordance with the instructions in the
manual and the NEC guidelines relating to electrical xtures in bathrooms.
The Towel Warmer must be on a GFCI protected circuit and be wired by
a professional who is certied to do electrical wiring.

2
Afxing the Towel Warmer to the Wall
Step 1
Draw a diagram of the preferred location of the brackets on the
Towel Warmer box to create a template (see Step 2 for template
instructions). At least two of the four brackets must be attached
directly to a stud.
The Innity Plug-In model must be installed less than 6 feet
(183cm) from a properly grounded outlet to ensure the plug can
reach. Make sure to measure the distance from where the plug
is attached to the towel warmer to the electrical outlet. Do NOT
use an extension cord to make the connection between the towel
warmer plug and outlet.
Step 2
Create the template:
A. Attach brackets into desired positions on the Towel Warmer
(see pages 7-8 for bracket assembly for each model).
B. Place Towel Warmer on the box (or a large sheet of paper) and
lay on a at surface with brackets facing downwards.
C. Mark the location of the brackets.
D. Use the template as a guide to mark the wall with the correct
locations of the four brackets, ensuring the following:
• Plug-in model must be installed less than 6 feet (183cm)
from properly grounded outlet. Do NOT use an extension
cord.
• At least two of the brackets are lined up with a wall stud.
• The towel warmer is level.
• Electrical supply wire can enter the Power Leg.
Step 3
Install the brackets onto the wall. Use the drywall anchors that are
supplied for the brackets that are not being installed into a stud.
Refer to pages 7-8 or 10-11

3
15 1/4"”
(388mm)
or
20 1/4"”
(514mm)
stud
Anchor point
and Power Leg
Anchor pointAnchor point*
Anchor point*
16” (406mm)
stud
22 3/8" (568mm)
Afxing the Towel Warmer to the Wall - cont’d
Note: Dimensions shown are distances between the center of anchor
points. This example shows 16” on center construction. Your situation
may vary depending on your stud spacing.
WARNING:
Locations of anchor points may vary. Measure all dimensions prior to
rough-in and installation.

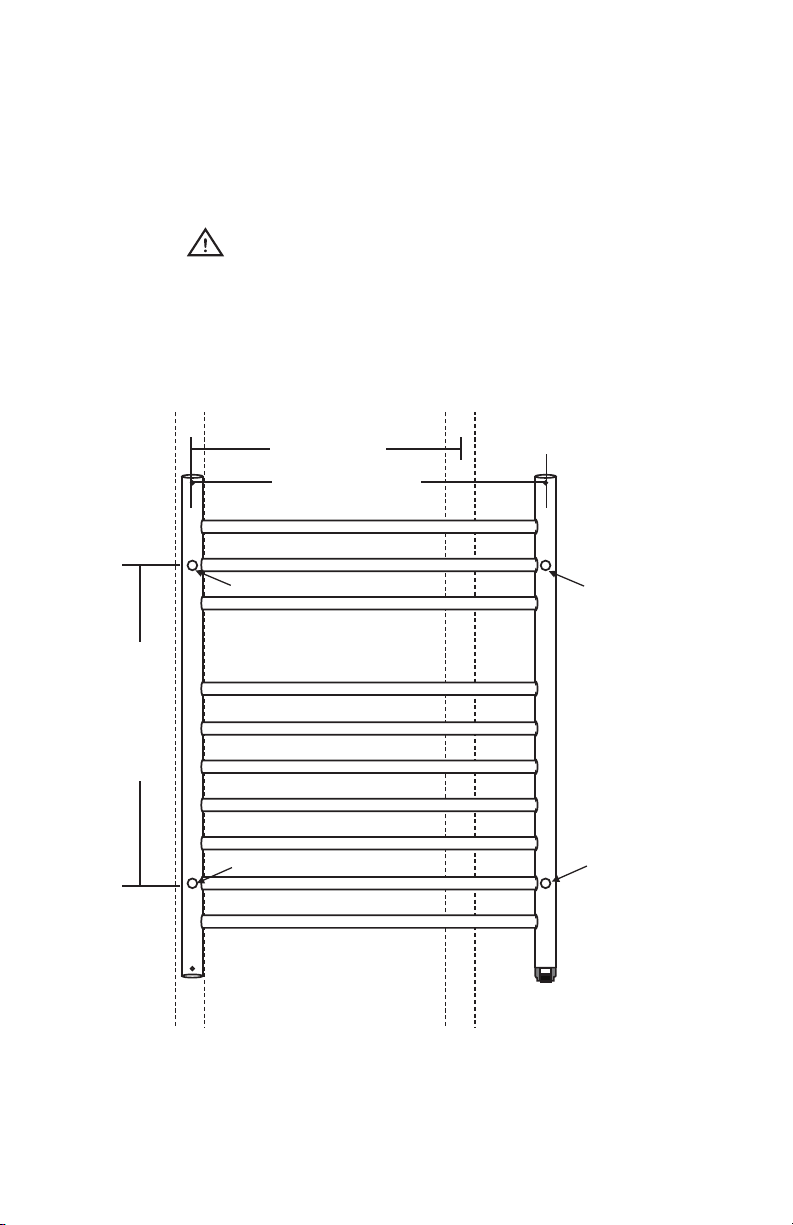

Innity: Anchor Points
* Note: Left anchor points should be attached to a stud, if possible.

4
PERMANENT 120V ac
FROM HOUSE POWER
16” (406mm)
15 1/4"”
(388mm)
or
20 1/4"”
(514mm)
1/2” (13mm) CONDUIT POWER
SUPPLY WIRE AND POWER LEG
2” x 4”
(51mm x 102mm)
ELECTRICAL BOX
FOR OPTIONAL CONTROL
2” X 4” STUD
(51mm x 102mm)
2” X 4” STUD
(51mm x 102mm)
Afxing the Towel Warmer to the Wall (continued)

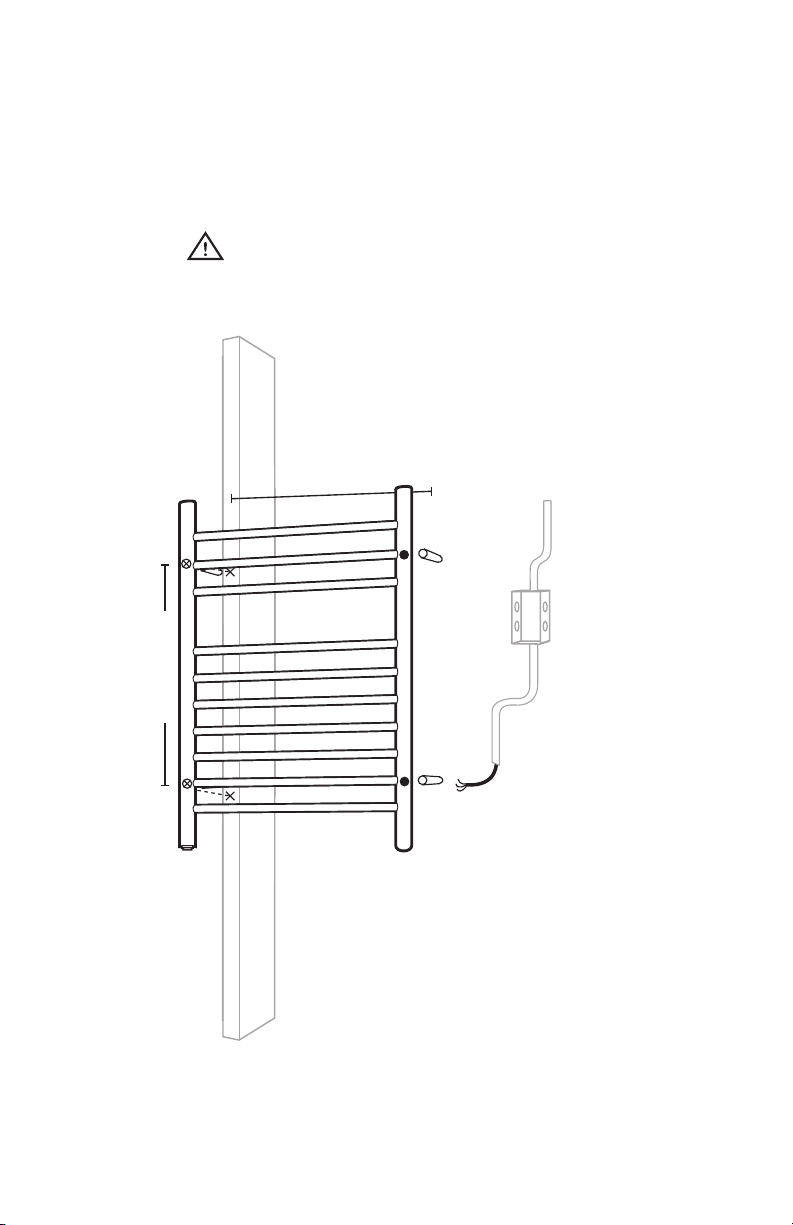

Diagram B: Rough-In Diagram
Note: Dimensions shown are distances between the center of anchor
points. This example shows 16 inches on center construction. Your
situation may vary depending on stud spacing.
WARNING:
Locations of anchor points may vary. Measure all dimensions prior to
rough-in and installation.
* Note: Left anchor points should be attached to a stud, if possible.

5

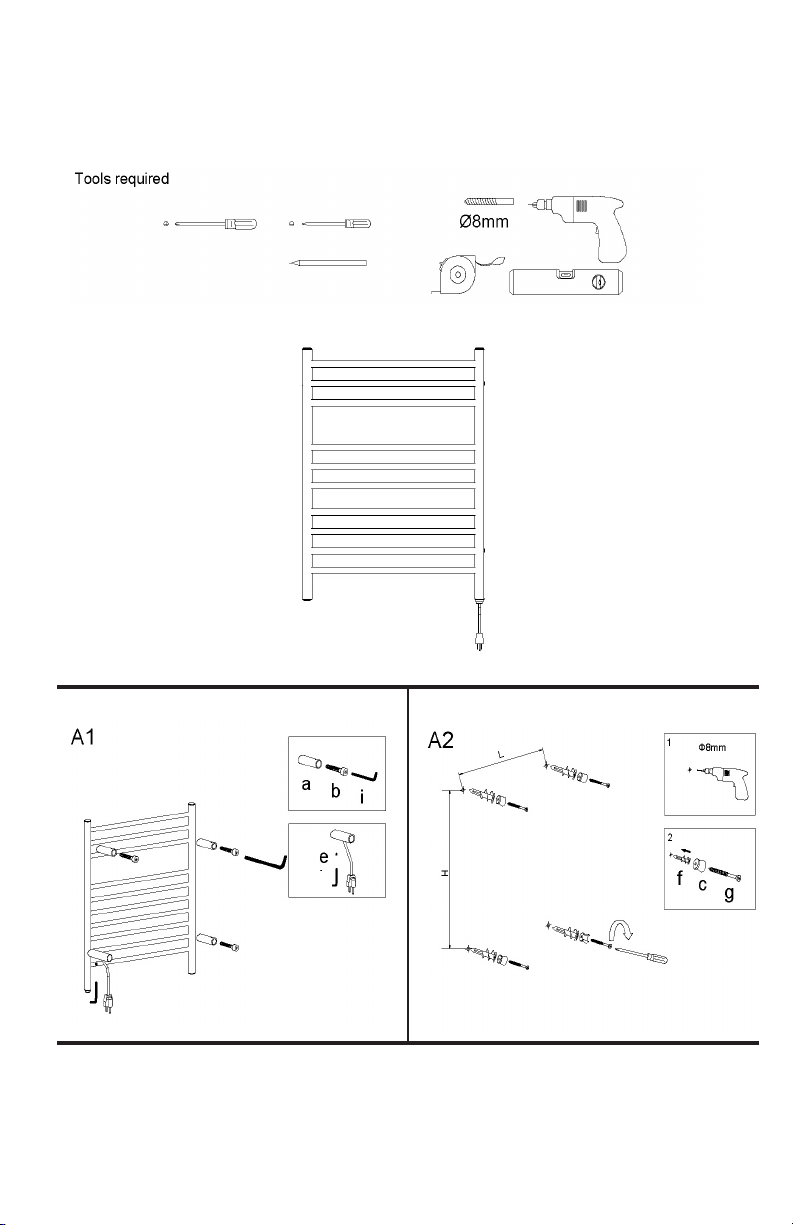

Bracket Assembly Instructions
Diagram C: Bracket Assembly Diagrams
A
A
B
B
C
d e f g h
A
B
C
g
h
A
A
B
B
C
d e f g h
A
B
C
g
h
A
A
B
B
C
d e f g h
A
B
C
g
h
A
C
B
A
C
d e f g h
C
A
B
g
d
A
C
B
A
C
d e f g h
C
A
B
g
d
A
A
B
B
C
d e f g h
A
B
C
g
h
A
A
B
B
C
d e f g h
A
B
C
g
h
C
I L f g
Power Leg
E
D
J
K
H 1X
1X
1X
4X
4X
4X
3X
3X3X
A
C
B
A
C
d e f g h
C
A
B
g
d
A
C
B
A
C
d e f g h
C
A
B
g
d
A
C
B
A
C
d e f g h
C
A
B
g
d
4X

A
C
B
A
C
d e f g h
C
A
B
g
d
6

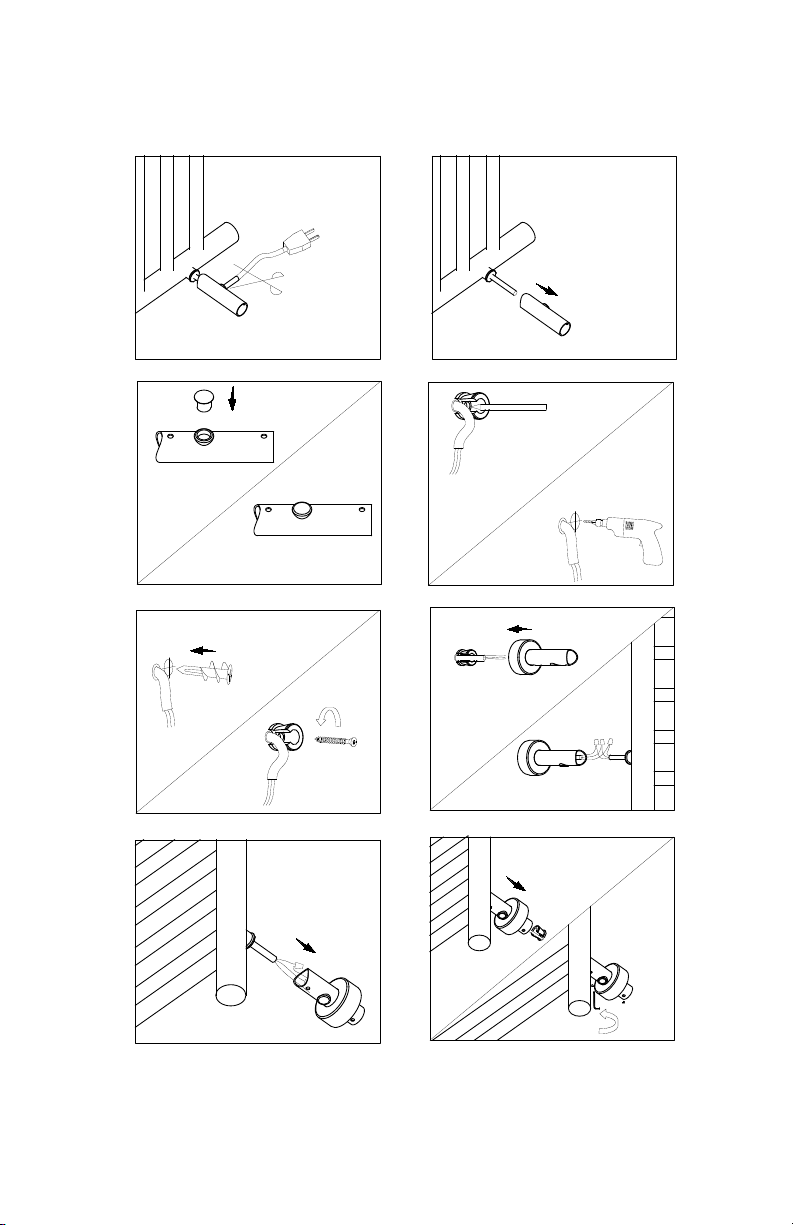

Bracket Assembly Instructions (continued)
Parts List
A
A
B
B
C
d e f g h
A
B
C
g
h
A
A
B
B
C
d e f g h
A
B
C
g
h
A
A
B
B
C
d e f g h
A
B
C
g
h
A
C
B
A
C
d e f g h
C
A
B
g
d
A
C
B
A
C
d e f g h
C
A
B
g
d
CH
I L F G J
A B M
K
Power Leg
(attached to line cord
for shipping)
Plug
E
E
D
A
C
B
A
C
d e f g h
C
A
B
g
d
Infinity Power Leg
Part Number Description Quantity Partslist ID
0005-58180-0000 Leg, Mounting, Black 3 A
0005-58120-0002 Leg, Mounting, Polished 3 A
0005-58140-0002 Leg, Mounting, Brushed 3 A
0005-58300-0000 Screw, Leg to Rail, M8x20, Socket 3 B
0005-58110-0000 Bracket, Round, Mounting, Full 3 C
0005-58200-0001 Screw, Set, Allen, Socket, M5*6 4 D
0005-58200-0002 Screw, Set, Allen, Socket, M5*4, Power Leg 1 E
0005-58500-0000 Anchor, Wall 4 F
0005-58200-0003 Screw, Bracket Mounting, ST4.2*40, Phillips, 4 G
0005-58110-0001 Bracket, Mounting, Power Leg, 3/4 size 1 H
0005-51900-0001 Wrench, Hex, 6mm 1 I
0005-58880-0000 Collar, Leg, Black 4 J
0005-58810-0001 Collar, Leg, Brushed 4 J
0005-58120-0004 Collar, Leg, Polished 4 J
0005-58790-0000 Plug, Plastic, Power Leg 1 K
0005-51900-0000 Wrench, Hex, 2.5mm 1 L
0005-58180-0001 Leg, Mounting, Power, Black (attached to line cord for shipping) 1 M
0005-58140-0003 Leg, Mounting, Power, Brushed (attached to line cord for shipping) 1 M
0005-58120-0003 Leg, Mounting, Power, Polished (attached to line cord for shipping) 1 M
AK05-58080-0000 Parts Kit Infinity Black 1 N/S
AK05-58040-0000 Parts Kit Infinity, Power Leg, Brushed 1N/S
AK05-58020-0002 Parts Kit Infinity, Power Leg, Polished 1 N/S
A
C
B
A
C
d e f g h
C
A
B
g
d
A
C
B
A
C
d e f g h
C
A
B
g
d
A
C
B
A
C
d e f g h
C
A
B
g
d
H

7
Installation Instructions (Plug-in)
L

8
Installation Instructions (Plug-in)
L

Bracket Assembly Instructions (continued)
Plug-In Model Only
Plug the cord into a properly grounded outlet. Do NOT use an extension
cord to make the connection between the towel warmer plug and outlet.
Step 1
Hold the towel warmer in place while tightening the hex-head screws D
at the base of each section of tubing A using the smaller Allen wrench L
provided to secure the towel warmer in place.
Step 2
Make sure the unit is turned on using the ON/OFF switch located at the
bottom rail on the left side (when facing the towel warmer). A light will
illuminate the switch when the switch is turned to the “ON” position. Refer
to Diagram D for switch location.

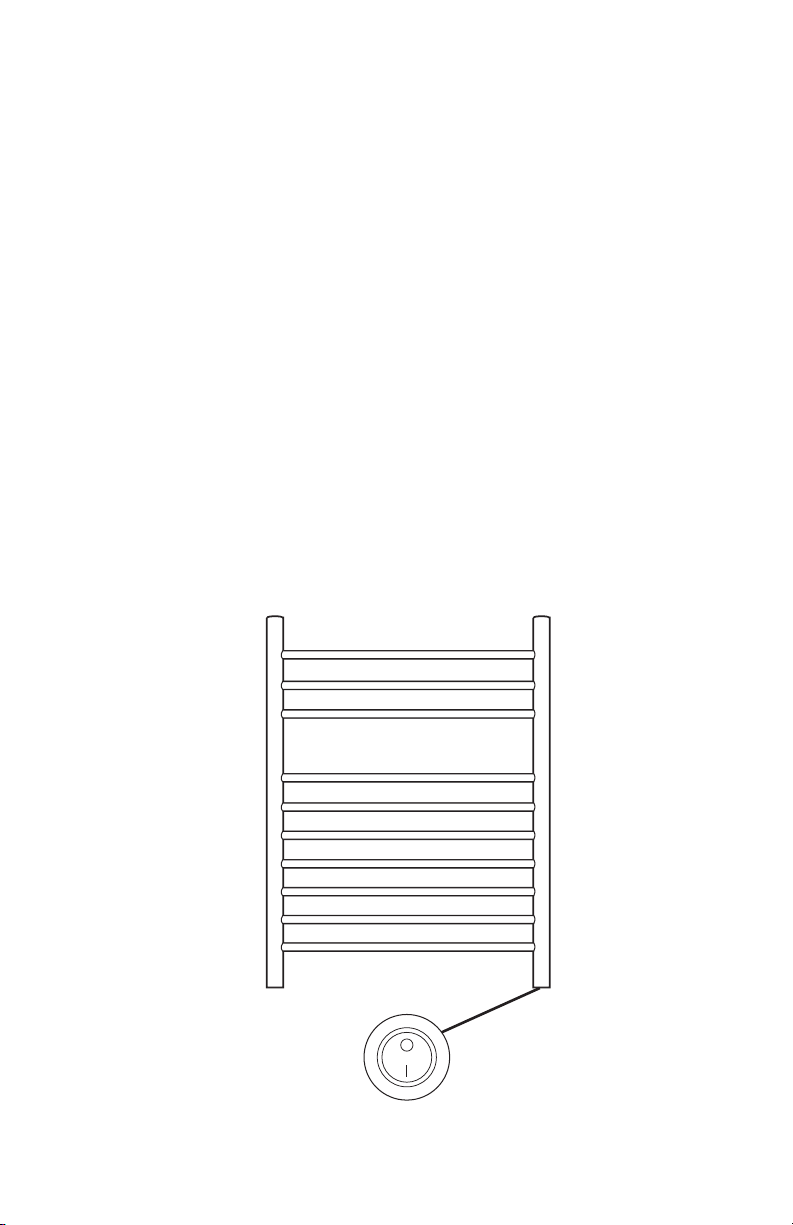

Diagram D
Switch
9
