WarmlyYours Sierra User manual

SIERRA PARTS LIST
ITEM PART# DESCRIPTION QUANTITY
a. 0005-58120-0000 Tube standoff, mounting, square, stainless SM 4
b. 0005-51220-0000 Screw, set, M5/6, socket 4
c. 0005-58200-0001 Screw, hex, socket, 8x25mm 4
d. 0005-57500-0001 Anchor, drywall 4
e. 0005-58120-0001 Bracket, wall mount 4
f. 0005-51200-0000 Screw, cross, countersunk, 2*40 4
g. 0005-51820-0000 Wallplate, stainless, with grommet and ground 1
h. 0005-51200-0001 Screw wallplate, stainless 6/32 2
i. 0005-58820-0000 Tube, stainless, round, electrical 1
j. 0005-51900-0000 Wrench, hex, 2.5 1
k. 0005-51900-0001 Wrench, hex, 6 1
n/a AK05-58020-0000 Parts kit assembly, SM 1
a.
b.
d.
f.
c.
e.
g. j.
i.
h. k.
SIERRA INSTALLATION MANUAL

2x4
Stud
TOOLS REQUIRED
INSTALLATION INSTRUCTIONS
- Review instructions carefully before installation
- Installation should be completed by a qualified person
- Please dispose of packaging in a resposible manner
1-2.
2-2.
1
2x4
Stud
2
a.
g.
i.
f.
e.
d.
c.
A B
C
a. 4 PCS
4 PCS
b.
4 PCS
d.
4 PCS
f.
4 PCS
c.
4 PCS
e.
1 PCS
g.
1 PCS
i.
2 PCS
h.
18-7/8”
479 mm
anchor point*
anchor point*
wiring
22-3/8”
570 mm
6-3/8”
160 mm
3-1/8”
80 mm
6-3/8”
160 mm
Please peel
plastic film off of
electrical plate
Optional Installation Method
A. Attach tubing into desired positions on the towel warmer.
B. Place towel warmer on the box (or a large sheet of paper)
and lay on a flat surface with brackets facing downwards.
C. Mark the location of the following:
• The electrical collar
• The location of the brackets
D. Use the template as a guide to mark the wall with the
correct locations of the four brackets, ensuring the following:
• The electrical collar is lined up with the center of the
electrical box.
• At least two of the brackets are lined up with a wall stud.
• The towel warmer is level.
SIERRA INSTALLATION MANUAL
b.

Operation:
Manual
You can operate your towel warmer by using the integrated on/off
switch that is located at the bottom of one of the towel warmer's
vertical stiles.
With a Control:
You may want to pair your towel warmer with a compatible
WarmlyYours timer or switch. Make sure to refer to the installation
manual of the control for proper operation and installation. If you
have any questions, call 800-875-5285.
SIERRA INSTALLATION MANUAL
BLACK OR BLUE
(HOT)
WHITE OR BROWN
(NEUTRAL)
GREEN/YELLOW
(GROUND)
2” x 4” ELECTRICAL
BOX FOR OPTIONAL CONTROL
2” x 4” ELECTRICAL BOX
TOWEL WARMER
HOT LOAD
(BLACK OR BLUE)
LINE
(BLACK)
NEUTRAL
(WHITE)
LOAD
(BLUE)
GROUND
(GREEN/YELLOW)
120V OPTIONAL CONTROL
NEUTRAL LOAD
(WHITE OR BROWN)
ELECTRICAL ROUGH-IN
3-WAY WIRE
(YELLOW)
On

SIERRA INSTALLATION MANUAL

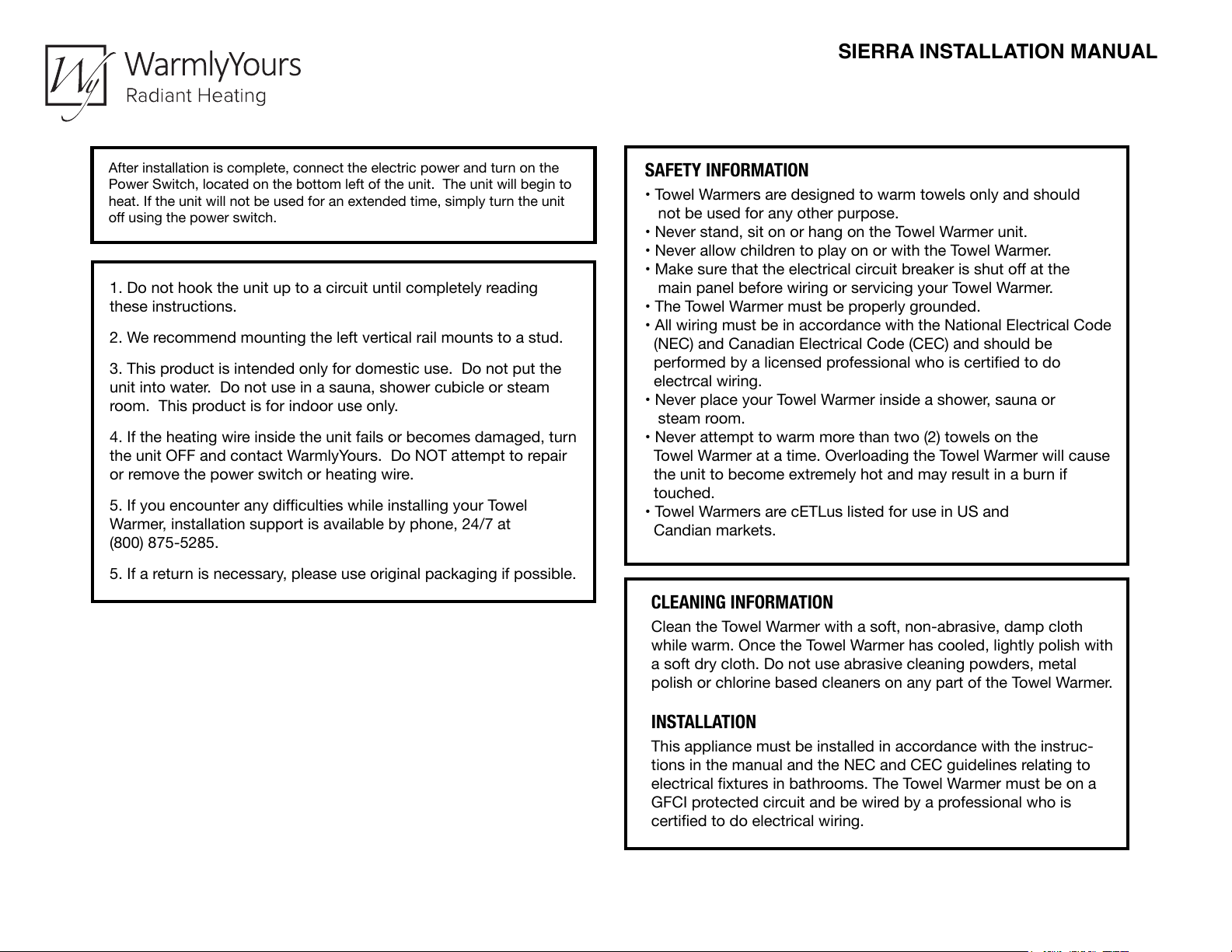

SAFETY INFORMATION
• Towel Warmers are designed to warm towels only and should
not be used for any other purpose.
• Never stand, sit on or hang on the Towel Warmer unit.
• Never allow children to play on or with the Towel Warmer.
• Make sure that the electrical circuit breaker is shut off at the
main panel before wiring or servicing your Towel Warmer.
• The Towel Warmer must be properly grounded.
• All wiring must be in accordance with the National Electrical Code
(NEC) and Canadian Electrical Code (CEC) and should be
performed by a licensed professional who is certified to do
electrcal wiring.
• Never place your Towel Warmer inside a shower, sauna or
steam room.
• Never attempt to warm more than two (2) towels on the
Towel Warmer at a time. Overloading the Towel Warmer will cause
the unit to become extremely hot and may result in a burn if
touched.
• Towel Warmers are cETLus listed for use in US and
Candian markets.
CLEANING INFORMATION
Clean the Towel Warmer with a soft, non-abrasive, damp cloth
while warm. Once the Towel Warmer has cooled, lightly polish with
a soft dry cloth. Do not use abrasive cleaning powders, metal
polish or chlorine based cleaners on any part of the Towel Warmer.
INSTALLATION
This appliance must be installed in accordance with the instruc-
tions in the manual and the NEC and CEC guidelines relating to
electrical fixtures in bathrooms. The Towel Warmer must be on a
GFCI protected circuit and be wired by a professional who is
certified to do electrical wiring.
After installation is complete, connect the electric power and turn on the
Power Switch, located on the bottom left of the unit. The unit will begin to
heat. If the unit will not be used for an extended time, simply turn the unit
off using the power switch.
1. Do not hook the unit up to a circuit until completely reading
these instructions.
2. We recommend mounting the left vertical rail mounts to a stud.
3. This product is intended only for domestic use. Do not put the
unit into water. Do not use in a sauna, shower cubicle or steam
room. This product is for indoor use only.
4. If the heating wire inside the unit fails or becomes damaged, turn
the unit OFF and contact WarmlyYours. Do NOT attempt to repair
or remove the power switch or heating wire.
5. If you encounter any difficulties while installing your Towel
Warmer, installation support is available by phone, 24/7 at
[phone].
5. If a return is necessary, please use original packaging if possible.
