WARN® INDUSTRIES PAGE 1 69572 Rev A0
INSTALLATION INSTRUCTIONS
1.5 CI ATV Winch Mounting Kit
Part Number: 69063
Applications: HONDA 250EX
As you read these instructions, you will see NOTES, CAUTIONS, and WARNINGS. Each message has a
specific purpose. NOTES are additional information to help you complete a procedure. CAUTIONS are
safety messages that indicate a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. A CAUTION may also be used to alert against unsafe practice or possible equipment
damage. WARNINGS are safety messages that indicate a potentially hazardous situation, which, if not
avoided could result in serious injury. CAUTIONS and WARNINGS identify the hazard, indicate how to avoid
the hazard, and advise of the probable consequence of not avoiding the hazard. PLEASE WORK SAFELY!
Before You Begin
This kit is compatible with WARN’s line of ATV winches. Winch sold separately. Please read WARN’s Winching
Technique guide provided with the winch prior to use of this product.
Table of Contents
I. Parts List .......................................................2
II. Tools Required ..............................................2
III. 250EX Installation.........................................3
III. Maintenance/Care .........................................4
NOTICE
Winch and equipment Damage
This mount is designed for a 1500 lb. winch.
Using a higher capacity winch may cause severe
damage to the mount or ATV.
Read installation and operating instructions
thoroughly.

WARN® INDUSTRIES PAGE 2 69572 Rev A0
II. Tools Required
• Ratchet
• Sockets: 12mm, 13mm, 1/2”, 7/16”
• Wrenches: 12 mm, 13mm, 1/2”
I. Parts List
Ref Part # Description Qty
A1 68871 Mounting Plate 1
B1 2002 5/16-18 Locking Hex Nut 4
B2 3870 5/16-18 x 3/4 Hex bolts 8
B3 1324 5/16 Flat Washer 8
A1
B2
B3
B1

WARN® INDUSTRIES PAGE 3 69572 Rev A0
III. 250 EX Installation
1. Begin by removing the top two bumper mounting
bolts. Retain these two bolts, they will be needed
when attaching the back of the mounting plate to
the ATV frame.
2. Place the mounting plate (A1) into position on the
ATV as shown in figure 1.
3. Attach the front of the mounting plate (A1) with
the two 5/16-18 X 3/4 hex bolts (B2), flat washers
(B3), and locking 5/16-18 hex nuts (B1), refer to
figure 1. Thighten the u-bolts to a recommended
torque of 12 ft-lbs (17 N-m)
4. Attach the rear of the mounting plate with the two
hex bolts that were removed in step 1. Tighten the
bolts to a recommended torque of 10-12 ft-lb
(16 N-m).
5. Attach either the cast-iron hawse or roller fairlead
(depending on your winch kit) to the fairlead
support tabs on the front of the mounting plate
(A1)
6. Place the winch into position as shown in figure 1.
Attach the winch using the four 5/16-18 x 3/4 hex
bolts that came in the mounting kit, the locking
nuts that will be used were supplied with the
winch package.Tighten the bolts to recommended
torque of 12 ft-lb (17 N-m).
Winch and winch mount installation is now
complete section V, entitled “Maintenance/Care”.

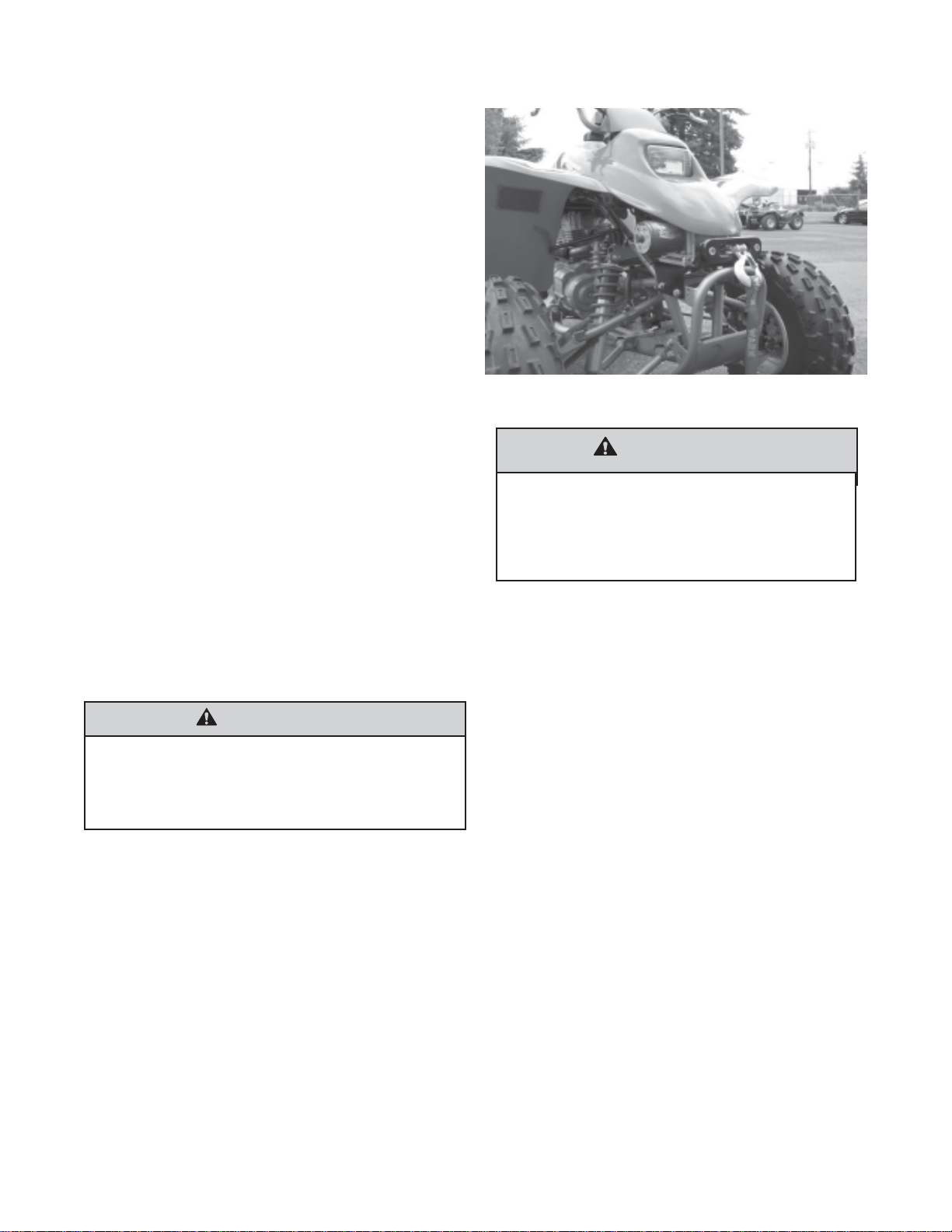

Figure 1
mounting plate
8mm mounting bolts
Rear Support Brackt
WARNING
Tighten all nuts and bolts securely. Failure to
check all nuts and bolts prior to use can result
in product failure which can lead to vehicle
damage and operator injury or death.
Remove bumper mounting bolts
1/4-20 u-bolts
5/16-18 x 3/4 bolst
bolt removed in step one
IV. Maintenance/Care
•Inspect all metal parts on the winch, winch mount,
and related hardware. Replace all that appears
rusted or deformed prior to use.
•Inspect all nuts and bolts on the winch, winch mount,
and related hardware prior to each use. Tighten all
nuts and bolts that appear to be loose. Stripped,
fractured, or bent bolts or nuts need to be replaced
WARNING
Failure to perform regular inspections and
maintenance on the winch, winch mount, and
related hardware may result in vehicle
damage and operator injury or death.
