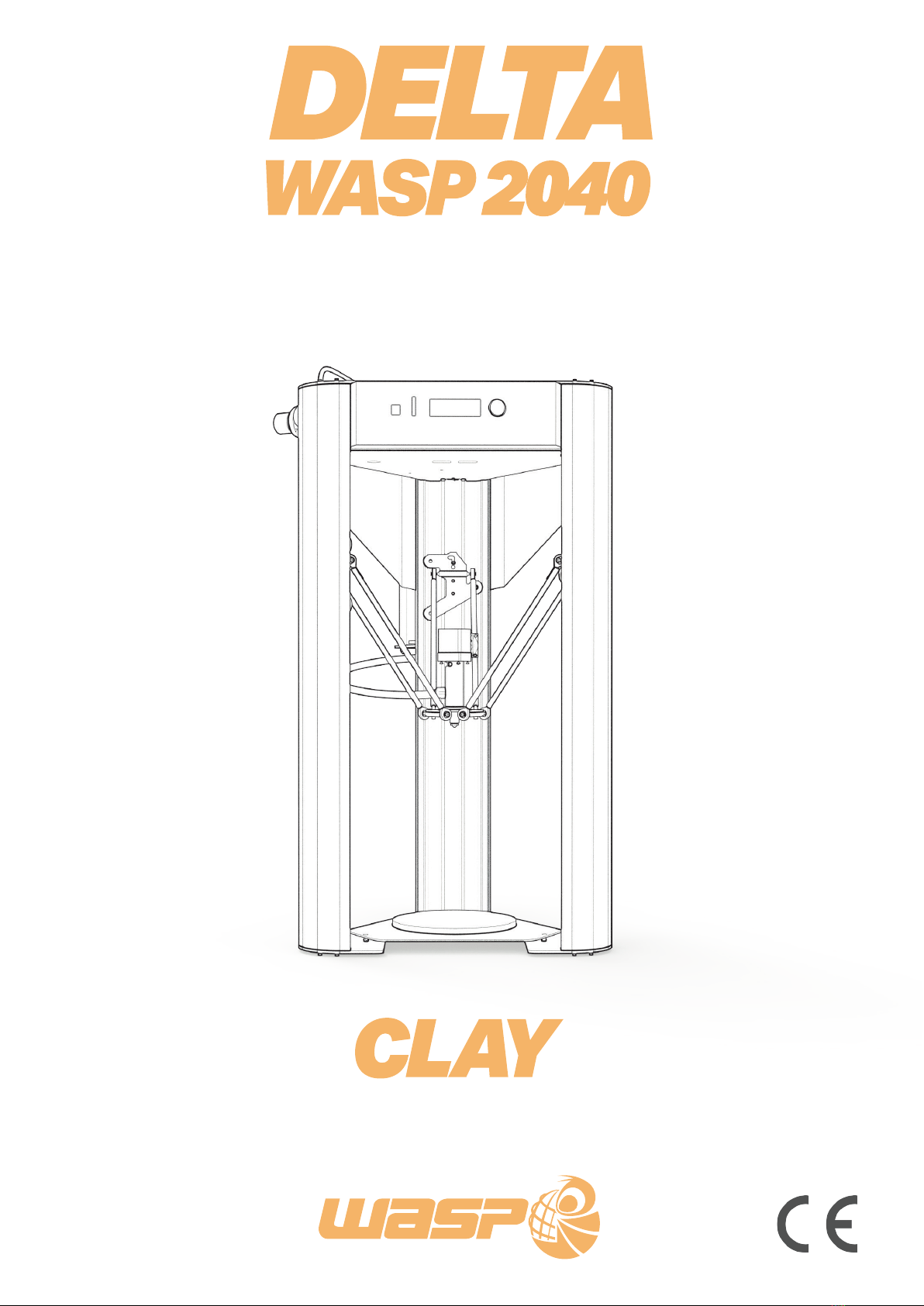

Wasp DELTA WASP 2040 CLAY Instruction manual

MANUAL OF USE AND MAINTENANCE
ORIGINAL INSTRUCTIONS

Discalaimer
IMPORTANT:
We kindly praise to read carefully and comprehend totally the content in this manual of Use and
Maintanance.
The missing acknowledgment of the manual can be cause of personal injury, worst quality results
or damages to the printer Delta WASP 2040 Clay. Always make sure that the personal using the 3D
printer knows and understands the content of the manual in order to the best results from DELTA
Delta WASP 2040 Clay.
No part of this publication may be reproduced, stored in a filing system or transmitted to third parties in any form or by any means, without
the Manufacturer having issued a prior written authorization. The Manufacturer reserves the right to make changes to its products at any
time and without notice in order to constantly increase the quality, therefore this publication may also be subject to future modifications and
updates.
Copyright 2018 CSP S.r.l. – All rights reserved
1First edition 31/07/2019
Revision Reason for the revision Revision date

© CSP S.r.l. 3
Summary
0Premises .......................................................................... 5
0.1. Aim of the instruction manual............................................ 5
0.2. How the read the manual of instructions...................... 6
0.3. Storage of the manual of instructions ........................... 6
0.4. Updating the manual of instructions .............................. 6
1 General information....................................................... 7
1.1. Manufacturer identification data...................................... 7
1.2. Indentification label................................................................ 7
1.2.1. Position of the label on the printer .....................................8
1.3. Testing..........................................................................................8
1.4. Warranty...................................................................................... 8
1.5. Declaration of conformity ................................................... 9
1.6. General safety warnings.................................................... 10
1.6.1. Personal protective equipment........................................ 10
1.6.2. Operators for whom the manual is intended .............. 11
1.6.3. Residual risks ............................................................................11
1.6.4. Safety stickers.......................................................................... 12
1.7. Glossary and pictograms.................................................. 13
1.7.1. Identification of operating personnel ............................13
1.7.2. Editorial pictograms...............................................................14
2 Description of the printer..........................................15
2.1. Control panel.......................................................................... 16
2.2. Work area................................................................................. 17
2.3. External area of the printer .............................................. 18
2.4. Technical data........................................................................ 18
2.5. Noisiness.................................................................................. 19
2.6. Intended use of the printer .............................................. 19
2.7. Improper use of the printer.............................................. 19
3 Transport and handling ..............................................20
3.1. General warnings.................................................................. 20
3.1.1. Delivery of the printer............................................................20
3.2. Unpackaging........................................................................... 21
3.3. Content ..................................................................................... 21
3.4. Lifting and handling of the printer................................. 21
4 Installation.......................................................................22
4.1. General warnings.................................................................. 22
4.1.1. Placement................................................................................... 22
4.2. Electrical connection.......................................................... 23
5 Preparing to use the printer .....................................25
5.1. General warnings.................................................................. 25
5.2. User interface......................................................................... 26
5.2.1. Main board..................................................................................26
5.2.2. Menù print...................................................................................27
5.2.3. PREPARE menu ........................................................................28
5.2.5. INFO menu..................................................................................29
5.3. First start .................................................................................. 29
6 First use of the printer ................................................30
6.1. General warnings.................................................................. 30
7 Ordinary and extraordinary maintanance..........31
7.1. General warnings.................................................................. 31
7.1.1. Print bed cleaning ...................................................................33
7.2. Extraordinary maintenance ............................................. 34
7.3. Pulizia estrusore........................................................................

INTRODUCTION
Delta WASP Clay line features all the latest technological innovations in the world of digital ceramics developed
by WASP.
The Manufacturer declines any responsibility for accidental damages caused by products when non-correctly
used.
WASP certifies the use LDM WASP EXTRUDERS with ceramic materials, in case of use of the system with
different kind of materials, warranty and support may not be valid anymore.
WARNING
-Read accurately the instructions before the use
-Before any intervention in proximity or inside the work area pause the movements by pushing the yellow
bottom on the right side of the frontal panel
-Make sure, before everything is in pressure, that the two caps are both tighten completely until the complete
coverage of the tank fillet
-Check periodically that the fillet of the caps and of the tank are not consumed or damaged
-Always keep the fillet on the caps clean in order to avoid the uncorrect closure of the tank
-Periodically put some grease on the fillet of the caps and tank
-Check out the video tutorials at https://www.youtube.com/watch?v=1DjVC5MxJr4
-Do not introduce or lay hands or other parts of the body in proximity of the moving parts
-Keep far from the presence of children
-Do not overcome the 8 bars of pressure
-Do not point the pressurized tank without the cap against people
-Make sure that all the pipes are correctly plugged
-Check the if the fan on the left of the stepper motor is working or not
-Make sure that the extruder is not clogged
-Do not put fingers inside the extruder
-Do not eat the extruded materials
-Make sure that the pipes do not present any deformation
-Verify the waste of the pipes in the points of connection
-Do not replace parts if not original and supplied by Manufacturer
-Only properly formed staff can use the machine

© CSP S.r.l.
Premises
5
0 PREMISES
0.1. Aim of the instruction manual
IMPORTANT:
Before proceding with the installing and starting of the printer, the technician, the user, the
maintainer and the safety responsible must read and understand the actual manual.
The manual must be considered as a fundamental part of the printer. The correct use and maintanence of the
machine depends on the informations contained here.
It contains instructions that must be acknowledged by the personal devoted to the use, maintanance and
transport of the machine, supposing the adequate experience, preparation and professional abilitation as well
as a psychophysical attitude.
For certain operations it may be necessary to ask for the intervent of personnel who. have achieved a specific
preparation.
It must always be available for consultation, in copy and by the recupient, on the printer itself or in its immediate
vicinity. In the second case the location of the manula must me indicated on the printer clearly.
It is susceptible of updates which, appropriately classified, will be transmitted to the employer in order to update
the consultation copy (s).
• The recipient must ensure that the personnel authorized by him to start up, use, maintain and transport the
printer have obtained adequate knowledge of the instructions contained in this manual.
• The recipient must check that the maintenance operations, prescribed in the appropriate chapter, are carried
out and recorded promptly and effectively.
• We accept no responsibility for damage to persons or property resulting from improper use and / or omitted
or inadequate maintenance.
• The recipient has the right to request further information.
In case of loss and/or damage of the present manual is responsibility of the recipient to ask for one or more
copies.

© CSP S.r.l.
Premises
6
0.2. How the read the manual of instructions
This manual is composed by:
COVER WITH PRINTER IDENTIFICATION
By consulting the cover you trace to the printer model covered in the manual and to the printer serial number in
your possession.
ANALYTICAL INDEX
By consulting the index it is possible to indentify to the chapter and to the paragraph on which all the notes
relating to a given topic are reported.
NUMERATION FIGURES
Each figure is numbered progressively, indicating with the first digit the reference chapter and with the second
the progressive image (example Fig. 3.4 is the fourth figure of chapter three)
0.3. Storage of the manual of instructions
It is mandatory to keep this manual and all attached documents in an easily accessible place near the printer and
known to all users (operators and maintenance personnel).
Operators and maintenance technicians must be able to quickly find and consult the manual in any situation.
The manual is an integral part of the printer for security purposes.
Therefore:
• It must be kept intact (in all its parts);
• It must follow the printer until its disposal (even in case of travel, sale, rental, rent, etc.);
• It must be kept up to date and report any changes made to the printer.
0.4. Updating the manual of instructions
This manual must be regularly updated by attaching additional or altered parts.
The sending of any additional parts is the responsibility of the Manufacturer; the user is responsible for the
replacement of parts that may be altered as a result of use, making a request directly to the Manufacturer.

Modello:
Delta WASP 2040 CLAY
Volts: 230V 50/60Hz
Potenza Max: 180W
Anno di produzione: 2019
Numero di serie:
Stampante 3D
Advanced settings
Radius
Diagonal Rod
X
Y
Z
O set: x _____ y ______
MADE IN ITALY
IT16060000009355
1
2
3
4
5
6
© CSP S.r.l. 7
General information
1 GENERAL INFORMATION
1.1. Manufacturer identification data
CSP S.r.l.
Viale Zaganelli, 26 - 48024 Massa Lombarda (RA) Italy
Tel. [phone]
[email protected] / www.3dwasp.com
1.2. Indentification label
The printer is CE marked and complies with all relevant provisions:
Machinery Directive 2006/42 / EC, EMC Directive 2014/30 / EU and LVD Directive 2014/35 / EU
EN 55022
EN 55024
EN 60204-1
The marking can be identified by means of an identification plate of the Manufacturer as required by the Machinery
Directive. In case of damage, the Recipient must commission a copy.
Legend:
1. Model
2. Voltage
3. Maximum power
4. Year of production
5. Serial number
6. Advanced settings

© CSP S.r.l.
8
1.3. Testing
The printer is tested directly by the Manufacturer during the phase of mounting and post mounting.
1.4. Warranty
The printers built by CSP S.r.l. are covered by a warranty for a period of 12 months for companies or VAT and 24
months for individuals, according to the specifications set out in the sales contract.
If during the period of validity, defective operations or faults of parts of the printer that fall within the cases
indicated in the warranty occur, CSP S.r.l. (after the appropriate checks) will repair or replace the defective parts.
The defective parts under warranty are repaired or replaced free of charge by CSP S.r.l. .
The costs of transport and / or shipment are always charged to the Customer, as well as the return / return travel
expenses related to the intervention of the Manufacturer’s technicians at the Customer’s premises.
The labor costs related to the intervention of the Manufacturer’s technicians at the Customer’s premises, for the
removal of defects under warranty are the responsibility of the Manufacturer, except in cases where the nature
of the defect is such that it can be easily removed on site by part of the Customer.
All consumables are excluded from the warranty, possibly supplied by the manufacturer together with the
machines.
NOTE:
The guarantee lapses in the following cases:
• In case of default or other contractual non-fulfillment;
• Improper use of the printer
• Failure to comply with the standards and maintenance intervals
• Tampering
• The printer is returned to the Manufacturer in a different packaging from the one supplied at the
time of purchase;
• Use of non-original spare parts, ie not supplied directly by the Manufacturer;
• Extraordinary interventions not carried out by personnel not sent by the Manufacturer;
• Any variation and / or non-observance of what is indicated in the technical documents and in
this manual entails the forfeiture of the technical and functional guarantees, and release the
Manufacturer of the printer from any responsibility.

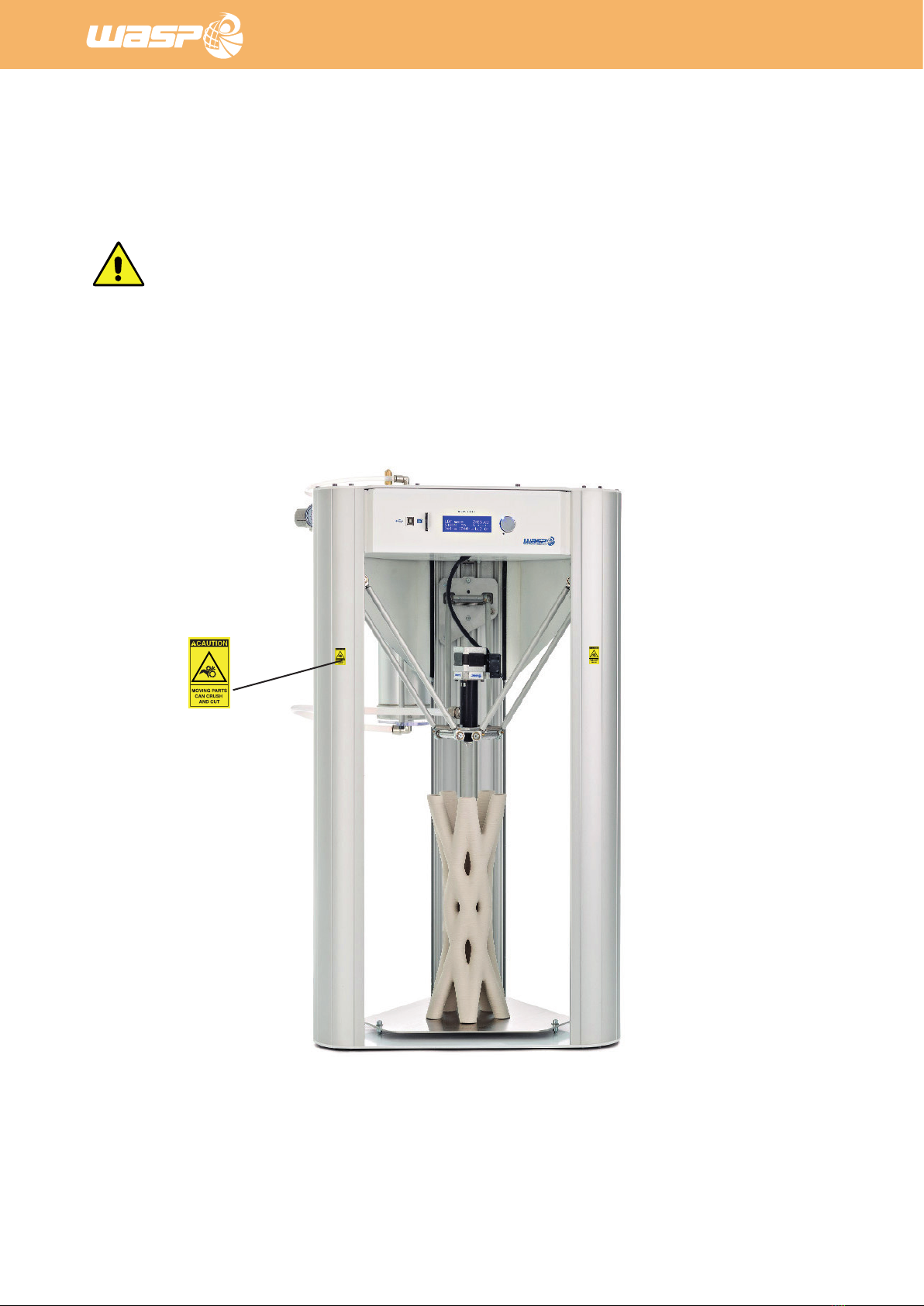

1.2.1. Position of the label on the printer
IMPORTANT:
The label of identification of the printer is placed on the back column of the printer near the socket
for the supply of the machine

© CSP S.r.l. 9
1.6. General safety warnings
CAUTION:
Any intervention must be performed on the printer requires particular caution on the part of the
operator.
NOTE:
Any intervention on the printer must be carried out in strict compliance with the operational skills
(see paragraph 1.7.1 “Identification of Operational Staff”). CSP S.r.l. declines any responsibility in
case of non-compliance with these skills.
The purpose of this chapter is to indicate which are the specific points and measures to avoid incurring any kind
of accidents, which may be defined as residual risks, which are the minimum essential safety provisions to be
maintained, which characteristics must have the personnel assigned to the normal assembly operations and
which must be the characteristics of the maintenance personnel.
We are not responsible for unspecified operations, as they are considered strictly pertinent to technical
assistance personnel or for operations performed differently from what we described in the documentation
presented.
Possible operations on the printer can:
• Mechanics
• Electrical
MECHANICAL NATURE INTERVENTIONS
Any intervention of a mechanical nature must be carried out in strict compliance with the directives required by
current safety regulations. It is absolutely forbidden to perform any type of mechanical maintenance intervention
on the printer during the operating cycle or in any case with parts of the printer moving.
Every mechanical adjustment operation must be carried out with the printer stopped and only and exclusively
by the mechanical maintenance technician, qualified to operate in conditions of protection disconnected (see
paragraph 1.7.1 “Identification of the operating personnel”).
Maintenance work must only be performed with the printer disconnected from the mains and taking all the safety
measures required by current regulations.
ELECTRICAL NATURE INTERVENTIONS
Every electrical adjustment operation must be carried out taking all the safety measures required by current
regulations.
1.6.1. Personal protective equipment
It is mandatory to use the specific personal protection devices (PPE) to the current operations made available
by the company (in relation to the risk attached to the performance of certain processes), even if not directly
concerning the use of the plant.

© CSP S.r.l.
10
1.6.2. Operators for whom the manual is intended
The manual is written for:
• The operators involved in using the printer (in the continuation of the manual will be briefly called “users”);
• Mechanical maintenance workers: trained and authorized operators for the maintenance of mechanical
parts, pneumatic and oil-hydraulic systems;
• Electrician maintenance technicians: trained and authorized operators for the maintenance of electrical and
/ or electronic parts and systems;
• Qualified technicians (employees of the Manufacturer or authorized service center), special maintenance
staff and operations of a complex and / or particular nature.
ATTENTION:
The user must not perform operations reserved for maintenance personnel or qualified technicians.
The manufacturer is not liable for damages deriving from failure to observe this prohibition. Users
or qualified technicians.
1.6.3. Residual risks
Residual risk of scalding
This risk exists during the removal phase of the filament from the extruder and during the removal of the piece
from the plate.
CAUTION:
Moving parts can crush and cut
ATTENTION:
Watch your head when operating near the machine
Residual risk of electrocution
CAUTION:
It is present tension on the superior part of the printer.
Maintanance / Cleaning
Maintenance / cleaning operations must be carried out by trained and authorized personnel. Operations must be
performed in a safe stop condition, disconnecting the printer from power sources. Refer to chapter 7 “Ordinary
and Extraordinary Maintenance”.
