Wasp WPL205 User manual

Barcode printers for every application

www.waspbarcode.com
WPL205
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
::

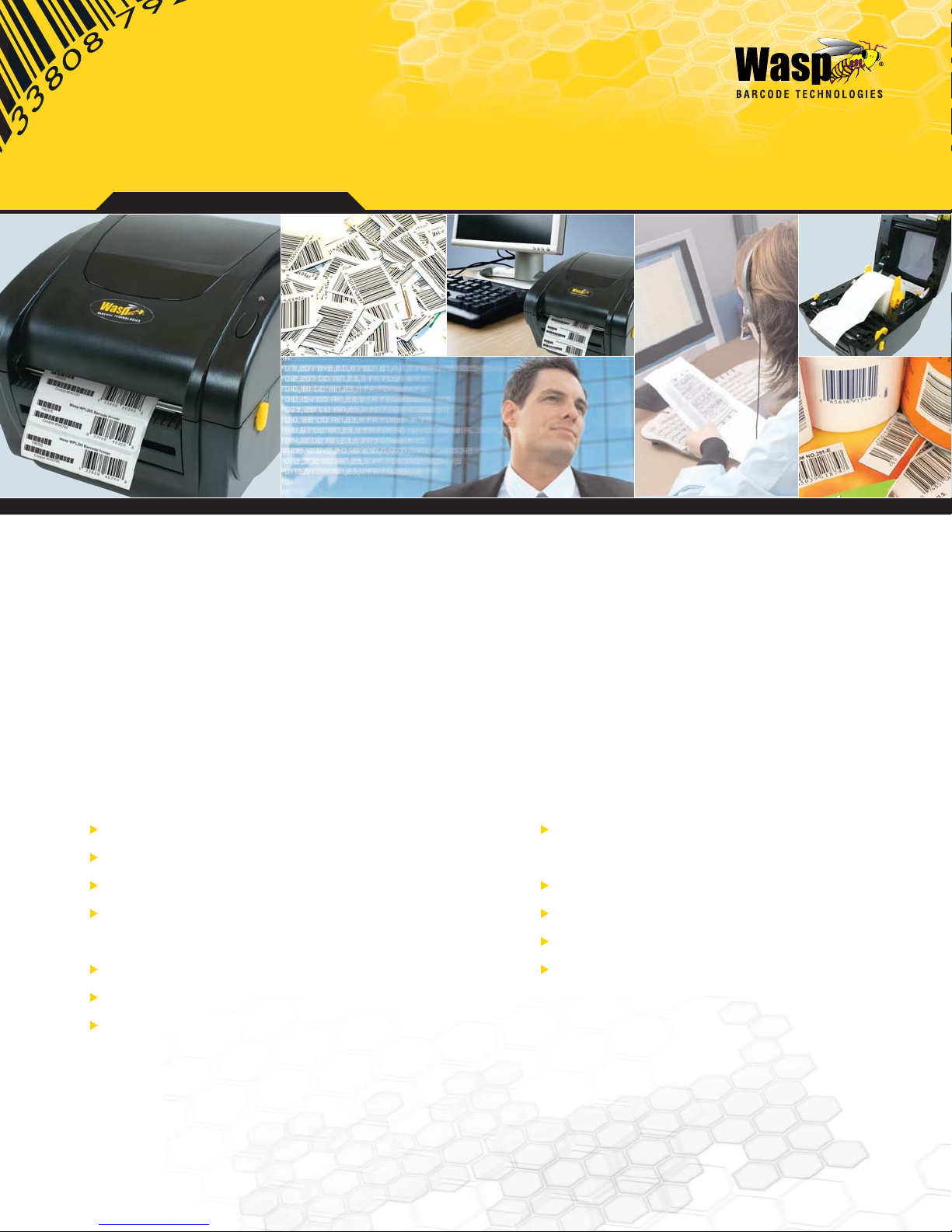

Direct Thermal Process at 203 DPI
2Mb FLASH memory (512Kb addressable)
Integrated label peeler included
Prints at 2 or 3 inches per second when using the peeler,
or up to 5 inches per second when not using the peeler
Prints linear (1D) barcodes and 2D barcodes
Supports up to 5”OD labels rolls with maximum 4.25” width
Can print up to 39” label using continuous feed label roll
WASP WPL205 FEATURES
Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
The WPL205 is Wasp’s value-packed direct thermal barcode printer. It’s ideal for creating product shipping labels or other barcode labels.
Conveniently sized with a clamshell design that makes media loading a snap, this easy-to-use printer provides all you need in a desktop
barcode printer.
Using a direct thermal printing process, barcode labels can be created that also include text and company logos. Direct thermal creates high quality
labels that are ideal for immediate use (eg. package or product shipping label) or when a permanent barcode label is not required.
The WPL205 prints at a quick 5 inches per second with labels up to 4.25” wide and has 2Mb of FLASH memory.
:: BENEFITS
Value packed desktop barcode printer for printing and
shipping labels
Convenient size fits easily into any shipping environment
Clamshell form permits easy and rapid media installation
Integrated peeler speeds application of labels to package
All in one firmware supports most popular barcode
printing formats

Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
PRINTER MODEL Wasp WPL205
RESOLUTION 203 DPI
PRINTING METHOD Direct Thermal
PRINT SPEED 2, 3, 4 and 5ips selectable,
2, 3ips selectable with peeler function
MAX. PRINT WIDTH 108 mm (4.25”)
MAX. PRINT LENGTH 1000 mm (39.33”)
ENCLOSURE Double-walled plastic
PHYSICAL 240mm (L) x 200mm (W) x 164mm (H)
9.45” (L) x 7.87” (W) x 6.46” (H)
Weight: 4.4 lbs (2.0 kg)
LABEL ROLL CAPACITY 127mm (5”) OD
PROCESSOR 32-bit RISC CPU
MEMORY • 2MB Flash memory (512 KB Addressable Flash memory)
• 2MB DRAM
INTERFACE • RS-232 (max. 19,200 bps)
• Parallel: SPP mode
• USB 1.1
POWER AC input: 100-240V universal switching power supply
DC output: 24V 3.75A (external adapter)
INTERNAL FONT 8 alpha-numeric bitmap fonts, one true type font
BARCODES 1D barcode: Code 39, Code 39C, Code 93, Code128UCC,
Code128 subsets A.B.C, Codabar, Interleave 2 of 5,
EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and
UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET,
China Post, ITF 14, EAN 14
2D barcode: PDF-417, Maxicode, DataMatrix, QR code
:: SPECIFICATIONS
CHARACTERISTICS
www.waspbarcode.com
WPL205
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
FONT & BARCODE ROTATION 0, 90, 180, 270 degrees
PRINTER LANGUAGE All-in-one firmware, includes: WPL,
WPLE (Eltron emulation) and WPLZ (Zebra emulation)
MEDIA TYPE Continuous, die-cut, Fan-fold, black mark & tag
MEDIA WOUND TYPE Outside wound
MEDIA WIDTH 20~112 mm (0.79” ~ 4.41”)
MEDIA THICKNESS 0.06~0.19 mm (2.36 ~ 7.48 mil)
MEDIA CORE DIAMETER 25.4~76.2mm (1” ~ 3”)
LABEL LENGTH 10~999 mm (0.39” ~ 39.3”)
ENVIRONMENT Operations: 5~40°C (41°F~104°F), 25~85% non-condensing
Storage: -40~60°C (-40°F~140°F), 10~90% non-condensing
SAFETY REGULATION FCC Class B, CE Class B, C-Tick, BSMI, CCC, UL, CUL, TUV/GS
LIMITED WARRANTY • Printer: 2 years
• TPH: 1 million inches (25 Km) or 12 months which
comes first since delivery from Wasp
• Platen: 50 Km
INCLUDED OPTIONS Label peel off included
FACTORY OPTION Real time clock option available
DEALER OPTION • Memory card (2, 4, 6 and 8M bytes).
• Guillotine cutter
• Internal Ethernet/wireless LAN adapter
USER INSTALLABLE • Keyboard display unit (KU-007 plus and KP-200)
• External LAN adapter
• External label roll mount (8”OD with 1” or 3” core)
• Contact CCD barcode scanner
• Long range linear image barcode scanner
• Rechargable battery pack
CONDITION
OPTION

www.waspbarcode.com
WPL305
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
::
Direct thermal and thermal transfer printing abilities
203 dpi print resolution
5 Inches per second print speed
4.25” Print width
8 MB DRAM, 2 MB Flash
SD Slot allows for Flash memory expansion up to 4 GB
WPL, ZPL and EPL emulation
Supports 5" outside diameter media roll
Clear media-view panel
USB 2.0, Serial (RS232) and Centronics Parallel connectivity
Includes Windows print driver
Options include: cutter, peel and present, external Ethernet
WASP WPL305 FEATURES
Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
:: BENEFITS
Compact size is perfect for limited office and
warehouse space
Drop-in media design makes loading media fast
and decreases downtime
Multiple connectivity options allow quick installation
Clear media window for monitoring media usage
Flexible design delivers thermal transfer and direct thermal
printing for a variety of applications
The WPL305 is a compact, desktop barcode printer that delivers outstanding versatility and performance at a surprisingly affordable price. Ideal for light
to medium-duty barcode printing, the WPL305 is recommended for applications including shipping and receiving, inventory control, asset tags, shelf
labels, healthcare, transportation and logistics.
Featuring a full 32-bit processor that speeds processing and improves throughput, the WPL305 offers print speed of up to 5 inches per second.
Combined with 8 MB DRAM and 2 MB Flash memory, the WPL305 ensures quick printing of labels with text, graphics, and barcodes.
Designed to be extremely easy to use, the WPL305 includes drop-in media replacement for fast and simple media loading. Multiple connectivity options
including USB, serial, parallel and optional external Ethernet print server allow for easy installation.
The printer includes WPL, EPL and ZPL emulation, adding to its versatility and providing compatibility with any application.

Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
www.waspbarcode.com
WPL305
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
OPERATIONAL
CHARACTERISTICS
MEDIA
FONTS,
GRAPHICS
SYMBOLOGIES
OPTIONS &
ACCESSORIES
STANDARD
FEATURES
Printing method
Resolution
Print speed
Maximum print width
Maximum print length
Memory
Sensors
Cabinet
Operation panel
Dimensions
Net weight
Command set
Communication interfaces
Operating temperature
Storage temperature
Certifications
Media width
Media diameter (max.)
Ribbon length
Bar code symbologies
Resident fonts
Font rotation
Stand-alone kdu
Interfaces
Memory expansion
Battery pack/charger
Cutter
Thermal transfer and direct thermal
203 dpi (8 dots / mm)
Up to 5 inches per second
4.25” (108mm)
39” (990mm)
8MB DRAM, 2 MB Flash
Label gap, reflective (position adjustable), black line, head open
Double-walled ABS plastic
One push switch, one indicator LED (two color)
12.4” L x 8.4” W x 7.4” H (314mm L x 213mm W x 188mm H)
7 lbs (3 kg)
WPL, ZPL emulation, EPL emulation
USB 2.0, RS232, Centronics Parallel
40˚F to 104˚F (5˚C to 40˚C)
14˚F to 140˚F (-10˚C to 60˚C)
CE, FCC, TUV, UL
1” - 4.4” (19mm - 118mm)
5 “ OD (127 mm) with 1” core
984 ft (300m) (Max.)
1D Barcodes: Code 39, Code 39C, Code 93, Code 128UCC, Code 128 subsets
A.B.C., Code 11, Codabar, Interleave 2 of 5, EAN-8, EAN-13, UPC-A,
UCP-E, EAN and UPC 2(5) digital add-on, MSI, PLESSEY, POSTNET,
2D Barcodes: PDF-417, Maxicode, DataMatrix
Five alphanumeric fonts, OCR-A, OCR-B, and one true type font
0, 90, 180, 270 degree
WPL305 KDU Keyboard display unit
External Ethernet adapter
SD memory expansion slot for use with 4GB flash memory
WPL305 battery pack charger
4.6” (116mm) width
:: SPECIFICATIONS

www.waspbarcode.com
WPL608
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
::
Thermal transfer and direct thermal print technologies
Print labels up to 4.25” wide
203 dpi print resolution
Print speed of up to 8 inches per second
Durable metal housing
Backlit, LCD control panel
8 MB SDRAM, 4 MB Flash
SD Slot card slot for Flash memory expansion
WPL, ZPL, and EPL emulation included
Supports 8" outside diameter media roll
Clear media view window
USB 2.0, RS232 and Centronics Parallel connectivity
Includes Windows print driver
WASP WPL608 FEATURES
Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
The WPL608 is a rugged, industrial printer designed to meet your medium and heavy-duty industrial barcode printing requirements. The feature-rich
WPL608 offers up to 8 inches per second print speed, for guaranteed efficiency and maximum throughput. Eight megabytes of SDRAM and four
megabytes Flash memory make printing labels with graphics a snap. Die-cast metal construction ensures productivity, even in harsh environments.
Designed for intuitive installation and use, the WPL608 includes an LCD control panel for quick set-up, backlit for visibility in warehouse environments.
Easily adjust configuration and view printer usage using the LCD control panel. Monitor media usage with the clear media view window. Replace labels
and ribbons quickly with the side-load media design.
Featuring USB 2.0, parallel and RS232 connectivity, the WPL608 is the printer of choice for organizations that demand reliability and performance on
a budget.
The WPL608 industrial barcode printer supports WPL, ZPL and EPL emulation, and is CE, FCC, TUV, & UL certified and RoHS compliant.
:: BENEFITS
Delivers easy installation and use
• Backlit LCD panel offers simple set-up and operator control
• Quick integration using USB 2.0, parallel, or RS232 connectivity
• Monitor label and ribbon usage with clear media window
Flexible design ensures the WPL608 meets your printing needs
• Thermal transfer and direct thermal printing abilities allow you
to create the labels your application requires
• Features WPL, ZPL and EPL emulation for easy integration
into existing applications
• Rugged design ensures reliability in demanding environments
Maximize organizational efficiency and productivity
• Create labels at up to 8 inches per second
• Rely on 8 MB SDRAM and 4 MB Flash memory for quick
printing of labels with graphics and text

Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
Standard Features
PRINTING METHOD Thermal transfer and direct thermal
RESOLUTION 203 dpi (8 dots / mm)
PRINT SPEED Up to 8 inches per second
MAX. PRINT WIDTH 4.25" (108 mm)
MAX. PRINT LENGTH 90" (2286 mm)
MEMORY 8 MB SDRAM
4 MB Flash
SENSORS Position adjustable transmissive/reflective sensor,
ribbon end sensor, head open sensor
CABINET Metal construction with clear plastic media view window
OPERATION PANEL 128 x 64 pixel with backlight
DIMENSIONS 10.63" (W) x 12.13" (H) x 19.88" (D) or 270 mm (W) x
308 mm (H) x 505 mm (D)
NET WEIGHT 33 lbs (15 kg)
COMMAND SET WPL, ZPL emulation, EPL emulation
DC output: 24V 3.75A (external adapter)
Operational Characteristics
COMMUNICATION USB 2.0, RS232, Centronics Parallel
INTERFACES
OPERATING 40°F to 104°F (5°C to 40°C)
TEMPERATURE
STORAGE 23°F to 140°F (-5°C to 60°C)
TEMPERATURE
CERTIFICATIONS FCC, CE, C-Tick, UL, CUL, TUV/GS, CCC, CB, ROHS
:: SPECIFICATIONS
Media
MEDIA WIDTH 1" to 4.6" (25.4 to 118 mm)
MEDIA DIAMETER 8" OD (203 mm) with 1", 3" core (25 mm, 76 mm core)
RIBBON LENGTH 1968 ft (600 meters)
Fonts, Graphics & Symbologies
BARCODE SYMBOLOGIES 1D Barcodes: Code 39, Code 93, Code 128 UCC,
Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits
add-on, MSI, PLESSEY, POSTNET, China POST
2D Barcodes: PDF-417, Maxicode, Datamatrix, QR code
RESIDENT FONTS 8 alpha-numeric bitmap fonts
Monotype Imaging ® true type font engine with one CG
Triumvirate Bold Condensed scalable font
FONT ROTATION 0, 90, 180, 270 degree
Options & Accessories
INTERFACES External Ethernet adapter
MEMORY EXPANSION SD Memory expansion slot for use with 4 GB SD cards
CUTTER 4" width (paper thickness up to 0.25 mm)
www.waspbarcode.com
WPL608
BARCODE PRINTER
Big Business Tools. Small Business Attitude.

www.waspbarcode.com
WPL610
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
::
Thermal transfer and direct thermal print technologies
Includes peel & present functionality
Print labels up to 4.09” wide
203 dpi print resolution
Print speed of up to 12 inches per second
Durable metal housing
Backlit, LCD control panel
32 MB SDRAM, 8 MB Flash
SD Card slot for Flash memory expansion
WPL, ZPL, and EPL emulation included
Supports 8" outside diameter media roll
Clear media view window
Internal Ethernet print server, USB 2.0, RS232
and Centronics Parallel connectivity
Includes Windows print driver
WASP WPL610 FEATURES
Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
The WPL610 is an industrial barcode printer, designed to deliver consistent, reliable performance in heavy-duty printing applications. Featuring
12 inches per second print speed and durable, die-cast metal construction, the WPL610 offers high performance label printing in harsh environments
and high traffic applications. Ideal for manufacturing, warehouse, shipping and receiving, compliance labeling, asset tracking and transportation,
the WPL610 is engineered to meet the demands of high-volume printing.
The WPL610 is a league above the competition, delivering more standard features than any printer in its class at an incredibly affordable price.
Flexible connectivity options come standard, and include internal Ethernet print server for networkability, USB 2.0, RS232 and parallel. Also included is
integrated peel and present functionality for quick label application.
Designed for intuitive installation and use, the WPL610 offers a backlit LCD panel for easy viewing in dimly lit environments. Easily complete
printer-set up and monitor use with the LCD display. Manage ribbon and label usage with the clear media view window.
The WPL610 supports WPL, ZPL and EPL emulation, and is CE, FCC, TUV, & UL certified and RoHS compliant.
:: BENEFITS
More standard features than any competitive printer
• Internal Ethernet print server allows for easy connectivity to network
• Peel & present functionality offers quick label application
• 32 MB SDRAM and 8 MB Flash guarantee fast print speed
Engineered to deliver business efficiency and maximize productivity
• Industry-leading 12 inches per second print speed
• Intuitive side-load media design allows for quick media change
• 600 meter ribbon supply minimizes down time
Easy installation and use
• Flexible connectivity options for fast installation
• LCD Control panel facilitates simple setup and printer control
• Simple maintenance with quick-change print head and platen roller

Wasp Barcode Technologies :: 1400 10th Street :: Plano, TX 75074 :: 214.547.4100 :: www.waspbarcode.com
Standard Features
PRINTING METHOD Thermal transfer and direct thermal
RESOLUTION 203 dpi (8 dots / mm)
PRINT SPEED Up to 12 inches per second
MAX. PRINT WIDTH 4.09" (104 mm)
MAX. PRINT LENGTH 160" (4064 mm)
MEMORY 32 MB SDRAM
8 MB Flash
SENSORS Position adjustable transmissive/reflective sensor,
ribbon end sensor, head open sensor
CABINET Metal construction with clear plastic media view window
OPERATION PANEL 128 x 64 pixel with backlight
DIMENSIONS 10.63" (W) x 12.13" (H) x 19.88" (D) or 270 mm (W) x
308 mm (H) x 505 mm (D)
NET WEIGHT 33 lbs (15 kg)
COMMAND SET WPL, ZPL emulation, EPL emulation
Operational Characteristics
COMMUNICATION Internal Ethernet, USB 2.0, RS232, Centronics Parallel
INTERFACES
OPERATING 40°F to 104°F (5°C to 40°C)
TEMPERATURE
STORAGE 23°F to 140°F (-5°C to 60°C)
TEMPERATURE
CERTIFICATIONS FCC, CE, C-Tick, UL, CUL, TUV/GS, CCC, CB, ROHS
:: SPECIFICATIONS
Media
MEDIA WIDTH 1" to 4.6" (25.4 to 118 mm)
MEDIA DIAMETER 8" OD (203 mm) with 1", 3" core (25 mm, 76 mm core)
RIBBON LENGTH 1968 ft (600 meters)
Fonts, Graphics & Symbologies
BARCODE SYMBOLOGIES 1D Barcodes: Code 39, Code 93, Code 128 UCC,
Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits
add-on, MSI, PLESSEY, POSTNET, China POST
2D Barcodes: PDF-417, Maxicode, Datamatrix, QR code
RESIDENT FONTS 8 alpha-numeric bitmap fonts
Monotype Imaging ® true type font engine with one CG
Triumvirate Bold Condensed scalable font
FONT ROTATION 0, 90, 180, 270 degree
Options & Accessories
MEMORY EXPANSION SD Memory expansion slot for use with 4 GB SD cards
CUTTER 4" width (paper thickness up to 0.25 mm)
PEEL & PRESENT Included
INTERNAL ETHERNET
PRINT SERVER Included
www.waspbarcode.com
WPL610
BARCODE PRINTER
Big Business Tools. Small Business Attitude.
