WaterTech SORBMAXPRO User manual

OWNERS MANUAL
Whole House Water Conditioner
With Triton Electronic Control Valve
Activate your warranty by registering
your product at watertech.com or
call 469-521-1180.

Dealer Name:
Dealer Phone Number: Installation Date:
Model Number: Serial Number:
DEALER CONTACT AND PRODUCT INFORMATION
• DO ALWAYS check your state and local regulations regarding plumbing and electrical
connections and placement of the system before installation.
• DO install the system into the existing cold water supply line before the water heater and
before any cold water outlet that requires treatment.
• DO bypass your system in the event of a water or plumbing related emergency.
• DO contact your WaterTech Dealer if you have any questions about the operation of your
system or water quality issues.
• DO enjoy all the benefits of your treated water!
• DO NOT hang or stack items on your equipment. This may cause an equipment
imbalance or put a strain on plumbing and electrical connections.
•DO NOT disconnect or remove any part of the plumbing or electrical cord.
• DO NOT attempt to reprogram your system. Your system has been factory or field
programmed specifically for your application.
• DO NOT allow your system and attached plumbing to be exposed to extreme
temperatures (below 40° F or above 110° F).
• DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
DO’S AND DONT’S
1

2
CLOCK / HOME
RIGHT / NEXT
LEFT / BACK
SETTING THE VALVE
SET CLOCK
Press CLOCK one time.
The hours will begin to flash.
Use or to adjust the hour. The hours will cycle through AM and PM.
Once the hour is set correctly, press one time to set the minutes.
Once you see the minutes flashing, use or to adjust the minutes.
Once time is set, press CLOCK.
SETTING REGENERATION TIME
Enter the Installer Screens by pressing and holding +simultaneously for for
3-5 seconds.
Once the display changes, press until you reach the “Regeneration Time” display.
When on the “Regeneration Time” display, use or to adjust the hour. The hours will
cycle through AM and PM.
Press to move the cursor to adjust the minutes. Use or to adjust the minutes.
Advance to the next Installer Screen by pressing OR you can return to the home display
by pressing
ERROR MESSAGE
SOFT RESET (to reset “ERROR” code)
Press and hold + REGEN simultaneously for 3-5 seconds until valve resets.
If the word “ERROR” persists, afer a soft reset, and a number is alternately flashing on
the display, contact an authorized WaterTech dealer for service help. This indicates that
the valve was not able to function properly. This is a rarely encountered malfunction.

Enter the Installer Screens by pressing and holding +simultaneously for for
3-5 seconds.
Once the display changes, press until you reach the “Regeneration Time” display.
When on the “Regeneration Time” display, use or to adjust the hour. The hours will
cycle through AM and PM.
Press to move the cursor to adjust the minutes. Use or to adjust the minutes.
Advance to the next Installer Screen by pressing OR you can return to the home display
by pressing
3
STARTING UP THE SYSTEM
STEP 1. Make sure the system is in the “Bypass” position before turning the main water
back on. See page 9.
Make sure the drain line provided is connected securely to the control valve and is properly
located over a drain.
Make sure the control valve is plugged into an operating outlet with the correct voltage and is
properly grounded.
STEP 2. Press and hold the REGEN button on the Triton Valve until you hear the motor
engage. This will initiate an immediate manual regeneration of the system. Turn the bypass
valve to "diagnostic" mode position (see figure 3 on page 9). The screen will indicate
“BACKWASH”. You should hear water entering the system. Wait a few minutes to ensure the
control valve can draw water and does not leak. Let the tank fill and begin to push water out
the drainline. Allow the system to backwash until the water going to drain is clear. If
everything is working, press and release the REGEN button. You will hear the motor engage
and move the piston into the “RINSE” position. Again, check for leaks anywhere on the
tank/valve or connections. Allow valve to continue pushing water to the drainline until the
water coming out of drainline is clear. After a few minutes, you will hear the motor engage
and move the piston into the “SERVICE” position. If the water coming out of the drainline is not
clear by the end of the above cycles, repeat Step 2 above with bypass in “diagnostic” position.
STEP 3. If water to drain is completely clear, turn bypass valve to "normal" operation
position (see figure 1 on page 9). Let the water in the taps of the building run for several
minutes to purge the unconditioned water out of the pipes.
FLUSHING AND CONDITIONING
Did you connect the drain
line securely to the valve?
YOUR SYSTEM IS READY FOR OPERATION

MAINTENANCE
With minimal care, your system is designed to serve you for many years. While constant
attention to your system is not necessary, the following suggestions will ensure your system’s
performance and your convenience and satisfaction.
MAINTENANCE
Your system should be serviced every 1-2 years (or as needed) by a factory authorized service
technician to ensure that all components and overall system are functioning properly.
SERVICE ISSUES
If the Triton control valve system display does not appear, check to make sure the system is
plugged in and that there is power at the receptacle. If the unit does not respond with power
present, contact your WaterTech Dealer.
The manual bypass valve (which is located at the rear of the unit) is designed to isolate the unit
from the plumbing for servicing or to shut off the water supply to the unit in the event of a leak
at the conditioner. Consult the operating diagram on page 9 of this manual for instructions to
position your bypass valve for either service or isolation.
If you experience an extended power outage (over an hour in length), you may need to reset the
time of day on the Triton control valve. The internal battery is designed to retain the time of day
for up to 24 hours. There is no need to reset any other part of the program as this is kept in
non-volatile, permanent memory. Consult the programming instructions on page 2 of this manual
for instructions to set the electronic time clock of the Triton control valve.
IF YOU EXPERIENCE A CHANGE IN WATER QUALITY:
1. Check to see if your system has power.
2. Check to see if your system is in bypass (see Bypass Illustrations on page 9)
3. Check to see if the drain line (see Drain Line Connection on page 7) has a kink that may be
restricting flow during backwash. Correct, if necessary, or contact your WaterTech Dealer.
4. Place system in manual regeneration.
5. Contact your local WaterTech Dealer
4

DISPLAYS &
PROGRAMMING INSTRUCTIONS
GENERAL OPERATION: When the system is in operation, the TIME display will be
shown. The user can view the Days Remaining and Flow Rate displays by pressing INFO once,
then pressing the RIGHT button. System operation is not affected by pressing these buttons.
DAYS REMAINING is the number of days left before the system goes through a regeneration
cycle.
REGENERATION MODE: If the system control has called for an automatic
regeneration, REGEN TODAY will flash on the display to indicate that the system will regenerate
at the upcoming preset delayed regeneration time. Typically a system is set to regenerate at a
time of low water usage. The default preset time is 1:00 am. If there is a demand for water
while the system is regenerating, untreated water is available through the automatic internal
bypass feature.
MANUAL REGENERATION: Sometimes there is a need to regenerate the system
sooner than the system calls for. This is usually referred to as ‘manual regeneration’ because it is
only started manually. If there is a period of heavy water usage (because of guests or a heavy
laundry day, for example), a manual regeneration may be initiated to bring the system to full
capacity.
To initiate a manual regeneration immediately, press and hold the REGEN button for four
seconds. The system will begin to regenerate immediately. The request cannot be cancelled.
Once the control valve begins a regeneration cycle, it can be rapid-advanced through the
remainder of the cycles by pressing the REGEN button after the drive motor completes each cycle
shift.
When the system begins to regenerate, the display will change to include information about the
step of the regeneration process and the time remaining for that step to be completed. The
system runs through the steps automatically and will reset itself to provide treated water when
the regeneration has been completed.
5

PLUMBING CONNECTION
6
Typical plumbing installation
Raw
water in
Raw water to
outside faucets
Conditioned
water in
Check local codes for
minimum run between
unit and water heater
Hot
Cold
Hot water heater
Triton Bypass Valve
IMPORTANT: Brass or Plastic yoke
assembly (not shown) is required to
connect piping to the bypass valve and
is available in either NPT or solvent.

DRAIN LINE CONNECTION
7
CAUTION: Never connect drain line directly into drain,
sewer line or trap. Always allow an air gap of at least
25mm (1 inch) or 2 pipe diameters between the drain
line and waste water to prevent the possibility of
sewage being back siphoned.
Air gap
Locking clip
Locking clip
Drain line
Drain elbow

8
BYPASS VALVE OPERATION
The bypass valve is typically used to isolate the control valve from the plumbing system’s
water pressure in order to perform control valve repairs or maintenance. The 1" full flow
bypass valve incorporates four positions including a diagnostic position that allows service
personnel to work on a pressurized system while still providing untreated bypass water to the
facility or residence. Its completely non-metallic, all plastic design allows for easy access and
serviceability without the need for tools.
The bypass body and rotors are glass-filled Noryl and the nuts and caps are glass- filled
polypropylene. All seals are self-lubricating EPDM to help prevent valve seizing after long
periods of non-use. Internal o-rings can easily be replaced if service is required.
The bypass consists of two interchangeable plug valves that are operated independently by red
arrow-shaped handles. The handles identify the flow direction of the water. The plug valves
enable the bypass valve to operate in four positions.
Refer to corresponding Bypass Valve Instructions on the following page.
Figure 1. Normal Operation Position: The inlet and outlet handles point in the direction of
flow indicated by the engraved arrows on the control valve. Water flows through the control
valve during normal operation and this position also allows the control valve to isolate the
media bed during the regeneration cycle.
Figure 2. Bypass Position: The inlet and outlet handles point to the center of the bypass, the
control valve is isolated from the water pressure contained in the plumbing system. Untreated
water is supplied to the plumbing system.
Figure 3. Diagnostic Position: The inlet handle points in the direction of flow and the outlet
handle points to the center of bypass valve, system water pressure is allowed to the control
valve and the plumbing system while not allowing water to exit from the control valve to the
plumbing.
Figure 4. Shut Off Position: The inlet handle points to the center of the bypass valve and the
outlet handle points in the direction of flow, the water is shut off to the plumbing system. If
water is available, on the outlet side of the softener, it is an indication of water bypassing the
system (i.e. a plumbing connection somewhere in the building bypasses the system).

9
BYPASS VALVE ILLUSTRATIONS
Treated
water exits
Supply
water enters
Supply
water exits
Supply
water enters
Supply
water exits
Supply
water enters
No water
exits
Supplywater is shut off
from the house and valve
FIGURE 1.
NORMAL OPERATION
FIGURE 2.
BYPASS OPERATION
FIGURE 3.
DIAGNOSTIC MODE
FIGURE 4.
SHUT OFF MODE POSITION

Water Tech Industries (WTI) hereby warrants said equipment, only to the original purchaser at the original
installation location.
THIS WARRANTY PERIOD BEGINS at the time of initial installation and use. The warranty becomes valid
upon registration of the equipment.
GENERAL PARAMETERS — This warranty applies only to systems installed on USA OR CANADIAN
residential, municipal (city water) water supplies that meet US Environmental Protection Agency MCL
standards (or similar). SORBMAX PRO® products installed outside these parameters, will have the Standard Product
Warranty rather than the Limited Lifetime Warranty applied – see website watertech.com for details.
5-YEAR WARRANTY ON CONTROL VALVE — Your water system has been equipped with the highest quality
water conditioning control valve available. If, upon factory inspection, the control valve body or PC board is found to
be defective, WaterTech Industries will furnish repair or replacement (at WTI option) of the control valve body
and/or the PC board. All internal mechanical components are warranted from manufacturers defect for a period of
five (5) years from the date of installation.
3-YEAR WARRANTY ON MEDIA — The SORBMAX PRO® has been equipped with high quality water treatment
media (certified to NSF Standards). If, upon factory inspection within the warranty period, the media is found to be
defective, Water Tech Industries will furnish replacement media. The media warranty does not cover media
subjected to water containing greater than 2.0-ppm of free chlorine or chloramines or containing greater than
0.5-ppm total Iron and/or Manganese. Media which has been fouled by iron, manganese, organics (or other
contaminants not designed for treatment by the SORBMAX PRO®) is not covered.
EXCLUSIONS AND LIMITATION OF LIABILITY— Water Tech Industries' liability for special, incidental, or
consequential damages is expressly disclaimed. In no event shall Water Tech Industries' liability exceed the
obligation of repairing or replacing any part that becomes defective under valid warranty coverage as described
above. Cosmetic damage that does not affect the process functionality of the equipment is not covered. Water Tech
Industries makes every effort to ensure that all illustrations and specifications are correct. However, these do not
imply a warranty that the product is merchantable or fit for a particular purpose, or that the product may not vary
from the illustrations and specifications.
The warranty contained herein is in lieu of all other warranties, expressed or inferred, including any implied
warranty of fitness for a particular purpose. Labor and transportation costs incidental to the delivery or
replacement of parts other than WTI factory repairs are not covered under this warranty. In the event of a
warranty replacement or repair, WTI will cover the cost of shipping the covered components. This warranty
expressly excludes any system which has been damaged by accident, fire, flood, Act of God, abuse, neglect,
freezing, excessive temperature (below 40° F or above 110° F.), inappropriate pressure (below 20 psi or above
100 psi), misuse, alteration of product in any way by owner or installing company, product identification
tampering, misapplication, installation or operation not consistent with WTI instructions and installation outside
of applicable plumbing codes and local regulations. Furthermore, this warranty expressly excludes any system
which has been out of service for more than 90 days continuously. Fulfillment of the warranty coverage by WTI
is contingent on proper execution of the procedures set forth in the WTI Warranty RGA policy. No person or
representative is authorized to assume for Water Tech Industries any liability on its behalf, or in its name, except
to refer the purchaser to this warranty. This warranty gives you specific legal rights, you may also have other
rights which vary from state to state.
WHAT MUST YOU DO TO OBTAIN WARRANTY SERVICE — The warranty registration (via phone
or website) must be completed within Ninety (90) days of installation to validate the Warranty.
Repair work should be performed by an authorized Water Tech Dealer. In the event that authorized dealer
service is not available, defective components may be returned directly to Water Tech Industries with prior
approval for warranty service. The registered owner must contact Water Tech for return instructions and return
the defective component, freight prepaid, with proof-of-purchase, within the applicable warranty period.
5/10 Year Warranty
WaterTech Industries Residential
Applicable to SORBMAX PRO®SERIES

Water Tech Industries (WTI) hereby warrants said equipment, only to the original purchaser at the original
installation location.
THIS WARRANTY PERIOD BEGINS at the time of initial installation and use. The warranty becomes valid
upon registration of the equipment.
GENERAL PARAMETERS — This warranty applies only to systems installed on USA OR CANADIAN
residential, municipal (city water) water supplies that meet US Environmental Protection Agency MCL
standards (or similar). SORBMAX PRO® products installed outside these parameters, will have the Standard Product
Warranty rather than the Limited Lifetime Warranty applied – see website watertech.com for details.
5-YEAR WARRANTY ON CONTROL VALVE — Your water system has been equipped with the highest quality
water conditioning control valve available. If, upon factory inspection, the control valve body or PC board is found to
be defective, WaterTech Industries will furnish repair or replacement (at WTI option) of the control valve body
and/or the PC board. All internal mechanical components are warranted from manufacturers defect for a period of
five (5) years from the date of installation.
3-YEAR WARRANTY ON MEDIA — The SORBMAX PRO® has been equipped with high quality water treatment
media (certified to NSF Standards). If, upon factory inspection within the warranty period, the media is found to be
defective, Water Tech Industries will furnish replacement media. The media warranty does not cover media
subjected to water containing greater than 2.0-ppm of free chlorine or chloramines or containing greater than
0.5-ppm total Iron and/or Manganese. Media which has been fouled by iron, manganese, organics (or other
contaminants not designed for treatment by the SORBMAX PRO®) is not covered.
EXCLUSIONS AND LIMITATION OF LIABILITY— Water Tech Industries' liability for special, incidental, or
consequential damages is expressly disclaimed. In no event shall Water Tech Industries' liability exceed the
obligation of repairing or replacing any part that becomes defective under valid warranty coverage as described
above. Cosmetic damage that does not affect the process functionality of the equipment is not covered. Water Tech
Industries makes every effort to ensure that all illustrations and specifications are correct. However, these do not
imply a warranty that the product is merchantable or fit for a particular purpose, or that the product may not vary
from the illustrations and specifications.
The warranty contained herein is in lieu of all other warranties, expressed or inferred, including any implied
warranty of fitness for a particular purpose. Labor and transportation costs incidental to the delivery or
replacement of parts other than WTI factory repairs are not covered under this warranty. In the event of a
warranty replacement or repair, WTI will cover the cost of shipping the covered components. This warranty
expressly excludes any system which has been damaged by accident, fire, flood, Act of God, abuse, neglect,
freezing, excessive temperature (below 40° F or above 110° F.), inappropriate pressure (below 20 psi or above
100 psi), misuse, alteration of product in any way by owner or installing company, product identification
tampering, misapplication, installation or operation not consistent with WTI instructions and installation outside
of applicable plumbing codes and local regulations. Furthermore, this warranty expressly excludes any system
which has been out of service for more than 90 days continuously. Fulfillment of the warranty coverage by WTI
is contingent on proper execution of the procedures set forth in the WTI Warranty RGA policy. No person or
representative is authorized to assume for Water Tech Industries any liability on its behalf, or in its name, except
to refer the purchaser to this warranty. This warranty gives you specific legal rights, you may also have other
rights which vary from state to state.
WHAT MUST YOU DO TO OBTAIN WARRANTY SERVICE — The warranty registration (via phone
or website) must be completed within Ninety (90) days of installation to validate the Warranty.
Repair work should be performed by an authorized Water Tech Dealer. In the event that authorized dealer
service is not available, defective components may be returned directly to Water Tech Industries with prior
approval for warranty service. The registered owner must contact Water Tech for return instructions and return
the defective component, freight prepaid, with proof-of-purchase, within the applicable warranty period.
PRODUCT MUST BE REGISTERED TO ACTIVATE WARRANTY
VISIT WWW.WATERTECH.COM OR CALL 469-521-1180
241 International Parkway #280
Flower Mound, TX 75022
Table of contents
Other WaterTech Water Filtration System manuals

WaterTech
WaterTech MC-1 User manual

WaterTech
WaterTech Volt Series User manual

WaterTech
WaterTech Infinity Protector INF-PRO1 User manual

WaterTech
WaterTech REIONATOR Classic Series Guide

WaterTech

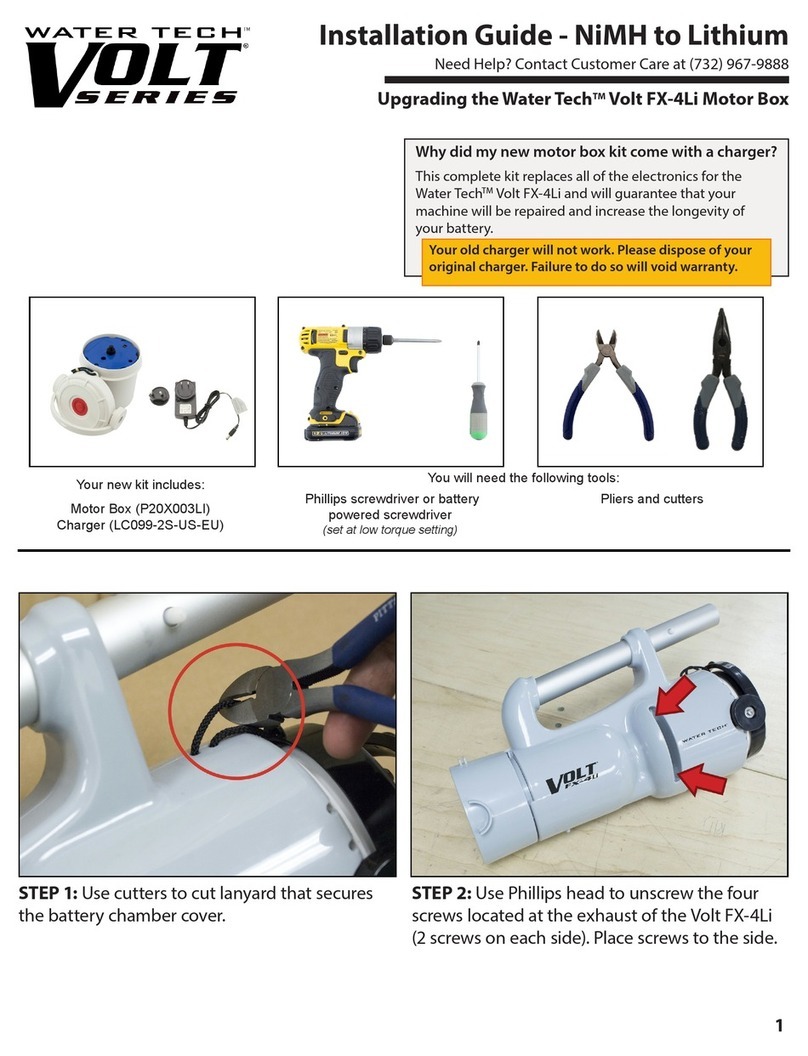

WaterTech VOLT FX-4Li User manual

WaterTech
WaterTech CONGO User manual

WaterTech
WaterTech INF-SEN1 User manual

WaterTech
WaterTech PURE PRO QC Setup guide

WaterTech

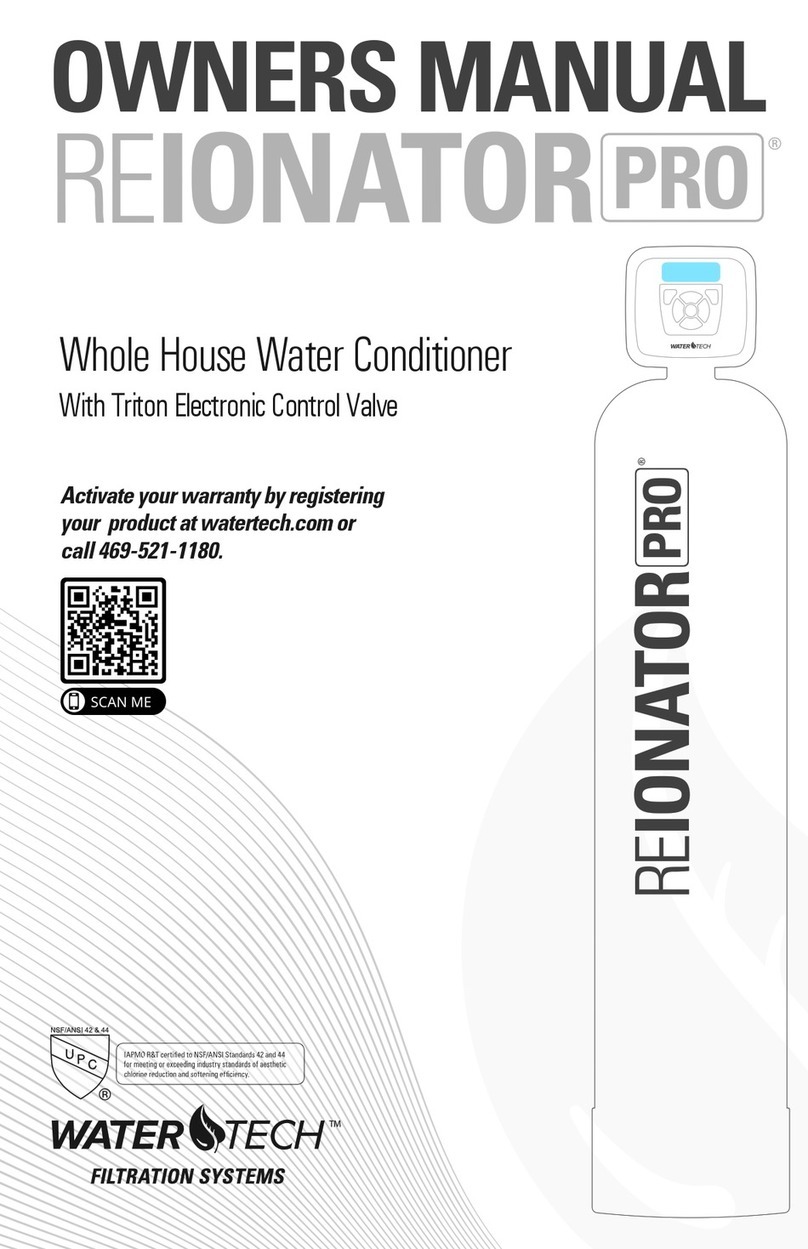

WaterTech Reionator Pro RX10 User manual

WaterTech

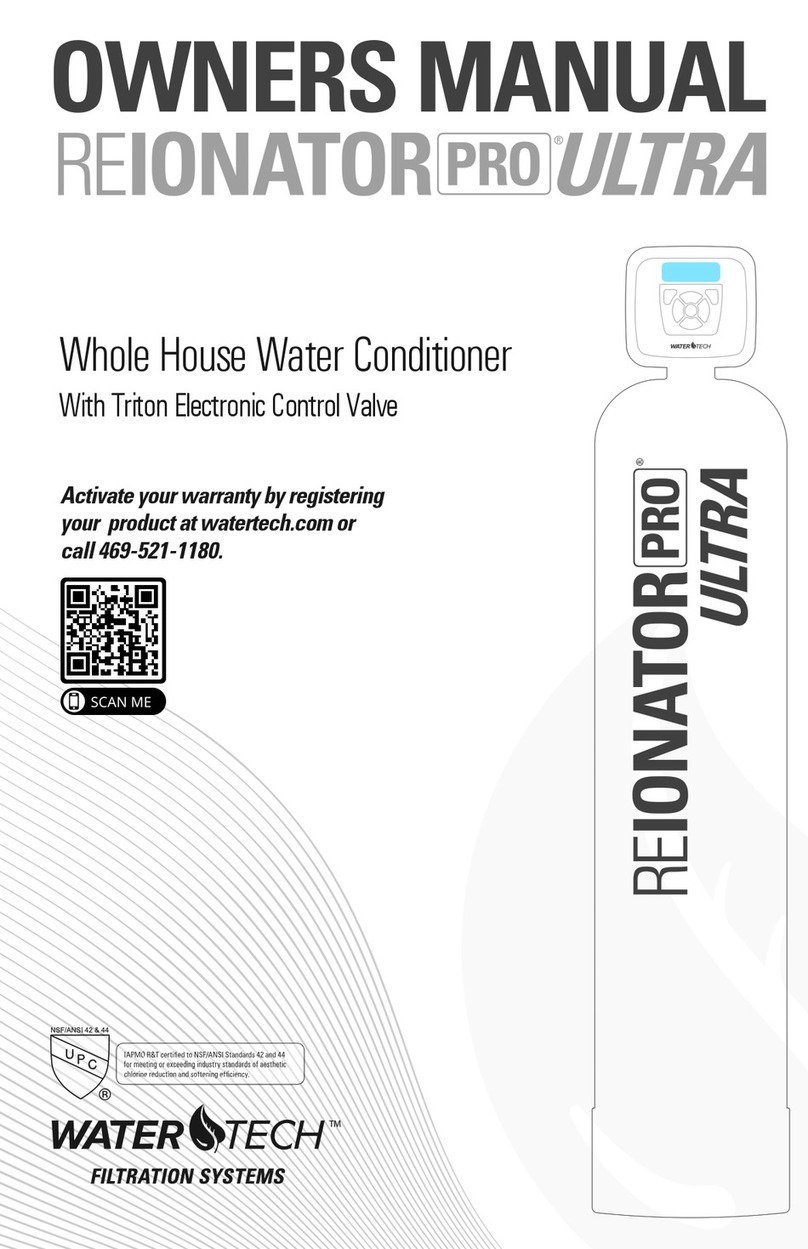

WaterTech Reionator Pro Ultra RXU13 User manual
