Watts Premier Filter Pure UF3 User manual

Page 1
System Tested and certified by WQA
against NSF/ANSI Standards 42 and 53
for the reduction of the claims specified
on the performance Data sheet.
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Save manual for future reference
3-Stage Filtration System
Model: Filter Pure UF3
WARNING
!
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product’s failure.
Keep this Manual for future reference.
WARNING
!
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
If you are unsure about installing your WATTS water filter, contact
a WATTS representative or consult a professional plumber.
Discard small parts remaining after the installation.
NOTICE
Failure to install the system correctly voids the warranty.
Handle all components of the system with care. Do not drop,
drag or turn components upside down.
Be sure the floor under the water filter system is clean, level
and strong enough to support the unit.
IMPORTANT
CAUTION
!
199494
Watts Premier
www.premierh2o.com
8716 W Ludlow Drive Suite #1
Peoria, AZ 85381
USA: Tel. [phone]
Canada: Tel. [phone]
Manual Edition: 04/20/2017

Page 2
Overview
Thank you for your purchase of a state of the art Water Treatment system.
Your new Filter-Pure UF3 system is equipped with a unique swivel valve in head push button assembly. This allows for
a simple and sanitary push button filter change that does not require you to turn off the water source to the filtration
system.
This three stage system is equipped with a sediment prefilter, a high quality carbon block filter and the Ultra Filtration
membrane.
The sediment filter reduces sand, silt, sediment and rust particles that may be in your water. The second stage is a
heavy duty lead and volatile organic chemical reducing carbon filter block. This specially formulated block is capable of
reducing lead as well as harmful Volatile Organic Chemicals (See performance data sheet for complete list of VOC’s).
It is estimated that VOC’s are present in one-fifth of the nation’s water supplies. These water contaminants can enter
ground water from a variety of sources including localized use of herbicides and pesticides, gasoline or oil spills, leaking
underground fuel tanks, septic system cleaners, and chemicals used in the dry-cleaning industry. The third stage is our
state of the art UF Hollow Fiber Technology membrane.
Ultra filtration is a membrane filtration process which uses standard home water pressure to push water through its
semi permeable membrane. Suspended particles and materials of high molecular weight are unable to pass through
the 0.1 Micron (Nominal) UF membrane, allowing only fresher cleaner water and dissolved minerals to pass through.
Historically this separation process has been used in large municipal water treatment plants and hospitals; however
through advances in technology it is now available to you as a powerful under sink water filtration plant in your home.
Ultra filtration is capable of running at low water pressures, does not require a separate water holding tank, does not
alter the pH of your water, and does not require electricity. Due to this the Filter Pure UF 3 provides a continuous supply
of premium quality drinking water directly to your tap
System Maintenance
Just because you can not taste it, does not mean that it is not there. Many contaminants in the drinking water are unde-
tectable to the taste. Additionally, over time if you do not replace the filter elements, other bad tastes and odors will be
apparent in your drinking water. This is why it is important to change your filters at the recommended intervals as indi-
cated in this system manual.
When replacing any of the filter elements, pay special attention to any cleaning instructions. Should you have any further
questions, please call our customer service/technical department at 800-752-5582.

Page 3
Table of Contents
Overview ......................................................................................................................................................................... 2
System Maintenance ....................................................................................................................................................... 2
Operational Parameters ................................................................................................................................................... 4
Contents of Under Counter System .................................................................................................................................. 4
Tools Recommended For Installation ............................................................................................................................... 4
Using Quick-Connect Fittings........................................................................................................................................... 5
System Diagram.............................................................................................................................................................. 5
Drill a Hole for the Faucet in a Porcelain Sink.................................................................................................................. 6
Or Punch a Hole for the Faucet in a Stainless Steel Sink ................................................................................................. 6
Faucet Installation ........................................................................................................................................................... 7
Adapt-a-Valve Installation................................................................................................................................................ 8
Green Tube Connection ................................................................................................................................................... 8
Mounting System Under Sink........................................................................................................................................... 9
Start up Instructions ........................................................................................................................................................ 9
Start up Instructions ...................................................................................................................................................... 10

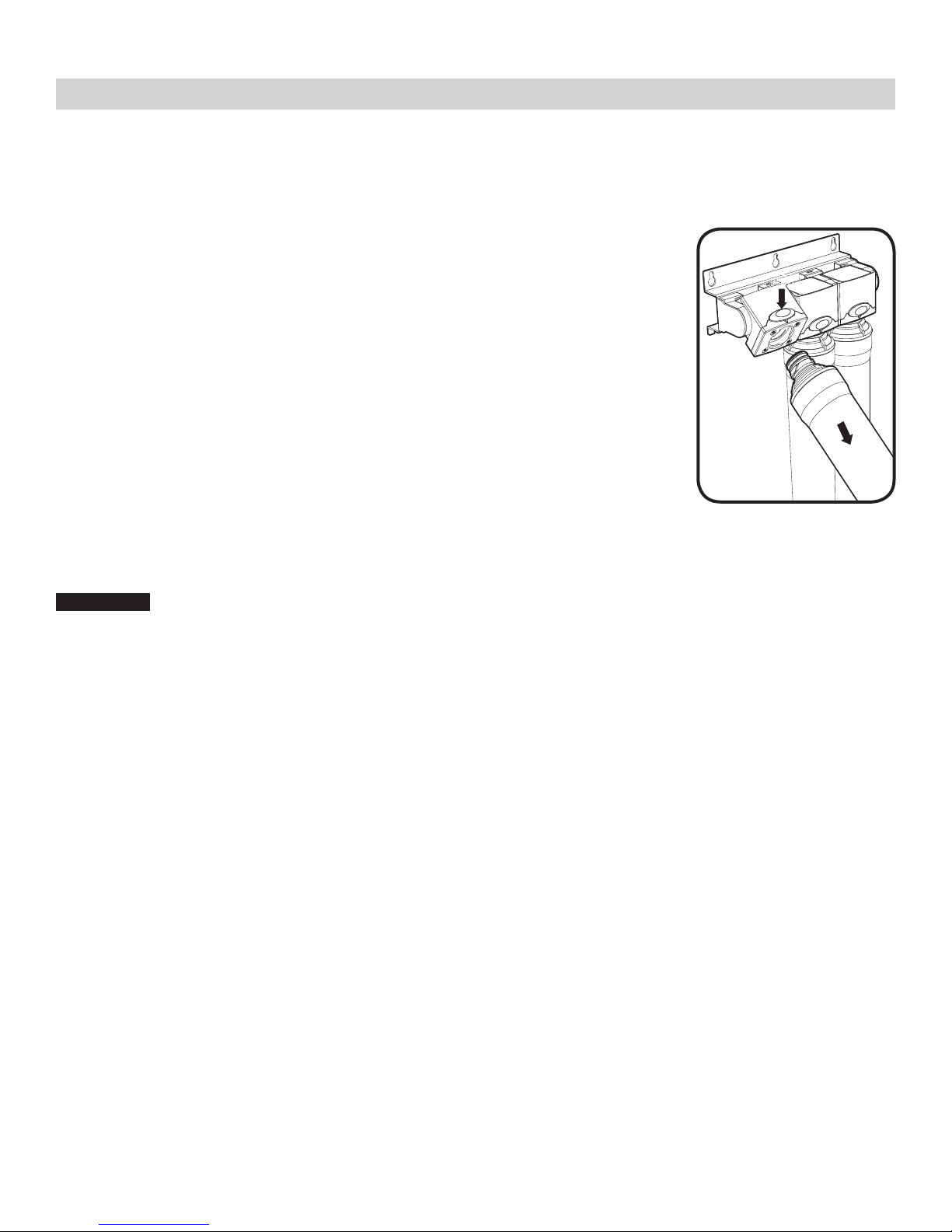

Changing the Filter Cartridges ....................................................................................................................................... 10
Performance Data Sheet................................................................................................................................................ 11
Performance Data Sheet................................................................................................................................................ 12
Service Record .............................................................................................................................................................. 14
Limited Warranty ........................................................................................................................................................... 15

Page 4
Operational Parameters
NOTICE Installation must comply with state and local plumbing regulations.
NOTICE Do not use with water that is microbiologically unsafe or of unknown quality, without adequate
disinfection before or after the system.
Maximum Minimum
Operating Temperature: 100°F (37.8°C) 40° F (4.4°C)
Operating Pressure: 85 psi (5.98 g/cm²) 20 psi (1.40 kg/cm²)
pH Parameters: 10 5
Flow Rate: 0.5 gpm @ 60 psi
Contents of Under Counter System
Please make sure all of the items listed below are contained in the box. If any of the items are missing please
contact Watts Premier at 800-752-5582 prior to installing.
UF3 Unit
Sediment, LVOC Carbon, and UF Membrane (Attached)
Parts Bag
Faucet Assembly
Blue & Green Hoses
Tools Recommended For Installation
Small knife
Variable speed drill
1/8” (3mm), 1/4” (6.4 mm) and 7/16” (11.0mm) drill bits
1/2” Diamond Tip Drill bit (for porcelain sinks)
1/2” hole punch (for stainless steel sinks)
1/2” and 5/8” open-end wrenches (or an adjustable wrench)
Phillips screwdriver

Page 5
Cut the tube square. It is essential that the outside diame-
ter be free of score marks and that burrs and sharp edges
be removed before inserting into fitting.
Make certain to push the tubing completely into the con-
nector until it comes into contact with the internal tubing
stop. The collet (gripper) has stainless steel teeth which
hold the tube firmly in position while the O-ring provides a
permanent leak proof seal.
Pull on the tube to check that it is secure. It is a good
practice to test the system prior to leaving the site and/or
before use.
To disconnect, ensure the system is depressurized before
removing the tube. Push in collet squarely against the face
of the fitting. With the collet held in this position, the tube
can be removed. The fitting can then be reused.
Cutting Connecting
Disconnecting
Using Quick-Connect Fittings
System Diagram
3
G
D E F
A
B
C
Parts List
Item Part# Description
A 560080 Adapt-A-Valve
B 142000 Green Tube
C 142001 Blue Tube
D 105311 Sediment Filter
E 105371 LVOC Carbon Filter
F 105321 UF Membrane
G 116113 Brushed Nickel Faucet

Page 6
Drill a Hole for the Faucet in a Porcelain Sink
NOTICE For Marble Counter-tops, we recommend contacting a qualified contractor for drilling a hole in a
marble counter-top.
Note: Most sinks are predrilled with 1½” or 1¼” diameter hole that you can use for your Drinking Water faucet.
(If you are already using it for a sprayer or soap dispenser, see Step 1).
NOTICE Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when
drilling. Watts accepts no responsibility for damage resulting from the installation of faucet.
Diamond tip bit recommended.
Step 1: Determine desired location for the faucet on your sink and place a piece
of masking tape over where the hole is to be drilled. Mark the center of
the hole on the tape.
Step 2 : Using a variable speed drill set on the slowest speed, drill a 1/8“ pilot hole
through both porcelain and metal casing of sink at the marked center of
the desired location. Use lubricating oil or liquid soap to keep the drill bit
cool (If drill bit gets hot it may cause the porcelain to crack or chip).
Step 3: Using a 1/2” diamond tip hole saw, proceed to drill the large hole. Keep
drill speed on the slowest speed and use lubricating oil or liquid soap to
keep the hole saw cool during cutting.
Step 4: After drilling, remove all sharp edges and make sure the surroundings of
the sink are cooled before mounting the faucet.
Or Punch a Hole for the Faucet in a Stainless Steel Sink
NOTICE If mounting faucet to a Stainless Steel Sink you will need a 1⁄2” Hole Punch. The faucet opening
should be centered between the back splash and the edge of the sink, ideally on the same side
as the vertical drain pipe.
Step 1: Drill a ¼” pilot hole. Use a 1⁄2” Hole Punch and an adjustable wrench to
punch the hole in the sink.
Step 2: The Faucet can now be installed

Page 7
Faucet Installation
Gather and identify the faucet pieces
Step 5: Place the escutcheon plate and the black rubber washer on the threaded stem. (Parts found in faucet
parts bag).
Step 6: Insert the threaded stem through the hole in sink and let it rest on the sink top.
Step 7: From the underside of the sink, slide on the black locating washer, lock washer, and nut onto the
threaded stem. Check the orientation of faucet then tighten the nut securely
Step 8: Locate the 1/4” blue tube. Grab the following parts from the faucet parts bag and place onto the end of
the straight end of the tube: the brass nut, plastic sleeve (small tapered end of sleeve must point to the
end of tube), and then insert the plastic insert all the way into the end of the tube.
Step 9: Push the assembled tube into the threaded stem until it stops. Slide the compression nut and plastic
sleeve until you can thread the nut onto the faucet. Use a wrench to securely tighten the compression
nut while continuing to push the tube into the faucet.
Step 10: Push the other end of the blue tube with the 90° bend into the back of the filter module (behind the car-
bon filter)
Parts List for Faucet
Item Description
AEscutcheon Plate
BBlack Rubber Washer
CBlack Locating Washer (use where A 1/2” hole
is available, reverse when mounting on stain-
less steel or when using drilled hole)
DLock Washer
E Nut
F Insert
GPlastic Sleeve
H1/4” Compression Nut
A
C
E
D
G
H
B
F

Page 8
Step 11: Turn off the cold water supply to the faucet by turning the angle stop valve completely off.
Step 12: Open cold water sink faucet to relieve pressure.
Step 13: Choosing the configuration that fits your plumbing, attach the Adapt-A-Valve™ as illustrated in the
diagrams above.
NOTICE Make sure that the black collet is installed in to the 1/4” opening on the Adapt-a-valve. Don’t
forget to install the white compression washer with the 3/8” configuration. The Brass Adapters
do not need to be tightened with a wrench, only finger tight.
Green Tube Connection
Step 14: Location the 1/4” Green tube in the parts bag. Insert the open end of
the tube with the 90° bend into the open 1/4” quick-connect fitting
located behind the Sediment filter. Make sure to push the tube in all
the way to the tube stop.
Step 15: Take the other end of the 1/4” Green tube and insert into the 1/4” quick
connect fitting on the plastic Adapt-A-Valve. Make sure to push the tube
in all the way to the tube stop.
D
B
Line from
Cold Water
Supply
Faucet
Connection
Faucet Line
Cold
Water
Supply
C
B
A
D
B
Line from
Cold Water
Supply
Faucet
Connection
Faucet Line
Cold
Water
Supply
C
B
A

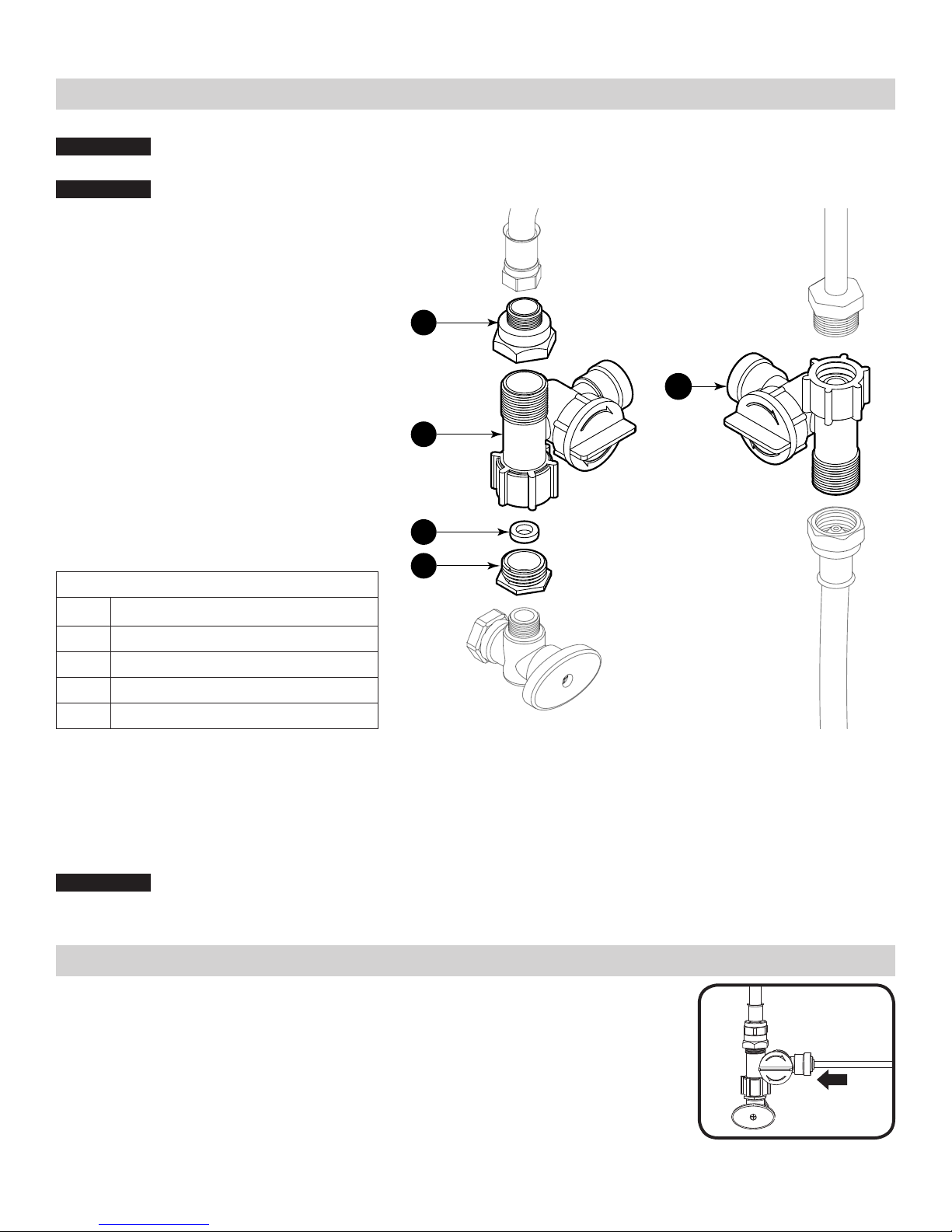

Adapt-a-Valve Installation
NOTICE Water supply line to the system must be from the cold water supply line only. Hot water will
severely damage your system.
NOTICE Do not use Teflon tape with the Adapt-A-Valve™.
For 1/2” Configuration
Parts List for Adapt-A-Valve
Item Description
ABrass Adapter with black washer
BPlastic Adapt-A-Valve & black collet
CWhite Rubber Washer
DBrass Adapter with no washer
For 3/8” Configuration

Page 9
Mounting System Under Sink
Step 16: Locate an area best fitted for mounting the system. Allow approximately
2” (5cm) clearance between the bottom of the filter housing and the
floor of the sink cabinet.
Step 16: Using the mounting holes on the bracket, mark the location for the
mounting screws on the cabinet wall under the sink.
Step 16: Screw the (2) self tapping screws into the wall at the marked location.
Hang the module on the screws using the mounting holes in the bracket.
Start up Instructions
Congratulations! You have completed the installation of your new water filtration
system. Please Follow the Startup Instructions.
Step 1: Turn on water supply at angle stop and open the Adapt-a-Valve. Turn
faucet handle to the open position to start the flow of water through the
unit. Run 3 gallons of water through the unit in order to flush out the
normal black carbon fines (it will “sputter” until the air is purged out)
from the unit. Initially, the water may appear cloudy which is due to tiny
air bubbles and it will clear up shortly. Close the faucet when finished.
Step 2: Check for leaks. If you have any leaks, shut off the water supply to your
system, tighten any fittings / housings and restart unit.
NOTICE Check frequently over the next 24 hours to ensure no leaks are present
OFF
ON

Page 10
Changing the Filter Cartridges
Your system is equipped with valved heads which will automatically turn off the water supply to each filter when the fil-
ter is released, thus you do not need to turn off the incoming water supply at the Adapt-a-Valve. The faucet must be off
when filters are replaced. To make the removal of the filter cartridges easier, the heads & cartridges may be swiveled
up to 90 degrees.
6 Month System Maintenance
Replace: Sediment (PN# 105311)
LVOC Carbon Block (PN #105371)
Annual System Maintenance
Replace: Sediment (PN# 105311)
LVOC Carbon Block (PN #105371)
UF Membrane (PN# 105321)
Step 1: Place a towel under the filter module to catch any excess water that may
drip out from the filters during the changeover.
Step 2: To remove a filter cartridge: Push & hold the button on the valved head
above the filter. Pull cartridge downward (from the head) to remove.
Release button and discard old filter.
Step 3: To install a filter cartridge: Remove the seal cap and insert the cartridge into the valved head until you
hear an audible “click” (the button does not need to be pressed to install new filters).
NOTICE If the new filter cartridge won’t snap in easily or pops off it may be due to high incoming water pres-
sure. Relieve pressure to the system by turning off the water supply using the adapt-a-valve and then
install the cartridge. Once the cartridge is seated, turn the water supply back on to your unit.
PULL
PRESS

Page 11
Substance Percent
Reduction
Inuent Challenge
Concentration
(mg/L unless noted)
Maximum Permissible
Product Water
Concentration
ALACHLOR* >98% 0.05 0.001
ATRAZINE* >97% 0.1 0.003
BENZENE* >99% 0.081 0.001
BROMODICHLOROMETHANE (TTHM)* >99.8% 0.300 +/- 0.30 0.015
BROMOFORM (TTHM)* >99.8% 0.300 +/- 0.30 0.015
CARBOFURAN (Furadan)* >99% 0.19 0.001
CARBON TETRACHLORIDE* 98% 0.078 0.0018
CHLOROBENZENE (Monochlorobenzene)* >99% 0.077 0.001
CHLOROFORM (TTHM)* >99.8% 0.300 +/- 0.30 0.015
CRYPTOSPORIDIUM (see Cyst) 99.99% minimum 50,000/mL 99.95%
CYST 99.99% minimum 50,000/mL 99.95%
2, 4-D* 98% 0.110 0.0017
DBCP (see Dibromochloropropane)* >99% 0.052 0.00002
1,2-DCA (see 1,2-DICHLOROETHANE)* 95% 0.088 0.0048
1,1-DCE (see 1,1-DICHLOROETHYLENE)* >99% 0.083 0.001
DIBROMOCHLOROMETHANE
(TTHM;Chlorodibromomethane)* >99.8% 0.300 +/- 0.30 0.015
DIBROMOCHLOROPROPANE (DBCP)* >99% 0.052 0.00002
o-DICHLOROBENZENE (1,2 Dichlorobenzene)* >99% 0.08 0.001
p-DICHLOROBENZENE (para-Dichlorobenzene)* >98% 0.04 0.001
1,2-DICHLOROETHANE (1,2-DCA)* 95% 0.088 0.0048
1,1-DICHLOROETHYLENE (1,1-DCE)* >99% 0.083 0.001
CIS-1,2-DICHLOROETHYLENE* >99% 0.17 0.0005
TRANS-1,2- DICHLOROETHYLENE* >99% 0.086 0.001
1,2-DICHLOROPROPANE (Propylene Dichloride)* >99% 0.08 0.001
CIS-1,3- DICHLOROPROPYLENE* >99% 0.079 0.001
Performance Data Sheet
Watts Premier
8716 W Ludlow Drive Suite #1
Peoria, AZ 8538
Model: Filter Pure UF3
GENERAL USE CONDITIONS:
1. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after
the system. Systems certied for cyst reduction may be used on disinfected waters that may contain lterable cysts.
2: Operating Temperature: Maximum 100° F (40.5°C) Minimum 40°F (4.4°C)
3: Operating Water Pressure: Maximum 85 psi (5.98 kg/cm2) Minimum 20 psi
4: Maximum ow Rate: 0.50 gpm (1.89 lpm)
5: Rated Capacity: 150 Gallons (570 liters)
This system has been tested according to NSF/ANSI Standard 42 and 53 for the reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or
equal to the permissible limit for water leaving the system, as specied in NSF/ANSI 42 and 53. Testing performed under
standard laboratory conditions, actual performance may vary.
RECOMMENDED REPLACEMENT PARTS AND CHANGE INTERVAL:
Note: Depending on incoming feed water conditions replacement time frame may vary.
Description Part Number Change Time Frame
Stage 1: sediment: 105311 6 Months
Stage 2: Lead + VOC Block 105371 6 Months
Stage 3: UF Membrane 105321 12 Months

Page 12
Substance Percent
Reduction
Inuent Challenge
Concentration
(mg/L unless noted)
Maximum Permissible
Product Water
Concentration
DINOSES 99% 0.17 0.0002
EDB (see ETHYLENE DIBROMIDE)* >99% 0.044 0.00002
ENDRIMN 99% 0.053 0.0059
ENTAMOEBA (See CYST) 99.99% minimum 50,000/mL 99.95%
ETHYLBENZENE* >99% 0.088 0.001
ETHYLENE DIBROMIDE (EDB)* >99% 0.044 0.00002
FURADAN (see CARBOFURAN)* >99% 0.19 0.001
HALOACETONITRILES (HAN)*
BROMOCHLOROACETONITRILE 98% 0.022 0.0005
DIBROMOACETONITRILE 98% 0.024 0.0006
DICHLOROACETONITRILE 98% 0.0096 0.0002
TRICHLOROACETONITRILE 98% 0.015 0.0003
HALOKETONES (HK):*
1,1-DICHLORO-2-PROPANONE 99% 0.0072 0.0001
1,1,1-TRICHLORO-2-PROPANONE 96% 0.0082 0.0003
GIARDIA LAMBLIA (see Cyst) 99.99% minimum 50,000/mL 99.95%
HEPTACHLOR* >99% 0.25 0.00001
HEPTACHLOR EPOXIDE* 98% 0.0107 0.0002
HEXACHLOROBUTADIENE
(Perchlorobutadiene)* >98% 0.044 0.001
HEXACHLOROCYCLOPENTADIENE* >99% 0.060 0.000002
LEAD pH 6.5 96% 0.15 +/- 10% 0.010
LEAD pH 8.5 99% 0.15 +/- 10% 0.010
LINDANE* >99% 0.055 0.00001
METHOXYCHLOR* >99% 0.050 0.0001
METHYLBENZENE (see TOLUENE)* >99% 0.078 0.001
MONOCHLOROBENZENE
(see CHLOROBENZENE)* >99% 0.077 0.001
PCE (see TETRACHLOROETHYLENE)* >99% 0.081 0.001
PENTACHLOROPHENOL* >99% 0.096 0.001
PERCHLOROBUTADIENE
(see HEXACHLOROBUTADIENE)* >98% 0.044 0.001
PROPYLENE DICHLORIDE
(see 1,2 -DICHLOROPROPANE)* >99% 0.080 0.001
SIMAZINE* >97% 0.120 0.004
SILVEX (see 2,4,5-TP)* 99% 0.270 0.0016
STYRENE (Vinylbenzene)* >99% 0.15 0.0005
1,1,1-TCA
(see 1,1,1 - TRICHLOROETHANE)* 95% 0.084 0.0046
TCE (see TRICHLOROETHYLENE)* >99% 0.180 0.0010
1,1,2,2- TETRACHLOROETHANE* >99% 0.081 0.001
TETRACHLOROETHYLENE* >99% 0.081 0.001
TOLUENE (Methylbenzene)* >99% 0.078 0.001
TOXOPLASMA (See CYST) minimum 50,000/mL 99.95%
2,4,5-TP (Silvex)* 99% 0.270 0.0016
TRIBROMOACETIC ACID* 0.042 0.001
1,2,4 TRICHLOROBENZENE (Unsymtrichlorobenzene)* >99% 0.160 0.0005
1,1,1-TRICHLOROETHANE (1,1,1-TCA)* 95% 0.084 0.0046
1,1,2-TRICHLOROETHANE* >99% 0.150 0.0005
TRICHLOROETHYLENE (TCE)* >99% 0.180 0.0010
TRIHALOMETHANES (TTHM) (Chloroform; Bromoform;
Bromodichloromethane; Dibromochloromethane) >99.8% 0.300 +/- 0.30 0.015
Unsym-Trichlorobenzene (see 1,2,4-
TRICHLOROBENZENE)* >99% 0.160 0.0005
Vinylbenzene (see STYRENE)* >99% 0.150 0.0005
XYLENES (TOTAL)* >99% 0.070 0.001
Maximum Permissible
Contaminant Inuent Challenge Concentration Percent Reduction Achieved Product Water Concentration
Aesthetic Chlorine Taste & Odor 2.0 mg/L + 10% 97% > = 50%

Page 13
Service Record
Date of Purchase: _______________ Model Number: _______________ Serial Number: _______________
Date of Install: _________________ Installed by: __________________
Date
Sediment
Filter
(6 Months)
Carbon
Block
(6 Months)
UF
Membrane
(12 Months) Date:
Sediment
Filter
(6 Months)
Carbon
Block
(6 Months)
UF
Membrane
(12 Months)

Page 14
REV 1716
Limited Warranty
WHAT YOUR WARRANTY COVERS:
If any part of your UF3 is defective in workmanship (excluding replaceable lters and membranes), return unit after obtaining a return authorization
(see below), less tank, within 1 year of original retail purchase, Watts Premier will repair or, at Watts Premier’s option, replace the system at no charge.
HOW TO OBTAIN WARRANTY SERVICE:
For warranty service, call 1-800-752-5582 for documentation and a return authorization number. Once the return authorization number has been
created, ship your lter system to our factory, freight and insurance prepaid, with proof of date of original purchase. Include a note stating the
problem experienced and include your name, address and your return authorization number. No returns will be accepted without the proper return
authorization number. Watts Premier will repair it, or replace it, and ship it back to you prepaid.
WHAT THIS WARRANTY DOES NOT COVER:
This warranty does not cover defects resulting from improper installation, (contrary to Watts Premier’s printed instructions), from abuse, misuse,
misapplication, improper maintenance, neglect, alteration, accidents, casualties, re, ood, freezing, environmental factors, water pressure spikes
or other such acts of God.
This warranty will be void if defects occur due to failure to observe the following conditions:
1. The Filter Pure UF3 System must be hooked up to a potable municipal or well cold water supply.
2. The pH of the water must not be lower than 5 or higher than 10.
3. The incoming water pressure must be between 20 and 85 pounds per square inch.
4. Incoming water to the Counter Top cannot exceed 100 degrees F (38 degrees C.)
This warranty does not cover any equipment that is relocated from the site of its original installation. This warranty does not cover any charges incurred
due to professional installation. This warranty does not cover any equipment that is installed or used outside the United States of America and Canada.
LIMITATIONS AND EXCLUSIONS:
WATTS PREMIER WILL NOT BE RESPONSIBLE FOR ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. WATTS PREMIER WILL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING TRAVEL
EXPENSE, TELEPHONE CHARGES, LOSS OF REVENUE, LOSS OF TIME, INCONVENIENCE, LOSS OF USE OF THE EQUIPMENT, AND DAMAGE CAUSED
BY THIS EQUIPMENT AND ITS FAILURE TO FUNCTION PROPERLY. THIS WARRANTY SETS FORTH ALL OF WATTS PREMIER’S RESPONSIBILITIES
REGARDING THIS EQUIPMENT.
OTHER CONDITIONS:
If Watts Premier chooses to replace the equipment, may replace it with reconditioned equipment. Parts used in repairing or replacing the equipment
will be warranted for 90 days from the date the equipment is returned to you or for the remainder of the original warranty period, whichever is longer.
This warranty is not assignable or transferable.
YOUR RIGHTS UNDER STATE LAW:
Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply. This warranty gives you specic legal rights, and you may have other
legal rights which vary from state to state.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information: www.watts.com/prop65
