wattstopper EW-205-24 User manual

Santa Clara, CA 95050
800.879.8585
Installation Instructions
U.S.Patents: 4,787,722; 5,640,113
EW-205-24
Low Voltage Outdoor Motion Sensor
SPECIFICATIONS
Voltage:
EW-205-24 ............................................................................+24VDC
Current Consumption ................................................................ 7mA
Power Supply ....................... WattStopper Power Pack or DM-105 module
B Series power packs supply power for up to 11 sensors.
BZ Series power packs supply power for up to 15 sensors.
DM-105 HID Bi-Level control module supplies power for up to two
sensors.
DM-115-WP Outdoor HID Bi-Level control module supplies power
for up to two sensors.
Coverage ............................................................................................. 270°
Time Delay Adjustment....................................................... 12sec.–16min.
Light Level Adjustment......................................................... 0.5FC–200FC
Operating Temperature................................... -40° to 130°F (-40° to 55°C)
Mountable Locations...............................Pole, wall, ceiling or under eaves
IEC-IP-55 Raintight Rated

1
Box Contents
• One (1) EW-205-24
• Accessory bag:
Cover plate for 4" round outdoor junction box, with two cover plate attachment hole plugs,
cover plate gasket, cover plate screws & screw covers (4 ea), lens mask, wirenuts(3)
• Installation instructions
Contents
DESCRIPTION ..................................................................2
COVERAGE PATTERNS .........................................................2
MOTION SENSOR PLACEMENT ..............................................3
Mounting Options ...........................................................3
Mounting and Sensor Positioning Guidelines ....................................4
WIRING AND INSTALLATION .....................................................5
Sensor Wire Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting to a Power Pack ..................................................6
Connecting to a DM-105 HID Dimming Module ...................................6
Connecting to a DM-115-WP HID Dimming Module .......................... 6
TESTING AFTER INSTALLATION ..................................................7
DIAL ADJUSTMENTS ............................................................7
Adjust Time Delay ...........................................................7
Adjust Light Level ...........................................................7
Making Changes ............................................................8
SECURITY OVERRIDE ............................................................9
TROUBLESHOOTING .............................................................9
ORDERING INFORMATION .......................................................10
WARRANTY INFORMATION ................................................10
CAUTION
READ ALL OF THE INSTALLATION INSTRUCTIONS
BEFORE INSTALLING THIS PRODUCT.
THIS UNIT MAY BE USED IN APPLICATIONS WITH DEVICES THAT USE HIGH VOLTAGE.
IT SHOULD ONLY BE INSTALLED BY QUALIFIED PERSONS THAT ARE THOROUGHLY
FAMILIAR WITH PROPER SAFETY PROCEDURES AND
ELECTRICAL AND BUILDING CODES FOR THE INSTALLATION LOCATION.
WARNING: TO AVOID FIRE, SHOCK, ELECTROCUTION, OR DEATHTURN OFF POWER
AT THE CIRCUIT BREAKER OR FUSE BOX AND TEST TO
ENSURE POWER IS OFF BEFORE WIRING.
Check Our Web Site For FAQs: www.wattstopper.com

266
90
9.5ft
(3m)
25ft
(8m)
52.5ft
(16m)
8ft
(2.4m)
9.5ft
(3m)
25ft
(8m)
52.5ft
(16m)
8ft
(2.4m)
SIDE
VIEW
TOP
VIEW
EW-205-24
270° coverage
Coverage adjustment:
The front of the sensor housing can
be moved up and down for easy
coverage adjustment.
Call 1(800) 879-8585 or 1(972)578-1699 For Technical Support 2
Masking:
Opaque adhesive tape is supplied so
that sections of the sensor’s lens can
be masked to restrict coverage in
unwanted areas.
COVERAGE PATTERN
Coverage is shown as tested in a controlled setting with the unit mounted at 8ft at a 10° tilt from
the horizontal surface. The actual outside coverage pattern may vary substantially at the specific
installation site and is dependent on several factors including weather conditions, external light
sources, mounting height and sensor tilt.
DESCRIPTION
The EW-205 sensor is an outdoor passive infrared (PIR)
motion sensor rated for wet conditions. It installs
onto a standard round outdoor junction box using
the supplied junction box cover plate.
The EW-205 sensor uses advanced PIR
technology and a superior lens design to
detect motion. PIR sensing is passive, and
detects the difference between infrared
energy in motion and the background
space.
The EW-205 sensor provides a +24VDC
control output upon motion detection.
This output can be connected to a WattStopper
power pack for on/off lighting control, or to a
WattStopper DM-105 or DM-115-WP Outdoor HID Bi-Level control
module for high/low control.
Cover
plate
Sensor
housing
Sensor
lens
Attachment holes
with plugs
Mounting
post

MOTION SENSOR PLACEMENT
Careful consideration must be given to sensor placement. PIR sensors detect the difference
between infrared energy in motion and the background space. To be detected, a person or vehicle
must be within the sensor’s coverage pattern and have an unobstructed view of the sensor.
Mounting Options
• Install onto a standard 4" round outdoor junction box.
• Mount to a flat, stable, vibration-free surface.
• Mount vertically or horizontally, usually to a wall, ceiling or under an eave.
Vertically mounted
The sensor comes assembled and ready for vertical
cover plate mounting, as shown in the illustration on
the right.
Horizontally mounted
For horizontal mounting, such as under eaves, rotate the sensor housing as shown in the
diagrams below. Make sure that the gasket is seated properly.
Check Our Web Site For FAQs: www.wattstopper.com
3
Remove the two
screws at the back of
the sensor.
Rotate the sensor
housing 180°.
Replace and
tighten the
screws.
1
2
3
Attach mounting post to the cover plate:
Make sure that the O-ring is on the threaded end of the mounting post before installing.
1 2 3
O-ring
Lightly screw the mounting
post into the cover plate by
rotating the sensor.
Adjust the sensor to
the desired angle, then
tighten the locking ring.
Locking ring and collar must
be securely seated against the
cover plate locking ring.

Mounting and Sensor Positioning Guidelines
4
More than
20' from
ground level
Less than 5'
between HID
fixture and sensor
Mount to flat, stable, vibration-free surface Avoid runoff – heltered locations preferred
Aim motion sensor downward to limit sensing
Mount motion sensor level
Do not mount by vents or above lamps
Install sensor no higher than 20’ from ground
Ideal mounting height
is 10' to 15' from
ground level
At least 5'
between HID
fixture and sensor
YES
YES
YES
YES
NO
NO
NO
NO
NO NO
NO
Call 800.879.8585 or 972.578.1699 For Technical Support
YES

WIRING AND INSTALLATION
The EW-205-24 can be powered from either a WattStopper Power Pack, or a WattStopper HID
Dimming Module.
• Each WattStopper B series power pack can supply power for up to 11 sensors.
• Each WattStopper BZ series power pack can supply power for up to 15 sensors.
• Each DM-105 or DM-115-WP module can supply power for up to 2 sensors.
When power is initially applied to the sensor, or following restoration from a power failure, the
lights will turn on. If no motion is detected by the sensor, the lights will remain on/high for for
approximately one minute and then turn off/low. (See Security Override, page 9.)
Sensor Wire Functions
The EW-205-24 has 3 wire connections to the power pack or DM-105 or DM-115-WP module.
See the descriptions and wiring diagrams that follow for connections to each specific power
source.
RED: +24VDC input to sensor
BLACK: Common
BLUE: +24VDC control output from sensor
CAUTION
TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING SENSOR.
SENSOR MUST BE INSTALLED BY QUALIFIED PERSONNEL ONLY.
4" round
outdoor
junction box
Cover plate
To Power Pack or HID
Dimming Module
5
RED
BLACK
BLUE
Attach cover plate assembly and gasket to
the junction box with 4 screws and screw
covers (supplied)
IMPORTANT! Make sure that the gasket
seats properly when attaching the cover
plate
IMPORTANT! Thread wires through
gasket before connecting
NOTE: Weather proof caulking may be required around
junction box and cover plate to provide a weatherproof seal in
some installations.
Check Our Web Site For FAQs: www.wattstopper.com

WIRING AND INSTALLATION CONTINUED
Connecting to a Power
Pack
Wire the sensor to a WattStopper
power pack as shown:
• RED wire from sensor to
RED wire on power pack.
• BLACK (common) wire from
sensor to BLACK wire on
power pack.
• BLUE wire from sensor to
BLUE wire on power pack.
6
Call 800.879.8585 or 972.578.1699 For Technical Support
EW Sensor
Lighting
Load
White (Neutral)
Red (Load)
Red (Line)
White
Black
Hot
N
Power
Pack
Red Black Blue
Switch
(BLU)Control Output 24VDC
(BLK)Control Return
(RED)+24VDC
Connecting to a DM-115-WP HID
Dimming Module
Wire the sensor to a WattStopper
DM-115-WP as shown below:
• RED wire from sensor to RED
wire from the DM-115-WP
cable.
• BLACK (common) wire from
sensor to BLACK wire from
the DM-115-WP cable.
• BLUE wire from sensor to
WHITE wire from the DM-115-
WP cable.
Control Output from Sensor (Blue)
Common (Black)
+24 VDC to Sensor (Red)
DM-105-WP
EW-105-24 or EW-205-24
Motion Sensor
Ballast
Red Black White
Connecting to a DM-105 HID Dimming Module
Wire the sensor to a WattStopper DM-105 as shown below:
• RED wire from sensor to terminal 1 (+24VDC Output) on the
DM-105.
• BLACK wire (common) from sensor to terminal 2 on the
DM-105.
• BLUE wire from sensor terminal 3 (Control In) on the DM-105.
Control Output from Sensor (Blue)
Common (Black)
+24 VDC to Sensor (Red)
EW-105-24 or EW-205-24
Motion Sensor
1
5
4
3
2
CONTROL OUTPUT
CONTROL IN #2
+24VDC OUTPUT
RETURN (COMMON)
CONTROL IN #1
5
1
2
3
4
DM-105
Terminals

7
TESTING AFTER INSTALLATION
To facilitate coverage testing, the factory setting for Time Delay is 12 seconds, and the Light
Level is at Maximum.
If you want to test a sensor for intended detection or operation:
1. Make sure that the time delay is set to 12 seconds and the light level is set to maximum
(clockwise to the sun icon). The dials are located on the bottom of the sensor.
2. Adjust sensor to the desired position.
3. Ensure that power has been restored to the sensor.
4. Move into the location to be tested; lights should turn on (or switch to high if connected to
a DM-105 or DM-115-WP HID Bi-Level control module). Stand still. In about 12 seconds
the lights should turn off (or switch to low if connected to a DM-105 or DM-115-WP
HID Bi-Level control module). Move or walk and the lights should turn on/high. Repeat
this process to test other locations. Make sensor coverage adjustments as needed (see
Coverage adjustment and Masking, page 2).
Note: When power is restored to the sensor, the lights will turn on/high for approximately
one minute. (See Security Override, page 9.)
Note: If the lights do not turn on/high with movement in the area after they have
turned off/low in step 4, the level of daylight may be too high and the sensor’s light level
adjustment is keeping the sensor inactive. Wait until daylight levels have reduced before
testing again.
5. See Dial Adjustments, below, for guidelines to adjust the time delay and light level to the
desired settings for operation.
DIAL ADJUSTMENTS

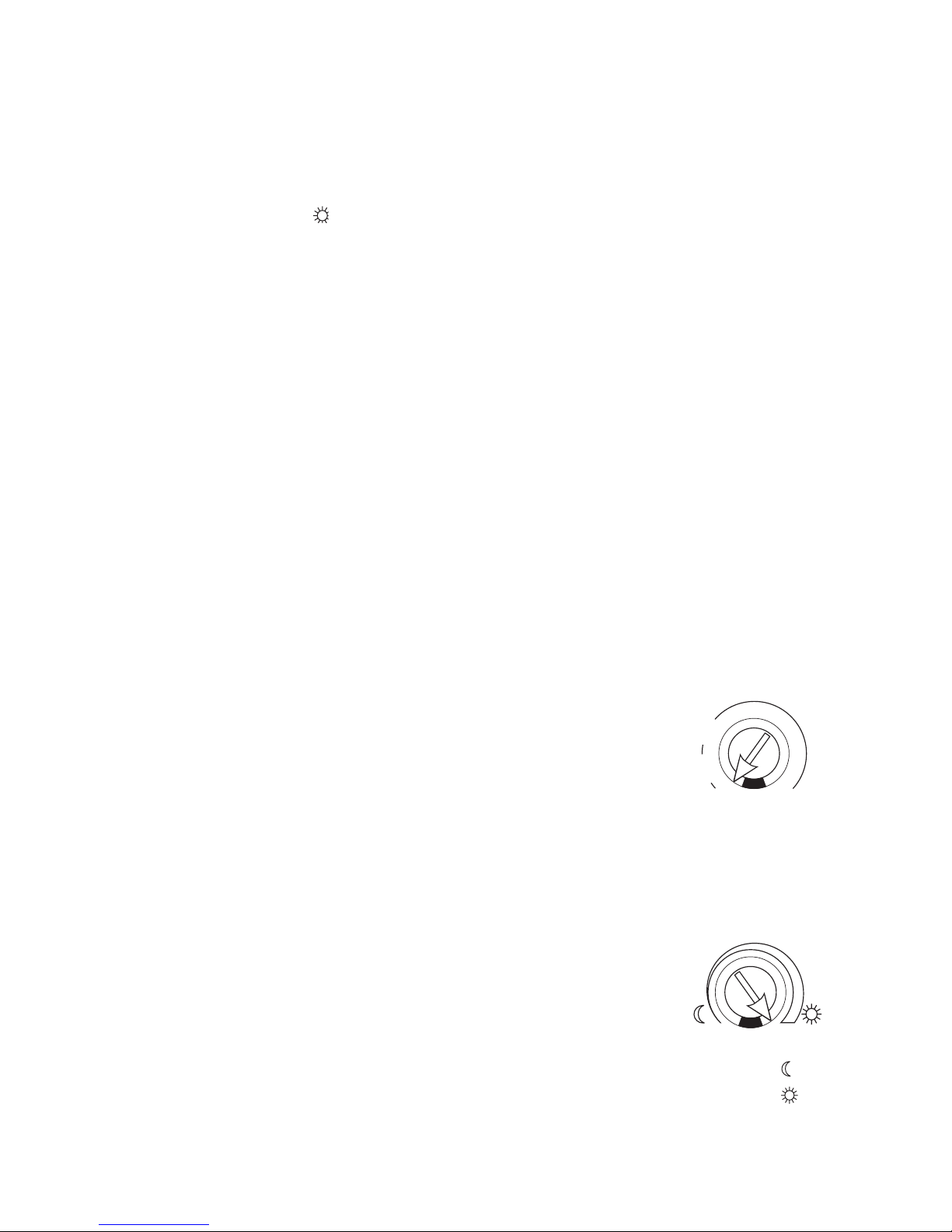

Time Delay and Light Level control dials are located on the bottom of the
sensor.
1. Adjust Time Delay:
The time delay is the amount of time that elapses before lights turn
off since the sensor last detected motion. This can be set from
12 seconds to 16 minutes. Typically, the time delay should be set to
1 minute or more.
• In areas where there is mostly walk through movement, the time
delay amount can be low.
• In areas where people may stop and remain for periods of time,
the time delay should be set to a higher amount, preferably
16minutes.
2. Adjust Light Level:
Turning the light level adjustment dial raises or lowers a light level
detector in the sensor. When the light rises above this set level, the
sensor becomes inactive; this keeps the lights off when there is
enough light present.
We suggest initially setting the light level adjustment to half way between
minimum and maximum. If a different setting is desired after installation,
then follow the Making Changes procedures, next page.
SEC.
MIN.
16
1
12
TIME DELAY DIAL
Minimum: 12 seconds
Maximum: 16 minutes
Check Our Web Site For FAQs: www.wattstopper.com
SEC.
MIN.
16
1
12
Minimum =
Maximum =
LIGHT LEVEL DIAL

8
Call 800.879.8585 or 972.578.1699 For Technical Support
Making Changes
If you want the lights to turn on/high sooner—turn the light level dial toward the sun icon, as
desired; this raises the light level setting. (Remember, the sensor must detect motion for lights
to turn on.)
• The lights turn on/high sooner in the evening.
• The lights stay on/high longer in the morning.
If you want the lights to turn on later—turn the light level dial toward the moon icon, as
desired; this lowers the light level setting. (Remember, the sensor must detect motion for lights
to turn on.)
• The lights turn on/high later in the evening.
• The lights turn off/low sooner in the morning.
Notes:
• When testing adjustments, make sure not to block any of the light that is reaching the
sensor or reflect any light into the sensor’s lens.
• The sensor requires about 5 seconds for light level adjustments to take effect. This feature
prevents the lights from turning on/high and off/low with quick light reflections, from car
windows for example.
• The sensor will not turn lights off/low until no motion is detected and the time delay
elapses.

9
SECURITY OVERRIDE
The EW sensors have an override-on feature which allows lights to be turned on/high for the set
time delay period.
• If there is an installed switch—turning the switch off then on, turns the lights on/high. If no
motion is detected by the sensor, the lights will remain on/high for for approximately one
minute and then turn off/low.
This will also happen when power is restored after a power outage.
Note: If the lights do not turn on/high, the sensor may be inactive due to the light level. Turn
the switch off for 5 seconds, then turn it on. The lights should turn on/high as described above.
TROUBLESHOOTING
Lights do not turn off/low:
1. The sensor may be detecting movement outside the desired coverage area. The sensor’s
lens may need to be masked to block unwanted coverage (see Masking, page 2). If this does
not solve the problem, see step 2.
2. Test to see that the sensor is operating properly. Set the time delay to minimum (12
seconds). Remain still, or move out of range of the sensor. If there is no movement in the
coverage area, the sensor should turn lights off/low in 12 seconds. Reset the time delay to
the desired value.
3. If the lights do not turn off/low, have a person qualified to check high voltage connections
verify that the sensor and lighting are wired correctly (see Wiring and Installation, page 5 &
6).
CAUTION: Make sure power is turned off at the circuit breaker before checking wiring.
4. If the sensor is wired correctly, call our Technical Support number.
Lights turn on/high when there is sufficient daylight:
Decrease the light level setting, as desired (counterclockwise toward the moon icon, see Dial
Adjustments, page 7 & 8).
Lights do not turn on/high:
1. If there is a controlling switch installed, make sure that it is turned on.
2. If the lights do not turn on/high when lights are needed—increase the light level setting, as
desired (clockwise toward the sun icon, see Dial Adjustments, page 7 & 8).
3. Have a person qualified to check high voltage connections verify that the sensor and lighting
are wired correctly (see Wiring and Installation, page 5 & 6).
CAUTION: Make sure power is turned off at the circuit breaker before checking wiring.
4. If the sensor is wired correctly, call our Technical Support number.
Check Our Web Site For FAQs: www.wattstopper.com

WARRANTY INFORMATION
WattStopper warranties its products to be free of defects in materials and workmanship for
a period of five years. There are no obligations or liabilities on the part of WattStopper for
consequential damages arising out of or in connection with the use or performance of this
product or other indirect damages with respect to loss of property, revenue, or profit, or cost of
removal, installation or reinstallation.
ORDERING INFORMATION
Catalog # Description
EW-205-24 +24VDC, 270° Outdoor PIR Motion Sensor, includes cover plate
B230E-P Power Pack: 230VAC, 50/60Hz, 150mA 20A ballast/13A incandescent
B347D-P Power Pack: 347VAC, 60Hz, 150mA. 15A ballast
BZ-50 Power Pack: 120/277 VAC; 50/60 Hz
BZ-150 Power Pack: 120/277 VAC; 50/60 Hz
DM-105 HID Bi-Level Control Module
DM-115-WP Outdoor HID Bi-Level Control Module
When ordering, add (-W) for Arctic White or (-G) for Architectural Gray to catalog numbers.
10
THIRDPARTY ORDERING INFORMATION
Additional color-matched lamp holder accessories are available through your local distributor,
or for further assistance call CANLET at 1-888-461-5307.
Outdoor incandescent lamp holders
Shrouds for PAR 20 & PAR 38 lamps
Round outdoor junction boxes & cover plates
Call 800.879.8585 or 972.578.1699 For Technical Support

2800 De La Cruz Boulevard, Santa Clara, CA 95050, USA
Technical Support: 800.879.8585
www.wattstopper.com
03701r4 09/2014 Please
Recycle
