Weaver W-957-40 User manual

1

2
CONTENT
1.Preface-------------------------------------------------------------------------------------------------------4
WARNING CLAUSE -----------------------------------------------------------------------------------------------4
INTRODUCTION---------------------------------------------------------------------------------------------------4
INSTALLATION-----------------------------------------------------------------------------------------------------5
SAFETY REGULATION-----------------------------------------------------------------------------------------6
2. INSTALLATION & OPERATION------------- --------------------------------------------9
2.1INSTALLATION OF THE PROTECTIVE COVER------------------------------------------------------9
2.2INSTALLATION OF THE MAINSHAFT--------------------------------------------------------------------9
2.3EQUIPPING POWER SOURCE----------------------------------------------------------------------------9
3. TECHNICAL PERFORMANCE ---------------------------------------------------------10
3.1PERFORMANCE & CHARACTERISTICS-------------------------------------------------------------10
3.2MAIN TECHNICAL SPECIFICATION--------------------------------------------------------------------10
3.3WORKING PRINCIPLE--------------------------------------------------------------------------------------11
4. TRANSPORTATION & INSTALLATION-------------------------------------------11
4.1TRANSPORTATION------------------------------------------------------------------------------------------11
4.2INSTALLATION -----------------------------------------------------------------------------------------------12
5. SAFETY PRECAUTIONS -------------------------------------------------------------------12
6. CONFIGURATION & USE-------------------------------------------------------------------14
6.1 CONFIGURATION ------------------------------------------------------------------------------------------14

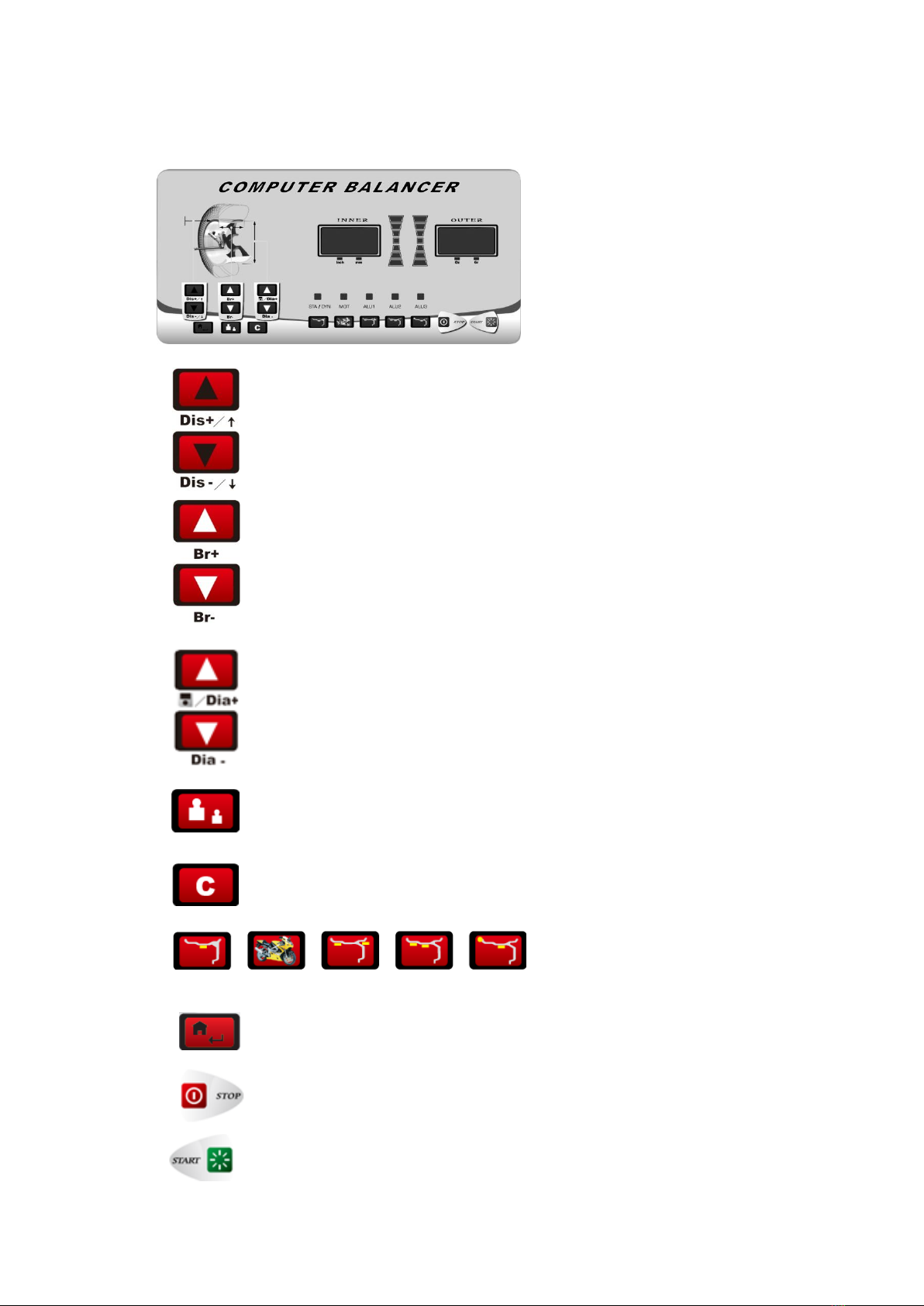

6.2 CONTROL PANEL-------------------------------------------------------------------------------------------15
6.3 BASIC OPERATION----------------------------------------------------------------------------------------16
6.4 VALUE INPUT------------------------------------------------------------------------------------------------17
6.5 RESIDUAL UNBALANCE VALUE DISPLAY-----------------------------------------------------------19
6.6 BALANCE MODE & ALU BALANCE MODE SELECT----------------------------------------------19
6.7 SUPPLEMENTARY EXPLANATION -------------------------------------------------------------------21
7. PROGRAM SETUP-------------------------------------------------------------------------------22

3
7.1PROGRAM FUNCTION INTRODUCTION-------------------------------------------------------------22
7.2ERROR----------------------------------------------------------------------------------------------------------23
7.3 RESSURE SENSOR INSTALLATION & WIRING---------------------------------------------------24
7.4GENERAL TROUBLESHOOTING & SOLUTION----------------------------------------------------24
7.5 ACCESSORIES----------------------------------------------------------------------------------------------26
8. MAINTENANCE-------------------------------------------------------------------------------------27
9. OPERATION DETAILED DESCRIPTION----------------------------------------30
9.1HOW TO BALANCE A WHEEL----------------------------------------------------------------------------30
9.2 PARAMETER SETUP --------------------------------------------------------------------------------------31
9.3CUSTOMER SELF-CALIBRATION-----------------------------------------------------------------------34
APPENDIX 1-----------------------------------------------------------------------------------------------38
APPENDIX 2----------------------------------------------------------------------------------------------- 39

4
1. PREFACE
WARNING
There will be one year of warranty period on the condition that the machine including the
operation system, tools and accessories are used properly and/or without damage. During this
period, the manufacturer will repair or replace the parts returned or the machine itself,
sustaining the costs but not accepting responsibility for normal wear and tear, incorrect use or
transportation, or failure to carry out maintenance. The manufacturer will not inform the
customer about any improvements to the products or the upgrading of the production line.
INTRODUCTION
The purpose of this manual is to provide the owner and operator of this machine with a set of
safe and practical instructions for the use and maintenance of the wheel balancer.
If such instructions are carefully followed, the machine will offer you the levels of efficiency and
duration.
The following paragraphs define the levels of danger regarding the machine.
DANGER: Refers to immediate danger with the risk of serious injury or death.
WARNING: Dangers or unsafe procedures that can cause serious injury or death.
ATTENTION: Dangers or unsafe procedures that can cause minor injuries or damage to
property.
Read these instructions carefully before using the machine. Keep this manual and the
illustrated materials supplied with the equipment in a folder near the place of operation so as to
allow the machine operators to consult the documentation at any time.
The manual is only to be considered valid for the machine serial number and model stated on
the attached nameplate.

5
The instructions and information described in this manual must always be complied with: the
operator will be held responsible for any operation not specially described and authorized in
this manual.
Some of the illustrations contained in this booklet have been taken from pictures of prototypes:
standard production machines may differ slightly in certain respects. These instructions are for
the attention of personnel with basic mechanical skills. We have therefore condensed the
descriptions of each operation by omitting detailed instructions regarding, for example, how to
loosen or tighten the fixing devices. Do not attempt to perform operations unless properly
qualified or with suitable experience. If necessary, please contact an authorized Service
Centre for assistance.
INSTALLATION
Take the utmost care when unpacking, assembling, lifting and setting up the machine as indi-
cated below.
Failure to observe these instructions can damage the machine and compromise the operator's
safety.
Remove the original packing materials after positioning them as indicated on the packaging.
All regulations in force concerning safety at work must be complied with when choosing the
installation position.
In particular, the machine must only be installed and operated in protected environments
where there is no risk of exposure to dripping.
IMPORTANT: for the correct and safe operation of the machine, the lighting level in the place
of use should be at least 300 lux.
Environmental operating conditions must comply with the following requirements:
- Relative humidity ranging from 30% to 80% (without condensation);
- Temperatures ranging from 0°to +50°C.

6
The floor must be strong enough to support a load equal to the weight of the equipment plus
the maximum load allowed.
The machine must not be operated in potentially explosive atmospheres.
SAFETY REGULATIONS
Failure to comply with the instructions and danger warnings can cause serious injuries to the
operator or other persons.
Do not operate the machine until you have read and understood all the danger/warning notices
in this manual.
The correct use of this machine requires a qualified and authorized operator. This operator
must be able to understand the manufacturer's written instructions, be suitably trained and be
familiar with the safety procedures and regulations. Operators are forbidden to use the
machine under the influence of alcohol or drugs that could affect his/her physical and mental
capacity.
The following conditions are essential:
- read and understand the information and instructions described in this manual;
- have a thorough knowledge of the features and characteristics of the machine;
- keep unauthorized persons well clear of the working area;
- make sure that the machine has been installed in compliance with all relevant standards and
regulations in force;
- make sure that all machine operators are suitably trained, that they are capable of using the
machine correctly and safely and that they are adequately supervised during work;
- do not touch power lines or the inside of electric motors or any other electrical equipment
before making sure that they have been powered off;
- read this booklet carefully and learn how to use the machine correctly and safely;
- Always keep this user manual in a place where it can be readily consulted and do not fail to
refer to it.
Do not remove or deface the DANGER, CAUTION, WARNING or INSTRUCTION decals.
Replace any missing or illegible decals. If any decals have become detached or damaged, it is

7
possible to obtain them from your nearest reseller.
-Observe the unified industrial accident prevention regulations relating to high voltages and
rotating machinery whenever the machine is in use or being serviced.
- Any unauthorized changes or modifications made to the machine automatically release the
manufacturer from any liability in the case of damage or accidents resulting from such changes
or modifications.

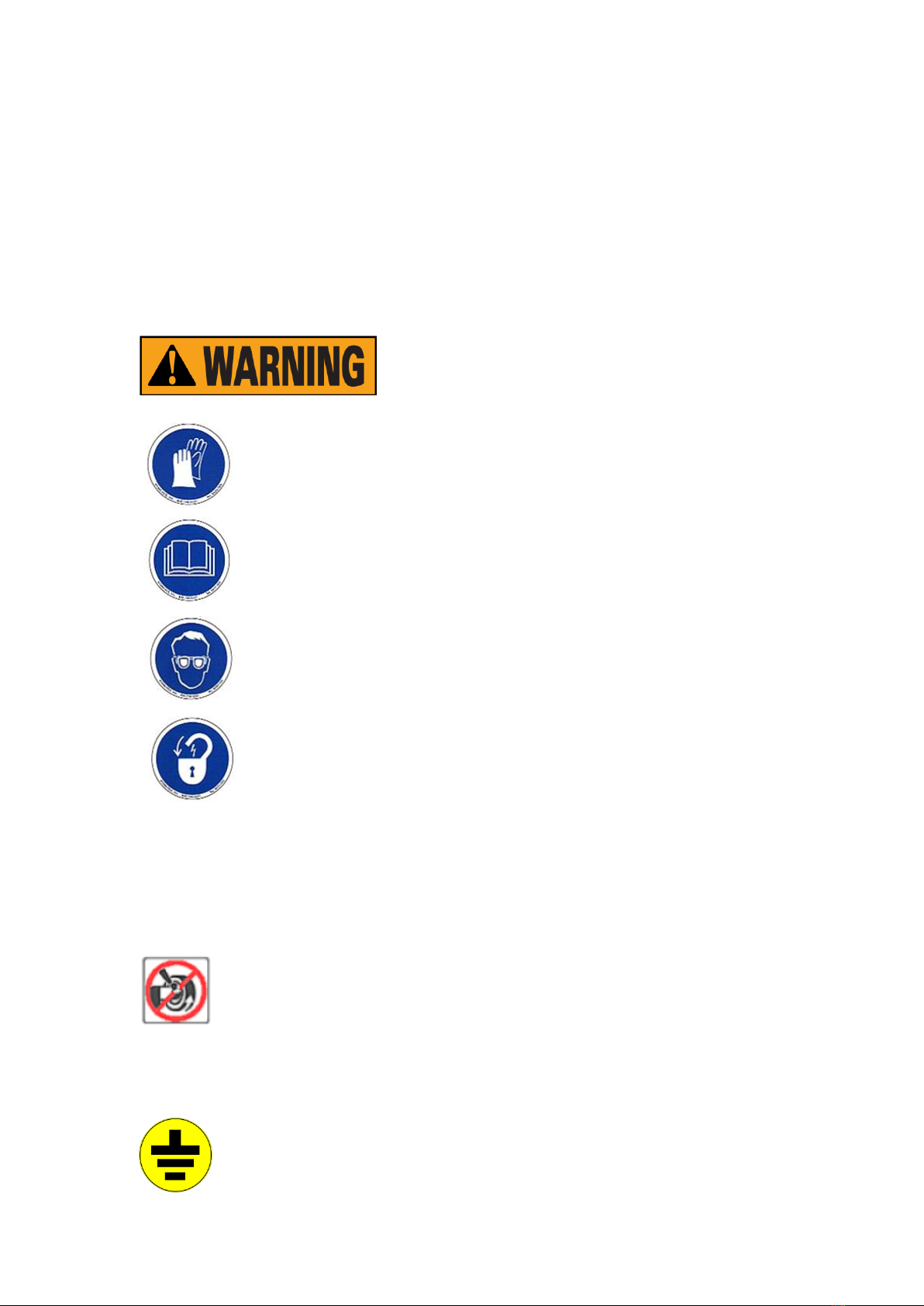

WEAR PROTECTIVE GLOVE
READ OPERATION MANUAL
WEAR PROTECTIVE GLASSES
POWER OFF THE ELECTRICAL
SOURCE OF THE MACHINE
DURING MAINTANCE
Meaning of the decals (including the one indicating caution)
Lightning symbol：This decal, positioned on the back of the machine, indicates where to insert
the power supply cable and warns the user to pay attention to his safety.
Warning for rotating machine part
This decal, positioned next to the balancing shaft, reminds the user that this is a rotating part
and is therefore dangerous and should not be touched with the hands. The arrow indicates the
rotation direction.

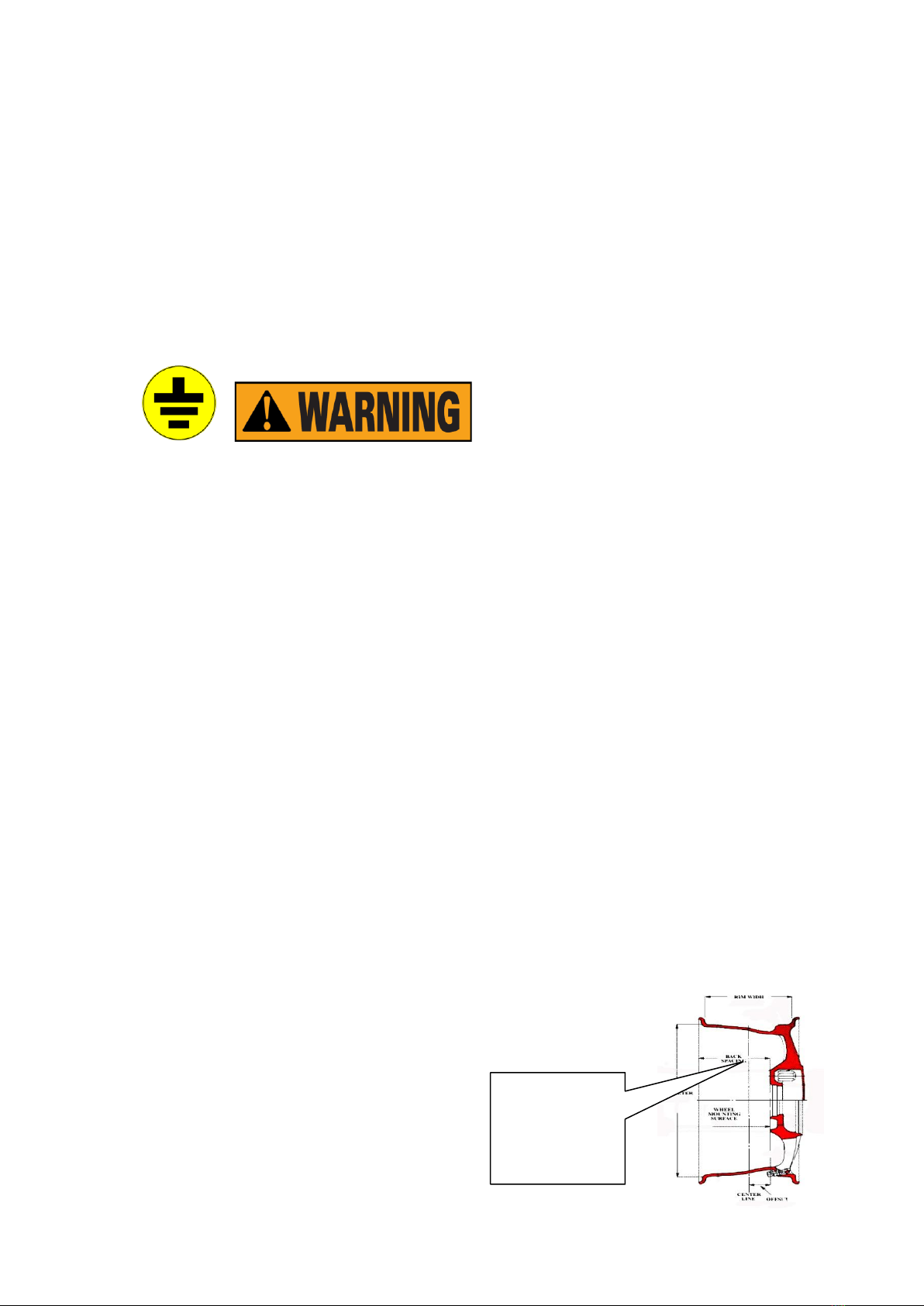

Grounding symbol: This decal, positioned on the rear left side of the machine,
indicates where to connect the ground wire.

8
DECAL LOCATION DIAGRAM
Nameplate
Note: The following information coming from the nameplate.
The nameplate is stuck in the center to the top on the rear of the machine. The meaning of
each part is in the following：
CB 9XX B
With hood
Model
Computerized dynamic wheel balancer
B. CE certificate
This mark indicates that this model of machine has got the CE certificate
C、Series No The first 3numbers is the abbreviate of the model. The middle 4 is the
manufacture date and the last 4 is company product series number.
D、What on the cross line is the name and address of the company and under the cross line
not includes the above explained but the rated electrical parameters, such as voltage、
frequency、power、phase number & full load current, and the weight and manufacture date of
the machine.
If the B has noted in the model of the machine, it means the machine with the protection cover.
It means without the equipment of the protection cover if without the note of B.

9
2 INSTALLATION AND OPERATION
Before installation and use of the wheel balancer, you should carefully read this installation
and operation manual. And keep this manual in hand for reference at any time. You should be
sure that all the operators have read this manual to guarantee the most perfect functions of the
machine and meanwhile the safety.

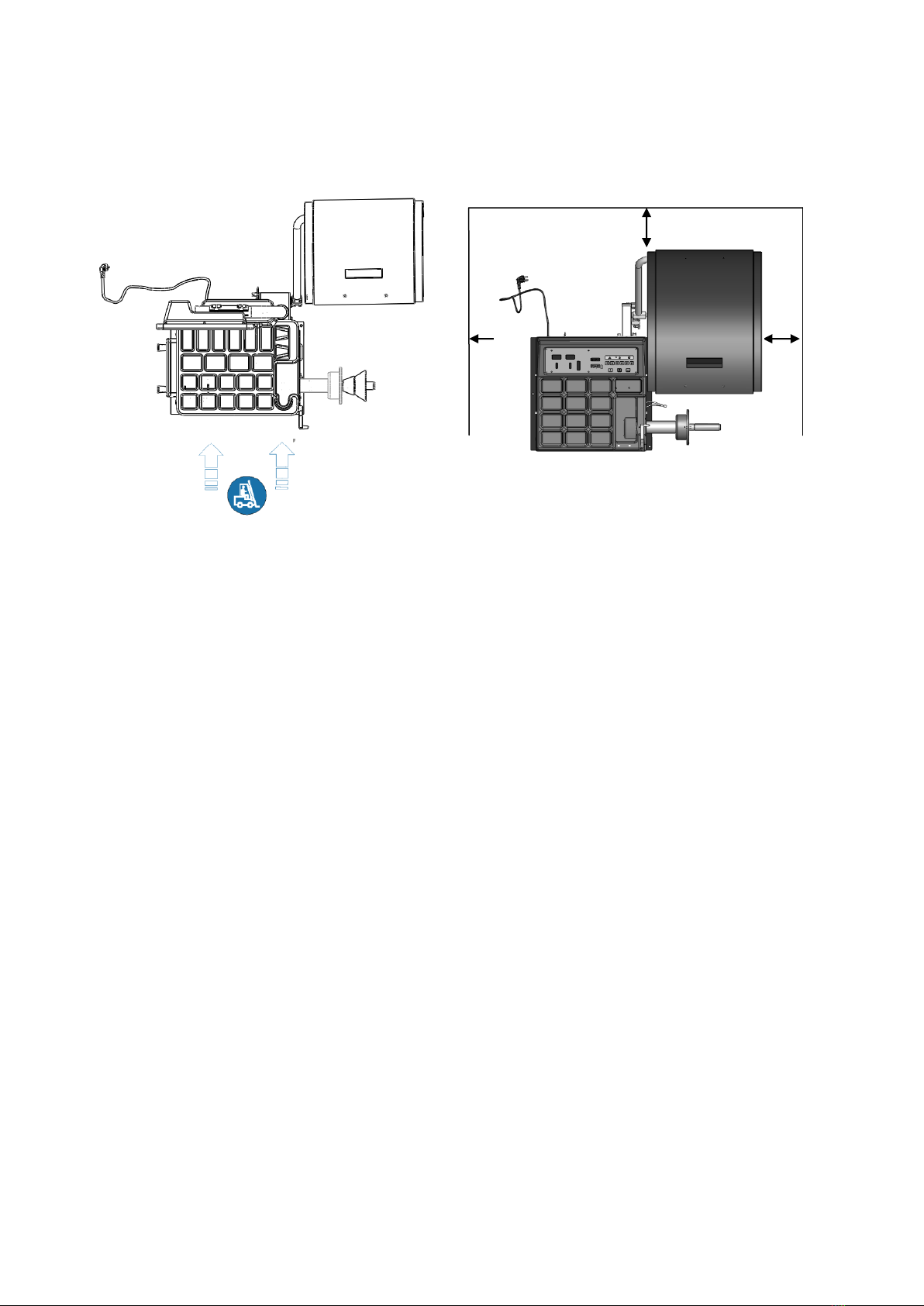

2.1 PROTECTIVE HOOD INSTALLATION:
: shown in page 26~27
2.2 MAIN SHAFT INSTALLATION
MAINSHAFT INSTALLATION：Before installation, use the ethyl alcohol and compressed air
to clean up the center hole of the shaft and connect part. Use spanner and screw to fix the
thread shaft on the balance shaft (Fig2)
2.3 ELECTRICAL CONNECTION & EARTHING
According to the label on the connection between power cable and body, the power cable
connect socket must be grounded with the reliable earth wire.
All the electrical devices installation must be done by the qualified staff. Before installation,
please check
If the power system is comply with the technical parameter marked on the nameplate of the
machine.
The wiring of the machine must have the fuse and the perfect ground protection. And install
the electrical
Leakage automatic controls switch in the power source. And recommend the application of the
stabilizer if the voltage of installation site is unstable.
Any electrical connect in the workshop is only done by the qualified technical staffs and it
should meet the enforced regulation. .
Any electrical connect must be according to the following:
• Power on the data plate on the machine;
• Voltage decrease cannot exceed 4% of the rated voltage on the data plate when full load
Fig2

10
(10% when start)
-Operators must:
• Install the plug;
• install 30ma circuit breaker;
• install power cable fuse;
• provide with effective workshop electrical connect to ground;
- prevent the authorized operation and pull out the plug to prolong the working life when not
use the machine.
- If the machine directly connected to the power source through the power board not the plug,
we should use the qualified staffs to operate.
Perfect ground is necessary for the correct operation. Do not connect the machine with air pipe,
water pipe, telephone line and the other unsuitable objects
3. TECHNICAL FEATURES
3.1 FEATURES：
－adopts quality computer with the feature of high intelligence and high stable
－mechanical main shaft adopts high precision bearing driven, wear-resistant, low noise
－press stop key to realize the emergency stop
－full automatic dynamic/static balance check
－balance 3 ALU rim and 1 motorcycle tire
－self-calibration and full automatic trouble diagnosis
3.2MAIN TECHNICAL SPECIFICATION
－rated voltage 220V/110V（selectable）50/60HZ、380V/50HZ/1P
－power 250W
－speed 7S（if the weight of the wheel is about 20Kg）
－accuracy ±1g
－noise ≤69dB
－rim diameter 10″～24″
－maximum wheel weight 65kg
－rim width 1.5～20″
－max wheel diameter 44inch
Special instruction：
For the outreach of the main shaft is limited,
so there issome limit to the distance from
flange disk to the outside edge of the tire
should less than 170mm as shown in the figure.
On this condition, you can operate correctly.
Distance from
flange disk to the
outside edge of the
tire

11
3．3Work principal
Balancing sensor tests the unbalance signal and send it to the terminal of the microprocessor
via A/D converter. Processor will calculate the unbalance value through synthesized analysis
to the unbalance signal and angle signal of the main shaft.
4. INSTALLATION & TRANSPORTATION
4.1 TRANSPORTATION
－Place, carry and store the machine according to the indication of the label on the package
carton.
－Store environment: RH20%-95% temperature -10℃-+60℃
－When transport and use the machine, do not pull the rotation shaft, or it will cause the
permanent damage
Do not lift the machine at any other position.
4.1.1After being sure that the package of your machine is perfect, you can carry the wheel
balancer to the installation site.(Fig3). The choice of the installation should comply with the
following requirements. The ambient temperature is 0℃-50℃and the RH ≤85%. And the
installation site as shown in Fig4
FIG3

12
4.1.2 Remove the upper cover of the package carton and check and confirm the wheel
balancer, spare parts and documents you purchased according to the packing list. If you have
any question, please contact with the dealer.
Package materials such as plastic, PBV, nail, screw, timber and carton must be placed into a
scrap bin to treat according to the local regulation.
4.2 INSTALLATION
Remove the connect bolt. And carry down the wheel balancer to place it on the flat and solid
floor. We should store it indoor to avoid it from being exposed to the sunlight for long time and
the moisture.
5. SAFETY AND PREVENTION
5.1.1 Before operation, please confirm that you have read the entire warning label and the
instruction manual. Not according with the safety instruction can cause the injuries to the
operators & bystanders.
5.1.2 Keep your hands and the other parts of your body from the location with the potential
danger. Before starting the machine, you must check it there existing the damaged part. If any
break or damage, the machine will not be used.
5.1.3In emergency situation, if the tire not fixed, you should press ―STOP‖ to stop the rotation
of the wheels. Adopts high strength protective cover to prevent the tire from flying in any
direction and can only fall on the ground to protect the safety of the operators.
Fig 4

13
5.1.4 Before balancing, operators should check all the tires and wheels to find the possible
faults. Do not balance the tires and wheels with fault.
5.1.5 Do not exceed the load capability of the wheel balancer and do not attempt to balance
the wheel bigger than the designed dimension.
5.1.6 Wear suitable clothing such as suitable safety suit such as glove, glasses and working
suit. Not wear necktie, long hair, loose clothing. The operators should stand beside the
machine when operation the machine. Keep from the unauthorized personnel.
5.1.7 Before balancing, you must confirm the installation of the wheel suitable. Before rotation,
be sure the nut turn 4turns around the thread shaft and firmly locked on the main shaft.
GENERAL CONDITIONS OF USE
The wheel balancers described in this manual must be used exclusively to measure the extent
and position of car wheel unbalances, within the limits specified in the technical data section.
Furthermore, models equipped with motors must be provided with a suitable guard.
Any use other than those described in this manual is to be considered improper and unreaso-
nable.
Do not start the machine without the wheel locking equipment.
Protective hood plays the role of prevention and safety.
Do not clean or wash the wheels mounted on the machine with compressed air or jets of
water.
Get to know your machine. The best way to prevent accidents and obtain top performance
from the machine is to ensure that all operators know how the machine works.

14
Learn the function and location of all the controls.
Carefully check that all controls on the machine are working properly.
The machine must be installed properly, operated correctly and serviced regularly in order to
prevent accidents and injuries.
6. CONFIGURATION & USE
6.1CONFIGURATION
Fig 5
1- Power &plug 2- Side Panel
3- Return Spring 4- main switch
5- Scale 6- control panel
7- Weight Tray 8- Hood
9- Quick Nut 10- Balance Shaft
11- Body 12- power switch
13. Cone Storage Handle

15
6.2 DISPLAY PANEL & CONTROL PANEL
1. In the state of parameter input, it is the distance from wheel to balancer input
key .You can change the Br set value of the window by press the up/down key.
2. Br value input key you can change the Br set value of the window by
press the up/down key.
3. In the state of parameter input, it is the diameter of the rim input key. You
can change the D set value of the window by press the up/down key.
4. High accuracy balance key: When the display displays [00], press this key
the display will display the unbalance value less than 5g.
5. Unit conversion key can convert the unit of the unbalance value and size.
6. Balancing mode selection key。
7. Function key & confirm key
8. Emergency stop key
9. Start key

16
10. Inner unbalance value and parameter of the tire display
11. Outside unbalance value and tire parameter display
12. Unbalance position lamp.
13. Balancing modes display lamp
6.3 BASIC OPERATION
6.3.1 Switch on the main switch on the left side of the machine，the display will display
[888]-[708][Uer]-[2.140] and then[ 0]-[ 0]（it will display [0.00]-[0.00] in ounce state）
6.3.2 MOUNT WHEEL
Preparation before test：Check and clean the dust and mud and if there are foreign bodies,
such as metal and stone, clipped on the surface of the tire. And also check the air pressure of
the tire is according with the specified value. Check if there are deformation on the rim
positioning surface and installation hole.
Check if there are any foreign bodies in the tire. Take off the original weight.
The installation methods of the wheel：Positive positioning, negative positioning & flange disk
when handling the middle and big sizes of tires. You can select the methods according to the
different conditions.
6.3.2.1 SMALL CAR WHEEL POSITIVE POSITION
Positive positioning is the normal method. It is featured with simple and quick operation. It is
mainly suitable to the common steel rim and aluminum alloy rim with small deformation.
Main shaft wheel（direction of the rim installation surface is inside）cone quick nut

17
6.3.2.2
When the deformation of the outside of the wheel, adopt this method to positioning to grantee
the accurate positioning of the steel rim inner hole and main shaft. It is suitable to the steel rim,
especially the thick ALU
Main shaft lower spring suitable cone wheel bowl quick nut
6.3.2.3 FLANGE DISK POSITIONING（OPTIONAL）
Suitable to the big tire assemble
Main shaft flange disk（fixed on the main shaft）wheel cone quick nut
NOTE:The choice on the cone should be adapted to the rim center hole and pay attention
to its direction. Or it will cause the inaccurate measurement.
6.4 INPUT VALUE
6.4.1 Input DIS（Distance）
Pull the scale to the inner position to add the weight and press the key to

18
input the DI value into the display. At this moment, the display will display[DIS]：[XXX]，And the
default system is mm.
6.4.2 Input Br (RIM Breadth) Value
Use the Br measurement caliper to measure the Br of the rim, press the key to
input the Br value into the display. At this moment, the display will display [Br. ]：[XXX]. and the
default system is inch.
6.4.3 Input the DiA(Diameter)Tire Diameter Value
After confirming the rim diameter, press the key to input the rim diameter into
the display. At this moment, the display will display [Dia ]：[XXX]. and the default system is
mm.
6.4.4 UNIT CONVERSION：
①The unit conversion of the Br of the rim from inch to mm:
Normally, the display of Br should be in inch. When you need the unit of the display to be mm,
you can use the key to realize the unit conversion from inch to mm.
②The unit conversion of the DIA of the rim from inch to mm:
Normally, the display of D should be in inch. When you need the unit of the display to be mm,
you can use the key to realize the unit conversion from inch to mm.
After unit conversion, the unit of the display values of rim Br and D value, but when you switch
off and then on the wheel balancer, the unit will be still inch.
③The unit conversion from gram to ounce：
Normally, the unit of the unbalance value is gram (g). If you want to make the ounce (Oz) to be
the unit, you can execute the g/Oz conversion. The unit of the displayed unbalance value is
gram（g）. The way to realize the unit conversion from gram to ounce is to press
6.4.5 When press the start key，the wheel balancer starts to run. A few seconds later, the
machine automatically stops. The machine can also start by lowering down the protective hood
which can be set by the program.
6.4.6 DISPLAY UNBALANCE VALUE
When the spin ends, the display will display the inner and outer

19
unbalance value of the rim. Use your hand to pull the wheel. When all the positioning lamps
light inside and outside light, the weight adding position will be indicated.
6.4.7Rotate the wheel, when the left side positioning lamp all light, at this moment, the highest
position is the inner unbalance position and when the right side positioning lamp all light, at this
moment, the highest position is the outer unbalance position.
6.4.8 Add the corresponding weight at the unbalance point and start test again until the
balance of the tire.
Attention：
1. When start the machine, use hand to pull the wheel to help it start rotation, especially to
the relative bigger tire, to prolong the working life of the motor.
2. Check if there are any mistakes on the dimension. Check if the balance methods meet the
configuration of the rim and select the balancer most easily to balance.
3. Check if the quick lock nut tight or not.
4. When the balance ends, remove the tire. Pay attention to handle it with gentle and avoid
knocking the main shaft.
5. When clipping the weight. Use the hammer to clip the weight on the rim without too much
force. Do not knock the main shaft hardly to avoid damaging the sensor. The position to add
the Weight should be free from the grease and should be dry.
6.5 RESIDUAL UNBALANCE VALUE DISPLAY
The minimum value of the standard weight is 5g so if the weight you use is less than 5 g, the
wheel balancer will not display the value and only displays the state of ―00‖. When you need to
display the residual unbalance value, you should press and the display will
immediately display the inside or outside unbalance value of less than 5g. The maximum
residual unbalance value is 4 g.
6.6 BALANCE MODE SELECT
Press the corresponding
key to choose the balance mode. If all the lights not light up, it is the dynamic mode.
DYNAMIC—clip the weight on both sides of rim（dynamic balance test once start）
STATIC—Stick the weight in centre
MOT—optional for balancing the motorcycle
When balancing motorcycle wheels, you require the (optional) motorcycle adaptor accessory
MJ-II. With the assistance of the extension scale to measure Di, Br and Di. Input the measure

20
value into the Di, Br and Di display window. The input method is similar to the parameter input
of the car.
ALU1－to balance the light aluminum alloy rim. Adopt clip the weight on the
shoulders of the rim
ALU1
Dis1=Dis+ 3/4”
Dis2=Dis+Br－3/4”
Dia 1=Dia－1”
Dia2=Dia－1”
ALU2－for ALU rim, hidden weight inside
ALU2
3/4”
”
3/4”
1/2”
1/
2”
3/
4”
1/
2”
11/4
”
“”
