Weber mt CR 7-II Hd Operating instructions

CR 7-II Hd
CR 7-II Hd E
0116641
0116642
Operating and
Maintenance Manual

2
1
2
3
4
56
1 Description 2 Type
.................................................... ...................................................
3 Serial no. 4 Year of construction
.................................................... ....................................................
5 Weight 6 Rated power kW
.................................................... ...................................................
Attached to the machine is a rating plate. Note down the information given on this plate so that
you can recreate the rating plate should the plate be lost.
Description
Year of construction
Mass Rated
power
Type
Serial number

3
Contents
1. Introduction..................................................................................................................... 4
2. Description...................................................................................................................... 5
3. Technical data................................................................................................................. 6
4. Safety............................................................................................................................... 7
4.1. Information and safety stickers ........................................................................... 12
5. Operation....................................................................................................................... 13
6. Transport....................................................................................................................... 21
7. Storage .......................................................................................................................... 21
8. Maintenance.................................................................................................................. 22
8.1. Maintenance overview .............................................................................................. 23
8.2. Description of the maintenance operations............................................................ 24
8.2.1. Check the engine oil level ................................................................................ 24
8.2.2. Change the engine oil ...................................................................................... 24
8.2.3. Clean the air lter............................................................................................. 25
8.2.4. Check the hydraulic oil level ............................................................................ 26
8.2.5. Change the oil in the exciter ............................................................................ 26
8.2.6. Adjust / replace the spark plug.......................................................................... 26
8.2.7. Check V-belt..................................................................................................... 27
8.2.8. Use a permanent charger ................................................................................ 27
8.2.9. Change the fuses............................................................................................. 27
8.3. Operating uids and ll levels ................................................................................. 28

4
This operating and maintenance manual is designed to help
you become familiar with your soil compactor and enable you
to maintain it and use it for its intended purpose.
The safety and maintenance instructions provided in this man-
ual will help avoid hazards, reduce repair and downtime costs
and will increase the reliability and operational readiness of
your machine. Follow these instructions precisely.
This operating and maintenance manual must always be kept
at the implementation site of the machine and be available to
the machine operator.
Enclosed with this manual is a valid declaration of conformity
and a spare parts lists for orders of spare parts. Store these
documents carefully.
Turn to your Weber MT dealer if you require any additional
information.
Found on the last page of this manual is a QR code.
Scan it to acquire the current contact addresses of all
Weber MT branches.
You can obtain information on the assembled Honda gaso-
line engine and the associated operating and maintenance
manual as well as the spare parts list, if needed,
at www.honda-engines-eu.com
1. Introduction

5
2. Description

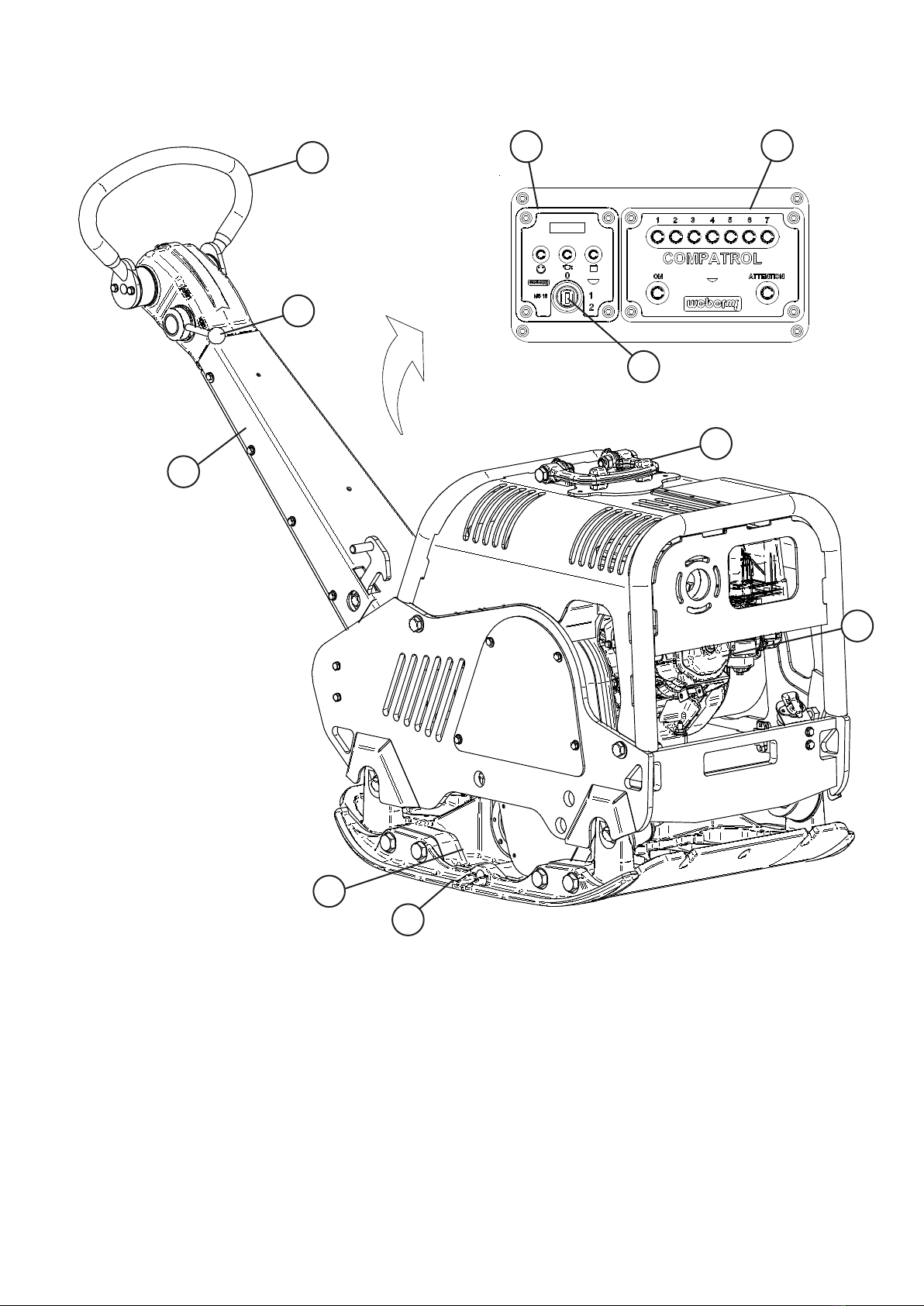

The machine The machine is a hand-guided, reversible soil compactor.
The machine is composed of a bottom and a top section.
The bottom section houses the exciter, while the top section
contains the engine and the required controls.
An air-cooled Honda gasoline engine makes the exciter vibrate
via a centrifugal clutch. The generated force is transmitted
between top and bottom section via a V-belt.
The engine is started electronically by a permanently installed
start module.
The engine speed is adjusted between idle speed and
full-throttle speed via a gas lever.

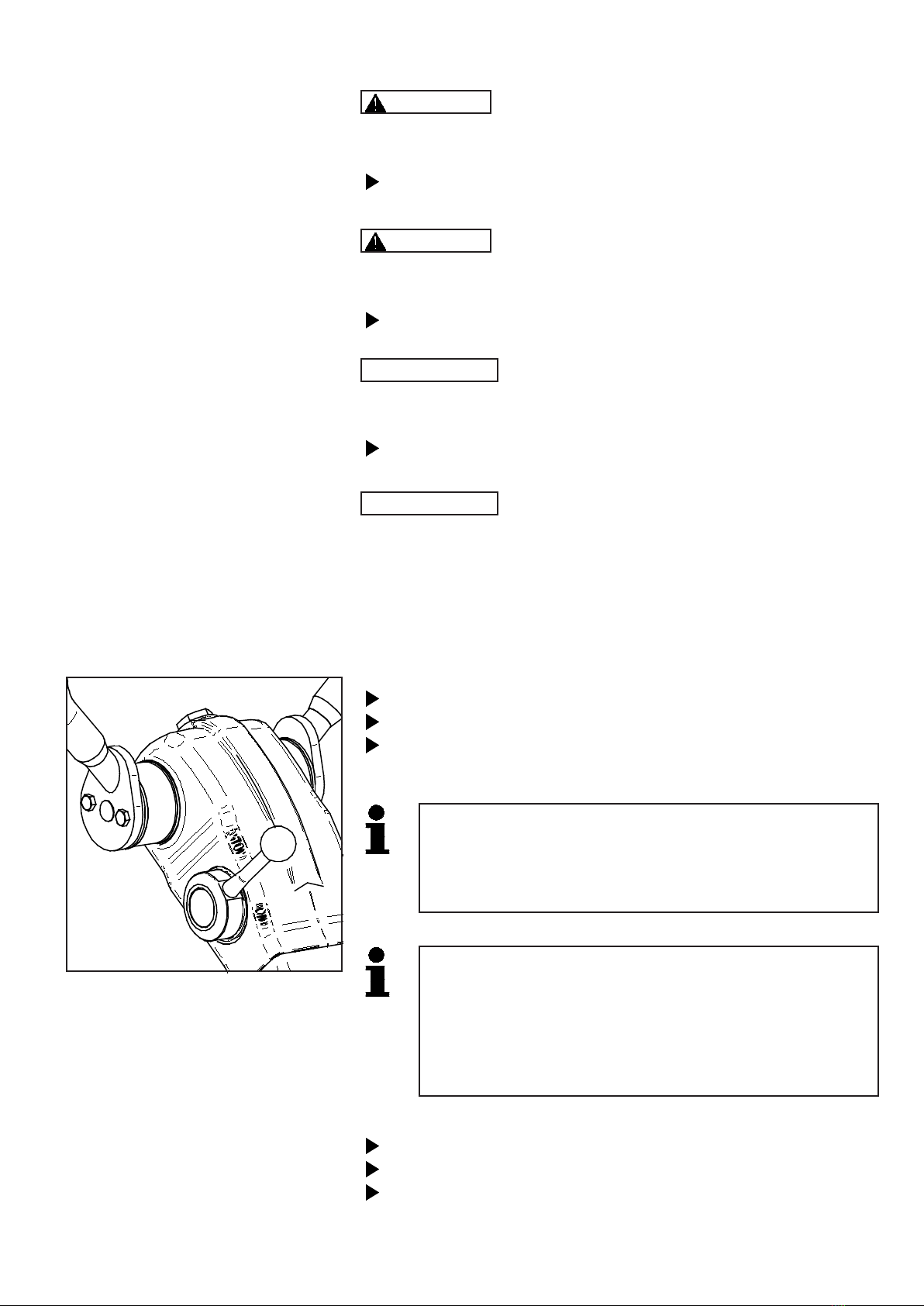

Forward and reverse travel is variably controlled with a handle
via a hydraulic system.

6
3. Technical data
CR 7-II Hd E
Weight
Operating weight CECE [kg] 423
Dimensions
Overall length [mm] 1710
Overall width/ with attachment plates
[mm] 510/650/790
Height with folded guide bar [mm] 1160
Base plate length [base in mm] 450
Pressure surface [mm] 450x640 / 450x790
Drive
Engine manufacturer Honda
Type GX390
Performance at operating speed in
accordance with ISO 3046-1 [kW] 7.0
Combustion process 4-stroke gasoline
Operating speed [1/min] 2750
Operating speed [soil-dependent,
m/min] 24
Incline capacity [soil-dependent, %] 35
Vibration
System Two-wave vibrator
Drive concept Mechanical
Frequency [Hz] 74
Centrifugal force [kN] 65
Noise emissions in accordance
with 2000/14/EC
Sound pressure level LPA
ascertained in accordance
with EN 500, [dB (A)] 94
Sound power level LWA ascertained
in accordance with EN ISO 3744
and EN 500, [dB (A)] 108
Vibration values
Root-mean-square acceleration
value for hand-arm vibration
ascertained in accordance with
EN 500, [m/s²] 2.1
In accordance with directive
2006/24/EC, complying with the
vibration values is the owner’s
responsibility

7
4. Safety
General All safety instructions must be read and complied with,
as non-compliance will result in
– danger to life and limb of the user,
– impairments to the machine or other property.
In addition to the operating manual, the accident-prevention
regulations in the country where the appliance is used
must be complied with.
Intended use The machine should only be used in technically faultless
condition, as intended, in a safety-conscious and hazard-
conscious manner, and in compliance with the instructions
in the operating manual.
Malfunctions that impair safety must be eliminated without
delay.
The machine is designed exclusively for compacting:
– sand,
– coarse gravel and gravel grain with a grain size
of 63 mm in accordance with ISO 14688,
– crushed rock,
– low-cohesive mixed material,
– concrete paving stone.
The operator’s work position is behind the machine.
The operator must guide the machine safely with both
hands on the handle.
Non-intended use Unless used as intended, the machine involves a risk of
personal injury and property damage. The machine is
expressly not suitable for:
– compacting frozen subsurfaces,
– compacting hard, non-compactable soils,
– compacting non-bearing material,
– compacting rocks with a grain size of 63 mm,
– compacting highly cohesive soils,
– point loads on the base plate,
– crushing rocks.
The responsibility for any damage arising from non-intended
use falls on the owner / operator rather than the manufacturer.
Residual risk There is always an increased risk of accidents in the
immediate danger area around the machine if the operator
fails to notice persons in the vicinity of the machine.
Anyone close to the machine must be made aware of this risk.
The operator must not put the machine into operation unless
everyone in the vicinity of the machine is aware of this risk.

8
Requirements on the operator This soil compactor may only be operated by suitable opera-
tors who are of legal age. They must be instructed on how to
operate the machine by the owner or by the owner’s assigned
personnel. The operator must comply with tra󰀩c regulations.
The machine must not be operated by children.
Personal protective equipment Personal protective equipment consisting of
– hard hat,
– hearing protection,
– protective gloves,
– work shoes or boots with toe guard
must be worn during operation and the execution of
maintenance on the machine.
Danger areas The immediate danger area is the direct perimeter around
the machine. This area is o󰀨-limits to third parties.
Spare parts, changes and
conversions
Changes and conversions are prohibited unless made with
original Weber MT spare parts. If the machine is modied
with other accessories without the approval of Weber MT,
the manufacturer will not assume liability for any resulting
personal injury or property damage.
All maintenance and repairs must be carried out with original
Weber MT spare parts. Untested spare parts may a󰀨ect the
reliability and safety of the machine.
Before starting the machine There is danger of material damage if the machine is started
before necessary maintenance or repairs have been completed.
Make sure every time before starting the machine that all work
on the machine has been completed.
To avoid injuries, the machine must not be started unless the
operator wears the required personal protective equipment.
Objects placed on top of the machine may fall or be ung o󰀨
during operation or when the machine is started. Therefore,
remove all loose objects or tools before starting the machine.
If the gas cap is open, fuel may escape and ignite on the
engine when the machine is started or while it is operating.
There is a risk of burns. Therefore, do not start the machine
unless the gas cap is closed.

9
Start-up procedure Do not disperse any sprays or other agents into the air intake
while the machine is starting up. They may lead to overheating
in the combustion chamber and result in damage to the engine.
There is danger of su󰀨ocation if the operator starts up the
machine in closed rooms or in deep and tight trenches.
Operating the machine in closed rooms is prohibited. Provide
for an adequate supply of air before starting the machine.
One start procedure must not last longer than 20 seconds to
avoid damage to the engine. Pause for at least one minute
before repeating the start procedure.
If the engine does not start after two start procedures,
look for the cause in the fault table.
If the ignition key fails to spring back to position “1” by itself,
the electric starter and the engine may sustain damage.
Abort the start procedure and shut down the machine.
Identify and rectify the cause before the next start attempt.
During operation Monitor the surroundings to avoid injury to third parties or
material damage.
Suspend operation and shut down the machine if detecting
damage on the machine during operation.

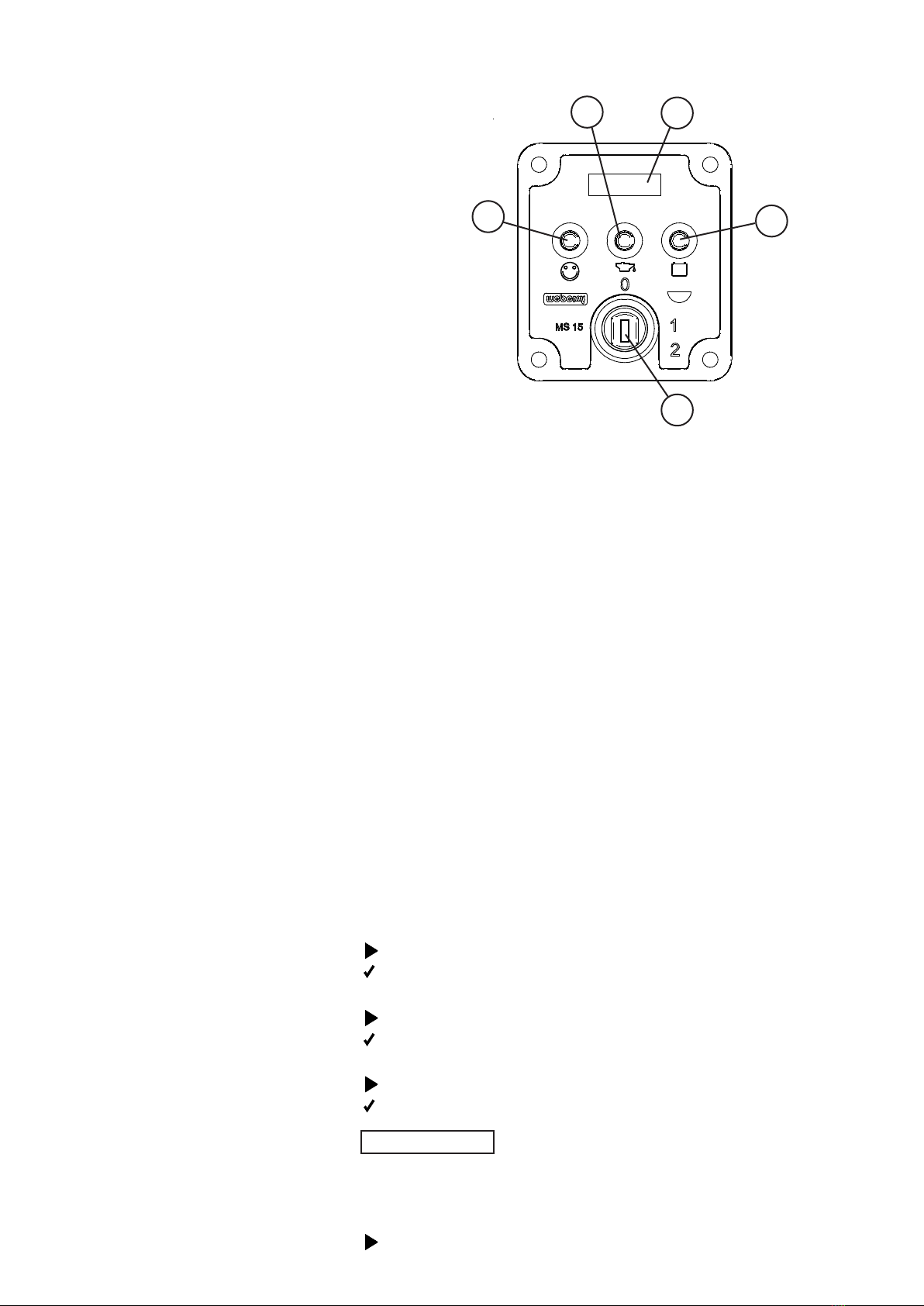

Stop operation and shut down the machine if the light indica-
tors of the start module do not go out shortly after startup or
come on during operation.
The symbol is lit permanently during operation. It signals
that the engine is running. Refer to the section “Operation”
for the exact meaning of the individual light indicators.
Parking the machine Always park the machine on a level subsurface with su󰀩cient
bearing capacity.
Parked machines presenting an obstacle must be secured in
accordance with statutory regulations, particularly in the area
of public tra󰀩c surfaces.
Engine and exhaust heat up during operation and can cause
burns on contact. Therefore, do not touch these components
during operation or shortly after the machine was switched o󰀨.

10
Fueling the machine Spilled fuel may ignite and has a negative impact on the
environment. Therefore, wipe up spilled fuel and make
sure the gas cap is rmly tightened after fueling.
Fuel vapors are easily ammable. Do not smoke and keep
away from open re while refueling the machine.
The machine must not be fueled unless the engine is
switched o󰀨.
Maintenance Maintenance and repairs require specic qualications. These
operations may only be carried out by trained professionals.
There is an increased risk of injury during maintenance
and repairs, e.g. crushing at moving parts.
Following the conclusion of all maintenance and repairs,
all protective xtures must be retted and placed back into
operation.
Discharged operating uids have a negative impact on the
environment. They must be collected and stored in suitable
containers. Disposal in accordance with environmental
protection regulations.
Before starting the machine after maintenance operations,
make sure that all loose parts (screws, tool, etc.) have been
removed from the machine. They may be drawn in or ung o󰀨
by moving parts.
Keep the entire machine clean. The stickers must always be
clearly legible. Damaged stickers must be replaced.
Cleaning work Use clear water for cleaning. Do not use ammable solvents.
The vapors of the solvents may ignite upon contact with hot
components or other sparks.
Perform cleaning tasks only in rooms that are suitable and
have been approved for that purpose. Residual oil and lubri-
cants that may have been rinsed o󰀨 have a negative impact
on the environment and must be collected by suitable means
(e.g. oil separator).
Safe handling of combustion
engines
Combustion engines pose a particular risk during operation.
Their exhaust emissions contain carbon monoxide, a colorless
and odorless gas that is extremely hazardous, which, if inhaled
even briey, can cause unconsciousness and death.
Therefore, never inhale the exhaust gas.
