Weber Klassik Series User manual
- 2 -
Table of contents
Safety instructions 3
Protocol for initial commissioning by a qualified technician 4
EC - Declaration of conformity 5
Description of the machine 6
Technical data 6
Unpacking 6
Installation 6
Electrical connection 7
Maintenance 7
Mounting the wheel guard 8
Mounting the clamping shaft 8
Display 9
Control panel 10
Wheel clamping 11
Correct handling of the clamping shaft and quick-release nut 12
Working with the wheel balancer 13
Self Calibration 15
Balancing programs 16
Installation of the Motorcycle Clamping Axis (Accessory) 16
Troubleshooting 18
The information in this manual has been carefully checked, but errors cannot be completely excluded. This
manual is intended for users with technical knowledge in the field of vehicle inspection and repair. Subject to
technical and content changes.
Latest update of the manual: June 2016.
Operating iInstructions 9
Operation and maintenance 6
Mounting 4
Safety 3
Standard accessories 17
Errors and diagnostics 18
- 3 -
Safety instructions
Read all safety and technical instructions for this machine before installing, connecting and
operating the machine.
The machine is manufactured in compliance with the ISO 9000 regulations. The design
takes into account the requirements of excellent quality and user-friendliness.
The operating instructions contain all relevant information for the machine.
Keep this manual in a safe place for future use.
The wheel balancer must not be installed in an extremely hot or cold environment. Do not
place the machine too close to radiators, gas taps, water taps, humidifiers, air conditioners
or other hazardous equipment.
The wheel balancer must not be permanently exposed to direct sunlight.
Avoid liquids entering the display. Do not place liquid containers on the weight
compartments or in the immediate vicinity of the display.
The machine must not be brought into contact with corrosive liquids and other substances
that are harmful to its surface.
The unit must be installed on a flat, load-bearing surface. It must be ensured that floor
vibrations caused by other devices or other influences are excluded.
Only properly trained and qualified personnel should use this machine. Modifications and
alterations to the machine that have not been authorised by the manufacturer can result in
considerable damage to property as well as personal injury. The manufacturer/supplier
accepts no liability for this.
Attention:
This machine must only be used for the purpose for which it was designed by the
manufacturer. Any other use is not permitted.
Weber GmbH is not liable for damages caused by improper use and abuse.
Unauthorised interventions or modifications to the machine are not permitted.
Safety
- 4 -
CERTIFICATE OF FIRST COMMISSIONING OF THE MACHINE
CAUTION
To ensure the validity of warranty claims, the completed proof of first commissioning
must be returned to the manufacturer.
•
Wheel balancer correctly unpacked and transported to the installation
location
•
User’s manual read and understood
•
Wheel balancer mounted and fixed on a flat surface
•
Electrical connection correctly established
•
Wheel guard mounted
•
Basic settings checked or changed
•
Wheel balancer calibrated
No defects have been found, so there are no objections to commissioning.
Weber Klassik Series Wheel balancer year of manufacture
Serial no.
Date of purchase _______
Dealer address
Date: Signature: _________________
By fax to +49(0) 5654-794 User address
Weber GmbH
Sülzbach 1
37293 Herleshausen
Installation and Assembly
- 5 -
CE declaration of conformity
Weber GmbH hereby declares that the machinery described below complies with the relevant essential safety
requirements of the EC Directive on the basis of its design and construction, as well as the version thereof
placed on the market by Weber GmbH In the event of modifications to the machine which have not been
agreed with the signatory, this declaration shall lapse.
Description: Wheel balancer
Model: Weber Klassik-Serie wheel balancer
(manufacturer designation ZH825B)
Relevant EC Directives: machinery guidelines
73/23/CEE
89/336/CEE
92/31/CEE
98/37/CEE
Applied harmonised standards
In particular: AND 292.1 - AND 292.2 - AND 60204-1 -
AND 983 AND 50081-1 - AND 50082-1 - AND
50081-2 - AND 50082-2 - AND 50082-2 -
AND 50082-2
AND 61000-3-2-2 - AND 61000-3-3-3-3-3
Dismantling according to regulations: 2002/96/EC and 2003/108/EC (RAEE)
Herleshausen, February 2015
Place, date Andreas Weber / General Manager
- 6 -
Description of the machine
-
Machine cover with weight compartments
-
Side panel
-
Display with keyboard
-
"A" Distance meter
-
Clamping shaft
-
Quick-release nut
-
Chassis
Technical data
Max. wheel weight, kg
65
Balancing time, sec.
9
Power supply, V/Hz
230/50
Operating temperature, °C
0-50
Balancing functions
STEEL, STATIC, MOTORCYCLE, ALU-1, ALU-
2, ALU-3
Balancing accuracy, g
+/- 1
Rim diameter, inch
12-22
Wheel width, inch
1,5-20
Noise level, db
< 69
Net weight, kg
100
The use of all types of commercially available balancing weights is permitted.
Unpacking
Unpack the device using the correct tools. Pay particular attention to sensitive parts of
the machine, such as the keyboard, display, cover and clamping shaft.
Lifting the machine at the clamping shaft can cause damage to the sensors. The
supplier/manufacturer accepts no liability whatsoever for any resulting defects.
Setup
When setting up the machine, make sure that the applicable safety regulations are
observed.
A clearance of 50 cm must be maintained between the machine and the adjacent
walls/surfaces.
Usage & maintenance
- 7 -
The space required must be adapted to local conditions after fitting the wheel guard and
tightening the clamping shaft.
Avoid moving the machine by the wheel guard. This may result in damage to the guard’s
bearing or to the switch mechanism.
This machine must not be used in potentially explosive atmospheres.
Use anchoring bolts that fit into the machine's provided holes to ensure good anchoring
to the floor.
If the unevenness of the floor exceeds 0,25 %, sufficiently large shims may be used as
levelling material.
For a good operation it is absolutely necessary to anchor the wheel balancer to
the floor.
Electrical connection
The wheel balancer is designed to be connected to a standard 230 V/50 Hz socket.
The machine is equipped with a CE-approved plug as standard. The circuit for the
required socket must be separately fused.
Further electrical connection and reconnection work may only be carried out by a
qualified electrician in accordance with the regulations of VDE and/or the responsible
energy company. All applicable CE or DIN regulations must be observed.
Maintenance
Daily cleaning of:
-
Balancing flange
-
Cones
-
Clamping shaft
-
Quick-release nut
-
Distance meter
Monthly Maintenance:
-
Thorough cleaning of the machine
-
Check the electrical connection
-
Self Calibration
-
Check all machine parts for possible damage or wear.
- 8 -
Mounting the wheel guard
1.
Pull the switch cable through the connection flange for the wheel guard and connect it
to the switch (Fig. 1). Then screw the connecting flange to the machine using the 3
screws provided.
2.
Screw the wheel guard together in the middle (Fig. 2) and click it on the corresponding
frame. Screw the wheel cover to the frame using the 2 screws provided.
3.
Place the wheel cover with frame on the connecting flange and fasten with the supplied
screw.
Fig.1 Fig.2
Mounting the clamping shaft
1. Slide the clamping shaft into the appropriate opening and screw it to the machine with
the provided long Allen key (Fig. 3).
Fig. 3
- 9 -
Display
1
Digital display for displaying the internal imbalance value.
2
Indicators for determining the internal imbalance position.
3
Digital display for displaying the external imbalance value.
4
Indicators for determining the external imbalance position.
5
Display of the balancing mode
Operating instructions
-10 -
Control panel
1
Minus button to decrease the value for the distance to the machine.
2
Plus button to increase the value for the distance to the machine.
3
Minus button to decrease the rim width value.
4
Plus button to increase the rim width value.
5
Minus button to decrease the value for the rim diameter.
6
Plus button to increase the value for the rim diameter.
7
Button for switching to the static balancing programme/ motorcycle balancing
programme.
8
Button for switching between ALU balancing programs.
9
Button to switch to calibration mode.
10
Button for the optimization function and the split program.
11
"Fine button" for the gram-accurate display of the imbalance values.
12
Stop button and selector button for special functions.
13
Start button to start balancing.
Operate the control panel only with your fingers, never with sharp objects such
as e.g. screwdrivers, weight bars, etc.
8
4 5
7
8
9 10 11 12 13
-11 -
Clamping a wheel
There are two different methods for wheel clamping.
Clamping method 1 - clamping cone on the rear of the rim
Most steel wheels can be mounted correctly using this method. The wheel is centered on a cone on the inside of
the hub.
•
Clean the surface of the rim before using this method.
•
Select the most suitable cone for the rim hub hole.
•
Slide the cone with the large ends in the direction of the flange on the shaft so that it rests against the flange.
•
Take a suitable plastic cap (optional) and place it on the quick-release nut.
•
Lift the wheel onto the axle and center the hub hole of the rim with the cone on top.
•
Attach the wheel to the axle using the quick-release nut. Make sure that it is correctly centered.
Clamping method 2 - clamping cone on the front of the rim
A wheel should only be centered like this when the inner surface of the cone does not allow the cone to be
correctly positioned. The wheel is centered on a cone from the outside of the hub.
•
Select the most suitable cone for the rim hub hole.
•
Lift the wheel in the direction of the flange so that it rests against the flange on the axle.
•
Slide the cone with the large ends outwards on the shaft.
•
Centre the hub hole of the rim by sliding on the cone.
•
Attach the wheel to the axle using the quick-release nut (without plastic cap).
-12 -

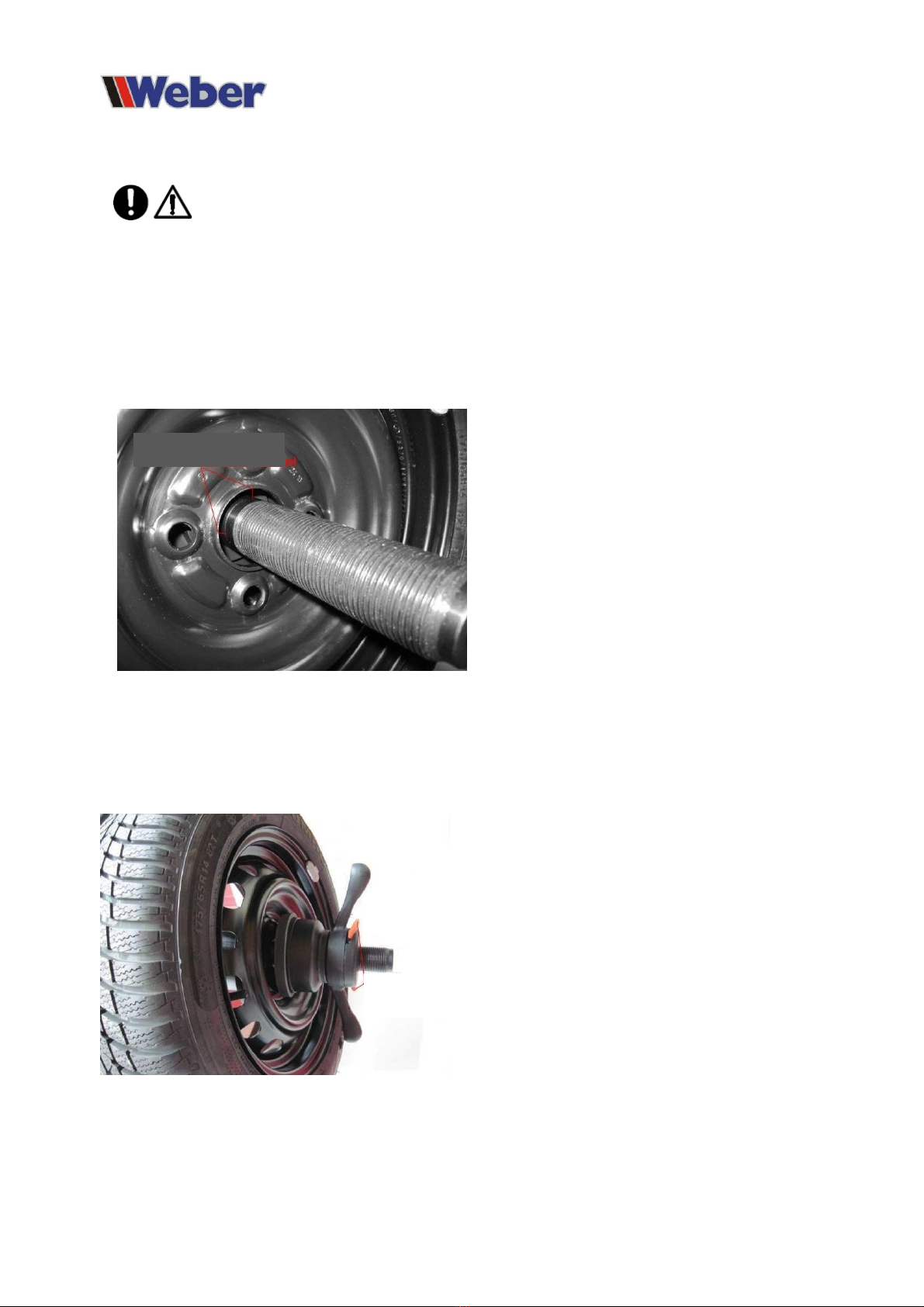

Correct handling of the quick-release nut and balance shaft
Note: Incorrect use of the quick-release nut or incorrect clamping and removal of
the wheel can damage the quick-release nut and the clamping shaft. The
manufacturer/importer/seller is not liable for damage caused by improper use.
This damage is not covered by the warranty.
Fastening and release of the wheel
•
When installing and removing the wheel, guide the rim evenly to the centering cone without touching the
clamping shaft as shown in Fig. 1.
•
Slide the quick-release nut by operating the mechanism to the edge of the rim. Do not use the mechanism for
tightening the quick-release nut but its handles.
Fig. 1 Fastening the wheel
•
Unscrew the quick-release nut until the rim is completely unscrewed, as shown in Fig. 2. Failure to do so may
result in damage to the quick-release nut and the clamping shaft.
•
When removing the wheel, take care not to damage the thread of the clamping shaft. Continue as shown in
Fig. 1.
Fig. 2
Quick-release
mechanism
Keep a distance!
-13 -

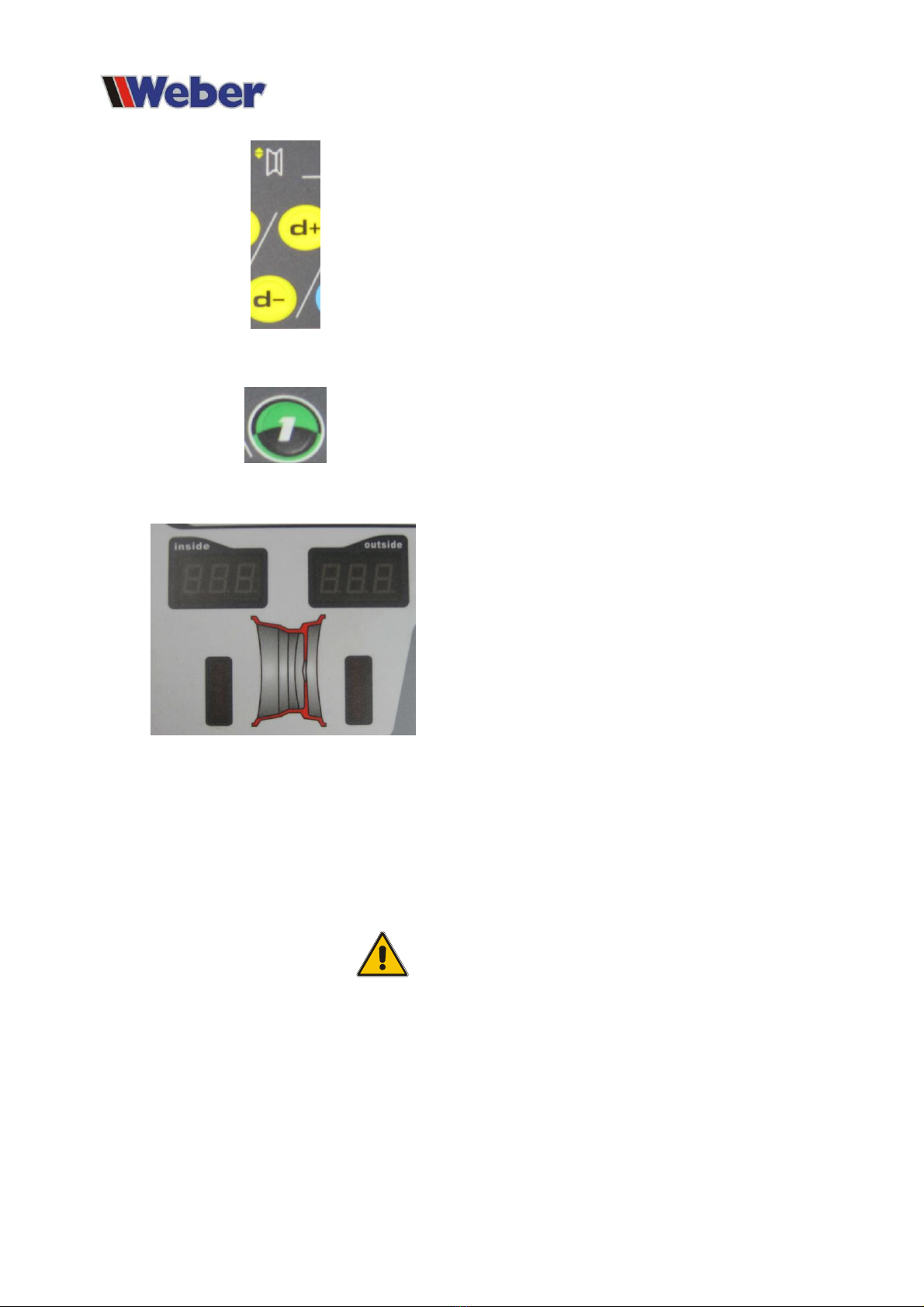

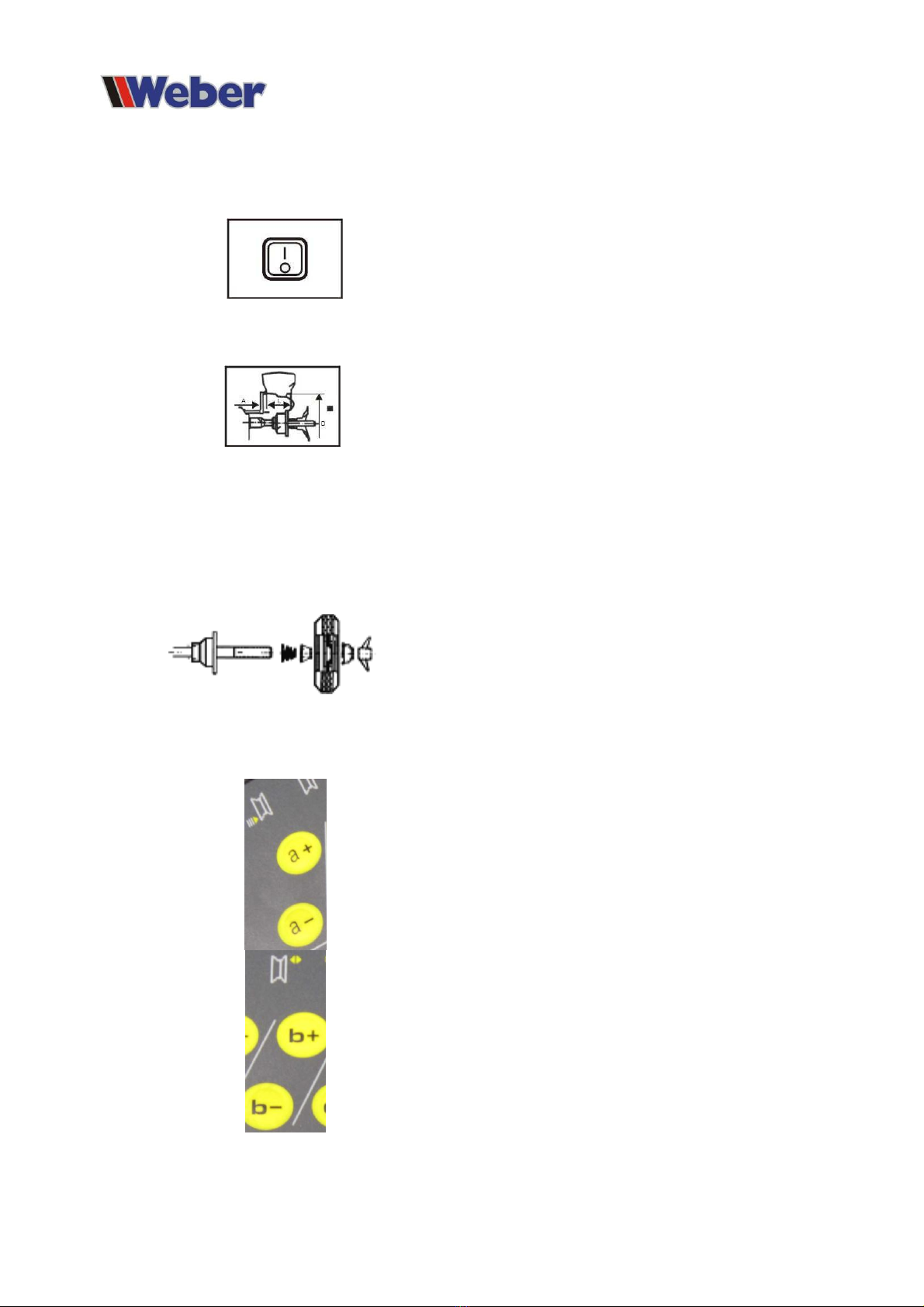

Working with the wheel balancer
The main switch is located on the left side of
the machine chassis. A self-test is carried out
during operation. A sequence of numbers
appears on the display and after a few
seconds the display shows "a" and "8.0.
Clamp the clean wheel onto the clamping
shaft using the correct centering cone.
CAUTION: Even slight dirt on the contact
surfaces of the rim or on the flange of the
wheel balancer can lead to considerable
inaccuracies during the measuring
process.
The quick-release nut is used for even
clamping of the wheel.
The counterposition method is a commonly
used clamping method. Suitable for steel and
alloy rims.
-
Press the selected cone onto the balancing
flange.
-
Place the hub edge on the cone.
CAUTION: The clamping shaft must not
be damaged!
-
Tighten the wheel firmly with the plastic
pressure ring and quick-release nut.
Guide the tip of the distance meter to the rim
flange and read the value directly from the
ruler extension. Press the keys and enter the
read value using the distance key "a+" or "a-
". The left-hand display shows "a", the right-
hand display shows the value entered.
The rim width is determined with the rim width
gauge. Press the keys and enter the desired
value using the eel width keys.
Enter the value for "b+" or "b-". The left display
shows "b", the right display shows the value
entered.
-14 -
Press the diameter determination buttons
"d+" or "d-" to enter the diameter indicated on
the rim and tyre. The left-hand display shows
"d", the right-hand display shows the value
entered.
Close the wheel guard and balancing begins.
If button "1" is pressed while the wheel guard
is open, "ERR-5" appears immediately. On
low-turn (low-turn) wheel balancers, press
the START key to start.
The displays show the internal and external
imbalance value. Turn the wheel in the
desired direction until all LEDs on the left
side constantly light up the positioning
indicator. Attach the counterweight to the
inside of the rims in the 12 o'clock position.
Continue turning the wheel until all LEDs on
the right side of the positioning indicator light
up constantly and place the counterweight
on the outside of the rim in the 12 o'clock
position.
It may be necessary to repeat the procedures
described until the imbalance value "00" is
displayed.
After opening the wheel guard, the quick-
release nut can be released, and balancing is
complete.
When installing and removing the wheel,
the clamping shaft must not be damaged
by the edge of the hub hole.
This may result in measurement
inaccuracies and deformation of the
clamping shaft. Never load the clamping
shaft in any other way than intended!
-15 -
Self-calibration of the machine
Before commissioning and at regular intervals, depending on the frequency of use, a self-
calibration must be carried out. A monthly self-calibration cycle is recommended for normal
workshop use. This ensures that the measurement results are correct.
1.
To calibrate, use a 15-inch steel wheel (with rim + tyre, fully assembled) without
balancing weights and clamp it to the machine with the correct cone.
2.
Press the "F" and "C" keys simultaneously until the following screen appears.
3.
Close the wheel guard or press the green start button. The following figure appears after
the wheel has been braked.
4.
Turn the wheel until all indicators on the right light up and a beep sounds. Now clip on
the supplied 100g calibration weight at the 12 o'clock position on the outside of the rim.
Close the wheel guard or press the green starter button. The following figure appears
after the wheel has been braked.
5.
Turn the wheel until all indicators on the left side light up and a beep sounds. Now store
the supplied 100g calibration weight at the 12 o'clock position on the inside of the rim.
Close the wheel guard or press the green starter button. The following screen appears
after the wheel is braked and the calibration process is complete.
-16 -
Balancing programs
The balancing programs must be selected by pressing the button next to the programs.
Standard program
Active without display in switch-on mode
Balancing steel or alloy wheels using balancing weights at the rim
edges.
Static program
The STATIC correction is used for motorcycle wheels and for wheels on
which a weight does not have to be applied on both sides of the rim.
ALU1
Balancing of alloy wheels with self-adhesive weights on the shoulder of
the rim.
ALU2
Balancing of alloy wheels with 2 adhesive weights on the inside.
ALU3
Balancing of light-alloy wheels with an impact weight and an adhesive
weight on the inside.
F-motorcycle programme
Balancing steel or alloy wheels by means of weights at the rim edges.
Press the "F" key to open this program.
Installation of the motorcycle clamping shaft (accessories)
Unscrew the car-wheel-clamping shaft with the central screw (p. 8 fig.
3). Screw the motorcycle's adapter shaft as shown in the illustrations
below.
-17 -
Included in the delivery:
Wheel balancer incl. wheel guard and balancing shaft
Calibration weight, rim width gauge, weight rod, weight rod, 4
balancing cones, quick-release nut, alloy rim adapter for quick-
release nut
Installation and operating instructions
Included standard accessories
-18 -
Symptom
Cause
Solution
No signal on the display
after switching on.
1.
Power supply failure.
2.
The machine power
supply unit is
defective.
3.
Incorrect connection
between circuit board
and power supply.
4.
Failure of the motherboard.
1.
Check the external
power supply.
2.
Replace the power supply
unit.
3.
Check both the
connection cables and
the plug connectors.
4.
Replace the
motherboard.
The buttons "START", "Dis",
"Br" and "Slide" do not
accept input.
1.
Plug connectors are loose.
2.
Main board defective.
1.
Remove the cover from
the machine and check
the internal plug
connection.
2.
Replace the motherboard.
The display is fine, but
the brake does not work.
1. loose connection between
motherboard and power
supply.
1.
Restore the cable/plug
connection between
motherboard and power
supply.
2.
Replace the power supply.
3.
Replace the motherboard.
2.
Power supply defective.
3.
Defective motherboard.
Number of revolutions too
low, brake error, inaccuracy
in balancing.
Drive belt too loose.
Open the machine, tighten
the drive belt. The motor
and drive belt are precisely
matched.
Incorrect balancing values.
1.
The machine is set up
unstably.
2.
Wheel not tight enough.
3.
Power supply in the
machine is defective.
4.
Too many voltage
fluctuations in the power
supply.
5.
The calibration has
changed.
1.
Set and confirm
according to the
instructions.
2.
Loosen the wheel and
tighten it again.
3.
Check all electrical
connections in the
machine.
4.
Security of compliant
energy supply systems.
5. recalibration of the
machine according to
the operating
instructions.
Troubleshooting must be carried out by qualified personnel. If necessary, the instructions
and permission of the after-sales service prior authorization must be requested.
Malfunctions: diagnosis & troubleshooting
This manual suits for next models
1
Table of contents
