Weider 9015 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Model No.WEEVSY19230
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer,we are
committed to providing com-
plete customer satisfaction. If
you have questions, or if there
are missing parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: [email protected]
08457 089 009

WARNING DECAL PLACEMENT
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and a PARTS LIST/EXPLODED DRAWING are attached in the centre
of this manual. Remove them before beginning assembly.
The decals shown here have been placed on the
weight system in the locations shown on page 4. If
adecal is missing or illegible, please call our
Customer Service Department at 08457 089 009
and order a free replacement decal. Apply the
decal in the location shown.
Keep hands and
fingers clear of
this area.
Warning Decal 1
Warning Decal 2 Warning Decal 4
Keep hands and
fingers clear of
this area.
Warning Decal 3

3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precautions
before using the weight system.
1. Read all instructions in this manual and in
the accompanying literature before using the
weight system.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in a
commercial, rental, or institutional setting.
4. Use the weight system only on a level sur-
face. Cover the floor beneath the weight sys-
tem to protect the floor.
5. Make sure all parts are properly tightened
each time the weight system is used.
Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the weight system at all times.
7. Keep hands and feet away from moving parts.
8. The weight system is designed to support a
amaximum user weight of 135 kg (300 lbs.).
9. Always wear athletic shoes for foot protection.
10. Always stand on the foot plate when per-
forming an exercise that could cause the
weight system to tip.
11. Never release the press arm, fly arms, leg
lever, lat bar, ankle strap, or handle whilst
weights are raised; the weights will fall with
great force.
12.
Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.
13. Make sure that the cables remain on the pul-
leys at all times. If the cables bind whilst you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
14. The resistance cylinders become very hot
during use. Allow the cylinders to cool
before touching them.
15. If you feel pain or dizziness at any time
whilst exercising, stop immediately and
begin cooling down.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®9015
weight system. The weight system offers a selection of
weight stations designed to develop every major mus-
cle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight sys-
tem will help you to achieve the specific results you
want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
reading this manual, please call our Customer Service
Department at 08457 089 009.To help us assist you,
please note the product model number and serial num-
ber before calling. The model number is
WEEVSY19230. The serial number can be found on a
decal attached to the weight system (see the front
cover of this manual).
Before reading further, please review the drawing
below and familiarise yourself with the parts that are
labelled.
Foot Plate
Low Pulley
Station
High Pulley Station
Lat Bar
Leg Lever
Fly Arm
Stepper
Weight Stack
Backrest
Resistance Cylinders
Stepper Handle
Seat
ASSEMBLED DIMENSIONS:
Height: 188 cm (74 in.)
Width: 120 cm (47 in.)
Depth: 165 cm (65 in.)
Anchor Hole
Warning Decal 4
(One on each side of
the rear upright)
Warning Decal 3
Warning Decal 1
Warning Decal 2
Warning Decal 2
(One on each side of the front upright)

1.
Attach a Base Cap (32) to the Stabilizer (2) with
two M4 Washers (75) and two M4 x 16mm Self-
tapping Screws (74). Attach another Base Cap
to the Stabilizer in the same manner.
Insert two M8 x 67mm Carriage Bolts (82) and an
M10 x 67mm Carriage Bolt (42) up through the
Stabilizer (2). It may be helpful to place a piece
of tape over the bolt head to hold it in place.
5
1
42
32
2
82
75
74
32
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
•To make assembly as easy as possible, we have
divided the assembly process into four stages.
The parts needed for each stage are found in
individual bags. Important: Wait until you begin
each stage to open the parts bag for that
stage. Place all parts of the weight system in a
cleared area and remove the packing materials.
Do not dispose of the packing materials until
assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
•For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
ASSEMBLY
Before you begin, make sure that you
have carefully read the instructions at the
top of this page.
Frame Assembly

2. See the inset drawing. Press a 50mm Square
Inner Cap (31) into the Base (1). Insert two M10 x
65mm Carriage Bolts (81) up through the Base. It
may be helpful to place a piece of tape over
the bolt head to hold it in place.
Orient the Rear Upright (3) as shown. Attach the
Base (1) and the Rear Upright to the Stabilizer
with the indicated M8 x 67mm Carriage Bolts (82)
and two M8 Nylon Locknuts (73). Do not tighten
the Locknuts yet.
Orient the Support Bracket (33) as shown. Attach
the Support Bracket to the M10 x 67mm Carriage
Bolt (42) with an M10 Star Washer (92) and an
M10 Nylon Locknut (72). Do not tighten the
Locknuts yet.
Attach the Support Bracket (33) to the Rear
Upright (3) with an M10 x 72mm Bolt (89), an M10
Washer (71), and an M10 Nylon Locknut (72). Do
not tighten the Locknuts yet.
2
3
3
81
71
89
73
73
72
33
Slot
Hole
High Side
92
1
31
12
82
42
29
72
81
72
4
6
3. Press a 38mm Square Inner Cap (29) into the
Front Upright (4).
Attach the Front Upright (4) to the Base (1) with
the indicated M10 x 65mm Carriage Bolts (81)
and two M10 Nylon Locknuts (72). Do not tight-
en the Locknuts yet.

7
4
5
Pedal
Axle
Cylinder
Axle
Hook
Warning Decals
Slotted
Brackets
40 39 38
74
75
75
35
14
15
36
98
330
14
37
37
3
4. Press two 38mm Square Bushings (35) into the
Right Pedal (14); Attach a Pedal Cover (36) to the
Pedal with two M4 x 16mm Self-tapping Screws
(74) and two M4 Washers (75).
Lubricate the pedal axles on the Rear Upright (3).
Slide the Right Pedal (14) onto the pedal axle.
Make sure that the Pedal is on the correct
side; the slotted brackets must be on the
inside of the Pedal.
Hold a 25mm Retainer (98) and 25mm Round
Outer Cap (30) against the right pedal axle. The
teeth on the Retainer must bend toward the
Round Cover Cap (see the inset drawing in
step 5). Tap the Retainer and Round Outer Cap
onto the pedal axle.
Attach the Left Pedal (15) in the same manner.
5. Lubricate the cylinder axles on the Rear Upright
(3) with grease.
Slide a 16mm Round Bushing (40) and a
Resistance Cylinder (37) onto the right cylinder
axle. Make sure that the Bushing, Cylinder,
and warning decal are oriented as shown.
Hold a 16mm Retainer (39) and a 16mm Round
Outer Cap (38) against the right cylinder axle.
The teeth on the Retainer must bend toward
the Outer Cap (see the inset drawing). Tap the
Retainer and Outer Cap onto the cylinder axle.
Raise the Right Pedal (14) and rest it on the hook
at the lower end of the Resistance Cylinder (37).
The hook must be in one of the slots under
the right Pedal.
Repeat this step with the other Resistance
Cylinder (37) on the left side of the Rear
Upright (3).
30, 38
Axle
39, 98

6. Insert two Weight Guides (5) into the Base (1).
Make sure that the holes are on the top.
Slide two Weight Bumpers (44) onto the Weight
Guides (5). Slide the nine Weights (16) onto the
Weight Guides.
Press the Weight Tube Bumper (17) into the
Weight Tube (18). Insert the Weight Tube into the
stack of Weights (16) as shown.
Lubricate the indicated holes in the Top Weight
(19) with grease. Slide the Top Weight onto the
Weight Guides (5). Make sure the pin on the
Weight Tube (18) rests in the pin grooves on
the bottom of the Top Weight.
7. Press two 50mm Square Inner Caps (31) into the
Top Frame (6).
Attach the Top Frame (6) to the Front and Rear
Uprights (4, 3) with four M10 x 68mm Bolts (87),
four M10 Washers (71), and four M10 nylon
Locknuts (72). Do not tighten the Locknuts yet.
Attach the Weight Guides (5) to the Top Frame
(6) with an M10 x 153mm Bolt (91), two M10
Washers (71), two 18mm Spacers (101), and an
M10 Nylon Locknut (72). Do not tighten the
Locknuts yet.
Tighten the Nylon Locknuts (72, 73) used in
steps 2–7.
7
6
5
19
Pin
Pin
Groove
Lubricate
Holes
18
17
16
44
1
31
4
3
5
71
71
91
72
72 72
72 72
101
101
87
71
87
71
31
6
8
8. Wet the Step Handle (12) with soapy water. Slide
two Grips (41) onto the Step Handle.
Attach the Step Handle (12) to the Rear Upright
(3) with two M8 x 65mm Bolts (102), two M8
Washers (103), and two M8 Nylon Locknuts (73).
8
12
102
103
73
341
41
Arm Assembly

9

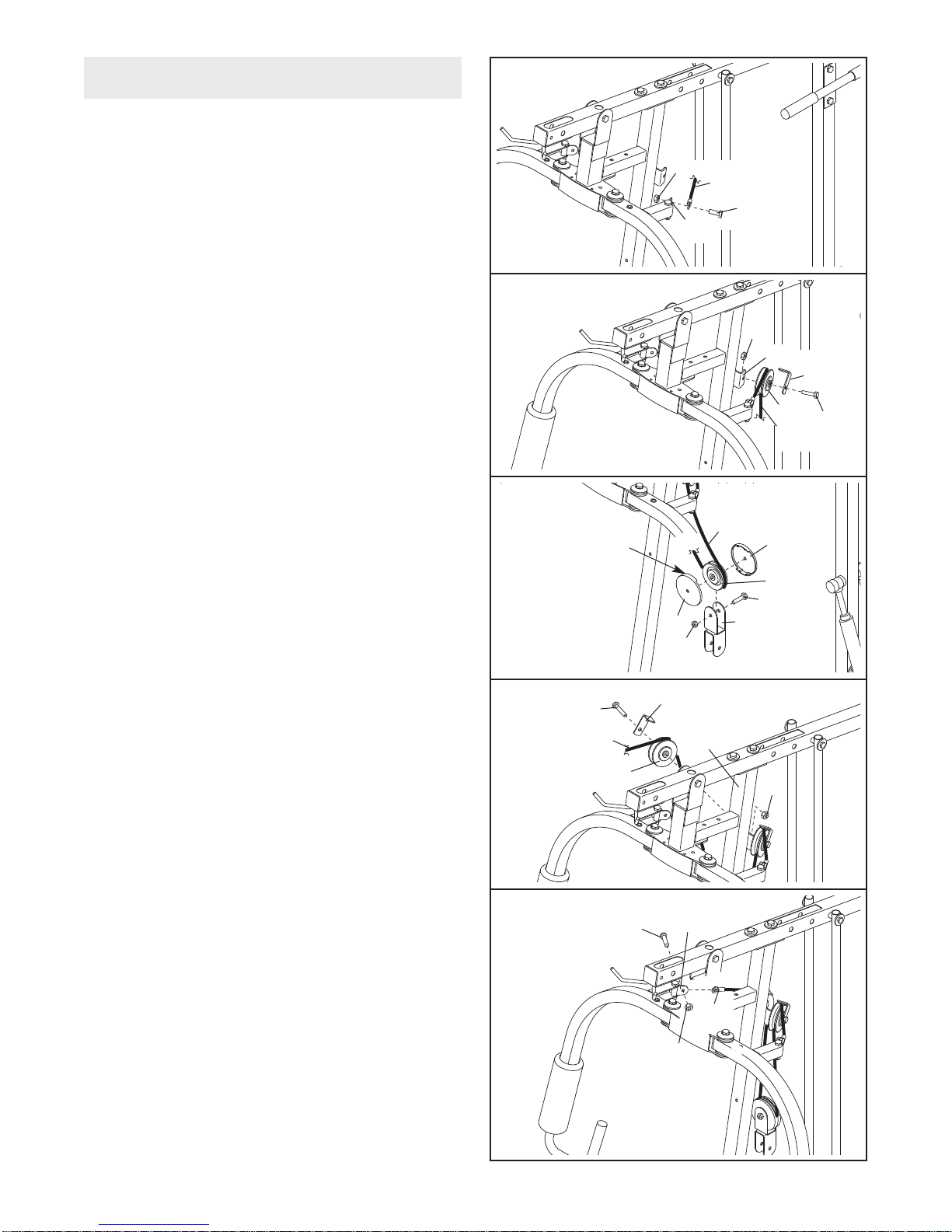

10. Attach a Cable Pivot (58) to the Right Fly Arm (9)
with an M10 x 50mm Bolt (85) and an M10 Nylon
Locknut (72). Do not overtighten the Locknut; the
Cable Pivot must be able to pivot easily.
Press a 40mm x 50mm Inner Cap (23) into the
Right Fly Arm (9).
Lubricate an M10 x 83mm Button Head Bolt (86)
and the flat sides of two Plastic Washers (59) with
grease. Attach the Right Fly Arm (9) to the indi-
cated side of the Butterfly Frame (11) with the
Bolt, two M10 Washers (71), two Butterfly Caps
(60), the two Plastic Washers, and an M10 Nylon
Locknut (72). Do not overtighten the Locknut;
the Fly Arm must be able to pivot easily.
Assemble the Left Fly Arm (10) in the same
manner.
11. Wet the lower end of the Right Fly Arm (9) with
soapy water.Slide a Large Foam Pad (65) onto
the Fly Arm.
Attach an Arm Handle (24) to the Right Fly Arm
(9) with two M8 x 20mm Button Head Bolts (84).
Press a 25mm Round Inner Cap (25) into the
Right Fly Arm (9). Slide a Long Handgrip (80)
onto the Fly Arm.
Slide the Large Foam Pad (65) down so that it
is aligned with the bottom of the Right Fly
Arm (9).
Repeat this step with the Left Fly Arm (not
shown).
10
9
65
84
84 80
Lubricate
Lubricate
Lubricate
72
23
11 10
85
58
86
71
71
60
60
72
59
9
59
11
24
25
9
72
11
74
83
100
64
6
Lubricate
9. Press a 50mm x 70mm Inner Cap (64) into the
Butterfly Frame (11).
Attach the tethers on the two “L”-pins (100) to the
Butterfly Frame (11) with an M4 x 16mm Self-tap-
ping Screw (74).
Lubricate an M10 x 80mm Bolt (83) with grease.
Attach the Butterfly Frame (11) to the Top Frame
(6) with the Bolt and an M10 Nylon Locknut (72).
Do not overtighten the Locknut; the Butterfly
Arm must be able to pivot easily.

10
12. Locate the Butterfly Cable (55). Attach the
Cable to the indicated Cable Pivot (58) with an
M8 x 20mm Shoulder Bolt (93) and an M8 Nylon
Locknut (73).
13. Wrap the Butterfly Cable (55) over a “V”-pulley
(47). Attach the “V”-pulley and a Cable Trap (48)
to the Front Upright (4) with an M10 x 60mm Bolt
(95) and an M10 Nylon Locknut (72).
15. Wrap the Butterfly Cable (55) over a “V”-pulley
(47). Attach the “V”-pulley and a Cable Trap (48)
to the Front Upright (4) with an M10 x 60mm Bolt
(95) and an M10 Nylon Locknut (72).
14. Wrap the Butterfly Cable (55) under a 90mm
Pulley (46). Attach the Pulley and two Pulley
Covers (49) to the Double “U”-bracket (51) with
an M10 x 53mm Bolt (88) and an M10 Nylon
Locknut (72). Make sure the small tabs on the
Pulley Covers are on the top.
14
Small
Tab
12
13
15
58 93
95
48
47
724
55
73
49
88
55
46
49
72 51
55
95 48
47 72
4
55
Cable Assembly
16 93
73
55
58
16. Attach the Butterfly Cable (55) to the indicated
Cable Pivot (58) with an M8 x 20mm Shoulder
Bolt (93) and an M8 Nylon Locknut (73).

11
19
20
17
18
89
94
49 49
72 5188
46
94
94
53
57
54
54
71
71
72 6
87
46
73
71
72
4
17. Locate the Short Cable (94). Attach the Cable to
the Front Upright (4) with an M10 x 72mm Bolt
(89), an M10 Washer (71), and an M10 Nylon
Locknut (72).
18. Wrap the Short Cable (94) under a 90mm Pulley
(46). Attach the Pulley and two Pulley Covers (49)
to the Double “U”-bracket (51) with an M10 x
53mm Bolt (88) and an M10 Nylon Locknut (72).
Make sure the large tabs on the Pulley Covers
are on the top.
19. Attach the Short Cable (94) to the “U”-bracket
(53) with an M8 Nylon Locknut (73). Thread the
Locknut onto the end of the Cable so that two
threads show past the Locknut (see the inset
drawing).
20. Locate the High Cable (57). Route the Cable up
through the Top Frame (6) and over a 90mm
Pulley (46). Attach the Pulley inside the Top
Frame with an M10 x 68mm Bolt (87), two M10
Washers (71), two 12mm Spacers (54), and an
M10 Nylon Locknut (72).
Large
Tab
53
73
94
21. Route the High Cable (57) over a 90mm Pulley
(46) and down through the Top Frame (6). Attach
the Pulley inside the Top Frame with an M10 x
68mm Bolt (87), two M10 Washers (71), two
12mm Spacers (54), and an M10 Nylon Locknut
(72).
21
87
6
57
71
72 54
71
54
46

25. Locate the Low Cable (56). Route the Cable
through the Front Upright (4) and under a 90mm
Pulley (46). Attach the Pulley and two Pulley
Covers (49) inside the Upright with an M10 x
68mm Bolt (87), two M10 Washers (71), two
10mm Spacers (45), and an M10 Nylon Locknut
(72). Make sure the large tabs on the Pulley
Covers are in the indicated position.
Large
Tab
87
4
56
49
49 46
72
71
71
45
45
25
12

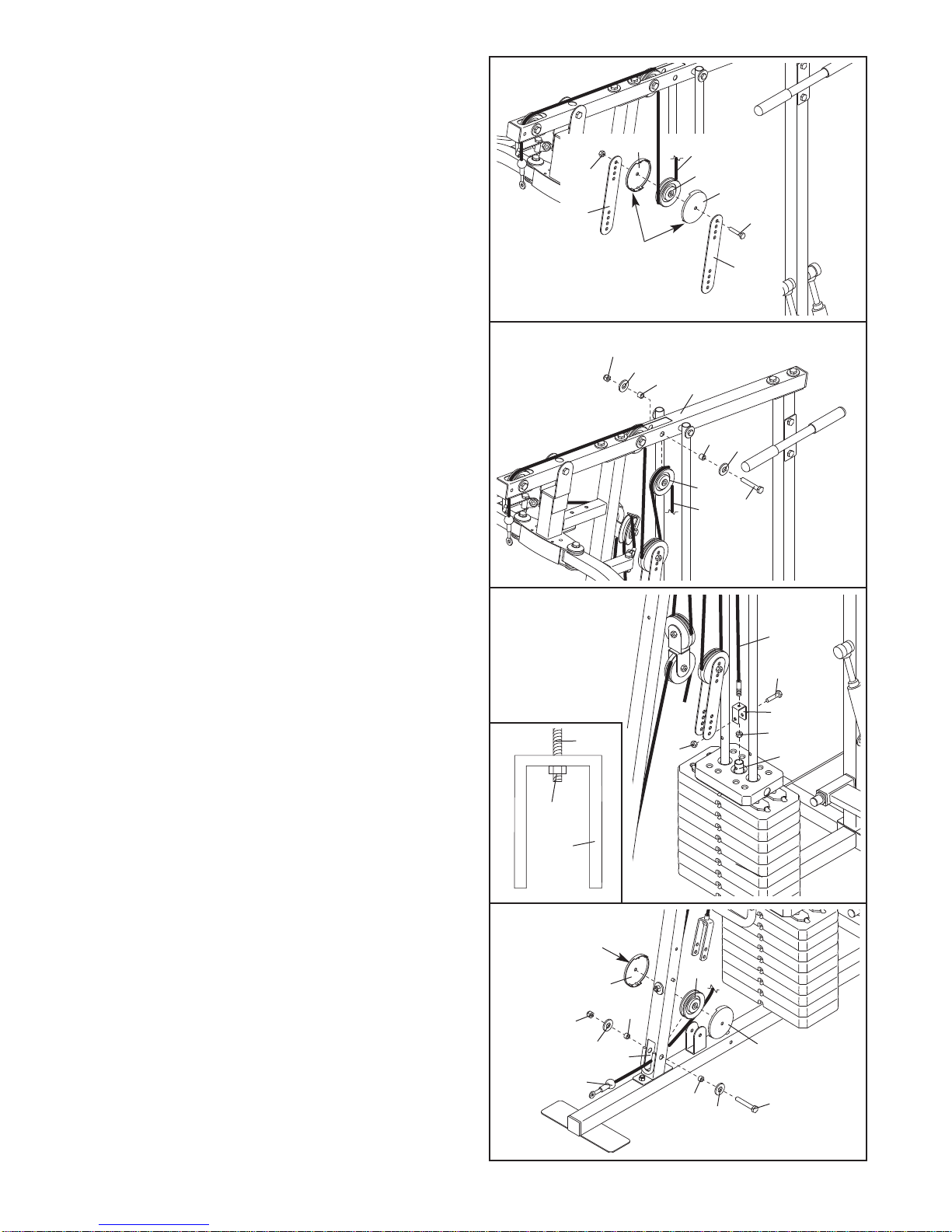

22. Route the High Cable (57) under a 90mm Pulley
(46). Attach the Pulley and two Pulley Covers (49)
tothe first set of holes from the top of the two
Pulley Plates (50) with an M10 x 53mm Bolt (88)
and an M10 Nylon Locknut (72). Make sure the
large tabs on the Pulley Covers are on the
bottom.
23. Route the High Cable (57) over a 90mm Pulley
(46). Attach the Pulley inside the Top Frame (6)
with an M10 x 68mm Bolt (87), two M10 Washers
(71), two 12mm Spacers (54), and an M10 Nylon
Locknut (72).
24. Attach the High Cable (57) to the Small “U”-
bracket (52) with an M8 Nylon Locknut (73).
Thread the Locknut onto the end of the Cable
so that two threads show past the Locknut
(see the inset drawing).
Attach the Small “U”-bracket (52) to the Weight
Tube (18) with an M8 x 45mm Bolt (96) and an
M8 Nylon Locknut (73). Do not overtighten the
Locknut; the Weight Tube must be able to
pivot freely.
24
57
96
52
73
73 18
22
50
Large
Tab 50
72
49
49 88
46
57
23 72 71
71
54 6
54
46
57 87
52
73
57

13
26. Route the Low Cable (56) over a 90mm Pulley
(46). Attach the Pulley and two Pulley Covers (49)
tothe bottom set of holes in the “U”-bracket (53)
with an M10 x 53mm Bolt (88) and an M10 Nylon
Locknut (72). Make sure the large tabs on the
Pulley Covers are on the top.
28. Route the Low Cable (56) over a 90mm Pulley
(46). Attach the Pulley and two Pulley Covers (49)
to the second set of holes from the bottom of the
Pulley Plates (50) with an M10 x 53mm Bolt (88)
and an M10 Nylon Locknut (72). Make sure the
large tabs on the Pulley Covers are on the
top.
29. Attach the Low Cable (56) inside the Base (1)
with an M10 x 68mm Bolt (87), two M10 Washers
(71), and an M10 Nylon Locknut (72).
27. Wrap the Low Cable (56) under a 90mm Pulley
(46). Attach the Pulley and two Pulley Covers (49)
to the Base (1) with an M10 x 53mm Bolt (88)
and an M10 Nylon Locknut (72). Make sure the
small tabs on the Pulley Covers are on the
top.
28
49
49
46
56
72 88
50
29
Large
Tab
7253
56
46
49 88
49
26
27
Large
Tab
Small
Tab
72
1
46
49
88
49 56
87
71
71
72
56
1

14
30. Attach the Backrest (61) to the Front Upright (3)
with two M6 x 65mm Screws (77) and two M6
Washers (69).
31. Press a 38mm Square Inner Cap (29) into the
Seat Frame (7).
Attach the Seat Plate (28) to the Seat Frame (7)
with an M6 x 50mm Carriage Bolt (78), an M6
Washer (69), and an M6 Nylon Locknut (90) as
shown. Do not tighten the Locknut yet.
Attach the Seat (62) to the Seat Plate (28) with
two M6 x 16mm Screws (76). Next, attach the
Seat to the Seat Frame (7) with an M6 x 53mm
Screw (70) and an M6 Washer (69).
Tighten the M6 Nylon Locknut (90).
32. Press a 38mm Square Inner Cap (29) into the
Leg Lever (8).
Attach the M10 x 63mm Eyebolt (97) to the Leg
Lever (8) with an M10 Large Washer (13) and an
M10 Nylon Locknut (72).
Lubricate an M8 x 57mm Bolt (79) with grease.
Attach the Leg Lever (8) to the Seat Frame (7)
with the Bolt and an M8 Nylon Locknut (73). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
33. Press two 19mm Round Inner Caps (27) into a
Pad Tube (26). Slide the Pad Tube into the hole
in the Leg Lever (8). Slide two Small Foam Pads
(66) onto the Pad Tube.
Assemble the other Pad Tube (26) to the Seat
Frame (7) in the same manner.
30
31
61469
69
77
77
62
78
28
29
7
76
69
90 70
Seat Assembly
32
33
79 Lubricate
72 13
29
73
7
97
8
26
27
27
66
66 8
7
26

34. Set the Seat Frame (7) on the pin on the Front
Upright (4). Secure the Seat Frame with an M8 x
67mm Carriage Bolt (82) and the M8 Knob (43).
34
7
43Pin
82
4
35. Make sure that all parts are properly tightened. The use of all remaining parts will be explained in ADJUST-
MENT, beginning on the following page. Before using the weight system, pull each cable a few times to
make sure that the cables move smoothly over the pulleys. If one of the cables does not move smoothly,
locate and correct the problem before using the weight system. IMPORTANT: If the cables are not proper-
ly routed, they may be damaged when heavy weight is used. See the CABLE DIAGRAM on page 20
of this manual.
15

16
ADJUSTMENT
The instructions below describe how each part of the weight system can be adjusted. IMPORTANT: When
attaching the lat bar or nylon strap, make sure that the attachments are in the correct starting position
for the exercise to be performed. If there is any slack in the cable or chain as an exercise is performed,
the effectiveness of the exercise will be reduced.
CHANGING THE WEIGHT SETTING
To change the weight setting, insert the Weight Pin
(20) under one of the Weights (16). Make sure to
insert the Weight Pin until the bent end of the Weight
Pin is touching the Weights, and turn the bent end
downward. The weight setting can be changed from
12.5 pounds to 125 pounds, in increments of 12.5
pounds. Note: Due to the cables and pulleys, the
actual amount of resistance at each exercise sta-
tion will vary from the weight setting. See the
WEIGHT RESISTANCE CHART on page 18 to find
the actual amount of resistance at each station.
Note: 1 kg = 2,2 pounds.
LOCKING THE WEIGHT STACK
To prevent unauthorised use of the weight system,
insert the Locking Bar (21) into the indicated hole in
one of the Weight Guides (5). Secure the Locking Bar
with the Lock (22).
Remove the Lock (22) and Locking Bar (21) to use
the weight system again.
ATTACHING THE ACCESSORIES TO A PULLEY
STATION
Attach the Lat Bar (34) to the High Cable (57) with a
Cable Clip (68). For some exercises, the Chain (99)
should be attached between the Lat Bar and the High
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the High Cable so
that the Lat Bar is in the correct starting position
for the exercise to be performed.
The Handle (not shown) can be attached in the same
manner. The accessories can be attached to the Low
Cable (not shown) in the same manner.
20
16
522
21
68
68
34
99
57

CONVERTING THE BUTTERFLY ARMS
Touse the Fly Arms (9, 10) as butterfly arms, insert
the “L”-pins (100) into the butterfly holes in the Front
Upright (4) and the tab on the back of the Butterfly
Frame (11).
To use the Fly Arms (9, 10) as press arms, insert the
“L”-pins (100) into the press holes in the Butterfly
Frame (11).
Make sure that the “L”-pins (100) are fully inserted
into the same set of holes before performing any
exercises.
ATTACHING THE SEAT
Set the Seat Frame (7) on the pin on the Front
Upright (4). Secure the Seat Frame with an M8 x
67mm Carriage Bolt (82) and the M8 Knob (43).
For some exercises, the Seat (7) must be removed.
First, make sure that the chain is not attached to the
leg lever (see ATTACHING THE LEG LEVER,below).
Next, remove the M8 Knob (43) and M8 x 67mm
Carriage Bolt (82) from the Seat Frame. Lift the Seat
Frame offthe Front Upright (4).
ATTACHING THE LEG LEVER
To use the Leg Lever (8), first attach the seat to the
weight system (see ATTACHING THE SEAT, above).
Next attach the Low Cable (56) to the M10 x 63mm
Eyebolt (97) with the Chain (99) and two Cable Clips
(68).
CHANGING THE STEPPING RESISTANCE
To change the stepping resistance, lift the Right and
Left Pedals (14, 15) off the hooks at the lower ends of
the Resistance Cylinders (37). Move the hooks to dif-
ferent slots under the Pedals. Make sure that the
hooks are fully inserted into the slots in the same
position under both Pedals. The farther the hooks
are moved from the Rear Upright (3), the greater the
resistance will be.
100
11
10
9
4
100 Butterfly
Press
97
8
56
68
68
99
43
82
74
Pin
37
14
15
17
WARNING:The Resistance
Cylinders (37) become very hot during use.
Allow the Resistance Cylinders to cool before
touching them.

18
WEIGHT
Top
1
2
3
4
5
6
7
8
9
HIGH PULLEY
(lbs.)
13
31
47
64
77
87
106
128
138
154
PRESS ARM
(lbs.)
25
44
67
81
101
118
135
158
183
197
BUTTERFLY
ARM
(lbs.)
18
33
52
62
76
86
98
114
125
139
LEG LEVER
(lbs.)
13
26
40
53
65
75
91
106
117
134
LOW PULLEY
(lbs.)
15
34
48
64
78
90
103
120
137
153
WEIGHT RESISTANCE CHART
The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6 lb. top
weight. The other numbers refer to the 12.5 lb. weight plates. Weight resistance shown for the butterfly arm sta-
tion is for each butterfly arm. Note: The actual resistance at each station may vary due to differences in
individual weight plates as well as friction between the cables, pulleys, and weight guides.
Note: 1 kg = 2,2 pounds.

19
TROUBLESHOOTING
Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi-
ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened. Slack can be removed from the
cables in several different ways.
TIGHTENING THE PULLEY PLATES
Slack can be removed by moving a 90mm Pulley (not
shown) and the two Pulley Covers (49) to a set of
holes closer to the centre of the two Pulley Plates
(50). Remove the M10 Nylon Locknut (72) and the
M10 x 53mm Bolt (88) from the Pulley Covers, the
Pulley, and the Pulley Plates. Re-attach the Pulley
and the Pulley Covers to the new set of holes in the
Pulley Plates with the Bolt and Locknut.
TIGHTENING THE “U”-BRACKET
Slack can be removed by moving the 90mm Pulley
(not shown) and the two Pulley Covers (49) to the
upper set of holes in the “U”-bracket (53). Remove
the M10 Nylon Locknut (72) and the M10 x 53mm
Bolt (88) from the Pulley Covers, the Pulley,and the
“U”-bracket. Re-attach the Pulley and the Pulley
Covers to the new set of holes in the “U”-bracket with
the Bolt and Locknut.
Slack can also be removed from the Short Cable (94)
by tightening the M8 Nylon Locknut (73) two turns
onto the Short Cable.
50
49
72
88
72
73 53
94
88
49

20
CABLE DIAGRAM
The cable diagram below shows the proper routing of the Butterfly Cable (55), the Low Cable (56), the High
Cable (57), and the Short Cable (94). Use the diagram to make sure that the cables are assembled correctly.
Use the diagrams to make sure that the cables and the cable traps have been assembled correctly. If the cables
have not been correctly routed, the weight system will not function properly and damage may occur. The num-
bers show the correct route for each cable. Make sure that the cable traps do not touch or bind the cables.
1
1
2
3
1
1
2
2
3
3
4
5
24
3
5
4
5
High Cable (57)
Length: 3.68m
Butterfly Cable (55)
Length: 1.34m
Short Cable (94)
Length: 1.44m
Low Cable (56)
Length: 2.07m
