WeiderPro 355 User manual

USER'S MANUAL
Model No. WEEMBE73500
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
Part No. 156991 R0800A Printed in China © 2000 ICON Health & Fitness, Inc.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness Ltd. office, or write:
ICON Health & Fitness Ltd.
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
Tel: Country Code:
Fax: [phone]
To help us assist you, please be prepared to give the following information:
¥ The NAME of the product (WEEMBE73500)
¥ The MODEL NUMBER of the product (WEIDER¨PRO 355 weight bench)
¥ The PART NUMBER of the part (see the PART LIST and EXPLODED DRAWING on pages 18 and 19)
¥ The DESCRIPTION of the part (see the PART LIST and EXPLODED DRAWING on pages 18 and 19).
0345-089009
QUESTIONS?
As a manufacturer, we are
committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satis-faction through
our Customer Service
Department.
Please CALL:
Or WRITE:
ICON Fitness Lifestyle Ltd.
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
0345-089009

The decals shown at the
right have been placed on
your weight bench. If a decal
is missing or illegible,
please call our Customer
Service Department to order
a free replacement decal
(see the back cover of this
manual). Apply the decal in
the location shown.
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ADJUSTING THE WEIGHT BENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
3
3
3
3
6
6
67
14
5
17
1
11
9
2
3
8
8
8
13
37
39
39
39 39
27
39
39
41
41
31
36
45
28
28
19
2
47
26
25
29
34
4
38
40
46
48
48
48
48
48
4
2
40
40
39 35
46
32
38
38
46
43
49
46
4
50
15
16
33
46
46
46
20
56
30
46
4
24
24
24
51
46
35
35
8
4
53
52
53
12
23
46
23
24
21
4
22
4
13
37
39
39
39
18
24
9
51
8
4
4
210
10
2
4
42
2
13
4
8
54
46
46
48
13
46
44
55
EXPLODED DRAWINGÑModel No. WEEMBE73500 R0800A
WARNING DECAL PLACEMENT
19
Keep hands and
fingers clear of
this area.
¥ Misuse of this product may result in serious
injury.
¥ Read userÕs manual and follow all warnings
and operating instructions prior to use.
¥ Do not allow children on or around machine.
¥ Replace label if damaged, illegible, or removed.
WARNING
!

18
PART LISTÑModel No. WEEMBE73500 R0800A
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
Key No. Qty. Description
1 1 M10 x 72mm Bolt
2 6 M10 Nylon Locknut
3 10 M8 x 60mm Carriage Bolt
4 18 M8 Nylon Locknut
5 2 M6 x 16mm Screw
6 4 M6 x 36mm Screw
7 1 M10 x 175mm Bolt
8 10 M8 x 68mm Bolt
9 2 M10 x 89mm Bolt
10 2 M10 Washer
11 1 M10 x 43mm Bolt
12 1 M10 x 120mm Bolt
13 7 M8 Washer
14 1 M6 x 60mm Carriage Bolt
15 1 M6 Nylon Locknut
16 2 M6 Washer
17 1 M6 x 62mm Screw
18 1 Left Upright
19 1 Right Upright
20 1 Left Base
21 1 Top Frame
22 1 Crossbar
23 2 Cable Trap
24 5 Pulley
25 1 Backrest Bracket
26 1 Adjustment Backrest Bracket
27 1 Nylon Strap
28 2 Handgrip
29 1 Backrest
Key No. Qty. Description
30 1 ÒUÓ Bracket
31 1 Adjustment Tube
32 1 Leg Lever
33 1 Stabiliser
34 1 Seat
35 3 Weight Stop
36 1 Lat Bar
37 2 Adjustment Weight Rest
38 3 Pad Tube
39 15 1Ó Round Inner Cap
40 6 3/4Ó Round Inner Cap
41 2 1 1/4Ó Round Inner Cap
42 1 Main Upright
43 1 Bench Base
44 2 Spring Clip
45 2 Cable Clip
46 13 2Ó Square Inner Cap
47 2 1/2Ó x 1 1/8Ó Spacer
48 6 Foam Pad
49 1 Bench Frame
50 1 Seat Bracket
51 1 Cable
52 1 Weight Carriage
53 3 2 1/2Ó Square Bushing
54 1 Carriage Stop
55 1 1Ó Angle Cap
56 1 Right Base
# 1 UserÕs Manual
3
IMPORTANT PRECAUTIONS
1. Read all instructions in this manual before
using the weight bench.
2. Use the weight bench only as described in
this manual.
3. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
4. Inspect and tighten all parts each time you
use the weight bench. Replace any worn
parts immediately.
5. Keep children under 12 and pets away from
the weight bench at all times.
6. Always make sure there are equal amounts
of weight on both sides of your barbell (not
included) when you are using it.
7. When you are using the weight carriage,
make sure there are equal amounts of weight
on both sides of the weight tube.
8. Always wear athletic shoes for foot protec-
tion whilst exercising.
9. Keep hands and feet away from moving parts.
10. Do not use a barbell that is longer than five
feet with the weight bench.
11. The weight bench does not include weights.
The weight bench is designed to support a
maximum of 232 kg (510 lbs), including the
user, a weight bar, and weights. Do not place
more that 141 kg (310 lbs), including a weight
bar and weights, on the weight rests. Do not
place more that 68 kg (150 lbs) on the weight
carriage. Do not place more that 68 kg (150
lbs) on the leg lever.
12. When using the backrest, make sure that the
adjustment tube is firmly seated in the
adjustment brackets on the uprights.
13. If you feel pain or dizziness at any time
whilst exercising, stop immediately and
begin cooling down.
14. It is the responsibility of the owner to ensure
that all users of the weight bench are ade-
quately informed of all precautions.
15. The weight bench is intended for in-home
use only. Do not use the weight bench in any
commercial, rental or institutional setting.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

174
BEFORE YOU BEGIN
Backrest
Low Pulley
Station
Weight Rests
Adjustment
Weight Rests
Weight Carriage
Adjustment Tube
Adjustment Holes
Adjustment
Brackets Leg Lever
Seat
High Pulley Station
Lat Bar
Weight Tube
Thank you for selecting the WEIDER¨PRO 355 weight
bench. The versatile PRO 355 weight bench is
designed to be used with your own weight set (not
included) to develop every major muscle group of the
body. Whether your goal is a shapely figure, dramatic
muscle size and strength, or a healthier cardiovascular
system, the PRO 355 weight bench will help you to
achieve the specific results you want.
For your benefit, read this manual carefully before
using the PRO 355 weight bench. If you have addi-
tional questions, please call our Customer Service
Department at 0345-089009. To help us assist you,
please note the product model number and serial
number before calling. The model number is
WEEMBE73500. The serial number can be found on a
decal attached to the weight bench (see the front
cover of this manual).
Before reading further, please look at the drawing
below and familiarise yourself with the parts that are
labelled.
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.

16 5
PART IDENTIFICATION CHART
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part. The second number refers to the quantity needed for assembly.
Important: Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in
the parts bags, check to see if it has been pre-assembled.
M8 Nylon Locknut (4)Ð18
M6 Washer (16)Ð2
M8 Washer (13)Ð7
M10 Nylon Locknut (2)Ð6
M10 Washer (10)Ð2
M10 x 175mm Bolt (7)Ð1
M10 x 43mm Bolt (11)Ð1
M10 x 89mm Bolt (9)Ð2
M10 x 120mm Bolt (12)Ð1
M8 x 68mm Bolt (8)Ð10
1/2" x 1 1/8" Spacer (47)Ð2
M6 x 36mm Screw (6)Ð4
M6 x 62mm Screw (17)Ð1
M6 x 60mm Carriage Bolt (14)Ð1
M8 x 60mm Carriage Bolt (3)Ð10
M6 x 16mm Screw (5)Ð2
M6 Nylon Locknut (15)Ð1
M10 x 72mm Bolt (1)Ð1
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
N
O
P
Q
R
S
T
U
W
V
M
L
J
G
F
H
I
K
E
C
D
B
A

15
1. Before beginning assembly, be sure that you
have read the information in the box above.
Set the Left Base (20) and the Right Base (56) on
the floor. Be sure that the indented holes in the
Bases are facing the floor.
Attach the Left Base (20) and the Right Base (56)
with the ÒUÓ Bracket (30), two M8 x 68mm Bolts (8),
and two M8 Nylon Locknuts (4). Do not tighten
the Nylon Locknuts yet. Press a 2Ó Square Inner
Cap (46) into each section of the Base.
Insert two M8 x 60mm Carriage Bolts (3) up
through the Left Base (20) and the Right Base (56),
and ÒUÓ Bracket (30). Slide the Main Upright (42)
onto the Carriage Bolts. The welded post on the
Main Upright must be on the side shown. Hand-
tighten an M8 Nylon Locknut (4) onto each
Carriage Bolt.
Press a 2 1/2Ó Square Bushing (53) into the
Carriage Stop (54). The slot in the Square
Bushing must be aligned with the hole in the
Carriage Stop. Slide the Carriage Stop onto the
Main Upright (42). Align the holes in the Carriage
Stop with the indicated holes in the Main
Upright. Insert an M8 x 68mm Bolt (8) through the
Carriage Stop and Main Upright. Tighten an M8
Nylon Locknut (4) onto the Bolt.
Insert two M8 x 60mm Carriage Bolts (3) into the
Left Base (20) and into the Right Base (56).
1
54
53
Slot
8
8
4
4
42
30
56
346
46
3
3
Welded Post must
be on this side
Align these Holes
ASSEMBLY
¥ Place all parts of the weight bench in a cleared
area and remove packing materials; do not dispose
of the packing materials until assembly is completed.
¥ Read each assembly step before you begin.
¥ For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5. Note: Some
parts may have been pre-attached for shipping pur-
poses. If a part is not in the parts bag, check to see
if it has been pre-attached.
¥ Tighten all parts as you assemble them, unless
instructed to do otherwise.
¥ As you assemble the weight bench, make sure that
all parts are oriented as shown in the drawings.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
¥ Two adjustable spanners
¥ One standard screwdriver
¥ One rubber mallet
¥ Lubricant, such as grease or petroleum jelly,
and soapy water will also be needed.
A socket set, a set of end wrenches, or a set of
ratchet wrenches is recommended.
If further assistance is needed, please call our
Customer Service Department at 0345-089009.
doing a toning workout, and 30 seconds after each set
if you are doing a weight loss workout. Plan to spend
the first couple of weeks familiarising yourself with the
equipment and learning the proper form for each exer-
cise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretchÑdo not bounce. Ease into each
stretch gradually and go only as far as you can without
strain. Stretching at the end of each workout is very
effective for increasing flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 17 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, exercises performed, weight, and numbers of
sets and repetitions completed. Record your weight
and key body measurements at the end of every
month.
Remember, the key to achieving the greatest results is
to make exercise a regular and enjoyable part of your
everyday life.
20
6
The Indented
Holes must
face the floor

14 7
2. Press a 2Ó Square Inner Cap (46) into the Left
Upright (18). Press four 1Ó Round Inner Caps (39)
into the Left Upright.
Slide the Left Upright (18) onto the indicated M8 x
60mm Carriage Bolts (3). The adjustment brack-
ets on the Left Upright must be on the side
shown. Hand-tighten an M8 Nylon Locknut (13)
onto each Carriage Bolt.
Assemble the Right Upright (19) in the same
manner.
3. Attach one side of the Crossbar (22) to the Left
Upright (18) with two M8 x 68mm Bolts (8), two M8
Washers (13), and one M8 Nylon Locknut (4). Note:
The upper hole in the Crossbar is threaded. Do
not tighten the Nylon Locknut or the Bolts yet.
Attach the other side of the Crossbar (22) to the
Right Upright (19) in the same manner.
4. Press two 2 1/2Ó Square Bushings (53) into the
Weight Carriage (52). Press two 1Ó Round Inner
Caps (39) into the Weight Carriage (52).
4
2
46
46
3
3
4
4
18
19
Adjustment
Brackets
22
Threaded
Hole
13
13
4
18
53
39
39
19
8
8
39
39
3
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
¥ Muscle Building
In order to increase the size and strength of your mus-
cles, you must push your muscles to a high percent-
age of their capacity. You must also progressively
increase the intensity of your exercise so that your
muscles will continually adapt and grow. Each individ-
ual exercise can be tailored to the proper intensity
level by changing the amount of weight used, or the
number of repetitions or sets performed. (A ÒrepetitionÓ
is one complete cycle of an exercise, such as one sit-
up. A ÒsetÓ is a series of repetitions performed consec-
utively.)
The proper amount of weight for each exercise
depends upon the individual user. It is up to you to
gauge your limits. Select the amount of weight that
you think is right for you. Begin with 3 sets of 8 repeti-
tions for each exercise that you perform. Rest for 3
minutes after each set. When you can complete 3 sets
of 12 repetitions without difficulty, increase the amount
of weight.
¥ Toning
To tone your muscles, you must push your muscles to
a moderate percentage of their capacity. Select a mod-
erate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
¥ Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
¥ Cross Training
In the pursuit of a complete and well-balanced fitness
program, many have found that cross training is the
answer. We recommend that on Monday, Wednesday
and Friday, you plan weight training workouts. On
Tuesday and Thursday, plan 20 to 30 minutes of aero-
bic exercise, such as cycling, running or swimming.
Rest from both weight training and aerobic exercise for
at least one full day each week to give your body time
to regenerate. By combining weight training with aero-
bic exercise, you can reshape and strengthen your
body, plus develop a stronger heart and lungs.
PERSONALISING YOUR EXERCISE PROGRAM
We have not specified an exact length of time for each
workout, or a specific number of repetitions or sets for
each exercise. It is very important to avoid overdoing it
during the first few months of your exercise program,
and to progress at your own pace. If you experience
pain or dizziness at any time whilst exercising, stop
immediately and begin to cool down. Find out what is
wrong before continuing. Remember that adequate
rest and a proper diet are also important.
WARMING UP
Begin each workout with 5 to 10 minutes of light
stretching and exercise to warm up. Warming up pre-
pares your body for exercise by increasing circulation,
raising your body temperature and delivering more
oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis-
es. Select exercises for every major muscle group,
with emphasis on the areas that you want to develop
the most. To give balance and variety to your work-
outs, vary the exercises from workout to workout.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
In order to obtain the greatest benefits from exercising,
it is essential to maintain proper form.
Maintaining proper form means moving through the full
range of motion for each exercise, and moving only
the appropriate parts of the body. Exercising in an
uncontrolled manner will leave you feeling exhausted.
On the exercise poster accompanying this manual,
you will find photographs showing the correct form for
several exercises. A description of each exercise is
also provided, along with a list of the muscles affected.
Refer to the muscle chart on page 16 to find the loca-
tions of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke; never hold your breath. Rest
for 3 minutes after each set if you are doing a muscle
building workout, 1 minute after each set if you are
53
52

13

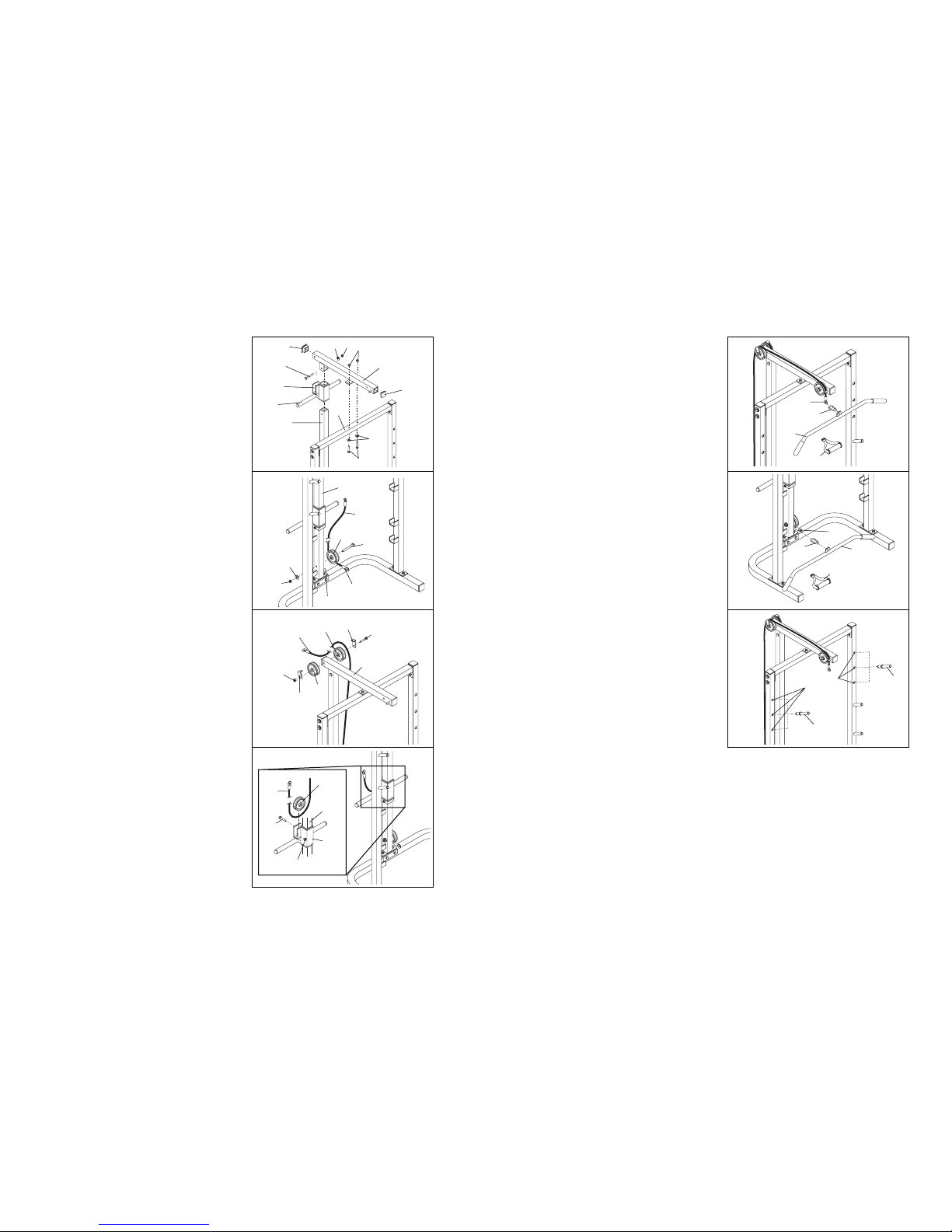

ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (36) to the Cable (51) with a Cable
Clip (45).
The Nylon Strap (27) can be attached in the same man-
ner.
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION
Attach the Lat Bar (36) to the Cable (51) with a Cable
Clip (45).
The Nylon Strap (27) can be attached in the same man-
ner.
SETTING THE ADJUSTMENT WEIGHT RESTS
To perform squat exercises or toe raise exercises, you
will need to set the Adjustment Weight Rests (37) to a
comfortable height.
Insert the Adjustment Weight Rests (37) into the adjust-
ment holes at the desired height. Be sure that each
Adjustment Weight Rest is firmly seated in the
adjustment hole and that both Adjustment Weight
Rests are at the same height.
8
5. Slide the Weight Carriage (52) onto the Main
Upright (42). The bracket must be on the side
shown.
Press a 2Ó Square Inner Cap (46) into each end of
the Top Frame (21). Attach the Top Frame to the
Main Upright (42) with an M8 x 68mm Bolt (8), an
M8 Washer (13), and an M8 Nylon Locknut (4).
Attach the Top Frame (21) to the Crossbar (22) with
two M8 x 68mm Bolts (8), two M8 Washers (13),
and two M8 Nylon Locknuts (4).
Tighten all Nylon Locknuts and Bolts used in
steps 1Ð5 now.
6. Wrap the Cable (51) around a Pulley (24). Attach
the Pulley to the Main Upright (42) with an M10 x
89mm Bolt (9), an M10 Washer (10), and an M10
Nylon Locknut (2). Be sure that the cable stop is
on the indicated side of the Pulley and that the
Cable is between the Pulley and the welded
post.
7. Attach two Pulleys (24) and two Cable Traps (23) to
the Top Frame (21) with an M10 x 120mm Bolt (12)
and an M10 Nylon Locknut (2). Do not tighten the
Nylon Locknut yet.
Route the Cable (51) around the indicated Pulley
(24) from the direction shown. Be sure that the
Cable is between the Pulley and the Cable Trap
(23).
8. Wrap the Cable (51) around a Pulley (24). Attach
the Pulley to the Weight Carriage (52) with an M10
x 43mm Bolt (11) and an M10 Nylon Locknut (2).
The Cable must be routed around the Pulley
from the direction shown.
8
54
4
13
8
Bracket
8
52
42
21
22
13
46
46
24
9
10
2
42
2
23
24
24
51
21
12
6
7
51
45
36
27
51
45 36
27
37
51
23
24
51
52
11
2
42
Cable Stop
Welded Post
Adjustment
Holes
37

9
9. Route the Cable (51) around the indicated Pulley
(24). Tighten the M10 Nylon Locknut (2) and the
M10 x 120mm Bolt (not shown). Do not overtighten
the Nylon Locknut. Be sure that both Cable
Traps (23) are turned as shown and that the
Cable and Pulleys move smoothly.
10. Wrap the Cable (51) around a Pulley (24). Attach
the Pulley to the Top Frame (21) with an M10 x
89mm Bolt (9), an M10 Washer (10), and an M10
Nylon Locknut (2). Be sure that the cable stop is
on the indicated side of the Pulley and that the
Cable is between the Pulley and the welded
post.
11. Press a 2Ó Square Inner Cap (46) into each end of
the Stabiliser (33). Press a 2Ó Square Inner Cap
(46) into the end of the Bench Base (43).
Insert two M8 x 60mm Carriage Bolts (3) up
through the Stabiliser (33). Slide the end of the
Bench Base (43) onto the Carriage Bolts.
Insert two M8 x 60mm Carriage Bolts (3) up
through the Bench Base (43).
12. Slide the Bench Frame (49) onto the M8 x 60mm
Carriage Bolts (3). Tighten an M8 Nylon Locknut (4)
onto each Carriage Bolt.
Press a 2Ó Square Inner Cap (46) into the Bench
Frame (49).
12
9
2
24
23
2
10
21
24
51
9
51
10
11
46
46
43
46
33
3
4
4
3
3
49
46
3
12
ADJUSTING THE WEIGHT BENCH
The weight bench is designed to be used with your own weight set (not included). The steps below explain how
the weight bench can be adjusted. See EXERCISE GUIDELINES on page 14 for important exercise information.
Refer also to the exercise information accompanying your weight set (not included) for additional exercises.
Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The
weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

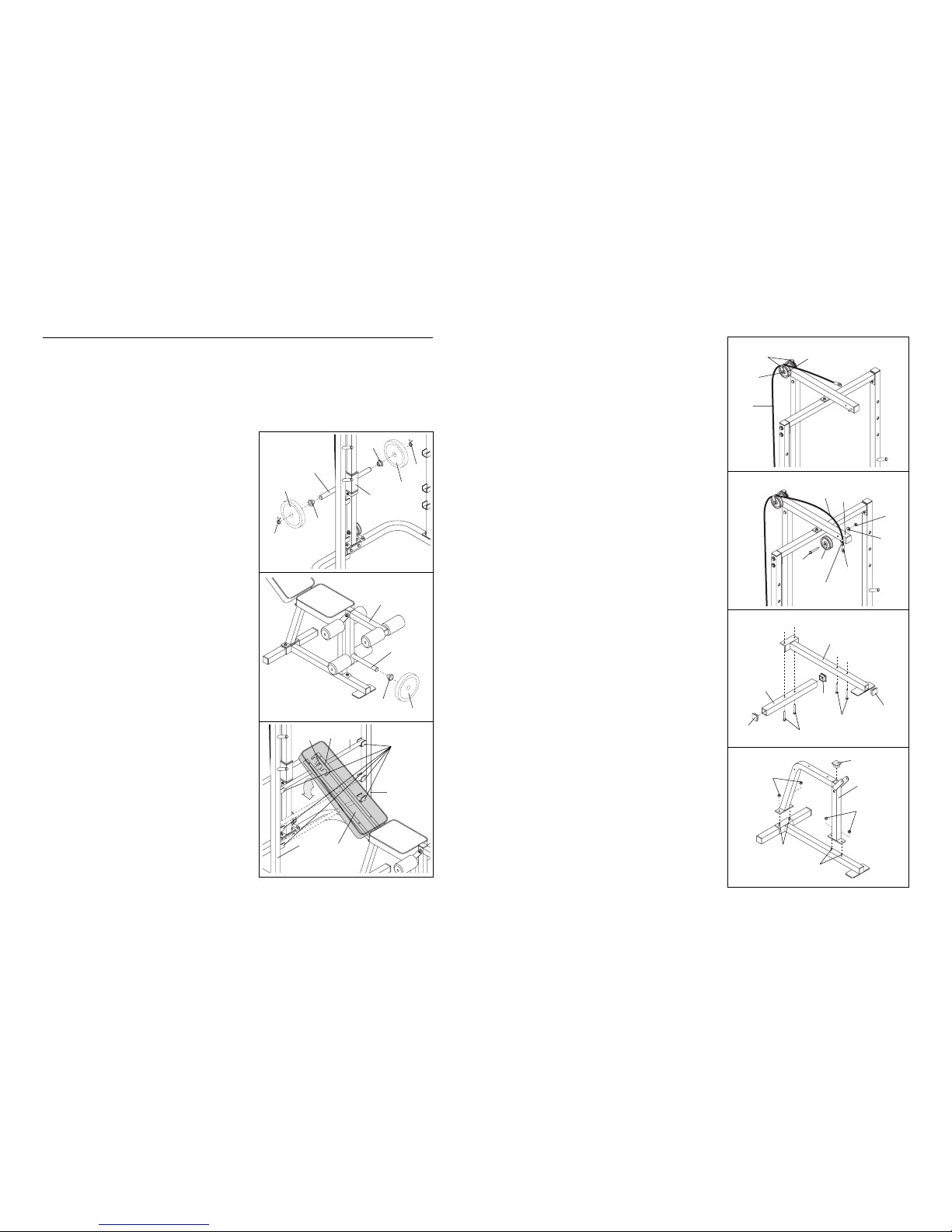

ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE
To use the high or low pulley station, first slide a Weight
Stop (35) onto each side of the weight tube of the Weight
Carriage (52). Slide the desired amount of weight (not
included) onto the weight tube. Be sure that an equal
amount of weight is on each side of the weight tube.
Secure the weights on each side of the weight tube with a
Spring Clip (44).
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (32), be sure there is a Weight Stop
(35) on the weight tube. Then slide the desired amount of
weight (not included) onto the weight tube.
ADJUSTING THE BACKREST
The Backrest (29) can be set at three different positions:
the level position, the decline position, and the incline posi-
tion.
To change the position of the Backrest (29), move the
Adjustment Tube (31) to a different set of adjustment
brackets on the Left and Right Uprights (18, 19). Make
sure that the Adjustment Tube is securely seated in
the adjustment brackets and that it is also firmly seat-
ed in one of the slots in the Adjustment Backrest
Bracket (26).
Weight
Weight
Weight
Tube
Cable
Stop
Welded
Post
44
44
35
52
32
31
26
18
19
Slots Adjustment
Brackets
35
Weight
Tube
29
Weight
35

11
17. Insert the M6 x 60mm Carriage Bolt (14) into the
centre hole in the Seat Bracket (50). Attach the
Seat Bracket to the Seat (34) with two M6 x 16mm
Bolts (5).
Insert the M6 x 60mm Carriage Bolt (14) into the
indicated hole in the Bench Frame (49). Tighten an
M6 Nylon Locknut (15) with an M6 Washer (16)
onto the Carriage Bolt.
Attach the other end of the Seat (34) to the Bench
Frame (49) with an M6 Washer (16) and the M6 x
62mm Screw (17).
18. See the inset drawing. Press a 1 1/4Ó Round Inner
Cap (41) into each end of the Adjustment Tube
(31).
Set the Adjustment Tube (31) into one set of adjust-
ment brackets on the Left and Right Uprights (18,
19).
Rest the Backrest (29) on the Adjustment Tube
(31). Be sure that the Adjustment Tube is firmly
seated in one of the slots in the Adjustment
Backrest Bracket (26).
19. Wet the ends of the Lat Bar (36) with soapy water.
Slide a Handgrip (28) onto each end of the Lat Bar.
Press 1Ó Round Inner Caps (39) into the ends of
the Adjustment Weight Rests (37).
The use of all remaining parts will be explained
in ADJUSTING THE WEIGHT BENCH beginning
on page 12 of this manual.
20. Be sure that all parts of the weight bench have
been properly tightened. Cover the floor
beneath the weight bench to protect the floor.
19
28
28
36
37
39
39
17
14
50
49
15
516
18
10

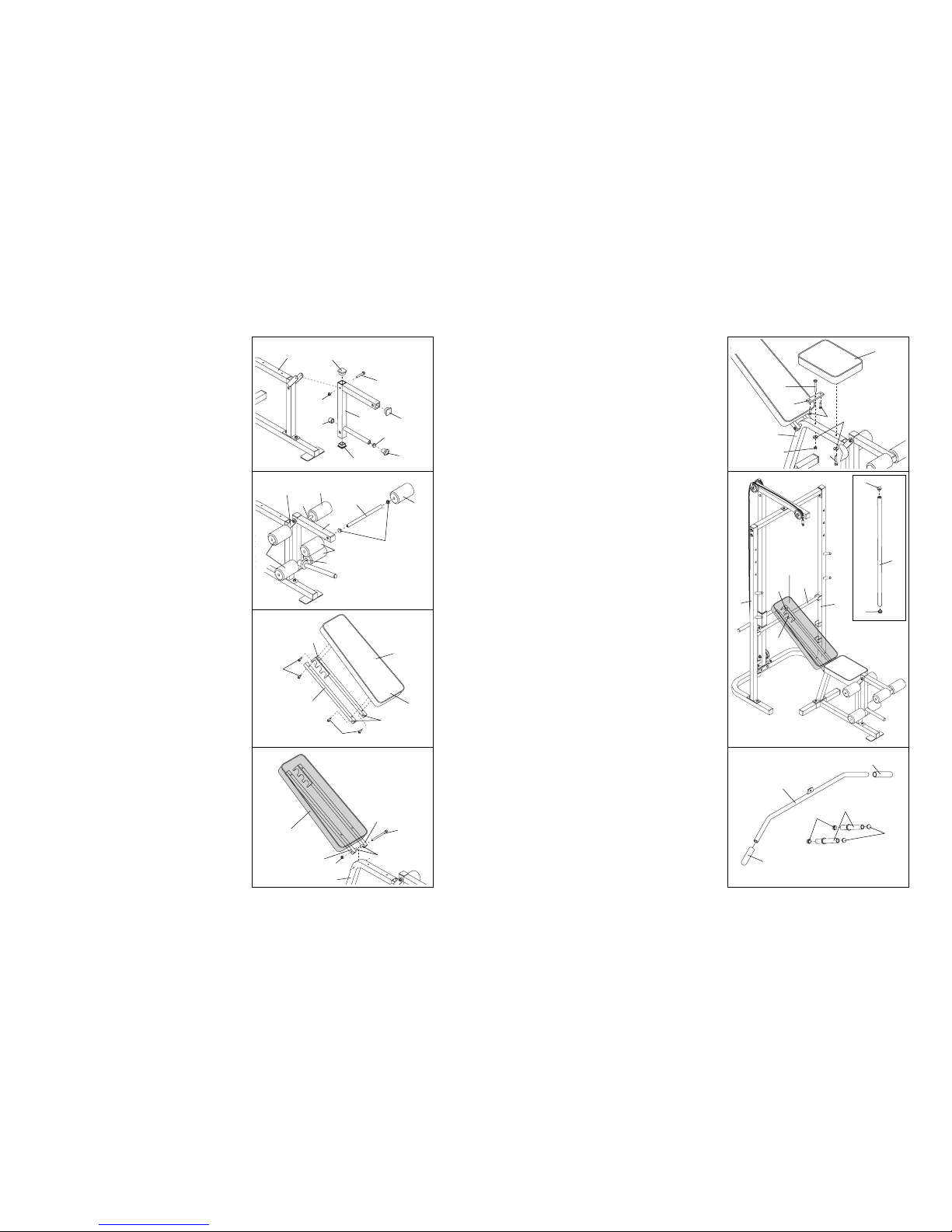

13. Press three 2Ó Square Inner Caps (46) into the Leg
Lever (32). Press a 1Ó Round Inner Cap (39) into
the Leg Lever. Press a 1Ó Angle Cap (55) onto the
Leg Lever.
Lubricate the M10 x 72mm Bolt (1). Attach the Leg
Lever (32) to the Bench Frame (49) with the Bolt
and an M10 Nylon Locknut (2).
Slide a Weight Stop (35) onto the Leg Lever (32).
14. Tap 3/4Ó Round Inner Caps (40) into each end of
the three Pad Tubes (38).
Insert a Pad Tube (38) through the indicated hole in
the Leg Lever (32). Insert another Pad Tube through
the other hole in the Leg Lever. Insert the remaining
Pad Tube through the holes in the Bench Frame
(49).
Slide two Foam Pads (48) onto each Pad Tube
(38).
15. Attach the Adjustment Backrest Bracket (26) to the
Backrest (29) with two M6 x 36mm Screws (6). The
Adjustment Backrest Bracket and Backrest
must be oriented as shown.
Attach the Backrest Bracket (25) to the Backrest
(29) with two M6 x 36mm Screws (6). The Backrest
Bracket and Backrest must be oriented as
shown.
16. Lubricate the M10 x 175mm Bolt (7). Attach the
Adjustment Backrest Bracket (26) and Backrest
Bracket (25) to the Bench Frame (49) with the Bolt,
two 1/2Ó x 1 1/8Ó Spacers (47), and an M10 Nylon
Locknut (2).
16
13
46
46
46
32
1
2
55
39
49
48
48
48
40
38
38
38
32
49
29
25
26
6
6
7
2
47
25
26
49
29
14
15
31
1918
Slots
26
29
34
Wide
End
Holes
41
41
31
17
35
48
