Wells Rcp-100 User manual

IMPORTANT: DO NOT DISCARD THIS MANUAL

This manual is considered to be part of the appliance and is to be given to the OWNER or

MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of

this appliance. Additional manuals are available from your WELLS DEALER.

THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR

INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any

questions concerning installation, operation or maintenance of this equipment.

405

p/n 305101 Rev. (-) M405 022103 cps

Model RCP-300

OPERATION MANUAL

RCP-Series

DROP-IN

REFRIGERATED

COLD PANS

MODELS

RCP-100 RCP-7100

RCP-200 RCP-7200

RCP-300 RCP-7300

RCP-400 RCP-7400

RCP-500 RCP-7500

RCP-600 RCP-7600

Includes

INSTALLATION

USE & CARE

Unless otherwise specified, all commercial cooking equip-

ment manufactured by WELLS MFG. CO. is warranted

against defects in materials and workmanship for a period of

one year from the date of original installation or 18 months

from the date of shipment from our factory, whichever

comes first, and is for the benefit of the original purchaser

only.

THIS WARRANTY IS THE COMPLETE AND ONLY WAR-

RANTY, EXPRESSED OR IMPLIED IN LAW OR IN FACT,

INCLUDING BUT NOT LIMITED TO, WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR ANY PARTICU-

LAR PURPOSE, AND/OR FOR DIRECT, INDIRECT OR

CONSEQUENTIAL DAMAGES IN CONNECTION WITH

WELLS MFG. CO. PRODUCTS. This warranty is void if it

is determined that, upon inspection by an authorized service

agency, the equipment has been modified, misused, misap-

plied, improperly installed, or damaged in transit or by fire,

flood or act of God. It also does not apply if the serial name-

plate has been removed, or if service is performed by unau-

thorized personnel. The prices charged by Wells Mfg. Co.

for its products are based upon the limitations in this war-

ranty. Seller’s obligation under this warranty is limited to the

repair of defects without charge by a Wells Mfg. Co. factory

authorized service agency or one of its sub-service agen-

cies. This service will be provided on customer’s premises

for non-portable models. Portable models (a device with a

cord and plug) must be taken or shipped to the closest au-

thorized service agency, transportation charges prepaid, for

service. In addition to restrictions contained in this warranty,

specific limitations are shown in the Service Policy and Pro-

cedure Guide. Wells Mfg. Co. authorized service agencies

are located in principal cities. This warranty is valid in the

United States and Canada and void elsewhere. Please con-

sult your classified telephone directory, your foodservice

equipment dealer or write the Factory Service Department,

Wells Manufacturing Company, P.O. Box 280, Verdi, Ne-

vada 89439, phone (775) 689-5700 or (888) 492-2782, for

information and other details concerning warranty.

LIMITED WARRANTY STATEMENT

SERVICE POLICY AND PROCEDURE GUIDE

ADDITIONAL WARRANTY EXCLUSIONS

1. Resetting of safety thermostats, circuit breakers, over

load protectors, and/or fuse replacements are not

covered by this warranty unless warranted conditions

are the cause.

2. All problems due to operation at voltages or phase

other than specified on equipment nameplates are

not covered by this warranty.

Conversion to correct voltage and/or phase must be

the customer’s responsibility.

3. All problems due to electrical connections not made

in accordance with electrical code requirements

and wiring diagrams supplied with the equipment are

not covered by this warranty.

4. Replacement of items subject to normal wear, to

include such items as knobs, light bulbs; and, normal

maintenance functions including adjustments of

thermostats, adjustment of micro switches and

replacement of fuses and indicating lights are not

covered by warranty.

5. Damage to electrical cords and/or plug due to exposure

to excessive heat are not covered by this warranty.

6. Full use, care, and maintenance instructions supplied

with each machine. Noted maintenance and

preventative maintenance items, such as servicing and

cleaning schedules, are customer responsibility. Those

miscellaneous adjustments noted are customer

responsibility. Proper attention to preventative

maintenance and scheduled maintenance procedures

will prolong the life of the appliance.

7. Travel mileage is limited to sixty (60) miles from an

Authorized Service Agency or one of its sub-service

agencies.

8. All labor shall be performed during regular working

hours. Overtime premium will be charged to the buyer.

9. All genuine Wells replacement parts are warranted for

ninety (90) days from date of purchase on non-

warranty equipment. This parts warranty is limited only

to replacement of the defective part(s). Any use of

non-genuine Wells parts completely voids any

warranty.

10. Installation, labor, and job check-outs are not

considered warranty and are thus not covered by this

warranty.

11. Charges incurred by delays, waiting time or operating

restrictions that hinder the service technician’s ability to

perform service are not covered by warranty. This

includes institutional and correctional facilities.

NOTE: For your protection, please note that equipment in

this shipment was carefully inspected and packaged by

skilled personnel before leaving the factory. Upon accep-

tance of this shipment, the transportation company assumes

full responsibility for its safe delivery.

IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any

visible loss or damage is noted on the freight bill or

express receipt, and that the note of loss or damage is

signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY:

Regardless of the extent of the damage.

3. CONCEALED LOSS OR DAMAGE: if damage is

unnoticed until the merchandise is unpacked, notify the

transportation company or carrier immediately, and file

“CONCEALED DAMAGE” claim with them. This

should be done within fifteen (15) days from the date

the delivery was made to you. Be sure to retain the

container for inspection.

Wells Manufacturing cannot assume liability for damage or

loss incurred in transit. We will, however, at your request,

supply you with the necessary documents to support your

claim.

SHIPPING DAMAGE CLAIM PROCEDURE

WARRANTY xi

SPECIFICATIONS 1

FEATURES & OPERATING CONTROLS 2

PRECAUTIONS & GENERAL INFORMATION 3

AGENCY LISTING INFORMATION 3

INSTALLATION 4

OPERATION 6

CLEANING INSTRUCTIONS 8

TROUBLESHOOTING SUGGESTIONS 9

MAINTENANCE INSTRUCTIONS 10

PARTS & SERVICE 13

CUSTOMER SERVICE DATA 13

Thank You for purchasing this Wells Manufacturing Co. appliance.

Proper installation, professional operation and consistent maintenance of this appliance will ensure that it

gives you the very best performance and a long, economical service life.

This manual contains the information needed to properly install this appliance, and to use and care for the

appliance in a manner which will ensure its optimum performance.

TABLE OF CONTENTS

INTRODUCTION

ELECTRICAL & REFRIGERATION SPECIFICATIONS

AMPS 115VAC 1ø REFRIGERANT PRESSURE

(psig) POWER

SUPPLY

CORD

TOTAL MCA MFS LRA

TYPE AMT HIGH LOW

RCP-100

RCP-200

RCP-300

RCP-7100

RCP-7200

5.5 8 15 38 R-134a 28 oz. 440 162 NEMA 5-15P

RCP-400

RCP-7300 7.0 11 15 29 R-404a 24 oz. 500 174 NEMA 5-15P

RCP-500

RCP- 600

RCP-7400

7.5 12 15 33 R-404a 32 oz. 500 174 NEMA 5-15P

RCP-7500

RCP-7600 15.3 21 30 59 R-404a 54 oz. 500 174 NEMA 5-20P

MODEL HP

1/4

1/3

1/2

3/4

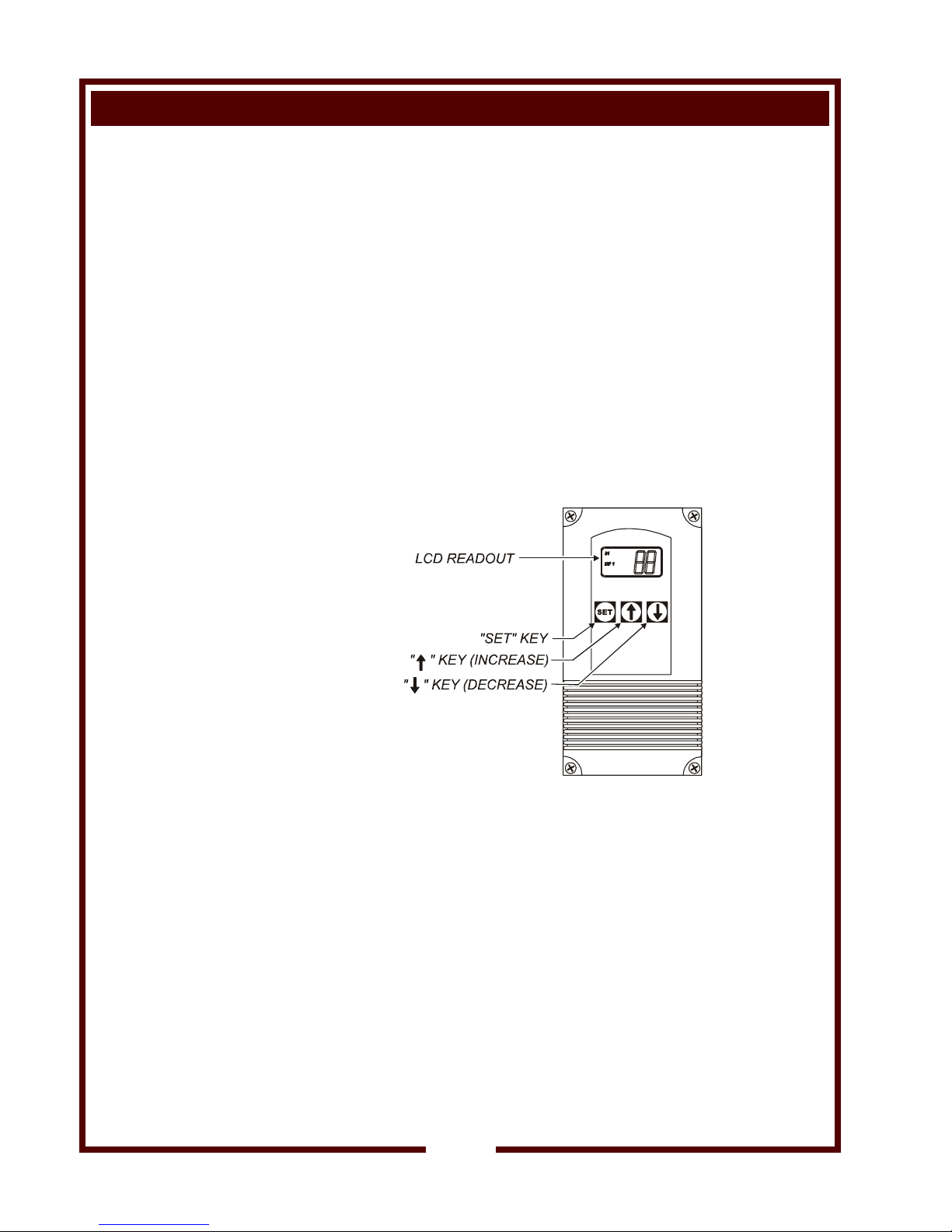

FEATURES & OPERATING CONTROLS

NOTE:

This is a general arrangement drawing only. Actual component positions may vary between units.

This appliance is intended for use in commercial establishments

only, and is intended

to hold pre-chilled prepared food for human

consumption. No other use is

recommended or authorized by the

manufacturer or its agents.

Operators of this appliance must be familiar with the appliance use,

limitations and associated restrictions. Operating instructions must be

read and understood by all persons using or installing this appliance.

Food must be kept in appropriate inserts. Never place food directly

into the tank.

Cleanliness of this appliance is essential to good sanitation. Read and

follow all included cleaning instructions and schedules to ensure the

safety of the food product.

Disconnect this appliance from electrical power before performing any

maintenance or servicing.

This appliance is not jet stream approved. Do not direct water jet or

steam jet at this appliance, or at any control panel or wiring. Do not

splash or pour water on, in or over any controls, control panel or wir-

ing. Do not wash floor around this appliance with water or steam jet.

The technical content of this manual, including any wiring diagrams,

schematics, parts breakdown illustrations and/or adjustment

procedures, is intended for use by qualified technical personnel.

Any procedure which requires the use of tools must be performed by a

qualified technician.

This manual is considered to be a permanent part of the appliance.

This manual and all supplied instructions, diagrams, schematics, parts

breakdown illustrations, notices and labels must remain with the

appliance if it is sold or moved to another location.

This appliance is made in the USA. Unless otherwise noted, this

appliance has American sizes on all hardware.

WARNING:

Electric

Shock hazard

All servicing requiring

access to non-insulated

electrical components

must be performed by a

factory authorized

technician.

DO NOT open any access

panel which requires the

use of tools. Failure to

follow this warning can

result in severe electrical

shock.

CAUTION:

Risk of

Damage

DO NOT connect or

energize this appliance

until all installation

instructions are read and

followed. Damage to the

appliance will result if

these instructions are not

followed.

PRECAUTIONS AND GENERAL INFORMATION

Models RCP-100 thru -600 have been evaluated by NSF International

for sanitation requirements and not performance tested for potentially

hazardous foods.

NSF-7 Models RCP-7100 thru -7600 have been performance tested by

NSF for potentially hazardous foods and are intended for use in rooms

having an ambient temperature of 86ºF (30ºC) or less.

RCP units are Underwriters Laboratory and listed.

AGENCY LISTING INFORMATION

STD 7

LISTED

INSTALLATION

NOTE: DO NOT discard

the carton or other packing

materials until you have

inspected the appliance for

hidden damage and tested it

for proper operation.

Refer to SHIPPING DAMAGE

CLAIM PROCEDURE on the

inside front cover of this

manual.

WARNING:

Risk of

personal injury

Installation procedures must

be performed by a qualified

technician with full knowledge

of all applicable electrical and

plumbing codes. Failure can

result in personal injury and

property damage.

IMPORTANT:

Unit must remain in an upright

position during installation to

prevent damage to the

refrigeration system.

IMPORTANT:

Refrigeration system is air

cooled. Recommend louvered

grills or equivalent openings

front and rear, each with a

minimum size of twice the

surface area of the condenser,

to provide adequate air

circulation.

IMPORTANT:

Access is required for the

operation of the drain valve

and for maintenance of the

refrigeration unit. Provide

adequate access to the drain

valve and refrigeration unit.

IMPORTANT:

Unit flange must be sealed to

the counter top. Damage

caused by leaks due to

improper installation is NOT

covered by warranty.

UNPACKING & INSPECTION

Carefully remove the appliance from the carton. Remove all

protective plastic film, packing materials and accessories from the

Appliance before connecting electrical power or otherwise performing

any installation procedure.

Carefully read all instructions in this manual and the Installation

Instruction Sheet packed with the appliance before starting any

installation.

Read and understand all labels and diagrams attached to the

appliance.

Carefully account for all components and accessories before

discarding packing materials. Store all accessories in a convenient

place for later use.

RCP units must remain upright at all times (shipping and installation) to

prevent damage to the condensing unit. If the unit is accidentally

tipped, allow unit to sit upright for at least 24 hours before connecting to

electric power.

COMPONENTS

1 ea. PAN RAIL

1 - 5 ea. PAN ADAPTER BAR(S) ( qty differs with unit)

PREPARATION

BEFORE INSTALLING, refer to the Installation Instructions provided

with the unit. Cutout dimensions and other pertinent information is

detailed on the Installation Instructions.

Provide at least 1" clearance around the condensing unit chassis.

Countertop must be flat and level before the unit is installed. After

cutout is made, add stiffeners or bottom braces to counter as required

to support unit weight.

IMPORTANT:

Refrigeration system is air cooled. Recommend louvered grills or

equivalent openings front and rear, each with a minimum size of

twice the surface area of the condenser, to provide adequate air

circulation.

NOTE: The condenser fan is provided with a fan guard. DO NOT

remove the condenser fan guard.

Provide louvered grills and service access below control panel. Provide

access to the POWER SWITCH and TEMPERATURE CONTROL

UNIT located at the front of the condenser.

Verify that proper type and quantity sealants are applied to the

underside of the top flange prior to setting the unit into the cutout.

After installation, apply a thin bead of food-grade silicone sealant

around the flange to seal it to the counter.

Avoid storing flammable or combustible materials in, on or near the

appliance.

ELECTRICAL INSTALLATION

1. Refer to the nameplate. Verify the electrical service power.

Voltage and phase must match the nameplate specifications.

Wiring the unit to the wrong voltage can severely damage the unit

or cause noticeably decreased performance.

2. Available electrical service amperage must meet or exceed the

specifications listed on the specification sheet provided with the

unit.

a. Units are equipped with a three-prong (grounding) plug for your

protection against electric shock. This must be plugged into a

properly grounded matching receptacle.

b. RCP-100 thru -600 and RCP-7100 thru -7400 are equipped

with a NEMA 5-15P plug and require a matching NEMA 5-15R

receptacle.

c. RCP-7500 and -7600 are equipped with a NEMA 5-20P plug

and require a matching NEMA 5-20R receptacle.

PLUMBING INSTALLATION

1. Plumb connections must be made in compliance with all Federal,

State and Local Plumbing Codes and Ordinances.

IMPORTANT: All drain plumbing installations must be performed

by a qualified plumber.

2. Install 1" drain valve (provided by others) on unit drain. Plumb to

an appropriate waste as required by local plumbing and sanitation

ordinances.

INSTALLATION (continued)

WARNING:

Electric

Shock hazard

All servicing requiring

access to non-insulated

electrical components must

be performed by a factory

authorized technician.

DO NOT open any access

panel which requires the use

of tools. Failure to

follow this warning can

result in severe electrical

shock.

CAUTION:

Risk of

Damage

DO NOT connect or energize

this appliance until all

installation instructions are

read and followed. Damage

to the appliance will result if

these instructions are not

followed.

CAUTION:

Electrical Shock

Hazard

Cord -connected units are

equipped with a three-prong

plug for your protection

against electric shock. Never

cut the large round prong

from the plug, or twist a blade

to fit an existing receptacle.

IMPORTANT:

Damage due to being

connected to the wrong

voltage or phase is NOT

covered by warranty.

OPERATION NOTES

1. Never place food directly in cold pans. Always use insets or food

pans.

2. Use only pre-chilled products. Stir product occasionally to maintain

chilled temperatures and prevent bottom freezing.

3. Use perforated bottom strainer plates when operating units with

ice. Perforated bottom strainer plates are optional and must be

ordered separately.

4. Models RCP-7100 thru RCP-7600 are performance tested to

NSF-7 for use with potentially hazardous foods when the pan rails

are installed on the lower pan rail supports.

5. Periodically clean condensing coils to remove accumulated dust

and debris. Failure to clean coils will decrease performance and

may void the warranty.

See CONDENSER CLEANING, page 8.

DAILY START-UP

1. Turn POWER SWITCH (located on condensing unit) ON. Allow

unit to run for approximately 30 minutes to reach operating

temperature.

2. Add necessary adapter bars or adapter plates. Adapter bars

provided with the unit are designed to hold 12" x 20" food pans up

to 6" deep.

For NSF-7 operation, use 12" x 20" x 4" deep pans on the lower

pan rail supports.

3. Install appropriate food pans or insets. Place pre-chilled product in

food pans. Unit will maintain pre-chilled product at 33 - 41ºF.

DAILY SHUT-DOWN

1. Turn POWER SWITCH OFF. Remove product, food pans and

adapters.

2. Allow unit to defrost before cleaning.

See CLEANING INSTRUCTIONS, page 7.

OPERATION

CAUTION:

Electrical Shock

Hazard

DO NOT splash or pour water

onto control panel or wiring.

RCP units are designed to

hold REFRIGERATED

PRE-CHILLED product at

serving temperature.

RCP units should not be used

to chill product, nor to hold

product for long term storage.

Ambient room temperature

must be 86ºF (30ºC) or less.

CLEANING INSTRUCTIONS

CAUTION:

Electrical Shock

Hazard

DO NOT splash or pour water

onto control panel or wiring.

IMPORTANT: DO NOT use

steel wool for cleaning

PREPARATIONS: Turn POWER SWITCH OFF. Unplug unit or

disconnect from electric power.

Allow unit to defrost before proceeding.

Remove any insets, pans and/or adapter tops ( if

used). Drain water from tank.

FREQUENCY: Daily

TOOLS: Warm Water and Mild Detergent

Solution: 10 Parts Warm Water to 4 Parts Vinegar

Plastic Scouring Pad

Clean Cloth or Sponge

Food-Grade Silicone Sealant

1. Remove pan adapter bars, pan rail and drain screen. Wipe interior

of tank using a clean cloth or sponge and mild detergent.

2. Use a plastic scouring pad to remove any mineral deposits.

3. Rinse tank thoroughly with a vinegar and water solution to neutralize

all detergent / cleanser residue.

4. Clean pan adapter bars and pan rail with a cloth or sponge

dampened in clean water. Dry thoroughly, then reinstall.

5. Check drain screen (if used), clean if necessary and reinstall.

6. Periodically inspect warmer flange-to-counter seal. Reseal with

food-grade silicone sealant if necessary.

7. Inspect condenser. Clean if required.

8. Inspect cooling louvers in counter. Remove any lint or debris.

9. Reconnect to electric power. Turn POWER SWITCH ON only when

unit is to be used.

Procedure is complete

CONDENSER COIL CLEANING INSTRUCTIONS

The condenser coil must be kept clean to allow adequate air flow for

proper heat dissipation. Recommend this procedure be performed

monthly.

1. Turn POWER SWITCH OFF. Disconnect unit from electrical

power.

2. Remove louvers or access panel to allow coil to be reached.

3. Using a stiff bristle brush, brush lint and debris from the condenser

fins. Brush vertically, top to bottom. Collect and discard all lint and

debris gathered from this operation

IMPORTANT: The fins of the condenser coil are delicate and

easily damaged. Use care to brush only in a vertical motion to

avoid damaging the coil fins.

4. Wipe the fan blades to remove accumulated lint.

5. Reconnect to electrical power. Test for proper operation.

CAUTION:

Personal Injury

Hazard

Disconnect appliance from

electrical power before

cleaning condenser coil.

CAUTION:

Personal Injury

Hazard

Condenser coil fins are sharp.

Use care to avoid cuts while

cleaning the condenser.

MAINTENANCE INSTRUCTIONS

CARE OF STAINLESS STEEL

1. The surface can be damaged by mechanical abrasion, hard water

deposits and chlorine:

a. NEVER use steel wool, wire brushes or metal scrapers to clean

the appliance. These will damage the surface.

b. Hard water deposits left behind when water is evaporated will

attack the surface and allow the stainless steel to rust.

c. Chlorides from chlorinated cleansers, calcium / lime / rust

removers (e.g. muriatic acid), even heavily chlorinated city water

will attack the surface and allow the stainless steel to rust.

d. DO NOT use any highly caustic cleaners. Use of highly caustic

cleaners will damage the surface.

a. LIMIT USE of strong caustic cleaners on warmers. Rinse

thoroughly with a vinegar and water solution to neutralize any

residue. Failure to do so may cause damage to the surface

and allow the stainless steel to rust.

e. Cleansers containing ammonia will attack the surface and allow

the stainless steel to rust.

2. Use the proper tools in the proper way to clean your Wells cold pan:

a. Soft cloth and plastic scouring pads are safe to use on stainless

steel surfaces.

b. Stainless steel pads may be used ONLY IF the scrubbing

motion is in the direction of the visible grain. DO NOT use a

circular motion.

c. In the absence of visible grain, use only soft cloth or plastic

pads. Scrub only in a linear motion along the longest axis of

the equipment.

4. Use only non-chloride and non-ammonia cleansers:

a. DO NOT use any cleanser listed as “chlorinated”.

b. DO NOT use any cleanser listing “ammonia” or “ammonium” in

its contents.

c. Contact your cleaning materials supplier for suitable alkaline

cleansers.

5. Keep your Wells cold pan clean. Clean frequently to avoid build-up

of hard, stubborn stains and hard-to-remove deposits:

a. Rinse thoroughly with a vinegar and water solution to neutralize

any residue.

b. For discoloration caused by using the warmer in dry operation,

use a cleaner made specifically for stainless steel.

c. Wipe dry with a soft, clean, dry cloth.

d. Restore the surface by using a polishing product specifically

made for stainless steel after each cleaning.

CAUTION:

Personal Injury

Hazard

Disconnect appliance from

electrical power before

cleaning.

Wells refrigerated cold pans

are constructed of high

quality stainless steel. As

long as the stainless steel

surface is intact, the

equipment will not rust or

corrode.

MAINTENANCE INSTRUCTIONS (continued)

TEMPERATURE ADJUSTMENT

RCP-100 thru RCP-600

1. The temperature has been preset at the factory to meet most

applications.

2. If temperature adjustments are required, the pressure switch,

located on the condensing unit, is adjustable. Temperature

adjustment must be performed by a qualified refrigeration

personnel only.

3. Normal temperature setting would be 28ºF.

RCP-7100 thru RCP-7600

The LCD Display provides a readout of the sensor temperature

during normal operation. Use the following to change the setpoint

temperature:

1. To start programming, press SET key once. This will access the

Fahrenheit/Celsius mode. The readout will show the current

status, either F (degrees Fahrenheit) or C(degrees Celsius).

Press either "up arrow" (Ï) or "down arrow" (Ð) to toggle between

Fand Cdesignation.

2. Press SET again to access the setpoint. The LCD will display

the current setpoint, and the S1 annunciator will blink off and on

to indicate that control is in the setpoint mode.

Press either "up arrow" (Ï) to increase the setpoint, or "down

arrow" (Ð) to decrease the setpoint to the desired temperature.

Factory setpoint is 21ºF.

IMPORTANT:

DO NOT adjust the differential

settings of the refrigeration

system. Field adjustments of

the differential settings must

be made by qualified

refrigeration personnel only.

Unauthorized adjustment of

the differential settings will

void the warranty.

The temperature setting of the

NSF-7 Refrigerated Cold Pan

has been pre-set at the

factory to meet most

applications. An electronic

temperature control maintains

food temperature between

33ºF and 44ºF.

MAINTENANCE INSTRUCTIONS (continued)

IMPORTANT:

DO NOT adjust the differential

settings of the refrigeration

system. Field adjustments of

the differential settings must

be made by qualified

refrigeration personnel only.

Unauthorized adjustment of

the differential settings will

void the warranty.

NOTE:

The controller has both

"heating" and "cooling"

modes. Heating mode is not

used on the RCP-series units.

The control must be set to

"cooling" (C1) for proper

operation of the cold pan.

3. Press the SET key again to access the differential. The LCD will

display the current differential, and the DIF1 annunciator will blink

off and on to indicate that control is in the differential mode.

IMPORTANT: DO NOT adjust the differential settings of the

refrigeration system. Field adjustments of the differential settings

must be made by qualified refrigeration personnel only.

Unauthorized adjustment of the differential settings will void the

warranty.

Press either "up arrow" (Ï) to increase the differential, or "down

arrow" (Ð) to decrease the differential to the desired setting.

Factory differential is 3ºF.

4. Press the SET key again to access the Heating / Cooling mode.

The LCD will display the current mode. Either "C1" for cooling or

"H1" for heating. The control must be set to C1 for proper

operation of the cold pan.

5. Press the SET key again to complete programming. Programming

ends automatically if no keys are pressed for 30 seconds. Any

settings that have been input to the control will be accepted at that

time.

6. Control settings are stored in non-volatile memory. Loss of power

to the unit will not require reprogramming.

TROUBLESHOOTING SUGGESTIONS

SYMPTOM POSSIBLE CAUSE REMEDY

No power to unit Circuit breaker tripped Reset circuit breaker

Power switch OFF Turn power switch ON

Food not kept cold enough Food not chilled to start Add only pre-chilled food

Food too thick Stir thick food frequently

Setpoint too high Set to desired temperature

Condenser cooling louvers or coil

plugged

Clean condenser louvers and/or

coil

Refrigerant level low Contact Authorized Wells Service

Agency for repairs

Internal damage Contact Authorized Wells Service

Agency for repairs

NSF-7 operation using wrong rail

position

For holding critical foods, pan

rails must be assembled using

the lower pan rail supports. Also,

pans can be no deeper than 4".
