Wells SS-10ULTD User manual

WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, P. O. Box 280
Verdi, NV 89439
Customer Service [phone] Ext.502
fax: [phone]
www.wellsbloomfield.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.

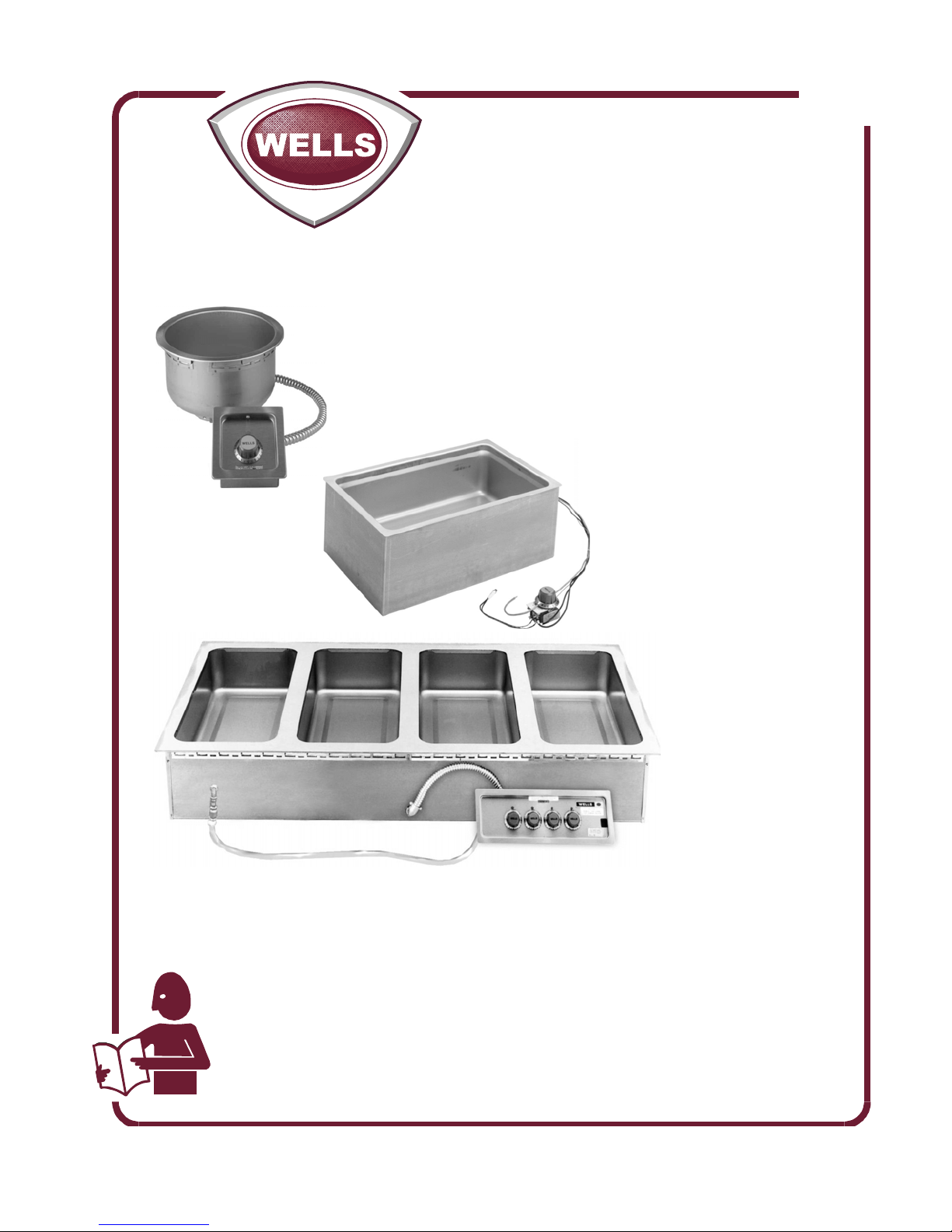

OPERATION MANUAL
WELLS
BUILT-IN
WARMERS
with
THERMOSTAT
CONTROL
including
Autofill,
Drain
and
Drain/Manifold
Models
Includes
INSTALLATION
USE & CARE
011
p/n 303308 Rev. B M011 073102 cdw
Model SS-10ULTD
Model BMW-206RTD
Model MOD-427TDMAF

Unless otherwise specified, all commercial cooking equip-
ment manufactured by WELLS MFG. CO. is warranted
against defects in materials and workmanship for a period of
one year from the date of original installation or 18 months
from the date of shipment from our factory, whichever
comes first, and is for the benefit of the original purchaser
only.
THIS WARRANTY IS THE COMPLETE AND ONLY WAR-
RANTY, EXPRESSED OR IMPLIED IN LAW OR IN FACT,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICU-
LAR PURPOSE, AND/OR FOR DIRECT, INDIRECT OR
CONSEQUENTIAL DAMAGES IN CONNECTION WITH
WELLS MFG. CO. PRODUCTS. This warranty is void if it
is determined that, upon inspection by an authorized service
agency, the equipment has been modified, misused, misap-
plied, improperly installed, or damaged in transit or by fire,
flood or act of God. It also does not apply if the serial name-
plate has been removed, or if service is performed by unau-
thorized personnel. The prices charged by Wells Mfg. Co.
for its products are based upon the limitations in this war-
ranty. Seller’s obligation under this warranty is limited to the
repair of defects without charge by a Wells Mfg. Co. factory
authorized service agency or one of its sub-service agen-
cies. This service will be provided on customer’s premises
for non-portable models. Portable models (a device with a
cord and plug) must be taken or shipped to the closest au-
thorized service agency, transportation charges prepaid, for
service. In addition to restrictions contained in this warranty,
specific limitations are shown in the Service Policy and Pro-
cedure Guide. Wells Mfg. Co. authorized service agencies
are located in principal cities. This warranty is valid in the
United States and Canada and void elsewhere. Please con-
sult your classified telephone directory, your foodservice
equipment dealer or write the Factory Service Department,
Wells Manufacturing Company, P.O. Box 280, Verdi, Ne-
vada 89439, phone [phone] or [phone], for
information and other details concerning warranty.
LIMITED WARRANTY STATEMENT
SERVICE POLICY AND PROCEDURE GUIDE
ADDITIONAL WARRANTY EXCLUSIONS
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specified on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are
not covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those
miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted for
ninety (90) days from date of purchase on non-
warranty equipment. This parts warranty is limited only
to replacement of the defective part(s). Any use of
non-genuine Wells parts completely voids any
warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.
NOTE: For your protection, please note that equipment in
this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory. Upon accep-
tance of this shipment, the transportation company assumes
full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This
should be done within fifteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Manufacturing cannot assume liability for damage or
loss incurred in transit. We will, however, at your request,
supply you with the necessary documents to support your
claim.
SHIPPING DAMAGE CLAIM PROCEDURE
xi

WARRANTY xi
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 6
CLEANING INSTRUCTIONS 8
TROUBLESHOOTING SUGGESTIONS 10
MAINTENANCE INSTRUCTIONS 11
PARTS & SERVICE 12
CUSTOMER SERVICE DATA 13
Thank You for purchasing this Wells Manufacturing Co. appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that it
gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for the
appliance in a manner which will ensure its optimum performance.
TABLE OF CONTENTS
APPLICABILITY
INTRODUCTION
1
This manual applies to the following Wells models:
Half-Size Warmers HMP-6, HMP-6D, HMP-6ULD
HSW-6, HSW-6D
Bottom Mount Warmers BMW-206RT, BMW-206RTD, BMW-206ST, BMW-206STD,
BMW-206ULRT, BMW-206ULRTD, BMW-206ULST, BMW-206ULSTD
SS-206ET, SS-206ETD
Modular Warmers MOD-100T, MOD-100TD, MOD-100TDAF
MOD-200T, MOD-200TD, MOD-200TDM, MOD-200TDMAF
MOD-300T, MOD-300TD, MOD-300TDM, MOD-300TDMAF
MOD-327TDM, MOD-327TDMAF
MOD-400T, MOD-400TD, MOD-400TDM, MOD-400TDMAF
MOD-427TDM, MOD-427TDMAF
MOD-500T, MOD-500TD, MOD-500TDM, MOD-500TDMAF
MOD-527TDM, MOD-527TDMAF
Round Well Warmers SS-4ULT, SS-4ULTD
SS-8T, SS-8TD, SS-8ULT, SS-8ULTD
SS-10T, SS-10TD, SS-10ULT, SS-10ULTD
Top Mount Warmers SS-206T, SS-206TD, SS-206ULT, SS-206ULTD
SS-276ULT, SS-276ULTD

FEATURES & OPERATING CONTROLS (continued)
2

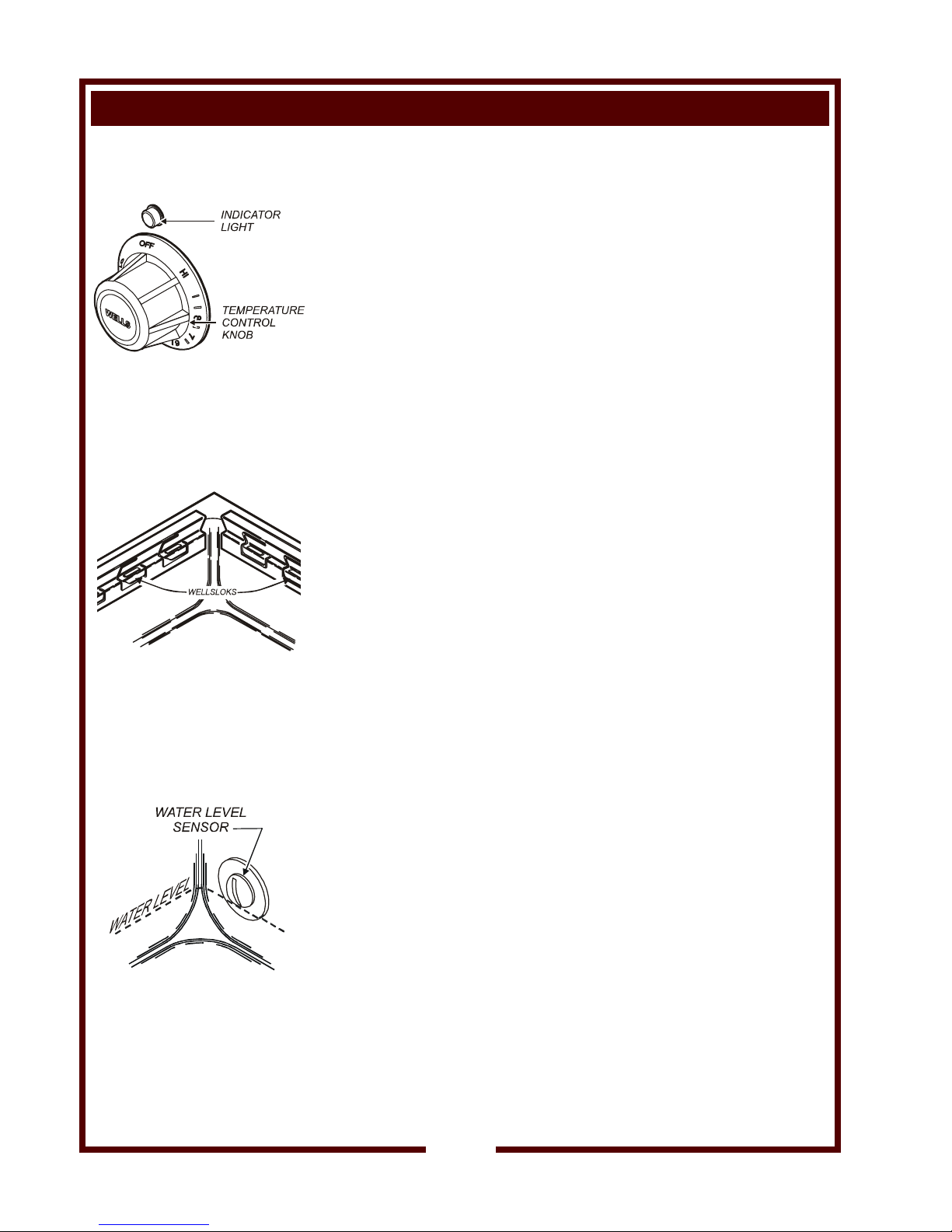

A. THERMOSTAT
1. On THERMOSTATICALLY CONTROLLED warmers, power is
applied to the heating element according to the control knob
position and the actual temperature at the temperature sensing
thermobulb.
2. The desired temperature is controlled by rotating the
TEMPERATURE CONTROL KNOB. The knob has a numeric
scale, where higher numbers correspond to higher temperature.
3. On warmers equipped with an INDICATOR LIGHT, the light will
glow when the thermostat is calling for heat (i.e. the element is
energized).
4. The TEMPERATURE CONTROL KNOB will rotate
approximately 300º, and will reach a “stop” at both ends.
The OFF position is marked.
NOTE: The dial position is an indication of the temperature
setting. Actual temperature will vary depending upon the type of
product and food consistency.
B. MOUNTING
1. Top-mounted built-in warmers may be equipped with
WELLSLOKS, uniquely designed turnout tabs which help
secure the warmer top flange to the countertop.
2. Bottom-mounted warmers require that the cutout be flanged to
provide a mounting means.
3. See the Installation Instructions, supplied with the particular
appliance, for details.
C. DRAINS
1. Suffix “D” units (e.g. MOD-300TD) have drains for each pan,
with each pan having an individual drain valve.
2. Suffix “DM” units (e.g. MOD-300TDM) have the individual drain
lines manifolded together, with a single drain valve for the entire
manifold.
D. AUTOFILL
1. On AUTOFILL units, water level is automatically fed into the
"master" pan whenever that pan's thermostat is ON .

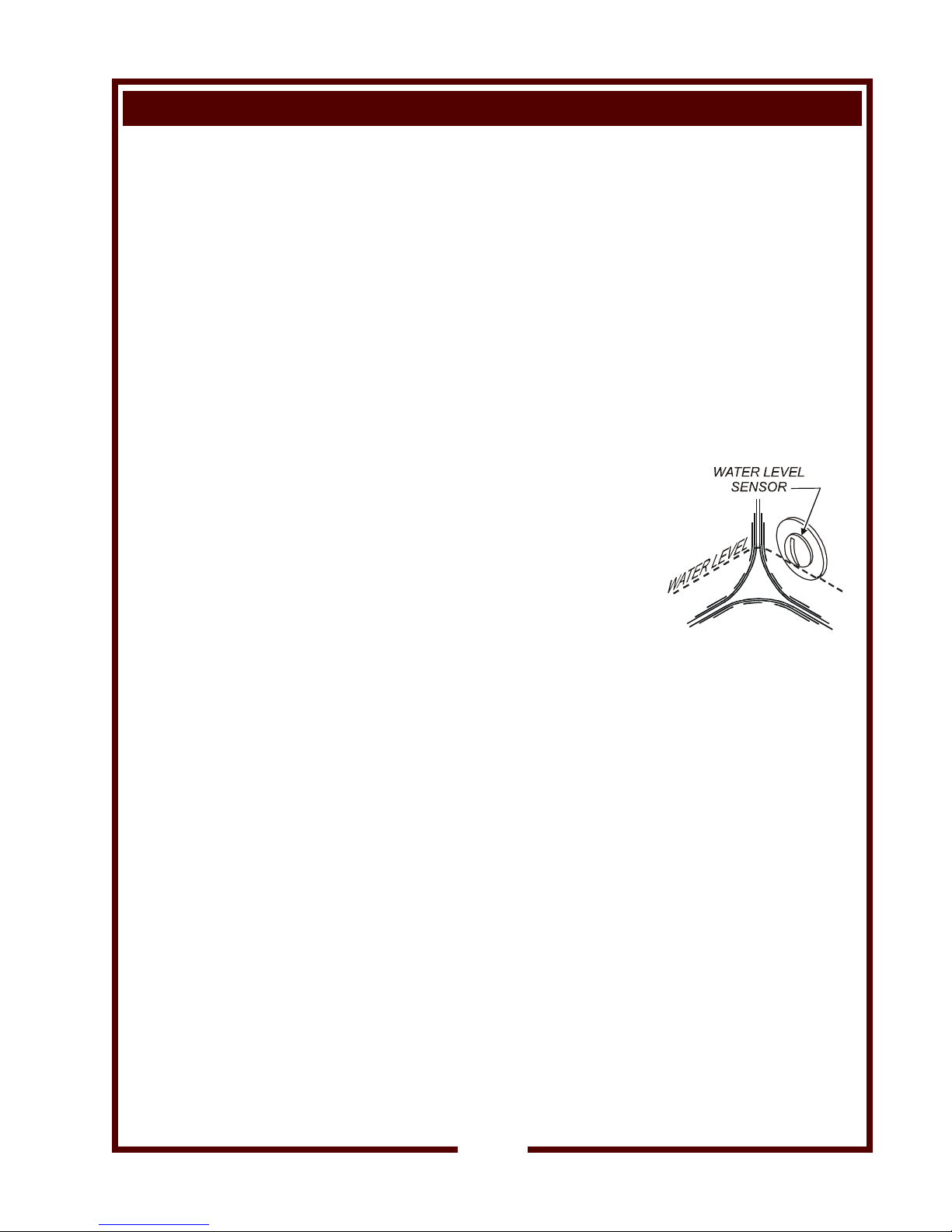

2. Water level is sensed by a WATER LEVEL PROBE in the
"master" pan.
3. Other pans are automatically filled via the drain manifold.

PRECAUTIONS AND GENERAL INFORMATION
3
WARNING:
Electric
Shock hazard
All servicing requiring access
to non-insulated electrical
components must be
performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to
follow this warning can
result in severe electrical
shock.
CAUTION:
Risk of
Damage
DO NOT connect or
energize this appliance
until all installation
instructions are read and fol-
lowed. Damage to the
appliance will result if these
instructions are not
followed.
CAUTION:
Hot Surface
Exposed surfaces can be hot
to the touch and may cause
burns.
This appliance is intended for use in commercial establishments
only.
This appliance is intended
to hold pre-heated food for human
consumption. No other use is
recommended or authorized by the
manufacturer or its agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
This appliance is not jet stream approved. Do not direct water jet or
steam jet at this appliance, or at any control panel or wiring. Do not
splash or pour water on, in or over any controls, control panel or
wiring.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
Do not operate this appliance if the control panel is damaged. Call
your Authorized Wells Service Agent for service.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualified technical personnel.
Any procedure which requires the use of tools must be performed by a
qualified technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics, parts
breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
E6070
AGENCY LISTING INFORMATION
Refer to the product nameplate for the specific appliance for agency
listings. In general:
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions.
UL Listed warmers are UListed under UL File E6070.
Underwriters Laboratory recognized ( ) warmers (UL File E6070) -
Since the warmer is only a single component of a complete installation,
the finished installation of an unit requires additional evaluations to
Underwriters Laboratory standards.
STD 4
UL Listed Warmers
UL Recognized Warmers
E6070
