Wen 10165 User manual
Your new device has been engineered and manufactured to WEN’s highest standards for dependability, ease of
operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-
free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your
device properly and for its intended purpose, you will enjoy years of safe, reliable service.
IMPORTANT:
MODEL 10165
65-FOOT LASER
DISTANCE MEASURE
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.
2
TABLE OF CONTENTS
Specifications........................................................................................... 2
Introduction ............................................................................................. 3
General Safety Rules................................................................................ 4
Specific Safety Rules for the Laser Distance Measure ............................. 6
Know Your Laser Distance Measure....................................................... 11
Operation ............................................................................................... 12
Maintenance........................................................................................... 14
Troubleshooting Guide........................................................................... 15
Exploded View & Parts List.................................................................... 16
Warranty Statement ............................................................................... 18
SPECIFICATIONS
Model Number 10165
Laser Type 650 nm, <1 mW
Laser Class II
Battery (2) AAA Batteries (not included)
Operating Temperature 14°F - 104°F
Measuring Distance 65 feet
Measuring Accuracy ±3.0 mm (1/8 inch)
Measuring Distance 0.16 - 65.5 feet
Weight 3.5 oz (with batteries)
Dimensions 1-5/8 x 1 x 4-3/8 inches
3
INTRODUCTION
Thanks for purchasing the WEN Laser Distance Measure. We know you are excited to put your device to work,
but first, please take a moment to read through the manual. Safe operation of this device requires that you read
and understand this operator’s manual and all the labels affixed to the device. This manual provides information
regarding potential safety concerns, as well as helpful assembly and operating instructions for your device.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
Keep this manual available to all users during the entire life of the device and review it frequently to maxi-
mize safety for both yourself and others.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations
with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the
risk of fire, electric shock and personal injury. However, please note that these instructions and warnings are
not substitutes for proper accident prevention measures.
4
SPECIFIC SAFETY RULES FOR THE LASER DISTANCE MEASURE
WARNING: Do not let comfort or familiarity with the product replace strict adherence to product safety
rules. Failure to follow the safety instructions may result in serious personal injury.
WARNING: Do not direct the laser beam at persons or animals. Do not stare into the direct or reflected
laser beam, not even from a distance. Looking into the laser beam or directing the laser beam into someone’s
eyes can cause eye damage, blindness, and cause accidents.
WARNING: LASER RADIATION. Class 2 laser. DO NOT STARE INTO THE BEAM.
1. Device purpose. This Laser Distance Measure is designed to measure distances, lengths, heights, clearances,
areas and volumes. The measuring tool can be used both indoors and outdoors. Using the device for any other
purpose for which it is not designed may result in serious injuries, dangerous radiation exposure, device damage,
and voiding of the warranty.
2. Never shine the laser in your eyes or the eyes of other people or animals. This can cause permanent damage
to eyes. Do not look directly into the laser beam with unprotected eyes. Never look into the path of the beam.
3. If laser radiation strikes your eye, you must deliberately close your eyes and immediately turn your head
away from the beam.
4. Never point the laser beam towards reflecting surfaces. Never point the laser towards people or animals. Even
a laser beam with a low output can cause damage to the eyes.
5. Do not allow children to use the laser measuring tool. They could unintentionally blind other persons or them-
selves.
6. Device inspection. Before operation, check the device and batteries for any damage or missing parts. Do not use
the device if any part is missing or damaged. Make sure all adjustments are correct and all connections are tight.
7. Do not try to open or disassemble your measuring device. Never open the laser module as unexpected exposure
to the beam can occur. The laser cannot be replaced with a different type of laser.
8. Cleaning. Never use solvents to clean plastic parts. Solvents could dissolve or otherwise damage the material.
Use only a soft damp cloth to clean plastic parts.
9. Do not make any modifications to the laser equipment. Have the measuring device repaired only by qualified
specialists.
Safety is a combination of common sense, staying alert and knowing how your item works.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING: Read and understand all warnings, cautions and operating instructions before using this
device. Failure to follow all instructions listed below may result in personal injury and device damage.
5
WARNING: LASER RADIATION. Class 2 laser. DO NOT STARE INTO THE BEAM.
SPECIFIC SAFETY RULES FOR THE LASER DISTANCE MEASURE
WARNING: Do not let comfort or familiarity with the product replace strict adherence to product safety
rules. Failure to follow the safety instructions may result in serious personal injury.
WARNING: Do not direct the laser beam at persons or animals. Do not stare into the direct or reflected
laser beam, not even from a distance. Looking into the laser beam or directing the laser beam into someone’s
eyes can cause eye damage, blindness, and cause accidents.
Safety is a combination of common sense, staying alert and knowing how your item works.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING: Read and understand all warnings, cautions and operating instructions before using this
device. Failure to follow all instructions listed below may result in personal injury and device damage.
10. Replacements. Should any component of your Laser Distance Measure be missing/damaged or fail in any
way, turn the device off. Replace the missing, damaged, or failed parts using only identical replacement parts
before resuming operation.
11. Do not leave the switched-on measuring device unattended. Switch the measuring tool OFF after use. Other
persons could be blinded by the laser beam.
12. Protect the measuring device against moisture and direct sunlight. Store in a dry, shaded location. Do not
store at temperatures lower than 14°F or higher than 104°F.
13. Do not subject the measuring device to extreme temperatures or variations in temperature. For example,
do not leave the measuring device in cars for extended periods of time. In case of large variations in temperature,
allow the measuring tool to adjust to the ambient temperature before using it. The measuring device should stay
within the temperature range of 14°F - 104°F.
14. Avoid heavy impact and dropping of the measuring device. If the device is dropped or damaged, perform
an accuracy test before resuming operation. Replace the missing, damaged, or failed parts using only identical
replacement parts before resuming operation.
15. Remove the batteries before storing for an extended period of time.
16. DO NOT point the laser beam into the sky and/or at an aircraft.
These safety instructions can’t possibly warn of every scenario that may arise with this device,
always make sure to stay alert and use common sense during operation.
6

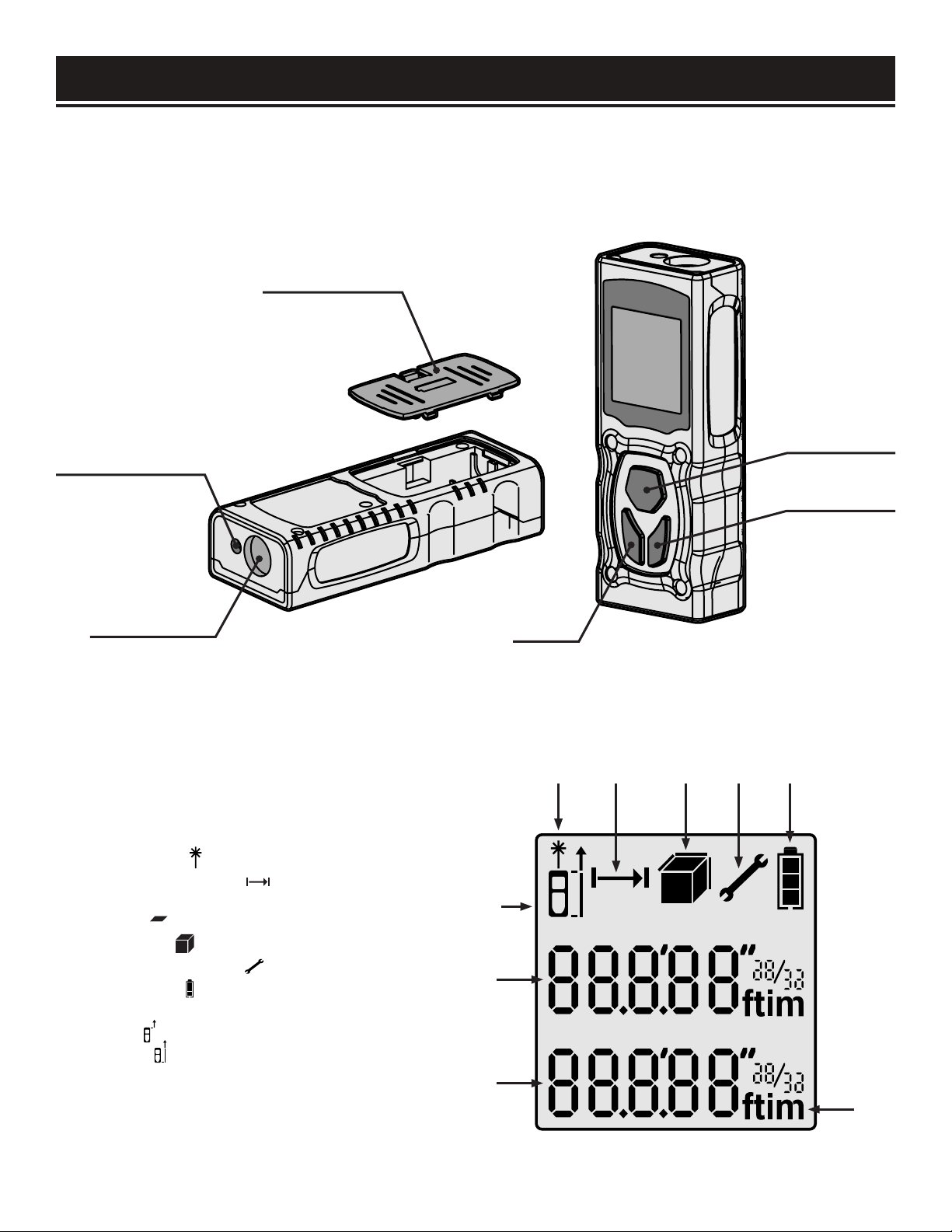

KNOW YOUR LASER DISTANCE MEASURE
DEVICE PURPOSE
Laser Distance Measures are great for measuring distances, lengths, heights, clearances, areas, and volumes. Refer
to the diagram below to become familiarized with the parts and functions of your Laser Distance Measure.
DISPLAY FUNCTIONS
Use the diagram to the right to learn about the
various icons on your laser distance measure.
A. Laser ON/OFF
B. Length Measurement
C. Area/Volume Measurement
• Area
• Volume
D. Error/Service Needed
E. Battery Level
F. Measurement Reference
• Top
• Base
G. Previous Measurement Value
H. Current Measurement/Area/Volume
I. Unit (m/ft/in/' ")
Laser Beam Outlet
DO NOT POINT AT EYES
Battery Cover
Reception Lens Mode
Measuring/ON
ON/OFF
A
G
G
H
F
B C D E
7
TURNING ON/OFF
Turning ON: To turn your measuring device ON, you can either press the power button or the measuring but-
ton .
Turning OFF: To turn your measuring device OFF, hold the power button for 1-2 seconds then release it.
Automatic OFF: The device will automatically shut off after 3 minutes of inactivity to prolong battery life.
ASSEMBLY & ADJUSTMENTS
WARNING: Do not turn on the device until it is fully assembled according to the instructions. Failure to
follow the safety instructions may result in serious personal injury.
NOTE: Always replace both batteries at the same time. Do not use different brands or types of batteries/rechargeable
batteries together.

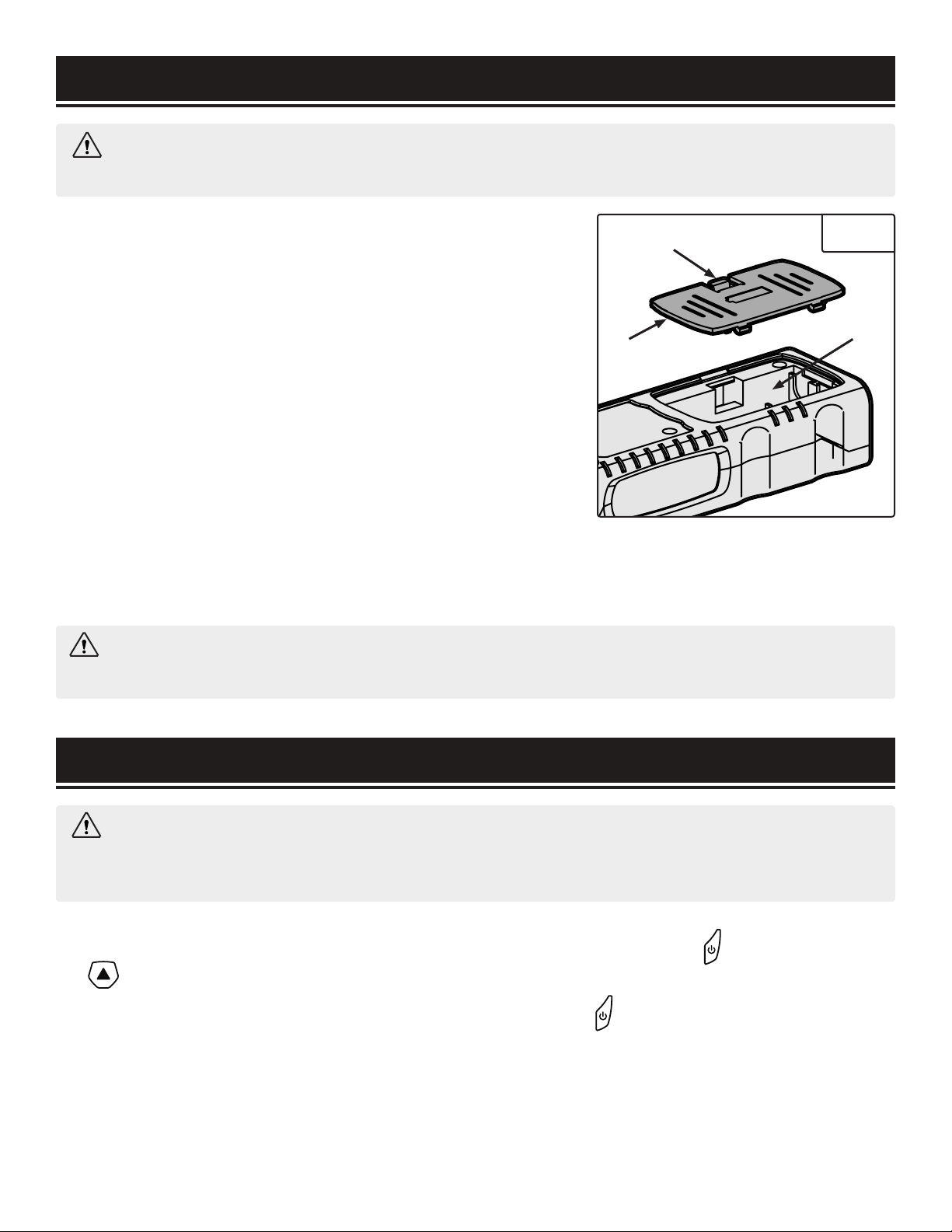

INSTALLING/REMOVING BATTERIES
Your Laser Distance Measure requires two (2) AAA standard or re-
chargeable batteries (not included).
NOTE: More measurements are possible when using 1.5V rechargeable
batteries rather than 1.2V rechargeable batteries.
1. Push the tab (Fig. 1 - 1) inwards and pull upwards to remove the bat-
tery cover (Fig. 1 - 2).
2. Insert two AAA batteries (not included) into the battery compartment
(Fig. 1 - 3). Follow the diagram inside of the battery compartment to
place the batteries in the correct orientation.
3. Replace the battery cover (Fig. 1 - 2) and press into place.
Fig. 1
WARNING: Remove the batteries from the measuring device when not in use for long periods of time.
The batteries can corrode and self-discharge when left in the device for a long period of time.
1
23
OPERATION
WARNING: Do not direct the laser beam at persons or animals. Do not stare into the direct or reflected
laser beam, not even from a distance. Looking into the laser beam or directing the laser beam into someone’s
eyes can cause eye damage, blindness, and cause accidents.
8
OPERATION
UNIT SELECTION
You can use your device to measure in four different units. The available units are: meters (m), feet (ft), inches
(in), and feet/inches (' ").
NOTE: The feet or inches units will give you measurements in decimals, whereas the feet/inches unit will give you
measurements in a combination of whole feet and whole inches.
To switch between units: While holding the mode button , press the measurement button until your de-
sired unit is displayed on the screen.
CHANGING MODES
After powering your measuring device ON, the default mode is distance measurement . To switch to a different
mode (distance /area /volume ) press the mode button . In the following sections, you can find more
information about how to use each mode.
WARNING: Do not direct the laser beam at persons or animals. Do not stare into the direct or reflected
laser beam, not even from a distance. Looking into the laser beam or directing the laser beam into someone’s
eyes can cause eye damage, blindness, and cause accidents.
SELECTING THE MEASURING REFERENCE POINT
You can set your measuring device to measure from either the base of the unit or from the top of the unit. See
Figures 2 and 3 below to learn more about the two reference point options.
To change the reference point: While holding the mode button , press the power button to switch between
reference points.
Fig. 2 Fig. 3
From the Base From the Top
NOTE:The measurement value appears after a few seconds. The measurement will take longer to appear
depending on the distance, light conditions, and reflective properties of the target surface. The end of the mea-
surement is indicated by a tone. The laser beam automatically shuts off after the measurement is completed.
9

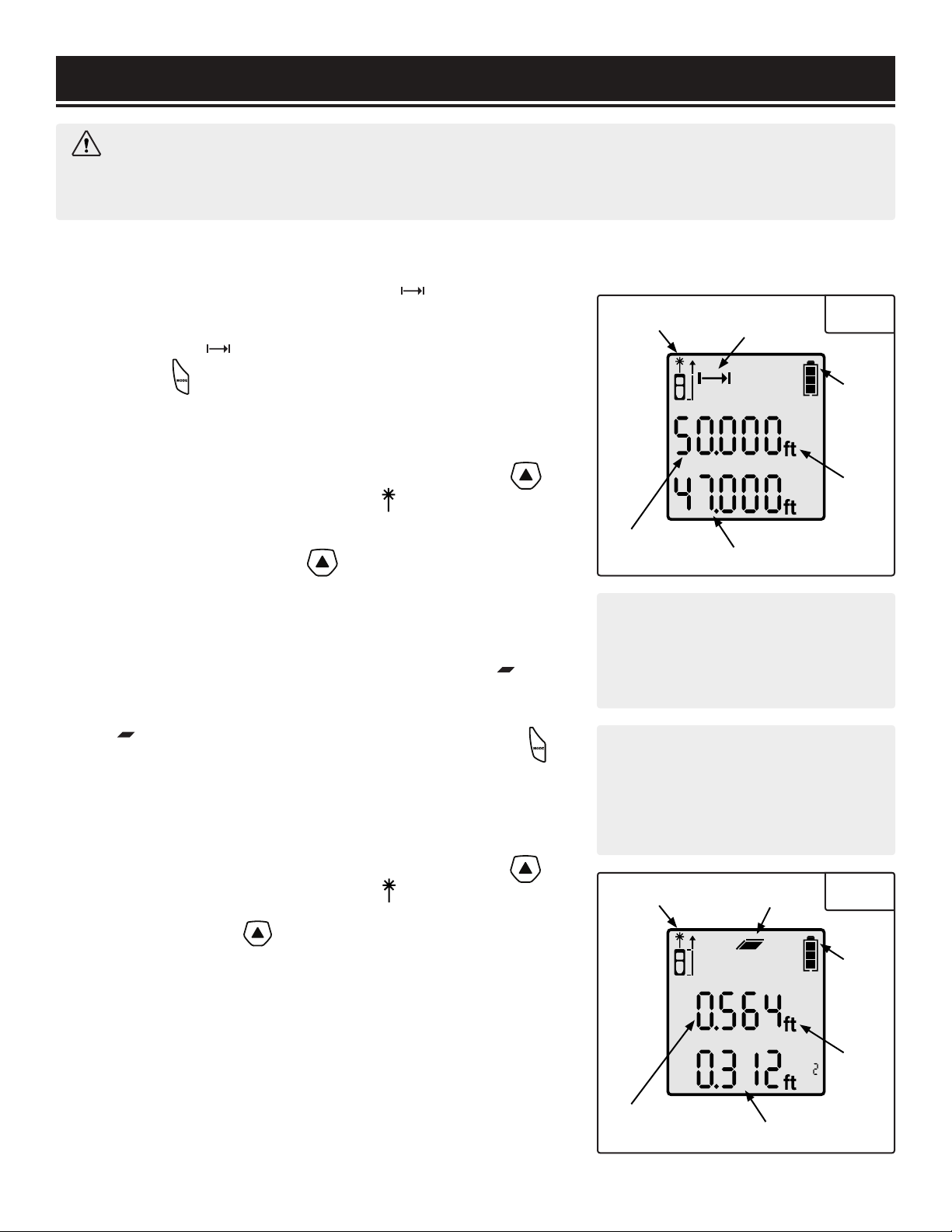

MEASURING A DISTANCE
The distance measuring function is for measuring distances, lengths, heights, and clearances. This
function is depicted by the arrow symbol .
OPERATION
WARNING: Do not direct the laser beam at persons or animals. Do not stare into the direct or reflected
laser beam, not even from a distance. Looking into the laser beam or directing the laser beam into someone’s
eyes can cause eye damage, blindness, and cause accidents.
1. Make sure you are in distance measuring mode depicted by the ar-
row symbol . If you’re in a different mode, press the mode button
until you see the arrow symbol on the screen.
2. Make sure to set your measuring device’s reference point and units
(see p. 8).
3. If the laser beam is not ON, press the measurement button to
activate the laser. You will see the laser icon in the top left corner
when the laser is activated. Aim the laser at the point of measurement.
4. Press the measurement button again to take the measurement.
The value will be seen on your display. Your screen will look like Fig. 4.
MEASURING AN AREA
The area measuring function is made for calculating the area of a rect-
angular space. This function is depicted by the area symbol .
1. Make sure you are in area measuring mode depicted by the area
symbol . If you’re in a different mode, press the mode button un-
til you see the area symbol on the screen.
2. Make sure to set your measuring device’s reference point and units
(see p. 8).
3. If the laser beam is not ON, press the measurement button to
activate the laser. You will see the laser icon in the top left corner
when the laser is activated. Aim the laser to measure the length. Press
the measurement button again to take the measurement. The
value will be seen on your display.
4. Repeat step 3 to measure the width. The area will automatically cal-
culate after the second measurement is taken. The value of the width
measurement will be seen on the top row of your screen and the area
will be on the bottom. Your screen will look like Fig. 5.
NOTE: A line will appear on the edge of the area symbol to indi-
cate which measurement you are recording.
Fig. 4
NOTE: The laser will automatically
shut off after 30 seconds of inactiv-
ity to prolong battery life and limit
accidents.
NOTE: The bottom number on your
display is the current measurement
being recorded. If you take multiple
measurements, the previous mea-
surement moves to the top row.
Laser ON/OFF Distance Mode
Battery
Level
Units
Previous
Measurement
Current
Measurement
Fig. 5
Laser ON/OFF Area Mode
Battery
Level
Units
Previous
Measurement Area
10
1. Make sure you are in distance measuring mode depicted by the arrow symbol . If you’re in a different mode,
press the mode button until you see the arrow symbol on the screen.
2. Make sure to set your measuring device’s reference point and units (see p. 8).
3. Hold down the measurement button for two seconds. You are now in continuous measuring mode. As the
distance between the reference point and target point changes, the measurement will update on the screen and
you will hear a tone. Press the measurement button to exit continuous measuring mode.
NOTE: The device will not save the measurements while you are in continuous measuring mode. The laser stays
on the duration of the continuous measurement. DO NOT shine the laser towards people or animals.
MEASURING VOLUME
The volume measuring function is made for measuring the volume of a rectangular prismatic space. This function
is depicted by the cube symbol .
OPERATION
WARNING: Do not direct the laser beam at persons or animals. Do not stare into the direct or reflected
laser beam, not even from a distance. Looking into the laser beam or directing the laser beam into someone’s
eyes can cause eye damage, blindness, and cause accidents.
1. Make sure you are in volume measuring mode depicted by the
cube symbol . If you’re in a different mode, press the mode button
until you see the cube symbol on the screen.
2. Make sure to set your measuring device’s reference point and units
(see p. 8).
3. If the laser beam is not ON, press the measurement button to
activate the laser. You will see the laser icon in the top left corner
when the laser is activated. Aim the laser to measure the length. Press
the measurement button again to take the measurement. The
value will be seen on your display.
4. Repeat step 3 two more times to measure the width, and height.
The volume will automatically calculate after the third measurement is
taken. The value of the last measurement will be seen on the top row
of your screen and the volume will be on the bottom. Your screen will
look like Fig. 6.
NOTE: A line will appear on the edge of the volume symbol to
indicate which measurement you are recording.
CONTINUOUS MEASURING
The continuous measuring setting allows you to move the device and
receive updated measurements every few seconds.
Fig. 6
NOTE: The laser will automatically
shut off after 30 seconds of inactiv-
ity to prolong battery life and limit
accidents.
NOTE: The bottom number on your
display is the current measurement
being recorded. If you take multiple
measurements, the previous mea-
surement moves to the top row.
Laser ON/OFF Volume Mode
Battery
Level
Units
Previous
Measurement Volume
11
MAINTENANCE
ROUTINE INSPECTION
Before each use, inspect the general condition of the device. If any of the following conditions exist,
do not use until parts are replaced or the laser distance measure is properly repaired.
Check for:
• Loose hardware,
• Damaged batteries/electrical wiring,
• Cracked or broken parts, and
• Any other condition that may affect its safe operation
CLEANING & STORAGE
1. Wipe the device surfaces clean with a damp soft cloth. Make sure water does not get into the de-
vice. Do not use any other solvents or cleaning agents to clean the device.
2. Maintain the reception lens with the same care as required for eye glasses or the lens of a camera.
STORING THE DEVICE
Always store your power device in a dry place, frost-free location. To protect the battery from dam-
age, do not store at temperatures lower than 14°F or higher than 104°F.
Remove the batteries before storing for an extended period of time.
DISPOSAL
When the product reaches the end of its lifetime, please do not dispose of it with household waste.
Electrical and electronic products are hazardous to the environment and human health due to the
presence of hazardous substances. Take the product to your local recycling facility for it to be re-
sponsibly recycled to minimize impacts on the environment.
Please recycle the packaging where facilities exist.
WARNING: To avoid accidents, turn OFF the laser before cleaning, adjusting, or performing
any maintenance or lubrication work.
WARNING: Any attempt to repair or replace electrical parts on this device may be hazardous.
Servicing of the device must be performed by a qualified technician. When servicing, use only
identical WEN replacement parts. Use of other parts may be hazardous or induce product failure.
12
TROUBLESHOOTING GUIDE
Error Code CAUSE SOLUTION
Err 10 1. The battery is too low. 1. Replace the batteries.
Err 15 1. The measuring point is out of range. Choose a measuring point within range.
Err 16
1. Received signal is too weak.
1. Aim at a lighter-colored target surface
(avoid black target surfaces) or hold the
laser measure more steadily.
2. Ambient light is too bright. 2. Use the measuring device at a dimmer
time of day.
Err 18 1. The background is too bright. 1. Aim at a darker-colored target surface
(avoid glass/reflective surfaces).
Err 26 1. Area or volume result is too large to
be displayed on the screen.
1. Measure a smaller area, or record the
measurements of length, height, and width
to calculate the area or volume on your own.
WARNING:
Repairs and replacements should only be performed by an authorized technician. For any
questions, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@
wenproducts.com.
GENERAL INFORMATION
1. The reception lens and the laser beam outlet must not be covered when taking a measurement.
2. You must hold the measuring device still while taking a measurement (except when you are using the continu-
ous measurement function).
3. The measurement reported is the distance to the center of the laser dot, even if the target surface is angled.
4. Once you select your measuring reference point, align the base or top of the device as close to the beginning
measuring point as possible.
INFLUENCES ON THE MEASURING RANGE
The measuring range is directly affected by the light conditions and reflective properties of the target surface. You
may experience difficulties using the measuring device outdoors on a sunny day. While the indoor range for this
device is 65 feet, the outdoor range is 16 feet.
INFLUENCES ON THE MEASURING RESULT
The physical properties of some materials result in inaccurate laser measurements. Results may be inaccurate
when measuring on the following surfaces:
1. Transparent surfaces (water, glass, etc.)
2. Reflective surfaces (polished metal, mirrors, glass, etc.)
3. Porous surfaces (insulation materials, etc.)
4. Textured surfaces (stone, roughcast, etc.)
13
EXPLODED VIEW & PARTS LISTEXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 10165-001 Battery Cover 1
2 10165-002 Self-Tapping Screw,
Cross Head 4
3 10165-003 Self-Tapping Screw,
Socket Head 1
4 10165-004 Large Battery Plate 1
5 10165-005 Positive Plate 1
6 10165-006 Negative Plate 1
7 10165-007 Back Cover 1
No. Part No. Description Qty.
8 10165-008 Laser Module 1
9 10165-009 Screw 2
10 10165-010 Cross-Head Screw 4
11 10165-011 PCB 1
12 10165-012 Display Screen 1
13 10165-013 Button Pad 1
14 10165-014 Front Cover 1
15 10165-015 Panel Board 1
14
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is
used for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair, abuse, neglect, normal wear and tear, improper maintenance, or other conditions adversely affecting the
Product or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that clearly
defines the Date of Purchase (month and year) and the Place of Purchase. Place of Purchase must be a direct ven-
dor of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales, pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this product.
your shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When re-
turning a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of the
problem in order to help our repairs department diagnose and fix the issue. Repairs will be made and the product
will be returned and shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES,
CONTACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
WARRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING
CHARGES MAY APPLY.
NOTES
15
THANKS FOR
REMEMBERING
Table of contents
Other Wen Analytical Instrument manuals
