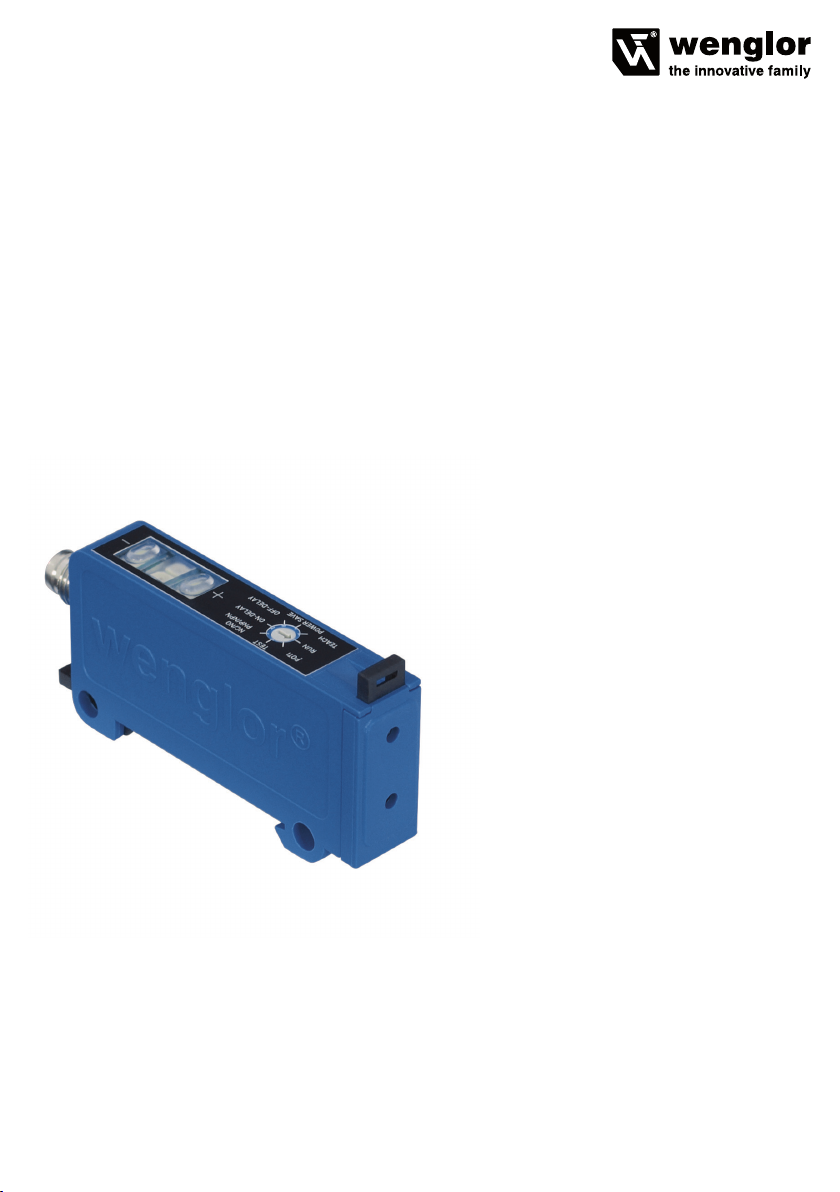

Wenglor ODX202 User manual

ODX202
Fiber Optic Cable Sensor
Operating Instructions
Available as PDF only
Status: 10.10.2016
EN

2
EN
Table of Content
1. Proper Use 3
2. Safety Precautions 3
3. Product Features 3
3.1. Connection Diagrams 3
3.2. Housing Dimensions 4
3.3. EC Declaration of Conformity 4
3.4. Technical Data 5
3.5. Contamination Warning 5
3.6. Contamination Output 5
3.7. Complementary Products (see catalog) 6
3.8. Control Panel 6
3.9. Mounting Instructions 6
3.9.1. Mounting to a DIN rail 6
3.9.2. Side mounting 7
3.9.3. Connecting the plastic fibre-optic cable 7
4. Adjustment 8
4.1. On-Delay and Off-Delay 8
4.2. Selecting normally closed or normally open function (NC/NO) 9
4.3. Selecting PNP/NPN/Push-Pull 9
4.4. Setting Switching Distance with the potentiometer 10
4.5. Setting Switching Distance with the Teach-In function 10
4.5.1. Normal Teach-In 10
4.5.2. Minimal Teach-In 11
4.5.3. Dynamic Teach-In (Teach-In with moving objects) 12
4.5.4. Two-point Teach-In 13
4.6. External Teach-In 13
4.7. Selecting the Run function 14
4.7.1. Normal operating mode 14
4.7.2. Selecting the Light pulse frequency 15
4.7.3. Energy saving mode 16
4.8. Test Mode 16
5. Maintenance Instructions 16
6. Proper Disposal 16

3
1. Proper Use
This wenglor product has to be used according to the following functional principle:
Fiber Optic Cable Sensors
Both plastic fiber optic cables and glass fiber optic cables can be connected to fiber optic cable sensors. Uni-
versal reflex sensors can be used both with and without fiber optic cables. Fiber optic cable sensors analyze
the light reflected by the object. The output switches when an object reaches the selected range (detection) or
when the active light beam is interrupted (operating limits). Bright objects reflect more light than dark objects,
and can thus be recognized from greater distances. In barrier operation, the color of the object has no effect
on the range.
2. Safety Precautions
• This operating instruction is part of the product and must be kept during its entire service life.
• Read this operating instruction carefully before using the product.
• Installation, start-up and maintenance of this product has only to be carried out by trained personnel.
• Tampering with or modifying the product is not permissible.
• Protect the product against contamination during start-up.
• Not a safety component in accordance with the EU Machinery Directive.
3. Product Features

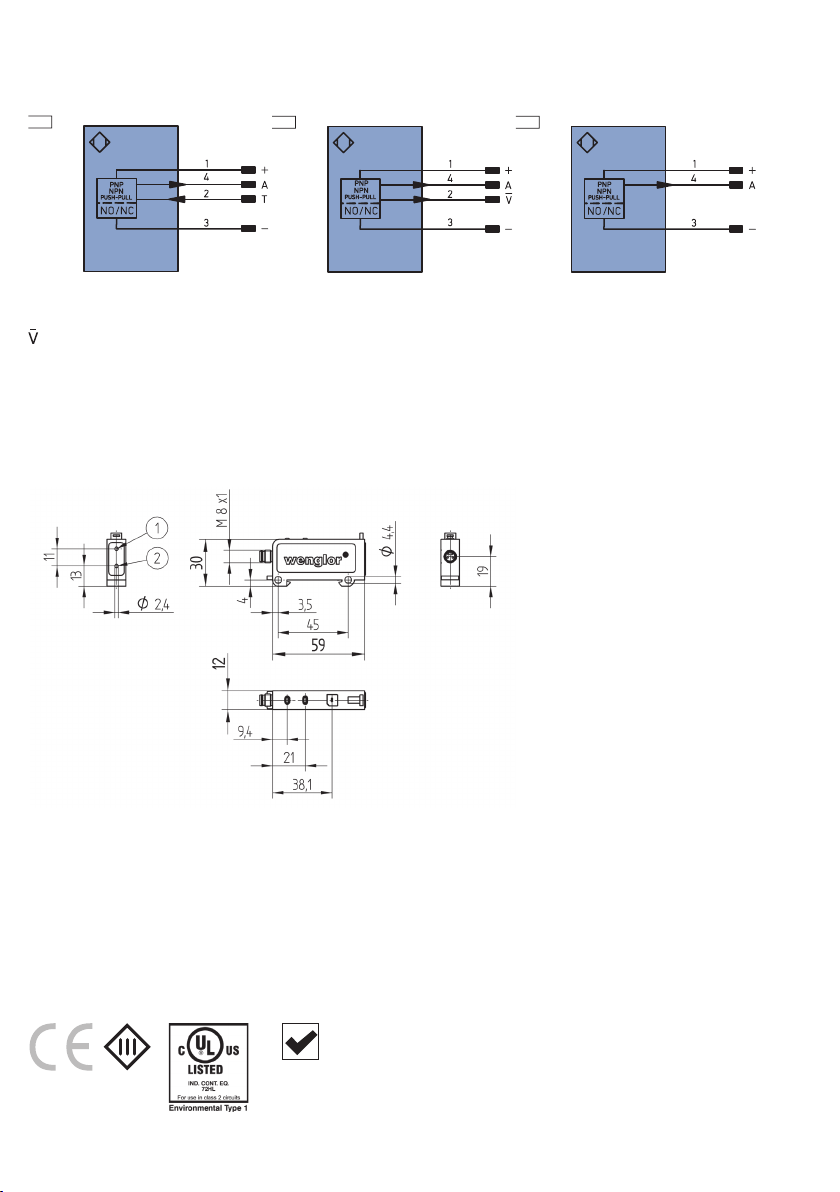

3.1. Connection Diagrams
Order number
ODX202P0007 ODX202P0107 ODX202P0008
external Teach Input Contamination Output –
770 771 772
7
7
8
S02
S02
S04

4
EN
770
771
772
+ Supply Voltage “+”
A Switching Output
Contamination Output/Error Output (NC)
– Supply Voltage “0 V”
T Teach Input
3.2. Housing Dimensions
1 = Transmitter Diode
2 = Receiver Diode
3.3. EC Declaration of Conformity
The EC declaration of conformity can be found on our website at www.wenglor.com in download area.
Any additional standards which are applicable for the given application must be observed.
RoHS

5
3.4. Technical Data
Switching Hysteresis < 15 %
Light Source Red Light
Wave Length 660 nm
Service Life (Tu = 25 °C) 100000 h
max. ambient Light 10000 Lux
Supply Voltage 10…30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 2 kHz
Response Time 250 µs
ON-/OFF-Delay 0…200 ms
Temperature Drift < 10 %
Temperature Range –25…60 °C
Switching Output Voltage Drop < 2,5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Teach Mode NT, MT, ZT, DT, TP
Adjustment Teach-In
Housing Plastic
Full Encapsulation yes
Degree of Protection IP65
Connection M8×1
Protection Class III
DIN-Rail mounting 35 mm
3.5. Contamination Warning
The contamination warning (included with all ODX202 types) is indicated by means of a blinking red LED (02)
(with rotary switch in the Run position).
3.6. Contamination Output
The contamination output (included with ODX202P0107) functions as a normally closed contact and is
switched off if the Sensor is operated within an unreliable range.
Unreliable range: ontamination, misalignment

6
EN

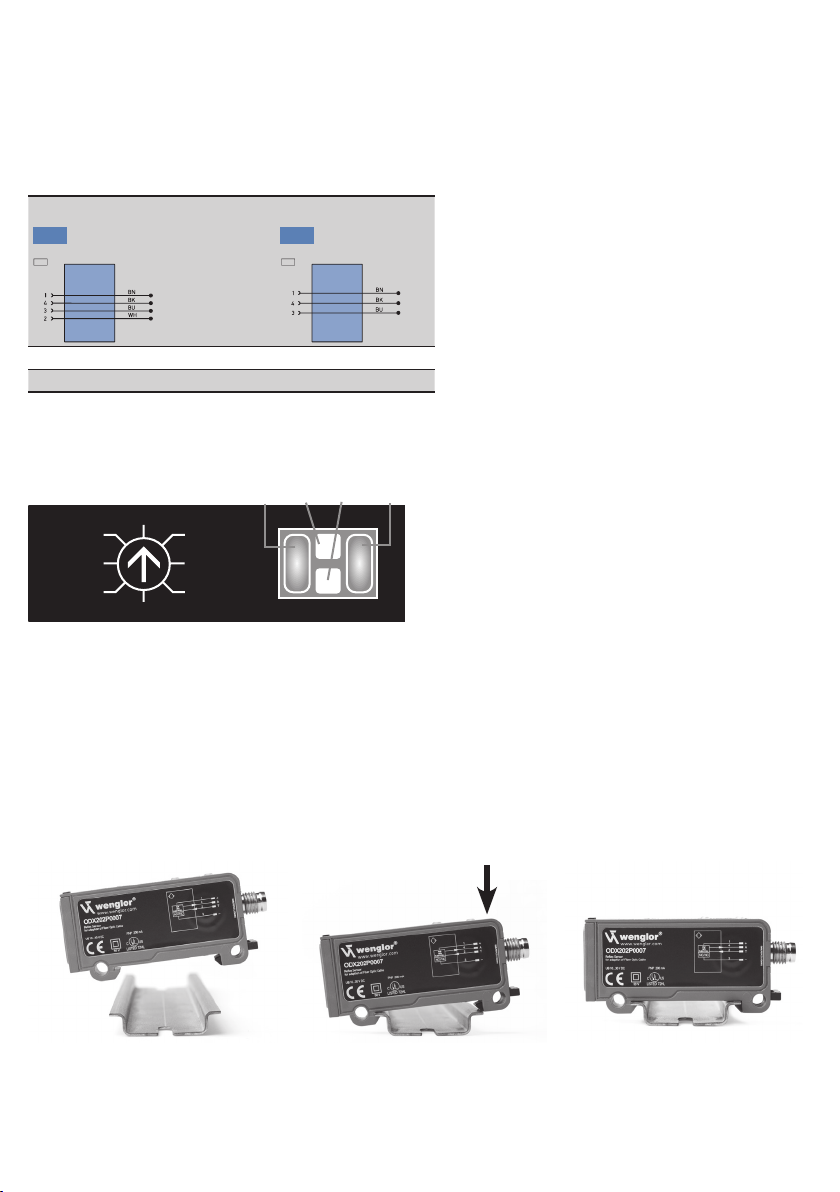

3.7. Complementary Products (see catalog)
wenglor offers Connection Technology for field wiring.
Suiting Connection Technology No.
7
S02
8
S04
Glass Fiber Optic Cable
Plastic Fiber Optic Cable
3.8. Control Panel










07 24 01 02 25
01 = Switching Status Indicator
02 = Contamination Warning
07 = Selector Switch
24 = Plus Button
25 = Minus Button
3.9. Mounting Instructions
All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to
when installing and operating the Sensor. The Sensor must be protected against mechanical influences. Install
the product such that its installation position cannot be inadvertently changed.
3.9.1. Mounting to a DIN rail
 

7


fig.1 Mounting of the Sensor to a DIN rail

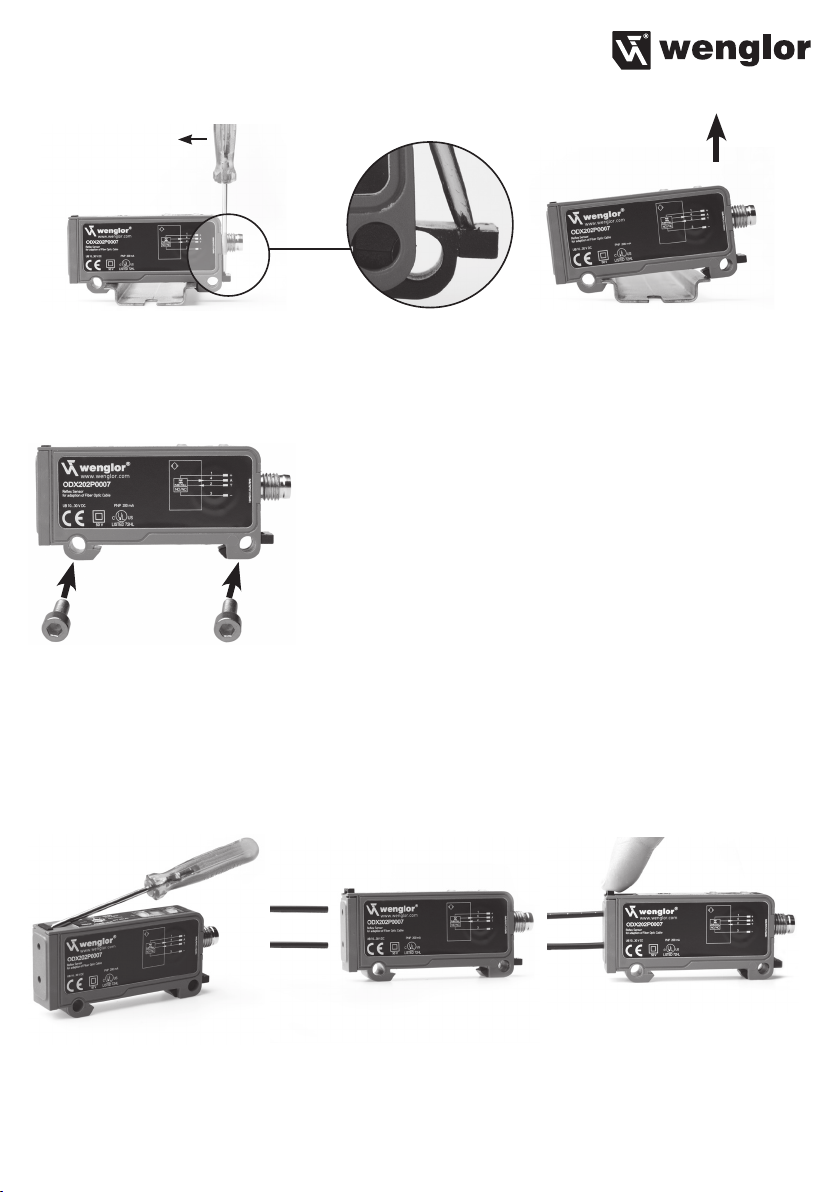

3.9.2. Side mounting
Side mounting a unit: Secure the Sensor with screws (M4) through the mounting holes.
fig. 2 Side mounting of the Sensor
3.9.3. Connecting the plastic fibre-optic cable
• Please cut the plastic fibre-optic cable once before using with the SW cutting tool.
• Open the mounting slide with a screwdriver (see fig. 3-1)
• Insert the light cable into the opening provided to this end (see fig. 3-2)
• Close the mounting slide (see fig. 3-3)

fig. 3 Connecting the plastic fibre-optic cable

8
EN
4. Adjustment
4.1. On-Delay and Off-Delay
fig. 4 On-Delay and Off-Delay
Adjusting On- and Off-Delay
with rotary selector switch (07) set to On-Delay or Off-Delay
Delay Minus Button (25) Plus Button (24) Gelbe Status-LED (02)
0 ms lighted up not lighted up not lighted up
10 ms not lighted up not lighted up 1 × blinks, pause, 1 × blinks
20 ms not lighted up not lighted up 2 × blinks, pause, 2 × blinks
• • • • • •
• • • • • •
200 ms not lighted up lighted up 20 × blinks, pause, 20 × blinks
Adjusting On-Delay Adjusting Off-Delay




















• Set rotary selector switch (07) to On-Delay • Set rotary selector switch (07) to Off-Delay
• Activate the plus button (24) • Activate the plus button (24)
èDelay is increased by 10 ms èDelay is increased by 10 ms
• Activate the minus button (25) • Activate the minus button (25)
èDelay is reduced by 10 ms èDelay is reduced by 10 ms
• Set rotary selector switch (07) to Run • Set rotary selector switch (07) to Run

9

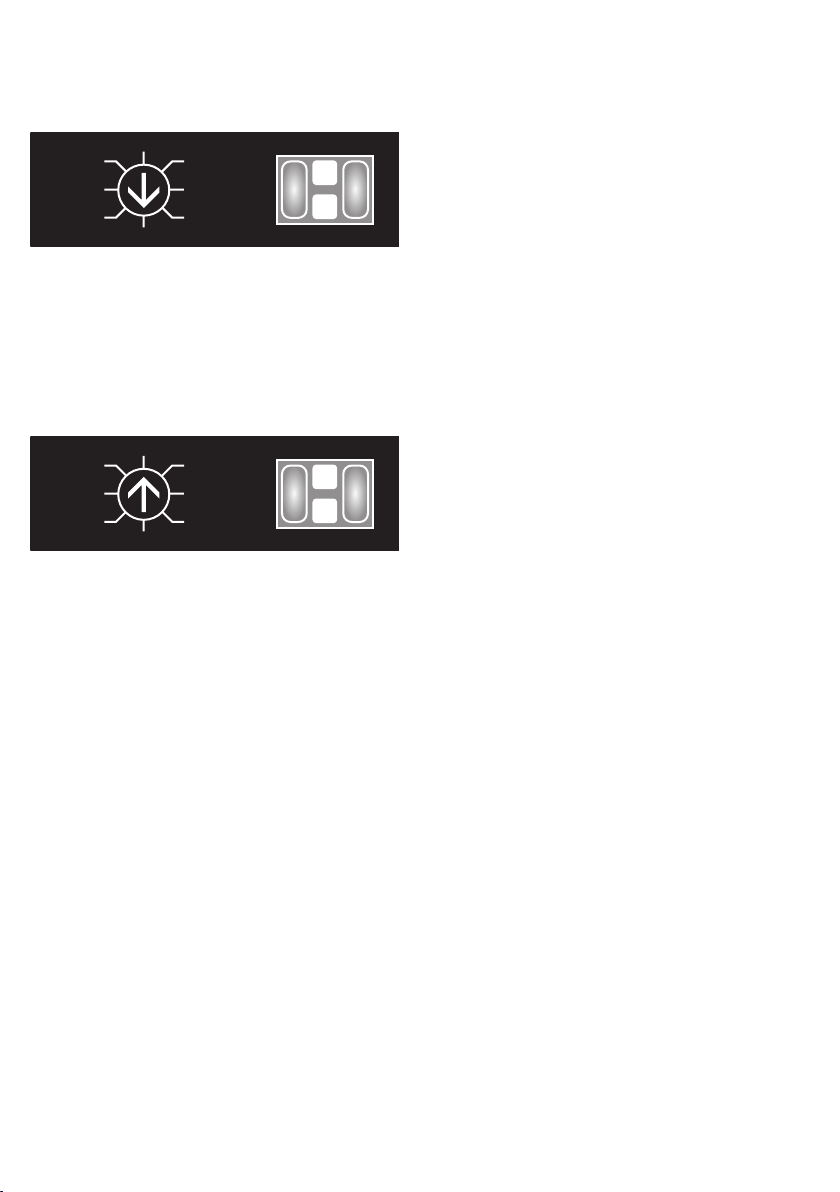

4.2. Selecting normally closed or normally open function (NC/NO)










•Set rotary selector switch (07) to NC/NO
PNP/NPN
• Activate the plus button (24)
èNC is selected (normally closed/dark switching)
èPlus button (24) lights up
• Activate the minus button (25)
èNO is selected (normally open/light switching)
èMinus button (25) lights up
• Set rotary selector switch (07) to Run
4.3. Selecting PNP/NPN/Push-Pull










• Set rotary selector switch (07) to NC/NO
PNP/NPN
• Activate the plus button (24) for 5 seconds
èPlus button (24) and Minus button (25) blink
• Release Plus button (24)
• Activate the plus button (24)
èPlus Button (24) lights up
èPNP setting
• Activate the minus button (25)
èMinus button (25) lights up
èNPN setting
• Activate Plus button (24) and minus button (25) at the same time
èPlus button (24) and minus button (25) light up
èPush-pull setting
• Set rotary selector switch (07) to Run

10
EN
4.4. Setting Switching Distance with the potentiometer










• Set rotary selector switch (07) to Poti
• Activate the plus button (24)
èSwitching Distance is increased
• Activate the minus button (25)
èSwitching Distance is reduced
The LEDs at the plus and minus buttons function like a light scale. The more brightly the respective button is
illuminated, the greater the sensing distance and vice versa.
The corresponding button blinks if maximum or minimum sensing distance has been selected.
• Set rotary selector switch (07) to Run
4.5. Setting Switching Distance with the Teach-In function
The ideal Switching Distance for the object to be recognized is selected automatically with the Teach-In function:
Normal Teach-In
Minimal Teach-In
Dynamic Teach-In
Two-point Teach-In
4.5.1. Normal Teach-In










• Set rotary selector switch (70) to Teach
èRed LED (02) lights up
• Align spot to object
• Activate the plus button (24)
èPlus button (24) lights up
• Activate the plus button (24) again*
èPlus button (24) is no longer illuminated
• Set rotary selector switch (07) to Run
*If a second button operation does not take place within 40 seconds, the teach-in process is aborted without saving any settings.

11

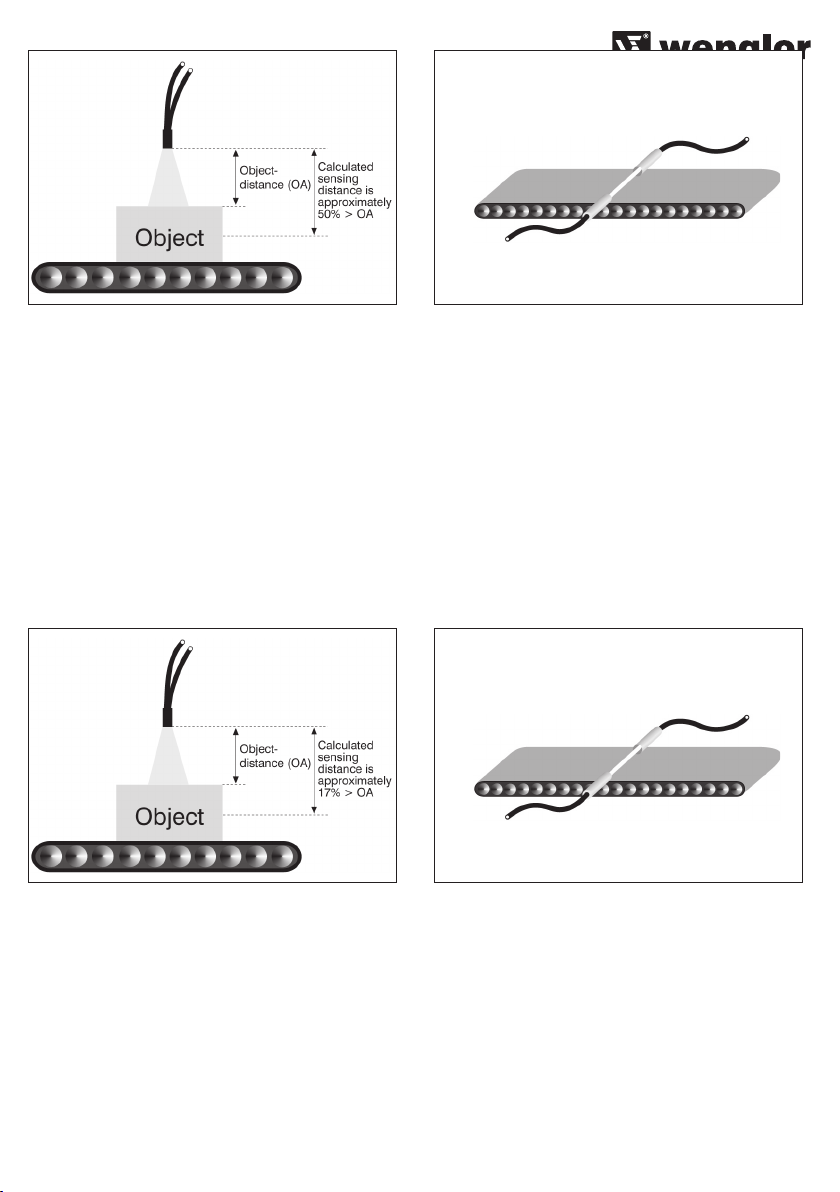

fig. 5 Scanning mode during Teach-In fig. 6 Barrier mode during Teach-In
No object (light barrier is unobstructed)
4.5.2. Minimal Teach-In
• Set rotary selector switch (07) to Teach
• Align spot to object
• Activate the minus button (25)
èMinus button (25) lights up
• Activate the minus button (25) again*
èMinus button (25) is no longer illuminated
• Set rotary selector switch (07) to Run
* If a second button operation does not take place within 40 seconds, the teach-in process is aborted without saving any settings.
The contamination warning is out of order during minimal Teach-In.
fig. 7 Scanning mode during Teach-In fig. 8 Barrier mode during Teach-In
No object (light barrier is unobstructed)

12
EN
4.5.3. Dynamic Teach-In (Teach-In with moving objects)
• Set rotary selector switch (07) to Teach
• Press and hold the plus button (24) until (24) blinks at the plus button (after approx. 5 sec)
èThe Sensor is now in the recording mode and acquires minimum and maximum incoming light signals
• Activate the plus button (24) again
èThe recording mode is ended
èPlus button (24) is no longer illuminated
• Set rotary selector switch (07) to Run
The switching output is not active during Teach-In.
fig. 9 Dynamic Teach-In
Scanning and barrier modes
The Sensor automatically determines the ideal switching point between the minimum and maximum incoming
light signals acquired during the recording mode.
If the red LED (02) blinks after completion of dynamic teach-in, the difference between the two incoming signals is too small.

13
4.5.4. Two-point Teach-In
• Set rotary selector switch (07) to Teach
• Align the spot to object A
• Activate the plus button (24)
èPlus button (24) lights up
• Align the spot to object B
• Activate the minus button (25)
èMinus button (25) lights up
• Set rotary selector switch (07) to Run
fig. 10 Two-point Teach-In
Scanning and barrier mode
The Sensor automatically determines the ideal switching point between the incoming light signals from object
A and object B.
If the red LED (02) blinks after completion of two-point teach-in, the difference between the two incoming signals is too small.
4.6. External Teach-In
Initialisation
The desired teach-In process must be selected at the Sensor prior to external Teach-In.
External Normal Teach-In
(see also fig. 5 and 6)
Initialise Normal Teach-In: Set rotary selector switch to Teach, press the plus button twice, set rotary selector
switch to Run)
• Set rotary selector switch (07) to Run
• Apply 10 V to 30 V to the Teach-In input (in relation to minus pole, for at least 0.3 sec)
èRed LED (02) blinks
• Disconnect voltage from the Teach-In input
èTeach-In process ensues
èRed LED (02) stops blinking

14
EN
External Minimal Teach-In
(see also fig. 7 and 8)
Initialise minimal Teach-In: Set rotary selector switch to Teach, press the minus button twice, set rotary selector
switch to Run)
• Set rotary selector switch (07) to Run
• Apply 10 V to 30 V to the Teach-In input (in relation to minus pole, for at least 0.3 sec)
èRed LED (02) blinks
• Disconnect voltage from the Teach-In input
èTeach-In process ensues
èRed LED (02) stops blinking
External Dynamic Teach-In
(see also fig. 9)
Initialise dynamic Teach-In: Set rotary selector switch to Teach, press and hold the plus button for 5 sec, release
the plus button, set rotary selector switch to Run)
• Set rotary selector switch (07) to Run
• Apply 10 V to 30 V to the Teach-In input (in relation to minus pole, for the duration of recording)
èRed LED (02) blinks
• Disconnect voltage from the Teach-In input
èTeach-In process ensues
èRed LED (02) stops blinking

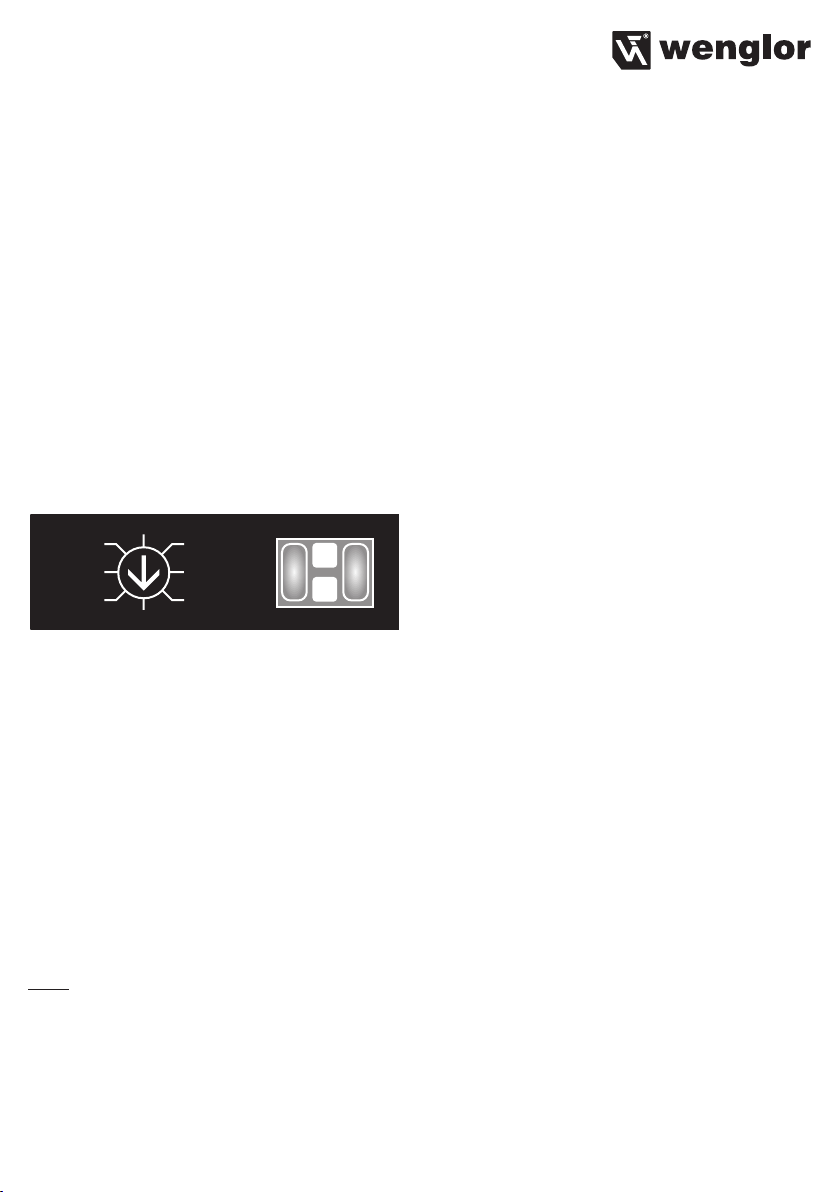

4.7. Selecting the Run function
4.7.1. Normal operating mode










• Set rotary selector switch (07) to Run
èRed LED (02) blinks if contamination is detected
èYellow LED (01) indicates switching status
èThe plus button (24) and the minus button (25) are disabled

15
4.7.2. Selecting the Light pulse frequency
Display of actual Light pulse frequency:
• Set rotary selector switch (07) to Power Save
èPlus button (24) lights up: With the rotary selector switch set to Run, the light pulse frequency
is 7.58 kHz.
èMinus button (25) lights up: With the rotary selector switch set to Run, the light pulse frequency is
6.10 kHz.
èNo button lights up: With the rotary selector switch set to Run, the light pulse frequency is
maximum 10 kHz.
Delete the Light pulse frequency setting:
• Set rotary selector switch (07) to Power Save
• Activate the lighted up button
èNo button is lighted up
èLight pulse frequency is max. 10 kHz
• Set rotary selector switch (07) to Run
Select a Light pulse frequency:










• Set rotary selector switch (07) to Power Save
• Activate the plus button (24)
èPlus button (24) lights up
èLight pulse frequency 7,58 kHz
• Set rotary selector switch (07) to Run
• Set rotary selector switch (07) to Power Save
• Activate the minus button (25)
èMinus button (25) lights up
èLight pulse frequency 6,10 kHz
• Set rotary selector switch (07) to Run
The Light pulse frequency in the Power Save Mode is unchangable 5,06 kHz.
Note: If the rotary selector switch is not set to Run within one minute after pressing the key, the light pulse
frequency is not changed. The maximum switching frequency is reduced in proportion to the light pulse
frequency.

16
EN
4.7.3. Energy saving mode










• Set rotary selector switch (07) to Power Save
èSensor functions same as in normal operating mode
EXCEPT
èPower consumption is reduced by approx. 40 %
èSwitching Frequency is reduced to 1 kHz
4.8. Test Mode










• Set rotary selector switch (07) to Test
• Activate the plus button (24)
èThe Switching Point is set to the maximal switching distance possible
• Activate the minus button (25)
èThe Switching Point is set to the minimal switching distance value possible
5. Maintenance Instructions
• This wenglor Sensor is maintenance-free.
• It is advisable to clean the lens and the display, and to check the plug connections at regular intervals.
• Do not clean with solvents or cleansers which could damage the device.
6. Proper Disposal
wenglor sensoric gmbh does not accept the return of unusable or irreparable products. Respectively valid
national waste disposal regulations apply to product disposal.
