Whalen WMFP31EC-1 Manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing Page 1 Factory No. 17052
Date 2015-05-05 Rev. 1 Factory: NIELFU
31" Media Fireplace in Cherry Finish
Stock # WMFP31EC-1
ADULT ASSEMBLY AND SET-UP REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 2 Factory No. 17052
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will
repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is
designed to meet your highest expectations. We guarantee that you will immediately see the value of
our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 31" Media Fireplace in Cherry Finish (WMFP31EC-1)
DATE OF MANUFACTURE: May 2015
MADE IN CHINA
MAXIMUM RECOMMENDED WEIGHT LOADS
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL
OFF OR BREAK THE UNIT
,
CAUSING POSSIBLE SERIOUS INJURY.
PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 42” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.6 kg)

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 3 Factory No. 17052
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

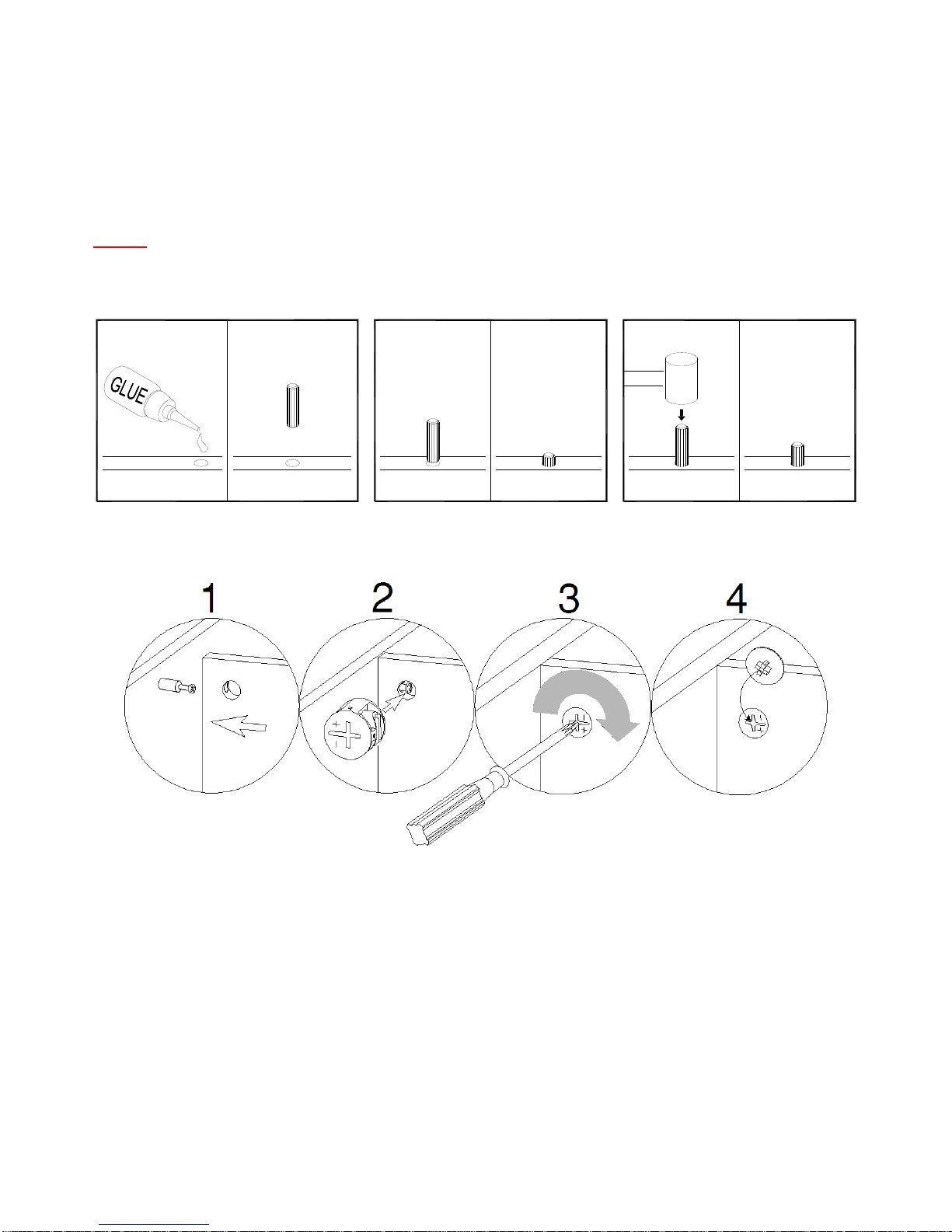

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the fireplace.
XXFINAL
12 43

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 4 Factory No. 17052

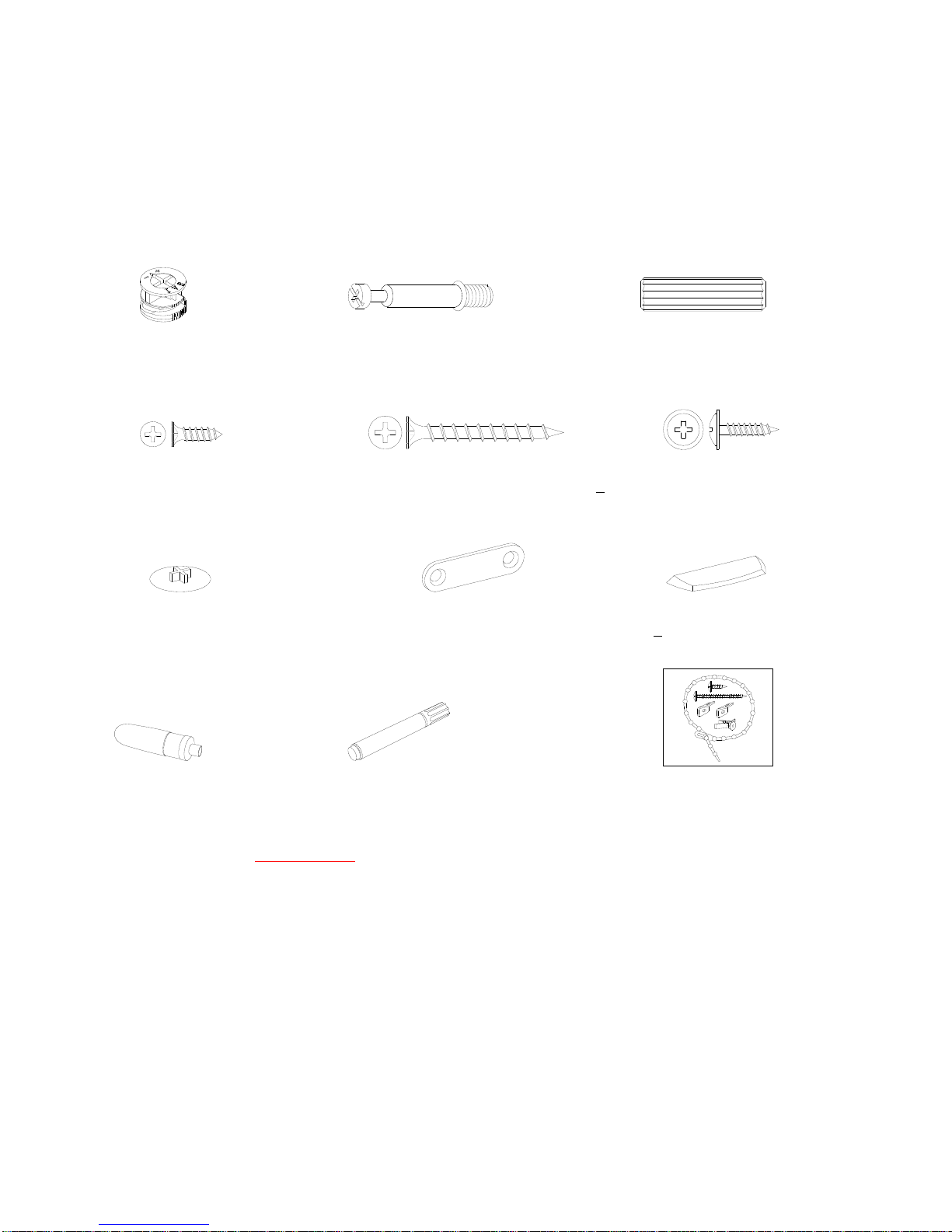

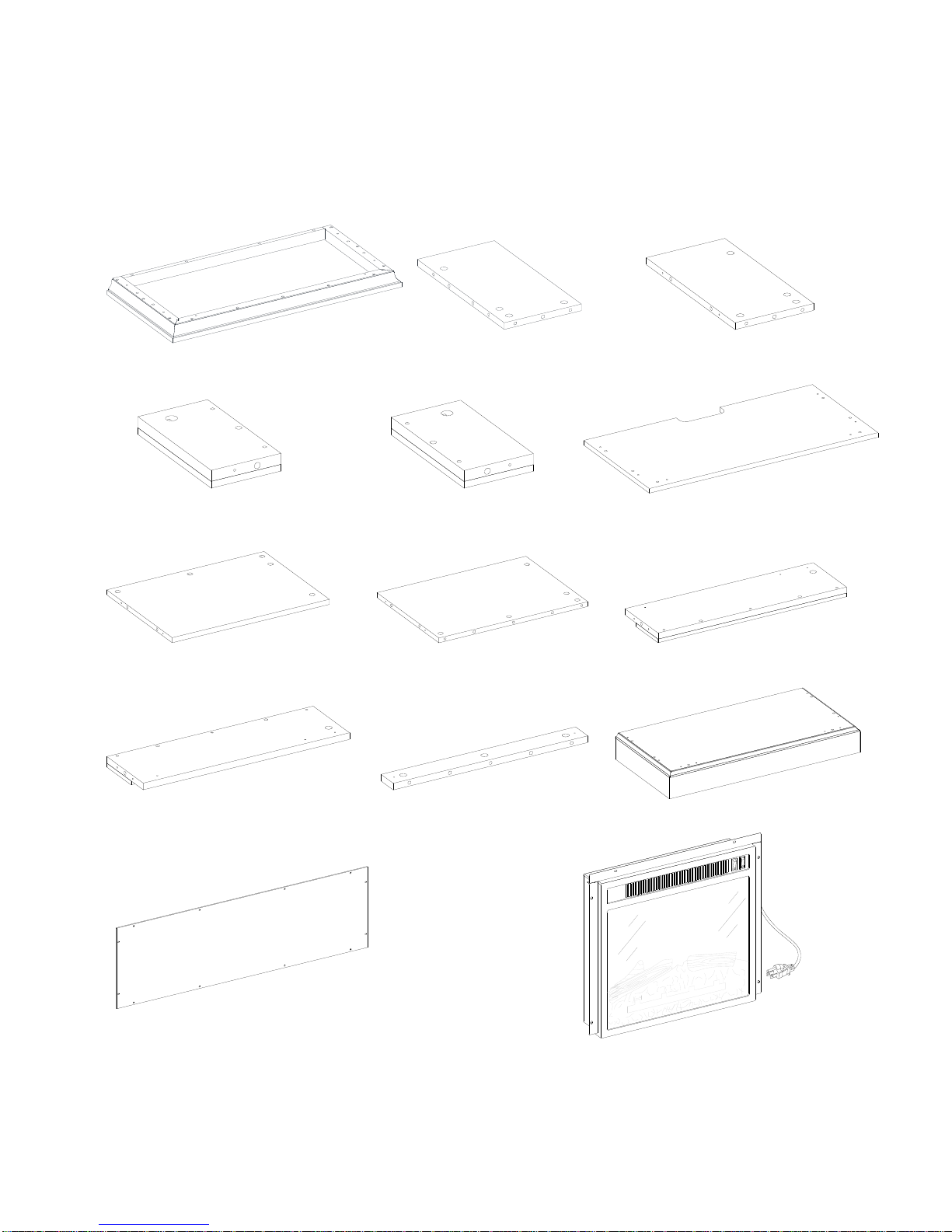

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (1) B- Left Upper Side Panel (1) C- Right Upper Side Panel (1)
D- Left Upper Front Panel (1) E- Right Upper Front Panel (1) F- Center Shelf (1)
G- Left Lower Side Panel (1) H- Right Lower Side Panel (1) I- Left Lower Front Panel (1)
J- Right Lower Front Panel (1) K- Center Crossbar (1) L- Base (1)
M- Back Panel (1) Fireplace (1)

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 5 Factory No. 17052
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(25+1 extra) (25+1 extra) (32+1 extra)
(4) Ø3.5 x 12 mm Screw (5) Ø4 x 38 mm Screw (6) Ø3.5 x 15 mm Washer Head Screw
(4+1 extra) (14+1 extra) (12+1 extra)
(7) Cam Lock Cover (8+1 extra) (8) Metal Bracket (2) (9) Acrylic Stopper (1)
Glue (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (2)
(Included in plastic bag)
Tools required: Phillips screwdriver and rubber mallet (not provided).

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 6 Factory No. 17052
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Locate the Top Panel (A), Center Shelf (F), Upper Front Panels (D and E), Lower Front Panels (I and J)
with the holes facing up. Securely screw the Cam Bolts (2) into the designated small holes, as shown above.
Fully tighten with a Phillips screwdriver.
Cam Bolt
(25 used in this step)
②
2
A
F
J
DE
A/D/E
F/I/J

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 7 Factory No. 17052
Assembly Instructions
3. Insert one Wood Dowel (3) into the center end hole of Left Upper Side Panel (B). Tap it in with a rubber
mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
4. Align the drilled holes on the Left Upper Front Panel (D) with the inserted Wood Dowel (3) on the Left
Upper Side Panel (B), and then press them together. Secure the Front Panel (D) in place by engaging two
Cam Locks (1) (Refer to page 3 on Cam Lock system operation supplement).
5. Repeat last two steps to combine the Right Upper Side and Front Panels (C and E) together.
M8 x 30 mm Wood Dowel
(2 used in this step)
③
Cam Lock
(4 used in this step)
①
E
C3
1
3
1
B
D

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 8 Factory No. 17052
Assembly Instructions
6. Repeat the same procedure to combine the Left Lower Front and Side Panels (I and G), Right Lower Front
and Side Panels (J and H) together.
I
J
H
G
3
3
3
3
1
1
1
1
1
1
M8 x 30 mm Wood Dowel
(4 used in this step)
③
Cam Lock
(6 used in this step)
①

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 9 Factory No. 17052
Assembly Instructions
7. Align and attach the Center Crossbar (K) to the Center Shelf (F) by using two Wood Dowels (3) and three
Cam Locks (1).
F
K
1
1
3
3
M8 x 30 mm Wood Dowel
(2 used in this step)
③
Cam Lock
(3 used in this step)
①

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 10 Factory No. 17052
Assembly Instructions

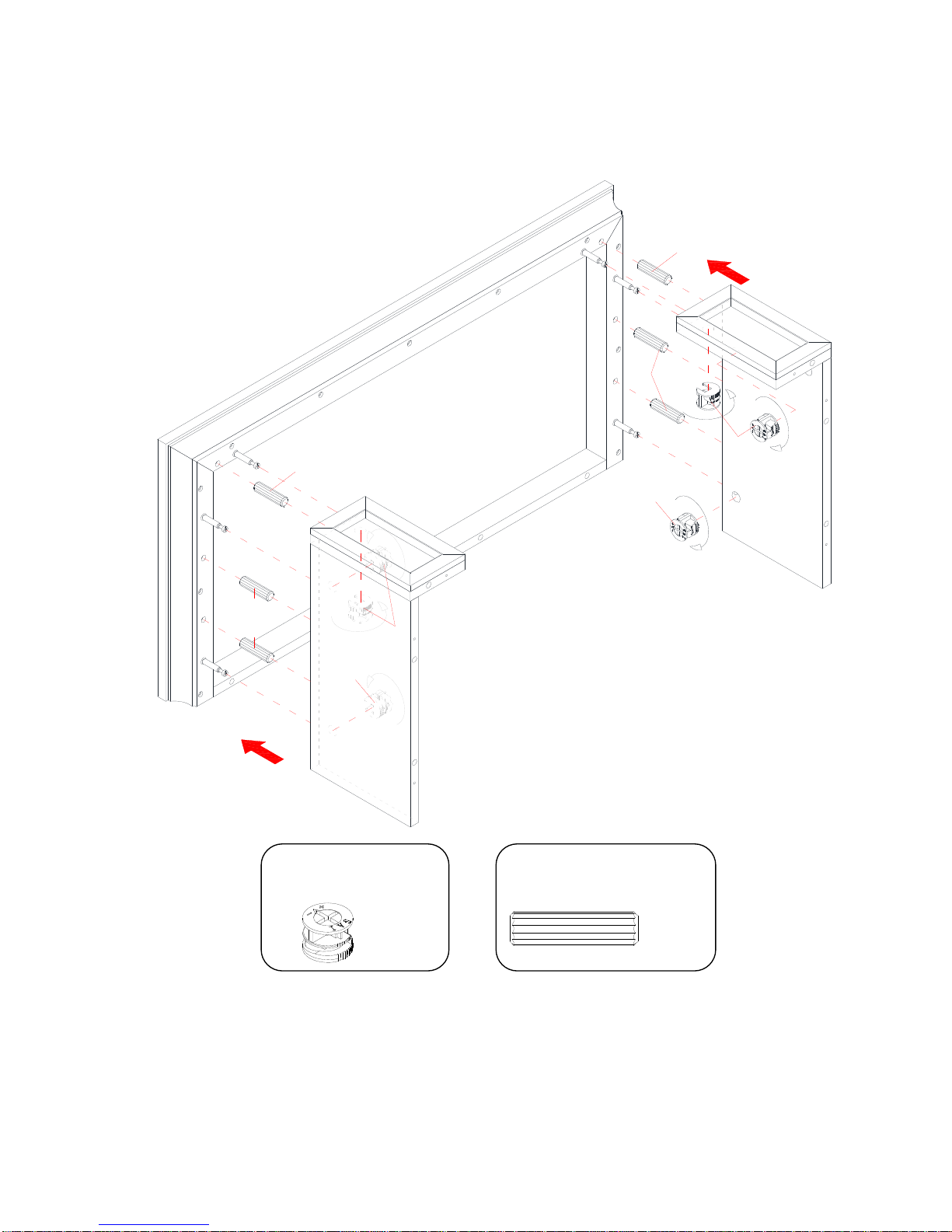

8. Insert six Wood Dowels (3) into the drilled holes on the assembled Upper Panels (B, C, D and E) and attach
them to the Top Panel (A) by engaging six Cam Locks (1).
M8 x 30 mm Wood Dowel
(6 used in this step)
③
Cam Lock
(6 used in this step)
①
B
A
C
E
D
3
3
3
3
1
1
1
1

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 11 Factory No. 17052
Assembly Instructions

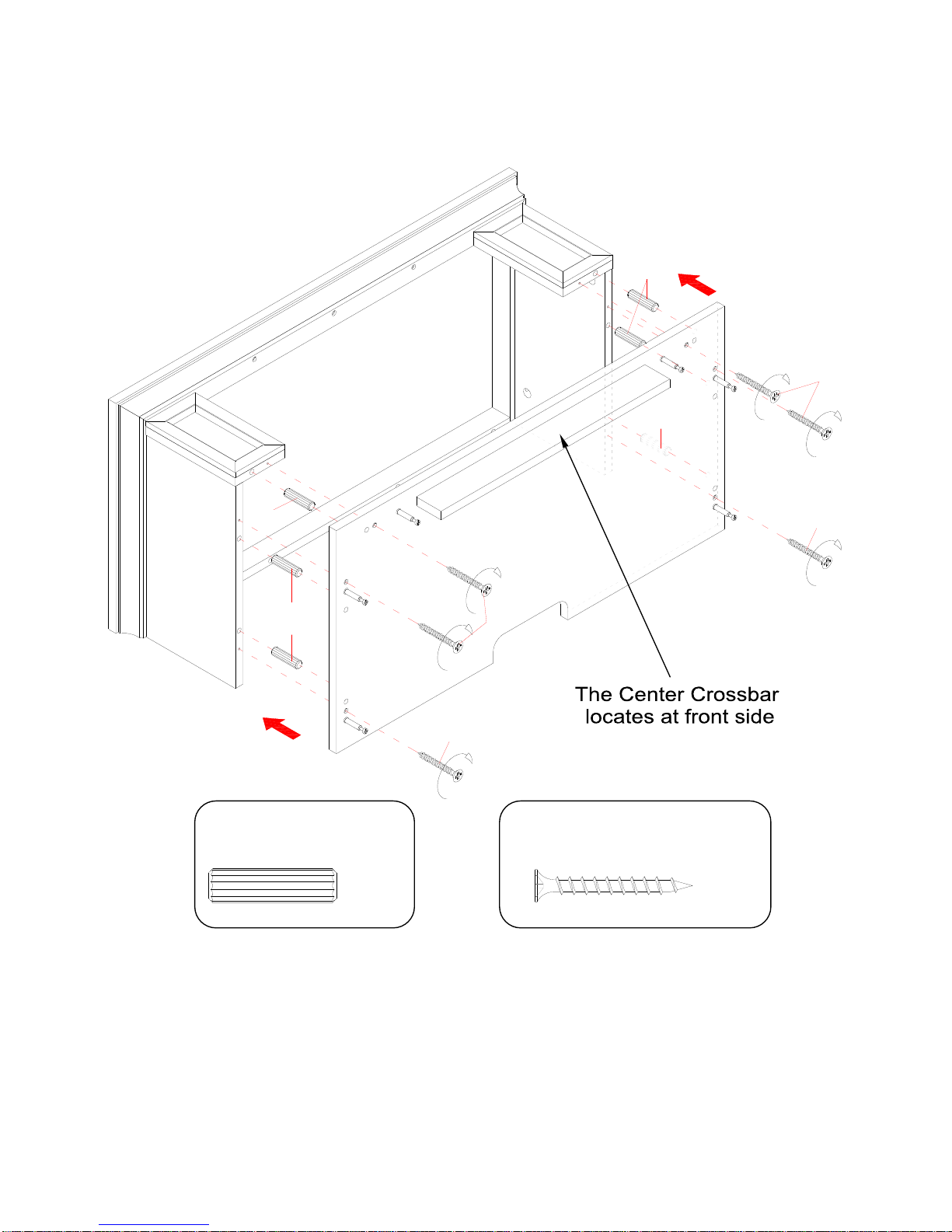

9. Insert six Wood Dowels (3) into the large holes at the bottom of the Upper Panels (B, C, D and E).
10. Properly position the Center Shelf (F) onto the inserted Wood Dowels (3). Insert six 38 mm Screws (5)
through the countersunk holes on Center Shelf (F) and screw into the Upper Panels (B, C, D and E).
B
D
E
C
F
3
3
3
3
5
5
5
5
M8 x 30 mm Wood Dowel
(6 used in this step)
③
Ø4 x 38 mm Screw
(6 used in this step)
⑤

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 12 Factory No. 17052
Assembly Instructions

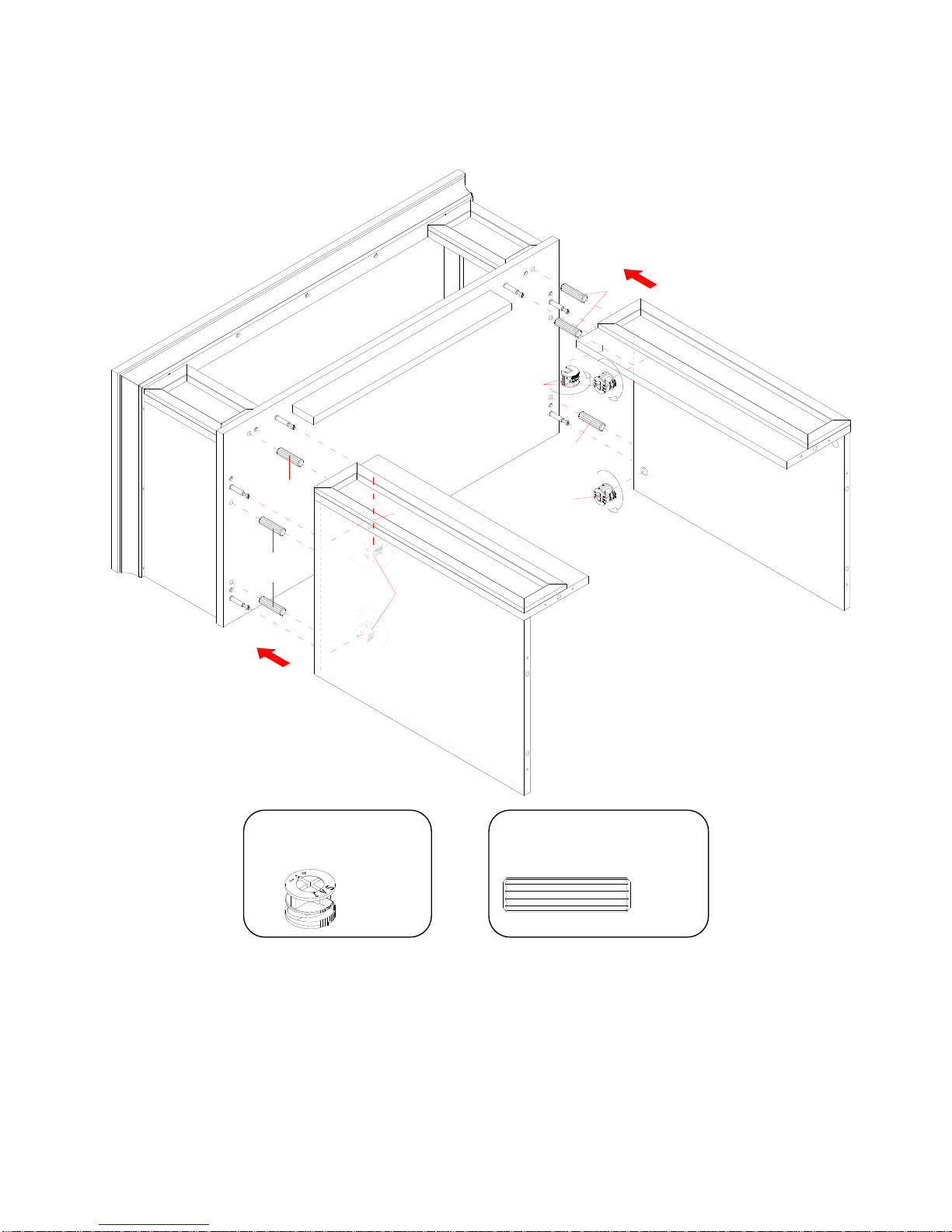

11. Insert six Wood Dowels (3) into the top inner holes of Lower Side and Front Panels (G, H, I and J).
12. Align the large holes on the Center Shelf (F) with the inserted Wood Dowels (3) on the Lower Panels (G, H,
I and J) and press them together. Secure the lower panels in place with six Cam Locks (1).
M8 x 30 mm Wood Dowel
(6 used in this step)
③
Cam Lock
(6 used in this step)
①
F
G
I
H
J
1
11
1
3
3
3
3
K

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 13 Factory No. 17052
Assembly Instructions

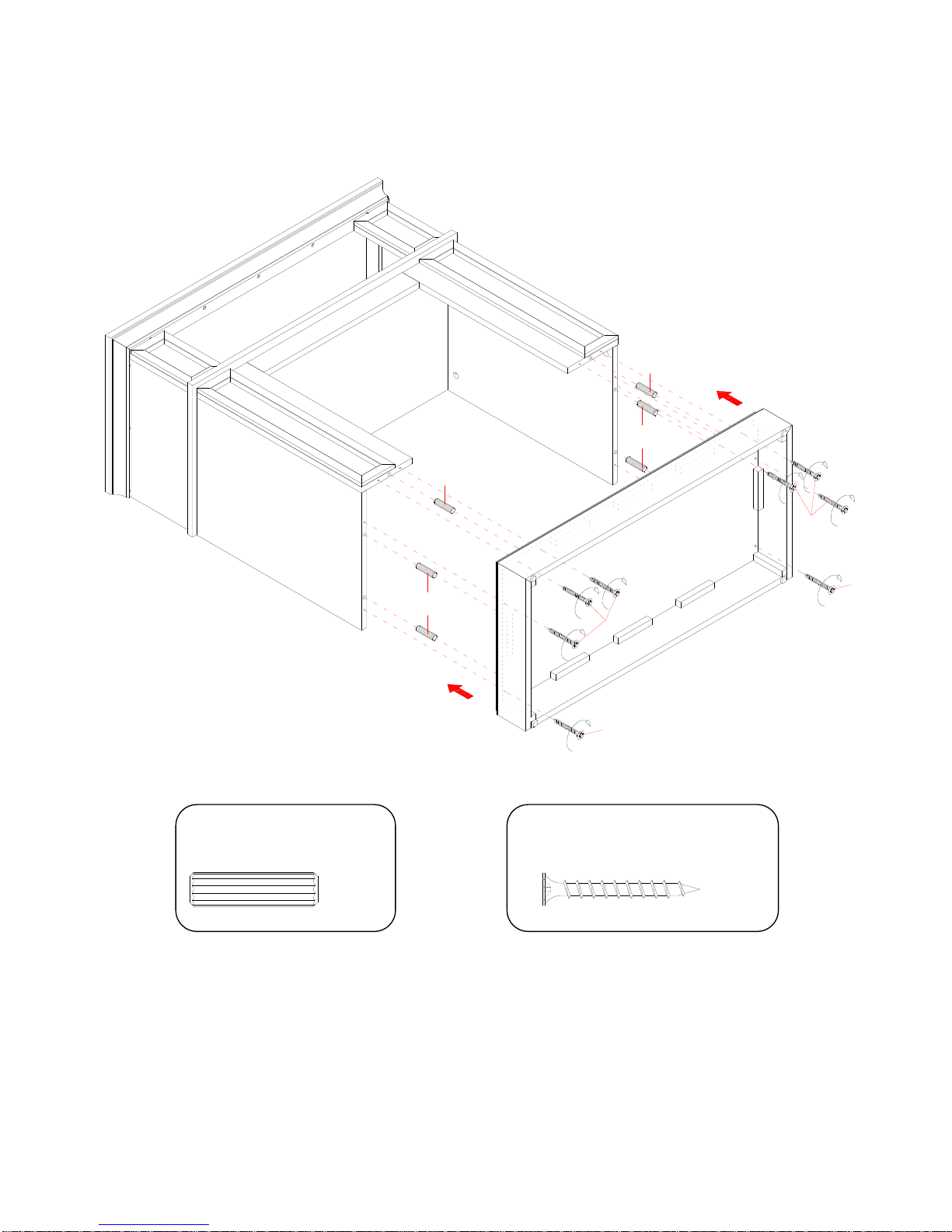

13. Align and attach the Base (L) to last assembly with six Wood Dowels (3) and eight 38 mm Screws (5). As
shown above.
M8 x 30 mm Wood Dowel
(6 used in this step)
③
G
I
H
J
L
3
3
3
3
5
5
5
5
Ø4 x 38 mm Screw
(8 used in this step)
⑤

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 14 Factory No. 17052
Assembly Instructions

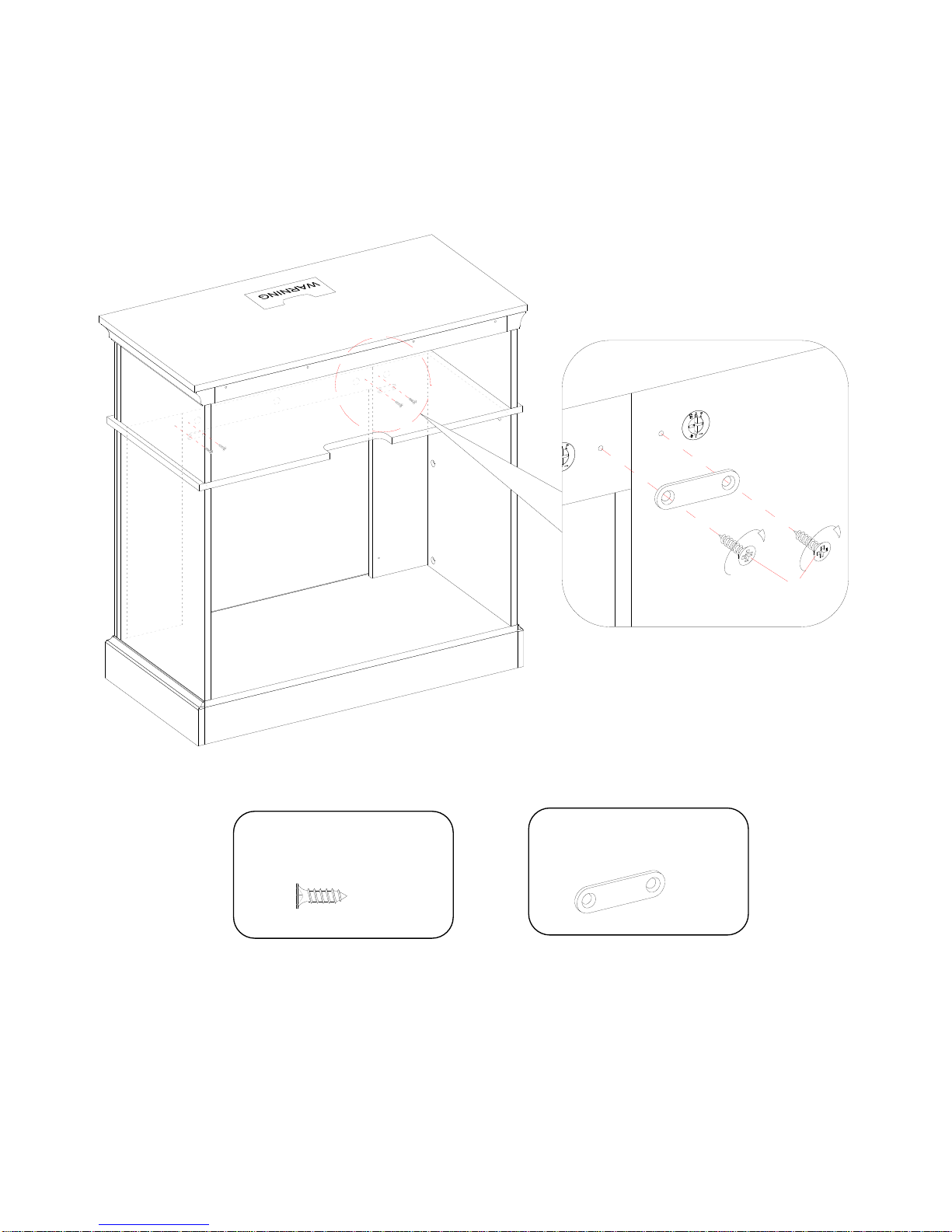

14. Stand the assembled unit upright.
15. With the pilot holes as a guide, fasten the Center Crossbar (K) to the Lower Front Panels (I and J) by
attaching two Metal Brackets (8) at the joints, using two 12 mm Screws (4) per bracket. As shown.
I
J
K
I/J
K
4
8
Ø3.5 x 12 mm Screw
(4 used in this step)
④
Metal Bracket
(2 used in this step)
⑧

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 15 Factory No. 17052
Assembly Instructions
16. Now, go back and securely tighten all the Cam Locks and the Screws. Make sure that all the parts are tight
and there are no gaps between the parts. This will help keep the unit square.
17. Pick up the Back Panel (M) and align the pre-drilled holes against the upper long edge with the pilot holes
on the back stretcher of Top Panel (A). Attach the Back Panel (M) in place using the provided 15 mm
Washer Head Screws (6). As shown.
Ø3.5 x 15 mm Washer Head Screw
(12 used in this step)
⑥
A
H
C
M
M
A
B/C
B
6

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 16 Factory No. 17052
Assembly Instructions
18. Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and Side
Trims to the fireplace insert.
19. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO
NOT drag the insert across the Base (L) as it may scratch the unit.
A
Fireplace
L

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 17 Factory No. 17052
Assembly Instructions
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the Top Panel.
20. Remove the paper backing of Acrylic Stopper (9), then properly align the Acrylic Stopper into the cut-out
on the acrylic stopper template on the front of Top Panel (A). Press down on the Acrylic Stopper to help
adhesion.
21. Carefully remove the acrylic stopper template from the Top Panel (A).
22. Plug the Cam Lock Covers (7) onto the visible Cams Locks to conceal the Cams.
A
E
B
D
A
A
7
Acrylic Stopper
(1 used in this step)
⑨
Cam Lock Cover
(8 used in this step)
⑦

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 18 Factory No. 17052
Assembly Instructions
Tools required: Phillips Screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.
23. Ask for assistance to position the assembled mantel at the desired location against a wall.
24. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach
the tip-over restraints to the unit and the wall, as shown in the illustration.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The
tipping restraints are intended only as a deterrent, they are not a substitute for proper adult supervision.
The tipping restraints are not earthquake restraints. If you wish to add the extra security of earthquake
restraints, they must be purchased and installed separately.
25. Connect the fireplace to a power transformer. Follow the separated operating manual of electric fireplace to
control your fireplace.

Stock # WMFP31EC-1
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 19 Factory No. 17052
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an
inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid
rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may
create spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that
you call a professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep
furniture away from direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and
helpful tips will enhance your furniture as it ages.
Cleaning trim for fireplace
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a
clean soft cloth. DO NOT use brass polish or household cleaners as these products will damage the
metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during
assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!

IF YOU NEED TO ORDER ANY REPLACEMENT PARTS, PLEASE USE THE LIST BELOW
31" Media Fireplace in Cherry Finish (WMFP31EC-1)
*WMFP31EC-1-1-TP Top Panel *WMFP31EC-1-19-38S Ø4 x 38 mm Screw *WMFP31EC-1-2-B Base *WMFP31EC-1-20-CLC Cam Lock Cover *WMFP31EC-1-3-BP Back Panel *WMFP31EC-1-21-MB Metal Bracket *WMFP31EC-1-4-CS Center Shelf *WMFP31EC-1-22-AS Acrylic Stopper *WMFP31EC-1-5-LUSP Left Upper Side Panel *WMFP31EC-1-23-G Glue *WMFP31EC-1-6-RUSP Right Upper Side Panel *WMFP31EC-1-24-TUP Touch-up Pen *WMFP31EC-1-7-LUFP Left Upper Front Panel *WMFP31EC-1-25-TRHK Tipping Restraint Hardware Kit *WMFP31EC-1-8-RUFP Right Upper Front Panel *WMFP31EC-1-CH Complete Hardware *WMFP31EC-1-9-CC Center Crossbar *WMFP31EC-1-H Heater (SF103-18-H) *WMFP31EC-1-10-LLSP Left Lower Side Panel *WMFP31EC-1-B Blower (SF103-18-B) *WMFP31EC-1-11-RLSP Right Lower Side Panel *WMFP31EC-1-FGDM Flame Generator Drive Motor (SF103-18-FGDM) *WMFP31EC-1-12-LLFP Left Lower Front Panel *WMFP31EC-1-RS Reflector Spindle (SF103-18-RS) *WMFP31EC-1-13-RLFP Right Lower Front Panel *WMFP31EC-1-FIG Fireplace Insert Glass (SF103-18-FIG) *WMFP31EC-1-14-CL Cam Lock *WMFP31EC-1-EBL Ember Bed/Logs (SF103-18-EBL) *WMFP31EC-1-15-CB Cam
B
olt *WMFP31EC-1-LB Light Bulb (SF103-18-LB)
*WMFP31EC-1-16-M8x30WD M8 x 30 mm Wood Dowel *WMFP31EC-1-TT Top Trim (SF103-18-TT)
*WMFP31EC 1 17 12S
Ø35x12mmScrew
*WMFP31EC 1 ST
Side Trim (SF103 18 ST)
*WMFP31EC
-
1
-
17
-
12S
Ø3
.
5
x
12
mm
Screw
*WMFP31EC
-
1
-
ST
Side
Trim
(SF103
-
18
-
ST)
*WMFP31EC-1-18-15WHS Ø3.5 x 15 mm Washer Head Screw *WMFP31EC-1-IS Insert Screw (SF103-18-IS)
