Whalen Ashton MNFP54AS-18 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-06-08 Rev. 0001-A
Ashton 54" Fireplace Console
Model # MNFP54AS-18
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website 24 Hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to: [e-mail]
LOT NUMBER:
DATE
PURC
HASE
D
:
/
/
OR
" W HAL E N ®

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Ashton 54" Fireplace Console
MODEL # MNFP54AS-18

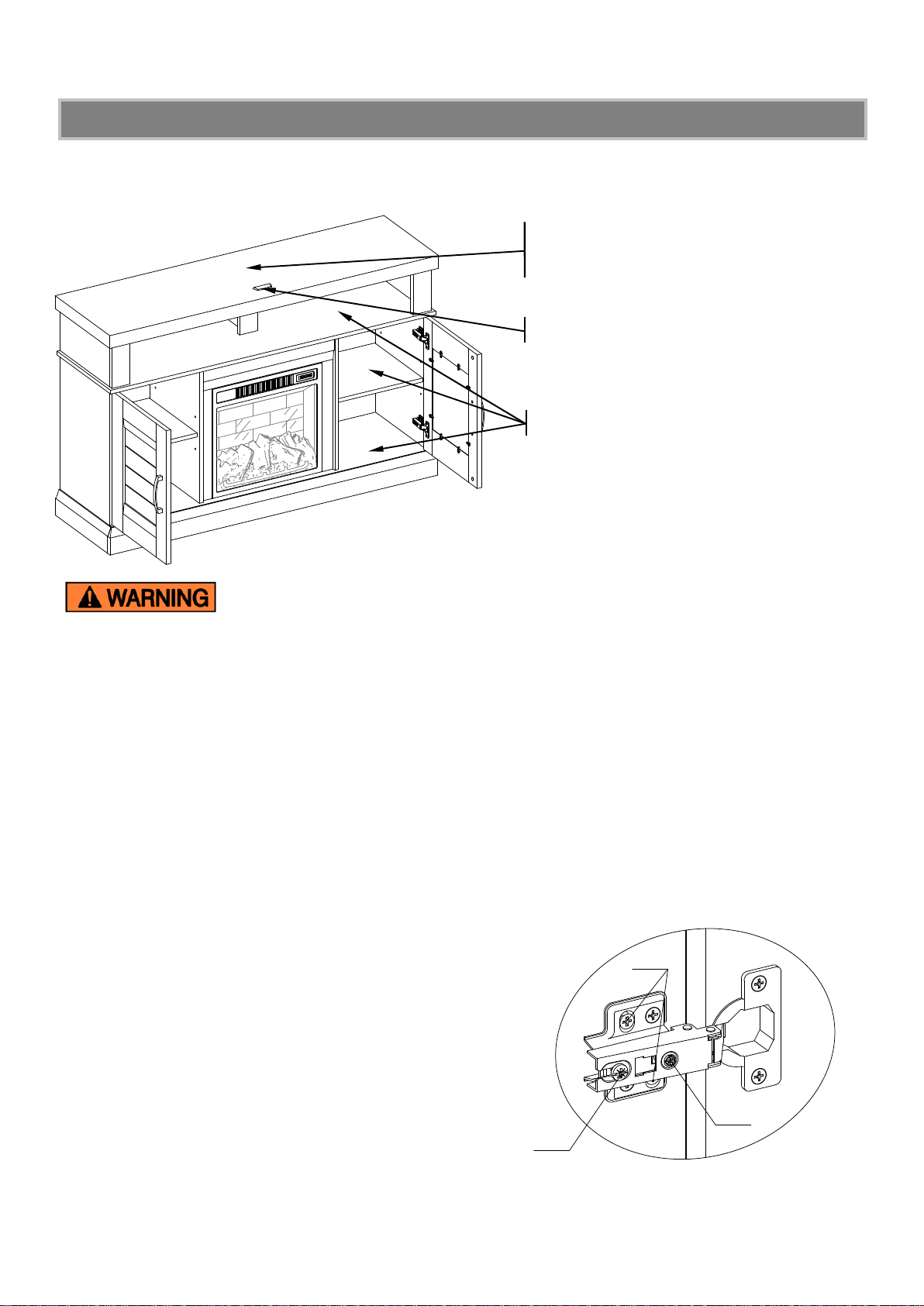

How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw, as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
M A X I M U M R
E C O M M E N D E D W E I G H T L
O A D S
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE
UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR
FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
FOR USE WITH TELEVISIONS WEIGHING 80 LBS (36.3 KG) OR LESS. USE WITH HEAVIER
TELEVISIONS MAY RESULT IN INSTABILITY CAUSING TIP OVER RESULTING IN DEATH OR
SERIOUS INJURY.
P
LACE
TV
BEHIND THE
STOPPER
FITS UP TO MOST 165.1 cm (65 in.)
DIAGONAL FLAT PANEL TVS
MAXIMUM LOAD 36.3 kg (80 lb)
MAXIMUM LOAD 22.7 kg (50 lb)
1
2
3

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.
XX
1 2 43

4

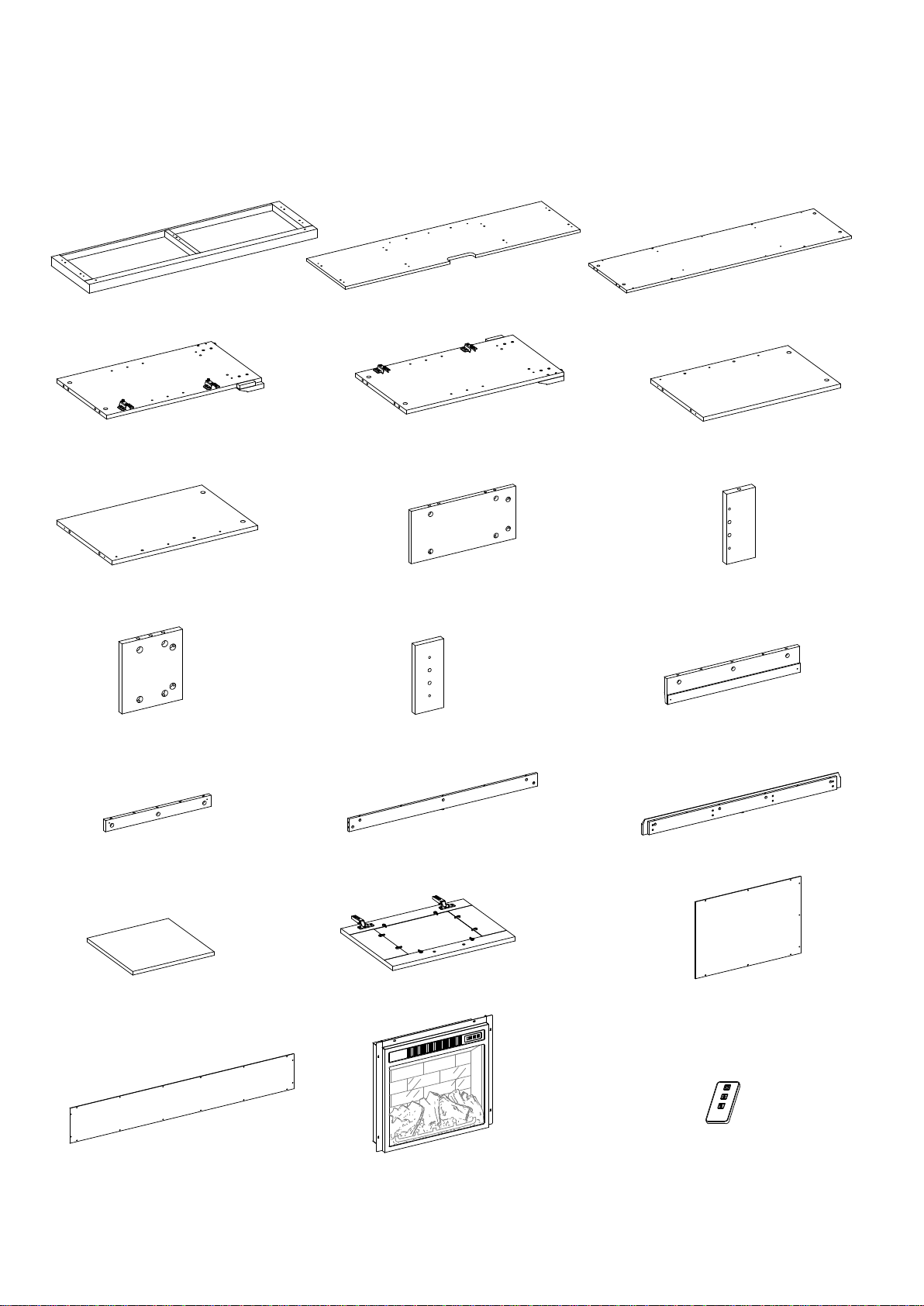

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Center Shelf (Qty. 1) C- Bottom Panel (Qty. 1)
D- Left Lower Side Panel E- Right Lower Side Panel F- Left Lower Partition Panel
(Qty. 1) (Qty. 1) (Qty. 1)
G- Right Lower Partition Panel H- Upper Side Panel I- Upper Side Panel Molding
(Qty. 1) (Qty. 2) (Qty. 2)
J- Upper Partition Panel K- Upper Partition Panel Molding L- Middle Crossbar
(Qty. 1) (Qty. 1) (Qty. 1)
M- Middle Stile (Qty. 2) N- Bottom Back Stretcher (Qty. 1) O- Bottom Front Molding (Qty. 1)
P- Adjustable Shelf (Qty. 2) Q- Door (Qty. 2) R- Lower Back Panel (Qty. 2)
S- Upper Back Panel (Qty. 1) Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1)

5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(Qty. 48+2 extra) (Qty. 48+2 extra) (Qty. 48+2 extra)
(4) M3.5 x 12 mm Screw (5) M3.5 x 15 mm Washer Head Screw (6) M3.5 x 15 mm Pan Head Screw
(Qty. 4+1 extra) (Qty. 34+1 extra) (Qty. 8+1 extra)
(7) M4 x 50 mm Screw (8) Triangle metal plate (9) Floor Leveler
(Qty. 4+1 extra) (Qty. 2) (Qty. 2)
(10) Straight Metal Bracket (11) Handle (12) Handle Bolt
(Qty. 2) (Qty. 2) (Qty. 4)
(13) Shelf Support (14) Rubber Bumper (15) Cam Lock Cover
(Qty. 8+1 extra) (Qty. 4+1 extra) (Qty. 22+1 extra)
(16) Acrylic Stopper (Qty. 1) Glue (Qty. 2)
Touch-up Pen Tipping Restraint Hardware Kit (Qty. 2)
(Qty. 1) (Included in plastic bag)
Tools required: Phillips screwdriver, rubber mallet, and hammer (not provided).

6
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratches.

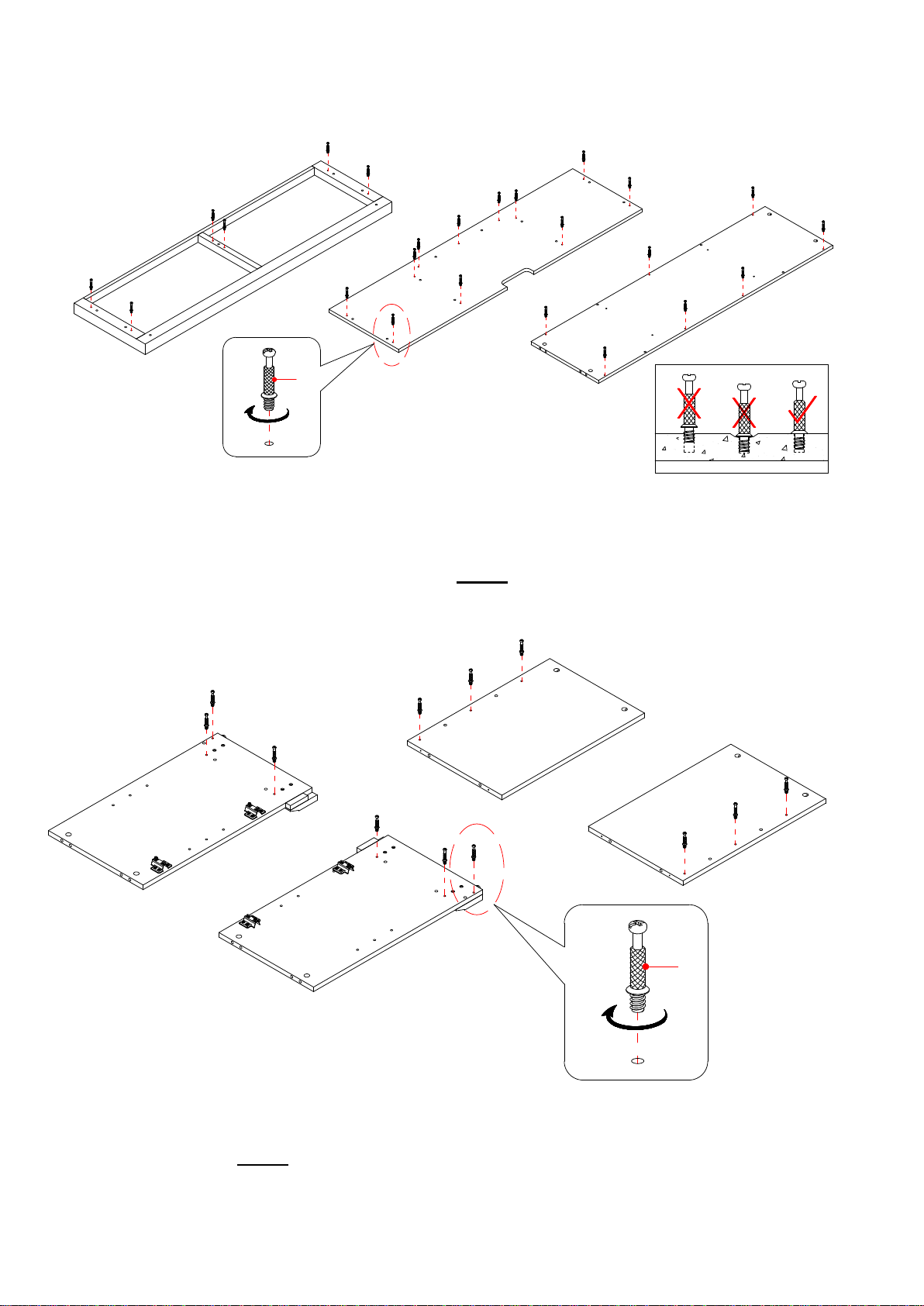

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Center Shelf (B)
and Bottom Panel (C) using a Phillips screwdriver. NOTE: DO NOT over tighten the cam bolts.
3. Securely screw the Cam Bolts (2) into the designated small holes on the Panels (D, E, F and G) using a
Phillips screwdriver. NOTE: DO NOT over tighten the cam bolts.
B
C
2
A
D
E
G
F
2

7
Assembly Instructions
4. Glue the Wood Dowels (3) into the side holes of the Panels (D, E, F and G).
5. Glue the Wood Dowels (3) into the side holes of the Middle Crossbar (L), Middle Stiles (M), Bottom Back
Stretcher (N) and Bottom Front Molding (O).
D
E
G
F
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
L
M
M
NO
3
3
3
3
3
3
3
33
3
3
3

8
Assembly Instructions
6. Glue the Wood Dowels (3) into the side holes of the Panels (H and J) and Upper Side Panel Moldings (I).
7. Securely screw the Cam Bolts (2) into the designated small holes on the Moldings (I and K) using a Phillips
screwdriver. NOTE: DO NOT over tighten the cam bolts.
8. Attach one Upper Side Panel (H) to one Upper Side Panel Molding (I) by engaging two Cam Locks (1) as
shown.
9. Repeat the same procedure to combine the other Upper Side Panel and Molding (H and I) together.
10. Attach the Upper Partition Panel (J) to the Upper Partition Panel Molding (K) by engaging two Cam Locks
(1) as shown.
H
I
I
J
21
2
K
1
K
x 2
HH
J
I I
3 3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3

9
Assembly Instructions
11. Attach the Middle Crossbar (L) to the Center Shelf (B) by engaging three Cam Locks (1).
12. Attach the Bottom Back Stretcher (N) to the Bottom Panel (C) by engaging three Cam Locks (1).
C
N
C
N
1
B
L
B
L
1

10
Assembly Instructions
13. Attach the Bottom Front Molding (O) to the Bottom Panel (C) by engaging four Cam Locks (1).
14. Attach the Middle Stiles (M) to the Lower Partition Panels (F and G) by engaging the Cam Locks (1).
C
O
C
O
1
F
M
G
M
F/G
M
1

11
Assembly Instructions

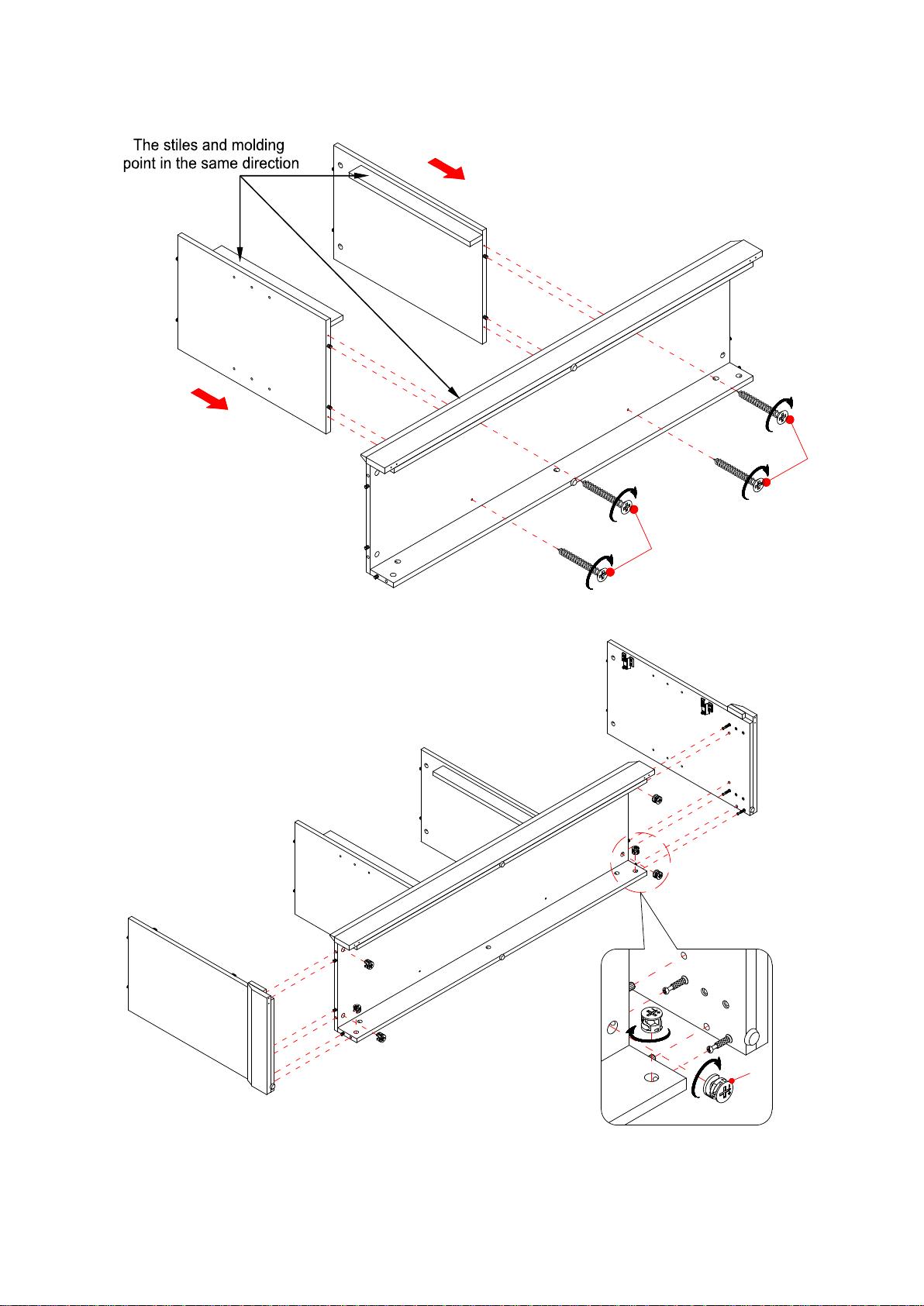

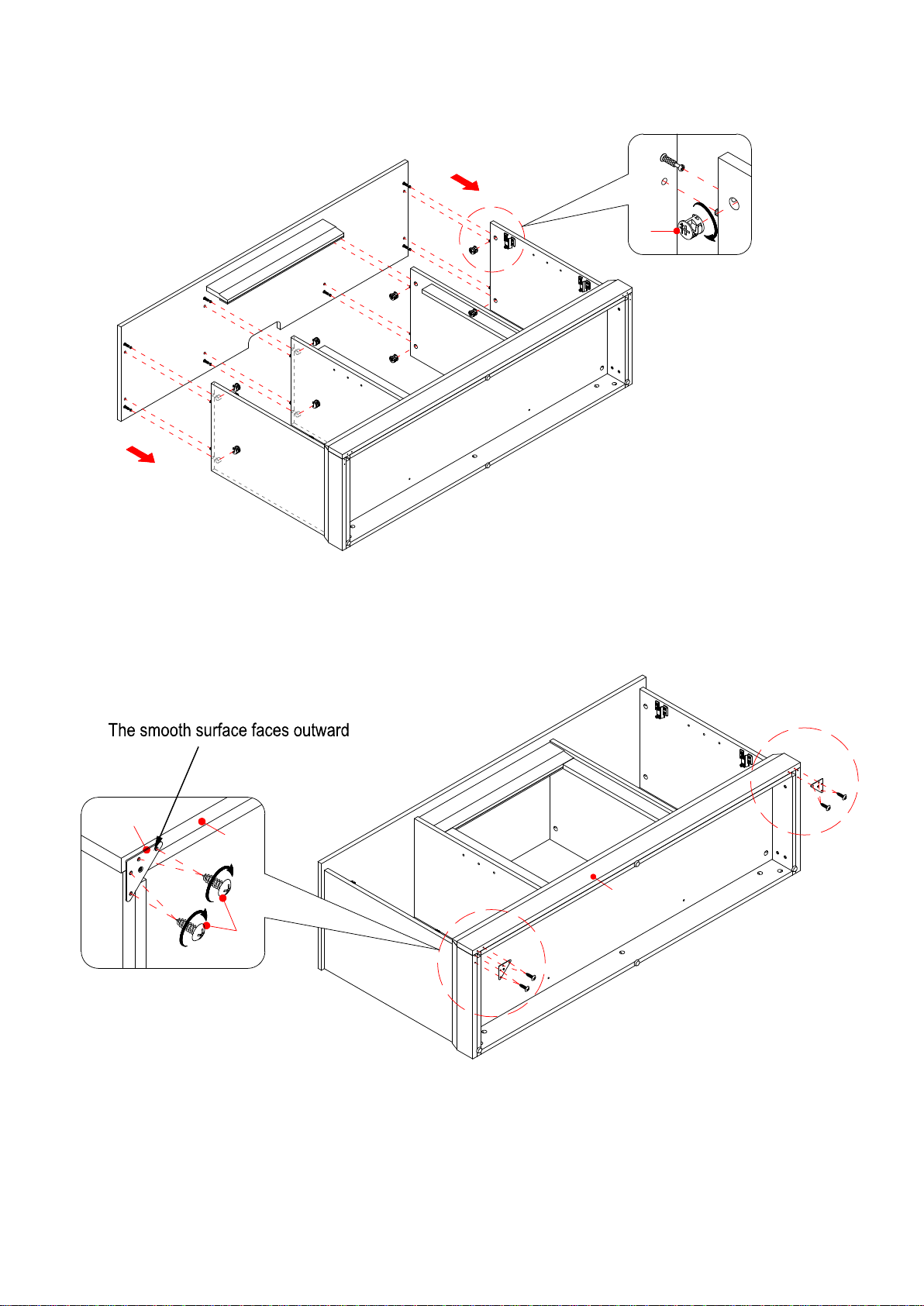

15. Attach the Lower Partition Panels (F and G) to the Bottom Panel (C) with four 50 mm Screws (7).
16. Align the large holes on both Side Panels (D and E) with the inserted Wood Dowels (1) and press them
together. Attach the Side Panels (D and E) in place by engaging six Cam Locks (1).
F
G
C
7
7
C
N
O
D
E
D/E
N/O
C
1

12
Assembly Instructions
17. Ask for assistance to place the Center Shelf (B) onto the inserted wood dowels on the vertical panels (D, E,
F and G) properly and fasten it in place with the Cam Locks (1).
18. Using the pilot holes as a guide, fasten two Triangle Metal Plates (8) at the bottom joints between the
Bottom Front Molding (O) and Lower Side Panels (D and E) using four 15 mm Pan Head Screws (6) per
plate.
O
D
E
6
8
O
D/E
D
E
F
G
B
B
1

13
Assembly Instructions

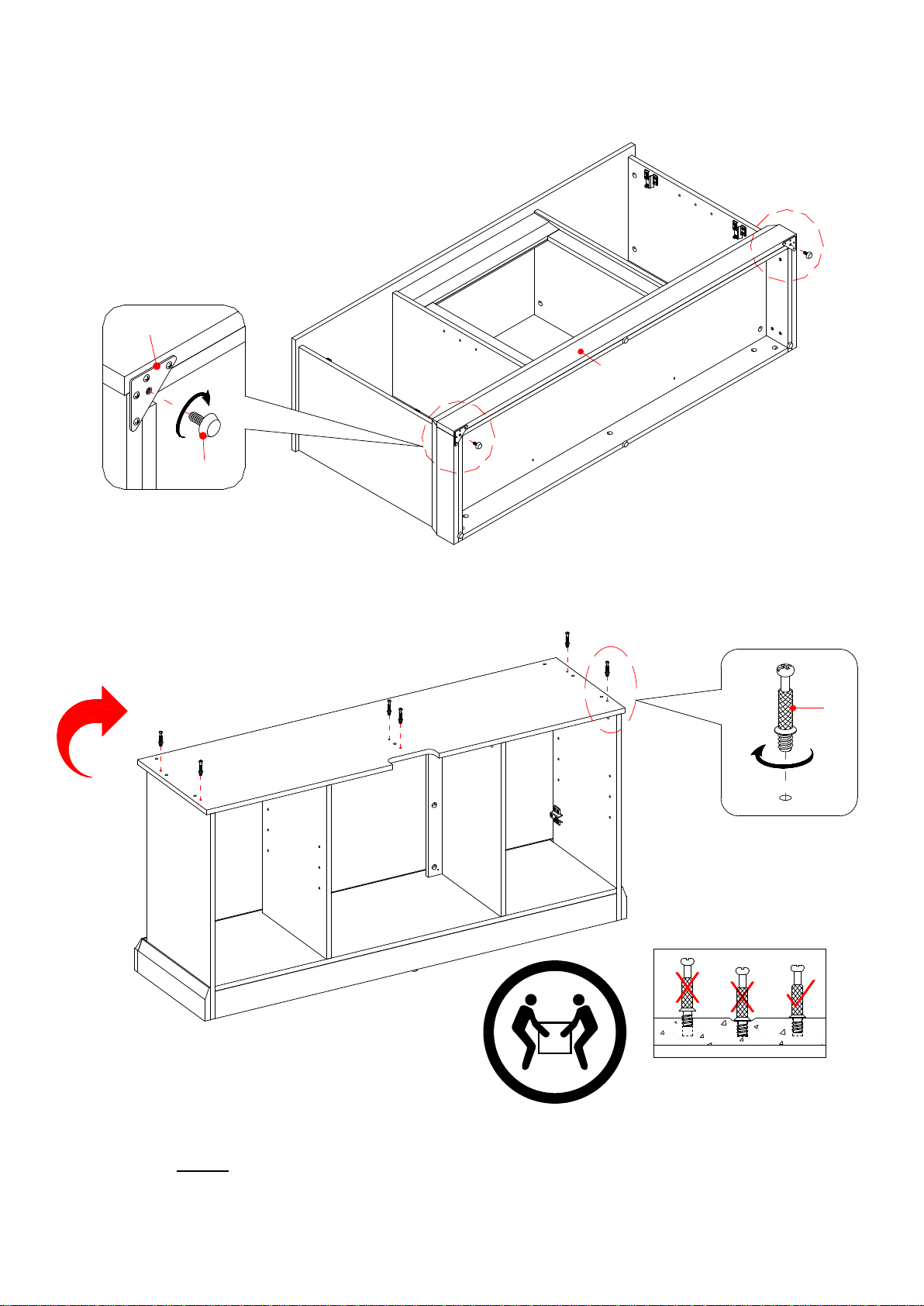

19. Screw two Floor Levelers (9) into the installed Triangle Metal Plates (8).
20. Stand the assembled unit upright.
21. Securely screw the Cam Bolts (2) into the designated small holes on the Center Shelf (B) using a Phillips
screwdriver. NOTE: DO NOT over tighten the cam bolts.
9
8
O
B
2

14
Assembly Instructions

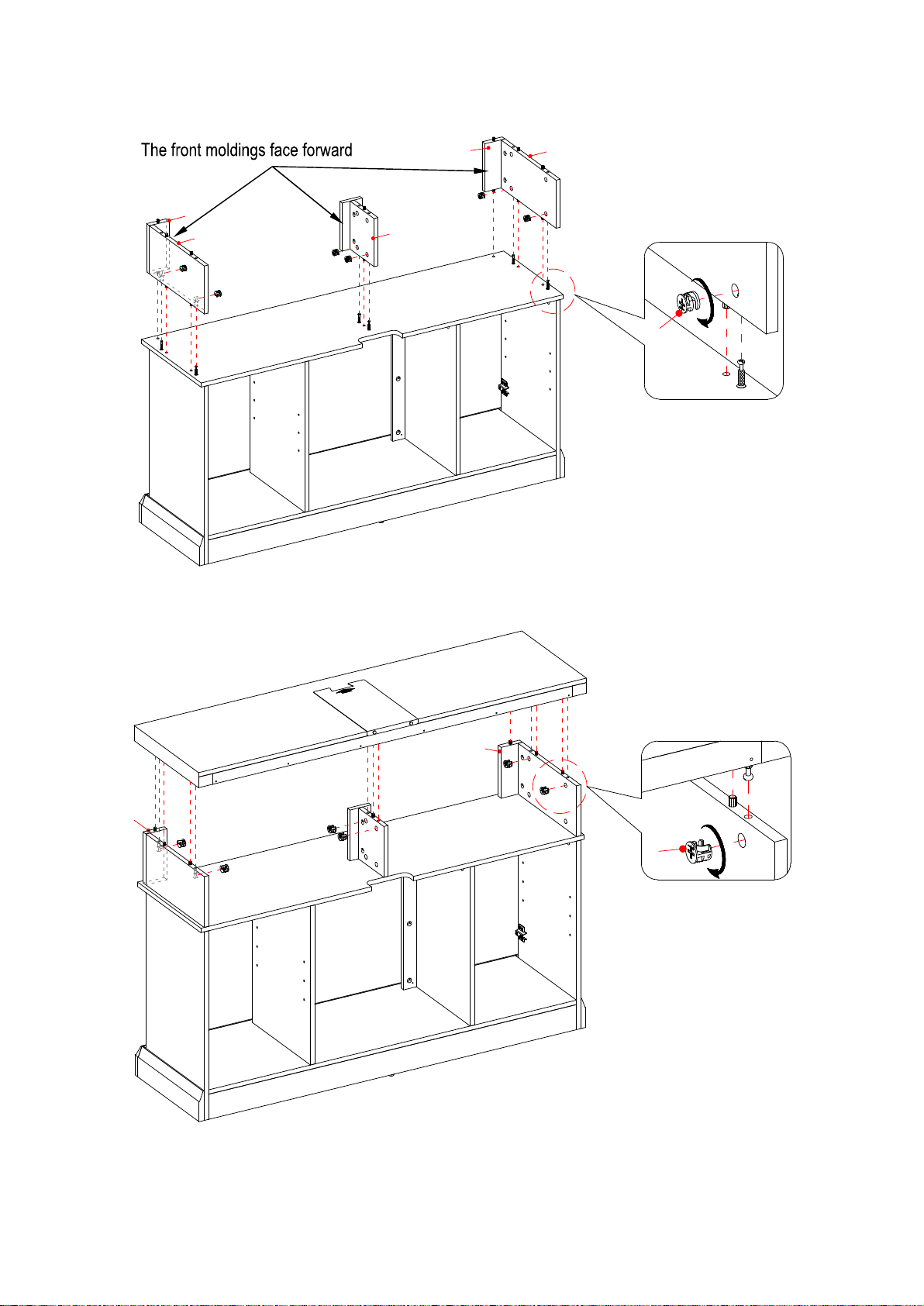

22. Attach both upper side panel assemblies and Partition Panel (J) to the Center Shelf (B) by engaging the
Cam Locks (1).
23. Position the Top Panel (A) onto the inserted Wood Dowels (1) and fasten it in place by engaging six Cam
Locks (1).
B
I
J
B
H/
I
/J
1
H
I
H
J
H
I
I
HH/
I
/J
A
A
1

15
Assembly Instructions

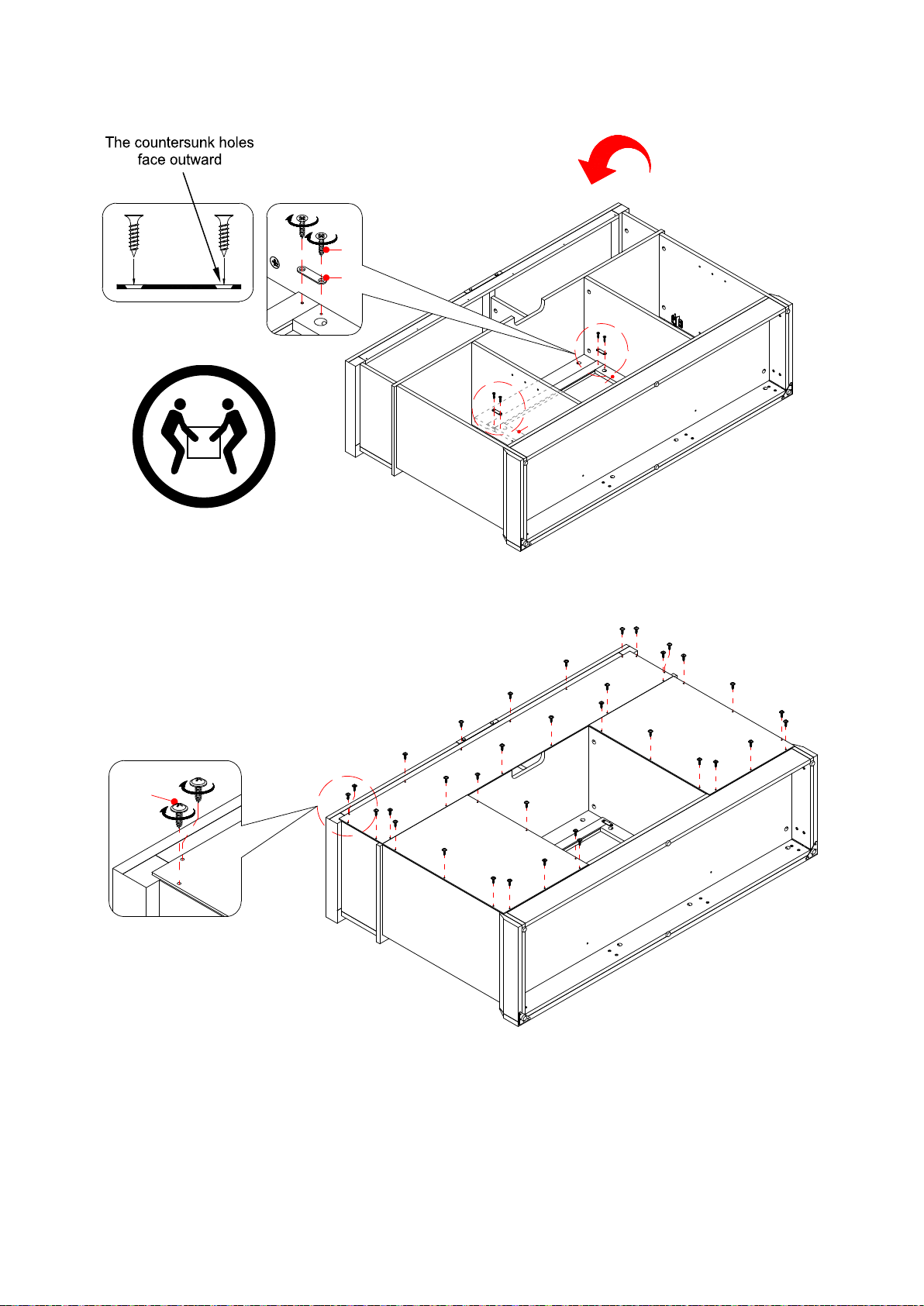

24. Ask for assistance to lay down the assembled unit at its front edges.
25. Using the pilot holes as a guide, attach two Straight Metal Brackets (10) at the joints where the Middle
Crossbar (L) meets the Middle Stiles (M) with four 12 mm Flat Head Screws (4).
26. Pick up the Upper Back Panel (S) and align the drilled holes against the upper long edge with the pilot holes
on the back stretcher of the Top Panel (A). Attach the Upper Back Panel (S) in place using the provided
Washer Head Screws (5).
27. Align and attach two Lower Back Panels (R) to the mantel with the provided Washer Head Screws (5),
using the pilot holes as a guide.
M
L
M
4
10
LM
R
SR
R/S
5

16
Assembly Instructions

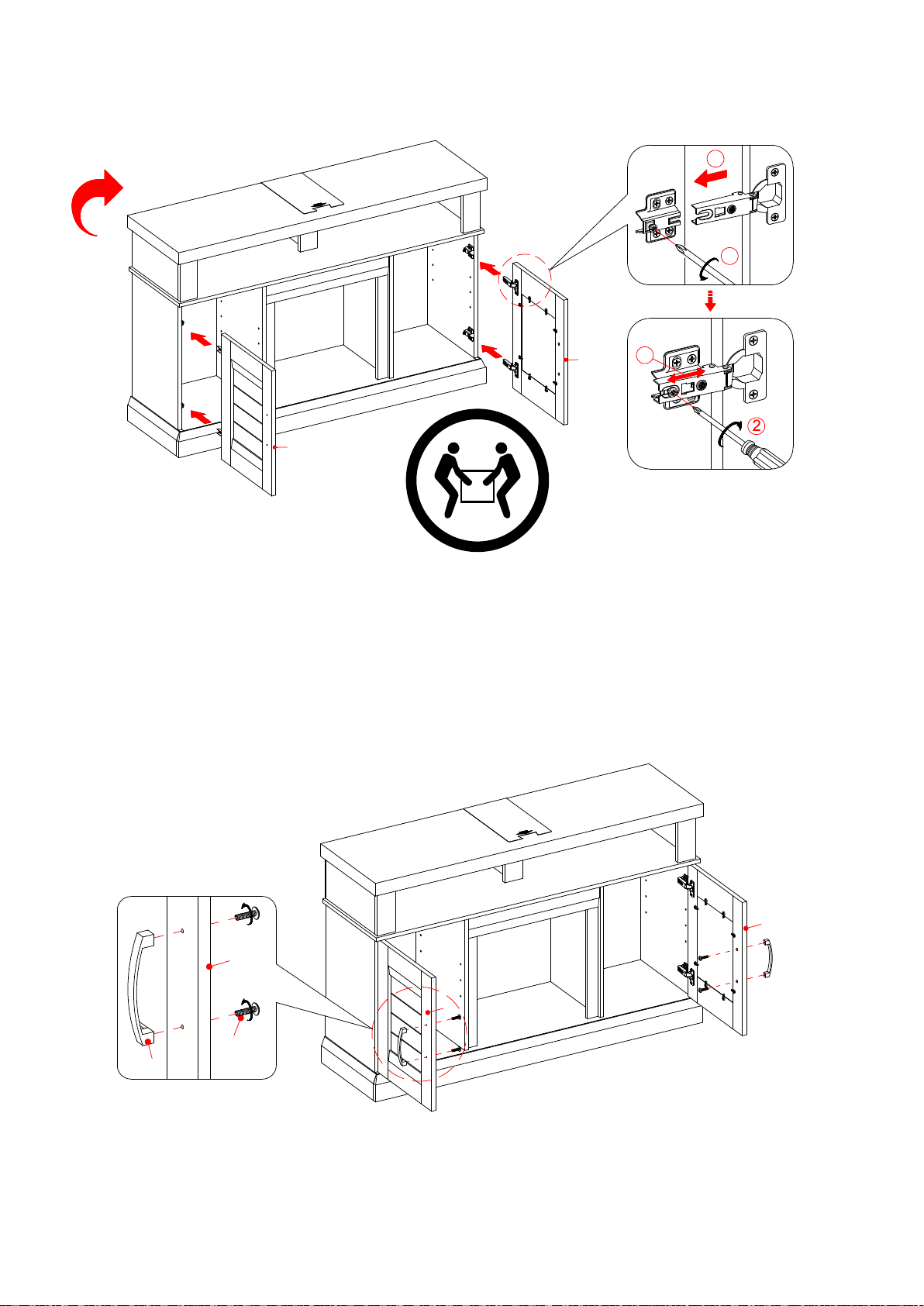

28. Stand the assembled unit upright.
29. Pick up one Door (Q) and attach the extended hinge arms to the hinge bases installed on the Left Lower
Side Panel (D). Loosen the bolt on the back of the hinge base for an easy fit. Align and insert the “U” slot
on the hinge arm under the bolt head on the back of the hinge base. Make sure that both door hinges engage
and function properly. Tighten the bolt on the hinge base to lock the hinges in place.
30. Repeat the same procedure to attach the other Door (Q) at the opposite side.
31. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the screws
for a good fit. Refer to the hinge sticker on the door for adjustment.
32. Attach one Handle (11) to the front side of each Door (Q) with the Handle Bolts (12).
D
E
1
1
2
Q
Q
Q
12
11
Q
Q

17
Assembly Instructions

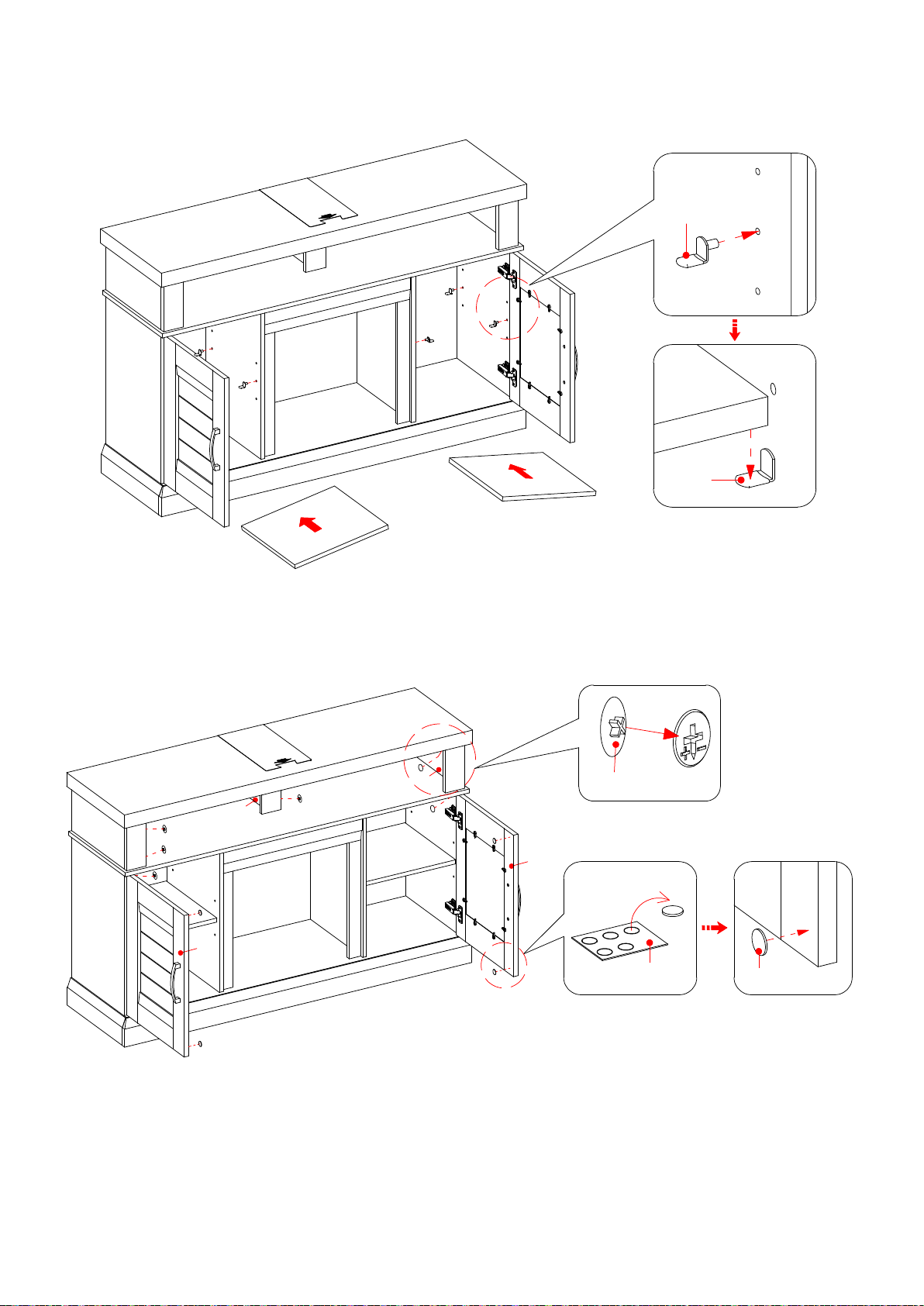

33. Open the Doors (Q) and insert four Shelf Supports (13) into the desired holes inside each side compartment.
Make sure you place the four shelf supports in the same level so the shelf is not tilted. Rest the adjustable
Shelves (P) onto the Shelf Supports (13).
34. Stick the Rubber Bumpers (14) at the outer corners of both Doors (Q) where they meet the Lower Partition
Panels (F and G).
35. Plug the Cam Lock Covers (15) onto the visible cam locks to conceal the cams.
P
P
P
13
13
D
FG E
D
E
H
J
H
Q
Q
15
14 14

18
Assembly Instructions
36. Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and Side
Trims to the fireplace insert.
37. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO
NOT drag the insert across the Bottom Panel (C) as it may scratch the unit.
38. Fasten the fireplace insert to the mantel with six insert screws as shown.
NOTE: To prevent your TV from tipping, you must follow these instructions if you place a TV on top of
your console. Otherwise, skip to “Step 40”.
39. Remove the paper backing from the Acrylic Stopper (16), then properly align the Acrylic Stopper into the
cut-out on the acrylic stopper template on the Top Panel (A). Press down on the acrylic stopper to help
adhesion.
40. At the back of Top Panel (A), grip the head of plastic tack with pliers, with twisting motion pull tack loose
to remove the acrylic stopper template.
C
M
AA

19
Assembly Instructions
NOTE: The door panels with groove are pre-attached when shipping. You can keep as is or
interchange as the desired configuration.
41. To change door panels, loosen the screws on the inside of the door and rotate the clips to remove the panel.
Replace with the desired panel, then rotate clips to secure the panel within the door frame and tighten
screws.
Q

20
Assembly Instructions
Tools required: Phillips screwdriver, stud finder, power drill and 1/8” drill bit.
42. Ask for assistance to position the assembled fireplace at the desired location against a wall. If necessary,
adjust the installed Floor Levelers at the bottom of the Base to level the unit. Now, follow the instructions
printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over restraints to the
unit and the wall.
NOTE: The tipping restraint hardware included is for wooden stud wall construction. It must be attached to
a wall stud. Depending upon your wall construction, different anchor hardware maybe required. Please
contact your local hardware store for assistance. Young children can be seriously injured by tipping
furniture. You must install the Tipping Restraint Hardware with the unit to prevent the unit from tipping,
causing any accidents or damage. The tipping restraints are intended only as a deterrent, they are not a
substitute for proper adult supervision. The tipping restraints are not earthquake restraints. If you wish to
add the extra security of earthquake restraints, they must be purchased and installed separately.
43. Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace insert
to control your fireplace.
Children have died from furniture tip-over.
To reduce the risk of furniture tip-over:
 ALWAYS install tip-over restraint provided.
 FOR use with televisions weighing 80 lbs or less. Use with heavier televisions
may result in instability causing tip-over resulting in death or serious injury.
 NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
 NEVER open more than one drawer at a time.
 Place heaviest items in the lowest drawers.
Use of tip-over restraints may only reduce, but not eliminate, the risk of
tip-over.
WARNING
