Whalen WMFP60EC-7 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing Page 1 Factory No. 16086
Date 2015-06-09 Rev. 2 Factory: KONRIC
60" Rustic Brown Bow Front Media Fireplace
Stock # WMFP60EC-7
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED:
/
/

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 2 Factory No. 16086
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 60” Rustic Brown Bow Front Media Fireplace (WMFP60EC-7)
DATE OF MANUFACTURE: June 2015
MADE IN CHINA

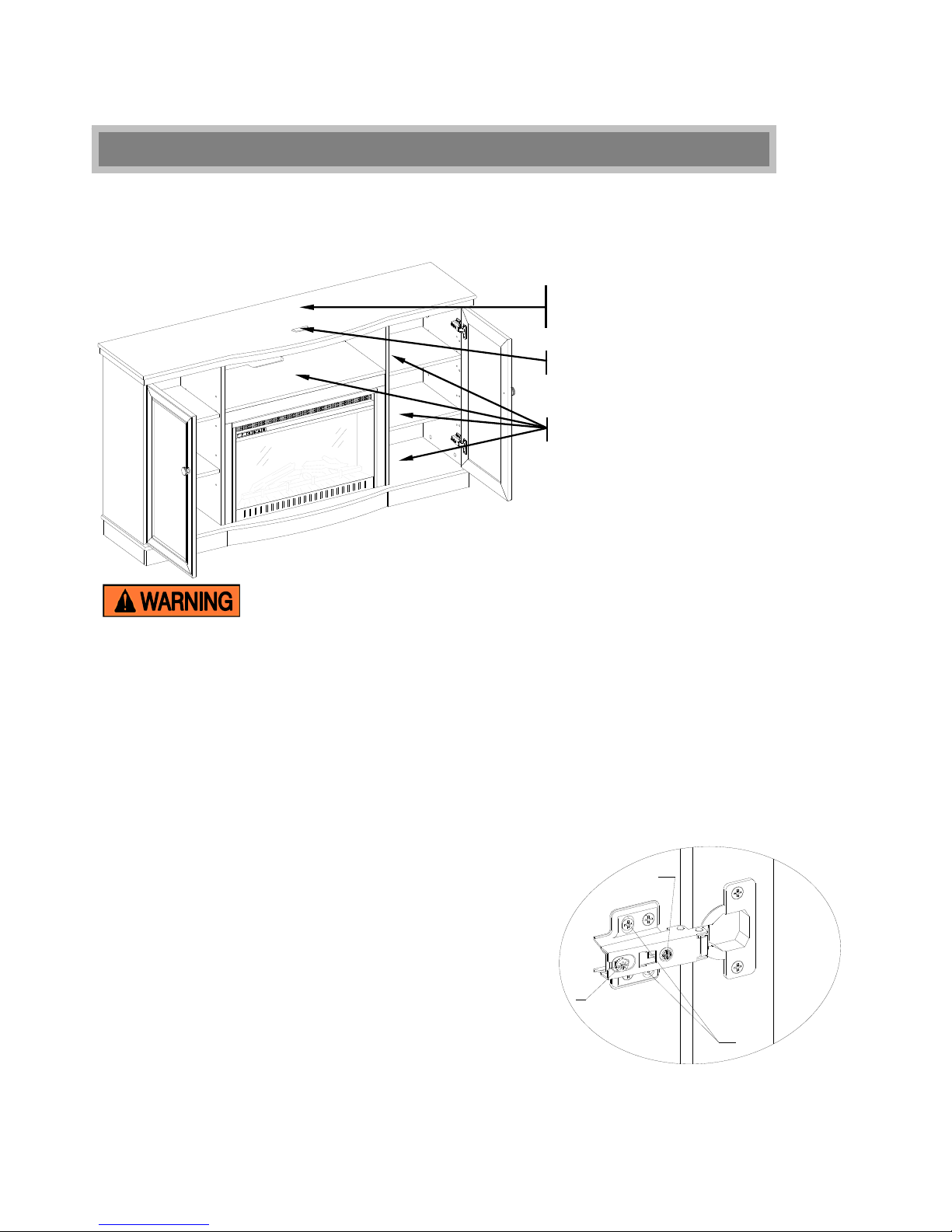

How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw, as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
IMPORTANT INFORMATION
MAXIMUM LOAD 50 lb. (22.6 kg)
FITS UP TO MOST 65” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
PLACE TV BEHIND THE STOPPER
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL
OFF OR BREAK THE UNIT
,
CAUSING POSSIBLE SERIOUS INJURY.
1
3
2

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 3 Factory No. 16086
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED OFF
WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw Cam Bolt into the pre-drilled small holes on panel. Connect both panels together; making
sure Cam Bolt goes into pre-drilled hole on the end of panel with Cam Lock.
2. Insert Cam Lock into pre-drilled large hole on panel. Make sure arrow on Cam Lock is pointed toward
Cam Bolt.
3. Once Cam Bolt is connected inside Cam Lock, take a Phillips screwdriver and tighten Cam Lock clockwise.
4. Plug Cam Cap into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 4 Factory No. 16086
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

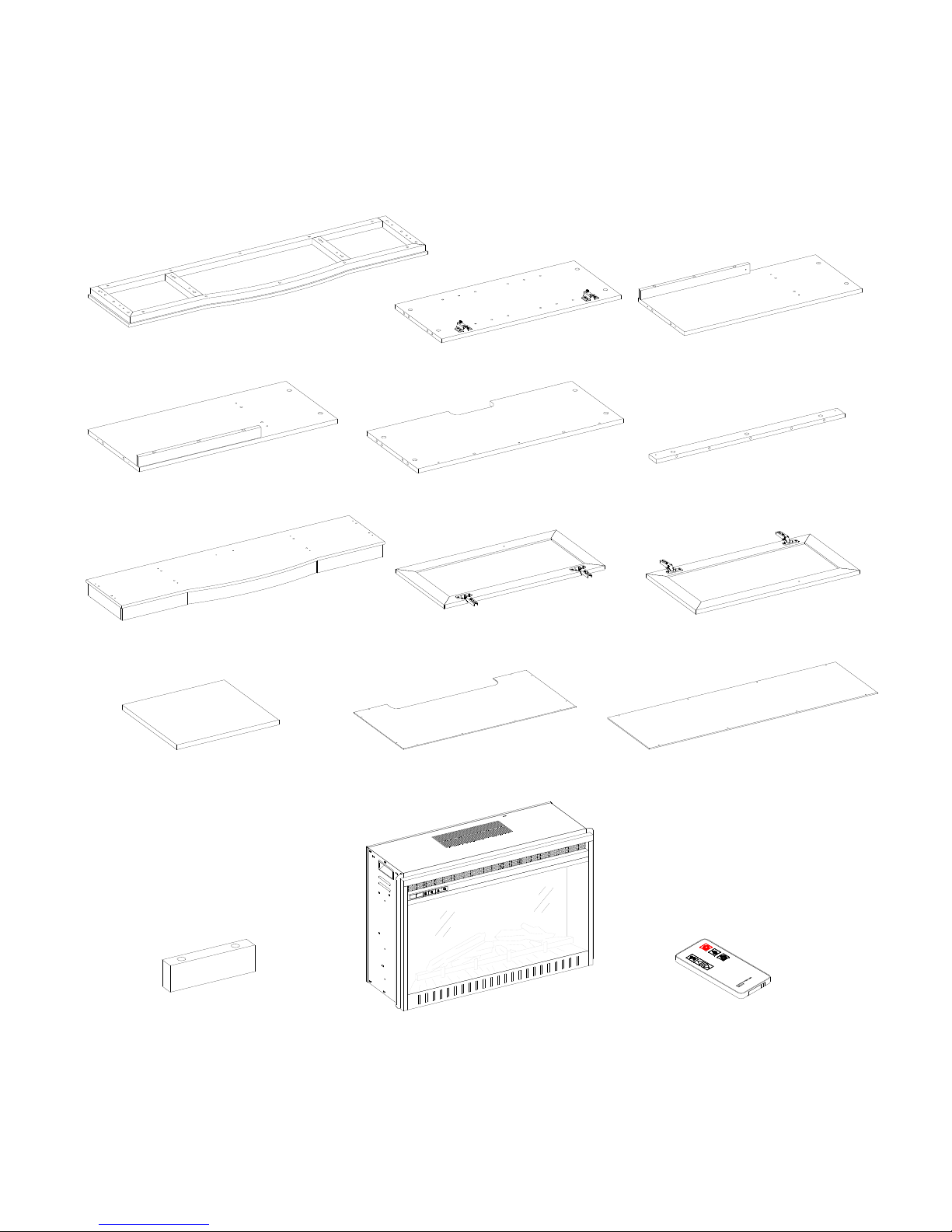

A- Top Panel (1) B- Side Panel (2) C- Left Partition Panel (1)
D- Right Partition Panel (1) E- Fixed Shelf (1) F- Middle Crossbar (1)
G- Base (1) H- Left Door (1) I- Right Door (1)
J- Adjustable Shelf (4) K-Side Back Panel (2) L- Center Back Panel (1)
M- Firebox Support (1) Fireplace Insert (1) Remote Control with Battery (1)

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 5 Factory No. 16086
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

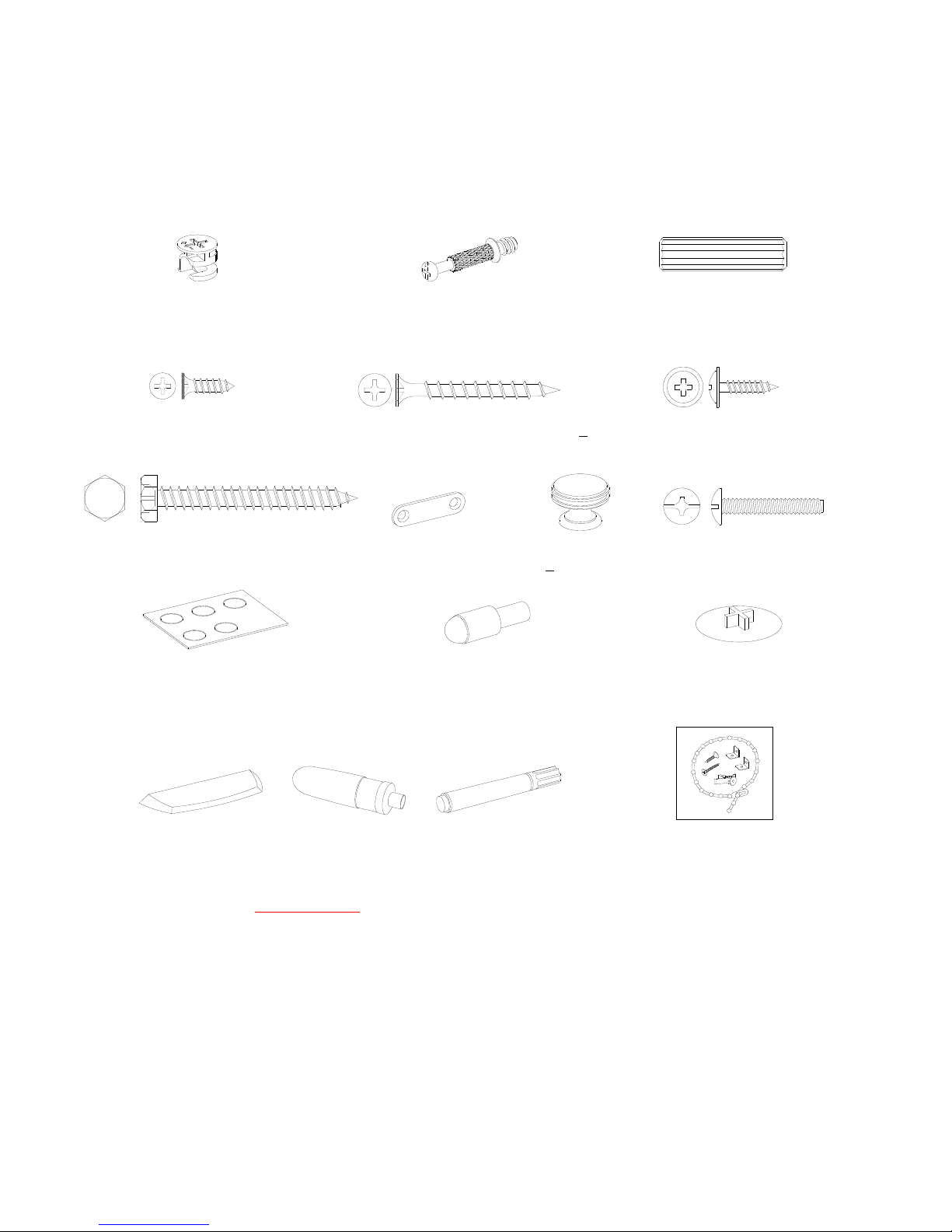

(1) Cam Lock (2) Cam Bolt (3) Ø8 x 30 mm Wood Dowel
(19+1 extra) (19+1 extra) (22+1 extra)
(4) Ø3.5 x 12 mm Screw (5) Ø4 x 40 mm Screw (6) Ø3.5 x 15 mm Washer Head Screw
(4+1 extra) (4+1 extra) (28+1 extra)
(7) 2” Lag Bolt (2) (8) Metal Bracket (2) (9) Knob (2) (10) Knob Bolt (2)
(11) Rubber Bumper (12) Shelf Pin (13) Cam Lock Cover
(4+1 extra) (16+1 extra) (12+1 extra)
(14) Acrylic Stopper Glue Touch-up Pen Tipping Restraint Hardware Kit (2)
(1) (1) (1) (Included in plastic bag)
Tools required: Phillips screwdriver and hammer (not provided).

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 6 Factory No. 16086
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), the Base (G),
Partition Panels (C and D) and Fixed Shelf (E) by a Phillips screwdriver, as shown in the illustration.
A/C/D/E/G
A
G
D
C
E
Cam Bolt
(19 used in this step)
②

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 7 Factory No. 16086
Assembly Instructions
3. Insert two Wood Dowels (3) into the inner holes of Middle Crossbar (F). Tap it in with a rubber mallet,
if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
4. Align the drilled holes on the Fixed Shelf (E) with the inserted Wood Dowel (3) on the Middle Crossbar
(F), and then press them together. Attach the Middle Crossbar (F) in place by engaging three Cam
Locks (1) (Refer to page 3 on Cam Lock system operation supplement).
E
F
3
3
1
1
1
Wood Dowel
(2 used in this step)
③
Cam Lock
(3 used in this step)
①

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 8 Factory No. 16086
Assembly Instructions
5. Insert four Wood Dowels (3) into the inner holes of Fixed Shelf (E) at both ends.
6. Align and attach the assembled Fixed Shelf (E) between the Left and Right Partition Panels (C and D)
and fasten it in place by using four Cam Locks (1) as shown.
C
E
D
F
3
3
1
1
Wood Dowel
(4 used in this step)
③
Cam Lock
(4 used in this step)
①

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 9 Factory No. 16086
Assembly Instructions
7. Insert four Wood Dowels (3) into the bottom inner holes of assembled Partition Panels (C and D) and
attach them to the Base (G) with four 40 mm Screws (5) as shown. Tighten the screws with a Phillips
screwdriver.
8. Insert four Wood Dowels (3) into the inner holes of Side Panels (B) and attach them to the Base (G) by
using four Cam Locks (1).
5
5
C
D
B
B
E
G
3
3
3
3
1
1
5
5
Wood Dowel
(8 used in this step)
③
Cam Lock
(4 used in this step)
①
Ø4 x 40 mm Screw
(4 used in this step)
⑤

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 10 Factory No. 16086
Assembly Instructions
9. Insert eight Wood Dowels (3) into the top inner holes on the vertical panels (B, C and D). Position the
Top Panel (A) onto the inserted Wood Dowels (3) and fasten it in place with eight Cam Locks (1).
Wood Dowel
(8 used in this step)
③
Cam Lock
(8 used in this step)
①
G
C
D
B
B
E
A
3
3
3
3
1
1
1
1

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 11 Factory No. 16086
Assembly Instructions
10. Stand the assembled unit upright.
11. Fasten the Middle Crossbar (F) to the stringers of Lower Partition Panels (C and D) by attaching two
Metal Brackets (8) at the joints, using two 12 mm Screws (4) per Bracket.
Ø3.5 x 12 mm Screw
(4 used in this step)
④
Metal Bracket
(2 used in this step)
⑧
8
F
C/D 4
C
D
F
E
B
B
A

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 12 Factory No. 16086
Assembly Instructions
12. Now, go back and securely tighten all the Cam Locks and Wood Screws. Make sure all the parts are
tight and there are no gaps between the parts. This will help keep the unit square.

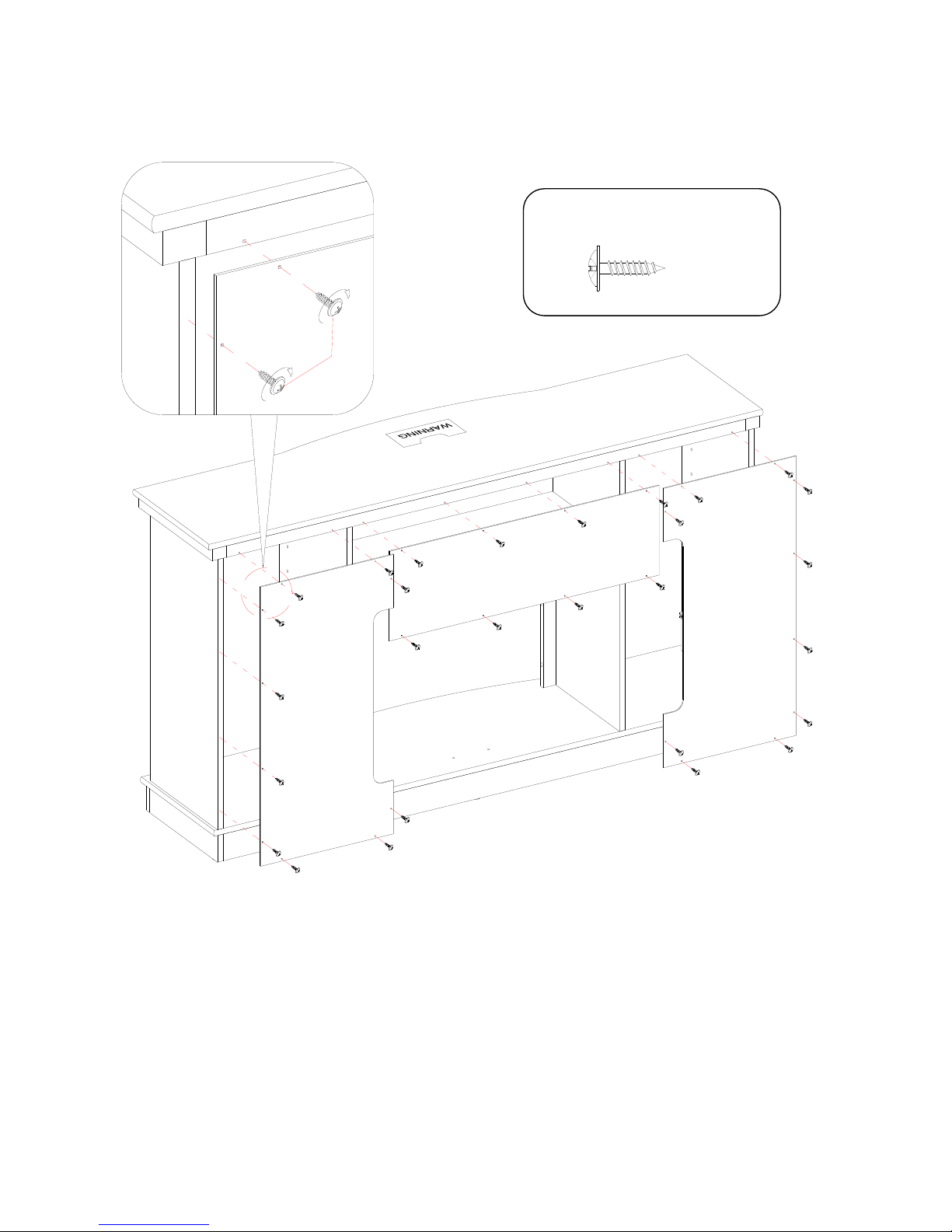

13. Pick up the Center Back Panel (L) and align the pre-drilled holes against the upper long edge with the
pilot holes on the back stretcher of Top Panel (A). Attach the Center Back Panel (L) in place using the
provided Washer Head Screws (6).
14. Align and attach two Side Back Panels (K) to the backside of assembled frame with the provided
Washer Head Screws (6).
M3.5 x 15 mm Washer Head Screw
(28 used in this step)
⑥
B
B
C
D
A
G
K
L
K
K/L
6
B/C
E/G
A

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 13 Factory No. 16086
Assembly Instructions
15. Insert eight Shelf Pins (12) into the holes at your desired height inside each side compartment. Tilt and
rest the Adjustable Shelves (J) onto the Shelf Pins (12).
16. Plug the Cam Lock Covers (13) onto the visible cams locks to conceal the cams.
Shelf Pin
(16 used in this step)
⑫
Cam Lock Cover
(12 used in this step)
⑬
13
12
12
A
B
C
D
B
J
JJ
J
B/C/D B/C/D
J

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 14 Factory No. 16086
Assembly Instructions
17. Attach the Knob (9) to the outside of each Door (H and I) with the provided Knob Bolt (10).
18. Pick up the Left Door (H) and attach the extended Hinge Arms to the Hinge Bases installed on the Left
Side Panel (B). Loosen the bolt on the back of Hinge Base for an easy fit. Align and insert the “U” slot
on Hinge Arm under the bolt head on the back of Hinge Base. Make sure that both door hinges engage
and function properly. Tighten the bolt on the Hinge Base to lock the hinges in place.
19. Repeat the same procedure to attach the Right Door (I) to the other Side Panel (B).
20. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the
screws for a good fit. Refer to the hinge sticker on door for adjustment.
21. Stick the Rubber Bumpers (11) on the outer corners of Doors (H and I) as shown.
Rubber Bumper
(4 used in this step)
⑪
Knob Bolt
(2 used in this step)
⑩
B
H/I
H/I
10 9
1
B
C
D
B
A
H
I
11
H/I
11
Knob
(2 used in this step)
⑨

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 15 Factory No. 16086
Assembly Instructions
22. Lift the Fireplace Insert carefully into the back of the assembled mantel and center it in the opening. DO
NOT drag the insert across the Base (G) as it may scratch the unit.
G

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 16 Factory No. 16086
Assembly Instructions

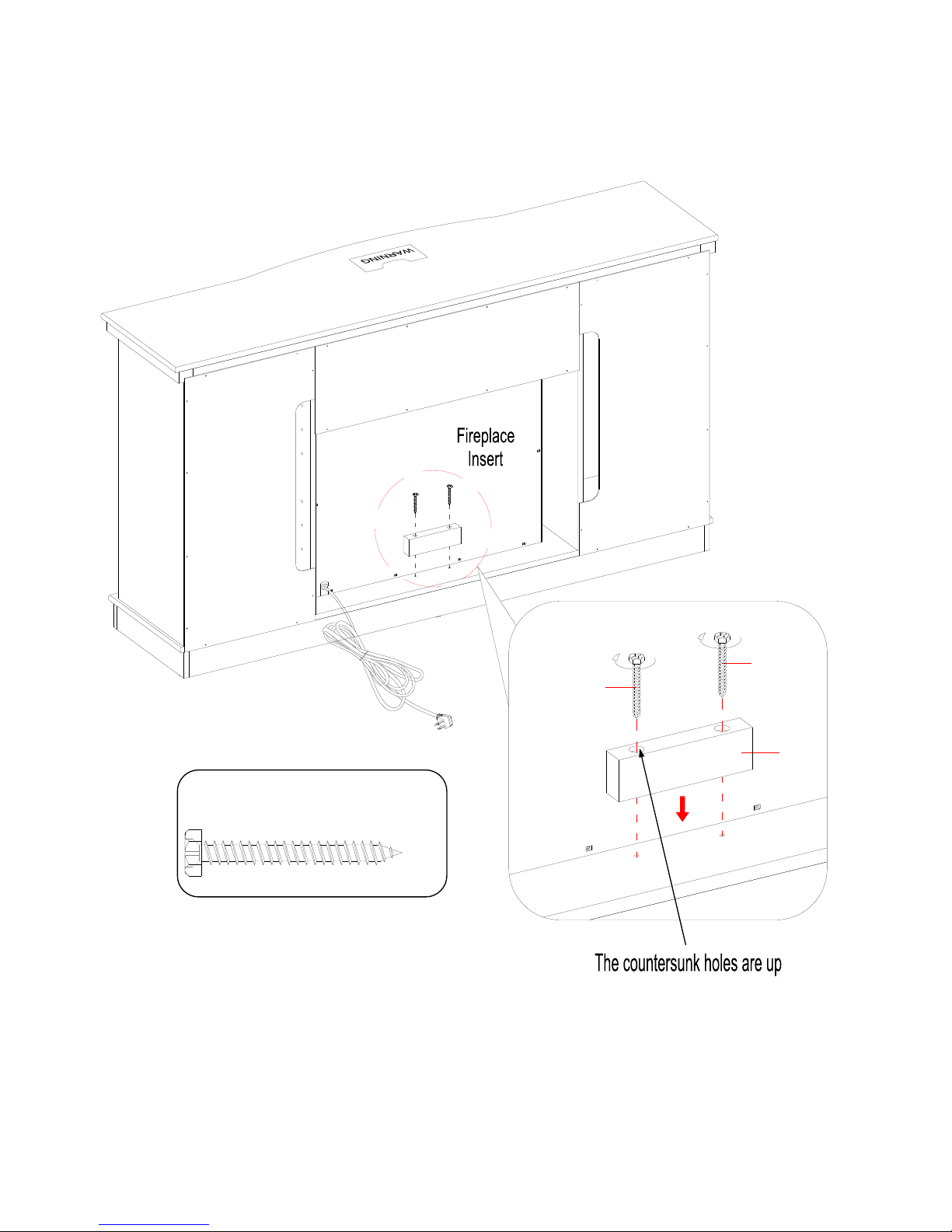

23. Align and attach the Firebox Support (M) to the Base (G) by screwing two 2” Lag Bolts (7) through the
countersunk holes and screw into place.
2” Lag Bolt
(2 used in this step)
⑦
M
7
7
G

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 17 Factory No. 16086
Assembly Instructions
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the console.
24. Remove the paper backing of acrylic stopper (14), then properly align the acrylic stopper into the cut-out on
the acrylic stopper template on the Top Panel (A). Press down on the acrylic stopper to help adhesion.
25. Carefully remove the acrylic stopper template from the Top Panel (A).
A
A
Acrylic Stopper
(1 used in this step)
⑭

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 18 Factory No. 16086
Assembly Instructions
Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.

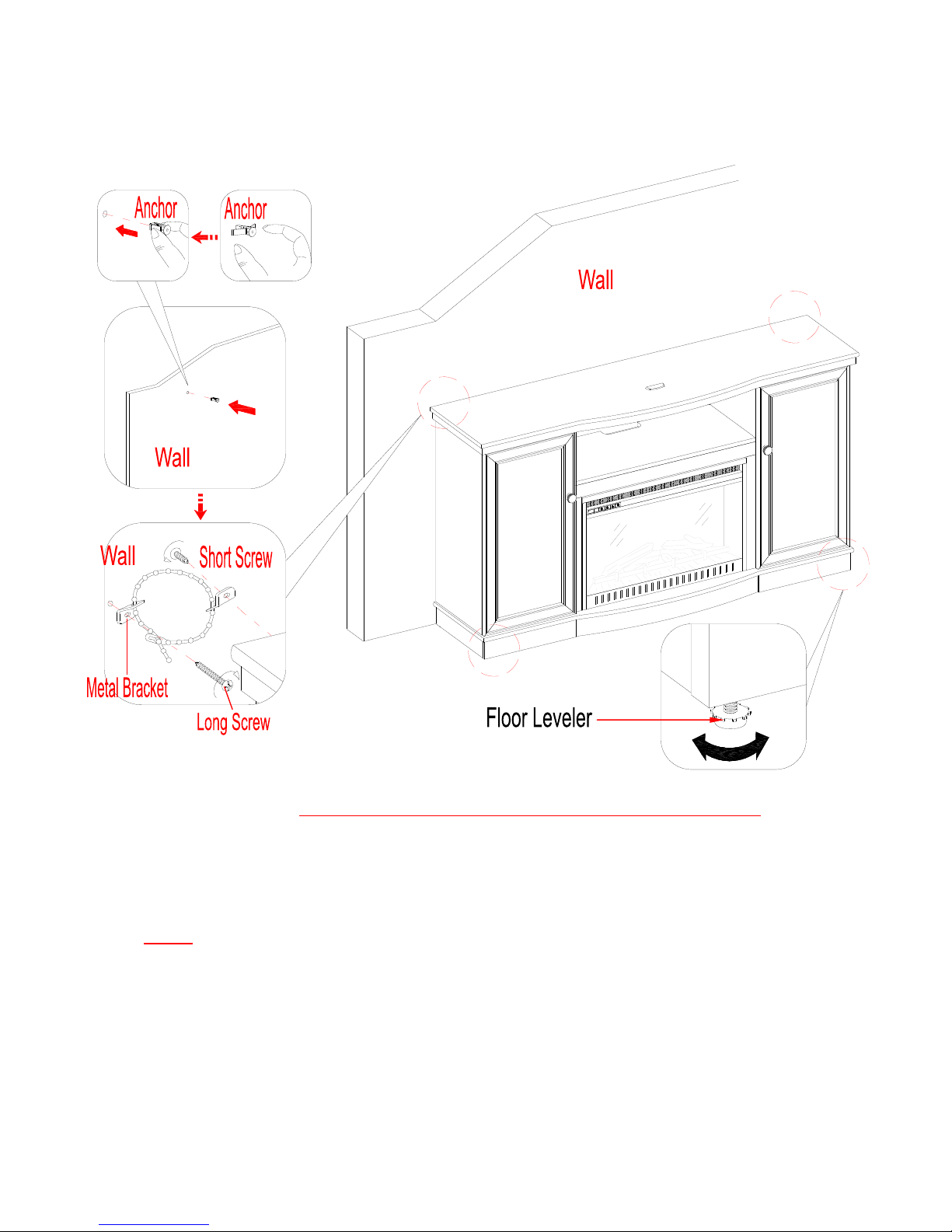

26. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary,
adjust the pre-attached Floor Levelers at the bottom of the Base (G) to level the unit. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over
restraints to the unit and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The
tipping restraint is intended only as a deterrent, they are not a substitute for proper adult supervision.
The tipping restraint is not an earthquake restraint. If you wish to add the extra security of earthquake
restraints, they must be purchased and installed separately.
27. Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace
insert to control your fireplace.

Stock # WMFP60EC-7
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 19 Factory No. 16086
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage your furniture’s finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
Cleaning trim for fireplace
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean
soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus
oil based products can be obtained at supermarkets or hardware stores.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or
shipping. We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace
it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your
highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com

IF YOU NEED TO ORDER ANY REPLACEMENT PARTS, PLEASE USE THE LIST BELOW
60" Rustic Brown Bow Front Media Fireplace (WMFP60EC-7)
*WMFP60EC-7-1-TP Top Panel *WMFP60EC-7-24-M8x30WD M8 x 30 mm Wood Dowel
*WMFP60EC-7-2-SP Side Panel *WMFP60EC-7-25-MB Metal Bracket
*WMFP60EC-7-3-LPP Left Partition Panel *WMFP60EC-7-26-K Knob
*WMFP60EC-7-4-RPP Right Partition Panel *WMFP60EC-7-27-KB Knob Bolt
*WMFP60EC-7-5-LD Left Door *WMFP60EC-7-28-RB Rubber Bumper
*WMFP60EC-7-6-RD Right Door *WMFP60EC-7-29-TRHK Tipping Restraint Hardware Kit
*WMFP60EC-7-7-DHS Door Hinge with Screws *WMFP60EC-7-30-G Glue
*WMFP60EC-7-8-AS Adjustable Shelf *WMFP60EC-7-31-TUP Touch-up Pen
*WMFP60EC-7-9-FS Fixed Shelf *WMFP60EC-7-32-AS Acrylic Stopper
*WMFP60EC-7-10-MC Middle Crossbar *WMFP60EC-7-CH Complete Hardware
*WMFP60EC-7-11-B Base *WMFP60EC-7-RC6B Remote Control 6-Button (FP26-1A-RC6B)
*WMFP60EC-7-12-FL Floor Leveler *WMFP60EC-7-H Heater (FP26-1A-H)
*WMFP60EC-7-13-CBP Center Back Panel *WMFP60EC-7-B Blower (FP26-1A-B)
*WMFP60EC-7-14-SBP Side Back Panel *WMFP60EC-7-FGDM Flame Generator Drive Motor (FP26-1A-FGDM)
*WMFP60EC-7-15-FBS Firebox Support *WMFP60EC-7-RS Reflector Spindle (FP26-1A-RS)
*WMFP60EC-7-16-CL Cam Lock *WMFP60EC-7-MPCBN Main PCB (FP26-1A-MPCBN)
*WMFP60EC-7-17-CB Cam
B olt *WMFP60EC-7-CPPCBN Control Panel PCB (FP26-1A-CPPCBN)
*WMFP60EC-7-18-CLC Cam Lock Cover *WMFP60EC-7-LLPCBN Logs Light PCB (FP26-1A-LLPCBN)
*WMFP60EC-7-19-12S Ø3.5 x 12 mm Screw *WMFP60EC-7-EBLPCBN Ember Bed Light PCB (FP26-1A-EBLPCBN)
*WMFP60EC-7-20-40WS
Ø4 x 40 mm Wood Screw
*WMFP60EC-7-FLPCBN Flame Light PCB (FP26-1A-FLPCBN)
*WMFP60EC-7-21-15WHS Ø3.5 x 15 mm Washer Head Screw *WMFP60EC-7-FIGF Fireplace Insert Glass with Frame (FP26-1A-FIGF)
*WMFP60EC-7-22-2LB 2” Lag Bolt *WMFP60EC-7-EBLN Ember Bed/Logs (FP26-1A-EBLN)
*WMFP60EC-7-23-SP Shelf Pin *WMFP60EC-7-T Thermostat (FP26-1A-T)
*WMFP60EC-7-CFI Complete Fireplace Insert (FP26-1A )
