Whirlpool ACM 152XE0 Operation manual

Installation & User’s Guide
A Note To You ........................ 2
Important Safety
Instructions ............................. 3
Electrical requirements ....... 4
Receptacle wiring ............... 5
Parts and Features ................. 6
Installation Instructions.. ....... 7
Before you begin.. ............... 7
Tools/supplies needed ........ 8
Parts supplied for
installation ........................... 8
Installation tips .................... 9
Window installation ............. 9
Through-the-wall
installation.. ....................... 13
Operating Instructions.. ....... 17
Starting your air
conditioner ........................ 17
Changing air direction ....... 17
Cleaning Instructions .......... 18
Cleaning the air filter.. ....... 18
Cleaning the front panel.. .. 19
Maintenance Instructions.. ..20
Annual maintenance ......... 20
Repairing paint damage.. ..22
Saving energy ................... 22
Troubleshooting ................... 23
Requesting Assistance
or Service .............................. 24
Warranty ............................... 28
AIR CONDITIONERS
MODELS: ACM 152XE0, ACM184XE0, ACM244XEO
PART NO. 1167492 Rev. A

A Note to You
Thank you for buying a WHIRLPOOL@ appliance.
Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are
easy to use, save time, and help you manage your home better. To ensure you enjoy years
of trouble-free operation, we developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your appliance properly and safely. Please
read it carefully. Also, please complete and mail the Ownership Registration Card
provided with your appliance. This card helps us notify you about any new information
on your appliance.
Please record your model’s information.
Whenever you call to request service on
Model Number
your appliance, you need to know your
complete model number and serial number.
Serial Number
You can find this information on the model
Purchase Date
and serial number label.
Dealer Name
Please also record the purchase date of
your appliance and your dealer’s name,
Dealer Address
address, and telephone number.
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
Our Consumer Assistance
Center number is toll-free
24-hours a day.
l-800-253-1301
2

Important Safbty Instructions
Your safety is important to us.
This guide contains safety symbols and
statements. Please pay special attention to
the symbols and follow any instructions
given. Here is a brief explanation of the use
of the symbol.
This symbol alerts you to such
dangers as fire, electrical shock,
burns, cuts, and personal injury.
To reduce the risk of fire, electrical shock, or
personal injury when using your air conditioner,
follow these basic precautions:
l Read all instructions before using . Never clean air conditioner parts with
your air conditioner. flammable fluids. The fumes can create
*Complete the Installation Instructions a fire hazard or explosion.
as described in this manual. . FOR YOUR SAFETY.
l Never allow children to operate or DO NOT STORE OR USE GASOLINE
play with the air conditioner. OR OTHER FLAMMABLE VAPORS AND
l DO NOT operate the air conditioner LIQUIDS IN THE VICINITY OF THIS OR
with the front panel removed. ANY OTHER APPLIANCE. THE FUMES
l Disconnect power supply cord from CAN CREATE A FIRE HAZARD OR
receptacle before servicing. Refer to EXPLOSION.
model and serial number label for
BTU capacity, amperage, voltage,
and refrigerant charge specifications.
- SAVE THESE INSTRUCTIONS -
It is your responsibility to be
sure your air conditioner:
l is installed in a window or wall that will
support the weight of the unit.
l is installed and secured according to
the Installation Instructions described
in this manual.
l is connected only to the proper kind of
outlet, with the correct electrical supply
and grounding. (See “Electrical
requirements” on page 4.)
l is the proper size for the area you want
to cool.
l is used only for the job it is designed to do.
l is not used by children or anyone unable
to operate it properly.
l is properly maintained.
Also, remove the Energy Label and Buy
Guide. Use a damp cloth to take off any
glue residue. Do not use sharp instruments,
flammable fluids, or abrasive cleaner. These
can damage the material.
3

Electrical requirements
Electrical Shock Hazard
Plug air conditioner into grounded
three prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not fuse neutral or grounding
circuit.
Do not use air conditioner with
front panel removed.
Failure to follow these instructions
can result in death, electrical
shock, or serious injury.
Electrical ground is required on this
appliance.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUNDING PRONG.
OBSERVE ALL LOCAL CODES AND
ORDINANCES.
NOTE: If codes permit, and a separate
grounding wire is used, it is recommended
that a qualified electrician determine that the
grounding path is adequate. Use a time-
delay fuse or time-delay circuit breaker. It is
required that a separate circuit, serving only
this air conditioner, be provided. See the
chart on page 5 for electrical plug variations.
Choose the plug that matches your unit’s
plug. Then, use the chart to find the voltage
and ampere requirements for your air
conditioner, and the gauge of copper wire
required for the receptacle wiring.
Fire Hazard
Do not use an extension cord.
Doing so can result in death, fire, or
electrical shock.
Grounding method
For your personal safety, this appliance
must be grounded. This air conditioner
is equipped with a power supply cord
containing a 3-prong grounding plug. To
minimize possible shock hazard, the cord
must be plugged into a mating 3-prong
grounding-type wall receptacle, grounded
in accordance with all local codes and
ordinances. If a mating wall receptacle is
not available, it is the responsibility of the
consumer to have a proper wall receptacle
installed by a qualified electrician.

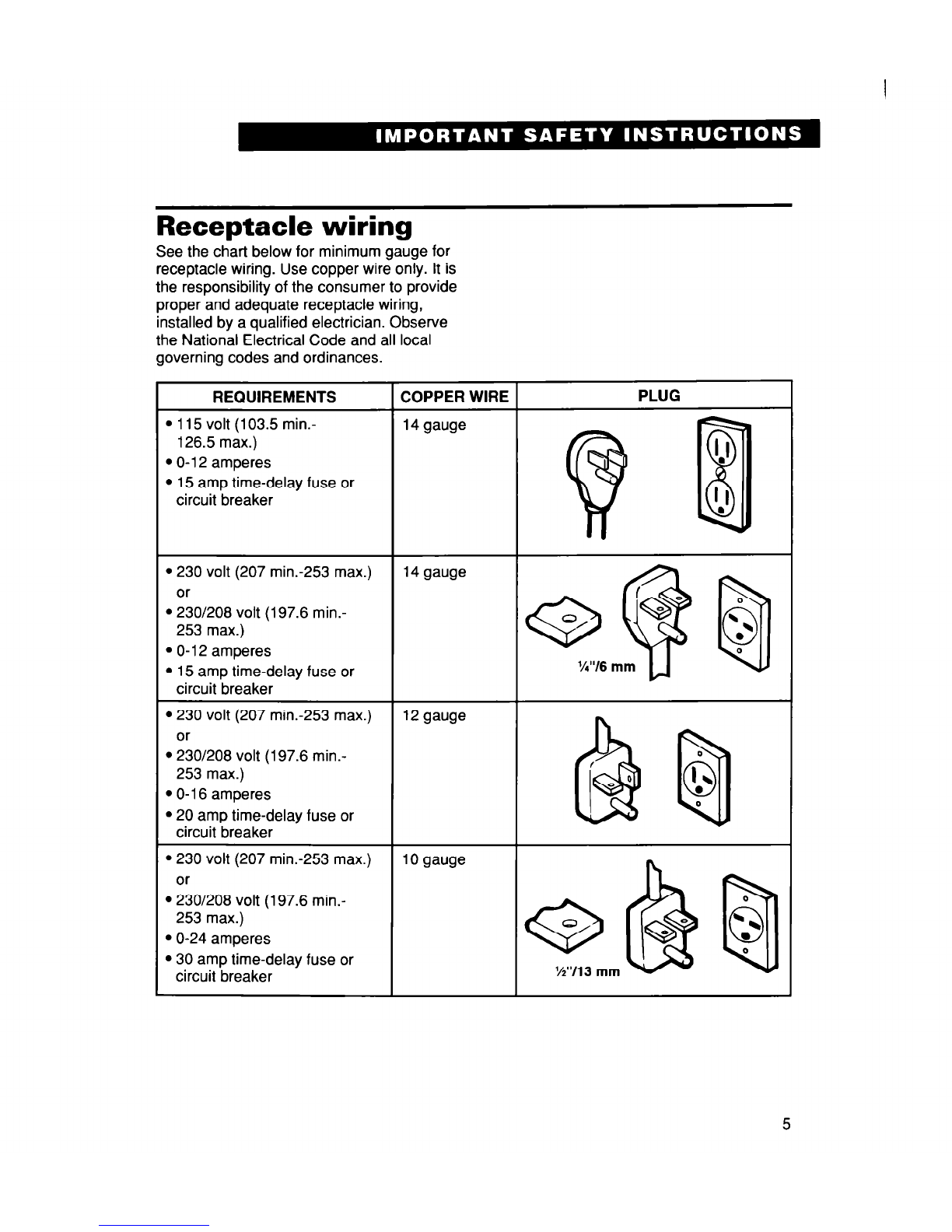

Receptacle wiring
See the chart below for minimum gauge for
receptacle wiring. Use copper wire only. It is
the responsibility of the consumer to provide
proper and adequate receptacle wiring,
installed by a qualified electrician. Observe
the National Electrical Code and all local
governing codes and ordinances.
REQUIREMENTS
l 115 volt (103.5 min.-
126.5 max.)
l O-l 2 amperes
l 15 amp time-delay fuse or
circuit breaker
COPPER WIRE
14 gauge
PLUG
‘.I
Bl !’
l 230 volt (207 min.-253 max.)
or 14 gauge
l 230/208 volt (197.6 min.-
253 max.)
l O-l 2 amperes
l 15 amp time-delay fuse or
circuit breaker
l 230 volt (207 min.-253 max.)
or 12 gauge
l 230/208 volt (197.6 min.-
253 max.)
l O-l 6 amperes
l 20 amp time-delay fuse or
circuit breaker
l 230 volt (207 min.-253 max.)
or 10 gauge
l 230/208 volt (197.6 min.-
253 max.)
l O-24 amperes
l 30 amp time-delay fuse or
circuit breaker
5

Parts and Features
This section contains captioned illustrations of your appliance. Use them to become familiar
with where all parts and features are located and what they look like TO help you find
information on SPeCifk parts or features quickly, page references are included.
Airflow
direction
tab
(P. 17)\
Airflow louvers
(P. 17)
I
Control panel /
(P. 17)
Slide-out
air filter
I b18)
Removable
front panel
(P. 19)
6

Installation Instructions
Proper installation of your air conditioner is important for proper operation and best cooling
results. To avoid any installation problems and to ensure trouble-free performance of your
new air conditioner, please read these Installation Instructions, as well as the operating
instructions and electrical requirements before installing your unit.
IMPORTANT: Observe all governing codes and ordinances.
Excessive Weight Hazard
Use two or more people to move and
install air conditioner.
Failure to do so can result in back or
other injury.
Before you begin
Check the window/wall location where
the air conditioner will be installed for
the following:
l The opening/window is large enough.
Remember to add twice the thickness of
the wood to be used to build the frame.
l The wall/window is sturdy enough to
support the weight of the air conditioner -
145 to 200 pounds (65 to 90 kg).
l An electrical supply is within reach of the
power supply cord.
l Air will move freely into rooms to
be cooled.
I
Window opening measurements
Wall opening measurements
7

Tools/supplies needed
1. Flat-blade screwdriver
2. Tape measure
3. Utility knife
4. Socket wrench with %6” (11 mm) and %I”
(6 mm) sockets
OR
%I” (6 mm) nut driver
5. Electric drill
6. YY (2 mm) or smaller drill bit
7. Carpenter’s level
For through-the-wall installation:
8. Wood preservative
8. #l 0 x 1” (25 mm) screws [lo]
Parts supplied for installation
A. %” (10 mm) seal strips [5]
B. Side mounting brackets [2]
C. #8 x 3/B”(10 mm) hex-head sheet-metal
screws [4]
D. Filler board [l]
E. #8 x 1/2”(12.5 mm) hex-head metal
screws [4]
F. Foam seal [l]
G. Foam blocks [4]
H. #lO x %” (19 mm) round-head wood
screws [3]
I. 2%” (63.5 mm) seal strip [l]
J. Vertical supports [2]
K. Angled supports [2]
L. 3/4”(19 mm) round-head bolts [6]
M. Flat washers [6]
N. Lock washers [6]
0. Nuts [6]
P. Wall rail [l]
Q. Foam window rail seal [l]
R. Window lock bracket [l]
S. Plastic drain cup [l]
T. Gum-type sealer [l] Installation parts are supplied for double-
hung windows up to 40” (1,016 mm) wide.
Installation up to 54” (1,372 mm) can be
made with a special “Wide-window kit” from
your dealer or authorized service center.

Installation tips
l Handle the air conditioner with care. Watch l Do not install the air conditioner in an area
out for the sharp metal fins on the front where the front panel will be exposed to
and rear coils. heat sources that will raise the panel
l Be sure your air conditioner does not fall surface temperature above 120°F (50°C).
out of the opening during installation.
Window installation
1. Remove the ground wire and screw from
the front of the unit base. Save grounding
screw for reattachment in Step 23.
2. Attach 3/g”(10 mm) seal strip (A) to
bottom of both side mounting brackets
(sides with screw holes). Cut strips to
length and save extra for use later.
3. Attach side mounting brackets (B) to
cabinet. Place side mounting brackets on
cabinet so bent edge is toward front of
cabinet. Attach each with 2 hex-head
metal screws (C).
4. Slide unit out of cabinet. Grasp handle
and slide unit straight out of cabinet. Place
unit on cardboard to protect your floor.
5. Place empty cabinet in window. Lower
window sash to hold cabinet in place.
Make sure the cabinet is centered in the
window opening.
6. Measure width of window channel and
subtract thickness of filler board. Cut
foam blocks 1/4”(6 mm) wider than this
measurement. The blocks will be used
later in Step 15.
7. Determine proper size for filler board
(D). Measure the distance from the right
edge of the cabinet to the inside of the
right window channel. Then add KY”
(3 mm) to that measurement. Repeat for
left side.
I
H I
continued on next page
9

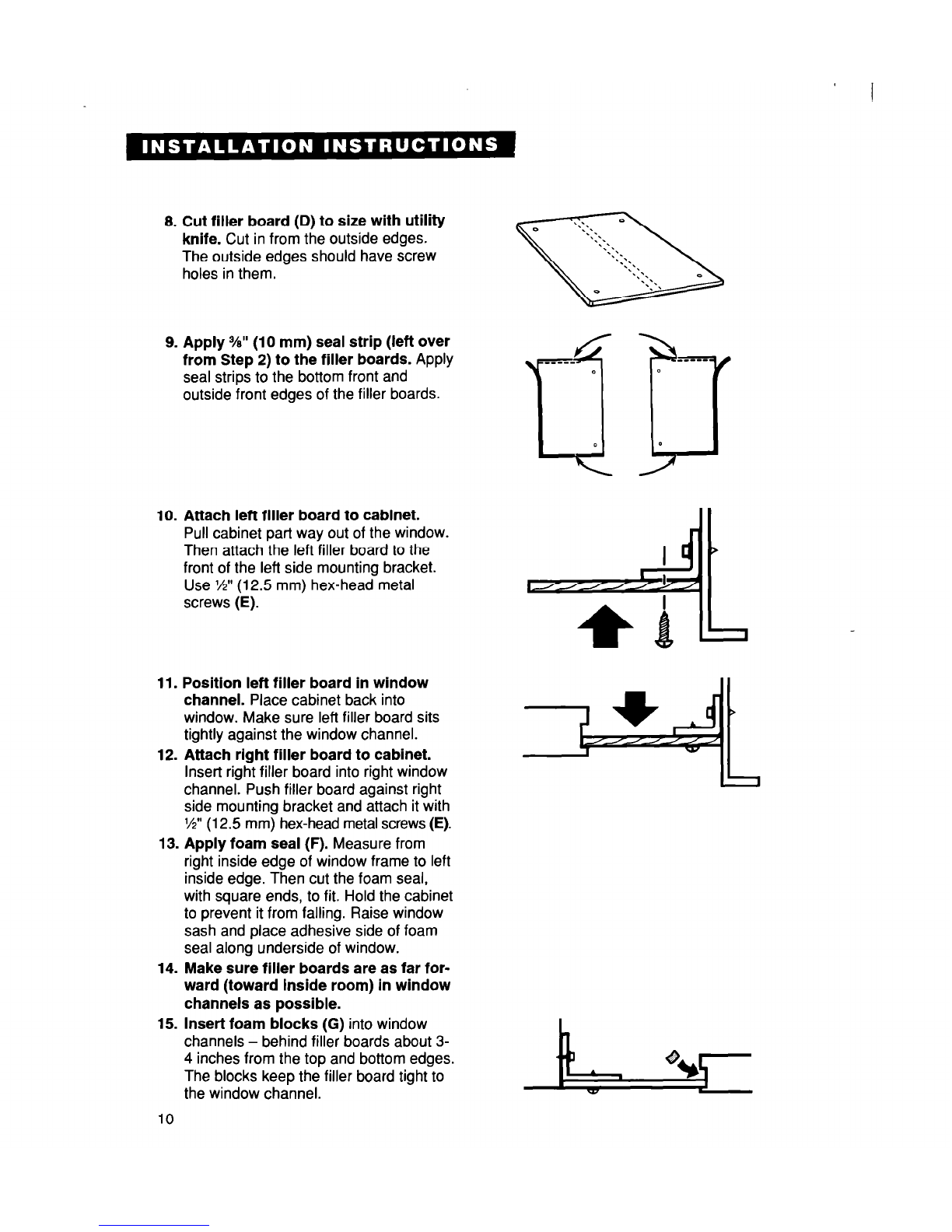

8. Cut filler board (D) to size with utility
knife. Cut in from the outside edges.
The outside edges should have screw
holes in them.
9. Apply %” (10 mm) seal strip (left over
from Step 2) to the filler boards. Apply
seal strips to the bottom front and
outside front edges of the filler boards.
10. Attach left filler board to cabinet.
Pull cabinet part way out of the window.
Then attach the left filler board to the
front of the left side mounting bracket.
Use W’ (12.5 mm) hex-head metal
screws (E).
11. Position left filler board in window
channel. Place cabinet back into
window. Make sure left filler board sits
tightly against the window channel.
12. Attach right filler board to cabinet.
Insert right filler board into right window
channel. Push filler board against right
side mounting bracket and attach it with
W’ (12.5 mm) hex-head metal screws (E).
13. Apply foam seal (F). Measure from
right inside edge of window frame to left
inside edge. Then cut the foam seal,
with square ends, to fit. Hold the cabinet
to prevent it from falling. Raise window
sash and place adhesive side of foam
seal along underside of window.
14. Make sure filler boards are as far for-
ward (toward inside room) in window
channels as possible.
15. insert foam blocks (G) into window
channels - behind filler boards about 3-
4 inches from the top and bottom edges.
The blocks keep the filler board tight to
the window channel.
10

16. Fasten cabinet to window sill. Lower
window sash firmly onto cabinet. Place a
carpenter’s level inside the cabinet and
make sure cabinet is level side-to-side.
Then drill starter holes into the cabinet
base and the window sill. Use round-
head wood screws (H) to fasten cabinet
to window sill, but do not tighten the
screws.
17. Make sure cabinet has proper out-
ward slope. Place carpenter’s level in
the right side of the cabinet. There
should be a l/2 bubble tilt (W [6 mm]per
foot [30.5 cm]) toward the outside.
Repeat for left side of cabinet. The tilt
to the outside is needed for proper
drainage.
18. Attach 2%” (63.5 mm) seal strip (I) to
inside of cabinet. Make sure the seal
strip is flush with the front edge of the
cabinet. This seal strip provides a seal
between the air conditioner base and
the cabinet.
19. Assemble the outside support. Attach
the vertical supports (J) to the angled
supports (K). Use the round-head bolts
(L), flat washers (M), lock washers (N)
and the nuts (0) for attachments. Then
attach these supports to the bottom of
the cabinet, but DO NOT tighten the
bolts at this time.
Attach the wall rail (P) to the bottom
of the supports and slide the support
assembly toward the house until the wall
rail presses firmly against the wall.
Check that you have the % bubble tilt
to the outside. This is needed for proper
drainage.
Now tighten all bolts. Tighten angled
support bolts last so wall rail fits tightly
against the house.
NOTE: If your house is constructed of
materials that could be damaged by the
wall rail, fasten a board or other protec-
tive material to the wall rail so that it is
between the wall rail and the house. continued on next page
11

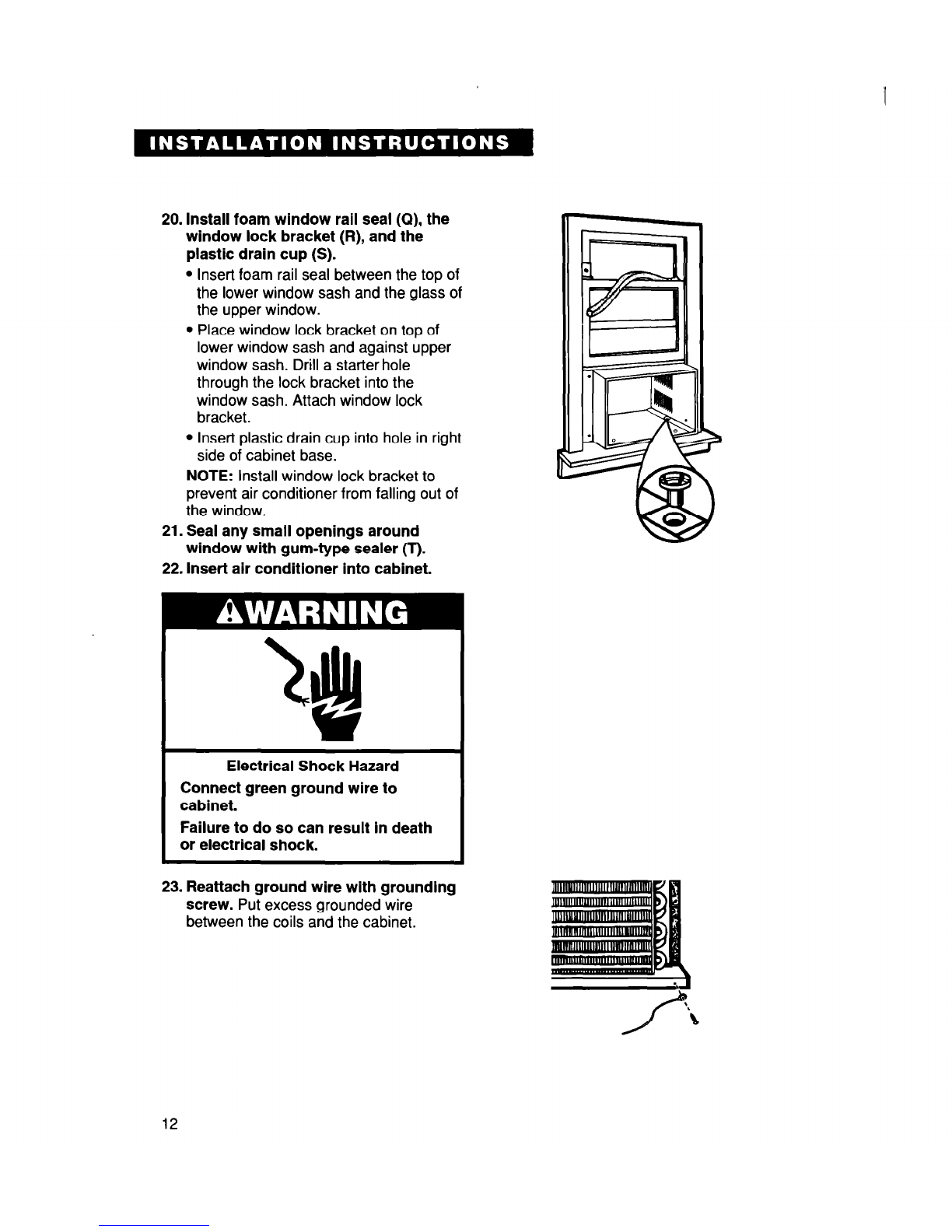

20. install foam window rail seal (Q), the
window lock bracket (R), and the
plastic drain cup (S).
l Insert foam rail seal between the top of
the lower window sash and the glass of
the upper window.
l Place window lock bracket on top of
lower window sash and against upper
window sash. Drill a starter hole
through the lock bracket into the
window sash. Attach window lock
bracket.
l Insert plastic drain cup into hole in right
side of cabinet base.
NOTE: Install window lock bracket to
prevent air conditioner from falling out of
the window.
21. Seal any small openings around
window with gum-type sealer (T).
22. insert air conditioner into cabinet.
Electrical Shock Hazard
Connect green ground wire to
cabinet.
Failure to do so can result in death
or electrical shock.
23. Reattach ground wire with grounding
screw. Put excess grounded wire
between the coils and the cabinet.
12

24. Attach the front panel. Remove the 2
front panel screws from unit base.
Replace front panel by pushing it straight
on and then lowering it slightly to lock it
in place. Attach bottom front of panel by
reinserting the 2 front panel screws.

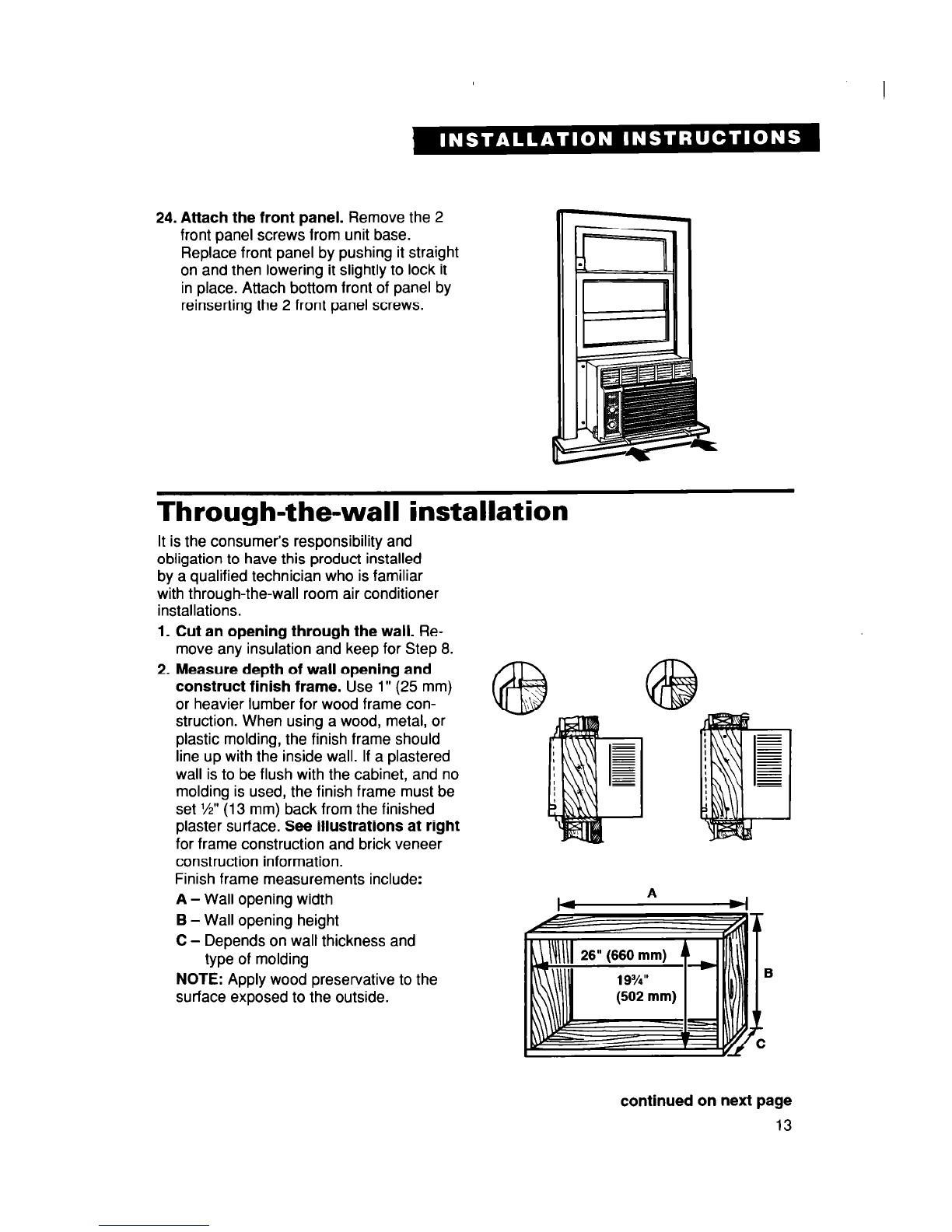

Through-the-wall installation
It is the consumer’s responsibility and
obligation to have this product installed
by a qualified technician who is familiar
with through-the-wall room air conditioner
installations.
1. Cut an opening through the wail. Re-
move any insulation and keep for Step 8.
2. Measure depth of wail opening and
construct finish frame. Use 1” (25 mm)
or heavier lumber for wood frame con-
struction. When using a wood, metal, or
plastic molding, the finish frame should
line up with the inside wall. If a plastered
wall is to be flush with the cabinet, and no
molding is used, the finish frame must be
set %” (13 mm) back from the finished
plaster surface. See illustrations at right
for frame construction and brick veneer
construction information.
Finish frame measurements include:
A - Wall opening width
B - Wall opening height
C - Depends on wall thickness and
type of molding
NOTE: Apply wood preservative to the
surface exposed to the outside.
continued on next page
13

3. insert finish frame into wail opening.
Square and level the frame. Nail frame
securely to the wall studs.
4. Remove the ground wire and screw
from the front of the unit base. Save
grounding screw for reattachment in
Step 13.
5. Slide unit out of cabinet. Grasp handle
and slide unit straight out of cabinet.
Place unit on cardboard to protect your
floor covering.
6. insert cabinet into the wail opening.
The top of the cabinet should extend W
(13 mm) into the room. If there is trim, the
cabinet should extend W’ (13 mm) past
the trim.
7. Check the outward slope of the cabi-
net. Place a carpenter’s level inside the
cabinet on the right side. There should be
l/2 bubble (%” [6 mm] per foot [30.5 cm])
slope toward the outside. Also check the
left side.
NOTE: Make sure the air conditioner
cabinet has the proper outward slope so
condensate water runs to the outside or
damage could result to the floor or wall.
8. Seal opening between cabinet and
finish frame. Use the insulation removed
in Step 1.
9. Attach cabinet to finish frame. Use #lO
x 1” (25 mm) wood screws (not supplied)
to attach cabinet to the frame.
IMPORTANT: Do not over-tighten screws
or the cabinet will distort and provide a
poor air seal between the cabinet and the
air conditioner.
14

10. Place the 2%” (63.5 mm) seal strip (I)
inside the cabinet. Make sure the seal
is flush with the cabinet front edge.
NOTE: This seal strip fits between the
air conditioner base and the cabinet.
11. insert drain cup (S). Place drain cup
through hole in cabinet rail.
12. insert air conditioner into cabinet.
Electrical Shock Hazard
Connect green ground wire to
cabinet.
Failure to do so can result in death
or electrical shock.
lii!iJ
hII* i
.
. . - . . * ;. . :::.. .
. . : .*-, *. . . .
:‘:,. .::*.. c . ..
. *.>‘. -. .,; i ::. * .
. .. . .. > ...-. ‘.
13. Reattach ground wire with grounding
screw. Put excess grounded wire
between the coils and the cabinet.
continued on next page
15

14. Attach the front panel. Remove the
2 front panel screws from unit base.
Replace front panel by pushing it
straight on and then lowering it slightly
to lock it in place. Attach bottom front of
panel by reinserting the 2 front
panel screws.
15. Caulk ail outside wail openings
around the installation and cabinet.
16. install decorative molding. If desired,
install molding around room side of
cabinet.
16

Operating Instructions
Starting your air conditioner
1.
2.
Plug air conditioner into a grounded
3-prong outlet.
Set Fan Control to desired setting.
(All settings below not on all models.)
HIGH COOL ............ for maximum cooling
MEDIUM COOL ...........for normal cooling
LOW COOL ..............for sleeping comfort
FAN ONLY .................... for circulating air
without cooling
3. Set Thermostat to a mid-setting. You can
adjust the air conditioner’s performance
by resetting the Thermostat to a higher
or lower setting. You will need to experi-
ment to find the setting(s) which work
best for you.
NOTE: If you turn your air conditioner off or
if the compressor turns off when you lower
the Thermostat, wait at least 3 minutes
before turning unit back on. Failure to do so
could blow a household fuse or trip a circuit
breaker.
Changing air direction
The louvers in the top section of the air
conditioner front panel control the direction
of the cooled air. Move the tab in the direc-
tion you want the air to go - up, down, or
straight ahead.
17

Cleaning Instructions
Proper use and care of your air conditioner will help ensure longer life of the unit and lower
operating costs. Follow these cleaning instructions.
Cleaning the air filter
The air filter is cleanable. A clean filter helps
remove dust, lint, and other particles from
the air. Check every 2 weeks to see if the
filter needs to be cleaned.
1.
2.
3.
Remove air filter from front panel.
l Grasp filter handle.
l Slide filter straight up and out of the
front panel.
Clean filter using a vacuum cleaner.
OR
If very dirty, wash filter with warm water
and a mild detergent. Air dry thoroughly
before replacing.
Replace air filter.
l Guide bottom of filter into filter slot in
front panel.
l Slide filter straight down into front panel.
NOTE: The front panel does not have to be
removed to clean the filter.
18

Cleaning the front panel
Explosion Hazard
Unplug power cord from outlet
before cleaning air conditioner.
Use only nonflammable cleaners.
Failure to follow these instructions
can result in death, explosion, fire,
or electrical shock.
1. Unplug the power cord.
2. Remove the front panel from the unit.
l Remove the 2 screws from the bottom
edge of the front panel.
l Lift front panel slightly and then pull it
toward you.
3. Remove the slide-out air filter from the
front panel. Clean it separately. See
“Cleaning the air filter.”
4. Clean front panel with warm water and a
mild soap or detergent. Use a soft cloth.
Rinse and dry.
5. Wipe the control panel clean with a soft,
dry cloth.
6. Replace the front panel.
l Push it straight onto the cabinet. Then
lower it slightly to lock it in place.
l Replace the 2 screws in the base of the
front panel.
7. Plug in the power cord.
19

Maintenance Instructions
Annual maintenance
Your air conditioner needs annual mainte-
nance to ensure steady, top performance
throughout the year.
Call the service company recommended
by your dealer to:
l Inspect and clean the coils and conden-
sate water passages.
l Check fan and fan motor.
The compressor and fan motor are sealed
and need no oiling. Expense of the annual
inspection is the consumer’s responsibility.
NOTE: If you are familiar with electrical
appliances, you can do the cleaning and
maintenance yourself. If you choose to do
so, follow these steps:
Electrical Shock Hazard
Unplug power cord from outlet
before servicing.
Be sure no liquid gets into the
motor, electrical control box, or
compressor terminals.
Failure to follow these instructions
can result in death, electrical
shock, or serious injury.
Excessive Weight Hazard
Use two or more people to move and
install air conditioner.
Failure to do so can result in back or
other injury.
20
