Whirlpool LTE5243DQ7 Use and maintenance manual

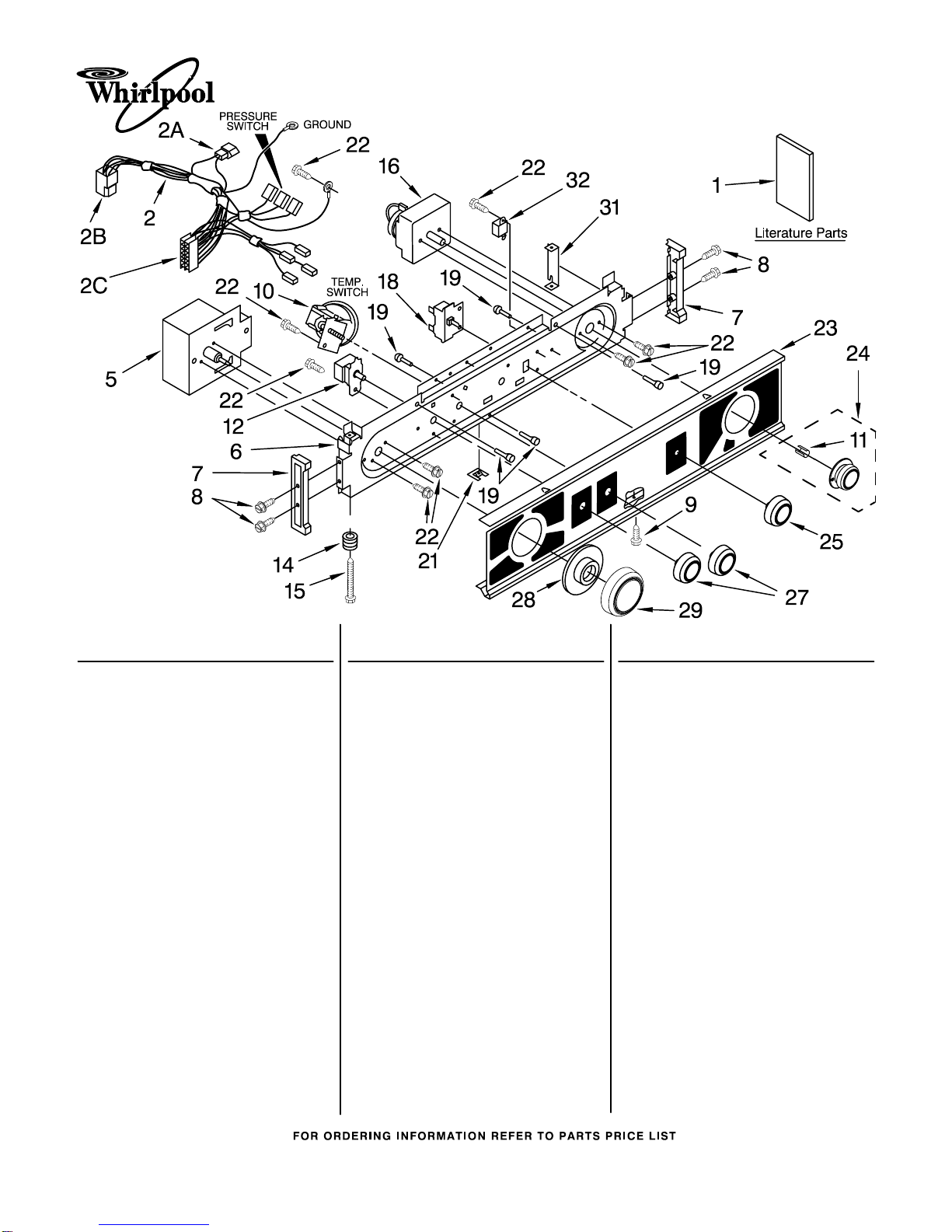

WASHER/DRYER CONTROL PANEL PARTS
1
10−06 Litho in U.S.A.(LT) Part No. W10116534
WASHER/DRYER
LAUNDRY SYSTEM
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10112506 Installation
Instructions
8578179 Use & Care Guide
3954161 Energy Guide
8542754 Sheet,
Cycle Feature
8576808 Wiring Diagram
2 8577368 Harness, Console
Wiring (Automatic)
(Includes Illus.
2A, 2B & 2C)
2A 3350130 Plug, Terminal
(2−Way)
(Connects With
Main Dryer
Harness)
2B 696073 Receptacle,
Connector
(Connects With
Lower Automatic
Harness)
2C 3948614 Disconnect Block
(Connects With
Automatic Timer)
5 3952499 Timer, Control
(60 Hz.)
(Automatic Washer)
6 8528154 Bracket, Control
7 End Cap, Console
(L.H. & R.H.)
692993 White
3978584 Biscuit
8 348689 Screw, End Cap
Mounting (4)
9 694091 Screw, Mounting (2)
10 3362987 Switch, Water Level
11 688805 Spring Clip,
Knob
12 8054142 Switch, Water
Temperature
14 693151 Spring, Console
Lock (2)
15 3400860 Screw, Console
Lock (2)
16 3406720 Timer, Control
(60 Hz.) (Dryer)
(Timer Motor
Not Serviceable)
18 3977456 Switch,
Push−To−Start
19 693152 Bumper, Console (5)
21 694037 Clip, Console
22 8533971 Screw,
(8−18 x 5/16)
23 Panel, Control
3977194 White
3977195 Biscuit
24 Knob, Timer
(Dryer)
3957752 White
3957753 Biscuit
25 Knob,
Push−To−Start
3957800 White
3957801 Biscuit
27 Knob, Control (2)
3957796 White
3957797 Biscuit
28 Dial, Timer
(Washer)
3957841 White
3957842 Biscuit
29 Knob, Timer
(Washer)
3957821 White
3957822 Biscuit
31 692983 Lock, Console (2)
32 694419 Buzzer
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

DRYER FRONT PANEL AND DOOR PARTS
2W10116534
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 3406108 Door Switch
2 697773 Screw, 6−20 x 7/8
4 Panel, Front
692619 White
3978587 Biscuit
5 3390734 Seal, Door
6 695656 Door, Rear
7 Door, Front
348205 White
3978598 Biscuit
9 8066123 Bearing & Seal
10 685203 Clip, Felt
Pad (2)
11 696144 Strike, Panel
12 3390663 Screw, Door
Switch
Mounting (2)
13 343641 Screw,
10−16 x 1/2 (2)
(Front Panel
To Side Panel)
14 3389441 Catch, Door
15 Handle, Door
686711 White
3978592 Biscuit
19 694091 Screw, Door
Mount To
Hinge & Panel (10)
20 348023 Hinge & Pin,
Door (2)
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

DRYER CABINET AND MOTOR PARTS
3
W10116534
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

DRYER CABINET AND MOTOR PARTS
4W10116534
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 660658 Clamp, Motor
Mounting (2)
2 8538265 Motor, Main Drive
(60 Hz.)
5 696541 Bracket, Motor
6 3390405 Panel, Rear
7 343641 Screw, 10−16 x 1/2
8 3394228 Cover, Terminal
Block
9 90296 Clip
10 Panel, Side (L.H.)
3402293 White
3978589 Biscuit
14 3399602 Elbow, Upper
15 3394083 Clip, Front
Panel (2)
16 98234 Clip, Ground
17 3399603 Elbow, Lower
18 686770 Support,
Protector
20 8066064 Belt, Drive
21 8066051 Pulley, Motor
(60 Hz.)
22 691366 Idler & Pulley
Assembly
23 692771 Nut, Idler
Bracket To Base
24 3399632 Base, Dryer
25 692400 Nut, Push−In
26 692926 Cove, Transition
Panel (Black)
27 Panel, Transition
692933 White
3978591 Biscuit
28 692641 Top, Dryer
29 Panel, Side (R.H.)
3402287 White
3978590 Biscuit
30 693145 Latch, Lid
31 Closure, Control
Area
692781 White
3978599 Biscuit
32 354975 Screw & Washer (3)
(Lid Latch
Mounting)
33 693304 Screw & Washer (2)
(Transition Panel
To Closure)
34 697776 Screw, Ground
(10−32 x 5/8)
35 3390631 Screw, 10−16 x 3/8
36 8572717 Capacitor, Motor
Start (Automatic
Washer)
37 357030 Clamp, Capacitor
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

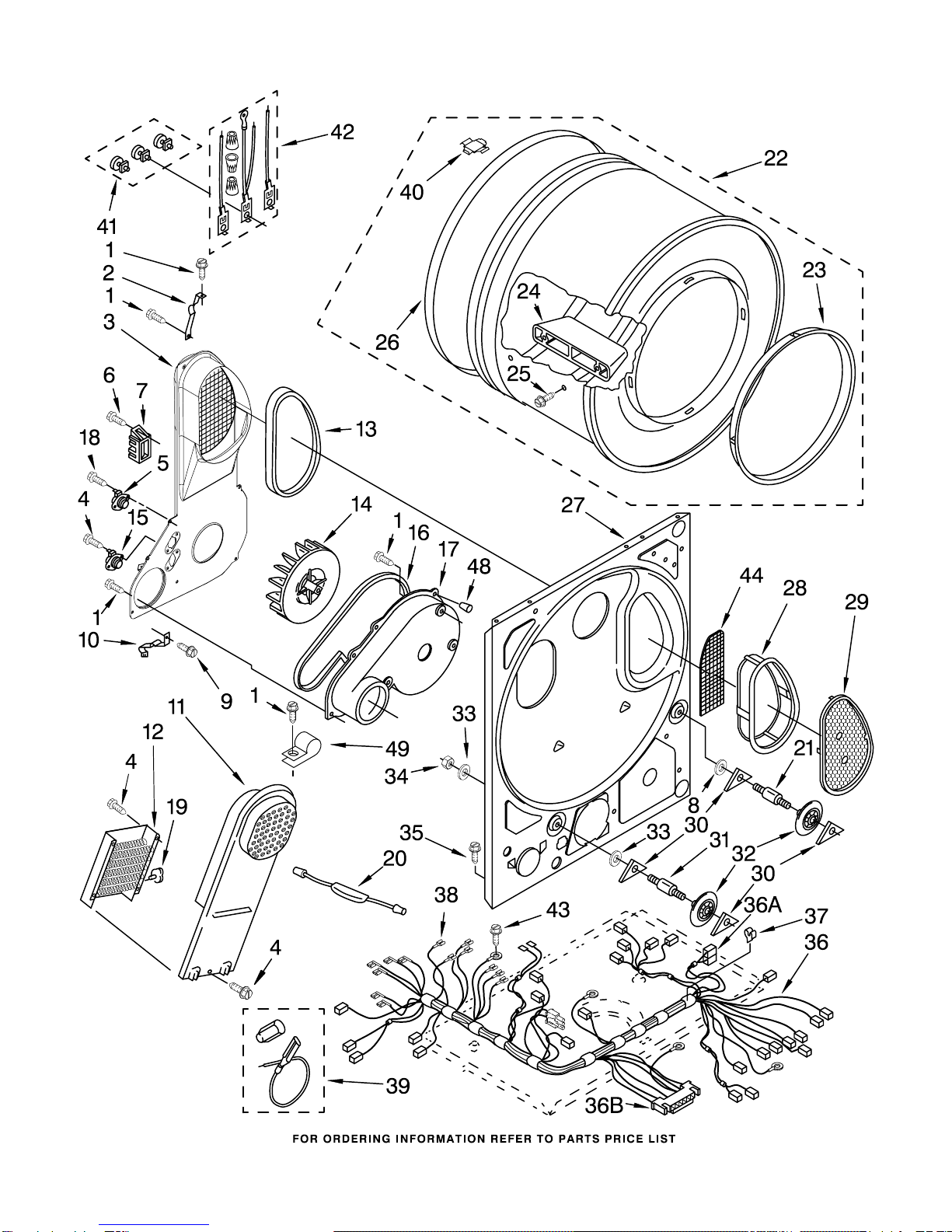

DRYER BULKHEAD PARTS
5
W10116534
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

DRYER BULKHEAD PARTS
6W10116534
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 343641 Screw, 10−16 x 1/2
2 3395396 Clip, Air Duct
To Bulkhead
3 8566186 Air Duct &
Bracket
4 90767 Screw, 8−18 x 3/8
5 3398128 Thermostat,
Internal Bias
6 3393008 Screw, Terminal
Block To
Bracket (2)
7 3397659 Block, Terminal
8 3388703 Washer
9 489463 Screw, 8−18 x 5/8
10 3398161 Clip, Heater Box
To Bulkhead
11 3401380 Heater Box
12 3403586 Element, Heater
13 339956 Seal, Air Duct
To Bulkhead
14 696426 Wheel, Blower
15 8578221 Thermal Limiter
195 F (91C)
16 8066094 Seal, Fan
Scroll
17 696418 Fan Scroll
18 3390647 Screw, 8−18 x 1/2
19 3404154 Thermostat,
Heater Box
(200 F)
20 3406652 Resistor Assembly
21 3399507 Shaft, Drum
Roller (R.H.)
22 695943 Drum, Dryer
23 3394508 Ring, Bearing
24 685207 Baffle, Drum (3)
25
W10109200 Screw, Baffle
Mounting (6)
(11−16 x 3/4)
26 345648 Seal, Drum Rear
27 695931 Bulkhead
28 8531964 Lint Screen
29 8531967 Cover, Lint
Screen Outlet
30 690997 Tri−Ring (4)
31 3399506 Shaft, Drum
Roller (L.H.)
32 3397590 Roller, Support (2)
33 348197 Washer, Support (4)
34 3359452 Nut, 3/8−16 (2)
35 3390631 Screw, 10−16 x 3/8
36 3406941 Harness, Main
Dryer Wiring
(Includes Nos.36A,
36B)
36A 717252 Receptacle,
Terminal (2−Way)
(Connects With
Door Switch
Harness)
36B 3395683 Receptacle,
Multi−Terminal
(Connects With
Motor)(Dryer)
37 693141 Clip, Wiring
Harness (3)
38 94614 Terminal
39 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
40 8066086 Drum,Hole Plug
41 279393 Screw Kit
(For Terminal
Block)
42 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 41)
43 697776 Screw, Ground (2)
(10−32 x 5/8)
44 348378 Screen, Back−Up
48 359702 Cap, Screw
49 255563 Clip, Strain
Relief
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

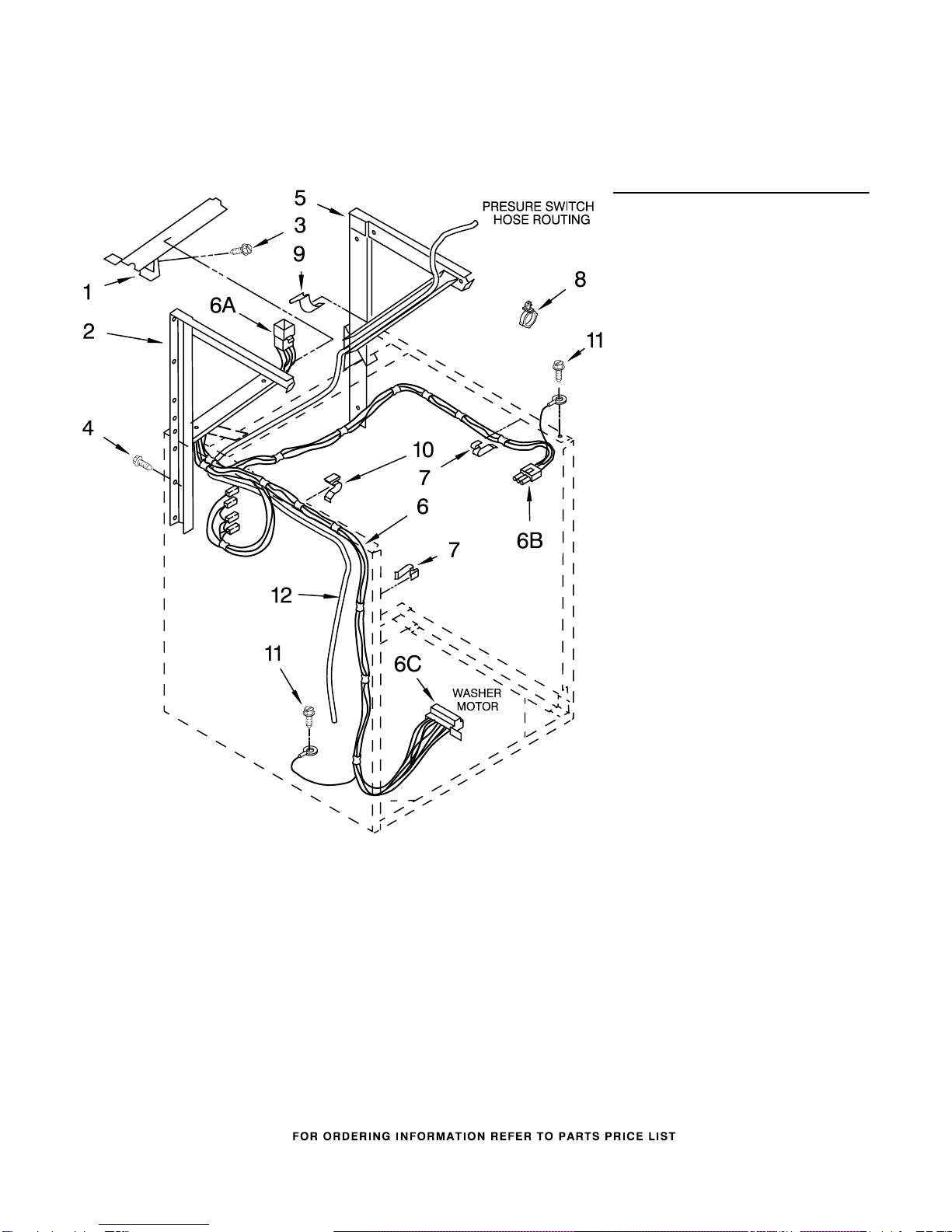

DRYER SUPPORT AND WASHER PARTS
7
W10116534
Illus. Part
No. No. DESCRIPTION
1 694304 Cover, Channel
2 692647 Support,
Dryer (L.H.)
3 343641 Screw, 10−16 x 1/2
4 3400000 Screw,
10−24 x 3/8 (8)
(Washer Cabinet
To Dryer Supports)
5 692646 Support,
Dryer (R.H.)
6 3957867 Harness, Lower
(Automatic)
(Includes Illus.
6A, 6B & 6C)
6A 696074 Plug, Terminal
(12−Way)
(Connects With
Automatic Console
Harness)
6B 62889 Plug, Terminal
(3−Way)
(Connects With
Automatic Lid
Switch Harness)
6C 62505 Block, Disconnect
(Connects With
Automatic Washer
Motor)
7 3347812 Clip, Wiring
Harness (4)
8 3352501 Clip
9 90016 Clip, Pressure
Switch Hose (2)
10 693141 Clip, Harness
And Hose
11 3351614 Screw, 10−24 x 3/8
12 8066080 Hose, Pressure
Switch
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

WASHER TOP AND LID PARTS
8W10116534
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Lid
3398848 White
3398849 Biscuit
2 384475 Bumper, Lid (2)
3 91770 Hinge, Lid (2)
4 3351355 Screw, Lid
Hinge Mounting (4)
5 343641 Screw, 10−16 x 1/2
6 692985 Clip, Spring (2)
(Top To Cabinet)
7 Top
384693 White
3978593 Biscuit
8 21258 Bearing, Lid
Hinge (2)
9 3356311 Screw & Washer,
Lid Switch
Shield (2)
10 358684 Strike, Lid
Switch
11 3400030 Screw, Ground
(10−24 x 1/2)
12 8533959 Nut, Ground
Screw (10−24)
13 3355806 Switch, Lid
14 90016 Clip, Harness
Routing
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

WASHER CABINET PARTS
9
W10116534
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

WASHER CABINET PARTS
10 W10116534
Illus. Part
No. No. DESCRIPTION
1 356746 Clip, Condenser
2 343641 Screw, 10−16 x 1/2
3 9740848 Screw, Mixing
Valve Mounting
(8−18 x 1/2)
4 370451 Clamp, Hose
5 3952163 Valve, Water
Mixing
7 692699 Hose, Water Inlet
(Siphon Break To
Mixing Valve)
8 Cabinet
696013 White
3978594 Biscuit
10 696710 Hose, Drain
11 692400 Nut, Push−In (2)
12 660975 Plug, Top To
Cabinet
13 8557915 Connector, Hose
15 356471 Cap, Siphon Break
16 356363 Siphon Break
17 272861 Clamp, Hose
18 696394 Hose, Water Inlet
(Siphon Break To
Tub Ring)
21 660628 Clamp, Hose
22 3394083 Clip, Front Panel (2)
23 358652 Link, Leveling
24 359364 Clip, Leveling
Mechanism (2)
25 98234 Clip, Ground
26 345670 Lock, Top (2)
27 Panel, Front
692628 White
3978596 Biscuit
28 367594 Foot, Front (2)
29 358594 Foot, Rear (2)
30 3400000 Screw, 10−24 x 3/8
(Washer Cabinet
To Dryer Supports)
32 3390046 Protector,
Edge
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

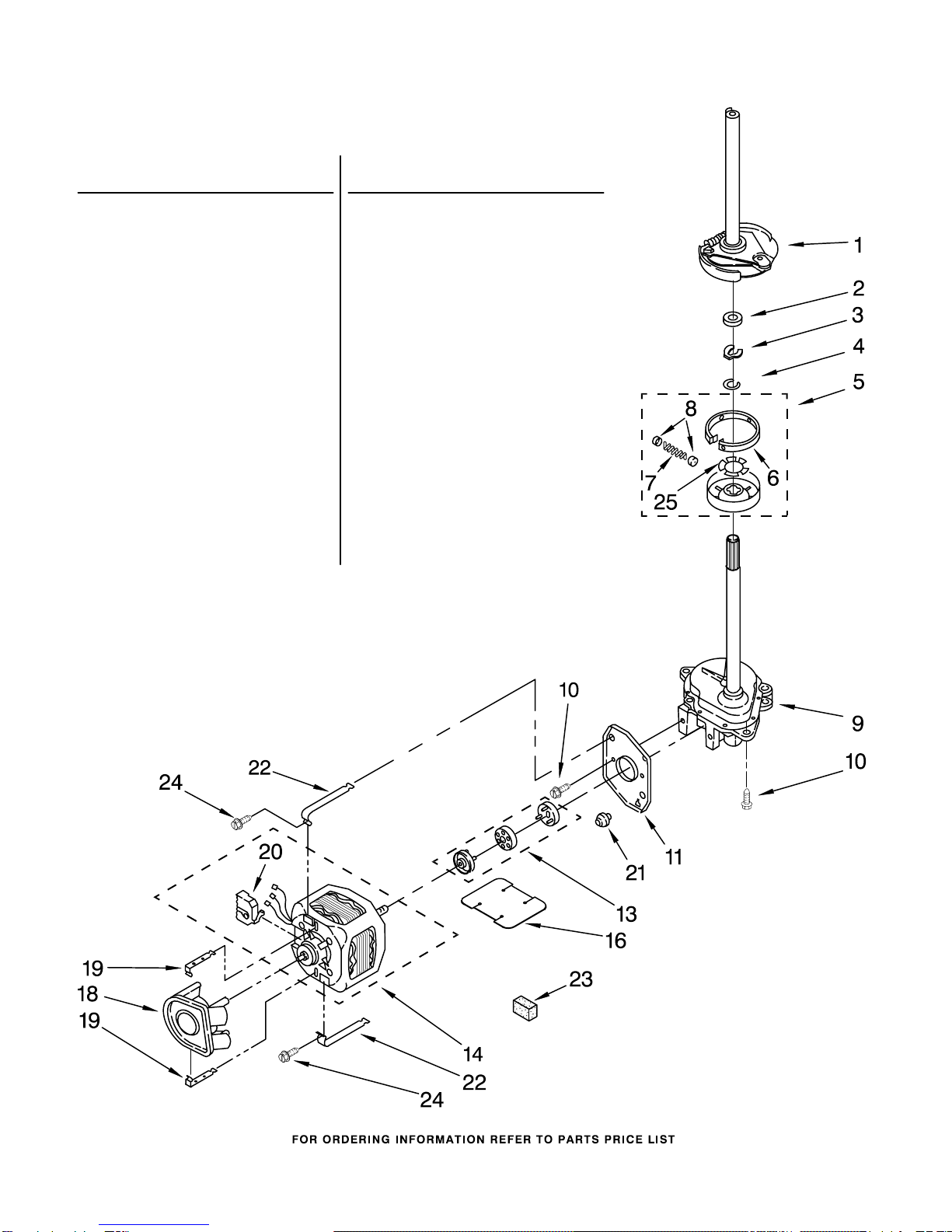

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
11
W10116534
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 387948 Brake And
Drive Tube
(Complete)
(Refer To Page
16 For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3951312 Clutch (Complete)
6 3951308 Band And Lining
(Includes Illus.
7 & 8)
7 3946846 Spring, Clutch
8 62646 Cap, Clutch
Spring (2)
9 3360630 Gearcase
(Complete)(Refer
To Page 15 For
Further
Breakdown)
10 3357334 Screw,
(3) (Gearcase
To Tub Support)
11 62611 Plate, Motor
Mount To
Gearcase
13 3364003 Coupling, Motor
& Isolating
14 661600 Motor,
Main Drive
16 3946532 Plate, Motor
18 3363394 Pump, Complete
19 8546127 Retainer, Pump
20 62850 Switch, Main
Drive Motor
21 62691 Grommet,
Motor (4)
22 3349637 Retainer,
Motor (2)
23 3350013 Foam
24 3387485 Screw, 10−16 x 5/8
25 3355454 Clip
(Anti−Rattle)
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

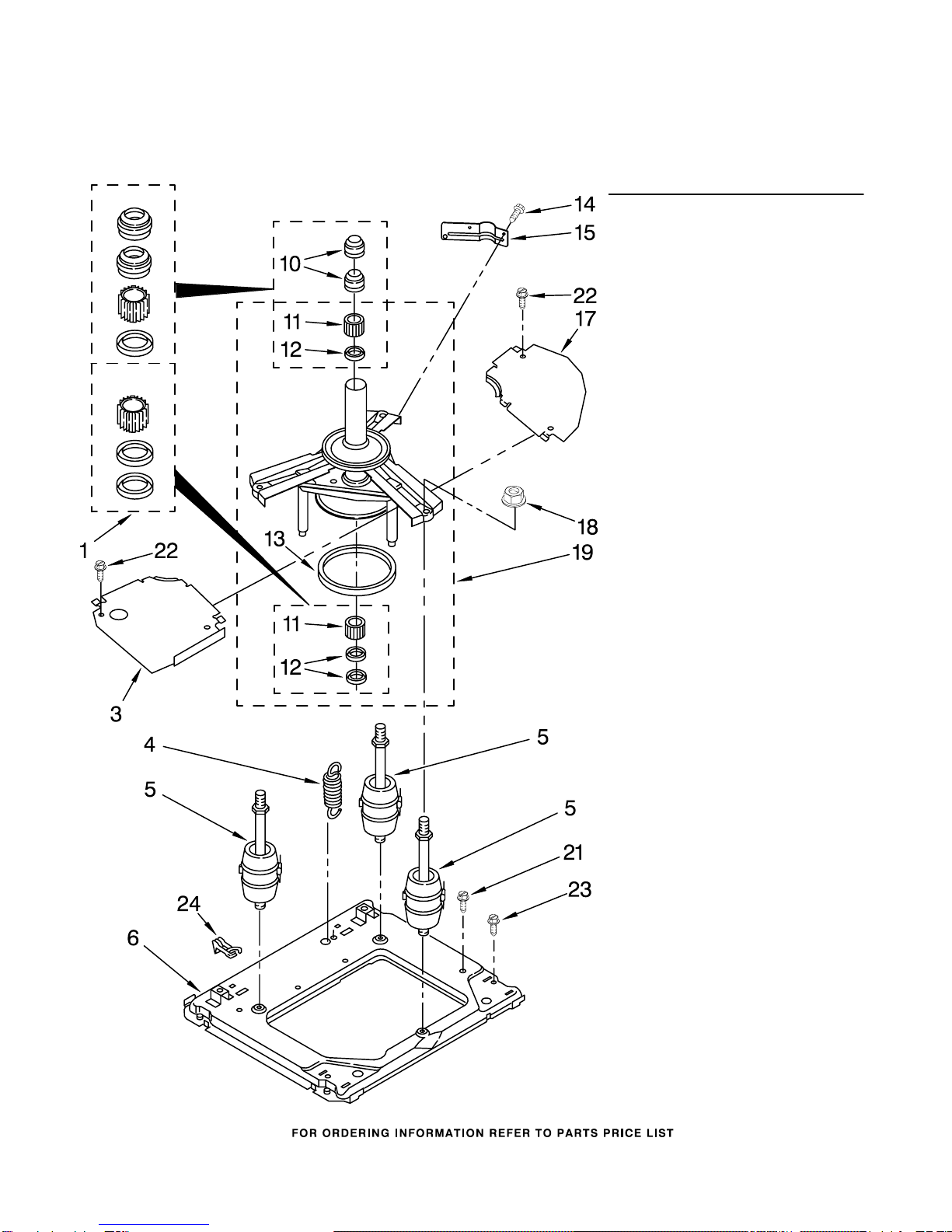

MACHINE BASE PARTS
12 W10116534
Illus. Part
No. No. DESCRIPTION
1 285203 Centerpost
Bearing Kit
(Incls. Illus.
10, 11, & 12)
3 64137 Shield, Tub
4 388492 Spring,
Counterweight
5 3406201 Suspension
Assembly (3)
6 8577373 Base
10 8577376 Seal, Centerpost
11 8546455 Bearing,
Centerpost (2)
12 357409 Seal, Centerpost
13 63134 Ring, Sound
Deadening
14 343641 Screw, 10−16 x 1/2
15 63636 Bracket,
Counterweight
Spring
17 63637 Shield, Tub
18 3351021 Nut,
1/2 − 13 (3)
19 63740 Tub Support
and Drum
21 3351614 Screw, 10−24 x 3/8
22 90767 Screw, 8−18 x 3/8
23 386011 Screw & Washer
(Base To Cabinet)
24 696044 Block, Restraint
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

TUB AND BASKET PARTS
13
W10116534
Illus. Part
No. No. DESCRIPTION
1 3355758 Cap,
Agitator
2 358237 Screw & Washer
(5/16−24 x 1)
3 63840 Filter, Agitator
4 3349098 Agitator
5 64175 Tub Ring &
Gasket (Includes
Illus. 7, 14 & 15)
6 21366 Nut, Spanner
7 3359587 Gasket,
Tub Ring
8 3351985 Basket
9 8066082 Tub
10 389140 Block,
Basket Drive
11 3949550 Washer
12 3363366 Clamp, Hose
13 8066201 Hose, Tub
To Pump
14 352155 Clip, Retaining
15 356398 Tube,
Drain Off
16 357640 Screw & Washer
(Tub Mounting)
17 383727 Gasket,
Centerpost
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

WATER SYSTEM PARTS
WS−900D
Illus. Part
No. No. DESCRIPTION
1 285321 Sleeve Kit,
Plastic Drain
Hose (Contains
2 Sleeves)
2 65349 Clamp, Hose (2)
3 16272 Connector,
Straight
4 285320 Siphon Break
Kit
(Not Included)
5 661575 Hose, Corrugated
Plastic Drain
(5 1/2 Ft.)
W10108350 Hose, Corrugated
Plastic Drain
(6 1/2 Ft.)
(For FSOU
& Twin−Twin)
661577 Hose, Corrugated
Plastic Drain
(10 Ft.)
(Not Included)
6 8577378 U−Bend
7 3357331 Clamp, Hose
8 356739 Connector, Hose
9 3354858 Hose, Inlet (2)
10 285442 Connector Kit,
Plastic Drain
Hose
14 W10116534
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

GEARCASE PARTS
Illus. Part
No. No. DESCRIPTION
1 3360630 Gearcase
(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase
Cover
4 285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin
(Includes Illus. 25)
6 356427 Seal, Spin
Pinion
7 389387 Shaft, Agitator
(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring
10 62676 Spring, Agitate
11 63273 Gear, Agitate
(Includes 15 and 29)
12 62619 Washer, Agitate
Gear
13 62580 Cam Follower
(Includes 14)
14 62581 Cam, Agitate
(Includes 13)
15 285509 Shaft, Agitator
(Includes 11 and 29)
16 62618 Washer, Cam Thrust
17 16018 Bearing, Thrust
18 85529 Ball, Bearing
19 389230 Bottom and Pinion,
Gearcase
21 285352 Seal, Thrust Plug
22 3351614 Screw, Gearcase
Cover, Mounting (8)
(10−24 x 3/8)
23 3362552 Ring, Retaining
24 285735 Washer Kit,
Thrust
25 62570 Gear, Spin
26 388253 Neutral Assembly
27 3349296 Rack, Connecting
28 62621 Actuator, Shift
29 388815 Washer,
Intermediate
15
W10116534
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

BRAKE AND DRIVE TUBE PARTS
1 387948 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 356427 Seal, Drive Tube
4 64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
5 64035 Ring, Retaining
6 64232 Shoe, Brake (2)
7 62703 "T" Bearing,
Spin Tube
8 3353956 Cap, Brake
Spring (2)
9 63748 Spring, Brake
10 3355360 Sleeve, Brake
Spring
11 661516 Cam, Brake
Release
12 63022 Sleeve, Cam
13 64194 Driver, Brake
Cam
14 90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
Illus. Part
No. No. DESCRIPTION
BD−313C
16 W10116534
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

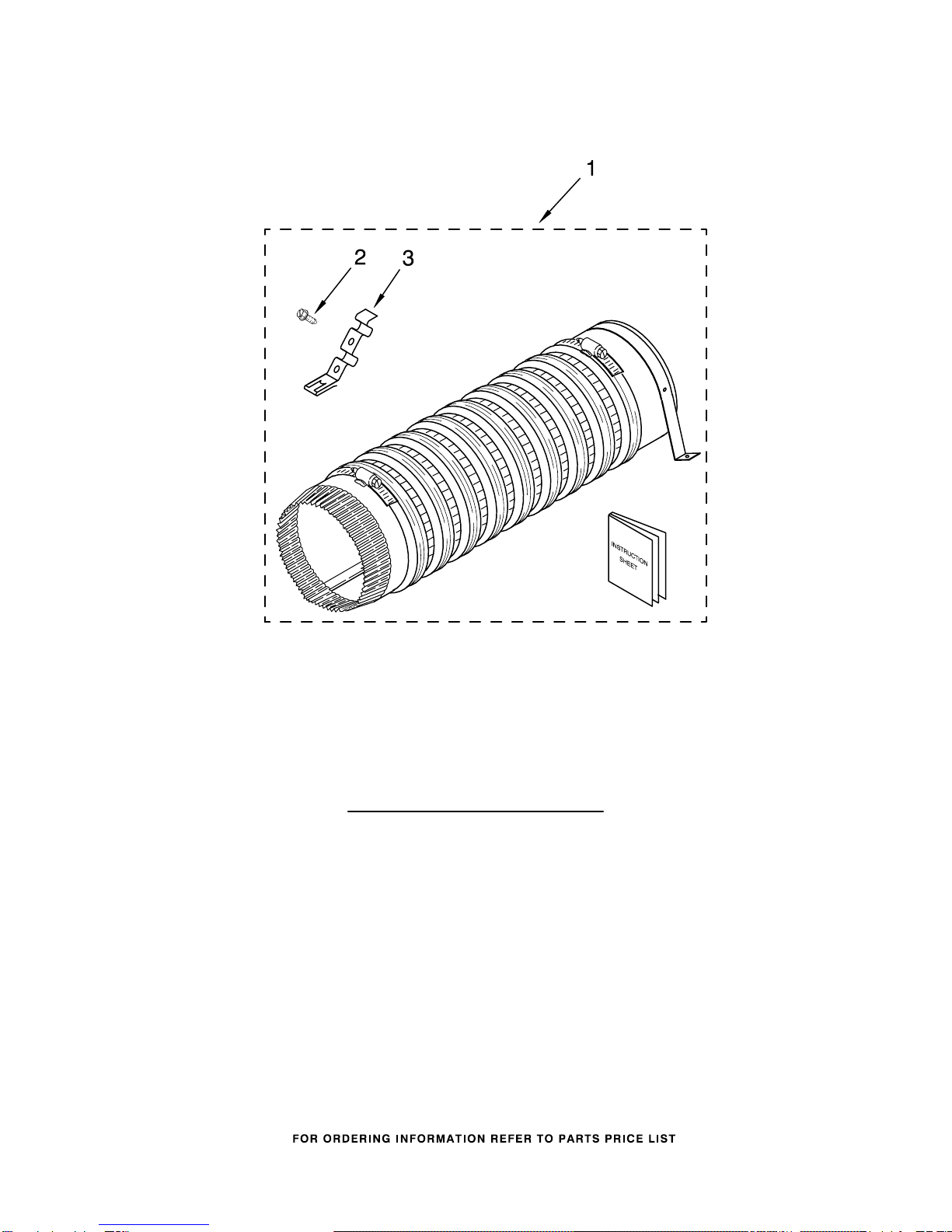

PRODUCT ACCESSORY PARTS
17
W10116534
Illus. Part
No. No. DESCRIPTION
1 279823 Side Exhaust
Extension Kit
(Complete)
2 488729 Screw, 8−18 x 1/2
3 3395536 Clip
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

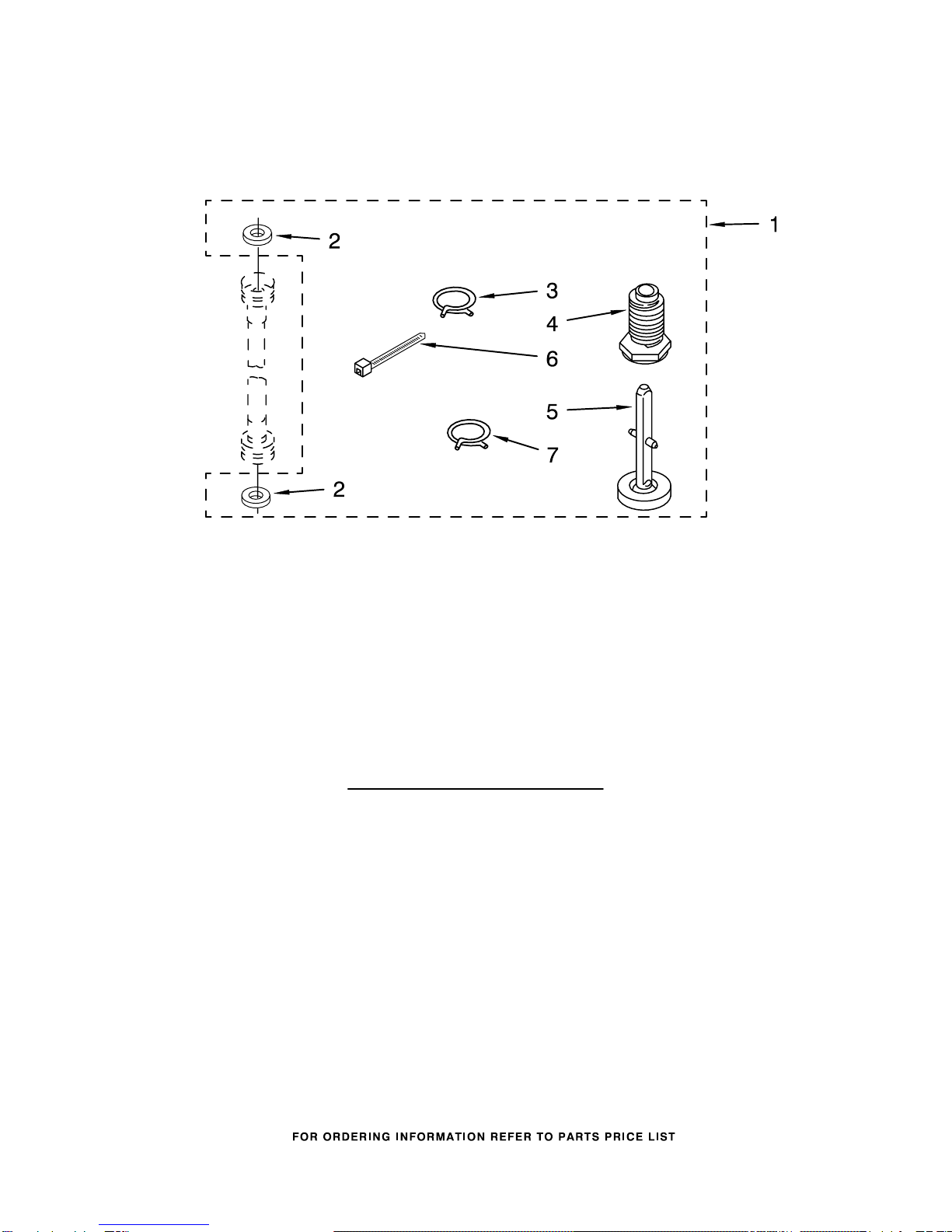

MISCELLANEOUS PARTS
18 W10116534
Illus. Part
No. No. DESCRIPTION
1 3359934 Miscellaneous
Parts Bag
2 16123 Washer, Inlet
Hose (4)
3 370445 Clamp, Hose
4 367594 Foot, Front (2)
5 358594 Foot, Rear (2)
6 3347869 Tie, Cable
7 3357331 Clamp, Hose
(Upper Drain)
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)

OPTIONAL PARTS (NOT INCLUDED)
19
W10116534
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
4392901 Biscuit
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
ACCESSORY PARTS
685463 Kit, Grounding
Plug, Dryer
Side Panel
692790 White
3977784 Biscuit
OIL
350572 Oil, Gearcase
(16 Oz.)
LUBRICANT
285208 Lubricant (Use
Only in Brake
Shoe Assembly
On Roller and
Pin)
SEALER
285195 Sealer, Gasket
(.20 Fl. Oz.)
(6 ml)
For Models: LTE5243DQ7, LTE5243DT7
(Designer White) (Biscuit)
