WASHER/DRYER CONTROL PANEL PARTS
1
WASHER/DRYER
LAUNDRY SYSTEM
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
10−00 Litho in U.S.A. (djc) Part No. 4320101 Rev. A
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT3405971 Installation
Instructions
LIT3401098 Use & Care Guide
LIT3952875 Wiring Diagram
LIT3954147 Energy Guide
2 3406288 Harness, Console
Wiring (Automatic)
(Includes Illus.
2A, 2B & 2C)
2A 3350130 Plug, Terminal
(2−Way)
(Connects With
Main Dryer
Harness)
2B 696073 Receptacle,
Connector
(Connects With
Lower Automatic
Harness)
2C 3948614 Disconnect Block
(Connects With
Automatic Timer)
5 3952499 Timer, Control
(60 Hz.)
(Automatic Washer)
6 8054285 Bracket, Control
7 692993 End Cap, Console
(L.H. & R.H.)
8 348689 Screw, 8−18 x 3/4
9 694091 Screw, 8−18 x 3/8
10 3362987 Switch, Water Level
12 8054142 Switch, Water
Temperature
13 693711 Sleeve, Console
Lock Screw (2)
14 693151 Spring, Console
Lock (2)
15 3400860 Screw, Console
Lock (2)
16 3406720 Timer, Control
(60 Hz.) (Dryer)
(Timer Motor
Not Serviceable)
18 3395382 Switch,
Push−To−Start
19 693152 Bumper, Console (5)
20 96435 Screw, Timer
Mounting (2)
21 694037 Clip, Console
22 3390646 Screw, Dryer
Timer Mounting (2)
(8−18 x 5/16)
23 Panel, Control
3977194 White
3977193 Almond
3977195 Biscuit
24 Knob, Timer
(Dryer)
3406143 White
3406144 Almond
3978872 Biscuit
25 Knob,
Push−To−Start
3406133 White
3406134 Almond
3978871 Biscuit
27 Knob, Control (2)
3950759 White
3950760 Almond
3978873 Biscuit
28 Dial, Timer
(Washer)
3950762 White
3950763 Almond
3978870 Biscuit
29 Knob, Timer
(Washer)
3951026 White
3951027 Almond
3978869 Biscuit
31 692983 Lock, Console (2)
32 694419 Buzzer

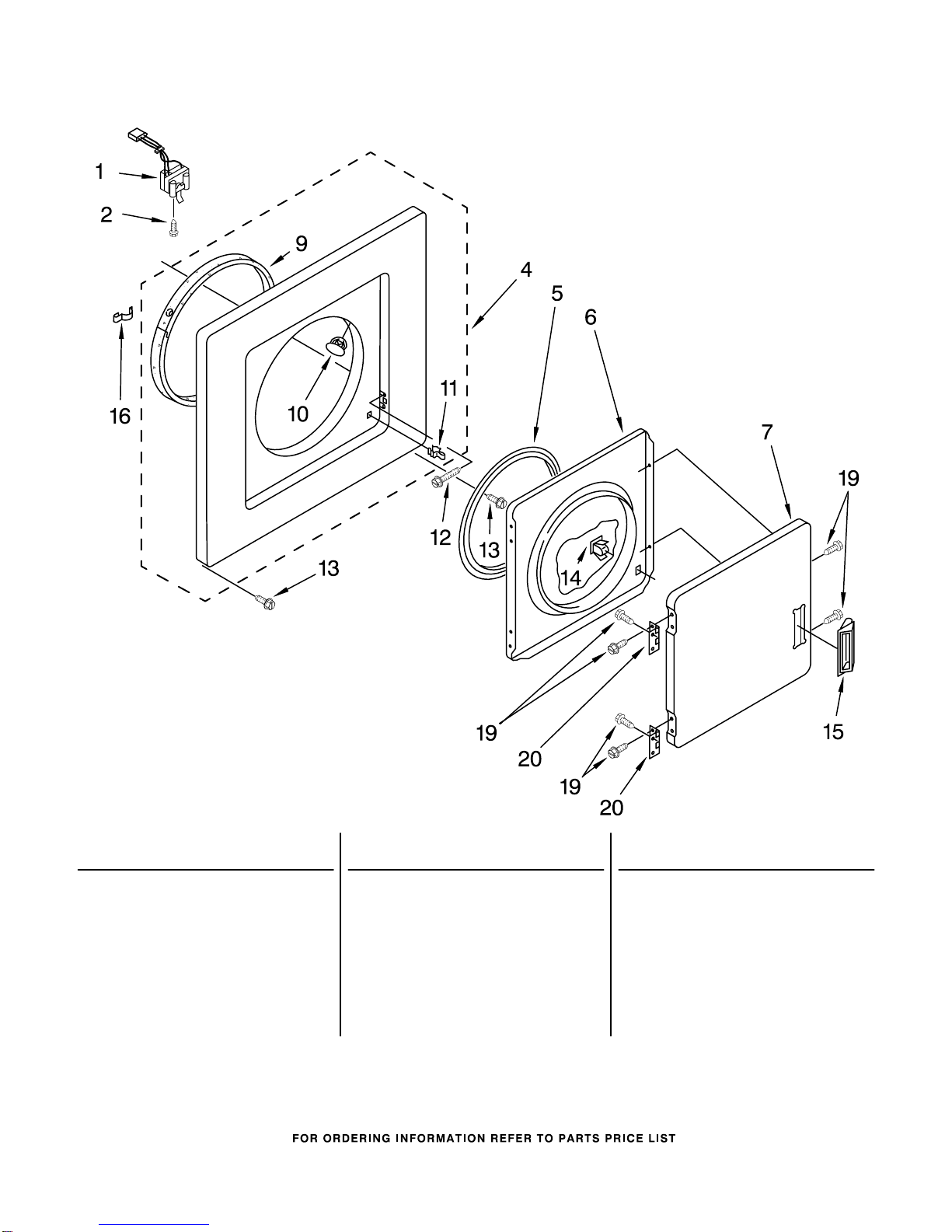

DRYER FRONT PANEL AND DOOR PARTS
24320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 3406108 Door Switch
2 697773 Screw, 6−20 x 7/8
4 Panel, Front
692619 White
692620 Almond
3978587 Biscuit
5 3390734 Seal, Door
6 695656 Door, Rear
7 Door, Front
348205 White
689314 Almond
3978598 Biscuit
9 349462 Bearing & Seal
10 685203 Clip, Felt
Pad (2)
11 696144 Strike, Panel
12 3390663 Screw, 10−16 x 1/2
13 343641 Screw, 10−16 x 1/2
14 3389441 Catch, Door
15 Handle, Door
686711 White
689308 Almond
3978592 Biscuit
16 692846 Support Protector
19 694091 Screw, 8−18 x 3/8
20 348023 Hinge & Pin,
Door (2)

DRYER CABINET AND MOTOR PARTS
3
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)

DRYER CABINET AND MOTOR PARTS
44320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 660658 Clamp, Motor
Mounting (2)
2 8066068 Motor, Main Drive
(60 Hz.)
3 3405028 Clip
5 696541 Bracket, Motor
6 3390405 Panel, Rear
7 343641 Screw, 10−16 x 1/2
8 3394228 Cover, Terminal
Block
10 Panel, Side (L.H.)
3402293 White
3402294 Almond
3978589 Biscuit
14 3399602 Elbow, Upper
15 3394083 Clip, Front
Panel (2)
16 98234 Clip, Ground
17 3399603 Elbow, Lower
20 8066064 Belt, Drive
21 8066051 Pulley, Motor
(60 Hz.)
22 3394332 Idler & Slide
Assembly
23 692771 Nut, Idler
Bracket To Base
24 3399633 Base, Dryer
25 692400 Nut, Push−In
26 692926 Cove, Transition
Panel (Black)
27 Panel, Transition
692933 White
692934 Almond
3978591 Biscuit
28 692641 Top, Dryer
29 Panel, Side (R.H.)
3402287 White
3402288 Almond
3978590 Biscuit
30 693145 Latch, Lid
31 Closure, Control
Area
692781 White
692782 Almond
3978599 Biscuit
32 354975 Screw & Washer (3)
(Lid Latch
Mounting)
33 693304 Screw & Washer (2)
(Transition Panel
To Closure)
34 697776 Screw, Ground
(10−32 x 5/8)
35 3390631 Screw, 10−16 x 3/8
36 661606 Capacitor, Motor
Start (Automatic
Washer)
37 357030 Clamp, Capacitor
38 343641 Screw, Capacitor
Mounting
41 686770 Edge, Protector
44 90296 Clip

DRYER BULKHEAD PARTS
5
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)

DRYER BULKHEAD PARTS
64320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 343641 Screw, 10−16 x 1/2
2 3395396 Clip, Air Duct
To Bulkhead
3 696529 Air Duct & Cover
5 3398128 Thermostat,
Internal Bias
8 3403140 Thermostat,
Heater Box
205 F (96C)
9 489463 Screw, 8−18 x 5/8
10 3398161 Clip, Heater Box
To Bulkhead
11 697269 Heater Box
13 339956 Seal, Air Duct
To Bulkhead
14 696426 Wheel, Blower
16 8066094 Seal, Fan
Scroll
17 696418 Fan Scroll
21 3399507 Shaft, Drum
Roller (R.H.)
22 695943 Drum, Dryer
23 3394508 Ring, Bearing
24 685207 Baffle, Drum (3)
25 97787 Screw, 11−16 x 7/8
26 345648 Seal, Drum Rear
27 697540 Bulkhead
28 348399 Lint Screen
29 685273 Cover, Lint
Screen Outlet
30 690997 Tri−Ring (4)
31 3399506 Shaft, Drum
Roller (L.H.)
32 3397588 Roller, Support (2)
33 348197 Washer, Support (4)
34 3359452 Nut, 3/8−16 (2)
35 3390631 Screw, 10−16 x 3/8
36 3396657 Harness, Main
Dryer Wiring
(Includes Illus.
36A, 36B, 36C,
36D & 36E)
36A 717252 Receptacle,
Terminal (2−Way)
(Connects With
Door Switch
Harness)
36B 697780 Receptacle,
(Gas Valve)
36D 3395683 Receptacle,
Multi−Terminal
(Connects With
Dryer Motor)
37 693141 Clip, Wiring
Harness (3)
38 694018 Cord, Power
38a 694415 Strain Relief,
Power Cord
40 3388703 Washer, Support
41 279393 Screw Kit
(For Terminal
Block)
42 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 41)
43 697776 Screw, 10−32 x 1/2
44 3390647 Screw, 8−18 x 1/2
46 90767 Screw, 8−18 X 3/8
47 3392519 Fuse, Thermal
48 359702 Cap, Screw
49 255563 Clip, Strain
Relief
51 8066086 Drum, Hole Plug
52 345335 Cover, Manifold
53 347455 Support,
Heater Box
54 3387208 Support,
Corner Gas
55 697571 Guard, Sock
56 3402856 Burner
(Refer to page 19
For Complete
Breakdown)

DRYER SUPPORT AND WASHER PARTS
7
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 694304 Cover, Channel
2 692647 Support,
Dryer (L.H.)
3 343641 Screw, 10−16 x 1/2
4 3400000 Screw,
10−24 x 3/8 (8)
(Washer Cabinet
To Dryer Supports)
5 692646 Support,
Dryer (R.H.)
6 3954108 Harness, Lower
(Automatic)
(Includes Illus.
6A, 6B & 6C)
6A 696074 Plug, Terminal
(12−Way)
(Connects With
Automatic Console
Harness)
6B 62889 Plug, Terminal
(3−Way)
(Connects With
Automatic Lid
Switch Harness)
6C 62505 Block, Disconnect
(Connects With
Automatic Washer
Motor)
7 3347812 Clip, Wiring
Harness (4)
8 8066080 Hose, Pressure
Switch
11 90016 Clip, Pressure
Switch Hose (2)
12 693141 Clip, Harness

WASHER TOP AND LID PARTS
84320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
3 Lid
3398843 White
3398844 Almond
3398847 Biscuit
4 384475 Bumper, Lid (2)
5 384458 Hinge, Lid (L.H.)
7 3351355 Screw, Lid
Hinge Mounting (4)
9 692985 Clip, Spring (2)
(Top To Cabinet)
12 Top
384693 White
384694 Almond
3978593 Biscuit
13 19119 Bumper, Lid
Hinge (2)
14 21258 Bearing, Lid
Hinge (2)
15 3356311 Screw & Washer,
Lid Switch
Shield (2)
16 358684 Strike, Lid
Switch
17 384459 Hinge, Lid (R.H.)
18 3400030 Screw, 10−24 x 1/2
20 3400901 Nut, Ground
Screw
22 3355806 Switch, Lid
23 90016 Clip, Harness
Routing

WASHER CABINET PARTS
9
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)

WASHER CABINET PARTS
10 4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 356746 Clip, Condenser
2 343641 Screw, 10−16 x 1/2
3 62863 Screw, Mixing
Valve Mounting
5 3360389 Valve, Water
Mixing
6 370451 Clamp, Hose
7 692699 Hose, Water Inlet
(Siphon Break To
Mixing Valve)
8 Cabinet
696013 White
696014 Almond
3978594 Biscuit
9 3390046 Protector, Edge
10 696710 Hose, Drain
11 692400 Nut, Push−In (2)
12 660975 Plug, Top To
Cabinet
13 356739 Connector, Hose
14 370445 Clamp, Hose
15 356471 Cap, Siphon Break
16 356363 Siphon Break
17 272861 Clamp, Hose
18 696394 Hose, Water Inlet
(Siphon Break To
Tub Ring)
19 367594 Foot, Front (2)
20 358594 Foot, Rear (2)
22 3394083 Clip, Front Panel
23 358652 Link, Leveling
24 359364 Clip, Leveling
Mechanism (2)
25 98234 Clip, Ground
26 345670 Lock, Top (2)
27 Panel, Front
692628 White
692629 Almond
3978596 Biscuit
31 3350013 Foam (2)
32 64247 Screw, 10−16 x 1/2

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
11
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 387948 Brake And
Drive Tube
(Complete)
(Refer To Page
16 For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3951312 Clutch (Complete)
6 3951308 Band and Lining
(Includes Illus.
7 & 8)
7 3946846 Spring & Damper
Assembly
8 62646 Cap, Clutch
Spring (2)
9 3360630 Gearcase
(Complete)(Refer
To Page 15 For
Further
Breakdown)
10 3357334 Screw,
(Gearcase To
Tub Support)
11 62611 Plate, Motor
Mount To
Gearcase
13 3364003 Coupling, Motor
& Isolating
14 661600 Motor,
Main Drive
15 3355454 Clip
(Anti−Rattle)
16 3946532 Plate, Motor
18 3363394 Pump, Complete
19 62700 Retainer, Pump
20 62850 Switch, Main
Drive Motor
21 62691 Grommet,
Motor (4)
22 3349637 Retainer,
Motor (2)
24 3387485 Screw, 10−16 x 5/8

MACHINE BASE PARTS
12 4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 285203 Centerpost
Bearing Kit
(Incls. Illus.
10, 11, & 12)
3 64137 Shield, Tub
4 388492 Spring,
Counterweight
5 3406201 Suspension
Assembly (3)
6 63755 Base
10 356934 Seal, Centerpost
11 3347047 Bearing,
Centerpost (2)
12 357409 Seal, Centerpost
13 63134 Ring, Sound
Deadening
14 343641 Screw, 10−16 x 1/2
15 63636 Bracket,
Counterweight
Spring
17 63637 Shield, Tub
18 3351021 Nut,
1/2 − 13 (1)
19 63740 Tub Support
and Drum
22 90767 Screw, 8−18 x 3/8
23 386011 Screw & Washer
(Base To Cabinet)
24 696044 Block, Restraint

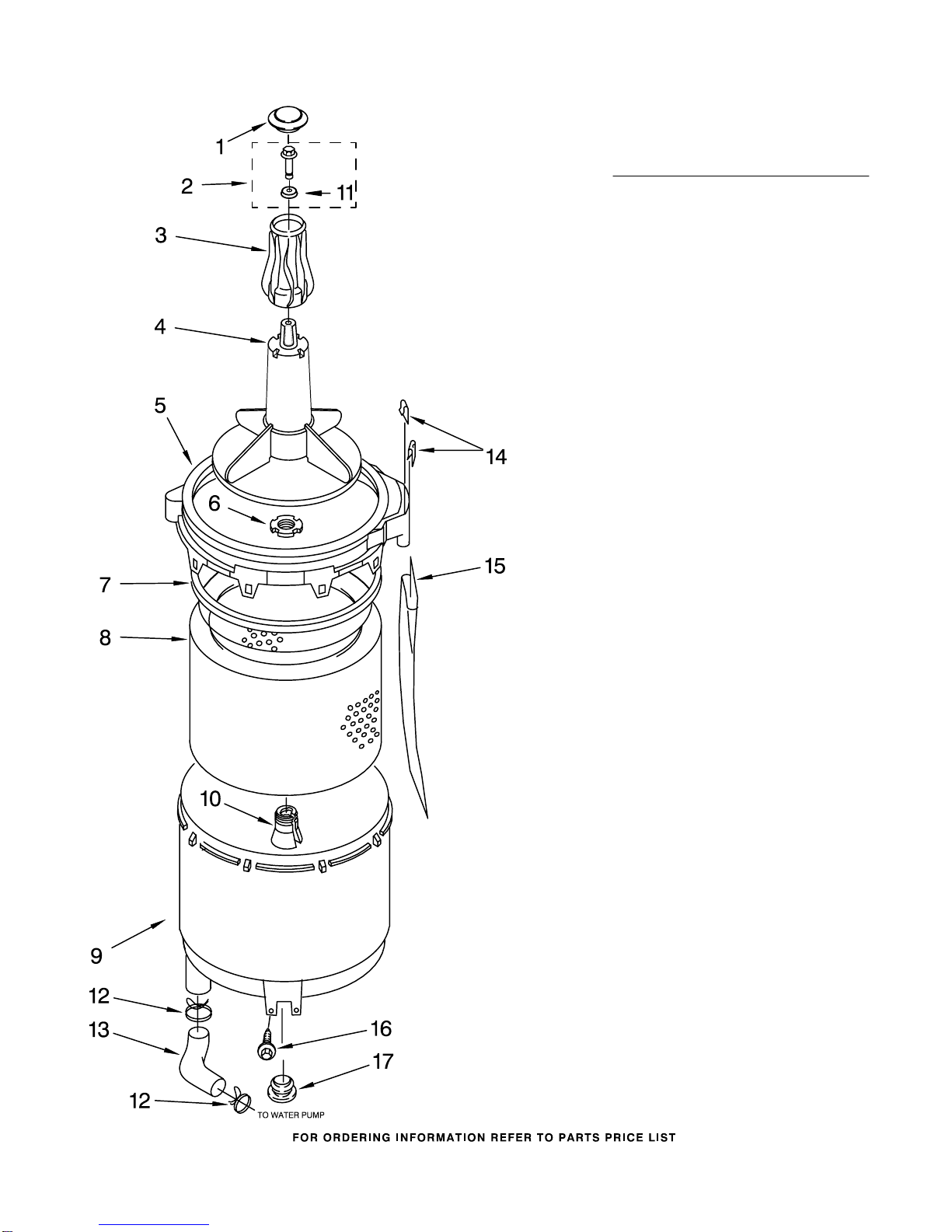

TUB AND BASKET PARTS
13
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 3355758 Cap,
Agitator
2 358237 Screw & Washer
(5/16−24 x 1)
3 63840 Filter, Agitator
4 3349098 Agitator
5 64175 Tub Ring &
Gasket (Includes
Illus. 7, 14 & 15)
6 21366 Nut, Spanner
7 3359587 Gasket,
Tub Ring
8 3351985 Basket
9 8066081 Tub
10 389140 Block,
Basket Drive
11 3949550 Washer
12 371502 Clamp, Hose
13 386929 Hose, Tub
To Pump
14 352155 Clip, Retaining
15 356398 Tube,
Drain Off
16 357640 Screw & Washer
(Tub Mounting)
17 383727 Gasket,
Centerpost

Illus. Part
No. No. DESCRIPTION
WASHER WATER SYSTEM PARTS
1 285321 Sleeve Kit,
Plastic Drain
Hose (Contains
2 Sleeves)
2 65349 Clamp, Hose (2)
3 16272 Connector,
Straight
4 285320 Siphon Break
Kit
(Not Included)
5 661575 Hose, Corrugated
Plastic Drain
(4 Ft.)
661577 Hose, Corrugated
Plastic Drain
(9 Ft.)
(Not Included)
6 3357027 Nozzle, Drain
Hose
9 3357331 Clamp, Hose
10 356739 Connector, Hose
11 3354858 Hose, Inlet (2)
12 285442 Connector Kit,
Plastic Drain
Hose
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
14 4320101

GEARCASE PARTS
Illus. Part
No. No. DESCRIPTION
GC−215C
1 3360630 Gearcase
(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase
Cover
4 285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin
(Includes Illus. 25)
6 356427 Seal, Spin
Pinion
7 389387 Shaft, Agitator
(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring
10 62676 Spring, Agitate
11 63273 Gear, Agitate
(Includes 15 and 29)
12 62619 Washer, Agitate
Gear
13 62580 Cam Follower
(Includes 14)
14 62581 Cam, Agitate
(Includes 13)
15 285509 Shaft, Agitator
(Includes 11 and 29)
16 62618 Washer, Cam Thrust
17 16018 Bearing, Thrust
18 85529 Ball, Bearing
19 389230 Bottom and Pinion,
Gearcase
21 285352 Seal, Thrust Plug
22 3351614 Screw, Gearcase
Cover, Mounting (8)
(10−24 x 3/8)
23 3362552 Ring, Retaining
24 285735 Washer Kit,
Thrust
25 62570 Gear, Spin
26 388253 Neutral Assembly
27 3349296 Rack, Connecting
28 62621 Actuator, Shift
29 388815 Washer,
Intermediate
15
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)

Illus. Part
No. No. DESCRIPTION
BRAKE AND DRIVE TUBE PARTS
BD−313B
1 387948 Brake And
Drive Tube
(Complete)
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 356427 Seal, Drive Tube
5 356937 Spacer,
Drive Tube
6 64027 Tube,
Basket Drive
(Includes Illus.
3, 4, 5 & 9)
7 64035 Ring, Retaining
8 64232 Brake Shoe
9 62703 "T" Bearing,
Spin Tube
10 62648 Cap, Brake
Spring (2)
11 63748 Spring, Brake
12 62909 Sleeve, Brake
Spring
13 661516 Cam, Brake
Release
63023 (Alt.)
3348288 (Alt.)
14 63022 Sleeve, Cam
15 64194 Driver, Brake
Cam
16 90368 Ring, Retaining
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
16 4320101

SALES ACCESSORY PARTS
17
4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 279823 Side Exhaust
Extension Kit
(Complete)
2 488729 Screw
3 3395536 Clip

MISCELLANEOUS PARTS
18 4320101
OPTIONAL PARTS (NOT INCLUDED)
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 3359934 Miscellaneous
Parts Bag
2 16123 Washer, Inlet
Hose (4)
3 370445 Clamp, Hose
4 367594 Foot, Front (2)
5 358594 Foot, Rear (2)
6 3347869 Tie, Cable
7 3357331 Clamp, Hose
(Upper Drain)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
4392899 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
350956 Almond
4392901 Biscuit
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
4392900 Biscuit (Uncut)
ACCESSORY PARTS
Plug, Dryer
Side Panel
692790 White
692791 Almond
3977784 Biscuit
OIL
350572 Oil, Gearcase
(16 Oz.)
LUBRICANT
285208 Lubricant (Use
Only in Brake
Shoe Assembly
On Roller and
Pin)
SEALER
285195 Sealer, Gasket
(.20 Fl. Oz.)
(6 ml)

Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED
AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES
3402856 BURNER ASSEMBLY
1 3402856 Burner Assembly
60 Hz.
2 697408 Base, Burner
3 3401777 Valve, 60 Hz.
4 Orifice
234822 Natural Gas
347743 L.P. Gas
5 3401849 Harness
6 694539 Coil, 60 Hz.
(Split)
7 694540 Coil, 60 Hz.
8 694424 Leak Limiter
9 694421 Screw,
8−32
10 694538 Bracket, Shunt
11 694422 Spring, Regulator
12 239822 Pipe, Plug
13 694423 Screw
15 3392268 Burner
16 3387057 Screw, 8−18 X 3/8
17 686590 Ignitor
18 3393909 Screw and Washer
8−32 x 1
20 697409 Bracket, Sensor
21 338906 Sensor, Radiant
22 3406051
23 3388638 Nipple, Short
24 3391118 Supply Line
(Gas)
25 233076 Nut
26 3393767 Pipe
Following Parts Not Illustrated
49573 Conversion Kit
(Type 1, 2 & 3)
to Type (4) L.P.G.
Elbow Union Assembly
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
19
4320101
