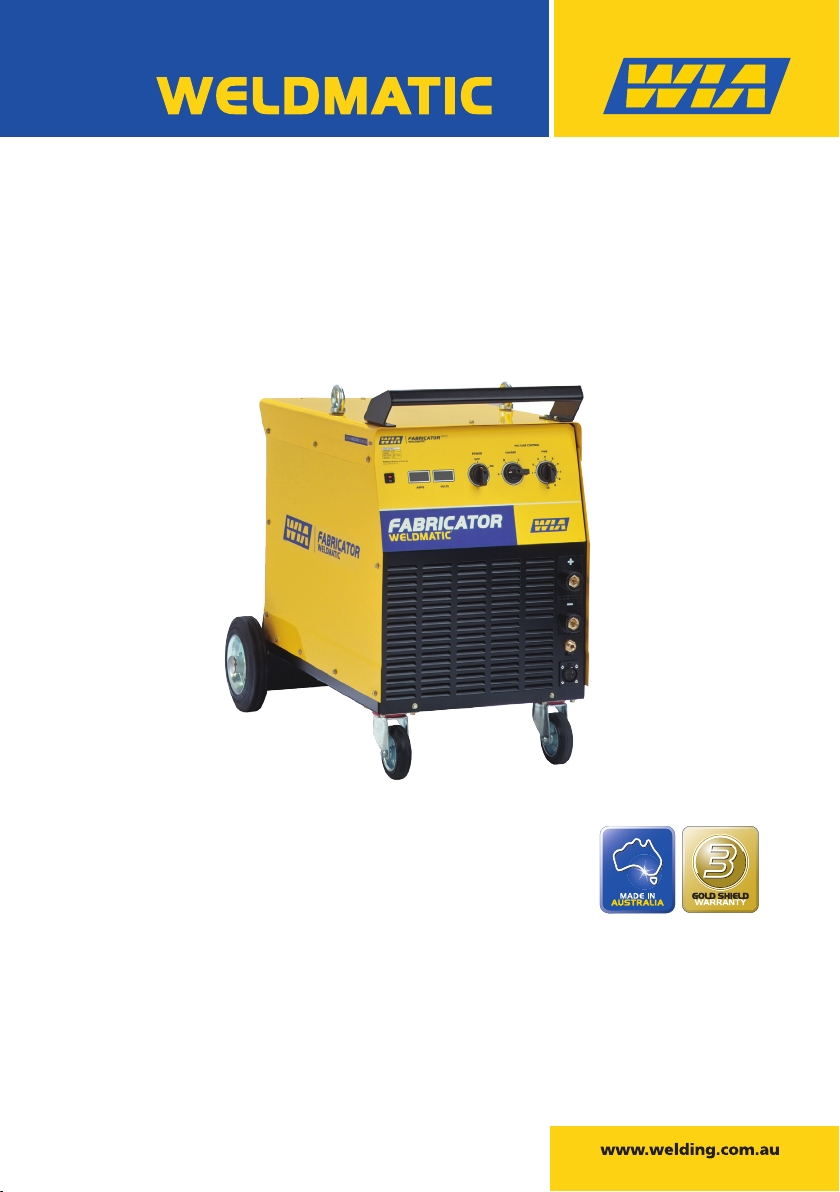

WIA Weldmatic CP127-2 User manual

®
CP127-40 Rev A
Weldmatic Fabricator
[external wirefeeder]
Operators Manual
Weldmatic Fabricator MIG welder
Model No. CP127-2, Iss A
06/08

Quality •Reliability •Performance
Welding Industries of Australia
An ITW Company
ABN 18 004 547 111
Telephone: [phone]
Facsimile: 1300 301 884
Email: [email protected]
www.welding.com.au
Quality •Reliability •Performance

Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 1
Quality •Reliability •Performance
Contents
Section General Information Page
Safe Practices 2
1 Introduction 5
2 Receiving 5
3 Specifications 6
4 Controls 7
5 Installation 8
6 Normal Welding Sequence 10
7 Basic Welding Information 10
8 General Maintenance 12
9 External Trouble Shooting 13
10 Circuit Diagram 15
11 Assembly and Parts Lists 16
12 Warranty information 18
Quality •Reliability •Performance

2
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
Safe Practices When Using
Welding Equipment
These notes are provided in the interests
of improving operator safety. They should
be considered only as a basic guide to Safe
Working Habits. A full list of Standards
pertaining to industry is available from
the Standards Association of Australia,
also various State Electricity Authorities,
Departments of Labour and Industry or
Mines Department and other Local Health
or Safety Inspection Authorities may have
additional requirements. Australian Standard
AS1674.2 provides a comprehensive guide to
safe practices in welding.
Eye Protection
NEVER LOOK AT AN ARC WITHOUT
PROTECTION. Wear a helmet with
safety goggles or glasses with side shields
underneath, with appropriate filter lenses
protected by clear cover lens. This is a MUST
for welding, cutting, and chipping to protect
the eyes from radiant energy and flying
metal. Replace the cover lens when broken,
pitted, or spattered.
Recommended Shade Filter Lens
Amps TIG MMAW MIG
Pulsed
MIG
0-100 10 9 10 12-13
100-150 11 10 10 12-13
150-200 12 10-11 11-12 12-13
200-300 13 11 12-13 12-13
300-400 14 12 13 14
400-500 — 13 14 14
500 + — — 14 14
Read first
The information contained in this
manual is set out to enable you to
properly maintain your new equipment
and ensure that you obtain maximum
operating efficiency.
Please ensure that this information is
kept in a safe place for ready reference
when required at any future time.
When ordering spare parts, please
quote the model and serial number of
the wirefeeder and part number of the
item required. All relevant numbers are
shown in lists contained in this manual.
Failure to supply this information
may result in unnecessary delays in
supplying the correct parts.
Safety
Before this equipment is put into
operation, please read the Safe
Practices section of this manual.
This will help to avoid possible
injury due to misuse or improper
welding applications.
Handle on Power Source
Please note that the handle fitted to
the Weldmatic Fabricator power source
is intended for carrying the equipment
by hand only.
DO NOT use this handle for
suspending or mounting the power
source in any other manner.

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 3
Quality •Reliability •Performance
Burn Protection
The welding arc is intense and visibly bright.
Its radiation can damage eyes, penetrate
light-weight clothing, reflect from light-
coloured surfaces, and burn the skin and
eyes. Burns resulting from gas-shielded arcs
resemble acute sunburn, but can be more
severe and painful.
Wear protective clothing - leather or heat
resistant gloves, hat, and safety-toe boots.
Button shirt collar and pocket flaps, and
wear cuffless trousers to avoid entry of sparks
and slag.
Avoid oily or greasy clothing. A spark may
ignite them. Hot metal such as electrode
stubs and work pieces should never be
handled without gloves.
Ear plugs should be worn when welding in
overhead positions or in a confined space.
A hard hat should be worn when others are
working overhead.
Flammable hair preparations should not be
used by persons intending to weld or cut.
Toxic Fumes
Adequate ventilation with air is essential.
Severe discomfort, illness or death can
result from fumes, vapours, heat, or oxygen
depletion that welding or cutting may
produce. NEVER ventilate with oxygen.
Lead, cadmium, zinc, mercury, and beryllium
bearing and similar materials when welded
or cut may produce harmful concentrations
of toxic fumes. Adequate local exhaust
ventilation must be used, or each person in
the area as well as the operator must wear
an air-supplied respirator. For beryllium, both
must be used.
Metals coated with or containing materials
that emit fumes should not be heated unless
coating is removed from the work surface,
the area is well ventilated, or the operator
wears an air-supplied respirator.
Work in a confined space only while it is
being ventilated and, if necessary, while
wearing air-supplied respirator.
Vapours from chlorinated solvents can be
decomposed by the heat of the arc (or
flame) to form phosgene, a highly toxic
gas, and lung and eye irritating products.
The ultra-violet (radiant) energy of the arc
can also decompose trichlorethylene and
perchlorethylene vapours to form phosgene.
Do not weld or cut where solvent vapours
can be drawn into the welding or cutting
atmosphere or where the radiant energy
can penetrate to atmospheres containing
even minute amounts of trichlorethylene or
percholorethylene.
Fire and Explosion Prevention
Be aware that flying sparks or falling slag can
pass through cracks, along pipes, through
windows or doors, and through wall or floor
openings, out of sight of the operator. Sparks
and slag can travel up to 10 metres from the arc.
Keep equipment clean and operable, free of
oil, grease, and (in electrical parts) of metallic
particles that can cause short circuits.
If combustibles are present in the work
area, do NOT weld or cut. Move the work if
practicable, to an area free of combustibles.
Avoid paint spray rooms, dip tanks, storage
areas, ventilators. If the work can not be
moved, move combustibles at least 10
metres away out of reach of sparks and heat;
or protect against ignition with suitable and
snug-fitting fire-resistant covers or shields.
Walls touching combustibles on opposite
sides should not be welded on or cut. Walls,
ceilings, and floor near work should be
protected by heat-resistant covers or shields.

4
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
A person acting as Fire Watcher must be
standing by with suitable fire extinguishing
equipment during and for some time after
welding or cutting if;
• Combustibles(includingbuilding
construction) are within 10 metres.
• Combustiblesarefurtherthan10metres
but can be ignited by sparks.
• Openings(concealedorvisible)inoors
or walls within 10 metres may expose
combustibles to sparks.
• Combustiblesadjacenttowalls,ceilings,
roofs, or metal partitions can be ignited
by radiant or conducted heat.
After work is done, check that area is free of
sparks, glowing embers, and flames.
A tank or drum which has contained
combustibles can produce flammable
vapours when heated. Such a container must
never be welded on or cut, unless it has first
been cleaned as described in AS.1674-2.
This includes a thorough steam or caustic
cleaning (or a solvent or water washing,
depending on the combustible’s solubility),
followed by purging and inerting with nitrogen
or carbon dioxide, and using protective
equipment as recommended in AS.1674-2.
Water-llingjustbelowworkinglevelmay
substitute for inerting.
Hollow castings or containers must be
vented before welding or cutting. They can
explode. Never weld or cut where the air
may contain flammable dust, gas, or liquid
vapours.
Shock Prevention
Exposed conductors or other bare metal
in the welding circuit, or ungrounded
electrically alive equipment can fatally shock
a person whose body becomes a conductor.
Ensure that the equipment is correctly
connected and earthed. If unsure have the
equipment installed by a qualified electrician.
On mobile or portable equipment, regularly
inspect condition of trailing power leads and
connecting plugs. Repair or replace damaged
leads.
Fully insulated electrode holders should be
used. Do not use holders with protruding
screws. Fully insulated lock-type connectors
shouldbeusedtojoinweldingcablelengths.
Terminals and other exposed parts of
electrical units should have insulated knobs
or covers secured before operation.
If the supply cable is damaged
it must be replaced by the
manufacturer, their service agent
or a similarly qualified person.

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 5
Quality •Reliability •Performance
1 Introduction
Gas Metal Arc Welding (G.M.A.W.) is an arc
welding process where a consumable wire is
fed by motor driven feed rolls to a welding
gun, and where welding current is supplied
from the welding power source. The welding
arc is struck between the work piece and
the end of the wire, which melts into the
weld pool. The arc and the weld pool are
both shielded by gas flow from the gun, or
in the case of “self shielded” wires, by gases
generated by the wire core.
The process is very versatile in that by
selection of the correct wire composition,
diameter and shielding gas, it can be used
for applications ranging from sheet-metal to
heavy plate, and metals ranging from carbon
steel to aluminium alloys.
The Weldmatic Fabricator has been designed
to be used with consumable wires in the
range from 0.6mm to 1.2mm diameter. The
smaller wire sizes are used when welding
at lower currents, such as sheet-metal
applications. Increasing the wire diameter
permits higher welding currents to be
selected.
A common application of G.M.A.W. is for
welding Mild Steel. In this application, a
Mild Steel solid consumable wire such as
AUSTMIG ES6 is used with a shielding gas
of Carbon Dioxide, or Argon mixed with
Carbon Dioxide. Alternatively, Flux-cored
consumable wires are available in both gas
shielded, and ‘gasless’ self shielding types.
Stainless steel and Aluminium can be welded
with G.M.A.W. using the correct consumable
wire and shielding gas.
2 Receiving
Check the equipment received against the
shipping invoice to make sure the shipment
is complete and undamaged. If any damage
has occurred in transit, please immediately
notify your supplier.
The Weldmatic Fabricator Power Source
package contains;
• WeldmaticFabricatorPowerSource
CP127-2
• (2)Eyebolts-12mm
• (This)OperatingManualCP127-40.

6
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
3 Specifications
Power Source
Manufactured to Australian Standard
AS60974-1.
Primary Voltage
415 Vac, 50 Hz
Rated Primary Current
21 Amps
Maximum Primary Current
30 Amps
Recommended Generator kVA
22 kVA
Rated Output @ 40oC
Duty cycle based on 10min cycle time
400 Amp, 35 V, 45% duty
270 Amp, 27.5 V, 100% duty
Welding Current
50 – 400 Amps
Open Circuit Voltage
18 – 48 V
Shipping weight
135 kg - Power source only
157 kg - Includes wirefeeder and leads
Mains Circuit Breaker Rating
25 Amps
Supply plug
20 Amp (415 V 3 phase) optional extra
Fitted Supply Cable
50/0.25 Four Core, Heavy Duty PVC
Cooling
Fan on demand, fan operates only as
required to cool internal components.
Insulation
Class H, 140°C Rise.
Wirefeeder Circuit Breaker Rating
5 Amps

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 7
Quality •Reliability •Performance
Fig 1 Power Source Controls
1 On/Off Control
This switch provides mains power ON/OFF
control.
2 Fine Voltage Control
ThisswitchprovidesFineadjustmentofthe
output welding voltage over ten steps.
3 Coarse Voltage Control
ThisswitchprovidesCoarseadjustment
of the output welding voltage over three
ranges.
4 Positive Welding Output Terminal
5 Negative Welding Output Terminal
6 Gas Outlet
Connector for shielding gas hose from
remote wirefeeder.
4 Power Source Controls
9
8
10
2
1
3
7 Wirefeeder Control Socket
Connector for control cable from remote
wirefeeder.
8 Ammeter
This meter displays actual welding current
during welding operation, and a stored
reading for 30 seconds after welding.
9 Circuit Breaker
This circuit breaker protects the 32 Vac
wirefeeder supply circuit.
10 Voltmeter
This meter displays actual welding voltage
during welding operation, and a stored
reading for 30 seconds after welding.
5
4
6
7

8
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
5 Installation
Connection to Electrical Mains Power
Supply
NOTE. All electrical work shall only be
undertaken by a qualified electrician.
The Weldmatic Fabricator is supplied with
a 5 metre 4 core 50/0.25 Heavy Duty PVC
mains power supply cable. This cable should
be correctly connected to a suitable 3 Phase
plug top or fixed connection point.
The minimum capacity of the mains wiring and
power outlet supplying a welder is selected
according to the effective primary current of
the machine. The effective primary current
for a Weldmatic Fabricator is 21 Amps.
The minimum recommended mains circuit
breaker rating for a Weldmatic Fabricator is
25 Amps.
Note: Due to normal variations of sensitivity,
the tripping time of some 25A circuit breakers
may limit the duty cycle available from the
Weldmatic Fabricator. A higher rated circuit
breaker can be selected, but the mains
wiring capacity must be increased to suit.
The current rating of the mains cable
depends on cable size and method of
installation. Refer to AS/NZS 3008.1, Table 9.
If it becomes necessary to replace the mains
flexible supply cable, use only cable with
correct current rating. Access to the supply
terminals is gained by removing the power
source side panels.
The replacement cable must be fitted and
retained in the same manner as the original.
Fig 2 Positive Wire
Output Voltage Polarity
The design of the Weldmatic Fabricator
allows selection of the output voltage
polarity.
Positive Wire
G.M.A.W. with solid consumable wires is
carried out with the work piece Negative and
the welding wire Positive.
To setup for this condition, connect the
‘WORK’ lead plug into the (-) output socket
on the Power Source, and the ‘WELDING’
lead from the wirefeeder into the (+) socket
on the Power Source, as in Figure 2.
To wirefeeder
To work clamp

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 9
Quality •Reliability •Performance
Fitting Eye Bolts
Remove 12mm transport bolts and replace
with supplied eye bolts and fibre washers.
Centralise the internal nut as the eye bolt is
tightened. Use a bar through the centre of
the eye bolts to tighten firmly.
Fitting the Gas Cylinder
Place the gas cylinder on the tray at the rear
of the welder. Retain the cylinder with the
chain provided.
Fit the gas regulator to the cylinder. DO NOT
applygreaseoroiltothesejoints.
Fit the end of the gas inlet hose from
the rear of the machine to the connector
supplied with the gas regulator, and secure
with the clamp also supplied.
Remote Wirefeeder
The remote wirefeeder is connected to the
Weldmatic Fabricator power source via the
composite cable interconnecting lead. Check
all connections are firmly made to ensure good
electrical contact, and to prevent gas leaks.
Fig 3 Negative Wire
Negative Wire
Some ‘self-shielded’ flux cored consumable
wires are operated with the work piece
Positive and the consumable wire Negative.
Refer to the manufacturers data for the
particular consumable wire to be used.
To setup for this condition, connect the
‘WORK’ lead plug into the (+) output socket
on the Power Source, and the ‘WELDING’
lead from the wirefeeder into the (-) socket
on the Power Source, as in Figure 3.
To wirefeeder
To work clamp

10
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
6 Normal Welding Sequence
Weld Start
Closing the welding gun switch initiates this
sequence of events:
• Thegasvalveisenergisedandgasow
commences and continues for any pre-gas
time set
• Thepowersourcecontactorfunction
is initiated. Welding voltage is applied
between the work piece and the
consumable wire
• Thewiredrivemotorisenergised
• Thewiretouchestheworkpiece,andthe
arc is established.
Weld End
Releasing the gun switch initiates this
sequence of events:
• Thewiredrivemotorisde-energised,and
is dynamically braked to a stop
• Afterashortpre-setperiod,knownas
the ‘burn-back’ time, the Power-source
contactor function is released. This period
ensures that the consumable wire does
not ‘freeze’ in the weld pool
• Atthecompletionofanypost-gastime
set, the gas valve is de-energised and the
flow of shielding gas ceases.
7 Basic Welding Information
Choice of Shielding Gas
The choice of shielding gas is largely
determined by the consumable wire to
be used. Many proprietary shielding gas
mixtures are available.
The recommended shielding gases for use
with the Weldmatic Fabricator are:
• MildSteel Argon+5to25%
Carbon Dioxide; 100% CO2
• Aluminium Argon;
• StainlessSteel Argon+1to2%Oxygen.
Consult your gas supplier if more specific
information is required.
Shielding Gas Flow Rate
In G.M.A. welding, one function of the
shielding gas is to protect the molten weld
pool from the effects of oxygen in the
atmosphere. Without this protection the
weld deposit becomes ‘honeycombed’ in
appearance, an effect which is described as
weld porosity.
In draft-free conditions the gas flow rate
required to give adequate protection is
typically 10-12 litres/min. In situations
where drafts cannot be avoided, it may
be necessary to increase this rate up to
20 litres/min, and/or to provide screening of
the work area.
Weld porosity can also be caused by air
entering the gas stream through a damaged
hose, loose gas connection, or from
restriction in the nozzle, such as from excess
build-up of spatter.
When welding aluminium, particular care
must be taken with all aspects of shielding
gas delivery and workpiece preparation in
order to avoid weld porosity.

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 11
Quality •Reliability •Performance
Establishing a Weld Setting
Once the consumable wire type, wire size
and shielding gas have been chosen, the two
variablesthatareadjustedinordertoobtain
a the desired weld setting are;
• Wirefeedspeed,
• Weldingarcvoltage.
The wirefeed speed determines the welding
current; increasing the speed increases the
current, and decreasing it decreases current.
The selected wirefeed speed must be
matched with sufficient arc voltage; a speed
increase requires an increase of arc voltage.
If the voltage is too low the wire will stub
and stutter, and there will not be a steady
arc. If the voltage is too high the arc will
be long with metal transfer occurring as a
series of large droplets.
Important: Do not operate the Voltage
Control switches during welding.
The weld setting should be chosen to suit
the application and the thickness of the
metal to be welded. It is important to check
that the deposited weld provides sufficient
strength to suit the application.

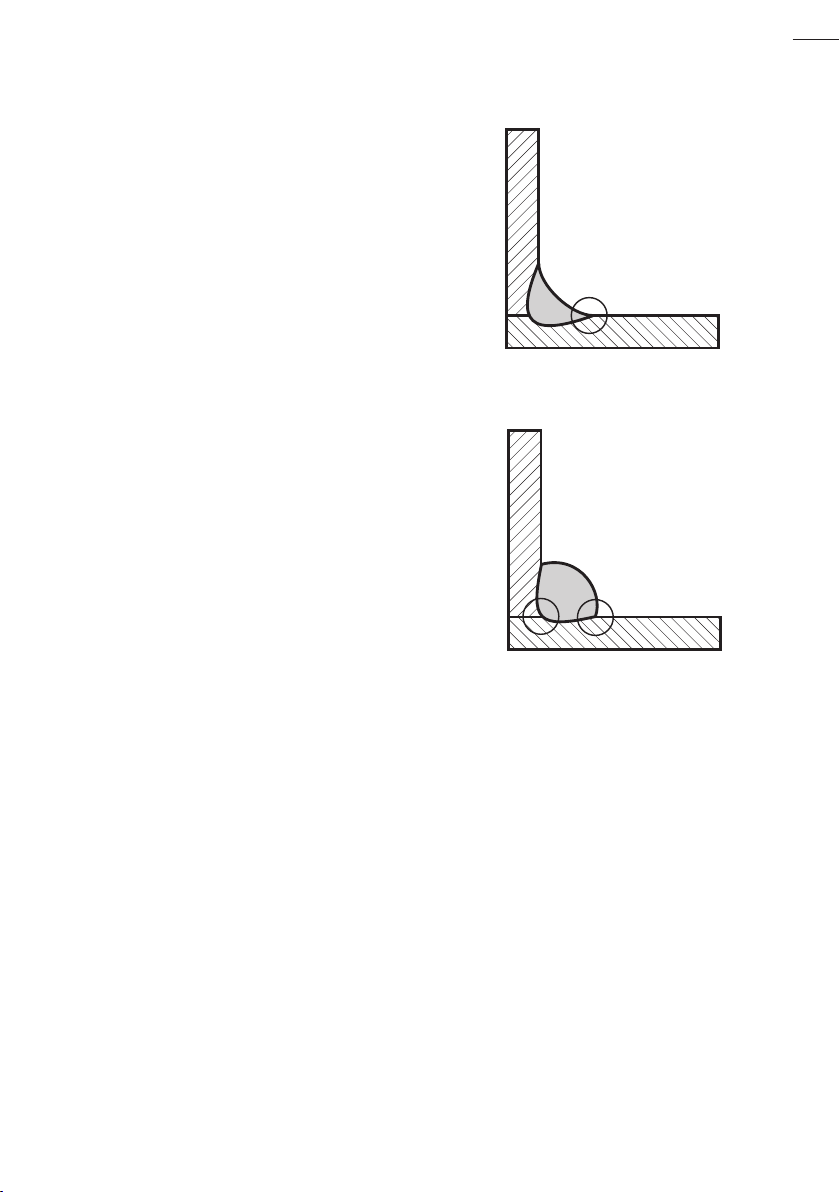

A “good” weld will have the characteristics
illustrated in Figure 4. The weld has penetrated
into the parent metal, fusing the root of the
jointwherethetwoplatesmeet,andthe
weld blends smoothly into the side walls.
A “bad” weld is shown in Figure 5. The weld
hasnotpenetratedthejointroot,andthere
is poor side wall fusion. This lack of fusion
would normally be corrected by increasing
the arc voltage, or by increasing both
wirefeed speed and arc voltage to achieve a
higher current weld setting.
Fig 5 “Bad” Weld
Fig 4 “Good” Weld

12
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
8 General Maintenance
Before removing the power
source covers, ENSURE that the
equipment is disconnected from
the mains power supply. When the
equipment is energised LETHAL
VOLTAGES are present on the
electrical components enclosed.
Dust
Care should be taken to prevent excessive
build-up of dust and dirt within the welding
power source. It is recommended that at
regular intervals, according to the prevailing
conditions, the equipment covers be removed
and any accumulated dust be removed by the
use of dry, low pressure compressed air, or a
vacuum cleaner.
Wirefeed
In order to obtain the most satisfactory
welding results from the G.M.A.W. process,
the wirefeed must be smooth and constant.
Most causes of erratic wirefeed can be cured
by basic maintenance. Check the General
Maintenance section of the Wirefeeder
Operators Manual for more details.
Gun Position
For “down hand” fillet welding, the gun is
normally positioned as shown in Figure 6
below with the nozzle end pointing in the
direction of travel.
Fig 6 Gun Position

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 13
Quality •Reliability •Performance
There is wirefeed but no output
voltage when gun switch is closed:
1 Power source may have overheated.
• TheWeldmaticFabricatorwelding
power source incorporates an in-
built over-temperature thermostat
which will trip if the welding load
exceeds the operating duty cycle. The
thermostat will reset automatically -
do not switch the equipment off as
the cooling fan will assist the resetting
of the thermostat
• Ifproblempersistsafterthecool
down period, call your WIA service
agent.
2 There may be broken wires in the control
cables between the power source and
the wirefeeder.
Power source has low weld output
1 Check all electrical connections in
the welding current circuit, including
weld cable, work clamp and gun/cable
assembly.
2 Have primary supply circuit checked by a
qualified electrician.
Circuit breaker trips when weld is
started, or during weld
1 Check the rating of the mains supply
circuit breaker. The Weldmatic Fabricator
should be supplied from a 25 Amp or
larger circuit breaker.
9 External Trouble Shooting
If the following checks do not
identify the fault condition, the
equipment should be returned
to a WIA Service agent. Phone
1300 300 884 for details of your
nearest service agent.
Power source has no output and no
wirefeed when gun switch is closed :
Digital meters are off
1 Check equipment is connected to a
functional mains power outlet. Test outlet
using a known working appliance
2 Check the equipment is switched on, ie
the ON/OFF switch is in the ON position.
Digital meters are on
1 The gun switch circuit is incomplete.
• Checkthegunswitchforcontinuity
with an ohm meter when the switch is
pressed. Replace if faulty
• Checkthe2pinreceptaclesinMIG
gun adaptor are making contact with
the mating pins from the gun end
2 Check the circuit breaker at the power
source (press to reset).
3 Check the interconnecting lead is
securely plugged in at the welder and
the wirefeeder and that the lead is not
damaged.

14
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
Unsatisfactory Welding Performance
and Results
Erratic arc characteristics caused by
poor wirefeed
Erratic wirefeed is the MOST LIKELY cause
of failure in all Gas Metal Arc Welding. It
should therefore be the first point checked
when problems occur.
1 Refer to the wirefeeder Operators
Manual for wirefeed trouble shooting
2 Check if the consumable wire is slipping
in the feed rolls. Replace the feed roll if it
is the incorrect size or is worn
3 Check that gun cable liner is not too
short and is fitted correctly. Refer to the
wirefeeder Operators Manual for fitting
instructions.
Constant poor arc characteristics
Check that the:
1 Correct polarity has been selected for
work and weld cables (refer page 8)
2 Shielding gas is correct for the
consumable wire in use (refer page 10)
3 Welding circuit is making good electrical
connection. Ensure that the work clamp
is securely tightened onto the work
piece so that good electrical contact is
achieved
4 All connections in the external welding
circuit are clean and tight. Problems may
show as hot spots
5 Work piece surface is not contaminated.
Water, oil, grease, galvanising, paint,
or oxide layers can severely disturb the
welding arc and result in a poor weld.
Porosity in weld caused by lack of
shielding gas
1 Check that the correct gas flow rate has
been set (refer page 10)
2 Check for leaks in the gas hose. Replace
if leaking
3 Check for leaks in gun/cable assembly,
eg. fractured gas hose, broken or missing
‘O’ rings. Replace as required
4 Check the gun nozzle is free from spatter
and is firmly attached to the welding gun
to ensure that no air is being drawn into
the shielded area.

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 15
Quality •Reliability •Performance
10 Circuit Diagrams - Power Source
Fig 7 Power Source Circuit Diagram

16
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
11 Assembly and Parts List - Weldmatic Fabricator Power Source
Fig 8 Weldmatic Fabricator Power Source Assembly
8
9
10
12
11
14
6
7
5
3
4
2
1
13
15 16
17
18
20
19
21 22
28
25
27
25
26
23
24

Quality •Reliability •Performance
Weldmatic Fabricator
Model No CP127-2, Iss A 06/08 17
Quality •Reliability •Performance
Item # Part # Description Qty
1 WHL002 Wheel, Rubber, Castor 2
2 PAN099 Base Panel 1
3 AM235-0/2 Wheel, Rubber, Fixed 2
4 PAN043 Front Panel 1
5 PAN101 Side Panel (left) 1
6 LST028 Label Set 1
7 E0024 Circuit Breaker, 5 Amp 1
8 PAN100 Top Panel 1
9 M0019 Eye Bolt 2
10 E0032 Switch, Coarse, 3 position 1
11 E0033 Switch, Fine, 10 position 1
12 E0031 On/Off Switch 1
13 PAN102 Side Panel (right) 1
14 CX58 Socket, Dinse 2
15 TC265 5/8” UNF Nipple 1
16 TC266 5/8” UNF Nut 1
17 CP15-0/14 Control Socket 1
18 AM272-11N Digital Meter Assembly 1
19 D0024 Rectifier (including 20) 1
20 CP3-9/8 Thermostat 1
21 IND010 Inductance Assembly (including 22) 1
22 CP104-16/2 Thermal Overload 1
23 TFM016N Welding Transformer Assembly, Wired 1
24 L0012N Control Transformer 1
25 FAN005 Fan Assembly, including Blade 2
26 PAN098 Back Panel 1
27 E0048 Main Contactor 1
28 PWA007N Fan on Demand PCB 1
Not shown ROO28 Fan on Demand Thermistor 2

18
Operators Manual
Quality •Reliability •Performance
Quality •Reliability •Performance
12 Warranty Information
WIA shall honour warranty claims on
warranted equipment in the event of such a
failure within the warranty time periods. All
warranty time periods start on the date that
the equipment was delivered to the original
retail purchaser, or 18 months after the
equipment date of manufacture, whichever
is the earlier.
Parts and workmanship on Weldarc
and Weldmatic equipment are covered
for a period of 3 years (except for gas
regulator, gun cable and consumables
listed below.)
Items replaced under original warranty are
warranted for the remainder of the original
equipment warranty, or for a period of ninety
(90) days, whichever is the greater.
Gas regulator and gun/cable assembly are
warranted for 90 days.
WIA’s Limited Warranty shall not apply to:
1 Consumable components; such as contact
tips, cutting nozzles, contactors, brushes,
relays or parts that fail due to normal
wear.
2 Equipment that has been modified by any
party other than WIA, or equipment that
has been improperly installed, improperly
operated or misused based upon
industry standards, or equipment which
has not had reasonable and necessary
maintenance, or equipment which has
been used for operation outside of the
specifications for the equipment.
WIA PRODUCTS ARE INTENDED FOR
PURCHASE AND USE BY COMMERCIAL /
INDUSTRIAL USERS AND PERSONS TRAINED
AND EXPERIENCED IN THE USE AND
MAINTENANCE OF WELDING EQUIPMENT.
In the event of a warranty claim covered
by this warranty, the exclusive remedies
shall be, at WIA’s option: (1) repair; or
WIA Gold Shield 3 Year Warranty
Effective 1st March 2005
At WIA, we are serious about product
quality.
Every new Weldmatic and Weldarc
machine comes fully backed by the WIA
‘Gold Shield 3 Year Warranty’, covering
parts and workmanship, so you can be
guaranteed you’re buying reliability and
performance.
This limited warranty supersedes all previous
WIA (Welding Industries of Australia)
warranties and is exclusive with no other
guarantees or warranties expressed or
implied.
Limited Warranty
Subjecttothetermsandconditionsbelow,
WIA warrants to its original retail purchaser that
new WIA equipment sold after the effective
date of this limited warranty is free of defects
in material and workmanship at the time it is
shipped by WIA.
THIS WARRANTY IS EXPRESSLY IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS.
Within the warranty periods listed below,
WIA will repair or replace any warranted
parts or components that fail due to such
defects in material or workmanship. WIA
must be notified in writing within thirty (30)
days of such defect or failure, at which time
WIA will provide instructions on the warranty
claim procedures to be followed.
