USER INSTRUCTIONS
WIDEX sRIC CHARGER
WPT103 model

CONTENTS
IMPORTANT SAFETY INFORMATION..........................................................4
YOUR CHARGER.........................................................................................6
Welcome...........................................................................................................6
The charger at a glance...................................................................................6
Operating, storage and transport conditions...............................................7
OPERATING THE CHARGER........................................................................8
Getting ready for use...................................................................................... 8
Power supply................................................................................................8
Power on.......................................................................................................9
Charging the hearing aid...............................................................................10
Charging indicators..................................................................................... 11
After charging............................................................................................. 12
Overview of light indicators...................................................................... 13
CLEANING.................................................................................................15
TROUBLESHOOTING.................................................................................16
REGULATORY INFORMATION................................................................... 18
Intended use................................................................................................... 18
EU directives................................................................................................... 18
Directive 2014/53/EU.................................................................................18
Information regarding disposal................................................................ 18
2

FCC and ISED statements..............................................................................19
SYMBOLS................................................................................................. 22
3

IMPORTANTSAFETYINFORMATION
Read these pages carefully before you start using your charger.
Keep the chargerand other small parts away from children, pets, and
mentally disabled people.
Never expose thecharger to temperatures above 50° C (122° F), to pro-
longed sunlight, open flames or ignition sources.
Place the charger upright on a flat, stable surface when charging and with
adequate space around the charger. Do not cover or place near flamma-
ble substances. This also applies when using a power bank.
Hazard of explosion inexplosive atmospheres! Do not use the charger in
areas where there is a danger of explosions (e.g. mining area).
Do not drop.Internal components may get damaged.
Do not use if charger is broken
Never try to open or repair the charger yourself. Contact your hearing
care professional if you experience defects.
Never dry your devices in the micro-wave or oven.
Use only a WPT103 charger with your hearing aids, If the WPT103 charger
is compatible with your hearing aids. Use of a charger not recommended
by WSAUD A/S may compromise the system or result in dangerous situa-
tions.
4

Never leave the charger in direct sunlight and do not immerse it in water.
Never insert other objects than your hearing aids in the charging wells.
The power adapter mustcomply with IEC 60601-1, IEC 62368-1 or equiva-
lent safety standards acceptable in your region. Always use the supplied
USB cable with a power adapter with a USB-A type socket.
5

YOURCHARGER
Welcome
Thank you for choosing this product, which is intended to charge the sup-
ported hearing aid(s).
Read these instructions carefully before you start using this device.
NOTE
Your charger may not look exactly like the one illustrated in this booklet. We
reserve the right to make any changes we consider necessary.
The charger at a glance
The charger has a charging well for each hearing aid, and two light indica-
tors that show the charging status of the hearing aids.
1
3
3
2
2
1. Micro USB port
2. Charging wells
3. Light indicators
6

Operating, storage and transport conditions
Your charger is designed for indoor use. It is sensitive to extreme conditions
such as high temperatures, and it should not be operated, stored or trans-
ported in direct sunlight.
Operate the charger within the following conditions:
Minimum Maximum
Temperature 0°C (32°F) 30°C (86°F)
Humidity 10% rH 95% rH
Store and transport the charger within the following conditions:
Minimum Maximum
Temperature -20°C (-4°F) 50°C (122°F)
Humidity 10% rH 95% rH
Atmospheric pressure 750 mbar 1060 mbar
You can find technical data sheets and additional information on your
charger on https://global.widex.com.
7

OPERATINGTHECHARGER
Getting ready for use
Power supply
You can connect your charger to different power supplies with 5V DC,
500 mA output:
Use only the included USB cable.
8

Connect the cable to the charger:
1
1. Micro USB port
Power on
When the charger is connected to the power supply, the light indicators
flash white 5 times and then turn off:
The charger is now in standby mode and ready to charge your hearing aid.
9

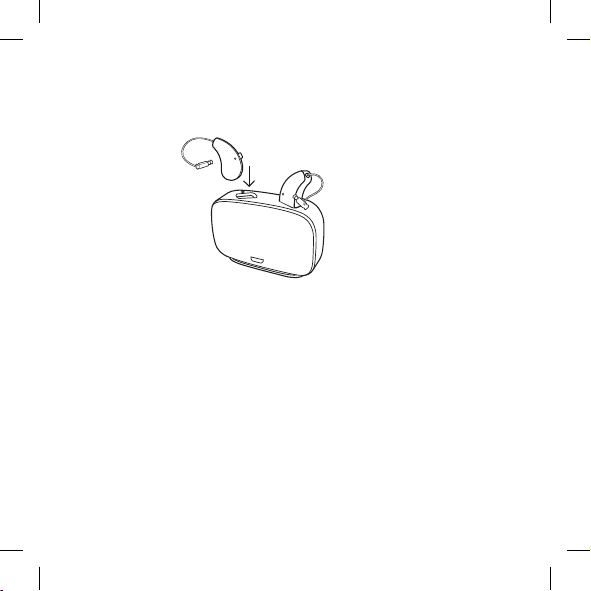

Charging the hearing aid
Gently place your hearing aid in the charging well. The hearing aid turns off
automatically.
When connected to power, the charger can charge two hearing aids simul-
taneously; however, each hearing aid can be charged individually, depend-
ing on the state of the hearing aid.
This means that if one hearing aid is fully charged and placed in the charger,
it will not charge.
However, if the other hearing aid is not charged, it will charge.
Charging your hearing aid fully will take approximately 4 hours. If you
charge your hearing aid for half an hour, you will have approximately 4
hours of use.
10

Charging indicators

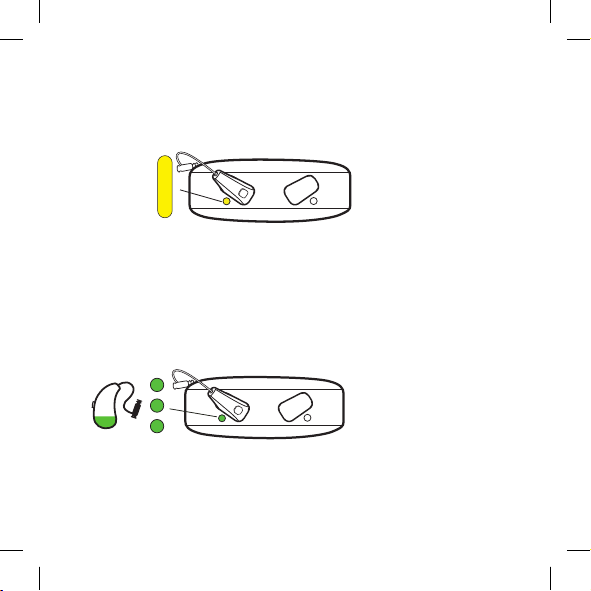

While the charger is detecting the hearing aid, the light indicator turns solid
yellow:
Once the charger has detected the hearing aid, the charging will begin.
The light indicator will flash green to indicate that the hearing aid is low on
battery and less than 40% charged:
11

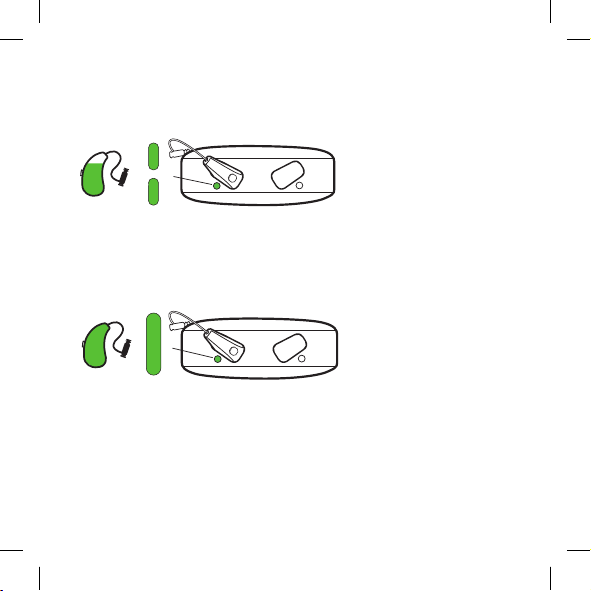

The light indicator will glow green to indicate that the hearing aid is more
than 40% charged:
The light indicator will turn solid green to indicate that the hearing aid is
100% charged:
After charging
Avoid removing the hearing aids from the charging wells by pulling the ear
wire/tube, as this could damage the connection to the hearing aid.
12

Instead, put your fingers round the hearing aid when removing it from the
charger.
When you remove the hearing aid from the charger, the hearing aid turns
on after a few seconds.
Remember to turn the hearing aid and/or the charger off if you are not go-
ing to use them right away.
Immediately after charging, the hearing aid may temporarily feel warm.
If you are not comfortable with this, wait a few minutes, for the hearing aid
to reach room temperature, before putting the hearing aid on.
Overview of light indicators
Light indicators Status
Flashing white The charger is connected to power
Solid yellow The charger is detecting the hearing
aid
Flashing green The hearing aid is charging
Low battery, less than 40%
Glowing green The hearing aid is charging
Battery more than 40%
13

Light indicators Status
Solid green The hearing aid is fully charged
Battery 100% charged
One indicator flashing red An error occurred during charging
and the charging has stopped
See Troubleshooting
Both indicators flashing red An error occurred during charging
and the charging has stopped
See Troubleshooting
Flashing yellow The temperature of the hearing aid
has become too high during charging
and charging is paused
See Troubleshooting
14

CLEANING
The charger does not generally require cleaning. If necessary, disconnect the
charger from the power supply and carefully wipe off the charger with a soft
dry cloth
If you notice any dust in the charging well, gently blow it clean. If this is not
enough, gently clean the charging well with a cotton bud.
To remove earwax from the charger, carefully wipe with a soft cloth with a
bit of mild household detergent.
Never use sharp/pointy objects to clean the charger.
15

TROUBLESHOOTING
These pages contain advice on what to do if your charger does not work as
expected.
Light indicators Possible cause Solution
No lights The charger is not
connected Make sure that the USB cable is connected to a
power adapter and then
plugged into a wall socket
The hearing aid is not
placed correctly in the
charger
Place the hearing aid
correctly in the charger
One or both
indicators flashing
yellow
The temperature of your
surroundings or of the
hearing aid exceeds a crit-
ical limit and the charging
is paused
The charging will continue
when the temperature of
your surroundings or the
hearing aid has dropped.
If this happens
continually, find a cooler
place to charge your hear-
ing aid
One indicator flash-
ing red The charger cannot recognise the hearing aid Remove the incompatible hearing aid
16

Light indicators Possible cause Solution
The hearing aid has a
critical error Remove the hearing aid, disconnect from the pow-
er for 10 seconds and then
try again
If the charger is still
flashing red, contact your
hearing care professional
Both indicators
flashing red The charger has a critical error Remove the hearing aid, disconnect from the pow-
er for 10 seconds and then
try again
If the charger is still
flashing red, contact your
hearing care professional
17

REGULATORYINFORMATION
Intended use
The WIDEX charger WPT103 model is to be used for charging the MRR4D
hearing aid.
EU directives
Directive 2014/53/EU
Hereby, WSAUD A/S declares that the WPT103 is in compliance with the es-
sential requirements and other relevant provisions of Directive 2014/53/EU.
The WPT103 contains a radio transmitter operating at: 6.78 MHz, 13.4
dBµA/m @ 3 m.
A copy of the Declaration of Conformity according to 2014/53/EU can be
found at
https://global.widex.com/doc
N26346
Information regarding disposal
Do not dispose of hearing aids, hearing aid accessories and chargers with
ordinary household waste.
18

Hearing aids, hearing aid accessories and chargers should be disposed of at
sites intended for electrical waste and electronic equipment, or given to
your hearing care professional for safe disposal.
For returning or shipping the devices, please contact your hearing care pro-
fessional.
FCC and ISED statements
Federal Communications Commission Statement
This device complies with part 15/part 18 of the FCC Rules. Operation is sub-
ject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful interference to radio or tele-
19

vision reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more
of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
NOTE:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or oper-
ating in conjunction with any other antenna or transmitter.
Changes or modifications to the equipment not expressly approved by
WSAUD A/S could void the user’s authority to operate the equipment.
ISED Statement / Déclaration d’ISED
CAN RSS-216/CNR-216
CAN ICES-1/NMB-1
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-ex-
empt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
20
