Williams Sound Personal PA Value Pack System Guide

®
Personal PA™Value Pack System
Wide-Band FM Wireless Listening System
MANUAL AND USER GUIDE
MAN 121B
Transmitter Model T17
Receiver Model R35
Optional Receiver Model R35-8
Model PPA VP

®
2
PERSONAL PA™VALUE PACK SYSTEM, MODEL PPA VP
INSTALLATION GUIDE & USER MANUAL
CONTENTS PAGE
System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
System Controls and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
T17 Transmitter Set-Up and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Audio Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Using a Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Turning Off DC Microphone Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Transmitter Frequency Change Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Recycling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Receiver Use Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
R35 Receiver Use Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
R35 Receiver Frequency Change Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
R35-8 Receiver Use Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using A Receiver With A Hearing Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Receiver Management Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

®
3
SYSTEM OVERVIEW
Thank you for purchasing the Personal PA Value Pack System from Williams Sound Corporation.
The PPA VP System is a Wide-Band FM Listening System which operates in the 72-76 MHz
frequency band. Designed for hearing assistance in places of public access, the PPA VP is for
those who need help overcoming background noise, reverberation, or distance from the sound
source. The versatile PPA VP is easily integrated with your existing sound system or can be used
with a microphone as a stand-alone system.
The system has two principal parts: the T17 Transmitter and the R35 Receiver. Much like a
miniature radio station, the Transmitter and microphone pick up the sounds you want to hear and
broadcast them over an FM radio signal. The receivers are used to pick up the broadcast up to
500 feet away.
To avoid difficulties, please read through these instructions as you begin to use the system. Then
save the manual for questions that arise as you continue to use your PERSONAL PA Value Pack
System.
If you have any problems with this Williams Sound product, don’t hesitate to call us toll-free at
1-800-843-3544.

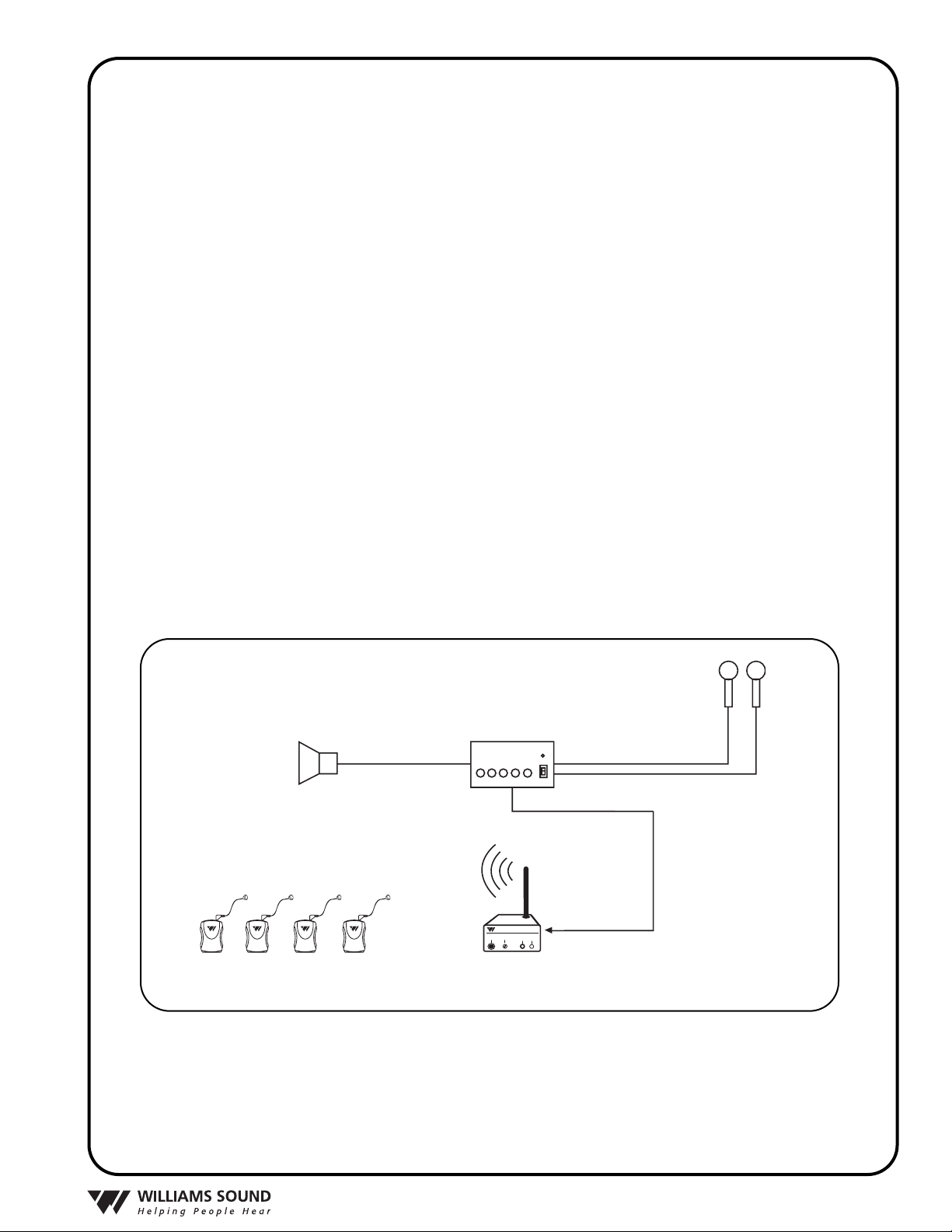

Sound System Amplifier
Loudspeakers
Microphones
Line-Level Output
R35 Wide-band
Receivers w/Earphones
Line-Level Input
T17 Transmitter
FIGURE 1: OVERALL SYSTEM DIAGRAM

®
4
FIGURE 3: R35 RECEIVER CONTROLS
Earphone Jack
Mono 3.5 mm mini earphone
and jack.
Off/On Indicator Light
Green LED indicates receiver
is “on” when lit. Red LED
indicates low battery
Volume/On-Off Control
Combination volume and on-off
thumb wheel control.
On
Mic
+
-
Williams Sound
Auditory Assistance Transmitter
Level Audio
Williams Sound Corp., Minneapolis, MN, USA
12 VAC
100 mA
Antenna Power Audio In
75 Ohm
Hi-Z
Line
Made in U.S.A
FM Transmitter Model PPA T17

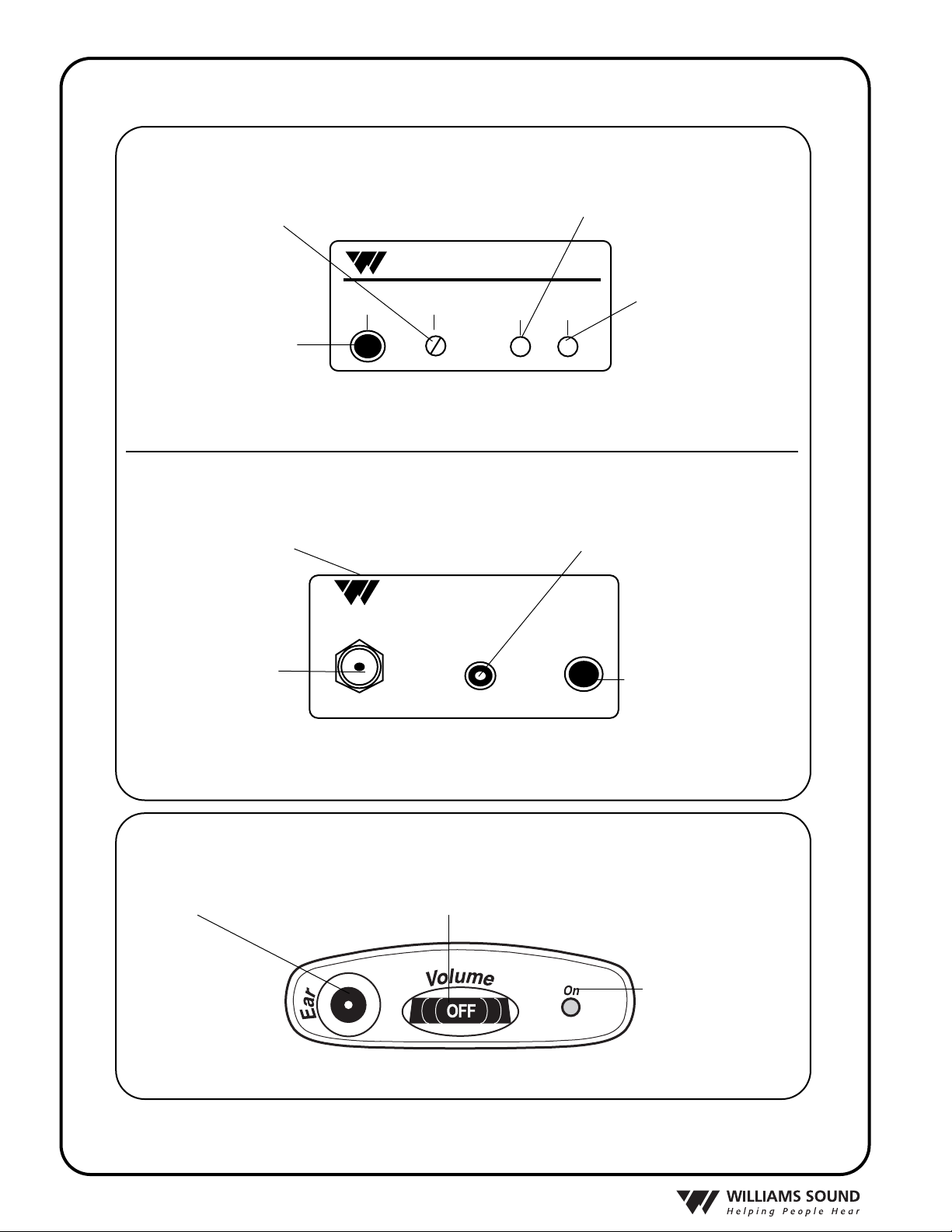

FIGURE 2: T17 TRANSMITTER CONTROLS
Mic Input
3.5 mm mini phone jack for use
with Williams Sound condenser
microphones. Supplies +DC
power for condenser
microphones.
Level Control
Screwdriver-adjust control used
to set the microphone input level
or the audio input level.
ON Indicator Light
Glows when power is applied
to the transmitter. There is no
on/off switch. The T17 is
designed to be left on
continuously.
Audio Indicator Light
Flashes when audio signal is
present.
Audio Input
An RCA-type jack for
connecting the transmitter to
other sound systems. Accepts
line-level, unbalanced audio
inputs.
Power Input Jack
Connects to the plug on the wall
transformer power supply.
Antenna Output
Connector
This connector is defeated,
as specified by FCC Rules.
To use the ANT 005 remote
antenna, contact your dealer
or Williams Sound.
Antenna Mounting
Stud
(Top Panel)
For use with the “rubber
duckie” type antenna supplied.

®
5
SYSTEM CONTROLS AND FEATURES
T17 TRANSMITTER FRONT PANEL
MIC INPUT:
3.5 mm mini phone for use with Williams Sound condenser microphones. Supplies +DC power
for condenser microphones.
LEVEL CONTROL
Screwdriver-adjust control used to set the microphone input level or the audio input level.
ON INDICATOR LIGHT
Glows when power is applied to the transmitter. There is no on/off switch. The T17 is designed to
be left on continuously.
AUDIO INDICATOR LIGHT
Flashes when audio signal is present.
T17 TRANSMITTER TOP PANEL
ANTENNA MOUNTING STUD
For use with the “rubber duckie” type antenna supplied with the T17.
T17 TRANSMITTER REAR PANEL
POWER INPUT JACK
Connects to the plug on the wall transformer power supply.
AUDIO INPUT
An RCA-type jack for connecting the transmitter to other sound systems. Accepts line-level,
unbalanced audio inputs.
ANTENNA OUTPUT CONNECTOR
This connector is defeated, as specified by FCC Rules. To use a remote antenna, contact your
dealer or Williams Sound.

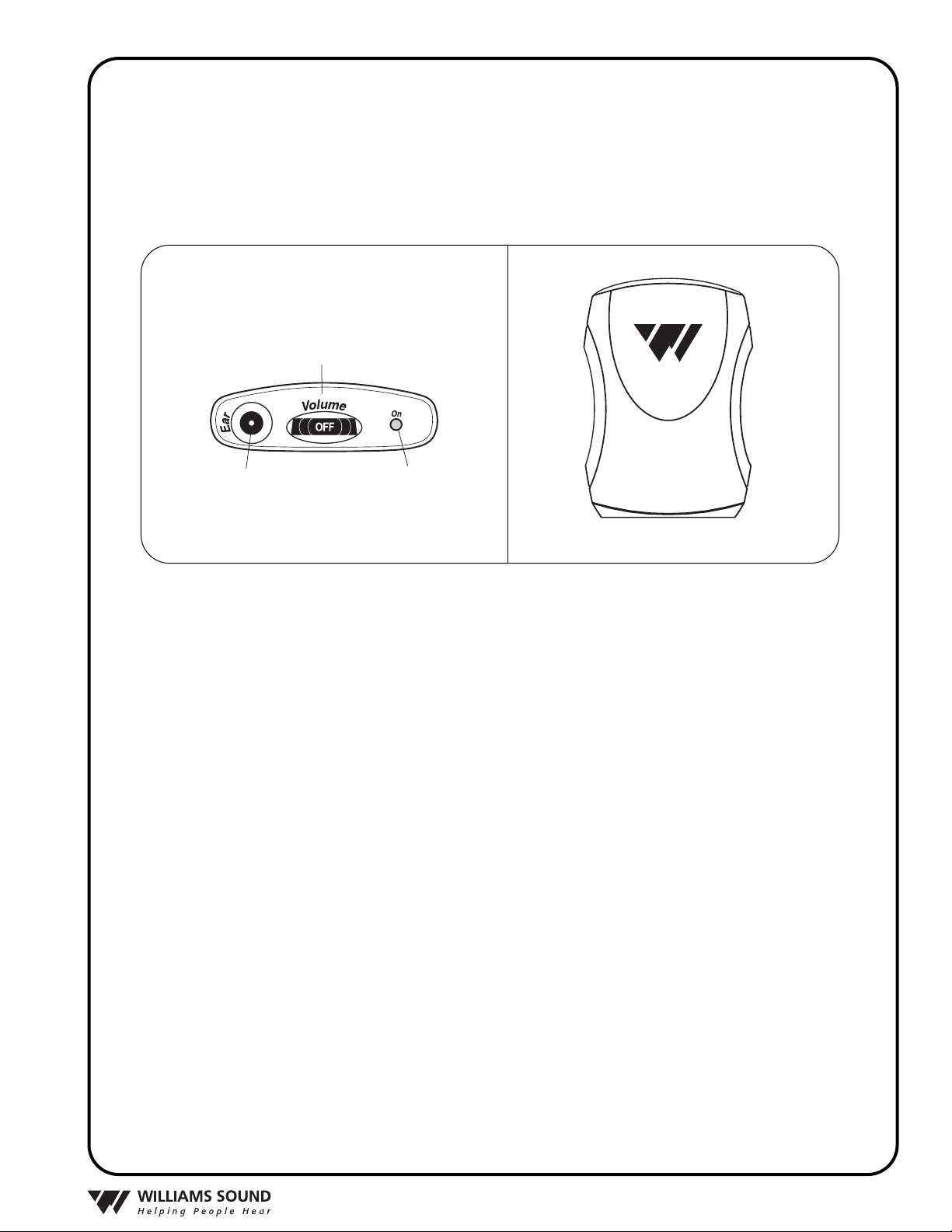

RECEIVER MODEL R35
EAR JACK
3.5 mm mini earphone jack
OFF/ONINDICATOR LIGHT
Green LED which indicates receiver is “on” when lit. If the batteries are near end of life, the ON
indicator will illuminate red.
VOLUME/ON-OFF CONTROL
Combination volume and on-off rotary control.
RECEIVER MODEL R35-8
EAR JACK
3.5 mm mini earphone jack
OFF/ONINDICATOR LIGHT
Green LED which indicates receiver is “on” when lit. If the batteries
are near end of life, the ON indicator will illuminate red.
VOLUME/ON-OFF CONTROL
Combination volume and on-off rotary control and channel
selection knob.

®
6
T17 TRANSMITTER SET-UP AND INSTALLATION
STEP 1: INSTALL THE ANTENNA
The “rubber duckie” whip antenna fits into the hole on top of the transmitter and threads onto a
mounting stud inside. Guide the antenna onto the stud and turn it clockwise to tighten. Do not use
excessive force to tighten the antenna. It only needs to be “finger-tight.”
STEP 2: CONNECT THE TRANSMITTER TO POWER
The T17 is supplied with a wall transformer power supply. Plug the transformer into a 120 V, 60
Hz wall outlet. Then plug the power cord into the “Power” connector on the rear panel of the T17.
The green indicator light on the front panel of the T17 should glow when the power is connected.
There is no on/off switch. The T17 is designed to be continuously on. The wall transformer can
be plugged into a switched outlet that turns on when the other sound equipment is turned on. If
turning the T17 on creates a hum or buzz in the sound system, see the Troubleshooting section on
page 16.
STEP 3: MAKE AUDIO CONNECTIONS
3A: (IF YOU WILL BE USING THE T17 WITH ITS OWN MICROPHONE AS A STAND-ALONE SYSTEM)
Any Williams Sound microphone with a 3.5 mm mini phone plug can be used with the T17.
Plug the microphone into the “Mic” jack on the front panel of the T17.
The T17 is designed to supply positive DC voltage to the plug tip of 2-wire, “barefoot”
electret (power condenser) microphones. If you will be using the T17 with a non-Williams
Sound, Lo-Z (dynamic) microphone, this DC power should be turned off. (See page 7.) If you
use both the Microphone input and the Audio Input on the T17, the signals will be mixed
together.
3B: (IF YOU WILL BE USING THE T17 WITH AN EXISTING SOUND SYSTEM)
Refer to the figure 1 on page 3. Use the audio cable supplied to connect the T17 “Audio In”
jack to an appropriate audio output jack on the sound system mixer or amplifier. The T17 is
designed to work with an unbalanced, line-level audio signal. Suitable connections are:
Choice 1: TAPE OUT or LINE OUT Jack
Choice 2: BOOSTER or BRIDGING Jack
Choice 3: Speaker Terminal, 8 Ohm Tap
If your amplifier or mixer does not have RCA-type connectors, you can obtain adapters from
your Williams Sound Authorized Dealer or a local radio parts store. If the TAPE OUT jack is
already in use, a Y-Cord can be used to connect the T17 and a second device to the same jack.
STEP 4: TEST THE SYSTEM
Use a receiver to test the system and set the input level control. See the section, Receiver Use
Instructions.

®
7
TURNING OFF DC MICROPHONE POWER
The T17 is designed to supply positive DC voltage to the plug tip of 2-wire, “barefoot” electret
(power condenser) microphones. If you will be using the T17 with a non-Williams Sound, Lo-Z
(dynamic) microphone, this DC power should be turned off. (See Figure 4.) If you use both the
Microphone input and the Audio Input on the T17, the signals will be mixed together.
Step 1: Unplug the power cord from the T17 and remove its antenna.
Step 2: Use a phillips-type screwdriver to loosen the two screws on the rear of the
Transmitter. Remove the cover. Slide the circuit board out of the case.
Step 3: Use the diagram to locate the HD4 Jumper. This black jumper is also labeled on the
T17 circuit board.
Step 4: Pull the HD4 Jumper off the two pins it connects. DO NOT MAKE ANY OTHER
ADJUSTMENTS! For handy storage, simply turn the jumper sideways and place it
on just one of the two pins.
Step 5: Re-assemble the Transmitter.
Front
FIGURE 4: TURNING OFF DC MICROPHONE POWER

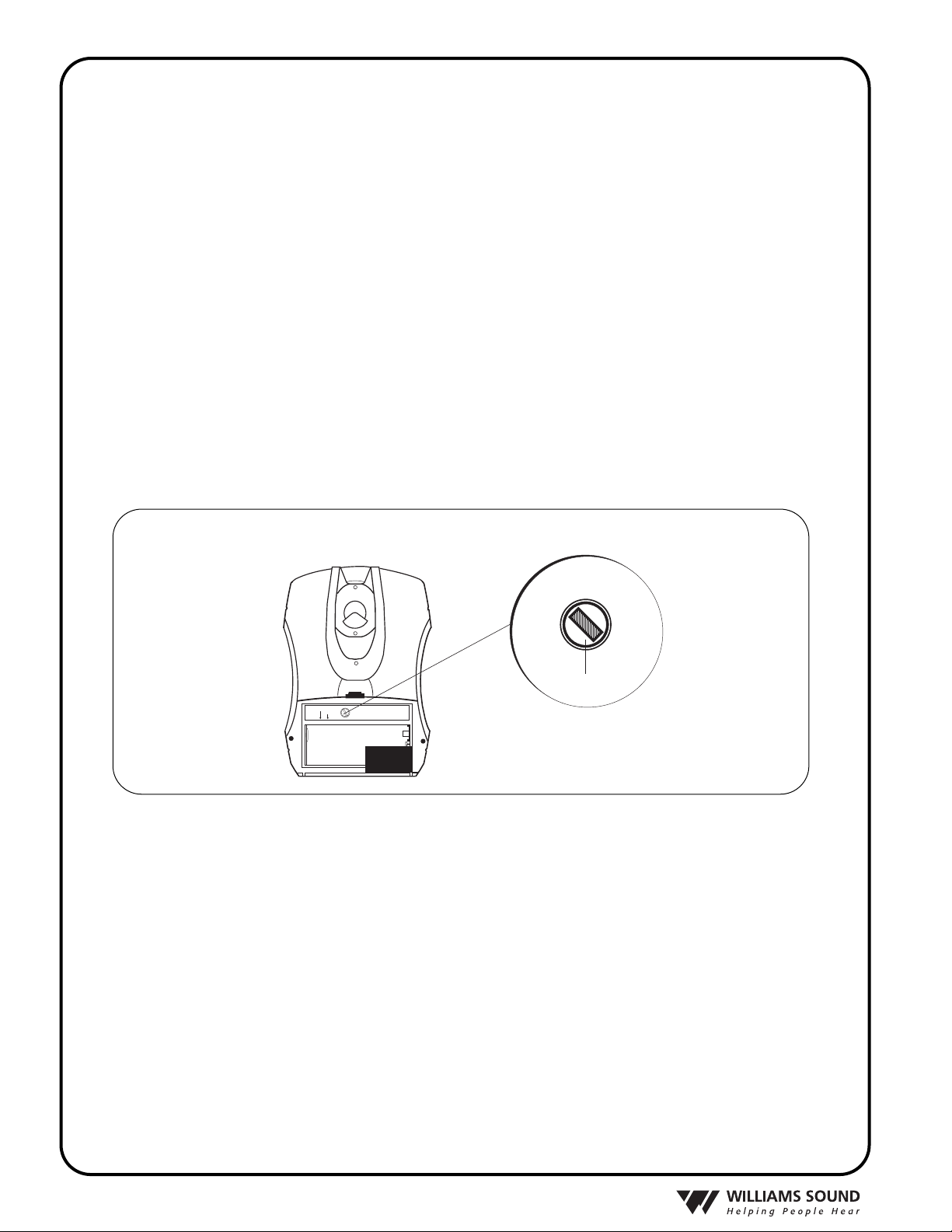

HD4 Jumper Location
This black jumper is also labeled on the T17
circuit board

®
8
Front
FIGURE 5: LOCATING FREQUENCY SWITCHES
Frequency Switches
FREQUENCY CHANGE INSTRUCTIONS
Normally, the PPA VP’s factory-set channel (usually 72.9 MHz) requires no change. However, if
another hearing assistance system or authorized radio service is operating on 72.9 MHz in your
area, it may prove necessary to use an alternate channel In this event, the PPA VP’s operating
frequency can easily be changed to an alternate channel to avoid interference.
TRANSMITTER FREQUENCY CHANGE INSTRUCTIONS:
IMPORTANT: Some cities have other radio services licensed on hearing assistance channels.
Under FCC rules governing hearing assistance, you must yield to them. A list of cities where
other radio services are known to exist is included with the transmitter. Do not use frequencies
that are known to be used by licensed radio services in your city, either if they are on the list or if
you discover one.
Step 1: Unplug the power cord from the Transmitter and remove the antenna.
Step 2: Use a phillips-type screwdriver to loosen the two screws on the rear of the
Transmitter. Remove the cover. Slide the circuit board out of the case.
Step 3: Use the diagram to locate the frequency selector switches on the circuit board.
Locate the switch programming chart on the bottom of the Transmitter case.

®
9

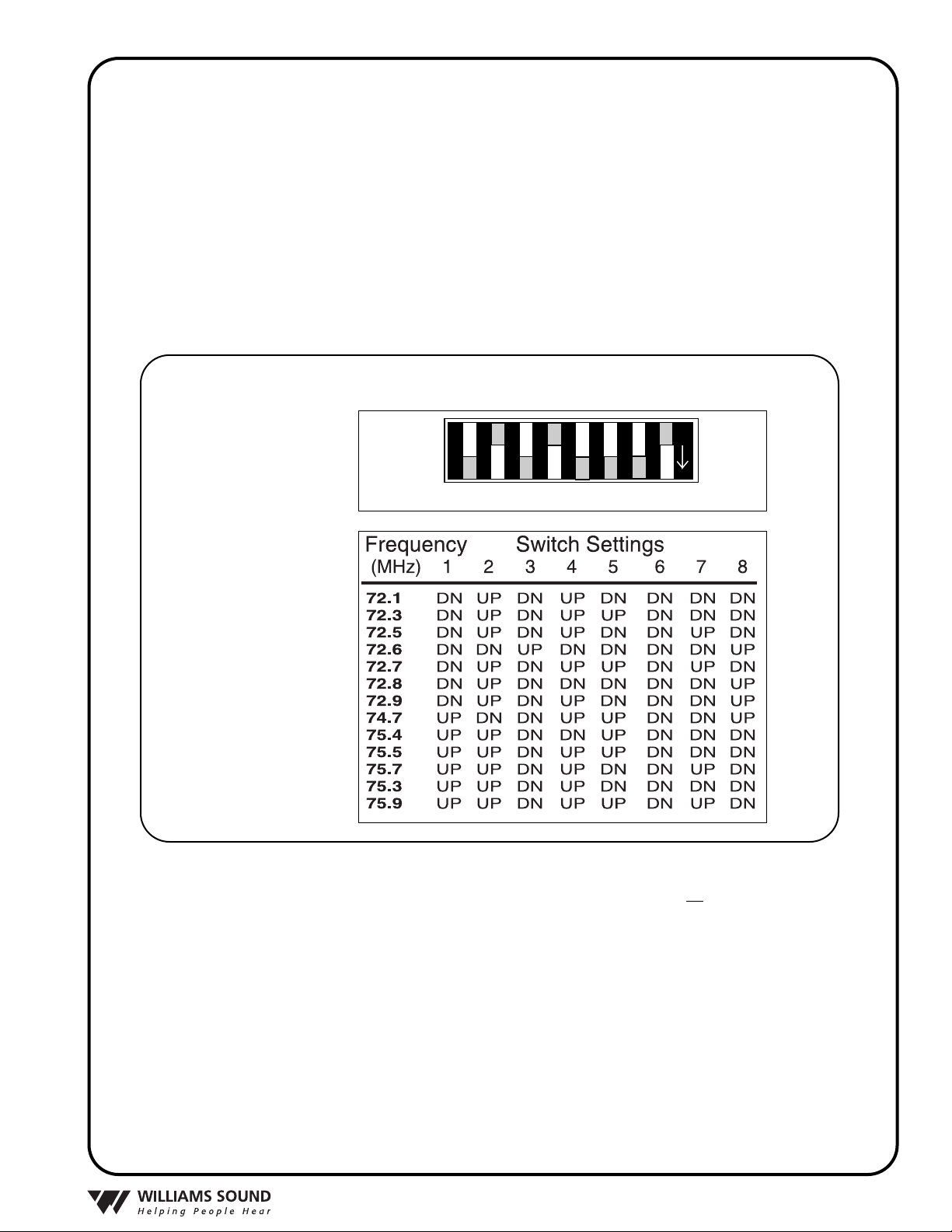

FIGURE 6: SETTING THE T17 FREQUENCY SELECTOR SWITCHES
12345678
OFF
ON
Switches set for 72.9 MHz
IMPORTANT: Make sure the FM receiver being used is operating on the same frequency
as the T17 transmitter. See R35 frequency change instructions on page 12.
Step 4: Use a paper clip or small screwdriver (not a pencil point) to move the switches to
correspond with the switch positions on the programming chart. (See Figure 6.)
Select a new frequency at least two channels away from the one you are
experiencing interference on. DO NOT TOUCH ANY OF THE OTHER
ADJUSTMENTS!
Step 5: Re-assemble the Transmitter and plug it in. Connect a tape player or radio to the
transmitter to provide a tuning signal for the receivers.

®
10
CAUTION!
CAUTION!
CAUTION!
RECEIVER SAFETY INFORMATION
HEARING SAFETY
This product is designed to amplify sounds to a high volume level which could
potentially cause hearing damage if used improperly. To protect your hearing and the
hearing of others:
Make sure the volume is turned down before putting on the earphone or headphone before
adjusting the volume to a comfortable level.
Set the volume level at the minimum setting that you need to hear.
If you experience feedback (a squealing or howling sound), reduce the volume setting and
move the microphone away from the earphone or headphone.
Do not allow children or other unauthorized persons to have access to this product.
1.
2.
3.
4.
BATTERY SAFETY AND DISPOSAL
This product is supplied with disposable Alkaline batteries. Do not attempt to recharge
disposable batteries, which may explode, release dangerous chemicals, cause burns, or
other serious harm to the user or product.
PACEMAKER SAFETY:
Before using this product with a pacemaker or other medical device, consult your physician or
the manufacturer of your pacemaker or other medical device.
If you have a pacemaker or other medical device, make sure that you are using this
product in accordance with safety guidelines established by your physician or the
pacemaker manufacturer.
1.
2.
BATTERY SAFETY AND DISPOSAL
Help Williams Sound protect the environment! Please take the time to dispose of your
equipment properly.
Product Recycling for Customers in the European Union:
Please do NOT dispose of your Williams Sound equipment in the household trash. Please take
the equipment to a electronics recycling center; OR return the product to the factory for
proper disposal.
Battery Recycling for Customers in the European Union:
Please do NOT dispose of used batteries in the household trash. Please take the batteries to a
retail or community collection point for recycling.
RECYCLING INSTRUCTIONS
4/10/07

®
11
RECEIVER USE INSTRUCTIONS
RECEIVER MODEL PPA R35
The PPA R35 is a single-channel receiver operating on the 72-76 MHz bandwidth. It features
volume on/off control, LED power and low battery indicator, and an earphone jack.
BATTERY INSTALLATION
Install two (2) AA alkaline or NiMH rechargeable batteries. Open the battery compartment
by lifting the tab on the back of the receiver with your finger tip. To remove depleted
batteries, pull up on the fabric strip. IMPORTANT: If Alkaline (non-rechargeable) batteries
are being installed, slide the battery selection switch above the battery compartment to the
“Alkaline” position. If installing NiMH (or rechargeable) batteries, slide the battery selection
switch to the “NiMH” position. Press the batteries into place over the fabric strip. Be sure to
observe proper polarity (+/-). Damage due to improper battery installation may void the
warranty on the product. Close the battery door. When the sound becomes weak or distorted,
replace or recharge the batteries.
NOTE: The green LED “ON” indicator will illuminate RED to indicate low battery.
CONNECTING EARPHONES
Plug the earphone into the “EAR” jack on the top of the unit. Only monophonic earphones
will operate properly. If stereo headphones are used, sound will be heard only in one side.
Williams Sound evaluates each earphone and headphone used with the PPA R35 receiver; we
can only assure optimum performance when Williams Sound earphones and headphones are
used.
On/Off
Volume Switch
Earphone
Jack
"On" Indicator
LED
R35 Top R35 Front
FIGURE 7: PPA R35

®
12
OPERATING THE RECEIVER
Turn the receiver on by rotating the volume control knob clockwise. The receiver’s ON indicator
should illuminate green. Adjust the volume control for your comfort. To turn the receiver off, rotate
the volume control knob counter-clockwise until it clicks off. The receiver’s ON indicator should go
dark. To maximize battery life, remember to turn the receiver off when it is not in use.
If you’re using the PPA VP with an existing sound system, make sure the sound system is turned on.
Have someone speak into a sound system microphone while you listen with the receiver and
earphone. You should be able to hear their voice through the receiver.
If you’re using the PPA VP with a microphone—and not a complete sound system—have someone
speak into the microphone while you listen with the receiver and earphone. You should be able to
hear their voice through the receiver.
R35 RECEIVER FREQUENCY CHANGE INSTRUCTIONS
Selecting a frequency for the R35 receiver requires an adjustment to the internal tuning
coil. See figure below to locate the coil to be adjusted. A plastic tuning wrench (PLT 005)
will be needed to adjust this receiver’s tuning coil.
Most Williams Sound single channel Receivers are set at the factory to 72.9 MHz.
The Receiver must be tuned with a weak and somewhat noisy signal. If tuned too close to
the transmitter, with a strong signal, the most accurate tuning of the receiver is not possible.
To Change the Frequency to Another Channel:
STEP 1: Set the transmitter to the channel desired and remove the antenna.
STEP 2: Connect an audio source to the transmitter such as a CD or cassette player or
microphone.
STEP 3: Move the receiver about 25 feet away from the transmitter to set the tuning.
STEP 4: Open the battery compartment on the back of the receiver.
Channel Tuning
Alkaline
NiMH
TUNING COIL
Ferrite Tuning
"Slug"
R-35
FIGURE 8: LOCATING THE TUNING COIL IN THE RECEIVER

®
13
STEP 5: Locate the Tuning Coil (see figure above). The tuning coil is a small. shiny
metal can with a screwdriver slot in a tuning slug in the top center. The Tuning Slug is
usually black or gray.
STEP 6: With the earphone or headphone supplied with the receiver plugged into the Ear Jack,
turn the volume control to a comfortable level, and listen for the transmitted signal.
STEP 7: Gently put the tip of the tuning wrench into the slot in the tuning slug. Be careful not to
push hard on the slug so as not to damage the threads in the coil, and do not screw it
down more than 3 turns into the coil.
STEP 8: Turn the tuning slug in a counterclockwise direction about two turns. Then, slowly turn
the tuning slug in the clockwise direction until the signal is heard. There may be two
signal points heard. The one which is received first is a false response. Be sure to
continue tuning slightly further to the correct point, which will be much louder. Tune
back and forth to find the center of the point of best response to the program being
heard.
STEP 9: Mark down the date, and if a new frequency has been chosen, mark it down inside the
receiver case for future reference.

®
14
RECEIVER MODEL PPA R35-8 (OPTIONAL)
The PPA R35-8 is an eight channel receiver, operating on 72-76 MHz bandwidth. It features
a channel selection knob, volume on/off control, LED power and low battery indicator, and
an earphone jack (See Figure 9).
BATTERY INSTALLATION
Install two (2) AA alkaline or NiMH rechargeable batteries. Open the battery
compartment by lifting the tab on the back of the receiver with a finger. To remove
depleted batteries, pull up on the fabric strip. IMPORTANT: If Alkaline (non-
rechargeable) batteries are being installed, slide the battery selection switch above the
battery compartment to the “Alkaline” position. If installing NiMH (or rechargeable)
batteries, slide the battery selection switch to the “NiMH” position. Press the batteries
into place over the fabric strip. Be sure to observe proper polarity (+/-). Damage due to
improper battery installation may void the warranty on the product. Close the battery
door. When the sound becomes weak or distorted, replace or recharge the batteries.
NOTE: The red LED “ON” indicator on top of the unit will flash to indicate low battery.
CONNECTING EARPHONES
Plug the earphone into the “EAR” jack on the top of the unit. Only monophonic
earphones will operate properly. If stereo headphones are used, sound will be heard only
in one side. Williams Sound evaluates each earphone and headphone used with the PPA
R35-8 receiver; we can only assure optimum performance when Williams Sound
earphones and headphones are used.
OPERATING THE RECEIVER
Plug the earphone or headphone into the Headphone jack on the receiver’s control panel.
Turn the receiver on by rotating the Volume control knob. The ON indicator should
illuminate RED. Select the channel you’d like by turning the channel selector on the control
panel. Choose between 8 standard frequencies: 72.1, 72.3, 72.6. 72.8, 74.7, 75.4, 75.7, or
75.9 MHz. IMPORTANT: Make sure the receiver frequency matches the transmitter
frequency! Adjust the volume to a comfortable listening level. To turn the receiver off, rotate
the Volume control knob to the left until it clicks off. The ON indicator should not be lit. To
prolong the battery life of the unit, turn the receiver off when it is not in use.
FIG. 9
R35-8 Top
R35-8 Front
On/Off Switch
Volume Control
Headphone
Jack
"On"/Low Battery
Indicator LED
Channel
Selector Knob

®
15
USING A RECEIVER WITH A HEARING AID
Williams Sound PPA Receivers can be used with hearing aids using three different methods:
NECKLOOP TELECOIL COUPLER
Neckloops are cords which hang around the neck and couple magnetically with T-Coil equipped
hearing aids.
SILHOUETTE TELECOIL COUPLER
These telecoil couplers are worn behind the ear, right next to telecoil-equipped hearing aids.
DIRECT AUDIO INPUT (DAI) CORD
Direct Audio Input cords can be used with compatible hearing aids as well as with Cochlear
Implant Processors.
SUGGESTIONS FOR RECEIVER MANAGEMENT
Different types of facilities will use different approaches for receiver management and earphone
sanitation. Below are some options that customers have used successfully.
Regular users purchase their own receiver and take care of their own batteries and earphone.
Some facilities label the receiver and earphone with the names of regular users so each
person uses the same receiver and earphone.
Ushers issue receivers to people who request them. Earphones are sanitized after use. Foam
ear cushions can be replaced or washed with a mild detergent, rinsed thoroughly and air-
dried. The EAR 022 Surround Earphone can be sanitized with an alcohol pad.
The receivers can be stored in a multiple compartment storage case with a credit card or
driver's license left as collateral for the receiver.
Regular users purchase their own earphone or headphone and bring them to use with
receivers at the facility.

®
16
RECEIVER BATTERY INFORMATION
SINGLE USE BATTERIES
If the sound becomes weak or distorted, replace the battery. The indicator light may still be on,
even with a battery that is weak. Do not leave dead batteries in the receivers. Battery corrosion is
not covered by the Williams Sound five year warranty.
RECOMMENDED BATTERIES
For Receiver: BAT 001 non-rechargeable alkaline batteries
BAT 026 rechargeable NiMH only
BATTERY LIFE
For R35 Receiver: 100 hours for BAT 001 non-rechargeable alkaline batteries
56 hours for BAT 026 rechargeable NiMH batteries
For R35-8 Receiver: 50 hours for BAT 001 non-rechargeable alkaline batteries
32 hours for BAT 026 rechargeable NiMH batteries
FURTHER SUGGESTIONS
Receivers SHOULD NOT be left charging continuously when not in use. Receivers should
always be turned OFF while charging.
!! WARNING !!
DO NOT ATTEMPT TO RECHARGE SINGLE USE BATTERIES!
The batteries may heat up and burst, causing possible injury and damage to the
equipment.
Avoid shorting the plus and minus battery terminals together with metal objects. Battery
damage and burns can result!
Use only Williams Sound supplied chargers and batteries!

®
17
TROUBLE SHOOTING GUIDE
Read through the manual and user guide carefully to verify proper setup and installation of your system.
TRANSMITTER “POWER” LIGHT NOT ON.
Make sure the wall transformer is plugged into the transmitter.
Make sure the electrical outlet is on.
NO SOUND THROUGH RECEIVERS.
If some of the receivers work, but others don't, check for bad batteries or earphones on the receivers
that aren't working.
Check to see that the receiver frequency matches the transmitter frequency. The frequency sticker is
on the bottom of the transmitter and inside the back cover of the receiver. If they do not match, see
Frequency Change Instructions on page 8 (transmitter) and page 12 (receiver).
If none of the receivers work, check to see if the power is connected to the transmitter and the
“Power” light is on.
Check to see if the Transmitter is connected properly to the sound system. See page 6.
Turn the screwdriver-adjust input level control located on the T17 front panel clockwise to increase the
input signal strength. Check to see that the audio light is flashing occasionally but not continuously.
If you are not using an input signal from a sound system, make sure the Williams Sound microphone
is plugged into the “Mic” jack on the front of the T17 transmitter.
Make sure the antenna is installed and connected properly. See page 6.
INSUFFICIENT RANGE, GOOD RECEPTION NEAR TRANSMITTER, POOR AT A DISTANCE
Check to see if the antenna was installed correctly. If not, correct or replace the antenna. The signal
should be clearly audible at a 300 foot distance.
SOUND THROUGH RECEIVERS IS LOUD, BUT DISTORTED. NOISE (ROOM NOISE OR ELECTRONIC NOISE) SEEMS TO
GROW AFTER TALKING STOPS. AUDIO INDICATOR LIGHT IS CONTINUOUSLY ON.
Turn the screwdriver-adjust input level control located on the T17 front panel counter-clockwise to
decrease the input signal strength. The audio indicator light should flash, not be lit continuously.
SOUND THROUGH THE RECEIVERS IS WEAK AND NOISY. AUDIO INDICATOR LIGHT IS NOT LIT.
Turn the screwdriver-adjust input level control located on the T17 front panel clockwise to increase
the input signal strength. The audio indicator light should be flashing
Increase the input signal level from the sound system.
BUZZING OR HUMMING NOISE IN SOUND SYSTEM.
There is nothing wrong with the T17 Transmitter. One or more pieces of equipment in the sound system
are being disturbed by RF (Radio Frequency) signals produced by the T17. The most likely suspects are
your amplifier, mixer, or tape deck. The RF gets into the other equipment primarily through the power
cord, speaker wires, or unshielded inputs, all of which can act as antennas. Try the following steps.
Move the Transmitter away from the other sound equipment.
Make sensitive equipment more immune to RFI/EMI. The manufacturers of your audio equipment
may offer application notes for this purpose. Williams Sound offers a document giving suggestions
for improving RF immunity in existing audio equipment. (Technical Bulletin: Buzz Or Hum In The
Sound System, FRM 531) Unless you have the necessary technical skills, this is best left to a qualified
electronics repair technician.

®
18
LIMITED WARRANTY
Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions
to provide you with many years of reliable service. Williams Sound warrants the Personal PA Value Pack
System against defects in materials and workmanship for FIVE (5) years. During the first five years from
the purchase date, we will promptly repair or replace the Personal PA Value Pack System.
Microphones, earphones, headphones, batteries, cables, carry cases, and all other accessory products carry a 90-day
warranty. Chargers carry a one year warranty.
WILLIAMS SOUND HAS NO CONTROL OVER THE CONDITIONS UNDER WHICH THIS
PRODUCT IS USED. WILLIAMS SOUND, THEREFORE, DISCLAIMS ALL WARRANTIES NOT SET
FORTH ABOVE, BOTH EXPRESS AND IMPLIED, WITH RESPECT TO THE PERSONAL PA
VALUE PACK SYSTEM, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WILLIAMS SOUND SHALL
NOT BE LIABLE TO ANY PERSON OR ENTITY FOR ANY MEDICAL EXPENSES OR ANY
DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY ANY USE, DEFECT,
FAILURE OR MALFUNCTIONING OF THE PRODUCT, WHETHER A CLAIM FOR SUCH
DAMAGES IS BASED UPON WARRANTY, CONTRACT, TORT OR OTHERWISE. THE SOLE
REMEDY FOR ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT IS
REPLACEMENT OF THE PRODUCT. NO PERSON HAS ANY AUTHORITY TO BIND WILLIAMS
SOUND TO ANY REPRESENTATION OR WARRANTY WITH RESPECT TO THE PERSONAL PA
VALUE PACK SYSTEM. UNAUTHORIZED REPAIRS OR MODIFICATIONS WILL VOID THE
WARRANTY.
The exclusions and limitations set out above are not intended to, and should not be construed so as to
contravene mandatory provisions of applicable law. If any part or term of this Disclaimer of Warranty is
held to be illegal, unenforceable, or in conflict with applicable law by a court of competent jurisdiction, the
validity of the remaining portions of this Disclaimer of Warranty shall not be affected, and all rights and
obligations shall be construed and enforced as if this Limited Warranty did not contain the particular part or
term held to be invalid.
If you experience difficulty with your system, call Toll-Free for Customer Assistance:
1-800-843-3544
If it is necessary to return the system for service, your Customer Service Representative will give you a
Return Authorization Number (RA) and shipping instruction.
Pack the system carefully and send it to:
Williams Sound Corp.
Attn: Repair Dept.
10321 West 70th Street
Eden Prairie, MN 55344 USA
Your warranty becomes effective the date you purchase your system. Your returned warranty card is our
way of knowing when your warranty begins. It also gives us important information about your system
including the serial number. This information will help us serve you better in the future. Please take a
moment to complete and mail the attached card. Thank you.

®
19
PERSONAL PA VALUE PACK SYSTEM SPECIFICATIONS
Dimensions & Weight: 3.25" W x 6.875" L x 1.75" H
(82.5 mm x 174.6 mm x 44.5 mm)
13 oz., 368.5 g
Color: Black
Power (U.S./Canada): 105-130 VAC, 50-60 Hz, .5 W
Operating Frequencies: 72.1 (CH A), 72.3 (CH B), 72.5 (CH C),
72.6 (CH O), 72.7 (CH D), 72.8 (CH P),
74.7 (CH I), 75.3 (CH J), 75.4 (CH R),
75.5 (CH F), 75.7 (CH G), 75.9 (CH H),
72.9 (CH E) is standard*
Frequency Selector: Internal switches, 10 channels
RF Field Strength: 8000 µV/m at 30 m Max., 20 mW typical
Nominal Range: 300–500 feet, 90–150 m
Modulation: 75 kHz (wide–band) max.
Stability: ± .005% over 0-50˚C
Pre-Emphasis: 75 µS
Frequency Response: 100 Hz – 15 kHz ±3 dB
Distortion: 1% Max. THD
Signal to Noise Ratio: 65 dB with R35 Receiver
Microphone Input: 3.5mm mini phone jack,
supplies +DC for electret mics
Mic Input Level: 1–10 mV, nominal
Line-Level Input: RCA Jack, Hi Z, unbal.
Line Input Level: .1–1 Vrms, nominal
Input Attenuator: Pot, screwdriver-adjustable
Antenna Outputs: Thread Mount for “rubber duckie”
flexible whip antenna, optional 75 Ω
Coaxial Antenna (ANT 005) uses
RG-59 cable, 400 ft. (140 m) max.
cable length
Approvals: FCC, DOC, WEEE
Warranty: Five years, parts and labor. 90 days on cords,
earphones, headphones, batteries, and other
accessories.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
NOTE: Specific transmitter model names contain a frequency code. For example, Model T17E is preset to channel E, 72.9 MHz.
Dimensions: 4.1" L x 2.85" W x 1.2" H
(104.1 mm x 72.4 mm x 30.4 mm)
Weight: 4.5 oz (127 g)
Color: Gray
Battery Type: Two (2) AA non-rechargeable
alkaline batteries (BAT 001),
approx. 100 hrs. battery life; or
Two (2) AA rechargeable NiMH
batteries (BAT 026), 1600 mAh,
approx. 56 hrs. battery life
Current Consumption: Nominal 40 mA
Operating Freq.: Pre-tuned, adjustable,
72 MHz-76 MHz *
Intermediate Freq.: 75 kHz
FM Deviation: 75 kHz
De-Emphasis: 75 µS
LED Indicator Power: Green; Low Battery: Red
AFC Range: ± 120 kHz
Sensitivity: 2 µV at 12 dB Sinad with
squelch defeated
Input Overload: 20 mV
Frequency Response: 100 – 15 kHz, ± 3 dB
Signal-to-Noise Ratio: 65 dB at 10 µV
Receive Antenna: Integral with earphone/headphone cord
Audio Output: 35 mW, max. at 16 Ω
Output Connector: 3.5 mm mono phone jack
Earphone: Earbud-type with foam cushion,
3.5 mm plug, 32 Ω
Notes: The R35 Receiver can be field
tuned to any of 17 wideband
channels using the
PLT 005 Tuning Tool.
Approvals: FCC, Industry Canada, RoHS, WEEE
Warranty: Five years, parts and labor. 90
days on cords, earphones,
headphones, batteries and
other accessories
PERSONAL PA RECEIVER MODEL R35
* FCC Rules limit the use of the 72–76 MHz band to hearing assistance.
Dimensions: 4.5” H x 2.85 W x 1.2” D (115 mm x 72 mm x 30 mm)
Weight: 4.6 oz (130 g)
Color: Gray
Battery Type: Two (2) AA non-rechargeable alkaline
batteries (BAT 001), approx. 50 hrs.
battery life; or Two (2) AA rechargeable
NiMH batteries (BAT 026), 1600 mAh,
approx. 32 hrs. battery life
Current Consumption: Nominal 40 mA
Operating Freq: 8 channels: 72.1, 72.3, 72.6, 72.8, 74.7, 75.4,
75.7, or 75.9 MHz*.
Intermediate Freq: 10.7 MHz
FM Deviation: +/- 75 kHz
De-emphasis: 75 uS
LED Indicator: Power: Red. Low Battery: Flashes
Sensitivity: 2 uV at 12 dB SINAD with squelch defeated
Input Overload: 20 mV
Frequency Response: 40 Hz to 15 kHz +/- 3 dB
Signal to Noise ratio: 60 dB at 100 uV
Receive Antenna: Integral with earphone/headphone cord
Audio Output: 35 mW, max 16 ohm load
Output Connector: 3.5 mm mono phone jack
Squelch: Located inside battery door. Factory set
for 25 dB S/N. Squelch may be set with
JFD-7104-5 from Sprague Goodman or
any flat tipped tuning tool with tip
size .095 X .016
Notes: The R35-8 is NOT field tunable. The
eight channels have been
carefully selected to inhibit inter-
modulation interference. Channel
frequencies are 72.1, 72.3, 72.6, 72.8,
74.7, 75.4, 75.7, and 75.9 MHz.*
Approvals: FCC, Industry Canada, RoHS, WEEE
Warranty:
Five years, parts and labor. 90 days on cords,
earphones, headphones, batteries, and other
accessories
PERSONAL PA RECEIVER MODEL R35-8
PERSONAL PA TRANSMITTER MODEL T17

®
10321 West 70th St., Eden Prairie, MN 55344 U.S.A.
800.843.3544 | 952.943.2252 | FAX: [phone]
www.williamssound.com
© 2007, Williams Sound Corp. MAN 121B
