WilTec 51792 User manual

Operation Manual
Sandfilter
51792 (without pump), 51793 (with pump)
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. tten -
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus -
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: service wiltec.info
Tel:[phone]
Fax: [phone]
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 2
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

Introduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety guideline
BEWARE:
The use of this device is allowed on standing bodies of water, garden ponds’ water or swimming
ponds and their surrounding areas only with fault current protection-switch with a triggering nominal
current up to 30>m (according to VDE 0100 article 702 and 738).
The device is not intended for use by persons (including children) with impaired or limited physical,
sensory and mental abilities or lack of experience and/or real knowledge, unless they are supervised
by a person responsible for their safety or unless they follow the instructions made by this person on
how to use the device correctly.
Children should be supervised to make sure that they do not play with the device.
ATTENTION:
Run a visual inspection of the device before every use. Do not use the device if the safety ap-
pliances are damaged or worn out. Never override safety regulations.
Use the device exclusively according to the intended purpose stated in the instructions for
use.
You are responsible for the safety of the working environment.
If the cable or the plug is damaged due to external influences the cable must not be repaired!
It has to be replaced with a new one. This work can only be carried out by an electrician.
The voltage of 230>V a.>c. indicated on the type plate of the device has to correspond to the
existent mains voltage.
Never lift, carry or fixate the device by using the power cable.
Make sure that the electrical plug connection is placed in a flood-proof area and is protected
from moisture.
Before working on the pond filter disconnect the appliance by taking the plug out of the socket.
void exposing the appliance to a direct water jet or rain.
The user is responsible for the compliance with location specific safety and installing regula-
tions. sk an electrician.
Consequential damage arising from flooded rooms caused by dysfunctions of the appliance
must be avoided by means of the appropriate measures (e.>g. installing an alarm system, a re-
serve pump).
In case of malfunction the repair work can be carried out only by a qualified electrician.
The appliance must not run dry or with a intake port completely closed. The manufacturer’s
warranty is no longer valid if the damage is caused by dry running.
The appliance must not be used for drinking water circuits.
The device has to be installed out of water.
You have to make sure that the filter cannot fall into the water.
You have to make sure that the filter is not exposed directly to sunlight.
The pond pressure filter has to be horizontally fixed with screws on a suitable mounting place.
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 3
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

The universal-hose stepped tails can be shortened according to the hose diameter if neces-
sary.
ttach hoses and hose clamps.
Operate the tubes only if the housing is closed and not cracked.
WARNING:
Read carefully all the safety guidelines and the instructions.
Non-compliance with the safety rules and regulations can lead to an electric shock, fire and/or serious
injury. Keep the instructions and the safety guidelines in a safe place in case you need them in the fu-
ture.
Working principle
Incoming water from the piping system is automatically directed by the multiportvalve to the top of the
filter bed. s the water is pumped through the filter sand, dirt and debris are trapped by the filter bed,
and filtered out. The filtered water is returned from the bottom of the filter tank, through the multiport-
valve and back through the piping system.
Preparation before installation
Position the filter as close to the swimming pool/spa as possible.
The filter should be placed on a level concrete slab, very firm ground, or equivalent. Ensure
that the ground will not subside, preventing any strain from the attached plumbing.
Position the filter under consideration of the piping connections, so that it is convenient for op -
erating and servicing.
Ensure that the compliance label is facing the front to allow easy identification in the case of
service difficulties.
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 4
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

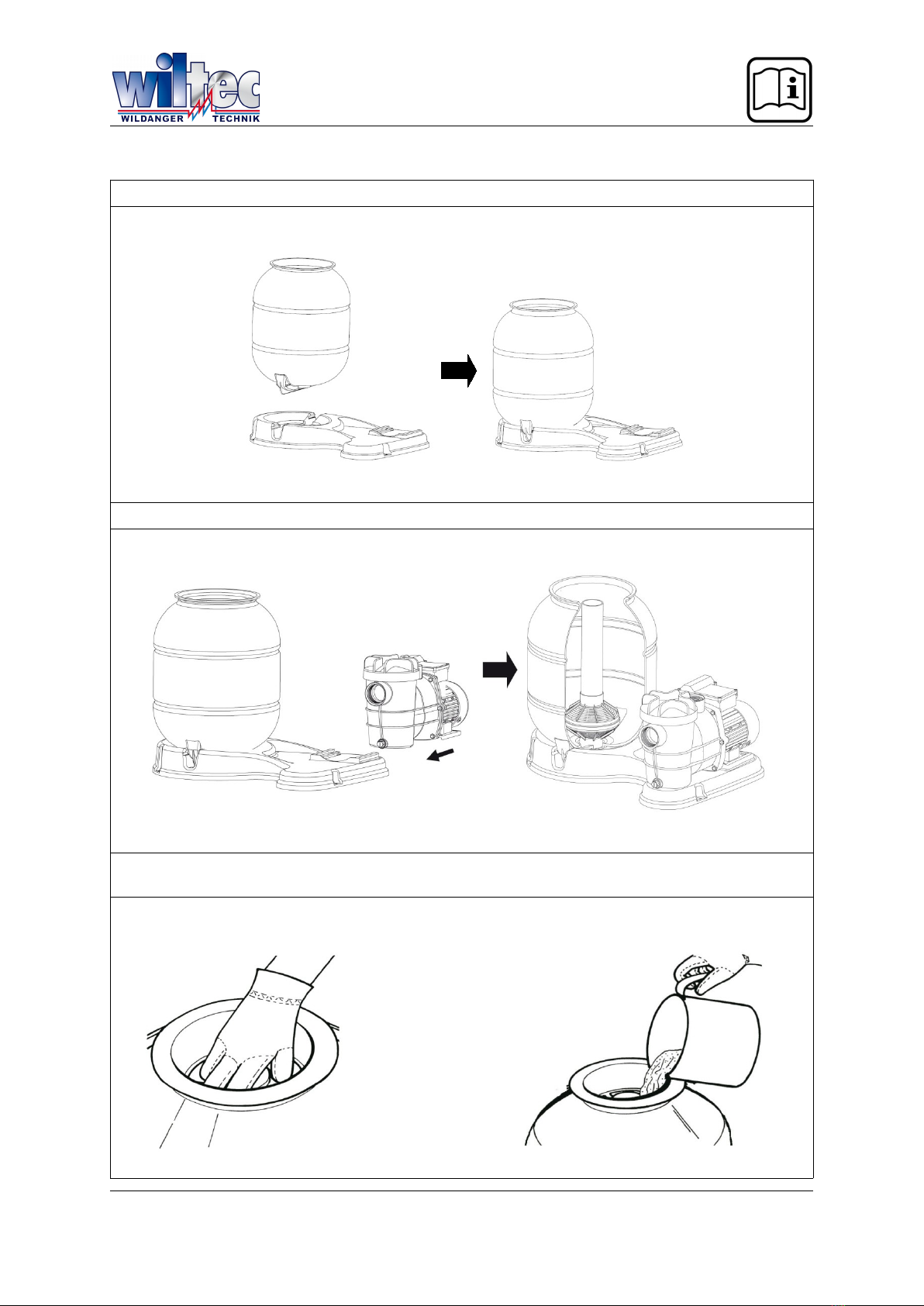

How to install the filter tank
1. Mount the sand tank to sand filter support according to the below instruction.
2. Insert the pump bas to the sand filter support in the correct direction.
3. Insert the tube with the diffuser body inside the tank as the picture shows; then place the funnel on
the tank mouth and pour the quartz sand into the tank (sand wight 19>kg).
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 5
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

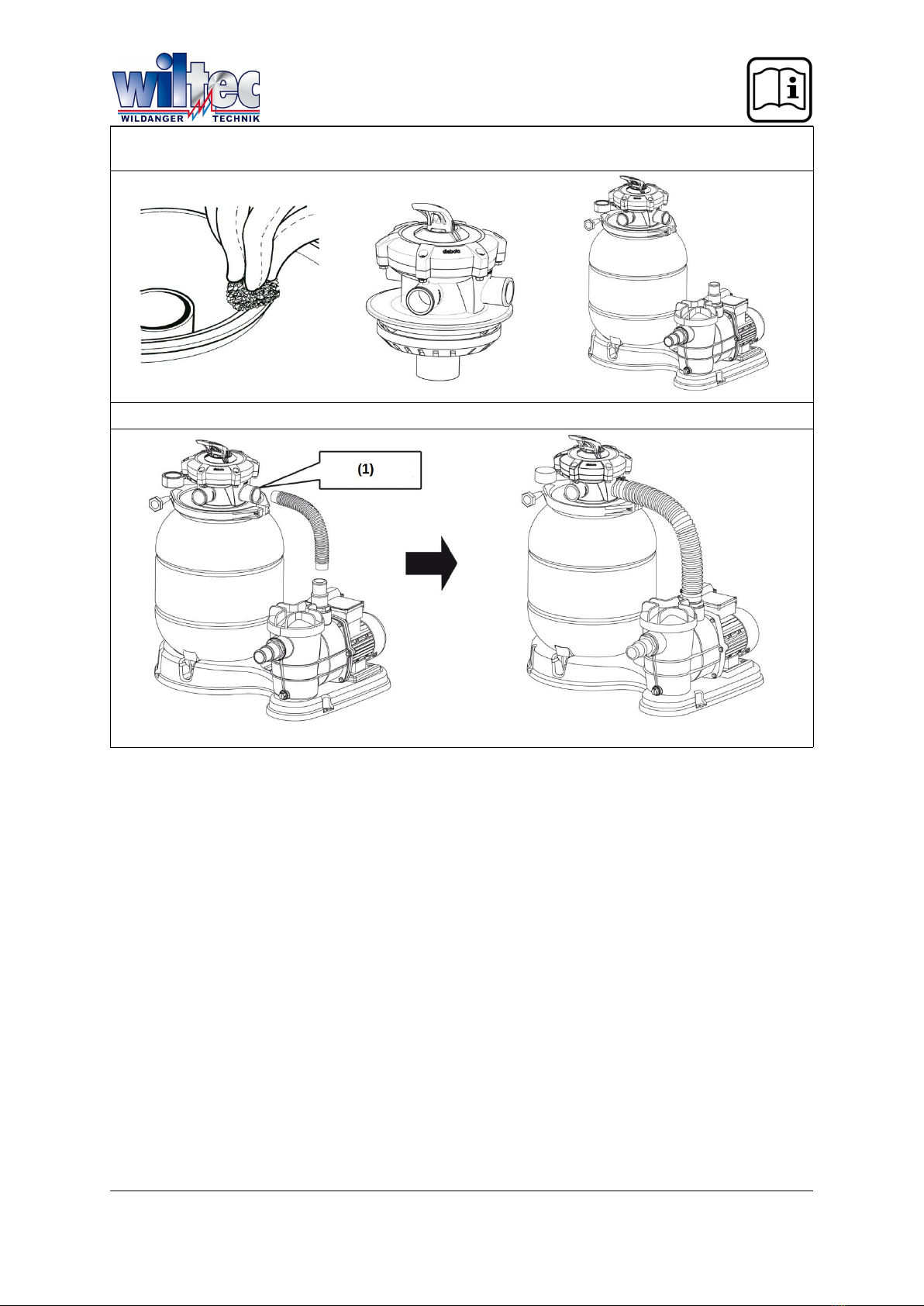

4. Take away the funnel, and then carefully clean the tank neck and fix the valve with the O-ring
through the flange clamp set. (The pump port on the valve needs to point towards the pump.)
5. Connect the sand tank to the pump with the hose, hose clamps and hose adaptors.
(1) Pump port
Installation notes
•Make sure that the filter workes under the work pressure, and using a pressure control valve
when the system using a booster pump.
•If the pump position is higher than the water level, a back water control valve must be in -
stalled.
•If the pump position is lower than the water level, an isolation valve must be installed. It could
stop the water return back when people do the general inspection.
•Reduce the connect adaptors and hose connecting bending as less as possible. Decrease the
water flow scrub. Thus the pump may reach the maximum effective.
•Ensure that solvents are not excessively applied to fittings as this could run into O-ring and
create sealing problems.
•Do not over-tighten fittings or adapters
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 6
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

Commissioning
1. Inspect all the connections have been made correct and are secure.
2. Depress top mount valve handle and rotate to B CKW SH position.
3. Prime and start pump according to pump instructions.
NOTE: LL SUCTION ND DISCH RGE V LVES MUST BE OPENING WHEN ST RTING
THE SYSTEM. F ILURE TO DO SO COULD C USE SEVERE PERSON L INJURY. M KE
SURE THE FILTER VESSEL RE FULL FILL THE W TER BEFORE ST RT UP THE
PUMP. OR IT WILL C USE THE PUMP D M GED.
4. Once water flow is steady out the waste line, run the pump for at least 2 minutes. The intial
back-washing of the filer is recommended to remove any impurities of fine sand particles in
the sand media.
5. Turn pump off and set valve to RINSE position. Start pump and operate until water in sight
glass is clear about ½ to 1>min.
6. Turn pump off, set valve to FILTER position and restart pump. Your filter is now operating in
the normal filter mode, filtering particles from the pool water.
NOTES:
•Note the initial pressure gauge reading when the filter is clean. It will vary depending upon the
pump and general piping system. s the filter removes dirt and impurities from the pool water,
the accumulation in the filter will cause the pressure to rise and flow to diminish.
•When the pressure gauge reading is 8–10>psi (0.55–0.69>bar) higher than the initial “clean”
pressure that you have noted, it is the time to backwash (clean) the filter
•IMPORTANT: To prevent unnecessary strain on piping system and valves, always shut off the
pump before switching filter control valve position.
•To prevent damage to the pump and filter and for proper operation of the system, clean pump
strainer and skimmer baskets regularly.
Filter control valve functions
FILTER Set valve to FILTER for normal filtering. lso use for regular vacuuming.
B CKW SH For cleaning filter. When filter pressure gauge rises 8–10>psi (0.55–0.69>bar) above
start-up (clean pressure), stop the pump, set the valve to B CKW SH. Start the
pump and backwash until the water in sight glass is clear (approximately 2>min or less
depending on the dirt accumulation). Proceed to RINSE.
RINSE fter backwashing, with the pump switched off, set the valve to RINSE. Start the
pump and operate it for about ½ to 1>min. This ensures that all dirty water from back-
washing is rinsed out of the filter to waste, preventing a possible return to the pool.
Stop the pump, set the valve to FILTER and start the pump for normal filtering.
W STE To bypass filter for draining or lowering water level and for vacuuming heavy debris
directly to waste.
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 7
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

Explosion view and parts list
№ Name
11.25” top valve
2Clamp assembly
3O-ring
4Sand tank
5Diffusor assembly
6Drain plug
7Hose
8Hose clamp
9Hose adaptor
10 Pump
11 Sand filter support
12 Gauge assembly
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 8
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

Troubleshooting and technical service
This filter and its instructions are designed for domestic use, with no need for professional supervision,
except for exceptional cases. Here we shall describe the problems and causes which may arise after
years of service of the filter that you can repair yourself. If you cannot solve the problem, contact the
pool manufacturer.
Problem Cause Solution
Filter leaks through the hose
terminals
Improper connection between
the terminals and the hoses
Place teflon in the housings. In-
sert the hose terminals up until
the bottom of the housing and
tighten the clamps
fter the filter has started up,
there is no flow in the feedback
nozzle.
The valve is not on the filtration
setting.
Disconnect the filter and place the
valve on the correct setting.
Filter is above the level of the
unprimed water.
Place the filter in the correct posi-
tion and prime it.
Suction cover or skimmer plug
has been inserted.
Remove the suction cover or the
skimmer plug.
Intermittent operation Low water level on skimmer Fill the pool and prime the filter.
The filter is not primed. Prime the filter.
Low flow rate of filter Due to use, the filter is dirty. Perform a backwash.
The filter is not primed. Prime the filter.
Water comes out through the
filter opening.
Dirty connection between the
valve and the filter
Clean the sand from the opening,
insert the coupling on the valve
properly and tighten the metal
band firmly.
Lose metal band
The filter valve leaks through
the drain terminal.
Inner coupling damaged due to
improper use of chemical
product.
Change the top valve cover. Do
not put chemical products in the
preliminary filtration skimmer bas-
ket.
Valve head broken due to im-
proper use (over-tightening).
Valve head broken due to im-
proper use. Change the valve
head. Do not over-tighten!
Motor will not start up, there is
not any noise or vibration. No current in the electrical line. Check that there is current in the electrical line.
Motor will not start up, a buzz-
ing sound can be heard. Motor damaged Contact a qualified person.
Water leak Leaking spot
Check the hose clamps.
If the leak is between the pump
and the motor, contact the after-
sales service of the pool manu-
facturer.
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 9
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Technik GmbH Item 51792, 51793 Page 10
http://www.WilTec.de
http://www.aoyue.eu 01 2021-1
http://www.teichtip.de
