1.1 Introduction
The following instruction manual constitutes an integral part
of the device. Complete instruction manual should be kept within
the User's reach throughout the period of device’s operation.
Information which is significant from the User’s
point of view is marked using this symbol:
1.2 Intended application
The charger should be used indoors exclusively.
The product is to be used for connecting and charging up to
32 devices (such as tablets or smartphones) via an integrated USB
(Universal Serial Bus) type A connector representing BC1.2 5V DC
standard. What is more, the system can be optionally equipped with
an external F standard socket (Schuko®) for the purpose if charging
a laptop (230 VAC). Do not use the device for purposes other than
the ones indicated in this instruction manual.
The device should be kept out of the reach of children.
1.3 General recommendations concerning the safety
One should comply with all of the following recommendations
to ensure safety:
−Read the operating instruction manual before commencing
the usage.
−Do not immerse the charger, cable or plug in water or other
liquids.
−Do not use the device if the power cord or plug is damaged.
−Do not use the device if it has been damaged.
−Do not place the power cord on sharp edges or blades.
−Protect the power cord from heat and oils.
−Do not place the charger in places which get hot easily or in
direct sunlight.
−Do not cover the front or rear part of the charger, keep
a minimum of 5 cm empty space from each side.
−Do not remove the plug from the socket with wet hands.
−In case of damage concerning the device, it has to be repaired
by the Manufacturer.
−The User is not allowed to repair the device on its own.
−Do not introduce changes concerning the charger.
Redeveloping or modifying the product is forbidden. If the
product is used for an unintended purpose or if it is
connected in a manner not observing the conditions indicated
in this instruction manual, the product can end up being damaged.
Improper use can cause a danger situation (e.g. short circuit,
fire, electric shock, etc.). In such a case the Manufacturer shall
not bear responsibility.
Before commencing the device, check whether the installation
to be used for connecting the charger meets all of the
criteria indicated below:
-The power supply installation is equipped with overcurrent
protection ≥ C 6A.
-The power supply installation is equipped with a residual current
circuit breaker intended for alternating currents and pulsating
type A currents.
-The power supply installation is equipped with a socket equipped
with a protective PE contact.
2.1 Description of the packaging contents
This set includes:
−LO32 charger;
−3m long power cord equipped with a UNI-SCHUKO plug, PE contact
and V-LOCK fastening;
−2 pieces of spare quick fuses 3.15A, size 5x20mm;
−2 pieces of M5x8 DIN 912 screws with DIN 6798 ø5,3 pads;
−2 pieces of 150mm long braid for earthing the cabinet or lift
door;
−4 M4x12 DIN 7500 screws for mounting Schuko® socket;
−Instruction manual;
−General Guarantee Conditions, Privacy Policy, Complaint Form
The packaging of the device is made of materials having
no negative impact on the environment. The aforementioned
materials are recyclable. The packaging materials should be
disposed of at appropriate collection centres.
The package contains small elements. Consequently, the risk
of suffocation or choking exists. Do not leave the packaging
unattended and keep it away from children.
2.2 Description of the identification plate
The identification plate contains technical data, serial number
and indication of the model. Removing the identification plate
is forbidden.
2.3 Disposal
The device must be disposed of separately from other waste
following the Directive 2012/19/EC after completing its
lifetime.
The device does not contain substances which are hazardous
to health and the environment in accordance with the requirements
of applicable European directives.
Disposing of used electrical appliances together with
household waste is not allowed. Return used electric
appliances to the centre for the selective collection
of electrical waste so that it could be disposed of following
the applicable regulations. Such a procedure prevents
contamination of the environment and enables recycling materials
left from the old equipment.
2.4 Manufacturer's liability
The Manufacturer is not liable for personal or material damage
resulting from:
−using the device in a manner inconsistent with the intended use
of this device,
−the User not reading and observing the instruction manual,
−tampering even with one part of the device,
−using unoriginal spare parts,
−not observing warnings regarding the safety.
Detailed guarantee conditions can be found in Wimerton General
Guarantee Conditions.

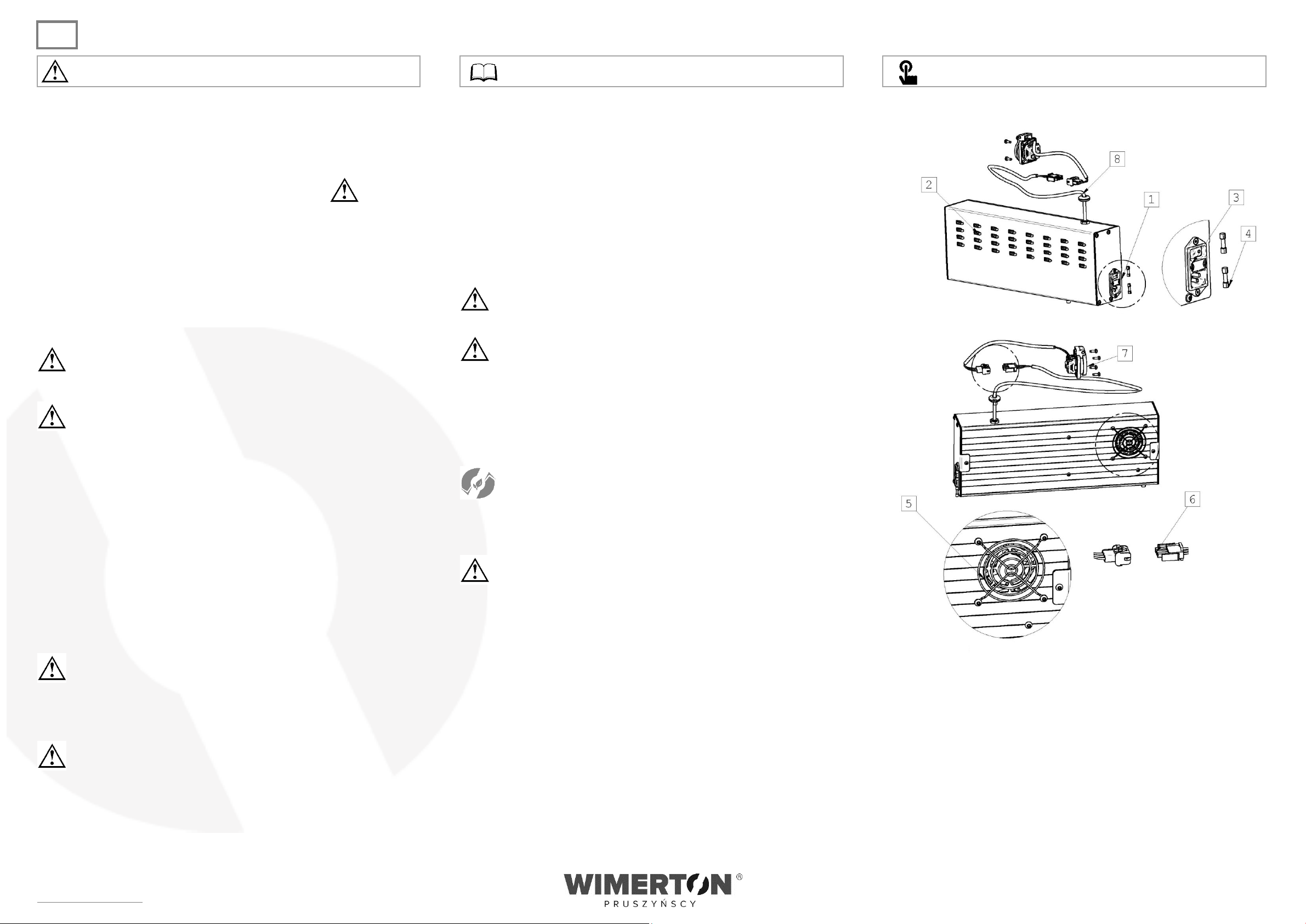

3.1 Description of the device
1. Power module equipped with an illuminated switch, C13 socket
with V-LOCK system and fuses.
2. Main housing equipped with 32 USB sockets with control
diodes.
3. Double socket for safety fuses.
4. 2x safety fuses; dimension: 5x20mm, current: 3.15A, type:
fast.
5. Cooling fan grid, DO NOT COVER THIS PART!
6. Detachable plugs intended for socket for laptop charging.
7. Schuko socket, maximum current 0.5A, 230VAC.
8. Cable grommet for mounting in the bulkhead wall of the
trolley or cebinet.
WARNINGS
USAGE
DESCRIPTION OF THE DEVICE
EN
DETAIL A
DETAIL B
DETAIL C
A
C
B
DETAIL B

INSTRUCTION MANUAL
MOBILE DEVICE CHARGER LO32
WIMERTON PRUSZYŃSCY SPÓŁKA JAWNA Tax Identification No (NIP) 8442358122
www.wimerton.com 16-400 Suwałki, ul. Klonowa 40/73 National Court Register No (KRS) 0000640676
3.2 Mounting points and earthing
The charger is equipped with two mounting points and the device
should be permanently attached to the surface using two M5x8 screws
constituting the part of the set. Tightening torque of 2Nm screws.
The charger is equipped with an earthing
point marked with the following sign:
After installation at its final position, one should test
the continuity of the protective conductor before using
the device.
3.3 Technical data
Input
Power range
230–240 VAC
Frequency range
50-60 Hz
Permissible maximum load
3,15 A
Output
USB power range (up to + 5%)
5 VDC
Permissible load 1x USB
1800 mA
Permissible power 1x USB
9 W
Power range of socket F (Schuko®)
230-240 VAC
Permissible load of socket F (Schuko®)
0,5 A
Work
environment
Ambient work temperature
-5~+50 oC
Ambient work humidity
20~75 %RH
Ambient storage temperature
-20~+70 oC
Vibration level
10~500 Hz
Protection
Surge arrester
5,75~7,5 V
Overload protection
105~135 %
Temperature protection
90 oC
Degree of IP protection for USB sockets
IP20
Degree of IP protection for Schuko® IEC
sockets
IP40
Degree of IP protection for the housing
IP20
Other
Dimensions
440x90x170 mm
3.4 Initial launch
The first launch should take place without any devices
connected to the charger. The objective is to verify whether
the charger has been damaged during the transport. The User
has to verify whether there are any disturbing symptoms (smoke,
sparks, humming, etc.). The test should take a minimum
of 15 minutes. The User can proceed to connecting devices and
normal operation only after performing the aforementioned
verification.
The charger should be mounted in a place where the surface
is solid, constant access of fresh air is required, the device
should be located in a room which is often aired. Holes situated
on one of the side walls can be used (two M5 holes, the maximum
length of the screw should not exceed 8 mm) for mounting
the charger on a solid surface. There is a vent hole located on
the rear wall which must not be covered or hidden. The distance
to the nearest obstacle from the wall with a fan should exceed
10cm.
3.5 Operation and use
Connect the charger using an appropriate power cord included in
the set to the power grin in order to start the device. Then
connect one tablet or smartphone (bear in mind that you may
experience difficulty in charging certain devices) to one free USB
port in the charger using the cable included in the mobile device
set. A maximum of 32 devices can be connected. Move the main switch
to position "1" to commence the charging process. The device works
if green LED lights up at each USB port. At the same time
the protection system responsible for disconnecting the device
after 10 hours of charging is activated. When all the LEDs at
the USB sockets cease being lit, it constitutes a confirmation
that the charging cycle has been completed. The purpose
of the applied protection is to reduce the consumption
of electricity and the wear of batteries connected to the system.
Moreover, LED serves as a signal of the correct operation of each
USB socket. If you notice that some LEDs are off, it may indicate
that USB socket adjacent to the diode is damaged. Move the main
switch to position "0" to turn the device off.
Bear in mind that the device can be disconnected from
the charger only when all LEDs are off. Repeat
the aforementioned steps to commence the charging cycle
again.
Turn the charger off by switching the main switch
to position "0" to connect another device for charging. Only
after doing so you can connect another device to a free USB
port.
Do not connect other devices during the charging process.
Disconnecting the device in a different manner than the one
described in this document (e.g. by removing the power cord
from the socket) shall damage the device and the guarantee
shall not be effective.
If the LEDs do not light up or if you notice any other
defect during switching the device on, immediately
disconnect the device and turn it off without using it,
otherwise the guarantee shall become null and void. The User has
to check whether all requirements regarding the connection
conditions of the device are met.
If defects or damages concerning the product appear during
the guarantee period and User cannot identify and correct
the cause of the situation on its own (without interfering
with the device), one has to inform the manufacturer immediately
but no later than within 7 days from the date on which the defect
or damage appeared.
4.1 Warnings
Danger of experiencing electric shock. Disconnect the plug
from the socket before cleaning.
Risk of damage concerning the surfaces and components:
−Do not use steam to clean the surface.
−Do not use products containing ammonia, chlorine or bleach.
−Do not use abrasive or aggressive detergents.
−Do not use abrasive, crude or sharp metal scrapers.
4.2 Cleaning the surface
Clean the surface regularly using a dry cloth to keep the device
in good condition.
The surface of the charger housing is sensitive
to scratches.
The product is covered by a 24-month guarantee,
the detailed terms and conditions are included in Wimerton
General Guarantee Conditions.
