Windgoo F22 Pro User manual

USER MANUAL
F22 Pro
V1.0
Please carefully and completely read the user manual before use it.

Content
Specifications
Unboxing
Assembly
Product Overview
Battery Key Positions
Installation Steps
Start-up Procedure
Charge Your E-Bike

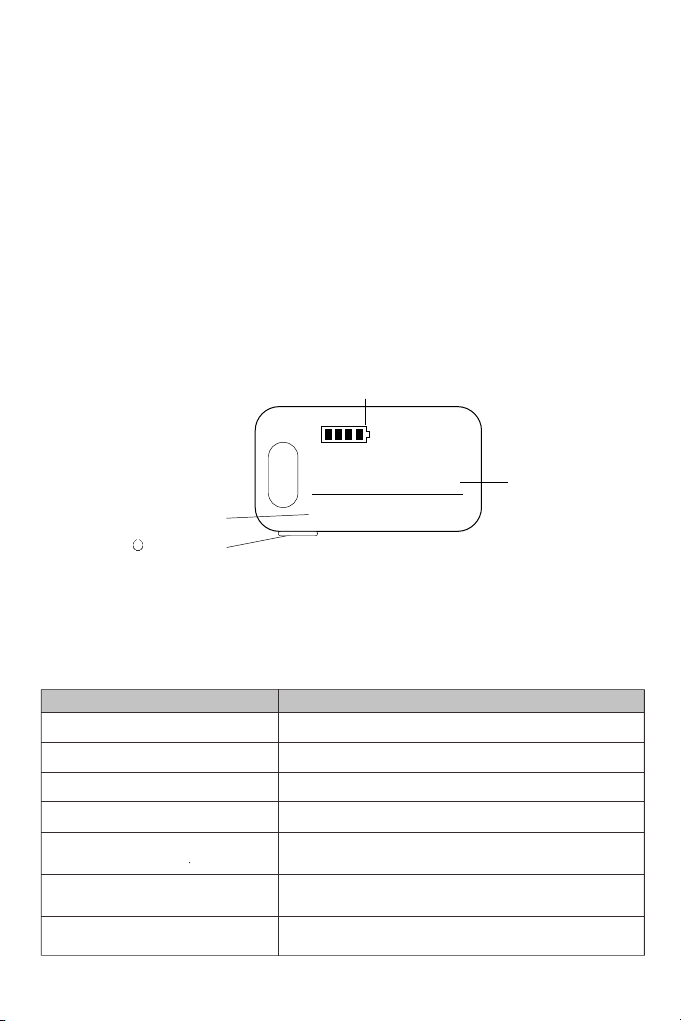

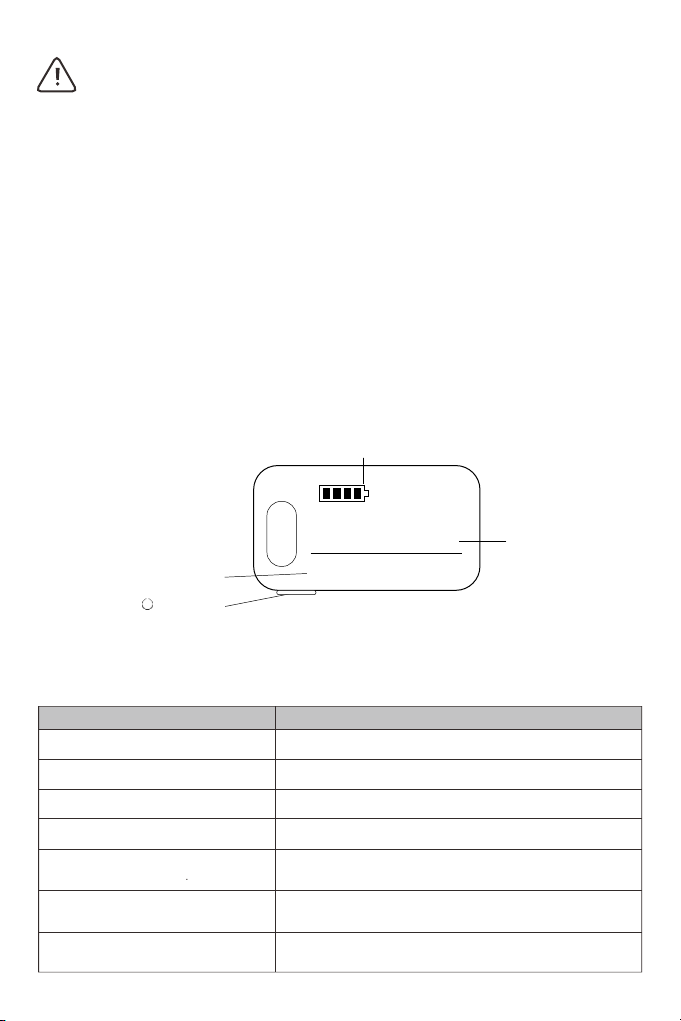

Display and Setting
Display Control
Quick Setup
Daily Care and Maintenance
Troubleshooting
Product Safety Notice
Warning Message
3
3
4
4
5
6
6
7
7
7
8
8
9
9
10
02

03
Unboxing

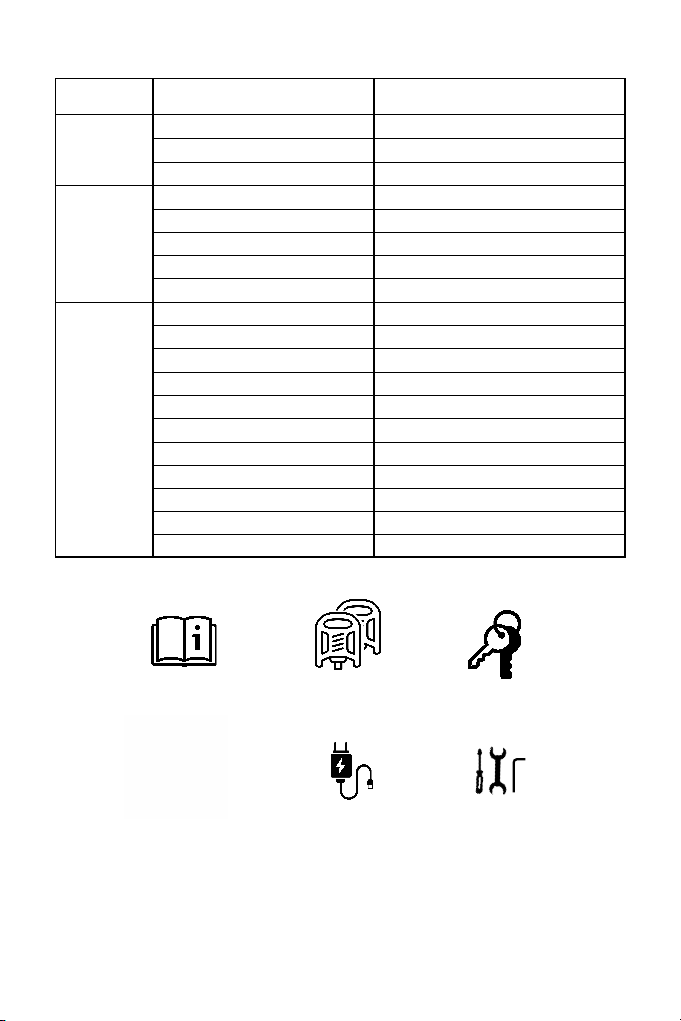

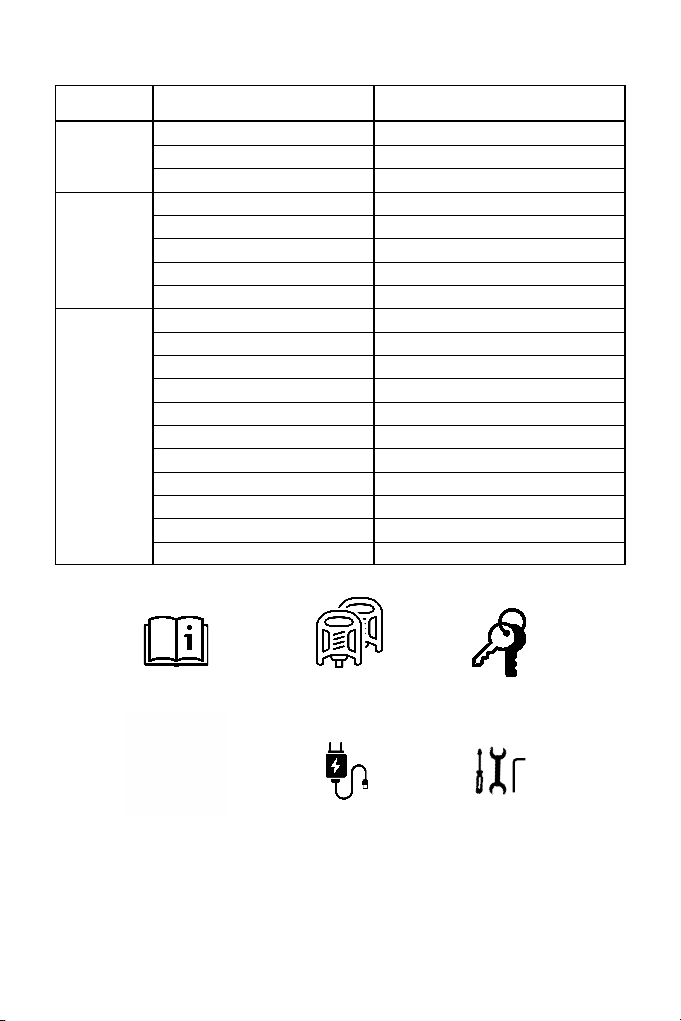

Specifications
Dimensions
Performance
Electronics
Unfold Size
Folding Size
Tire Size
Max Load
Maximum Speed
Product Weight
Max Mileage(Pedal-assisted mode)
Operation Temperature
Battery Type
Battery Capacity
Rated Battery Voltage
Motor Power
Rated Motor Voltage
Charging Time
lnput Voltage
Display
Front light
Brake method
Waterproof
1800*650*1200mm
900*600*800mm
20"*4.0 fat tire
120kg
25km/h
33kg
60-70km
-10℃-60℃
Lithium-ion battery
12.5Ah
48V
250W
48V
6-6.5h
48V 2A
Multi- functional LCD Display
Yes
Dual disc brakes
IP54
ITEM F22 Pro
User Manual -1 Pedals -2
Wrench -9
Key -2
Electric Bike -1 Charger -1
WARNING
Only use the charger provided and authorized by Windgoo.
Otherwise, any consequences thereof will be at your own risk.

04
Product Overview
Grip
Brake handle
Vertical folding clasp
Headlight
Front fender
Front Suspension
Front disc brake
Front disc
Tire
Middle Folding
Clasp
Pedal
Crankset
Wheel Chain
Kickstand
Rear disc
Motor
Rear disc brake
Back fender
Back light
Rear rack
Seat
Key hole
Seat post binder
Battery
LED Display
Gear Shift
Assembly
If you can't install bike accessories well, we recommend taking your new bike to a bikeshop
for assembly and inspection. If you are willing to assemble the bike yourself, be sure to follow
all instructions, properly adjust gears and brakes, and set tire pressure.
Unfold
1. Be careful not to position your fingers between the latch and the frame. You may get
injured if you do it.
2. Unfold the rear wheel/ section and hold your e-bike up right with the kickstand.Push the
latch closed so that it's parallel with the bike's frame then turn the latch lock down towards
the latch to lock it in place.
3. Open the kick stand and place the entire bike.

05
Pedals
1. Locate the right-side/ left side pedal, which is marked "R," "L," should have an "R" "L"
sticker attached.
2. Thread the right pedal onto the right crank gently by hand, turning clockwise. Then tighten
pedal by allen wrench.
3. Thread the left pedal onto the left crank gently by hand, turning counter-clockwise.Then
tighten pedal by allen wrench.
4. Check the chain alignment. Rotate the right pedal and crank toward the back of the bike
as though pedaling backward. Watch the chain and ensure the chain runs through the
drivetrain (the rear cog, chain tensioner, and around the front chainring) smoothly.
1. Open the vertical folding
clasp to fold the handle part.
1. Turn the safety switch.
2. Turn the key. 3. The battery compartment can be
withdrawn for charging.
4. Connect the charger to charge. 5. Charging.
3. Done, to make it smaller,
you can remove the saddle.
2. Open the middle folding
clasp to fold the bike.
Folding

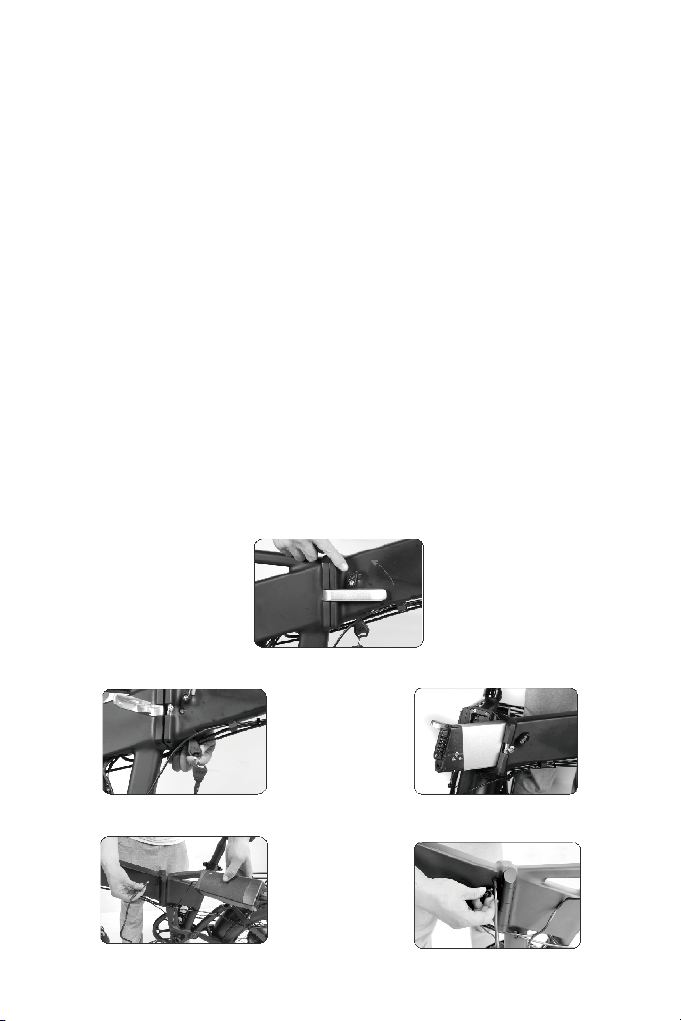

Battery Key Positions

06
Start-up procedure
Do not use the throttle while dismounted.Avoid accidental application of the throttle
while dismounted; anytime you are moving the bike while dismounted, ensure the
bike is powered off to prevent accidental application of the throttle.
Installation steps
1. Remove the packing EPE
pear cotton. 2. Turn upside down. 3. Remove the fork spacer.(it
protects the fork from crushing
and deformation during
shipping, it's not a part of the
bike.)
4. Put the front wheel on the
fork.
5. Tighten the nuts on both
sides. 6. Turn it over again.
9.Lock closure. 10. Use the bolt to join the headlight.fork arch
and fender.
7. Insert the upper part of the
column into the lower part. 8. Stand the steering column and lock the column folding
quick release lever.
After the F22Pro has been properly assembled according to the assembly video, all compo-
nents are secured correctly, and you have read this entire manual, turn on the F22Pro and
select a pedal assist level following the steps below:
1. Test the battery lock security.Ensure the key port is aligned with the OFF icon, which
indicating the battery is off and locked onto the frame mount.Carefully use both hands to pull
up on the battery to test that the lock is secure.
2. Turn the F22Pro on/off.Insert the key and turn clockwise to the ON position.Locate the
LCD Display (near the left handlebar grip).Press and hold the lower power button for about
3 seconds to turn F22Pro on/off.
3. Front light:Long press the "+" button to turn on and off the front light.
4. Begin riding carefully. With the proper safety gear and rider knowledge, you may now
operate your F22Pro.
5. The throttle is used by slowly and carefully press the throttle downward. Do not use the
throttle unless you are on the F22Pro.

07
Charge Your E-Bike
Before using the electric bike, you must fully charge the battery.
1. Ensure the battery is off, by rotating the key to align with the off icon.
2. Remove the rubber cover on the charging port on the opposite side of the battery from the
key switch.
3. Plug the charger into the battery's charging port. With the battery on or off the bike, place
the charger in a flat, secure place, and connect the DC output plug from the charger to the
charging port on the side of the battery.
4. Plug the charger into a power outlet, charging should initiate and will be indicated by the
LED charge status lights on the charger turning red. Once fully charged, the charging indica-
tor light turning green.Unplug the charger from the wall outlet first and then remove the
charger output plug from the battery charging port.
Display and Setting
Display Control
TRIP:This figure shows distance data for a single trip. Data is automatically cleared when the
bike is powered off.
km/h
TRIP
+
_
Speed
Battery Level
00
0
1
Multifunctional
Display area
“ ” Power button
"E1" - Motor Hall failure
"E2" - Motor phase failure
"E3" - Controller failure
"E4" - Undervoltage fault
"E5" - Handlebar failure
"E6" - Communication failure
"E8" - Communication failure
1.Re-plug the motor hall wire to see if it is not plugged in properly
2. Replace the motor
1.Re-plug the throttle cable to see if it's not plugged in properly
2.Replace the throttle gas pedal
1. Re-plug the brake line to see if it's not plugged in properly
2. Replace the brakes
Please charge the battery.
Replace the controller.
1. Re-plug the phase wire to see if it's not plugged in properly or if the wires are
connected together and short-circuited.
2. Replace the motor.
1. Re-plug the meter communication line to see if it is not plugged in properly.
2. Replace the meter or controller or communication connection line.
Error Code Possible Causes

08
Daily Care and Maintenance
Cleaning and Storage
lf you see stains on the bike body, wipe them off with a damp cloth. lf the stains won't scrub
off, put on some toothpaste, and brush them with a tooth brush, then wipe them off with a
damp cloth.
Notes: Do not use alcohol, gasoline or kerosene to clean the bike. Do not wash the bike with
a high-pressure water spray. During cleaning, make sure that the bike turned off,the
charging cable is unplugged, and the rubber flap is closed as water leakage may result in
electric shock or other major problems. When the bike not in use, keep it indoors where it is
dry and cool between 14°F and 104"F. ln extremely humid environments the interior of the
bike may suffer condensation or even water accumulation, which may damage the battery
rapidly.
Battery Maintenance
1.Don't use other brands or models of batteries, as they may pose safety risks;
2.Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts
away from metal objects to prevent short circuit which may result in battery damage or even
injuries and deaths;
3.Use original power adapter to avoid potential damage or fire;
4.Mishandling of used batteries may do tremendous harm to the environment.
5.After every use, fully charge the battery to prolong its life span.
6.Try to avoid recharging the bike after completely exhausting the battery. If the Battery
power is low, charge it as soon as possible.
7.Charge the battery every month if it is not in use.
Quick Setup
Control your Windgoo F22Pro and interact with us in Wingdoo Smart APP.
1. Download "Windgoo Smart" App
(Picture and video instruction can be accessed on our website.)
2. Add a device
Open "Add Devices" to connect your F22Pro.
Reminder: 1 device can only connect to 1 cellphone, remember to disconnect the device
when switching to another phone.
Windgoo Smart
www.windgoo.co | www.windgoo.uk

Troubleshooting
09
1. Low tire pressure
2. Low or faulty battery
3. Driving with too many hills, headwind, braking,
and/or excessive load
4. Battery discharged for long period of time without
regular charges, aged, damaged, or unbalanced
5. Brakes rubbing
1. Charger not well connected
2. Charger damaged
3. Battery damaged
4. Wiring damaged
5. Blown charge fuse
1. Loose or damaged wheel spokes or rim
2. Loose or damaged motor wiring
1. Adjust tire pressure
2. Check connections or charge battery
3. Assist with pedals or adjust route
4. Balance the battery; contact tech
support if range decline persists
5. Adjust the brakes
1. Adjust the connections
2. Replace
3. Replace
4. Repair or replace
5. Replace charge fuse
1. Tighten, repair, or replace
2. Reconnect or replace motor.
Reduced range
The battery will not
charge
Wheel or motor
makes strange noises
Symptoms
The bike does not
work
1. Insufficient battery power
2. Faulty connections
3. Battery not fully seated in tray
4. Improper turn on sequence
5. Brakes are applied
6. Blown discharge fuse
1. Charge the battery
2. Clean and repair connectors
3. Install battery correctly
4. Turn on bike with proper sequence
5. Disengage brakes
6. Replace discharge fuse
1. Insufficient battery power
2. Loose or damaged throttle
3. Misaligned or damaged magnet ring
1. Charge or replace battery
2. Replace throttle
3. Align or replace magnet ring
1. Loose wiring
2. Loose or damaged throttle
3. Loose or damaged motor plug wire
4. Damaged motor
1. Repair and or reconnect
2. Tighten or replace
3. Secure or replace
4. Repair or replace
Irregular acceleration
and/or reduced top
speed
The motor does not
respond when the
bike is powered on
Possible Causes Most Common Solutions
Product Safety Notice
Don't ride until you read this:
1. Always wear a helmet when you ride electric bike.
2. Keep the two keys properly. If the unique keys are lost, you will not be able to turn on
the bike or replace the battery. lf necessary, you should get more spare keys (We don't
have a backup key)
3. Make sure your electric bike has a full battery before taking it out to ride.
4. Always be aware of local road laws, and follow them.
5. Do not ride the electric bike under the influence of drugs or alcohol.
6. Always respect pedestrians.
7. Do not ride under wet conditions.The electric bike may slide from under your feet
causing injury. Wet conditions may damage the electronics and void the warranty.

Warning Message
1. Avoid prolonged exposure to sun or rain and avoid storage in places with high
temperaturesor corrosive gas.
2. We do not cover physical damage due to negligent care and extreme riding.
3. Whenever you ride the electric bike, you risk severe injury or even death from loss of
control, collisions, and falls. Use caution and ride at your own risk.
4. Do not modify the product from the manufacturers original design.
5. Do not exceed the posted speed limit and obey all traffic laws.
6. Avoid touching the charging port directly and do not let it make contact with a metal
object.
7. Keep hands and all body parts away from moving parts while operating the electric
bike.
8. Before riding - be sure to check the electric bike over and make sure the electric bike is
operating correctly before each use.
9. Before riding - be sure to check that the braking system is functioning properly; also be
sure to check that all safety labels are in place and you understand the safety warnings.
10. Before riding - be sure that all axle guards, chain guards, or other covers or guards
supplied by the manufacturer are in place and in serviceable condition.
11. Before riding - be sure to check that the tires are in good condition, inflated properly,
and have sufficient tread remaining.
12. No more than 264.5 lbs (120kg) maximum load rating.
13. The electric bike should never be used by children under the age of 18.
14. Maximum Speed - Your electric bike goes the maximum speed of 25 km/h.
15. Make note that additional insurance may be required to cover situations you encounter
while riding an electric bike. lt is recommended that you contact an insurance company or
broker foradvice and consultation.
16. To conserve electricity, use assist mode and avoid zero starting, frequent braking,
driving against the wind, carrying heavy loads including other people and riding with
insufficient air pressure.
17.
The lithium battery should be charged every 3 months during the shelf life (keep SOC
above 50%). It’s best to maintain the battery at least 30% charge.Do avoid leaving the
battery completely discharged for an extended period of time. Do not overcharge or
discharge.
10
