WineEnthusiast VinoView 269 0X 88 0Y User manual

.1

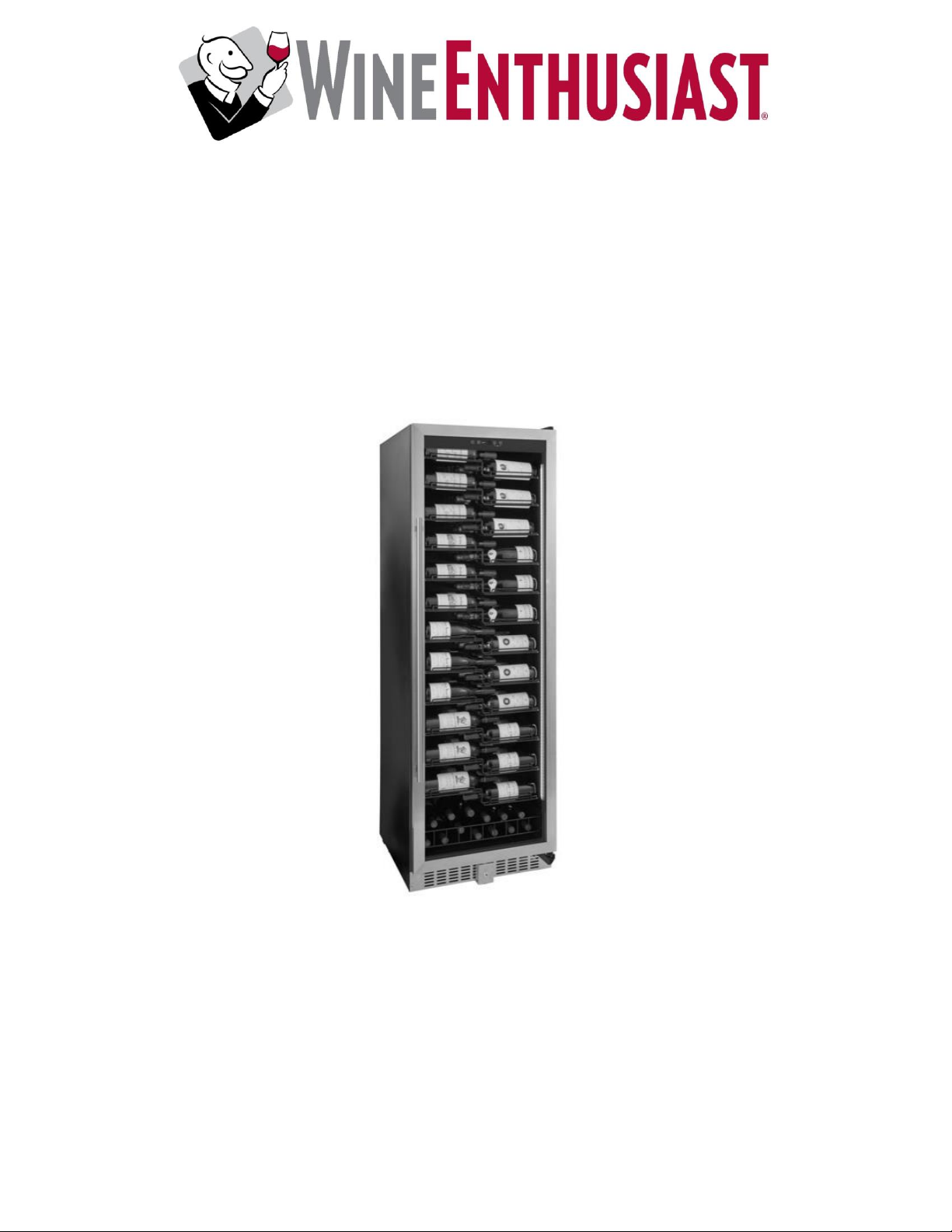

VinoView®Wine Cellar
User Manual
(Features and Size May Vary)
Models: 269 0X 88 0Y
X= 2 (Stainless Steel Trim) or 3 (Black Trim Glass)
Y= 3 (Right Hinge) or 4 (Left Hinge)
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING

2
IMPORTANT SAFEGUARDS
When using this appliance, always exercise basic safety precautions,
including the following:
1. Read all of the instructions before using this appliance.
2. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Use this appliance only for its intended purpose as described in this use and care guide.
5. This wine cellar must be properly installed in accordance with the installation
instructions before it is used. See grounding instructions in the installation section.
6. Never unplug your wine cellar by pulling on the power cord. Always grasp the plug
firmly and pull straight out from the outlet.
7. Unplug your wine cellar before cleaning or before making any repairs. Note: If for any
reason this product requires service, we strongly recommend that a certified technician
performs the service.
8. The SUPPLY CORD cannot be replaced. If the cord is damaged the appliance should be
scrapped.
9. This appliance is designed for free standing installation or can be recessed into
cabinetry.
10. DANGER: Risk of Child Entrapment! Before you throw away your old wine cellar,
take off the doors. Leave the shelves in place so that children may not easily climb inside.
11. Do not operate your wine cellar in the presence of explosive fumes.
12. Do not store foods in wine cellar as interior temperature may not be cool enough to
prevent spoilage or may cause bacteria growth.

3
Model number
Serial number
Date of purchase
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment!
Before you throw away your old wine cellar, take off the doors.
Leave the shelves in place so that children may not easily climb inside.
Thank you for using our Wine Enthusiast
product. This easy-to-use manual
will guide you in getting the best use of
your wine cellar.
Please remember to record the model and
serial number, they are located inside the cabinet
on a label on the bottom right side.
Staple your receipt to your manual.
You will need the receipt to obtain warranty service.

4
Table of Contents
IMPORTANT SAFEGUARDS .........................................................................................................................2
Wine Cellar Features and Use ..................................................................................................................5
Initial Setup .......................................................................................................................................................5
Temperature Adjustment..............................................................................................................................6
VinoView®Shelving (Type and number of shelves will vary per model)...................................6
Installation as a built-in wine cellar ....................................................................................................7
Installing the Handle ......................................................................................................................................7
Operating Your Wine Cellar.......................................................................................................................8
Before You Start...............................................................................................................................................9
Setting the Temperature Control...............................................................................................................9
Lock or Unlock the Control Panel...............................................................................................................9
Interior Light......................................................................................................................................................9
Adjusting the Light Intensity.......................................................................................................................9
Door Lock..........................................................................................................................................................10
Normal Operating Sounds You May Hear.............................................................................................10
Technical Data.....................................................................................................................................................11
Proper Wine Cellar Care and Cleaning..............................................................................................12
Troubleshooting..................................................................................................................................................13
Limited Warranty...........................................................................................................................................15

5
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with
proper grounding to power the wine cellar.
• Avoid the use of three plug adapters or cutting off the third grounding in order to
accommodate a two plug outlet. This is a dangerous practice since it provides no
effective grounding for the wine cellar and may result in shock hazard.
Install Limitations
• Do not install your wine cellar in any location not properly insulated or heated
e.g. garage etc. Your wine cellar was not designed to operate in temperature
settings below 60° Fahrenheit.
• Select a suitable location for the wine cellar on a hard even surface away from
direct sunlight or heat source e.g. radiators, baseboard heaters, cooking
appliances etc. Any floor unevenness should be corrected with the leveling legs
located on the front and rear bottom corners of the wine cellar.
• This appliance is designed for free standing installation or can be recessed into
cabinetry.
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance.
Wine Cellar Features and Use
Initial Setup
• Before connecting the wine cellar to the power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the
cooling system from handling during transportation.

6
• Once you have plugged the unit into an electrical outlet, let the unit run for at
least 30 minutes to acclimate before making any adjustments.
Temperature Adjustment
• The wine cellar can be set to accommodate your wine storage requirements. To
set the temperature, press the up or down arrow button to increase or decrease
the temperature setting until the desired temperature is attained. It may take
some time to reach the set temperature.
•The temperature will fluctuate more so when the wine cellar is empty.
VinoView®Shelving (Type and number of shelves will vary per model)
Your wine cabinet was designed with our patented (U.S. Design Patent No.
D847,220) VinoView shelving allowing you to showcase your prized wines and
easily view your collection. We recommend that you observe the tips below to
optimize loading and performance:
• Remove all packing materials from shelves once unit is stable and ready for
bottle storage.
• Disperse the bottles evenly to avoid concentrating weight in one place. Bottles
must not touch either the back of the cabinet or the step at the bottom. While
your wine cellar was designed to hold large format bottles, such as Pinot Noir,
larger bottles could reduce the number of bottles you can fit on a shelf.
• Make sure that the bottles are not all grouped together either at the top or
bottom of the cabinet.
• Only pull out one shelf at a time, never attempt to pull out more than one.
• Maximum weight capacity per shelf is 50 lbs.

7
Installation as a built-in wine cellar
These cut out dimensions show the minimum space required
for your wine cellar to perform as designed.
Installing the Handle
1. Pull back the door seal behind handle location.
2. Insert screws into pre-drilled screw holes.
3. Attach handle and tighten screws.
4. Press door seal back into place.

8
Power: Turns the Wine Cellar System ON and OFF (Hold for 3 sec.)
Lighting: Turns the Interior Light ON and OFF
Press for 5 seconds to switch between Celsius and Fahrenheit
Control Panel Lock: Pressing Simultaneously + and -for 3 Seconds to Lock or Unlock the
Control Panel
Display Window: Displays Set and Actual Temperature
Temp. Up: Increases Set Temperature
Temp. Down: Decreases Set Temperature
Operating Your Wine Cellar
Each wine cellar includes an operating panel on the front of the unit. This
operating panel includes several features to operate and control the temperature.

9
Before You Start
The wine cellar should be placed in a location where the ambient temperature is between
60-80°Fahrenheit. If the ambient temperature is above or below this range, the
performance of the unit may be affected. For example, placing your unit in extreme cold
or hot conditions may cause interior temperatures to fluctuate.
Setting the Temperature Control
NOTE: The temperature readout shows the actual cellar temperature, it will
temporarily show the set temperature while making adjustments, then reverts
back after 5 seconds.
1. Make sure power cord is connected to a properly grounded outlet.
2. Turn power ON.
3. Set the desired temperature by pushing the Temp UP or DOWN button.
4. Temperatures increase or decrease 1°F with each push of the UP or
DOWN button.
NOTE: Temperatures may fluctuate depending on whether the interior light is ON
or OFF and depending on the position of the bottles.
Lock or Unlock the Control Panel
To LOCK or UNLOCK the control panel:
1. Simultaneously press the _ and + buttons for 5 seconds
2. The control panel will beep when the status has changed.
Interior Light
• To complement the look of your wine collection, a LED lighting has been built
into the wine cellar. Simply push the "Light" button and the light comes on, push
again for off. For maximum energy efficiency, leave light off when not viewing
your collection.
Adjusting the Light Intensity
You can adjust the intensity of the LED lighting intensity from 100% down to 25%
•Unlock the control panel if it is locked

10
•Press and hold the Temperature Down (-) button for 5 seconds, the temperature
indicator will flash a 2 digit number when the ‘light set mode’is active.
•Use the Temperature UP and DOWN buttons to scroll through the light intensity
settings.
01 –100% intensity
02 –75% intensity
03 –50% intensity
04 –25% intensity
•You will exit ‘light set mode’automatically after 10 seconds of inactivity.
Door Lock
• This unit comes with key lock.
• The keys are located inside the plastic bag along with the user manual. To
unlock the door, insert the key into the lock and turn counter clockwise.
• To lock the door, simply reverse the operation making sure the metal pin is
engaged completely.
• Then remove the key and place it is a secure place for safekeeping.
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

11
Technical Data
Total Volume
15.11 CF
Installation
Free-Standing or Built-In
Voltage & Frequency
115~60Hz
Current
2.0A
Power Input
160 W
Protection Class
I
Climate Class
N
Running Amps
1.6A
Ambient Temperature
60 - 77°F
Refrigerant
R600a –2.19oz.
Temp. Control Range
40°F to 72°F
Approx. Net Weight
270 LBS
Dimensions
(W x D x H)
23.43” x 26.77” x 72.24”

12
Proper Wine Cellar Care and Cleaning
Cleaning and Maintenance
Warning: To avoid electric shock always unplug your wine cellar before cleaning.
Ignoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow manufacturer’s
instructions and warnings to avoid personal injury or product damage.
General: • Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed
with warm water. Use sponge or soft cloth, dampened with the
cleaning solution, to wipe down your wine cellar.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. Some of
these chemicals may dissolve, damage and/or discolor your wine
cellar.
Mold on the interior
Microscopic mold spores are naturally occurring and present in the
ambient air. When mold gets in your wine cellar it may grow within the
humid environment. Removal can be completed with mild solutions of
commonly available products such as Borax, vinegar, or baking soda.
Door Gaskets:
• Clean door gaskets every three months according to general
instructions. Gaskets must be kept clean and pliable to assure a
proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will keep
the gasket pliable and assure a good seal.

13
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms
or other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, wait 3 to 5 minutes
then re-plug the power cord to AC outlet.
Vacation and Moving Care
• For long vacations or absences, unplug the wine cellar and clean the
wine cellar and door gaskets according to "General cleaning" section.
Leave doors open, so air can circulate inside.
• Always move the wine cellar vertically. Do not move with the unit
lying down, as possible damage to the sealed system could occur.
Note: After moving, wait for 24 hours before plugging in the wine
cellar.
Troubleshooting
Many common issues with your wine cellar can be easily solved. Try the troubleshooting
tips below if you experience any problems.
Wine Cellar Does Not Operate:
• Check if wine cellar is plugged in.
• Check if there is power in the AC outlet, by checking the circuit
breaker.
Wine appears too warm:
• Frequent door openings.
• Allow time for recently added wine to reach desired temperature.
• Check gaskets for proper seal.
• Clean condenser coils.
• Adjust temperature control to colder setting.

14
Wine temperature is too cold:
• If temperature control setting is too cold, adjust to a warmer setting.
Wine cellar runs too frequently:
• This may be normal to maintain constant temperature during high
temperature and humid days.
• Doors may have been opened frequently or for an extended period of
time.
• Clean condenser coils.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build-up on interior or exterior of the wine cellar:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Wine cellar door does not shut properly:
• Level the wine cellar.
• Check for blockages e.g. wine bottles, shelves.

15
Limited Warranty
This Warranty Covers Appliances Within The
Continental United States Only.
Length of Warranty: This Limited Warranty lasts for one (1) year from date of receipt of
purchase of the wine cellar (“Limited Warranty Period”) and the sealed system (compressor,
condenser, evaporator) will be covered for three (3) years. Extended warranties may be available
for an additional cost at the time of purchase or up to 30 days from date of purchase. These
extended warranties would extend this one (1) year limited warranty to two (2), three (3), or five
(5) years. Details about our extended protection plans can be found @ wineenthusiast.com.
Who is Protected: This Limited Warranty protects the original purchaser during the Limited
Warranty Period, provided that such purchaser can present appropriate proof of original purchase.
What is Covered: This Limited Warranty covers any defects in workmanship or materials in your
new wine cellar under normal use.
What is Not Covered: The following are not covered by this Limited Warranty damage due to
such things as accident, misuse, abuse, mishandling, neglect, unauthorized repair, failure to
properly maintain, acts of God or any other cause beyond the reasonable control of the Wine
Enthusiast whether similar or dissimilar to the foregoing.
Commercial use or use other than normal household or small office.
Purchaser understands and acknowledges that the wine cellar is a wine refrigerator, which houses
wine. Purchaser assumes all the risk of using these units, including risk of spoilage, humidity
variations, temperature variations, leaks, fires, water damage, mold, mildew, dryness and similar
perils that may occur.
What We Will Do: During the Limited Warranty Period, Wine Enthusiast and/or the manufacturer
will, at its sole discretion, repair or replace any wine cellar not operating within the manufacturer’s
specifications. All costs for labor and materials thereto shall be covered during the Limited
Warranty Period. If Wine Enthusiast deems the wine cellar is not repairable, Wine Enthusiast will
use the value of your original order toward a replacement; provided, however, that the purchaser
will be responsible for all shipping and handling costs with respect to the replacement after the
initial ninety (90) days after the date of receipt of original purchase. After the initial ninety (90)

16
day period after the date of receipt of purchase, purchaser must pay any shipping and
handling charges that are incurred in shipping or transporting the wine cellar for service
under this Limited Warranty. Wine Enthusiast reserves the right to substitute materials of
substantially similar quality in the event that identical materials are not available at the time the
Limited Warranty services are performed. Wine Enthusiast reserves the right to request that
purchaser contact a local refrigeration company to service the wine cellar.
How to get Warranty Service: In the event your wine cellar is not operating within the
manufacturer’s specifications, during the Warranty Period, contact customer service by email at
[e-mail] or by phone [phone].
Limitation of Implied Warranties: All implied warranties, including warranties of
merchantability and fitness for a particular purpose, are limited in duration to the length of this
Limited Warranty.
Exclusion of Certain Damages: Wine Enthusiast’s liability is limited to replacement or repair of
the defective wine cellar. Wine Enthusiast shall not be liable for any damages, whether incidental,
consequential or otherwise, because of any defective wine cellar.
How State Law Applies: Some states do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion of incidental or consequential damages, so the above
limitations and exclusions may not apply to you. The Limited Warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Wine Enthusiast
Valhalla, NY 10595
