Wirquin CLUB User manual

HINGE FITTING INSTRUCTIONS 270746
A_04/2021
CLUB Thermoset seat
www.wirquin.co.za
1
OR
OR
OR
A
B
A
B
C
OR
OR
OR
A
B
A
B
C
2
3

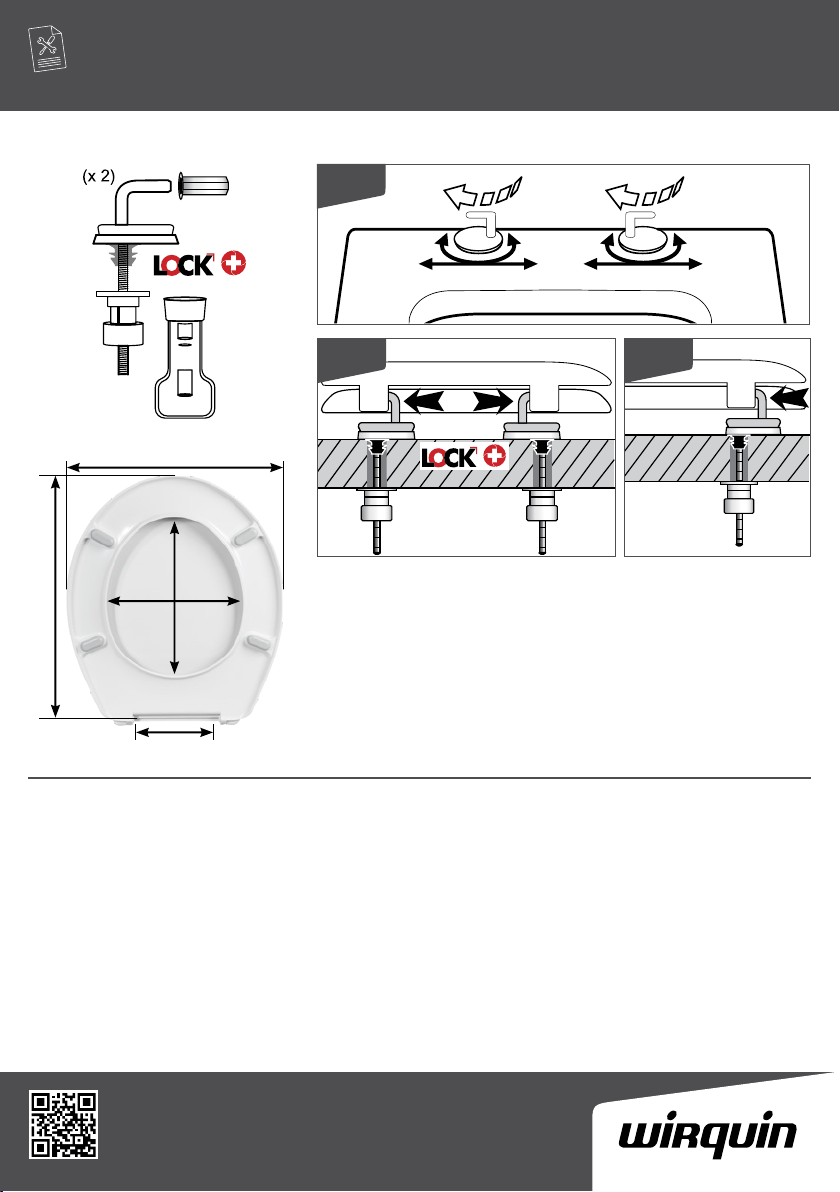

OPTION 1 - PLASTIC HINGES
•NOTE the different hinge option positions for
different length pans
LOCK PLUS
1,5 kg
SCRATCH
RESISTANT
NO
STANDING
OR
OR
OR
A
B
A
B
C
 holds the seat in place!
STOP SEAT
MOVEMENT
375mm
Option 1 - adjustable 422/427/432mm
Option 1 - adjustable 110-170mm
278mm
236mm

www.wirquin.co.za
WIRQUIN Manufacturing | 1 Hospital Road - Somerset East | Eastern Cape - 5850
T: [phone] | Email: [email protected]
BEFORE INSTALLING YOUR WIRQUIN TOILET SEAT:
•Verify the colour and size.
•Check that the visual surface is free from cracks and surface defects.
•Ensure that all components are present and in a satisfactory condition.
•No claims will be entertained after installation.
CARE AND CLEANING OF YOUR WIRQUIN TOILET SEAT:
•The seat and cover should be cleaned using warm soapy water.
•Do NOT use aggressive or abrasive cleaners as this may scratch the surface.
•The hinges should be cleaned using soap or mild detergent.
•After cleaning, the hinges should be rinsed in clean water and dried.
•NEVER use bleach, concentrated cleaners or acids as this will cause discolouring and pitting.
•Do not leave bleach in the toilet bowl with the cover closed because it may cause discolouration of the seat and hinges.
•The cover of the toilet seat is for decorative purposes only. The lid is not guaranteed to carry weight.
(DO NOT STAND OR SIT ON THE COVER AFTER FITTING.)
HINGE FITTING INSTRUCTIONS
CLUB Thermoset seat
•Hinge position is adjustable to fit a large selection of pan dimensions.
•Hinges can be fitted on the inside or outside of the seat as shown in
the diagrams.
•Adjust the hinges to fit the seat in the correct position on the pan.
•Ensure the pins of the hinges are all the way into the seat before
securing the hinges. Failing to do so could cause damage to your seat.
Please ensure that the seat is secure before use.
OPTION 2 - QUICK BOTTOM FIT STAINLESS STEEL HINGES
OR
OR
OR
A
B
A
B
C
OR
OR
OR
A
B
A
B
C
OR
OR
OR
A
B
A
B
C
OR
OR
OR
A
B
A
B
C
2
3 4
375mm
Option 2 - adjustable 129-179mm
278mm
236mm
Option 2 - adjustable 417-453mm
