IP Phone User Manual (V1.32)
BT-323-EE
IP Phone User Manual

IP Phone User Manual (V1.32)
2
VoIP(Voice over Internet Protocol) Device
Index

Breif Introduction of IP phone
........................................................................................ 3
 Suitable Uses of IP phone .............................................................................................. 4
 IP phone Appearance Introduction: ............................................................................... 5
 Function Keys of IP Phone Introduction (Normal State) ............................................. 6
 Features .................................................................................................................................... 6
 Standard and Protocol ........................................................................................................... 8
 Operating requirements ......................................................................................................... 8
 Electric requirements .............................................................................................................. 9
 Size ............................................................................................................................................ 9

Installation
................................................................................................................................9
 Configuration .......................................................................................................................... 10
 Phone Keypad set ................................................................................................................. 10

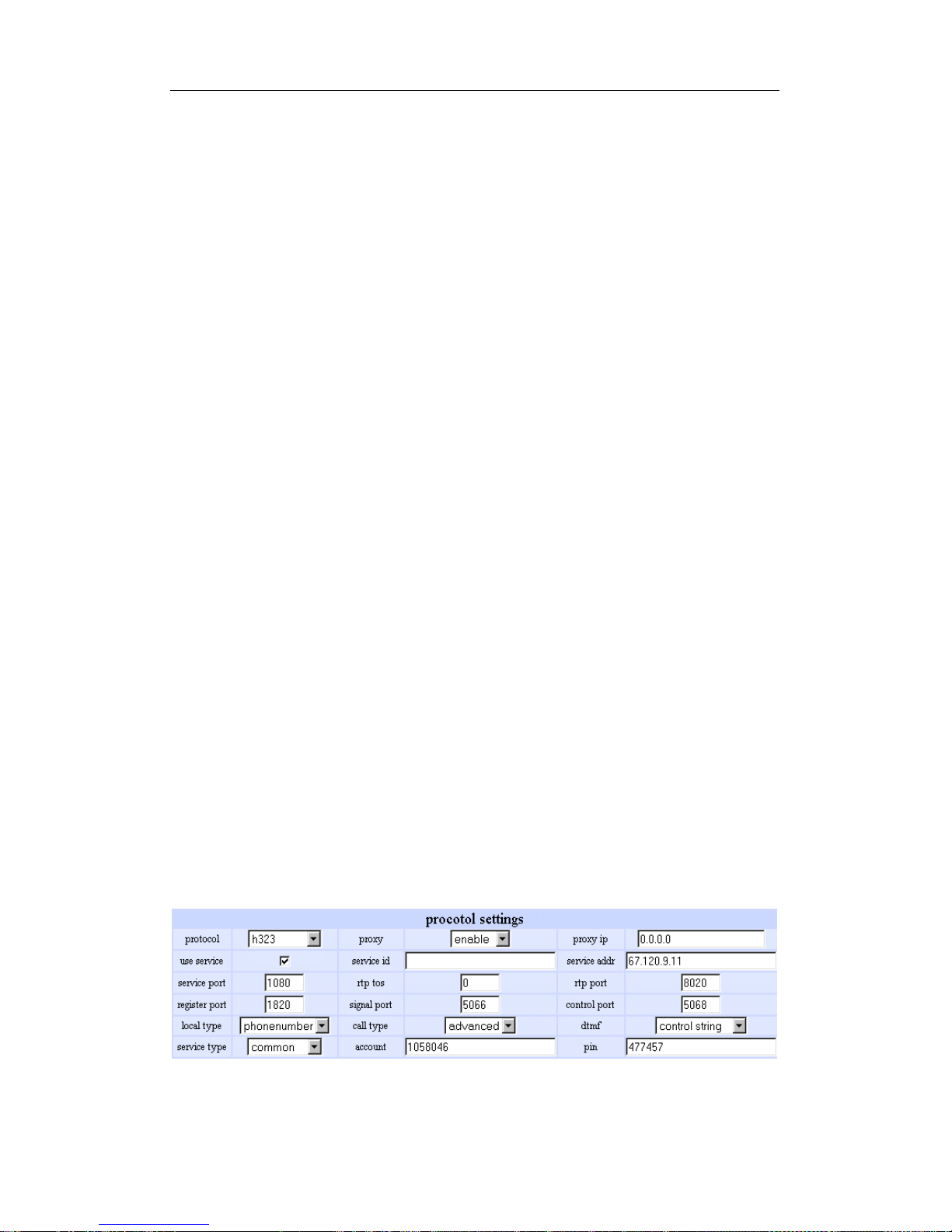

 Configured by WEB .............................................................................................................. 16

Configured by PalmTool
...................................................................................................... 36
 Telnet Configuration ............................................................................................................. 37
 Upgrade IP phone .......................................................................................................... 55
 Usage of the phone .............................................................................................................. 56

IP Phone User Manual (V1.32)
3
 Breif Introduction of IP phone
IP is abbreviation of Internet Protocol. An IP phone is a telephone
transporting voice using grouping data package of IP protocol. The
networking using IP protocol such as LAN within the enterprise, LAN
within a city and Internet work all support using IP phone.
The mostly significant features of IP phone is transporting voice message
over data communication network at an extremely low price with excellent
sound quality. Using IP phone, you will save dramatically on international
calls and long distance calls.
BT-323-EE series IP net phone uses unique generalized outline and inner
line modes. It functions much like an ordinary telephone switching between

IP Phone User Manual (V1.32)
4
inner line and out line, so it supplies great conveniences to the users.
When BT-323-EE series IP net phone is in generalized inner line mode, it
can call another BT-323-EE series IP net phone worldwide free. When
BT-323-EE series IP net phone is in generalized out line mode, it can
places calls to ordinary telephones worldwide at a dramatically low price,
because BT-323-EE series IP net phone supports using prepaid card
supplied by ISP such as Net2phone or eTalk. Moreover, it possesses
excellent sound quality just like ordinary phones. IP phone has 2X16
English LCD and supports being set by keypad.
 Suitable Uses of IP phone
IP Phone is the ideal choice for those who always place international or
long distance calls. If two parties both use BT-323-EE serial IP Phone, they
can communicate with each other even free.
●Telecom Service Provider and Internet Phone Service Provider;
●Foreign capital or joint venture companies; offices, representative
offices or agencies of foreign companies in China;
●Abroad hotel（Can be arranged at guest rooms or commercial central）；
●Large enterprises, multinational enterprise(Used for international call

IP Phone User Manual (V1.32)
5
and long distance call)
●Middle and small enterprise with import or export business, abroad
travel agencies; study abroad or immigrant mid-agencies;
●Departments relating with international affairs, such as foreign trade
department, association for friendship with foreign countries,
turnvereins, athenaeums, foreign experts bureau and other
departments involving foreign affairs
●Colleges and study institutions, such as dorm for abroad students,
professors with close connection with foreign countries;
●Families or persons with close connection with foreign countries, such
as foreigners in China and those who prepare the study abroad
 IP phone Appearance Introduction:

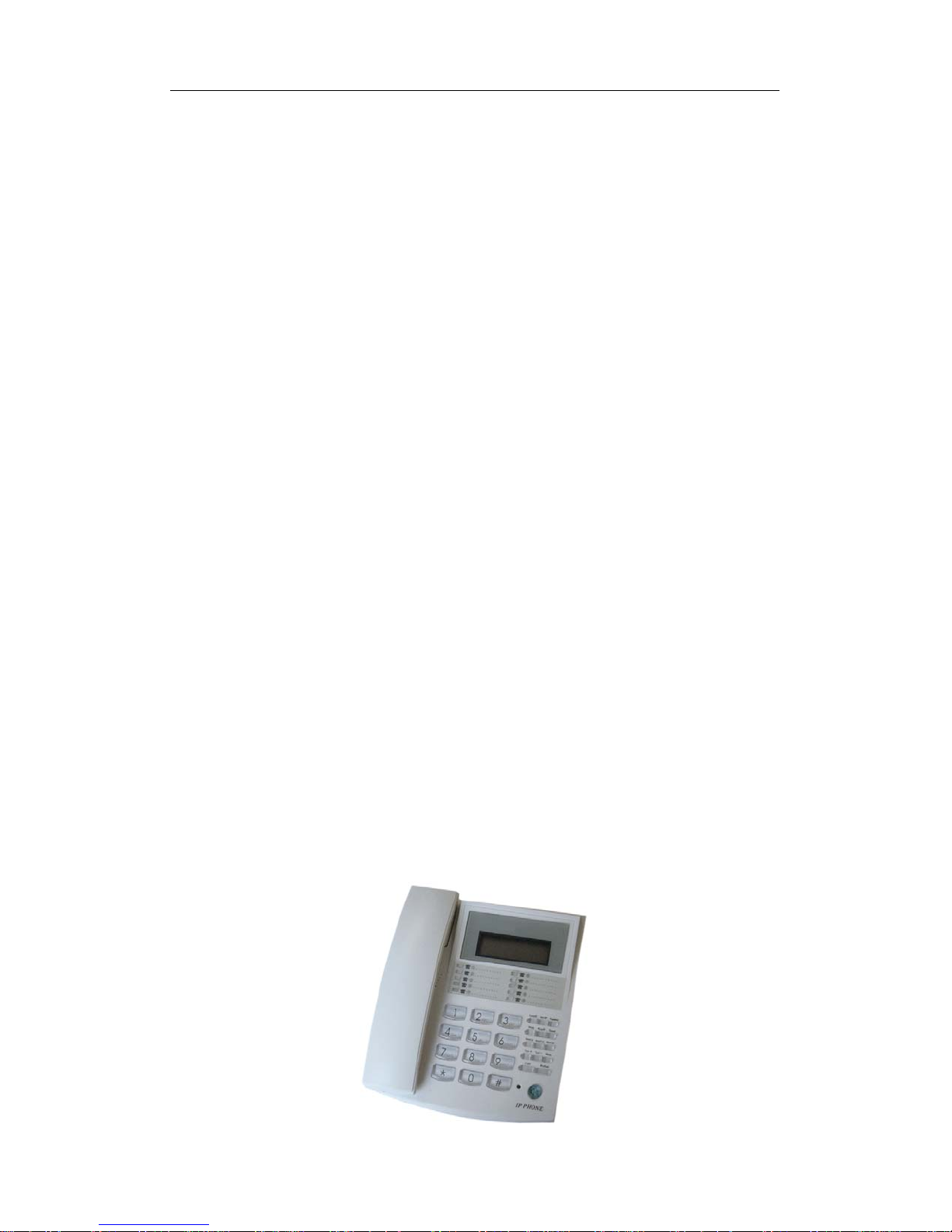

● IP Phone Front Illustration:
●

IP Phone User Manual (V1.32)
6
 Function Keys of IP Phone Introduction (Normal State):
Keys Function
LocaIP With handset hung, press this key to get local IP address of the phone
MisCal With handset hung, press this key to review missed number
Mask The subnet mask of the ip phone
RouIP The gateway ip address
AnsCal With handset hung, press this key to review received number
Speed Speed dial
Number With handset hung, press this key to get phone number
DiaCal With handset hung, press this key to review dialed number
Mem Save speed dial number
SerIP The gatekeeper ip
Redial While reviewing missed, received or dialed number, press this key to dial current number
Speaker Press this key to have a call without lifting the handset
Volume+ Increase the volumes of handset or speaker; turn over the record backward
Volume- Decrease the volumes of handset or speaker; turn over the record forward
Keypad With handset picked or pressing speaker, press this key to dial number
 Features
 Hardware

IP Phone User Manual (V1.32)
7
●Main chip—pa1688 50MHz
●Data Memory—2MB SDRAM
●Program Memory—1 MB Flash memory
●Ethernet Jack—1/2 10/100M jacks
●AC/DC adapter—Input AC 230V，Output 7.5V DC, 0.8A
 Software
●DHCP support for LAN or Cable modem
●PPPoE support for ADSL or Cable modem
●Set phone by HTTP web browser (IE6.0) or Telnet
●Upgrade by FTP
●Support major G.7XX and gsm610 audio codec
●VAD(Voice active detect)
●CNG (Comfort noise generation)
●Dynamic voice jitter buffer
●G.168/165 compliant 16ms echo cancellation
●Tone generation and Local DTMF re-generation according with ITU-T
●E.164 dial plan and customized dial rules
●100 entries for quick dial
●80 entries each for missed calls, answered calls and dialed calls
●Adjustable volume for both handset and speaker
●Voice prompt
●Hotline

IP Phone User Manual (V1.32)
8
 Standard and Protocol
IP Phone supports following standard and protocol:
● IEEE 802.3 /802.3 u 10 Base T / 100Base TX
● Major G.7XX and gsm610 audio codec
● H.323 V4
● MGCP RFC2705
● SIP RFC3261
● Net2phone private protocol
● TCP/IP: Internet transfer and control protocol
● RTP: Real-time Transport Protocol
● RTCP：Real-time Control Protocol
● VAD/CNG save bandwidth
● DHCP：Dynamic Host Configuration Protocol
● PPPoE：Point to Point Protocol over Ethernet
● DNS：Domain Name Server
● Telnet：Internet's remote login protocol
● FTP：File Transfer protocol
● HTTP：Hyper Text Transfer protocol
● Build in H.323 proxy
 Operating requirements:
●Operation temperature: 0 to 50° C (32° to 122° F)

IP Phone User Manual (V1.32)
9
●Storage temperature: -30° to 65° C (-22° to 149° F)
●Humidity: 10 to 90% no dew
 Electric requirements:
●Voltage: 7.5V DC
●Power: 9W (max.)
●Power adapter: AC/DC input 100-230V，output 7.5V 1A
●Network interface:1/2X RJ-45 Ethernet Connectors
 Size：
198 x 176 x 60 mm (L x W x H)

Installation:
1． Connect handset to base: insert handset cord into handset cord jack at the
left side of the base.
2． Connect IP phone to Internet: plug the RJ-45 Ethernet cable into the
Ethernet Jack. Plug the other end of the cable into HUB.
3． Power on IP phone: plug the power cord adapter into the Power Jack. Then
plug the other end of the power cord adapter into the appropriate wall
outlet.

IP Phone User Manual (V1.32)
10
 Configuration
Four different ways can be used to configure IP phone: phone
keypad set; web browser, Telnet commands and PalmTool configuration on
computer.

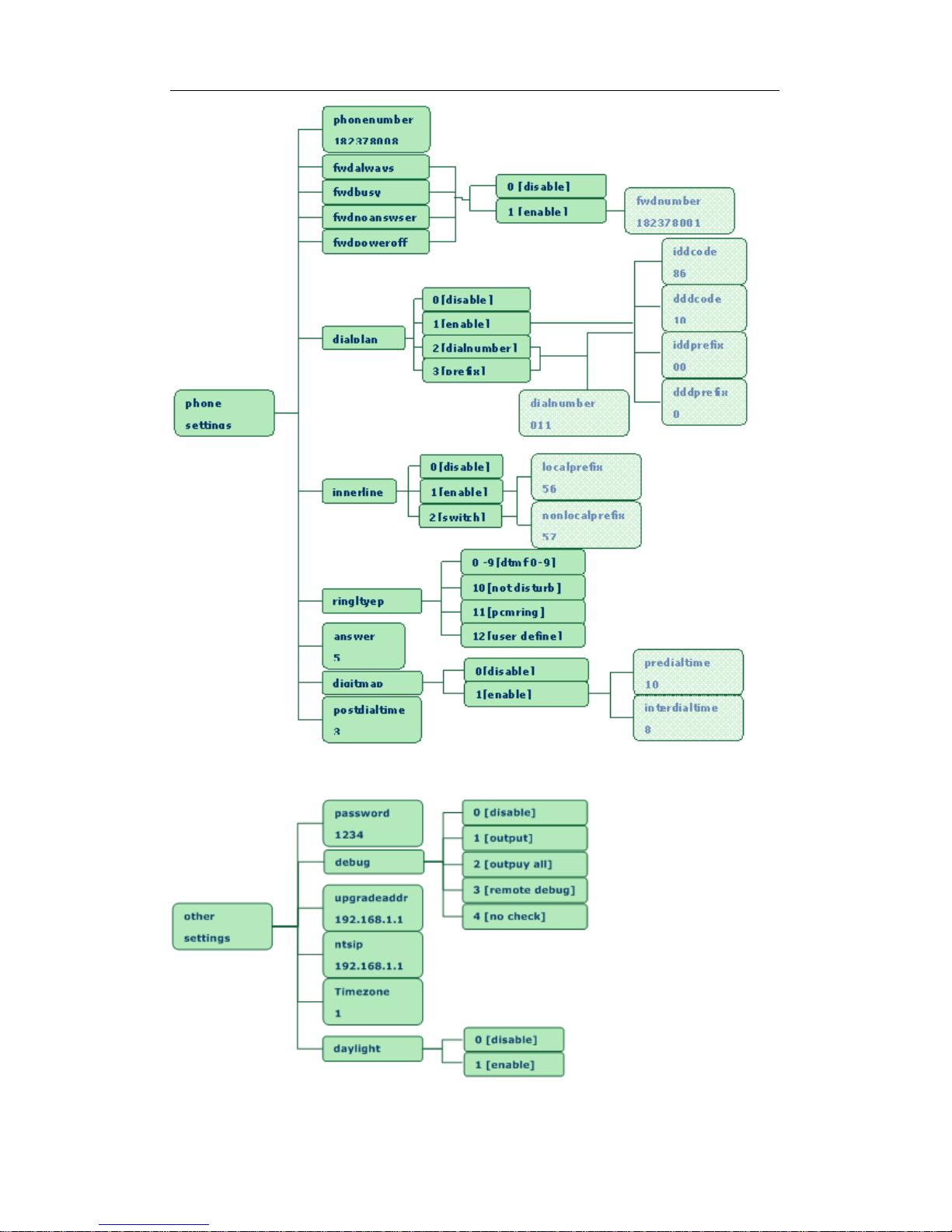

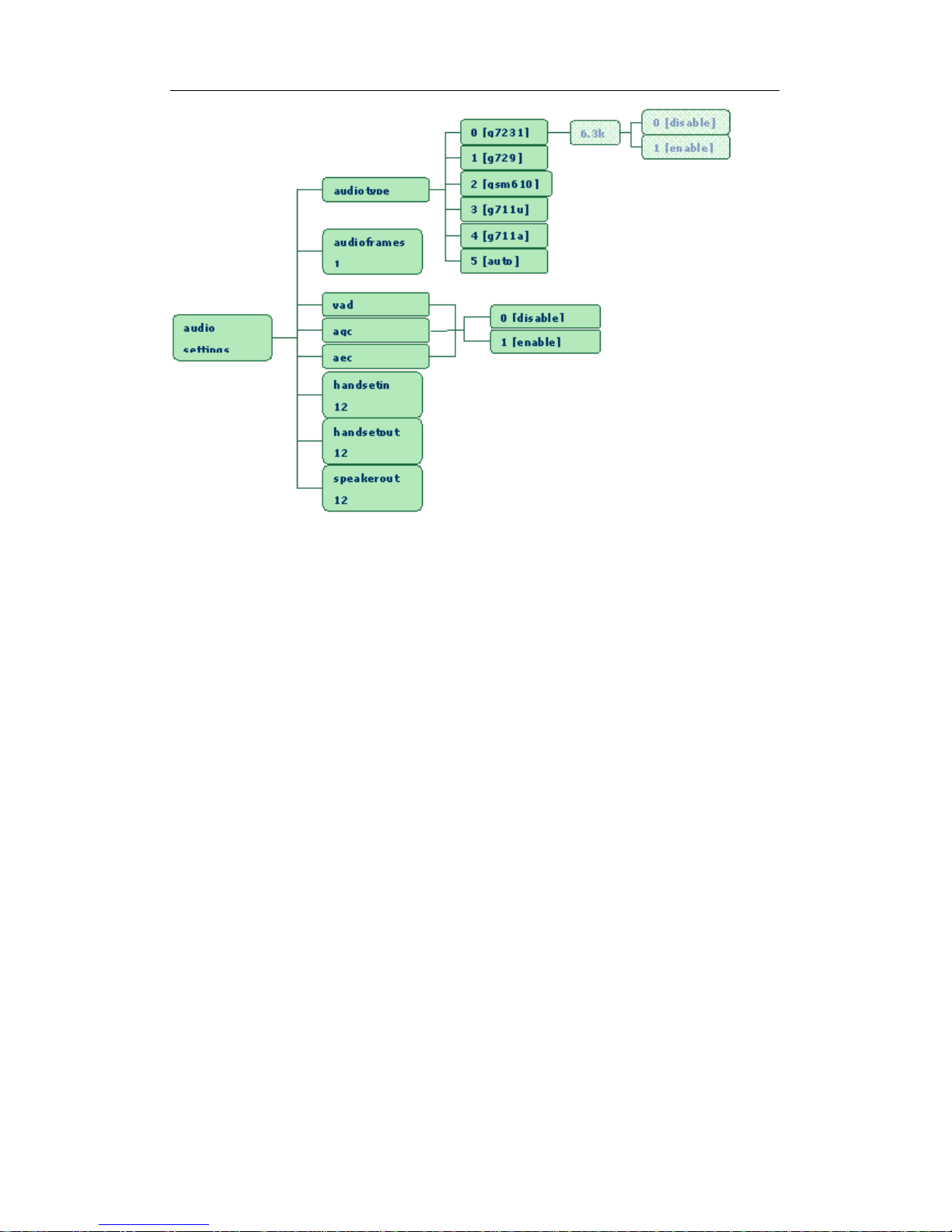

 Phone Keypad setup
●Function Keys Introduction: While using keypad and LCD to configure
the setting of IP phone, following keys will be used:
Keys Function Keys Function
LocalIP Enter change mode Speaker Enter submenu; confirm change
Vol＋ Turn over menu
backward Vol - Turn over menu forward; move
cursor back in change mode
Keypads Modify values Redial Exit current menu; exit change mode
●Configuration operation: We tack enabling eTalk prepaid card and
setting the ID and pin as an example to explain how to change setting:
1. Enter setting mode: use the dial pad to enter the password of the phone
(when debug is not set as 0[disable], default password is 1234; when
debug is set as 0[disable], please use super password 19750407), and
then press , till is displayed. Then enter the
password again and press to let the phone enter setting
mode.
2. Enable eTalk: Once the phone enter setting mode , will be
seen, then press to turn over the menu, until is
displayed. Please press to enter submenu and then continually
Password：

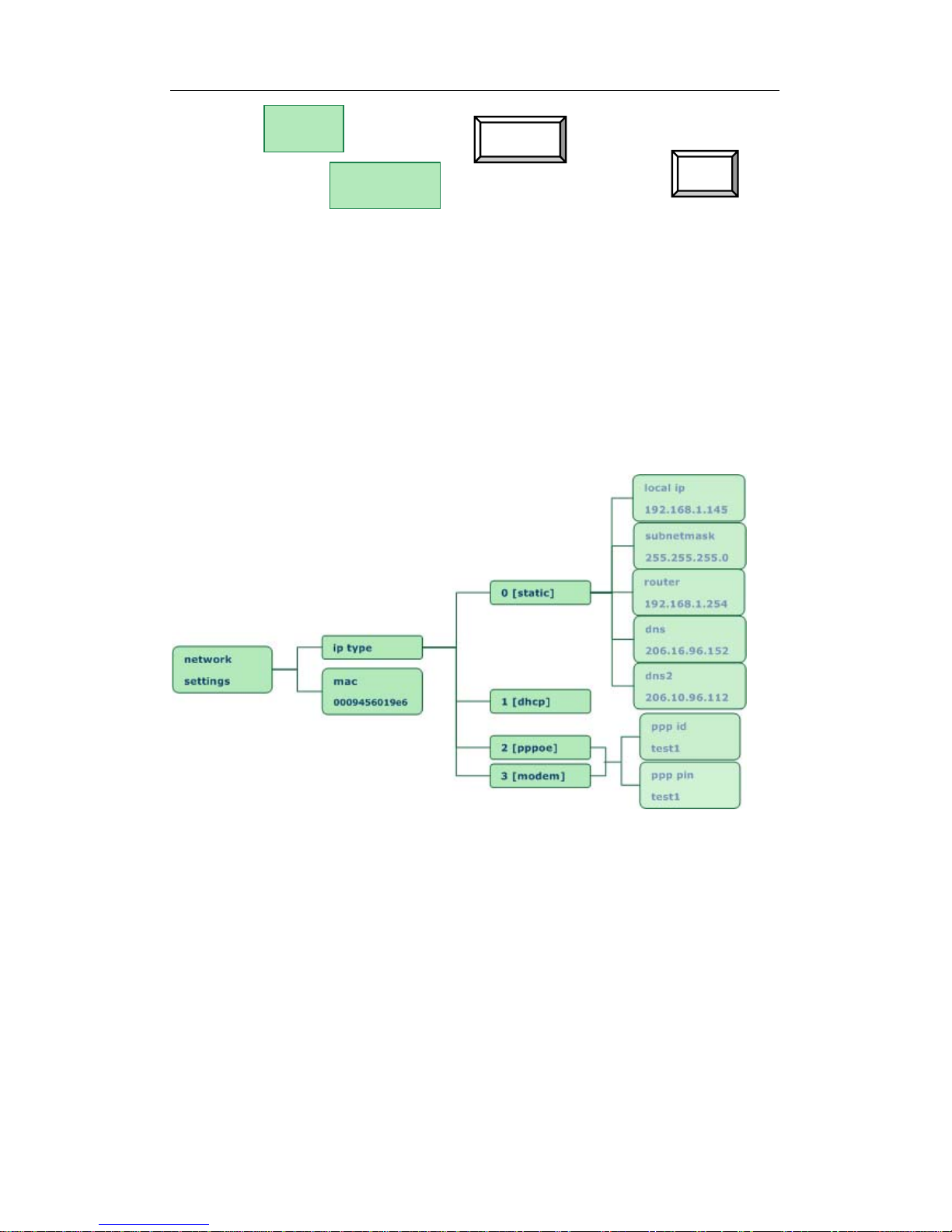

network
settings

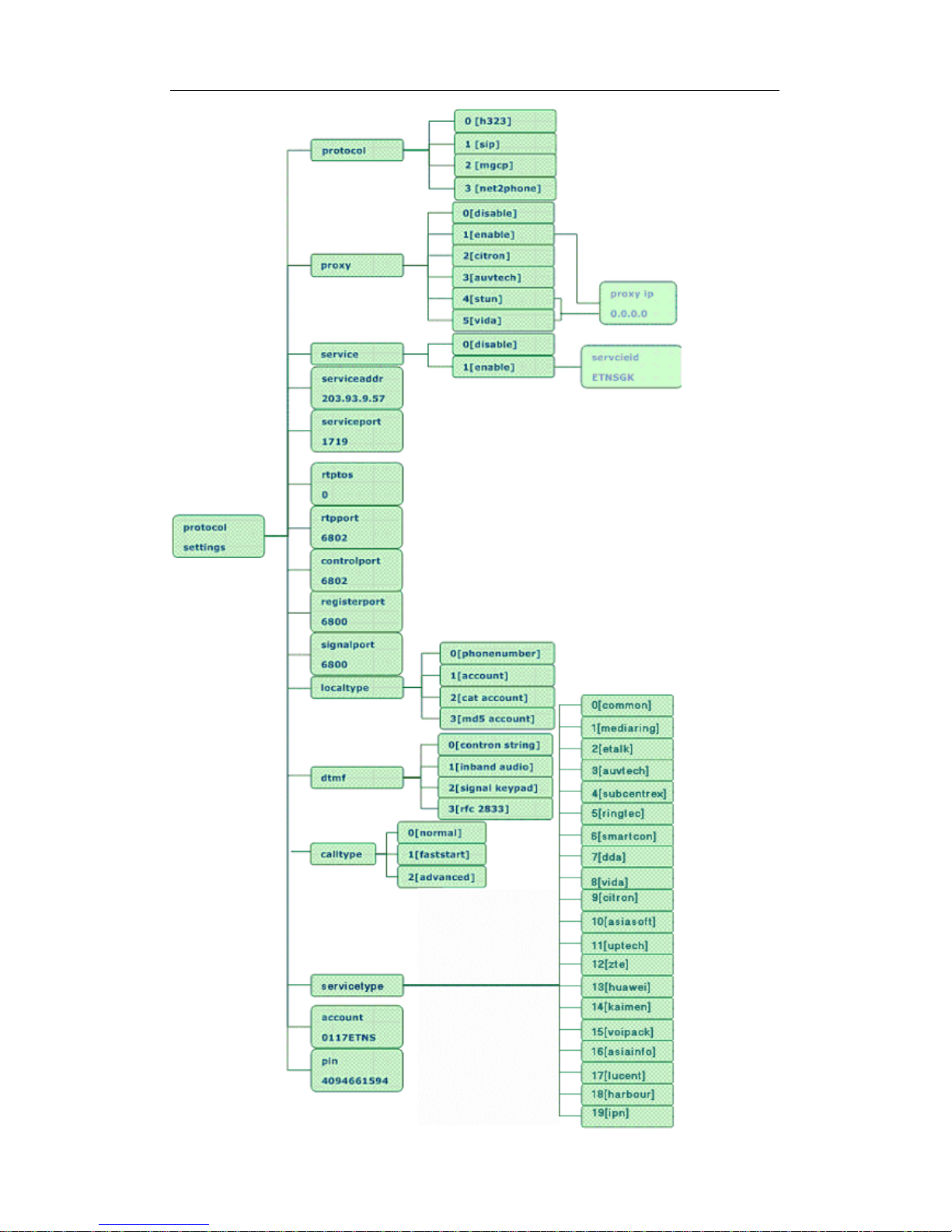

protocol
settings
calling card
0[normal] Local IP
#
Speaker
Vol＋
Vol＋
Speake
r
