Wolf ICON PIR User manual

INSTRUCTION MANUAL
ENGLISH
REMOTE
SOUNDER
www.wolnt.co.uk
WIDE TRANSMISSION
RANGE
RUMBLE
ALERT
HUBB
LINK
GLOBAL
MUTE
HIGH VISIBILITY
LEDS
LONG BATTERY
LIFE

INSERTING BATTERIES
To insert batteries use screwdriver provided and open
the 2 screws on the battery compartment. When
inserting 3 new AAA batteries always replace all of
them. When PIR is not going to be used for a while it is
recommended to remove batteries in case of leakage.
FEATURES
•
4 Indicator Channel LED’s
•
Mylar Speaker
•
On/Off Button
•
Volume Adjustment
•
Radio Signal Strength
•
Bivvy Light Link
•
Global Mute Button
•
Water Resistant Electronics
•
Battery Level Indication
•
Extra Long Battery Life
•
Extreme Transmit / Receive Range 1km
•
Lanyard Fixing Point
•
Anti-Theft
•
Can be used as a Remote Sounder for
all ICON alarms
•
Warranty 2 Years with 3rd Year
Free. Register your PIR Sounder at
www.wolfint.co.uk
POWER
BUTTON
LANY
ARD
FIXING
POINT
UP
BUTTON
DOWN
BUTTON
GLOBAL
MUTE/
UNMUTE
MYLAR
SPEAKER
MOISTURE
OUTLET
OK
BUTTON
LED’S
DEVICE
OPTION
LED

To insert batteries use screwdriver provided and
open 2 screws on battery compartment.
When inserting new batteries always replace
all of them.
When PIR Sounder is not going to be used for a
while it is recommended to remove batteries in
case of leakage.

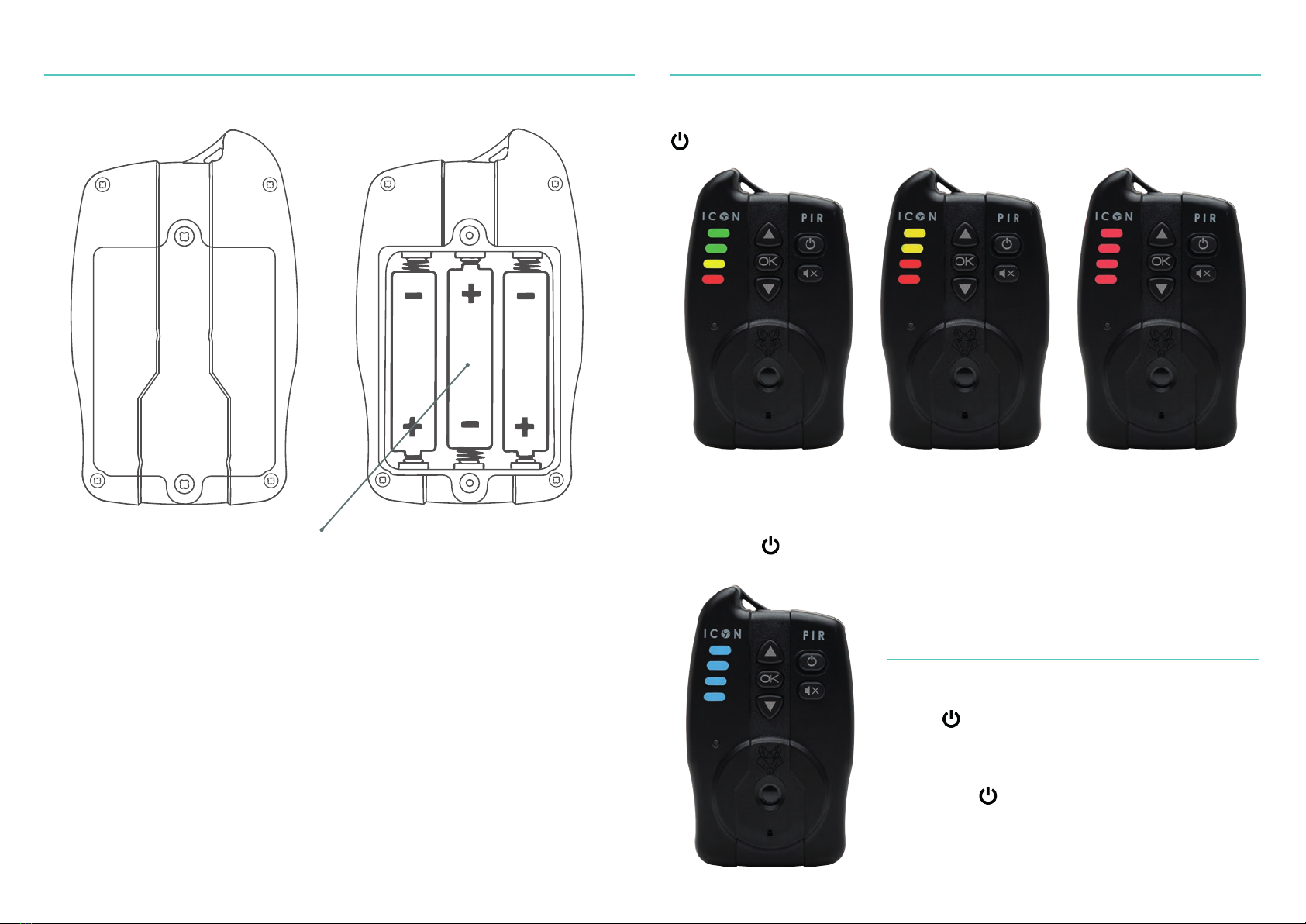

INSERTING BATTERIES
3 AA 1.5v Batteries
When the PIR Sounder is turned off, Press and hold
for 4 seconds.
Release to begin the start-up sequence.
POWER ON
Good battery
level
OK battery
level
Bad battery
level
From any mode, press and
hold for 3 seconds.
LED’s will illuminate Blue.
Release to power off.
POWER OFF

From idle, or an alert display, pressing ▲or
▼will enter
volume adjustment. ▲or
▼will then adjust the volume
of the PIR Sounder.

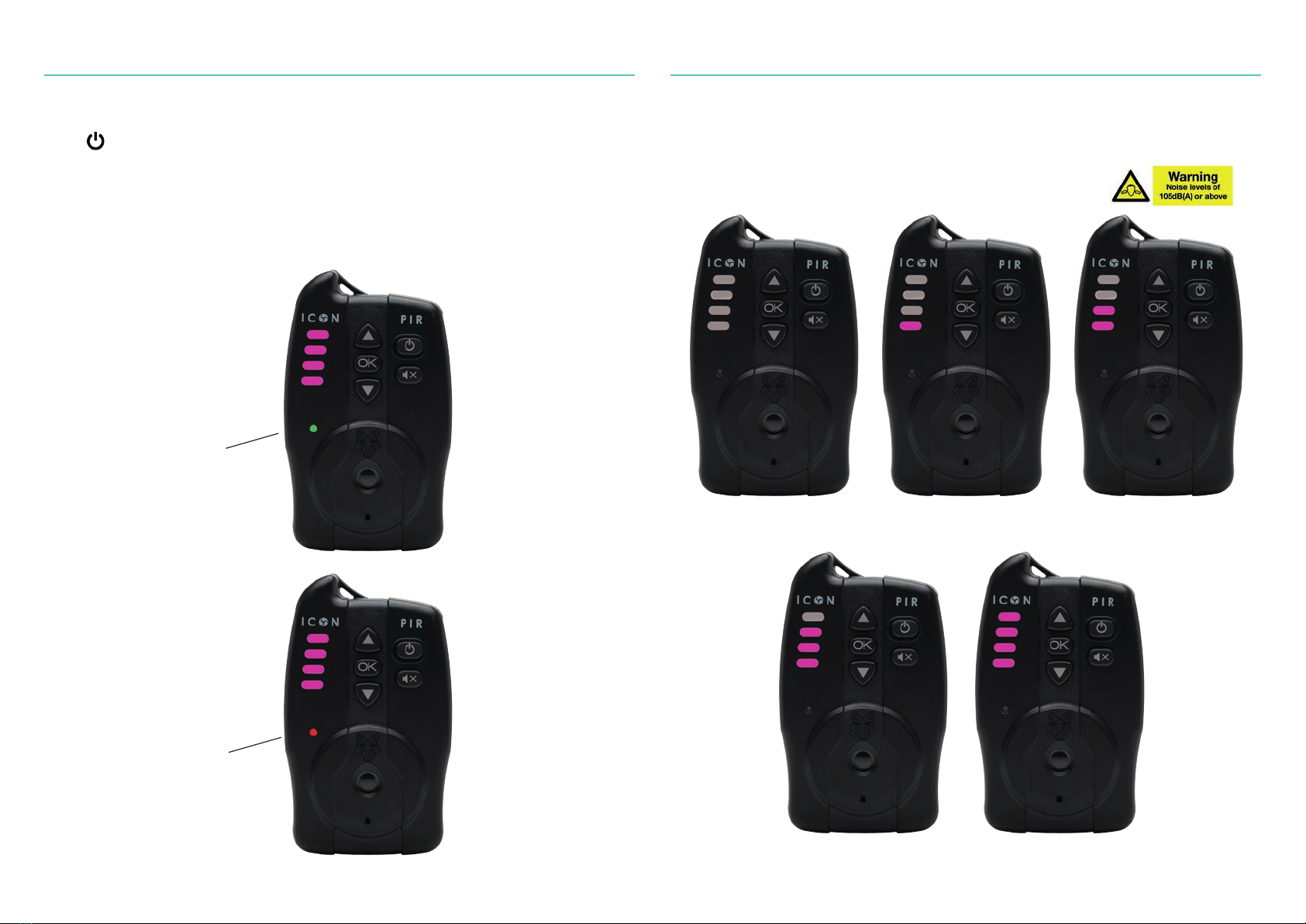

VOLUME ADJUSTVIBRATION MODE
No Volume
Green
LED
25% Volume 50% Volume
75% Volume 100% Volume
Vibration On
Press the volume up or down buttons and then press
the power button to toggle vibration ON/OFF.
Red status LED - Vibration OFF
Green status LED - Vibration ON.
Press OK to confirm the change in settings.
Red
LED
No Vibration

To return the PIR Sounder to factory
settings, and clear all user data,
power the PIR Sounder off, and then
power it back on while holding the
key. When all the channel LED’s turn
Blue, release only the key while
keeping pressed. After the Blue
LED’s have flashed and turned Off,
the PIR Sounder can be turned back
on by holding .
FACTORY DEFAULT

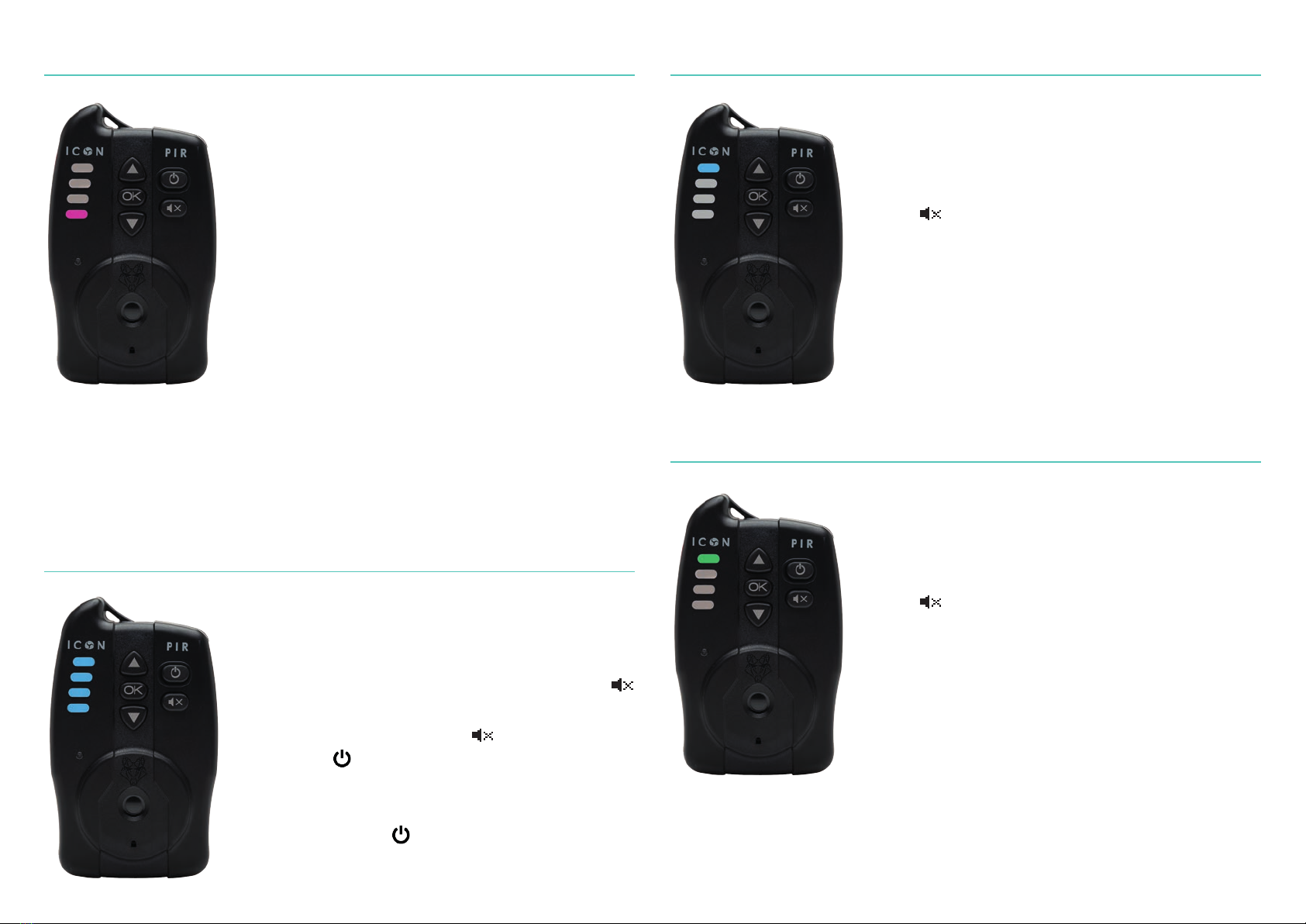

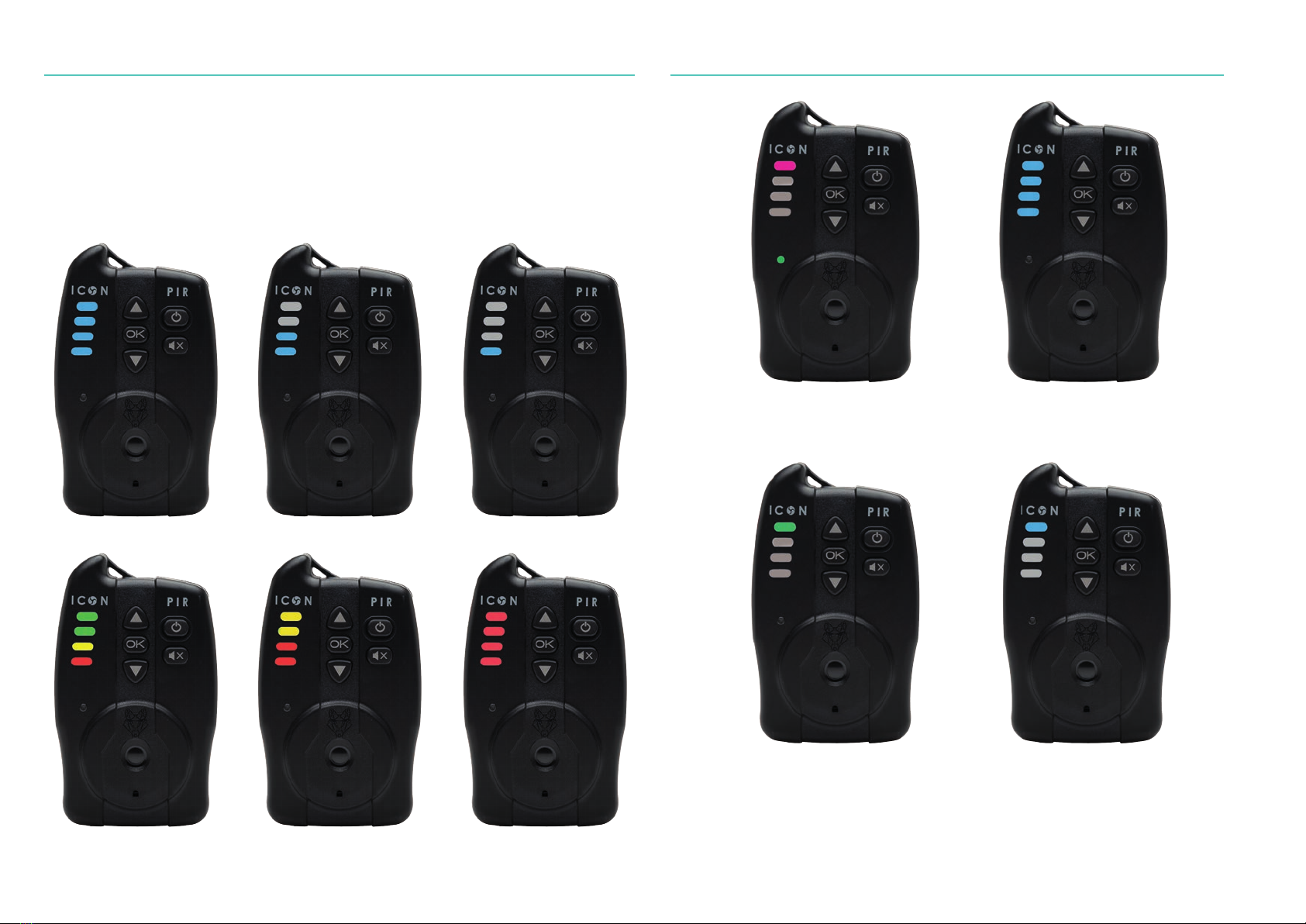

CHANNEL SELECT
From idle, Press OK to enter channel
browsing mode. The last channel
to receive an alert will be selected
by default, and its corresponding
channel LED will pulse in the selected
alert colour. If the channel is
unpaired, the channel LED will fast
blink red.
The ▲and ▼keys are used to
navigate between the different
channels.
The Device Option LED will illuminate if applicable for
this device. The LED will illuminate red to indicate that
the Device Option Toggle is off, or green to indicate the
toggle is on. See ‘Device Option Toggle’ for more info. From idle, Press OK to enter channel
browsing mode. Use ▲and ▼ to
select a paired channel, indicated
by a pulsing indicator LED. Press and
hold until indicator turns BLUE.
Release then indicator will blink RED.
After deletion, the PIR Sounder will
return to the channel select mode,
indicating the unpaired channel with
a fast flashing red indicator.
Press OK to confirm, or wait for the
mode to time-out if you wish to
cancel.
DEVICE UNPAIRING
From idle, Press OK to enter channel
browsing mode. Use ▲and
▼ to select
an unpaired channel, indicated by a
fast blinking red indicator. Press and
hold to initiate pairing.
Initiate the pairing sequence on
the other device. On successful
pairing, the PIR Sounder will return
to the channel select mode and
play a tone.
DEVICE PAIRING

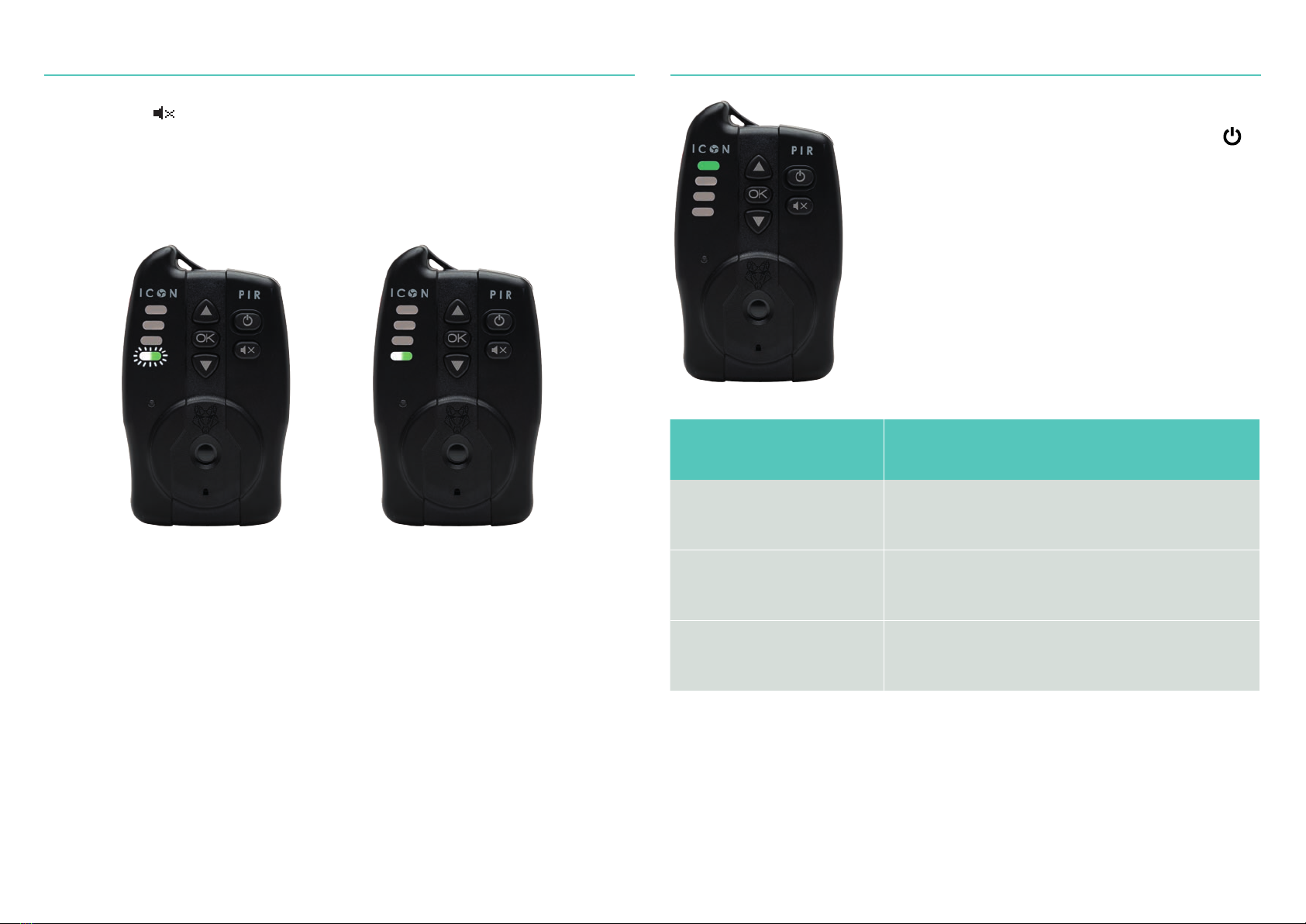

GLOBAL MUTE
All paired devices will
be muted/unmuted.
The corresponding
channel LED will flash
white/green while the
communication is in
progress.
When communication
was successful, the
channel LED’s will
turn to a solid white/
green to indicate the
channel has been
muted/unmuted.
A press of will start the global mute sequence,
and a quick double press will start the global unmute
sequence. Colour is used to differentiate between mute
and unmute. White representing a mute operation, and
green an unmute.
If some paired devices are unreachable, they
may not successfully mute. If this happens,
the corresponding channel LED will alternate
between white/green and red.
DEVICE OPTION TOGGLE
When communicating, the Channel LED and the Device
Option LED flash to indicate the channel selected,
and the state that is sending. When communication is
completed, the PIR will go back to channel select mode,
and indicate the new state of the Device Option Toggle
with a green or red colour.
From idle, Press OK to enter channel
browsing mode, double press the
power button to toggle the paired
device’s ‘Device Option’.
The effect of this toggle depends on
what type of device is paired to that
channel. Below is a generalisation of
products and the associated effect.
DEVICE TYPE EFFECT
Bite Alarms Toggle IQ Port On/Off
Light Devices Toggle the Main Light On/Off
Motion Sensors Toggle the device between
Standby and Active

From idle, Press OK to enter channel browsing mode,
press and hold the OK button to display info about the
connected device. The PIR Sounder will cycle between
display of the RF signal strength, and the connected
device’s battery level until the OK button is released.
CHANNEL INFO
Good signal OK signal Bad signal
ALERTS
Good battery
level
OK battery
level
Power Down
4 Blue LED’s
Local Mute Off
1 Green LED
Local Mute On
Flashing Blue LED
PIR Trigger Piercing
security tone
Bad battery
level
When a paired device which has ‘Local Mute’ function,
when Local Mute is enabled, the LED is WHITE.

WOLF
Suite 1, 284 Warley Hill, Great Warley,
Brentwood, Essex CM13 3AB
E: [email protected]
T: [phone]
E: [email protected]
www.wolfint.co.uk
For language translations of all
instructions and functions and care of
your Wolf PIR visit
www.wolfint.co.uk/product-manuals/
Information of troubleshooting is available at
www.wolfint.co.uk
Warranty
If you need information to the warranty please visit
www.wolfint.co.uk/product-warranty/
Please ensure to register your new Wolf product at
www.wolfint.co.uk/product-registration/
Customer Support
If you need support you can contact us by:
Telephone: [phone]
Email: [email protected]
More information can be found at
www.wolfint.co.uk/customer-support/
Languages available:
English / Italian / French / Dutch / German
E&OE
Product Code: WFIC027
Patents Pending:
GB 1721169.9 IGB 1721166.5 IGB 1721158.2
EP 18213109.4 IEP 18213012.0 IEP 18213022.9
Compliant to:
Safety EN 62368-1 IRED 2014/53/EU IRoHS
