Wolf CSO24 User manual

General Information 2
Installation Information 5
Controls & Operation 10
Component Access & Removal 22
Troubleshooting Guide 33
Technical Data 43
Wiring Diagrams 44
subzero.com 800.222.7820
Convection Steam Oven
Service Manual

Page 2
CSO24 and CSO30 (SWS #13508346)
General Information
1-2
#9001333 - Revision A - August, 2014
This manual is designed to be used by Authorized Service Personnel only. Wolf Appliance, Inc. assumes
no responsibility for any repairs made to Wolf appliances by anyone other than Authorized Service
Technicians.
IMPORTANT SAFETY INFORMATION
Below are the Product Safety Labels used throughout
this manual. The "Signal Words" used are WARNING
and CAUTION.
Please note that these safety labels are placed in areas
where awareness of personal safety and product safety
should be taken and lists the precautions to be taken
when the signal word is observed.
INTRODUCTION
This Manual is a compilation of information from Wolf Inc. and V-ZUG Ltd., meant to provide the most recent techni-
cal service information about model CSO24 and CSO30 starting with serial (SWS) #13508346. This information will
enable the service technician to perform necessary repairs and return the appliance to proper operational condition.
The service technician should read the complete instructions contained in this Technical Service Manual before initi-
ating any repairs on the Wolf Appliance.
INDICATES THAT HAZARDOUS OR UNSAFE PRAC-
TICES COULD RESULT IN SEVERE PERSONAL
INJURY OR DEATH
Indicates that hazardous or unsafe practices could
result in minor personal injury or product and/or
property damage
In addition, please pay attention to the signal word
“NOTE”, which highlights especially important informa-
tion within each section.
The information and images in this manual are the copyright property of Wolf Appliance, Inc., an affiliate of Sub-Zero
Group, Inc. Neither this manual nor any information or images contained herein may be copied or used in whole or
in part without the express written permission of Wolf Appliance, Inc., an affiliate of Sub-Zero Group, Inc. © Wolf
Appliance, Inc. all rights reserved.
TECHNICAL ASSISTANCE
If you should have any questions regarding the appli-
ance and/or this manual, please contact:
Wolf Appliance, Inc.
ATTN: Service Department
P.O. Box 44988
Madison, WI 53744 - 4988
Customer Assistance
Phone #: (800) 332 - 9513
Facsimile #: (608) 441 - 5887
Technical Assistance
(For Technicians in Customer’s Homes Only)
Phone #: (800) 919 - 8324
Warranty Claims
Phone #: (800) 404 - 7820
Facsimile #: (608) 441 - 5886
Service Department e-mail Address:
[email protected]
Main Office Hours:
8:00 AM to 5:00 PM Central Time
Monday through Friday
(24/7 Phone Coverage)

Page 3
General Information
CSO24 and CSO30 (SWS #13508346)
1-5 #9001333 - Revision A - August, 2014
TEMP
MOD E
LIGHT
WAT ER
TIM E
OFF
POWER
OK
Product rating
plate
WARRANTY INFORMATION
This page contains a summary of the 2 & 5 Year Warranty that is supplied with every Wolf product, followed by a
Non Residential Warranty Summary and then notes about the warranties.
TWO & FIVE YEAR Warranty Summary
• Two year TOTAL PRODUCT warranty, parts and labor.
• Limited Parts Only Warranty for the 3rd through 5th year.
NOTE: This warranty only applies to products installed for normal residential use in the United States or Canada.
NON RESIDENTIAL Warranty Summary (Special Application)
• Two year TOTAL PRODUCT warranty, parts and labor.
NOTE: This warranty only applies to products installed in demonstration kitchens, test kitchens, culinary and school
kitchens, and other installations which help promote Wolf Appliance brand and products. Restaurant installations
and other similar commercial applications carry no warranty .
60 DAY STAINLESS STEEL COSMETIC WARRANTY
• Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day
parts and labor warranty for cosmetic defects on any unit under normal warranty.
WARRANTY NOTES:
•All warranties begin at the time of the unit’s initial installation.
•All Warranty and Service information collected by Wolf Appliance, Inc. is arranged and stored under the unit seri-
al number and/or the customer’s name. It is requested that you have the model and serial number available
whenever contacting the factory or parts distributor.

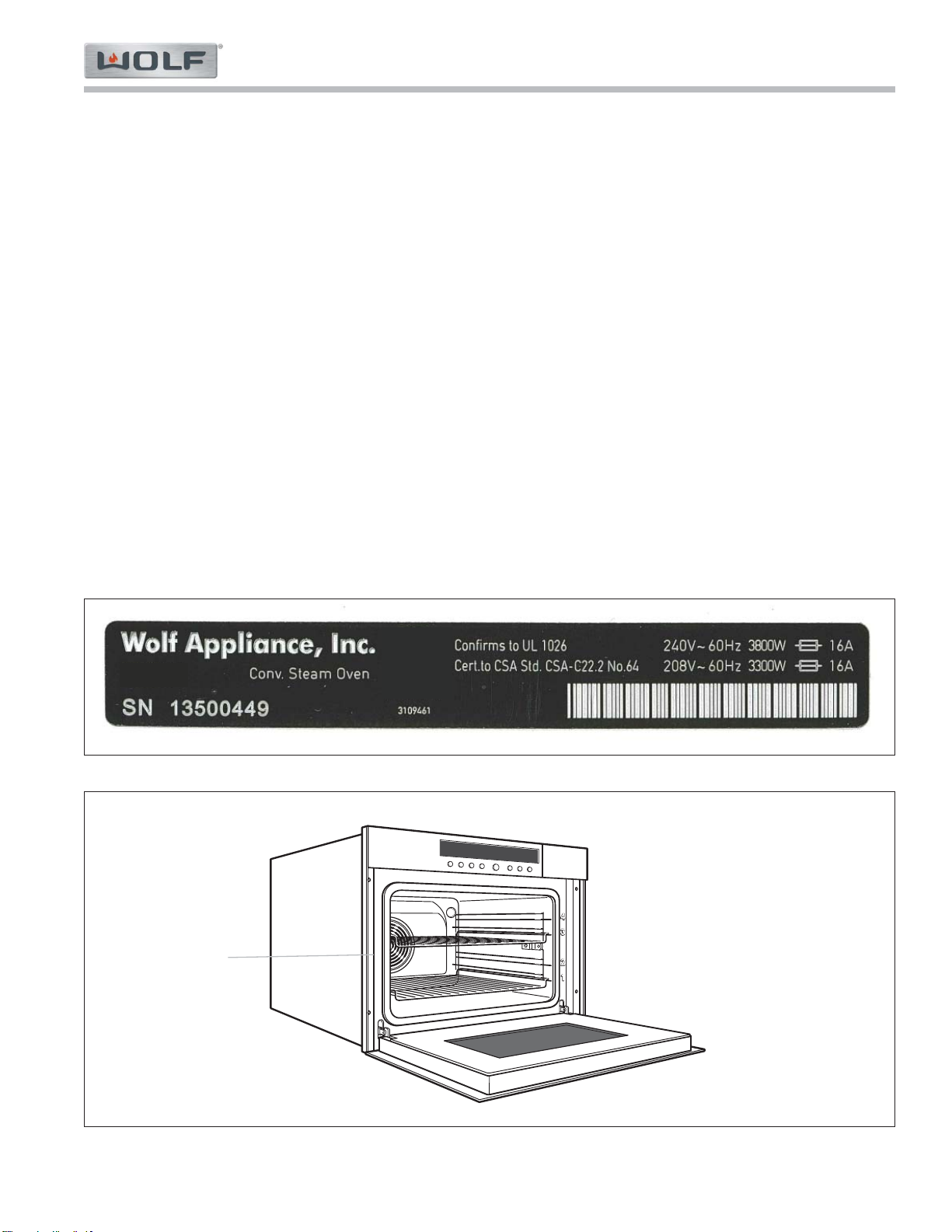

•See Figures 1-1 & 1-2 for Rating Plate layout and location.
Figure 1-2. Rating Plate Label Location
CSO24TE/S
Figure 1-1. Rating Plate Label

Page 4
CSO24 and CSO30 (SWS #13508346)
General Information
1-6
#9001333 - Revision A - August, 2014
CONVECTION STEAM OVEN FEATURES
• Stainless steel with tubular handle.
• Can be installed in a standard or flush inset application.
• Stainless steel trim to match M series and E series ovens.
• Convection with twelve cooking modes: steam, reheat, auto steam bake, convection, convection humid, convec-
tion steam, gourmet, slow roast, recipes, my recipes, keep warm, descale and cleanse.
• Four-level rack guides with two adjustable oven racks.
• Large viewing window and halogen interior lighting.
• Temperature probe.
• Recipes mode.
• Delayed start feature and descaling program.
• Agency certified for US and Canada.
• Two and five year residential warranty—exclusions apply, see warranty information.
TEMP
MOD E
LIGHT
WAT ER
TIM E
OFF
POWER
OK
Control panel
and display
Halogen lighting
Product rating
plate
Adjustable oven
racks
Large viewing
window
Control knob
Convection fan
Four-level rack
guides
Probe receptacle

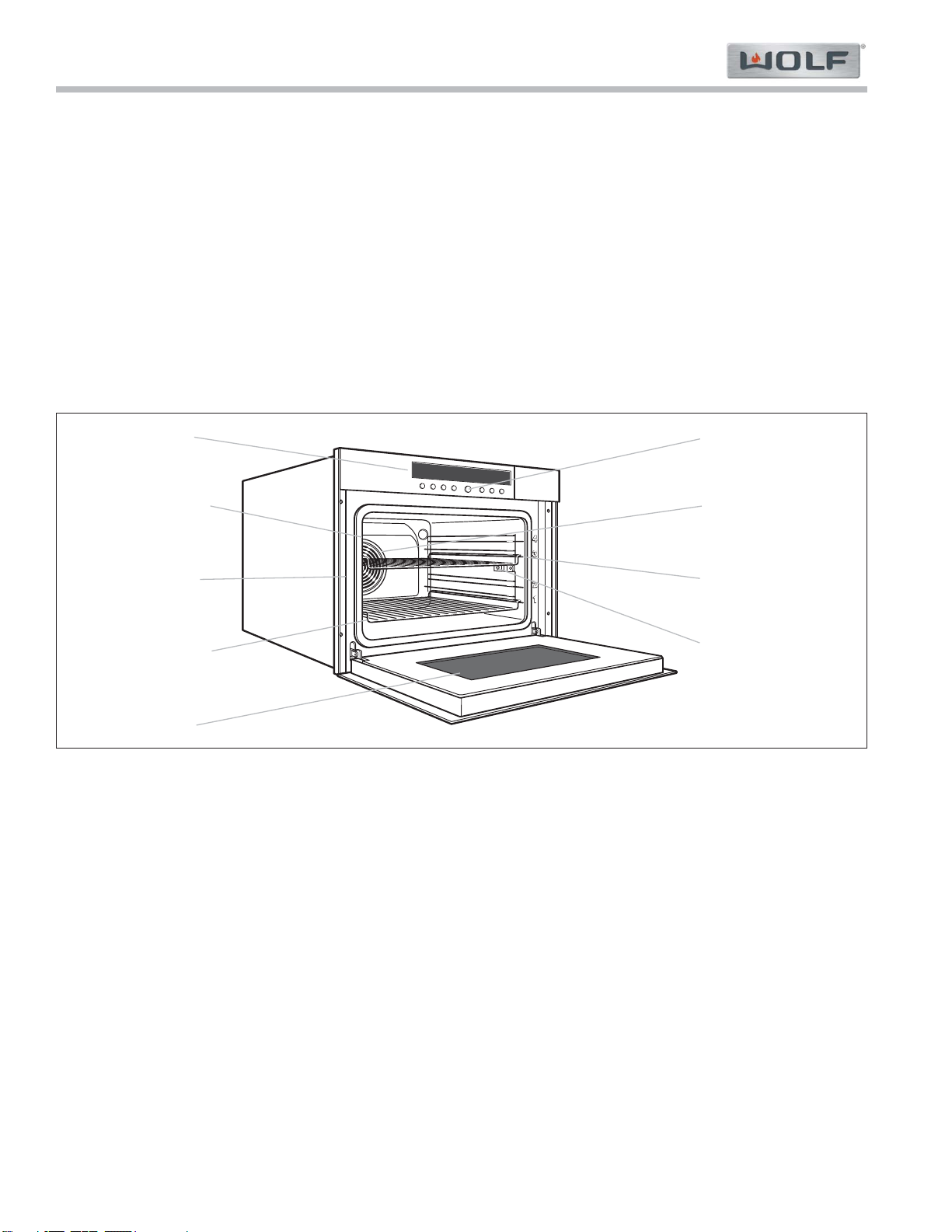

Figure 1-3. Appliance Features

Page 5
General Information
CSO24 and CSO30 (SWS #13508346)
1-7 #9001333 - Revision A - August, 2014
DISPLAY AND CONTROL PANEL
The display and control panel is streamlined and easy to use. The control knob and buttons are used to set the
cooking modes and access all of the features of your convection steam oven for exceptional results.
Display Area
The convection steam oven has three display windows providing different information. The left digital display shows
cooking temperature and probe setpoint. The center text display is the informational readout used for setting differ-
ent modes and cooking functions. The right digital display is the clock, timer and delayed time display.
In the lower part of the display area, symbols representing temperature, probe, cooking functions and time settings
will illuminate when in use.
Control Buttons
The control (“OK”) knob and buttons, including WATER, LIGHT, TEMP, MODE, TIMER, TIME and OFF allow for
opening the water tank, lighting the interior and selecting operating modes, temperatures and timing functions.
Control Knob
The control (“OK”) knob is used on its own or with the control buttons to make selections. It is used to confirm any
selection. A selection is always ended by pressing the control knob to confirm.
The knob’s press and turn action controls every option. Used on its own, the control knob provides direct access to
user settings and cooking modes.
Example using the control knob:
1. Press the control knob. Turn 5 clicks to user settings and press to select.
2. Turn to the setting you wish to personalize and press to select.
3 Turn to your preference and press to select. Back will return you to the previous menu.
Example using the control knob with the control buttons:
1. Press the MODE button three times to select auto steam bake. The auto steam bake symbol illuminates. A rec-
ommendation for temperature flashes in the digital display.
2. Turn the control knob to select the temperature for this mode and press to confirm. Settings will be automatically
accepted after ten seconds. Additional settings or changes can be made at any time.
Figure 1-4. Control Panel Layout
MODETEMPLIGHT OFFTIMETIMERWATER OK
Convection steam oven control panel.
Temperature and
food probe symbols Text display
Timer, operating time, switch-off
time and clock symbols
Left digital display Right digital display
Control buttons
Control knob
Steam, reheat, auto steam bake, convection,
convection humid and convection steam symbols

Page 6
CSO24 and CSO30 (SWS #13508346)
Installation Information
2-2
#9001333 - Revision A - August, 2014
INSTALLATION INFORMATION
This section of the manual covers some of the installation issues that a service technician may need to know when
servicing a Wolf convection steam oven. If additional installation information is needed after reviewing this section of
the manual please refer to the installation guide or contact the Wolf Appliance Customer Service Department.
Numbers in parenthesis are in millimeters.
Overall Dimensions of CSO24 and CSO30
211/2"(546)
BEHIND FRAME
177/8"
(454)
213/16"
(538)
231/2"(597)
297/8"(759)
CSO30
211/2"
(546)
143/16"
(360)
7/8" (22)
SIDE VIEW OVEN DOOR OPEN
(TOP VIEW)
FRONT VIEW
H
CSO24 (Handle)
Width of Door and Handle (H)
Transitional/Contemporary: H =
21/2" (64)
Professional: H =
31/4" (83)
Installation Applications

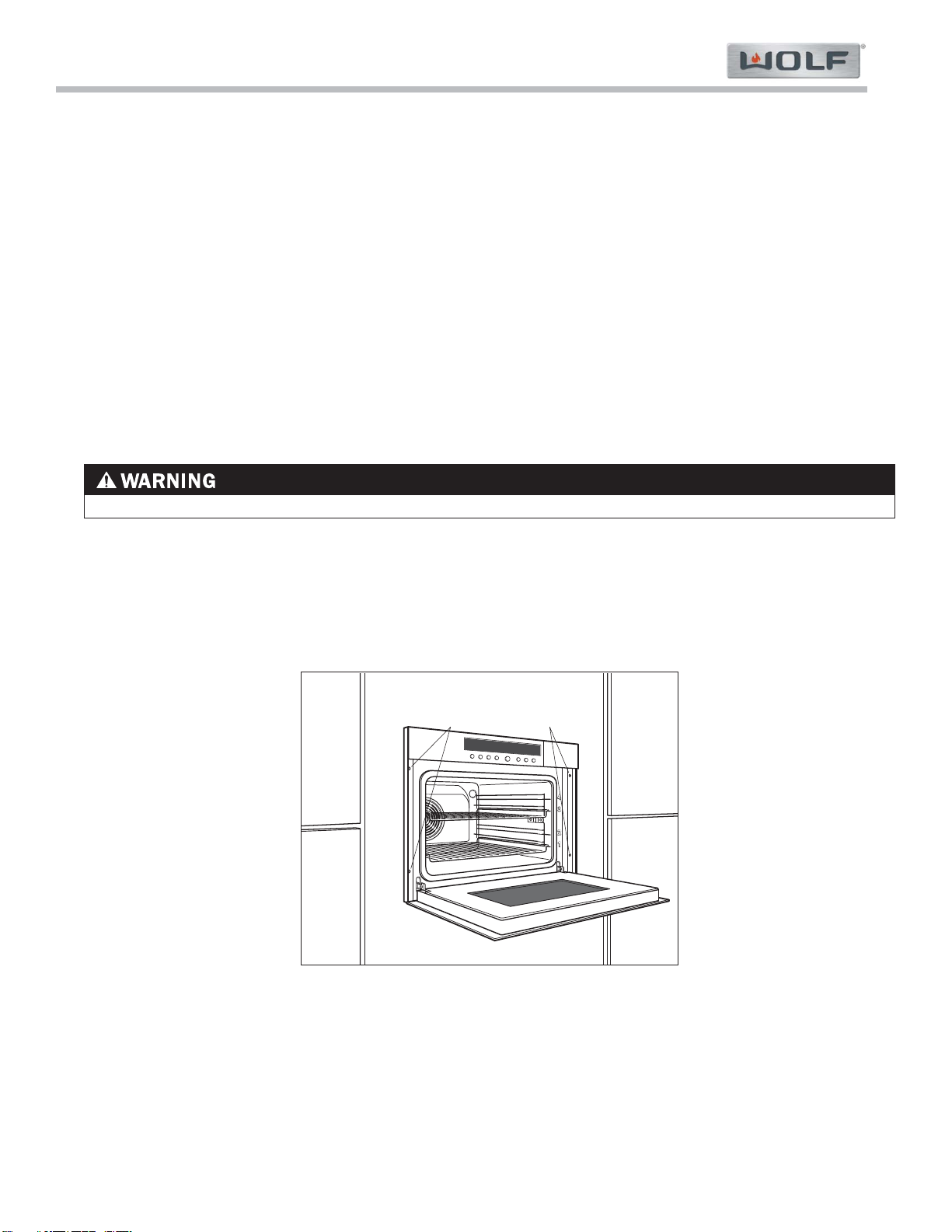

The convection steam oven can be installed in a standard or flush inset application. The installation opening must
have a flat, level base to support the oven. A minimum base support of 100 lbs (45 kg) is required. The electrical
supply for the oven must be located in an adjacent cabinet with 3 feet (900 mm) of opening.
Standard Installation
For standard installations, the convection steam oven is installed by inserting into cabinetry from the front. The oven
has face trim on the top and both sides that will overlap stiles and rails. Refer to the chart below for trim overlaps.
Oven Trim Overlap
To p O v e r l a p 3/16"(5)
Bottom Overlap 0" (0)
Side Overlap 37/8"(98)
36” Model24” Model
3/16"(5)
0" (0)
11
/6"(18)1
Flush Inset Installation
For flush inset installations, a minimum 1/8” (3) reveal is required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90 degrees.
Notes:
Numbers in parenthesis are in millimeters.•
Dimensions may vary by +/- 1/8” (3)•

Page 7
Installation Information
CSO24 and CSO30 (SWS #13508346)
2-3 #9001333 - Revision A - August, 2014
Electrical Requirements
NOTES:
•Electrical supply for the convection steam oven must be placed in an adjacent cabinet within 3' (914 mm) of the
opening. Choose the electrical location shown in the illustrations on the following pages that best suits the instal-
lation.
•Follow all National Electrical Code regulations. In addition as well as all local codes and ordinances when
installing electrical service.
•Performance may be compromised if the electrical supply is less than 240 volts. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of operation.
Electrical Requirements
Electrical Supply 240/208 V AC, 60 Hz
Service 20 amp dedicated circuit
Receptacle NEMA 6-20R grounding-type
Power Cord 6' (1829)
To minimize shock hazard, the power cord must be plugged into a grounding-type receptacle, grounded to conform
with the National Electrical Code, ANSI/NFPA 70 latest edition, or Canadian Electrical Code (CSA) and all local
codes and ordinances. Refer to the illustrations below.
ELECTRICAL SHOCK HAZARD: PLUG INTO A GROUNDED 3-PRONG OUTLET. DO NOT REMOVE THE
GROUND PRONG. NO NOT USE AN ADAPTER. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT
IN ELECTRICAL SHOCK, FIRE OR DEATH!

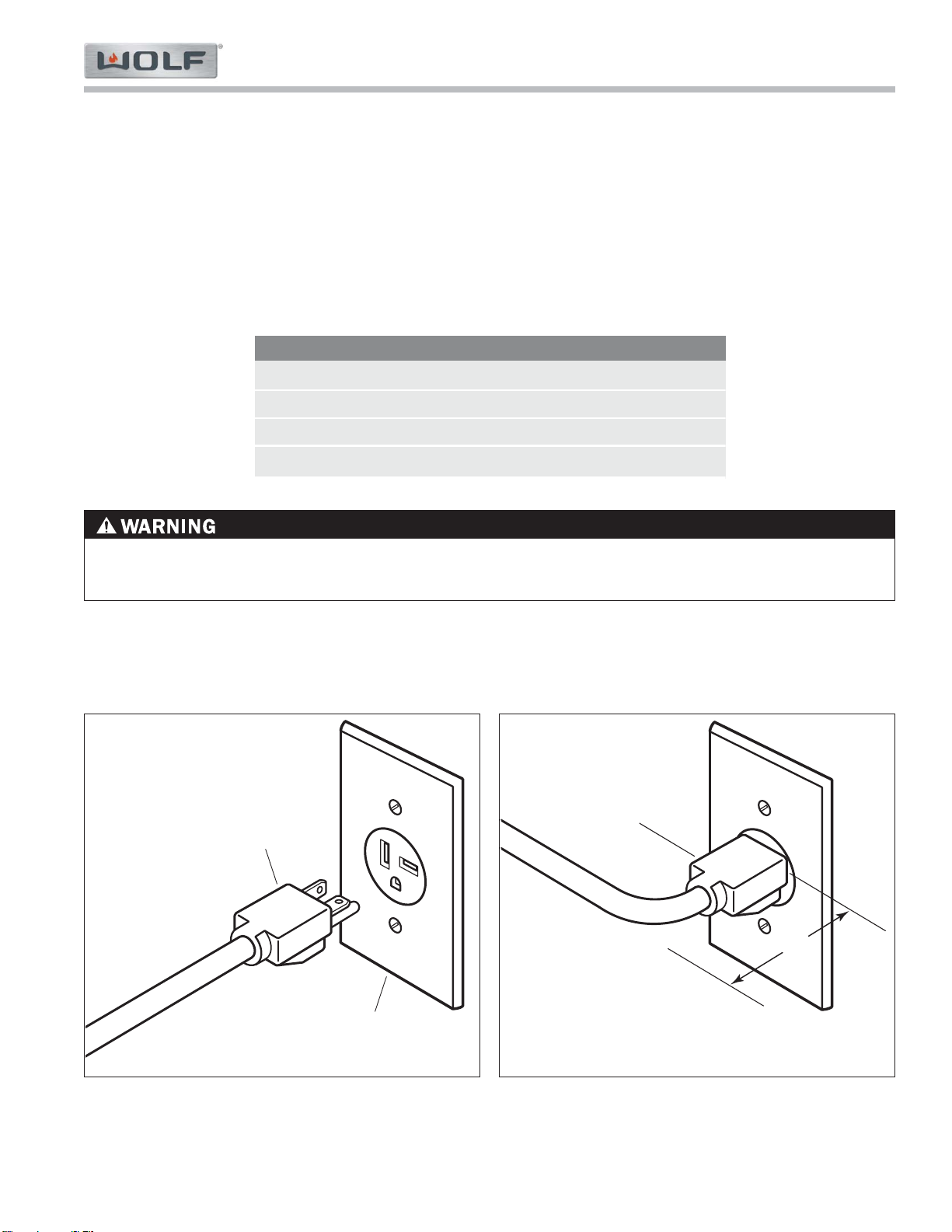

GROUNDED
NEMA RECEPTACLE
NEMA
PLUG
NEMA 6-20R Receptacle
3"
(76)
NEMA
PLUG
MINIMUM CORD
CLEARANCE
Power Cord Clearance

Page 8
CSO24 and CSO30 (SWS #13508346)
Installation Information
2-4
#9001333 - Revision A - August, 2014
ROUGH-IN INSTALLATION SPECIFICATIONS
Standard Installation
FRONT VIEWSIDE VIEW
EE
221/8"(562)
OPENING WIDTH
1711/16"
(449)
OPENING
HEIGHT
219/16"
(548) min
OPENING DEPTH CSO24 and CSO30
Notes:
Opening Width for CSO24 and CSO30 are the same.•
Minimum base support 100 lbs (45 kg).•
Electrical Supply must be located in adjacent cabinet with 3’ (914) of opening•
Dashed line represents profile of unit.•
Numbers in parenthesis are in millimeters.•
Dimensions may vary by +/- 1/8” (3)•

Page 9
Installation Information
CSO24 and CSO30 (SWS #13508346)
2-5 #9001333 - Revision A - August, 2014
Flush Inset Installation
181/8"
(460) min
FLUSH INSET
HEIGHT
SIDE CLEATS
23" (584) min
FLUSH INSET
DEPTH
1" (25)
FRONT VIEWSIDE VIEW
TOP VIEW
5/16"(8)
1/8"(3)
BOTTOM CLEAT
EE
W
TOP CLEAT
FLUSH INSET WIDTH
A
FLUSH INSET WIDTH
CONVECTION STEAM OVEN
24” Model 23-3/4” (603) 13/16” (21)
30” Model 30-1/8“ (765) 4” (102)
WA
Notes:
Cleats may be visible and should be finished to match cabinetry.•
Minimum base support 100 lbs (45 kg)•
Electrical supply must be located in adjacent cabinet within 3’ (914) of opening.•
Dashed line represents profile of unit.•
Numbers in parenthesis are in millimeters.•
Dimensions may vary by +/- 1/8” (3)•

Page 10
CSO24 and CSO30 (SWS #13508346)
Installation Information
2-6
#9001333 - Revision A - August, 2014
INSTALLING THE OVEN
NOTE: Before moving the oven, protect any finished flooring and cabinetry to avoid damage.
1. Move the convection steam oven into position near the installation opening. Remove and discard packing mate-
rials.
2. Carefully place the oven in the opening. Resting the oven on the cabinet base support, slide the unit into the
opening until it is approximately 6" (152) from being fully installed. Guide the power cord through the opening of
the adjacent cabinet or base support as the oven is slid into position. Verify the power cord is not trapped
between the oven and cabinet wall.
3. Once the oven is fully positioned in the opening, open the oven door and locate the four mounting holes on the
oven side trim. Refer to the illustration below. Use a 1/16" (~1.6) drill bit to drill pilot holes into the cabinet.
4. Using the mounting screws provided, secure the oven to the cabinet.
NOTE: To avoid interference, a 90 degree door stop may be required on any appliance or cabinet door installed next
to the convection steam oven.
FAILURE TO INSTALL THE MOUNTING SCREWS CAN ALLOW THE OVEN TO TIP FORWARD DURING USE!
TEMP
MODE
LIGHT
WATER
TIME
OFF
POWER
ON
OVEN MOUNTING HOLES
Oven Installation

Page 11
CSO24 and CSO30 (SWS #13508346)
Theory of Operation
#9001333 - Revision A - August, 2014 3-2
THEORY OF OPERATION
The Wolf convection steam oven has been developed for the highest levels of quality and ease of use. For best
results the user should take a moment to become familiar with the oven’s composition, components, accessories and
operation. (See Convection Steam Oven Features, and Display and Control Panel layout in Section 1)
Personalization
The oven can be personalized to suit the user’s needs and preferences. Turn the control knob to user settings to
make selections.
Language
English, French, Spanish, German, Italian, and Chinese. Turn the control knob until the desired language is dis-
played. Press to confirm selection.
Childproof Lock
To activate or deactivate childproof lock mode, turn the oven off, then press the control knob. Turn the knob to user
settings and press to select. Turn to childproof lock and press to select. Press to select on or off.
To use the oven by temporarily disabling the lock, press and hold the OFF button while pressing MODE and the con-
trol knob. The lock will automatically reactive ten minutes after the oven has been off.
Time Display
Visible or invisible. Invisible mode minimizes power consumption while the oven is off. The time display will disap-
pear in approximately one minute.
Acoustic Signal
High, low or off.
Illumination
Button only or automatically with door. The cooking space can be illuminated by pressing the LIGHT button at any-
time, and will turn off automatically after thirty (30) seconds.
Water Hardness
Hard, medium or soft. The oven default is for hard water. If unsure of water hardness, use the test strip provided in
the use & care guide. Additional test strips may be purchased from a local home improvement center.
Follow the instructions on the test strip to determine your water hardness then select the appropriate hardness set-
ting.
Temperature Units
Fahrenheit (°F) or Celsius (°C).
Contrast
Select from low to high contrasts for the control panel display. There are six settings, or boxes, which light up for
increasing contrast.
Format
12-hour (am/pm) or 24-hour clock. In 24-hour mode the display is dimmed between 24:00 and 6:00.
Factory Settings
Reset. Returns all user settings to the factory preset.
Water Door Control
Button only or automatically with message. If automatically with message is selected, the water door panel will open
automatically if the water tank empties during operation. The flap may also be opened at any time by pressing the
WATER button. NEVER attempt to open the water door manually.

Page 12
Theory of Operation
CSO24 and CSO30 (SWS #13508346)
#9001333 - Revision A - August, 2014
3-3
Selecting and Changing Operating Modes
Selecting Operating Mode
1. Press the MODE button until the desired mode appears.
2. Press the control knob to confirm the mode.
Example:
a. Press the MODE button until you reach auto steam bake mode. “Auto Steam Bake—Rack 2 or 1+3” appears
in the text display. The recommended temperature flashes in the upper left digital display. The auto steam
bake and temperature symbols flash.
b. Press the control knob to confirm. “Auto Steam Bake—Steam phase” followed by “Auto Steam Bake—Hot air
phase” appears in the text display.
Changing Operating Mode
1. Press the OFF button. The selected operating mode is ended.
2. Press the MODE button to select a new operating mode.
Selecting Temperature
After a cooking mode is selected, the temperature can be set.
Selecting Cooking Temperature
1. Press the TEMP button.
2. Turn the control knob to set the desired cooking temperature and press to select.
3. Once the mode has started, you can press the TEMP button and turn the control knob to change the tempera-
ture. Press the control knob to select the temperature.
Switching Oven Off
1. Press the OFF button. The temperature and mode symbols go out. Steam is gradually released from the cook-
ing space over 1 minute to avoid a rush of steam when the oven door is opened. The cooling fan can continue
to run. “Residual heat” appears in the text display.
2. After each use, leave the oven door open in the “at-rest” position (see Figure 3-1), until the interior has cooled
down. When cool, wipe the cooking space dry before closing the door. After turning off any mode utilizing
steam, the display will read “Water is being pumped off”. Be sure not to remove the water tank during this time.
TEMP
MODE
LIGHT
WATER
TIME
OFF
POWER
ON
Figure 3-1. Oven Door “At Rest” Position

Page 13
CSO24 and CSO30 (SWS #13508346)
Theory of Operation
#9001333 - Revision A - August, 2014 3-4
Timer and Timer Functions
The Wolf convection steam oven includes timer functions that manage cooking start and stop times so you can be
away from the kitchen and still enjoy hot-from-the-oven meals at pre-specified times. Please take a moment to set
your local time, and learn more about these useful time saving features.
The timer can be used at any time, independently of other functions.
Setting Current Time
1. Press the TIME button.
2. Turn the control knob to set the hour and press to select.
3. Repeat for minutes.
Setting the Timer
1. Press the TIMER button.
2. Turn the control knob to set duration. The timer can be set for up to 9 hours, 59 minutes. For the first 10 min-
utes, the intervals are 10 seconds. Example: 5' 40. After 10 minutes, one minute intervals can be selected.
3. Press the control knob to start. ‘Timer’ appears in the text display window and the countdown of time is visible in
the right digital display. The timer symbol illuminates. When timed duration is up, a sequence of audible sig-
nals repeats for one minute. ‘Timer finished’ appears in the text display and the timer symbol flashes.
Turning Off Timer Notification
1. Press the TIMER button.
Checking / Resetting Timer
1. Press the TIMER button to view countdown.
2. Turn the control knob to change duration and press to select.
Turning Timer Off
1. Press the TIMER button twice. The right digital display will flash 0'00.
2. Press the control knob to confirm.
Operating Time
The operating time feature automatically turns the oven off at the desired time. These instructions assume you have
placed food in the cooking space and selected a mode and temperature.
Setting Operating Time
Preheat the cooking space if necessary before setting time.
1. Press the TIME button.
2. Turn the control knob to set the duration. Operating mode automatically turns off when the operating time has
been reached.
Checking / Changing Operating Time
1. Press the TIME button. Time remaining flashes in the right digital display. The operating time symbol flashes.
2. Turn the control knob to change duration and press to select.
Turning Off Before Time
1. Press the OFF button.
End of Time Signals
The selected mode turns off automatically when the operating time is up. Notification includes a long, intermittent
audible signal emitted for 1 minute.‘Operating time finished—Continue: select duration’ appears in the text display.
Cooking space temperature appears in the left digital display and the operating time symbol flashes in the right
digital display. Settings remain for 3 minutes.
Extended Time
1. Turn the control knob to select a new duration within 3 minutes of the time ended notification.
Turning Off
1. Press the OFF button. Settings are cleared. Residual heat temperature continues to be displayed.

Page 14
Theory of Operation
CSO24 and CSO30 (SWS #13508346)
3-5 #9001333 - Revision A - August, 2014
Delayed Start
The delayed start feature automatically turns the convection steam oven both on and off at desired times. The
instructions below assume food has been placed in the cooking space and a mode and temperature has been
selected.
Setting Delayed Start Time
1. Press the TIME button.
2. Turn the control knob to select the operating time.
3. Press the TIME button again
4. Turn the control knob to select the switch-off time and press to confirm.
Example: At 8:00 am, select convection mode and 355°F (179°C). Press the time button and select an operating
time of 1 hour. Press the time button again and set the switch-off time to 9:30. Press the control button to con-
firm. The oven will remain off with the switch-off time symbol illuminated. The oven will turn on at 8:30 auto-
matically.
Checking / Changing Switch-Off Time
1. Press the TIME button. The operating time is visible for 3 seconds.
2. Press the TIME button again. The switch-off time flashes.
3. Turn the control knob to adjust the switch-off time and press to confirm. When the switch-off time flashes, turn
the control knob to change. The switch-off time can be delayed by a maximum 11 hours 59 minutes in 12-hour
mode and 23 hours, 59 minutes in 24-hour mode.
Turning Off Before Time
1. Press the OFF button.
End of Time Signal
The operating mode turns off automatically when the operating time is up.
• A long, intermittent audible signal is emitted for 1 minute. “Operating time finished—Continue: select duration”
appears in the text display.
• The cooking space temperature appears in the left digital display.
• The time flashes in the right digital display.
• The operating time symbol flashes.
• The settings remains for 3 minutes.
Turning Off
1) Press the OFF button. Settings are cleared. Residual
heat temperature continues to be displayed.
Using Delayed Start with Temperature Probe
When using delayed start with the probe, the oven will automatically turn off when the set probe temperature is
reached, which may be somewhat earlier or later than the set switch-off time.
Additional Notes on Delayed Start
Delayed start is available for recipes that do not require preheating, including Gourmet, recipes or my recipes.
Perishables should not be kept unrefrigerated.

Page 15
CSO24 and CSO30 (SWS #13508346)
Theory of Operation
3-6
#9001333 - Revision A - August, 2014
Using the Temperature Probe
The probe monitors food temperature and announces when it has reached a temperature considered “done” and
safe for consumption. Using the probe also helps to maintain ideal tenderness. The internal temperatures shown in
the chart below are the USDA recommendations for safe food consumption and desired doneness may vary.
Positioning the Temperature Probe
1. Insert the probe into the thickest part of the meat so that the tip is in the center of the meat. Bury the entire
metal shaft into the dish, or as much as is possible. To maintain accuracy, avoid touching bone or fat with the
probe as they conduct heat faster.
2. Insert the plug end of the probe into the socket located on the right interior oven wall behind the metal flap.
3. Ensure probe cable is neatly tucked inside of the oven interior. Close the oven door.
Setting the Probe Temperature
1. Select the operating mode and cooking space temperature.
2. With the probe positioned and plugged in, press the TEMP button until the display reads ‘Probe Temperature’.
3. Turn the control knob to set the probe temperature based on the desired level of doneness and press to select.
Probe temperature appears in the left digital display when the temperature reaches 85°F or higher.
Chicken and Turkey
Whole
Parts
Stuffed
Ground
Beef and Lamb
Rare
Medium Rare
Medium
Medium Well
Well Done
Ground
Pork
Medium Rare
Medium
Well Done
Ground
USDA Safe Minimum
165°F or 74°C
165°F or 74°C
165°F or 74°C
165°F or 74°C
145°F or 63°C - rest 3 minutes
160°F or 71°C
145°F or 63°C - rest 3 minutes
160°F or 71°C
Desired Doneness
165°F or 74°C brest. 165-175°F or 74-80°C thigh
165°F or 74°C brest. 165-175°F or 74-80°C thigh
165°F or 74°C
170-175°F or 77-80°C
125°F or 52°C - rest 3 minutes
130-135°F or 54-57°C
135-140°F or 57-60°C
140-150°F or 60-65.5°C
155°F+ or 68°C+
160°F or 71°C
145°F or 63°C - rest 3 minutes
150°F or 65.5°C
160°F or 71°C
160°F or 71°C

Page 16
Theory of Operation
CSO24 and CSO30 (SWS #13508346)
3-7 #9001333 - Revision A - August, 2014
Preparing for First Use
Cleaning
Clean the cooking space and accessories with warm, soapy water and a soft cloth.
Open the Water Tank
1. Press the WATER button.
Always use this button to open the water tank. Trying to access the water tank manually will damage the oven.
Fill the Water Tank
1. Fill the tank with fresh, cold tap water. Never fill the tank with demineralized, filtered or distilled water.
2. Close the lid.
3. Push the water tank into its compartment and ensure it is seated firmly.
The water tank holds enough water for 1.5 hours of continuous steam, typically enough for four or five cooking ses-
sions. In the event the tank needs refilling in the middle of a cooking session, add no more than 2 cups of water.
This will prevent overflow when water is pumped back into the tank.
Close the Water Tank
1. Close the panel flap manually.
Before Using the First Time
Heat the empty cooking space without baking pans using auto steam bake mode for 30 minutes at 410°F.
Emptying the Water Tank
When the oven is turned off, residual water is pumped back into the water tank.
• “Water is being pumped off” appears in the text display. Residual water is not pumped back until its temperature
is below 175°F (79°C). If “Do not remove water tank” is displayed in the text display, the temperature of the
residual water is still over 175°F (79°C).
• When the water has been pumped back you may remove, empty and dry the water tank.
• When the symbols are no longer illuminated and the text display is dark, the oven is off.
• Any operating mode can be started again at any time
Checking and Changing Probe Temperature
The TEMP button toggles between displaying the actual probe temperature and the set temperature.
1. To change the set probe temperature, press the TEMP button twice until the display reads “Probe Temperature”,
then turn the control knob to set a new temperature and press to select.
End of Cooking
When the set probe temperature is reached, the oven automatically turns off.
• “Probe temperature reached” appears in the text display, and the actual probe temperature appears in the left
digital display.
• The probe symbol will flash and an audible signal will sound for 1 minute.
• Probe temperature may continue to rise due to residual heat.

Page 17
CSO24 and CSO30 (SWS #13508346)
Theory of Operation
3-8
#9001333 - Revision A - August, 2014
COOKING MODES
MODE USES
Steam Function Use the steam function for foods you
would have heated in a saucepan and
for all foods that would benefit from
gentle handling.
Reheat Function Use in place of reheating in oven,
range or microwave.
Auto Steam Bake Use for breads, buns, cakes and
pastries whether fresh, par-baked
or frozen.
Convection Mode Use for baking muffins, biscuits
and roasts.
Convection Humid Use for cakes, casseroles,
grain dishes, lasagna and meats.
Convection Steam Use for foods you want tender
inside and roasted or crisped outside.
Gourmet Use to prepare specified foods,
whether fresh, refrigerated or frozen.
Slow Roast Mode Use to keep meats tender
by slow roasting.
Recipes Mode Use to cook entire meals from
appetizers and entrees to desserts.
My Recipes Use to store cooking instructions for
recipes you prepare frequently.
Keep Warm Mode Use when food cannot be eaten
when it’s hot from the oven.
Cleanse Mode Use to cleanse baby bottles and
canning jars with steam.
Cooking Modes
Twelve cooking modes bring the world of modern food
preparation right into the kitchen. Steam mode perfectly
poaches fish. Auto steam bake turns out breads that are
tender inside and delightfully glossy and crusty outside.
Now you can enjoy meats, casseroles, breads, appetiz-
ers, desserts or multi-course meals with enhanced taste,
texture and appearance.
Steam
From vegetables, poultry and fish to grains, beans, pasta
and egg dishes, gentle steam heat is ideal for capturing
nutrition, color and flavor.
Steam mode heats with steam and hot air, with a tem-
perature range of 85°F (29°C) to 210°F (99°C): just
enough heat to firm up a batch of homemade yogurt, or
greater steam heat to thoroughly cook meats and side
dishes to perfection.
Use the steam function for any food you would have
heated in a saucepan, and for all foods that would bene-
fit from gentle handling such as fish and seafood, veg-
gies and rices. Steam offers great flexibility. Cook meal
elements together such as chicken and rice or fish and
veggies without odor or flavor transfer. Prepare frozen
vegetables and defrost foods evenly without any hot
spots. Gently extract juices while preserving the integrity
of flavor, color, texture, shape and vitamin content.
Reheat
Reheat mode uses steam and hot air to rehydrate food
gently. Combining just the right balance of air convection
and rehydrating moisture, reheat mode warms one to
four pans of food evenly and without drying.
Reheat mode temperatures range from 210°F (99°C) to
300°F (149°C). Entrees, casseroles, sides and leftovers
are warmed to serving temperature without compromis-
ing quality. Frozen meals and convenience foods can
also be brought gently and thoroughly up to their ideal
serving temperatures. Bread baked days ago can be
regenerated at 300°F (149°C) for an aromatic, fresh-
from-the-oven crust and moist interior.
Use the reheat function for any food you would have
reheated in the oven, range or microwave with superior
results.

Page 18
Theory of Operation
CSO24 and CSO30 (SWS #13508346)
3-9 #9001333 - Revision A - August, 2014
Auto Steam Bake
Bake just like a professional with auto steam bake mode. By heating with steam first, then using convection heat to
finish baking, bagels, breads, buns, rolls and pastries acquire a tender interior, a beautiful exterior and a natural
shine without the need for brushing with an egg wash. Auto steam bake mode temperatures range from 210°F
(99°C) to 445°F (229°C). Use this mode for breads, buns, cakes and pastries whether fresh, par-baked or frozen.
Do not preheat.
Convection
A fan creates the movement of hot air created by a heating element at the back of the oven for convection cooking to
distribute heat evenly around food for consistent results and browning. Convection also eliminates odor transfer mak-
ing it ideal for cooking desserts, meats and vegetables all together.
Convection mode temperatures range from 85°F(29°C) to 445°F (229°C). Cooking temperatures versus traditional
ovens may be 25 degrees less, and times may be about 25% faster, saving valuable time and lowering energy costs.
Use convection mode for muffins, biscuits and roasts. Convection mode is also ideal for speeding up cooking time,
and for cooking different types of foods together at once to save time. For instance, add dinner rolls and aromatic
veggies like broccoli to your meat-cooking session without any odor transference to create a complete meal where
every menu item is conveniently cooked together, and is done at the same time.
Convection Humid
In convection humid mode, a heating element at the back of the oven produces heat and oven ventilation is sealed
so that moisture produced during cooking remains in the oven.
Convection humid temperatures range from 85°F(29°C) to 445°F (229°C).
Use convection humid for cakes, casseroles, grain dishes, lasagna and meats.
Convection Steam
Convection steam is great for roasting vegetables, grains or potatoes, and multiple items together, like a 12-pound
turkey with trimmings. Cook the turkey with steam, then add vegetables or potatoes, turn off steam, and it will all
roast and be done together. You control the steam supply.
Convection steam mode temperatures range from 85°F(29°C) to 445°F (229°C). Steam transfers energy to the food
more efficiently than hot air alone, which speeds up the cooking process. Food retains its own moisture and delicate
parts are more resistant to burning.
Use convection steam for any foods you want to be tender inside and roasted or crisped outside.
Gourmet Code
Fresh Appetizers A1
Frozen Appetizers A2
Baked Dish A3
Soufflé A4
B aked P otatoes A5
F rozen P otato P roduc ts A6
Braising Meat A7
Fresh Pizza A8
Frozen Pizza A9
Custard A10
Bread A11
Yea s t P as try with F illing A12
Cake A13
Torte A14
Gourmet
Gourmet cooks food to perfection; simply tell it what type of
food you are putting inside of the oven. The climate sensor
knows the amount, shape and consistency and adjusts
time, temperature and humidity so no baking instructions
are required.
Select your item and preferred level of doneness. After a
few minutes it will tell you when your dish will be ready.
Great results are achieved easily, quickly and stress-free.
Use Gourmet to prepare any of the foods in the table at
right, whether they come fresh from your garden, refrigera-
tor, freezer or pantry:
Slow Roast
Slow roast mode is the ultimate convenience. Insert the
probe into your prepared meat, select a slow roast setting,
tell the oven what time you want it done, and come home to
a perfectly cooked meal.

Page 19
CSO24 and CSO30 (SWS #13508346)
Theory of Operation
3-10
#9001333 - Revision A - August, 2014
Recipes Mode
Use the recipes mode for an easy and fun way to cook entire meals from appetizers and entrees to desserts. The
recipes are listed by code in the chart below.
The recipe collection harnesses the power of many different cooking modes. All you need to do is place your food
into the cooking space, turn the control knob to recipes, make your selection, and choose the number of portions or
level of browning. The oven determines the rest of the details for you and never overcooks, for delightful results.
The recipes mode is ideal if you are in a hurry, looking to try a new recipe, or need to prepare a variety of food for a
party or social occasion.
Recipes Code
Appetizers R1
Fish in Puff Pastry R2
F is h R olls R3
Beef Stroganoff R4
Beef Pot Roast R5
Pork Loin in Puff Pastry R6
Pasta Gratin R7
Eggplant Gratin R8
Flan R9
Pears in Red Wine R10
R olls R11
Muffins R12
Cake R13
Focaccia R14
My Recipes
It’s easy to cook all your favorite recipes with a convection steam oven for healthier fare that tastes better than ever,
makes meal preparation stress-free, and the cleanup a snap.
With my recipes you can add ten of your favorite recipes, and replace or edit them at your pleasure. Recipes may
also be copied into my recipes, and even edited as you see fit.
Keep Warm
Sometimes great food cannot be enjoyed when it’s hot from the oven. Instead of cooling it, putting it in the refrigera-
tor, and then warming it again in the microwave, simply use the keep warm mode. Food can even be plated and
multiple dinner plates can be kept warm at once, making staggered mealtimes more convenient.
The combination of convection and steam heat preserves food’s taste, texture, looks and quality so every bite is as
delicious as if it were fresh from the oven.
Cleanse
Cleanse mode is ideal for baby bottles and canning jars. Using steam in a contained environment, the cleanse
process is less fussy, faster, and safer than conventional methods.

Page 20
Theory of Operation
CSO24 and CSO30 (SWS #13508346)
3-11 #9001333 - Revision A - August, 2014
Special Modes
Demo Modus (Showroom Mode)
Requirements: In order to switch the Demo Modus (Showroom Mode) ON / OFF, the appliance must be ready for
operation, i.e. all displays - with the exception of the time display – should be dark/off.
To Turn ON: 1. Press and hold the "LIGHT" + "OK" + "OFF" buttons for ten (10) seconds. NOTE: press and
hold the buttons in the order listed. (See Figure 3-2)
a «Demo-Modus» «off» appears in the display.
2. Using the adjusting “OK” knob set the display to «Demo-Modus» «on» (See Figure 3-3).
3. Press the "OK" knob to confirm the change in setting (See Figure 3-4). Press the "Off" button to
exit the configuration mode (See Figure 3-5).
To Turn OFF: 1. Press the "LIGHT" + "OK" + "OFF" buttons simultaneously. «Demo-Modus» «on» appears in the
display (See Figure 3-6).
2. Using the adjusting knob set the display to «Demo-Modus» «off» (See Figure 3-7).
3. Press the "OK" button to confirm the change in setting (See Figure 3-8). Press the "Off" button
to exit the configuration mode (See Figure 3-9).
MODETEMPLIGHT OFFTIMETIMERWATER OK
Demo-Modus
On
Figure 3-2. Turn On Demo Modus - Press and Hold LIGHT + OK + OFF (in that order) for Ten (10) Seconds
MODETEMPLIGHT OFFTIMETIMERWATER OK
Demo-Modus
On
Figure 3-3. Switch Demo Modus to “ON” Position
MODETEMPLIGHT OFFTIMETIMERWATER OK
Demo-Modus
On
Figure 3-4. Set Demo Modus to “ON” Position
